Toastmaster MBT208 User manual

© 2000 Toastmaster, A Middleby Company. All rights reserved. P/N 42510  Rev. C  V1  5/00
MANUFACTURED EXCLUSIVELY FOR
MCDONALDS®BY TOASTMASTER®, A Middleby Company
1400 Toastmaster Drive
Elgin, IL 60120
PHONE: [phone]
FAX: [phone]
24-hour Service Hotline: [phone]

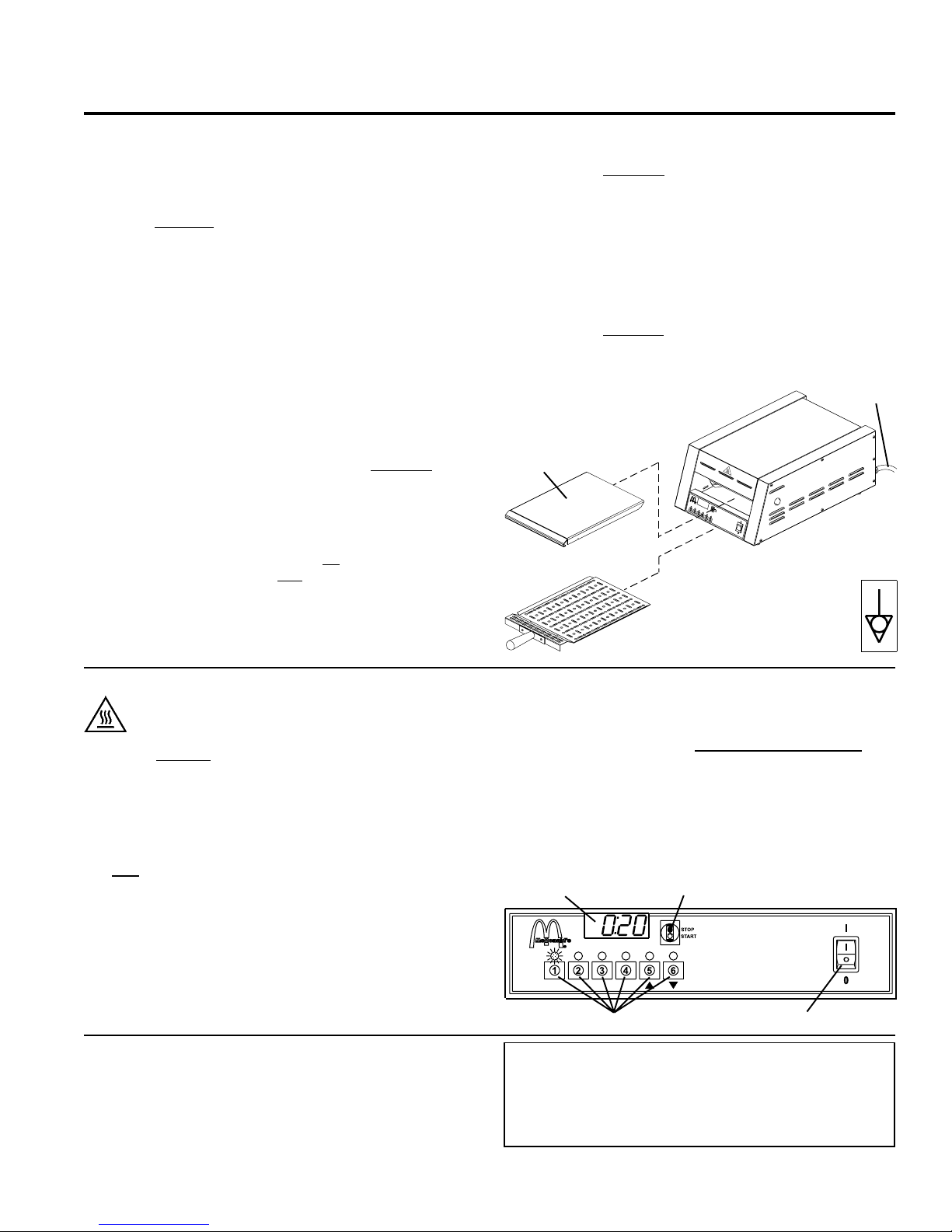

QUICK REFERENCE SHEET
BATCH TOASTER MODELS MBT208 & MBT240
Inspection
If equipment is received in damaged condition a claim must be made
with the delivering carrier. It is the customers responsibility to report
any concealed or non-concealed damage to the freight company.
Unpack and Set-Up
Refer to the Installation section of the Equipment Manual for complete
installation and electrical connection instructions.
1. Carefully lift the toaster out of the carton.
2. Remove all loose parts and documents from the bottom of the
carton.
3. Pull the door handle up and forward to open the door. Then,
remove all components from inside the toaster.
4. Remove and discard all packing material from the toaster and
components.
5. Position the toaster in place. Adjust the bottom section of each
leg as necessary to level the toaster.
6. Adjust the heat curtain at the rear of the toaster so that is sits on
the countertop. Tighten the screws that hold the curtain in place.
7. The door handle is pre-installed on the left side of the toaster. If it
is necessary to move the door handle to the right side of the toaster,
perform the following procedure. Refer to the Installation section
of the Equipment Manual for illustrations.
 Rotate the door handle in a COUNTER-CLOCKWISE direction
until it is free of its mounting shaft.
 Remove the round metal plug that covers the handle mounting
hole on the right side of the toaster.
 Reinstall the metal plug into the left handle mounting hole.
 Install the handle on the right side of the toaster. Rotate it in
a CLOCKWISE direction until it is firmly in place.
 Check that the door handle points DOWN while the door is in
the closed position. If it is necessary to reposition the handle,
loosen its 5/32/4mm Allen set screw. Reposition the handle,
then tighten the screw to fasten the handle in place.
8. Slide the lower deck into the toaster as shown in Figure 1.
9. Store the peel in a clean, dry location underneath the toaster.
10. Refer to the Installation section of the Equipment Manual before
connecting the toaster to the electrical power supply.
11. Check that the appropriate receptacle is available for the power
cord plug.
12. Insert the power cord plug into its receptacle.
13. If required by national or local codes, connect an equipotential
ground wire to the lug next to the equipotential ground symbol on
the rear of the toaster (shown in Figure 1). The equipotential
ground connection must meet all applicable national and local code
requirements.
14. Refer to the Installation section of the Equipment Manual to per-
form the Checking the Installation procedure.
Operation
CAUTION-HOT
During operation, the peel and toaster are hot. Use caution to
avoid injury.
Refer to the Operation section of the Equipment Manual for complete
operating and programming instructions.
Refer to Figure 2 for the locations of the controls described below.
1. Switch the Power On/Off (I/O) switch to the ON (I) position.
2. Allow the toaster to pre-heat for 15 minutes until rdY (ready)
appears in the display.
3. Push and hold the appropriate Program Key until the toaster beeps
once.
4. Load the bakery product onto the peel, cut side facing UP.
5. Pull the door handle forward to open the door.
6. Slide the peel into the toaster to load the product.
7. Release the door handle to allow the door to close.
8. During toasting, the peel can be left inside the toaster or removed,
as you prefer. To remove the peel (if so desired), hold the door
handle closed as you pull the peel out of the toaster.
9. Push the STOP/START key. The digital timer will begin counting
down.
10. Push the STOP/START key when the toaster beeps at the end of
the preset time.
CAUTION: When the preset time elapses, the bakery product is
correctly toasted. Leaving the product inside the toaster after
the first beep has sounded will burn the bakery product.
11. Pull the door handle forward to open the door.
12. If you removed the peel in Step 8, insert it into the toaster and
underneath the bakery product. Remove the peel (now holding the
bakery product) from the toaster.
13. Remove the toasted bakery product from the peel.
Figure 2
Power On/Off (I/O) switchProgram Keys (1-6)
Display STOP/START key
WARNING: In case of fire, IMMEDIATELY disconnect the toaster
from its electrical power supply.
WARNING: Never attempt to move the toaster by inserting the
hands into the entrance/exit opening. Never attempt to move the
toaster while it is plugged into a power socket.
WARNING: Never insert metal tools inside the toaster.
Figure 1
Install lower
deck
Insert power
cord plug
into proper
receptacle
Equipotential
ground symbol (on
rear of toaster)
Store peel
under toaster
