Tokheim Quantium 410 User manual

Document Ref 909342-001

Rev - 11

05/2015

Quantium 410

Installation Manual

Document Ref 909342-001 Rev 11

Quantium 410 Installation Manual

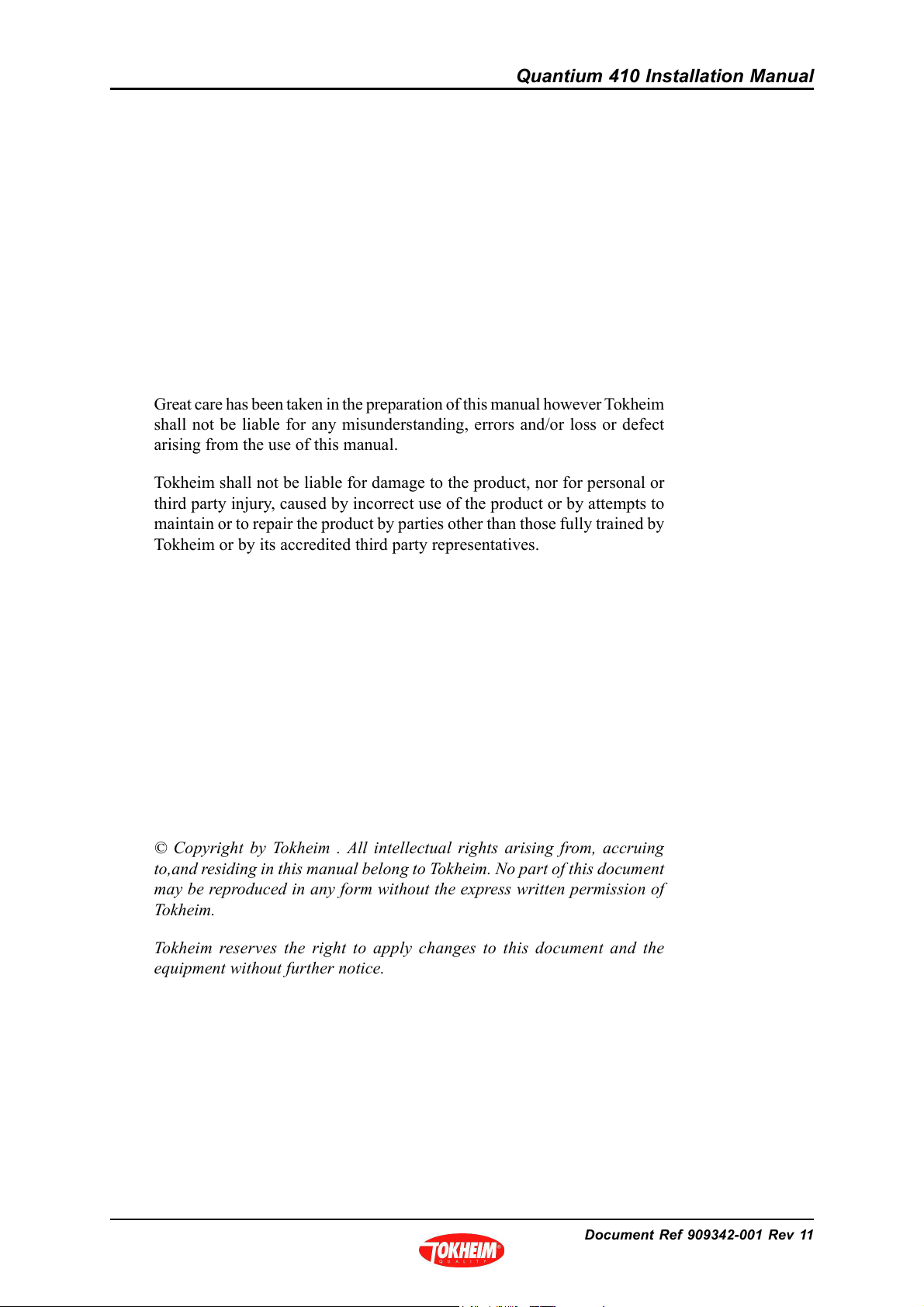

Great care has been taken in the preparation of this manual however Tokheim

shall not be liable for any misunderstanding, errors and/or loss or defect

arising from the use of this manual.

Tokheim shall not be liable for damage to the product, nor for personal or

third party injury, caused by incorrect use of the product or by attempts to

maintain or to repair the product by parties other than those fully trained by

Tokheim or by its accredited third party representatives.

to,and residing in this manual belong to Tokheim. No part of this document

may be reproduced in any form without the express written permission of

Tokheim.

Tokheim reserves the right to apply changes to this document and the

equipment without further notice.

Document Ref 909342-001 Rev 11 1

Quantium 410 Installation Manual Revision Record

REVISION RECORD

Date Revision Page Reason

31/08/2006 1 All Original Issue

20/09/2007 2 Front cover New photo

20/09/2007 2 3-4 Main Contents revised

20/09/2007 2 1-1,1-7,1-8 New infor added for X conditions; certificate no updated

20/09/2007 2 4-1 Section 4 Contents revised

20/09/2007 2 4-3 Section 4.3.1 removed

20/09/2007 2 2-1 Section 2 Contents updated

20/09/2007 2 2-7, 2-10 to 2

Model schematics THS 1-2,HS 1-4,VHS 1-2,VHS 1-4,THSM

1-2,VHSM 1-2 revised

20/09/2007 2 2-20 to 2-22 New info added for VR ethanol flame arresters

20/09/2007 2 2-23,2-24 New pages inserted (VR ethanol flame arresters)

20/09/2007 2 5-1 Section 5 Contents updated

20/09/2007 2 5-4 Info added on fixing to ground; repagination

20/09/2007 2 5-5 to 5-7 Info added for fixing to ground & manchet; references to EPZ

& PAS V3 removed; repagination

20/09/2007 2 5-8 to 5-18 Text and drawings updated to new terminal arrangements;

removal of lighting supply cable; repagination

20/09/2007 2 5-19,5-20 New pages inserted; repagination

20/09/2007 2 6-1 to 6-4 New info inserted (EC & TC)

20/09/2007 2 6-5 to 6-8 New pages inserted (new info EC & TC)

10/01/2008 3 3,4 Main Contents revised

10/01/2008 3 1-1 Section 1 Contents revised

10/01/2008 3 1-8 New info added for MID

10/01/2008 3 2-2 Zoning diagram updated

10/01/2008 3 2-3 to 2-6,2-8,

2-9,2-13

Removal of "* Not available at present" and THS models

removed; repagination

10/01/2008 3 2-7, 2-10,2-11,2

Removal of "* Not available at present" and THS models

removed; repagination

10/01/2008 3 3-4 to 3-9 Removal of "* Not available at present" and THS models

removed

10/01/2008 3 5-1 Section 5 Contents revised

10/01/2008 3 5-4 Numbers 2 & 3 highlighted as important

10/01/2008 3 5-8 to 5-20 New info added for earthing; repagination

10/01/2008 3 5-21,5-22 New pages inserted; repagination

10/01/2008 3 6-1 Section 6 Contents revised

10/01/2008 3 6-1 to 6-4 9

10/01/2008 3 6-5 to 6-8 Repagination

29/05/2009 4 5-1 Section 5 Contents revised

4 5.5.3 Addition of Spin on filter

30/10/2009 5 Front Cover New photograph showing hanging hose

5 2.2.1 Standard speed models. Removal of some models.

5 2.2.2 Multi prod.with HS models. Removal of some models.

5 2.2.3 Multi prod.with VHS models. Removal of some models.

5 2.3.1 Change to text on drawing to reflect suction & submerged

5 3.2.3 Addition of VHS 2-4 drawing

5 5.4.3 New dispenser earthing photograph

5 5.6.4 Addition of new outdoor payment terminals and vidium power

drawings

2Document Ref 909342-001 Rev 11

Revision Record Quantium 410 Installation Manual

Date Revision Chapter Reason

28/02/2011 6 2.1.1 Update to the Standard model graphic to reflext latest

changes.Addition of the TQC-VGA Mediahead Configuration

6 3.2 Update to the Standard model graphic to reflext latest

changes.Addition of the TQC-VGA Mediahead dimension

configuration

19/08/2011 6.1 All (Rev 6.1) Tokheim Watermark

6.1 3.3 (Rev 6.1) New Groundframe drawings & part numbers

02/02/2012 7 1.5.3 Additional text to highlight care and attention when removing

and storing lighter panels and cladding.

7 1.6 Update to Machinery Directive & addition of the Stage II

Vapour Recovery system European Directive.

09/03/2012 7.1 1.7 Change to text (Meter calibration)

7.1 2.3.3 Update to all VR drawings

7.1 3.1 & 3.2 Update to dispenser dimension drawings.

09/03/2012 7.1 6.2 Change to text (MID certified dispensers)

7 Front Cover Change to front cover

7 Back Cover Change to back cover

24/05/2012 7.1 Front Cover New Photograph

7.2 2.1.1 New zoning diagram Q410 LC Standard Head

7.2 3.1.3 New dimention drawing Q410 LC Standard Head

7.1 5.4.2 New Lifting and placement procedures for Q410 LC Standard

Head

06/09/2012 8 2 Revision Record updated

8 3-3, 3-4 TQC-VGA & Q410LC dimension drawings updated

8 4-5 Section 4.9 Access Cable Glands added

8 5-14 to 5-17 Drawings updated

8 5-5 Note added regarding slot dimensions

07/03/2013 9 3, 4 Main Contents updated

9 2-1 Section 2 Contents updated

9 2-5 Blank page removed

9 3-1 Section 3 Contents updated

9 3-6 Section 3.2.3 Ground Frame part numbers table added

9 5-1 Section 5 Contents updated

9 5-9 New section added, "Installation of TQP-HS Pumps"

9 5-12 New section added, "Fitting a Risbridger Check Valve"

9 5-14 Section 5.6.1 Junction Box Wiring updated

9 Back Cover Glossary updated

07/01/2014 9.1 5-3 Q410 LC should only be lifted using forklift slots

9.1 5-7 5.4.3 Leak plate sealing added

14/04/2015 10 5.6.6 Added section on connecting VR pipes.

27/05/2015 11 5.5.7 Added Installation of New Submerged.

11 2.5 Added Submerged Connections.

Document Ref 909342-001 Rev 11 3

Quantium 410 Installation Manual Contents

CONTENTS

1 INTRODUCTION........................................................................................................ 1-2

1.1 How To Use This Manual .................................................................................... 1-2

1.2 Product Scope ...................................................................................................... 1-2

1.3 Authorised Technicians ........................................................................................1-3

1.4 Contact Information ............................................................................................. 1-3

1.5 Health & Safety ...................................................................................................1-3

1.5.1 Safety Checklist ................................................................................... 1-3

1.5.2 Duties of the Employees ...................................................................... 1-3

1.5.3 Hazards................................................................................................ 1-4

1.5.4 Warning Signs ......................................................................................1-5

1.5.5 Personal Protective Equipment (PPE) ................................................1-6

1.6 Standards & Certificates ......................................................................................1-6

1.6.1 Dispenser Marking for the ATEX Directive ........................................1-7

1.6.2 Special Conditions for Safe Use ..........................................................1-8

1.7 MID Dispensers ................................................................................................... 1-8

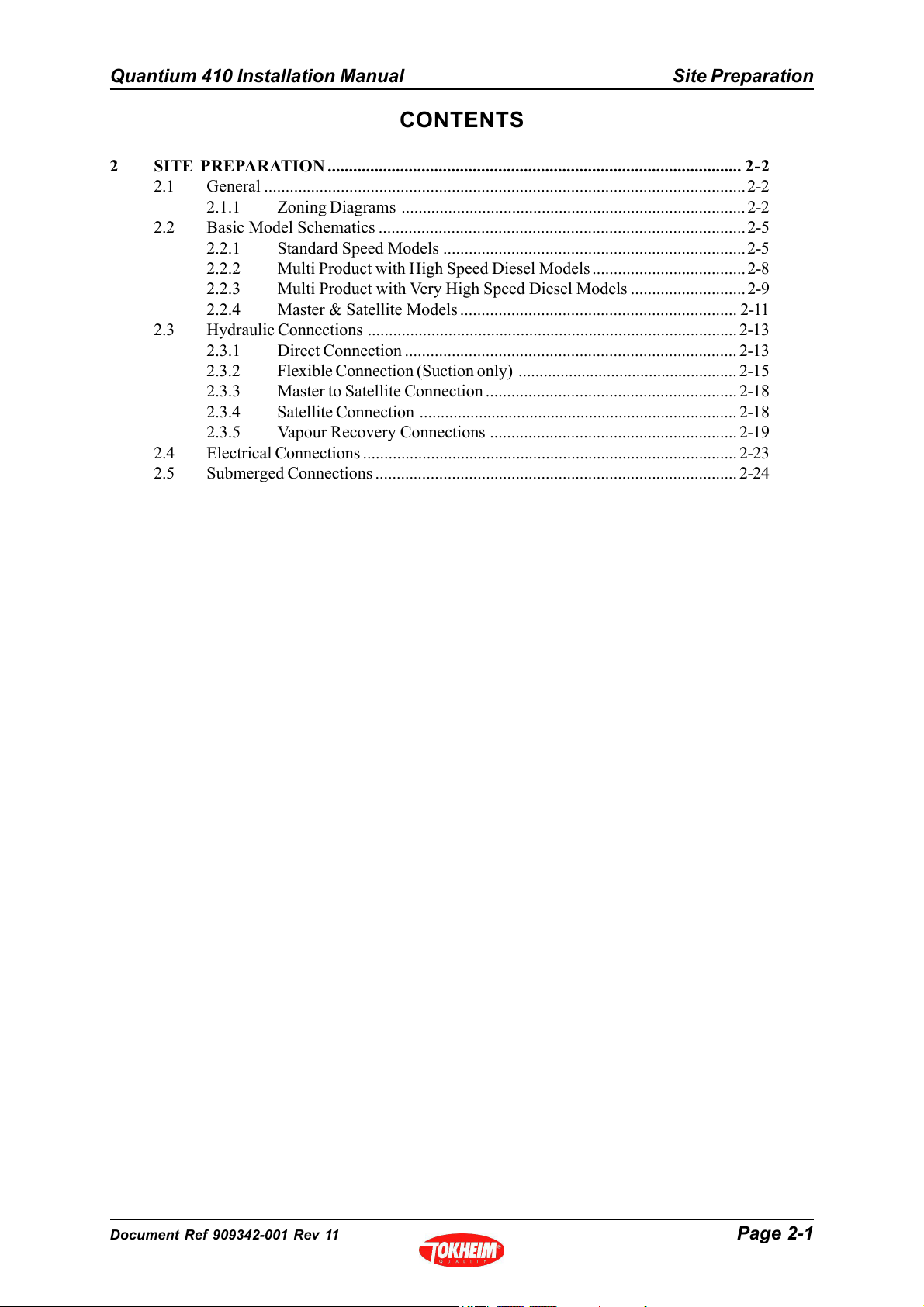

2 SITE PREPARATION ................................................................................................. 2-2

2.1 General .................................................................................................................2-2

2.1.1 Zoning Diagrams ................................................................................. 2-2

2.2 Basic Model Schematics ...................................................................................... 2-5

2.2.1 Standard Speed Models .......................................................................2-5

2.2.2 Multi Product with High Speed Diesel Models .................................... 2-8

2.2.3 Multi Product with Very High Speed Diesel Models ...........................2-9

2.2.4 Master & Satellite Models ................................................................. 2-11

2.3 Hydraulic Connections ....................................................................................... 2-13

2.3.1 Direct Connection .............................................................................. 2-13

2.3.2 Flexible Connection (Suction only) .................................................... 2-15

2.3.3 Master to Satellite Connection ........................................................... 2-18

2.3.4 Satellite Connection ........................................................................... 2-18

2.3.5 Vapour Recovery Connections .......................................................... 2-19

2.4 Electrical Connections ........................................................................................ 2-23

2.5 Submerged Connections ..................................................................................... 2-24

3 DRAWINGS ................................................................................................................... 3-2

3.1 Dispenser Dimensions. .........................................................................................3-2

3.1.1 Standard Head (To August 2011) ........................................................ 3-2

3.1.2 TQC -VGA Media Head (From September 2011) ..............................3-3

3.1.3 Q410 LC - Standard Head ..................................................................3-4

3.2 GroundFrames ......................................................................................................3-5

3.2.1 Retrofit Groundframe .......................................................................... 3-5

3.2.2 Direct Connection Groundframe ......................................................... 3-5

3.2.3 Groundframe Part Numbers ................................................................3-6

3.3 Ground Plan - New Installations only...................................................................3-6

3.3.1 Generic DripTray ................................................................................. 3-6

3.3.2 Single Product ...................................................................................... 3-7

3.3.3 Two Product ........................................................................................ 3-8

3.3.4 Three Product ......................................................................................3-9

3.3.5 Four Product ...................................................................................... 3-10

3.3.6 Master................................................................................................ 3-11

3.3.7 Satellite .............................................................................................. 3-12

(CONT.)

4Document Ref 909342-001 Rev 11

Contents Quantium 410 Installation Manual

4 PACKAGING & HANDLING ................................................................................... 4-2

4.1 Shipping Documentation ....................................................................................... 4-2

4.2 Packaging .............................................................................................................4-2

4.2.1 Unpacking ............................................................................................ 4-2

4.3 Inventory Inspection .............................................................................................4-2

4.4 Weights ................................................................................................................. 4-3

4.5 Handling ............................................................................................................... 4-3

4.6 Access to the Hydraulic Area ..............................................................................4-4

4.7 Access the Junction Box Connections .................................................................4-4

4.8 Access to the Calculator Head ............................................................................ 4-5

4.9 Access to the Cable Glands .................................................................................4-5

5 INSTALLATION .......................................................................................................... 5-2

5.1 General .................................................................................................................5-2

5.2 Identification of Sides ...........................................................................................5-2

5.3 Lifting ...................................................................................................................5-3

5.4 Placement ............................................................................................................. 5-3

5.4.1 By Forklift ............................................................................................ 5-4

5.4.2 Q410 LC By Forklift ............................................................................ 5-5

5.4.3 Leak Plate Sealing ...............................................................................5-7

5.4.4 Fixing to Ground ................................................................................... 5-8

5.4.5 Earthing ................................................................................................ 5-9

5.5 Hydraulic Connections ....................................................................................... 5-10

5.5.1 Installation of TQP-HS Pumps .......................................................... 5-10

5.5.2 Pipework - dispensers with direct connection

(Suction or Submerged) ..................................................................... 5-10

5.5.3 Pipework - dispensers with flexible connection (Suction only) .......... 5-11

5.5.4 Fitting a Risbridger Check Valve ....................................................... 5-13

5.5.5 Spin On Filter (Option) ...................................................................... 5-13

5.5.6 Pipework - VR .................................................................................. 5-14

5.5.7 New Submerged Installation .............................................................. 5-14

5.6 Electrical Connections ........................................................................................ 5-16

5.6.1 Junction Box Wiring ........................................................................... 5-16

5.6.2 Communications Wiring in Main Junction Box .................................. 5-25

5.6.3 Special Dispenser Configurations ...................................................... 5-27

5.6.4 Outdoor Payment Terminals and Vidium Power ............................... 5-29

6 COMMISSIONING ..................................................................................................... 6-2

6.1 Testing and programming the Dispenser ..............................................................6-2

6.1.1 Programming the Dispenser ................................................................ 6-2

6.1.2 Dispenser Functions.............................................................................6-2

6.1.3 Testing the Dispenser ..........................................................................6-3

6.2 Calibration of the Dispenser ................................................................................. 6-3

6.2.1 Mechanical Calibration of the Meter ...................................................6-4

6.2.2 Electronic Calibration of the MPE Pulser............................................ 6-5

6.2.3 Temperature Compensation Function .................................................. 6-7

6.3 Final Checks .........................................................................................................6-8

6.4 Handing over to the Station Manager .................................................................. 6-8

Quantium 410 Installation Manual Introduction

Document Ref 909342-001 Rev 11 Page 1-1

CONTENTS

1 INTRODUCTION ...........................................................................................................1-2

1.1 How To Use This Manual ....................................................................................1-2

1.2 Product Scope ......................................................................................................1-2

1.3 Authorised Technicians .........................................................................................1-3

1.4 Contact Information ..............................................................................................1-3

1.5 Health & Safety ....................................................................................................1-3

1.5.1 Safety Checklist ...................................................................................1-3

1.5.2 Duties of the Employees ......................................................................1-3

1.5.3 Hazards ................................................................................................1-4

1.5.4 Warning Signs ......................................................................................1-5

1.5.5 Personal Protective Equipment (PPE) .................................................1-6

1.6 Standards & Certificates .......................................................................................1-6

1.6.1 Dispenser Marking for the ATEX Directive.......................................... 1-7

1.6.2 Special Conditions for Safe Use ...........................................................1-8

1.7 MID Dispensers ....................................................................................................1-8

Page 1-2 Document Ref 909342-001 Rev 11

Introduction Quantium 410 Installation Manual

1 INTRODUCTION

1.1 How To Use This Manual

It is recommended that all relevant persons familiarise themselves with the contents of this

manual prior to carrying out any operations or procedures.

This manual is divided into sections which are described as follows: -

Section 1 - Introduction

This section contains information on how to use the manual, the scope of equipment covered,

recommendations on qualified technicians and contact information. It also includes relevant

health and safety information required for the safe installation and commissioning of the

product.

Section 2 - Site Preparation

This section details the procedures to be carried out in preparation for receipt of equipment

at site and the necessary actions prior to installation.

Section 3 - Drawings

All necessary drawings required for reference during the installation and commissioning

are listed and contained in this section.

Section 4 - Packaging and Handling

This section provides instructions for unpacking and safe handling of the equipment

including access to the hydraulic and calculator areas.

Section 5 - Installation

The instructions for the correct installation of the equipment are contained within this

section.

Section 6 - Commissioning

This section highlights the actions and checks, to be carried out, in preparation for the

commissioning activity and the procedures required from commissioning of the equipment

to handover.

1.2 Product Scope

The equipment and models covered by the contents of this manual are: -

The Quantium 410 range of fuel dispensers, with the exception of the LPG version. For

information on Quantium LPG dispensers refer to the relevant LPG manual as provided

by Tokheim.

All dispensers in the Quantium 410 range use the same standard sub-assemblies and offer

a wide range of configurations and includes provision for options such as integrated

payment terminal, vapour recovery etc.

Quantium 410 Installation Manual Introduction

Document Ref 909342-001 Rev 11 Page 1-3

1.3 Authorised Technicians

Only qualified technicians familiar with the contents of this manual should carry out the

procedures contained herein.

WARNING: ANY ATTEMPTS TO CARRY OUT THE PROCEDURES OF THIS

MANUAL, BY UNQUALIFIED OR UNAUTHORISED PERSONS, MAY RESULT

IN SERIOUS INJURY OR LOSS OF LIFE.

NOTE: - THIS MANUAL IS NOT INTENDED TO REPLACE THE SERVICES

OF A FULLY QUALIFIED TECHNICIAN.

1.4 Contact Information

For information relating to the contents of this manual please contact: -

Technical Author

Tokheim UK Ltd.

Dundee, Scotland

1.5 Health & Safety

1.5.1 SAFETY CHECKLIST

•It is obligatory that this checklist be fully complied with during all work at the

petrol station, particularly construction or repair work.

•It is the duty of the contractor to ensure that all workers employed by him obey

each and all of the relevant laws, directives and other regulations.

Areas where special caution is required

•The insides of tanks, tubes, dome shafts, filling shafts, change over shafts, vessels

and dispensers.

•All areas in which fuel vapour that is heavier than air can accumulate, e.g. fuel

separator, draining shafts, low located rooms, cellars, excavations, pipe trenches

etc.

•The areas around the outlets of tank ventilation pipes, especially during the

filling phase.

•All areas near dispensers, tanker lorries and other vehicles while they are being

tanked up, and particularly when there is a lack of wind.

•A radius of 1.0 metres around petrol carrying pipes, as well as pipes that are not

vapour free.

•Silt traps.

1.5.2 DUTIES OF THE EMPLOYEES

•To ensure optimal accident prevention in our company, in addition to general

rules applying to worker’s protection, it is necessary to take into account all the

national protection of workers legislation and to actively support all measures

which enhance safety standards.

Page 1-4 Document Ref 909342-001 Rev 11

Introduction Quantium 410 Installation Manual

•It is an employee’s duty to follow all company directives regarding the prevention

of accidents, unless such directives can be proved to be unfounded.

•Employees should not follow any instructions that go against safety standards.

•Employees are only permitted to use equipment for its original purpose, and this

is defined by the company alone.

•If an employee detects equipment that is deficient in terms of safety, he shall

eliminate this deficiency immediately. If such safety rectification is not part of

his defined area of activities, or if his knowledge is insufficient to carry out

such work he must immediately inform his superior about the detected safety

deficiency.

This equally applies to:

1) Work Materials which have not been correctly packed or correctly marked in

order to meet safety requirements.

2) Work Methods or work processes which have not been correctly coordinated

or controlled in order to meet safety requirements.

3) Where dangerous activities are carried out by several persons, the need for

a permanent faultless communication between them in order to avoid dangerous

events shall require the appointing of one person in order to carry out overall

supervision.

1.5.3 HAZARDS

Prior to starting work, the dispenser must be isolated (i.e. entirely disconnected

from the mains supply) and the mains supply switch locked in the OFF position.

The submerged pump (if applicable) and control signals from the dispenser

must also be isolated. This is done to provide safety for the technician. As a

further precaution, switch off the mains supply in the service station shop and

place a clear notice on the switch to avoid it being turned on again inadvertently.

WARNING: - THE CONNECTION AND DISCONNECTION OF

ELECTRICAL CONNECTIONS MAY ONLY BE CARRIED OUT BY

QUALIFIED PERSONNEL AUTHORISED FOR SUCH ACTIVITIES.

WORK IN DANGEROUS AREAS MUST BE MADE SAFE BY

OBSERVING ALL THE NATIONAL SAFETY REQUIREMENTS IN

FORCE.

It is not permitted to put a fuel dispenser into operation before an authorised

official has inspected it and released it. This depends upon the national

regulations in force.

Dismantled packaging and cladding must be stored in such a way as to avoid

damage to components or injuries to persons. Some cladding and panels can be

extremely light, therefore in windy conditions care must be taken when removing

and storing. Covers that can be opened, such as the calculator housing, should be

handled with care. Ensure that the retaining catch is placed in the correct position

to prevent the cover falling onto the head of the service engineer or other persons

in the area.

Quantium 410 Installation Manual Introduction

Document Ref 909342-001 Rev 11 Page 1-5

At unattended service stations, every end-user should be able to read the User

Instructions. They should be visible on a notice board or integrated into the DIT

and should be sufficiently well lit so that they can be read at night.

At unattended service stations break away couplings must always be used to

reduce the danger caused by a motorist driving off with the nozzle still in the

tank.

1.5.4 WARNING SIGNS

The following warning signs are fitted as standard, on the dispenser, however

they may vary according to individual country requirements or customer

specifications.

Do not spill fuel on the

ground

Visible from both

sides of dispenser

Stop vehicle engine Visible from both

sides of dispenser

At Diesel high speed

dispensers near the

nozzle boots

Do not drive away with

nozzle in tank

Visible from both

sides of dispenser

Trucks only

No naked flames Visible from both

sides of dispenser

Do not use mobile

phones

SIGN

Visible from both

sides of dispenser

MEANING POSITION

Smoking forbidden Visible from both

sides of dispenser

Next to User Instructions

near the nozzle boot

Page 1-6 Document Ref 909342-001 Rev 11

Introduction Quantium 410 Installation Manual

1.5.5 PERSONAL PROTECTIVE EQUIPMENT (PPE)

PROTECTIVE CLOTHING

The following clothing should be worn at all times during installation and

maintenance procedures:-

•Protective helmet.

•Protective shoes (conductive).

•Protective gloves and/or protective hand cream.

•Anti static clothing.

•Eye protection.

SAFETY EQUIPMENT FOR WORKING IN HAZARDOUS AREAS

The following safety equipment is required for working in hazardous areas:-

•Only spark free tools are permitted for work on dispensers.

•Work on bearings is only permitted using the standard workshop tools authorised

for this kind of work.

•The use of all electrical tools is strictly prohibited.

•Only the use of explosion protected work lights is permitted.

•The use of telecommunications equipment in hazardous areas is strictly

prohibited.

SAFETY INSTRUCTIONS

The following safety instructions must be adhered to during installation and

maintenance procedures:-

•Inhalation of petrol vapour must be avoided. Suitable precautions must be

taken and where necessary respirators used.

•Avoid direct contact of fuel with the skin.

•Use suitable protective clothing, protective gloves and/or protective hand cream.

•Avoid fuel spills.

•No smoking, no naked flames are permitted.

•Long hair and ties can get caught in moving parts. Hair must be suitably covered.

1.6 Standards & Certificates

This dispenser is constructed in conformity with the requirements of all the applicable

European Directives (Machinery 2006/42/EC; EMC 89/336/EEC; ATEX 94/9/EC).

The components used within the dispenser, including connection facilities, are selected in

accordance with the European Standard EN BS 60079-0 (ElectricalApparatus for explosive

gas atmospheres), and the supplementary Standards listed therein.

Diesel dispensers do not create an explosive hazard, but due to the probability of these

being in close proximity to gasoline dispensers, the same construction rules are applicable.

Quantium 410 Installation Manual Introduction

Document Ref 909342-001 Rev 11 Page 1-7

The dispenser is certified by SIRA as suitable for use in Potentially Explosive Atmospheres

Directive 94/9/EC, and marked to be in accordance with the European Dispenser Construction

Standard EN 13617-1.

This dispenser is also certified to OIML International Recommendations R117 and R118.

Certificate Numbers R117/1995-NL-01.04 & 08.

Dispensers fitted with a Stage II Vapour Recovery system, are in conformity with the

requirements of European Directive 2009/126/EC.

The production and end test is controlled through the Quality Assurance systems within the

Tokheim Manufacturing Centres, and has received Quality Assurance Notification from a

Notified Body.

No modification to the dispenser may be performed without express permission from Tokheim

and must always use original components or Tokheim retrofit kits. Failure to comply with

the above will invalidate product conformance with the relevant European Directives and

Tokheim will no longer accept product liability.

1.6.1 DISPENSER MARKING FOR THE ATEX DIRECTIVE

The dispenser is labelled by Tokheim in accordance with the requirements of the

ATEX Directive. This labelling includes:-

•The CE mark (CE conformity)

•The specific explosion protection mark, together with the mark indicating the

equipment group and category; and, relating to equipment group II, the letter

“G” (concerning explosive atmospheres caused by gases and vapours)

•The “Tokheim” name or logo and manufacturing location

•The dispenser type and serial number including the year of production

Labels can either be plastic stickers or metal plates and may vary according to

national requirements. A typical example of a label follows:-

0518 SIRA

0081 LCIE

DUNDEE

GRENTHEVILLE

“X” CONDITIONS -

refer to section 1.6.2

Page 1-8 Document Ref 909342-001 Rev 11

Introduction Quantium 410 Installation Manual

1.6.2 SPECIAL CONDITIONS FOR SAFE USE

Certain models include Special Conditions for Safe Use which must be observed

prior to putting the dispensers into operation. Failure to do so will invalidate the

ATEX certification of the dispenser. These models can be identified by an X at

the end of the certificate number as shown on the dispenser typeplate.

The Special Conditions for Safe Use are identified in the ATEX EC Type-

Examination Certificates and are repeated below:-

•Where a dispenser is supplied without hoses and/or nozzles, they shall be fitted

in accordance with:

- Hoses : EN1360 or EN13483

- Nozzles: EN13012

•When used for ethanol (blend) dispensing, the fuel specification must be less

than or equal to 85% ethanol, with minimum water content.

•The metering pumps and dispensers are designed for use in open air. Where a

metering pump or dispenser is positioned within a building, incorporated into an

enclosure, or integrated into a larger piece of equipment, additional measures

shall be taken to ensure that the zoning diagrams illustrated in the schedule

drawings are not compromised.

1.7 MID Dispensers

From mid 2007, Tokheim dispensers may be shipped from European factories in accordance

with the Metrological Instruments Directive (MID). Such dispensers are calibrated and the

relevant seals stamped in the factory so that the dispensers are fit for trade immediately

upon installation without the need for a local Weights and Measures inspector to put them

into use.

The dispenser is shipped with its own “MID datasheet” which documents the serial numbers

of the prime components fitted in the dispenser. This datasheet must remain with the

dispenser. Similarly dispensers are shipped with a Declaration of Conformance to the MID.

This document must not be lost as it is an essential document to allow the continued use of

the dispenser.

MID dispensers can be identified by the typeplate which

contains a reference to the MID certificate number as

shown:-

CHECKING THE SEALS

It is the responsibility of the Installer to check that all required seals are present and correct

prior to putting the dispenser into use. This includes seals on the pumping unit, meter,

pulser and calculator. Under no circumstances must any seals be disturbed or broken

during installation.

METER CALIBRATION

If requested by the site owner a calibration check could be performed as part of the

commissioning procedure. (refer to section 6).

Document Ref 909342-001 Rev 11 Page 2-1

Quantium 410 Installation Manual Site Preparation
