ToooAir TA-450 User manual

USER’S MANUAL
WIDE AREA IP 2WAY RADIO
MODEL: TA-450

i
CONTENTS
TA-450 DIAGRAM.........................................................ii
LED INDICATION..........................................................iii
SPECIFICATIONS ..........................................................iii
In The Box................................................................iii
BASIC OPERATIONS......................................................4
Power On .................................................................4
Power Off .................................................................4
Transmitting.............................................................4
Receiving..................................................................4
ADVANCED OPERATIONS.............................................4
Change Group..........................................................4
Missed Call...............................................................4
Private Call...............................................................4
SOS Duress...............................................................4
IMPORTANT NOTICE....................................................5
WARRANTY ..................................................................5
1. Consumer guarantees..........................................5
2. Warranty against defects.....................................5
3. This warranty does not cover ..............................5
4. Warranty period ..................................................5
READ ALL INSTRUCTIONS carefully and completely before operating your radio and retain this manual for future reference.
NEVER connect the radio to a power source other than the supplied battery and charge via supplied charger.
DO NOT place your radio in front of a vehicle airbag.
DO NOT attempt to modify your radio in any way.
DO NOT allow children to operate the radio unsupervised.
ALWAYS charge your radio at normal room temperature. ALWAYS switch off your radio where notices restrict the use of two-way radio or mobile
telephones. ALWAYS keep the antenna more than 25 mm from any part of the head or body when transmitting.
NOTE People with pacemakers are recommended to maintain at least 20cm separation between the radio and their pacemaker.

ii

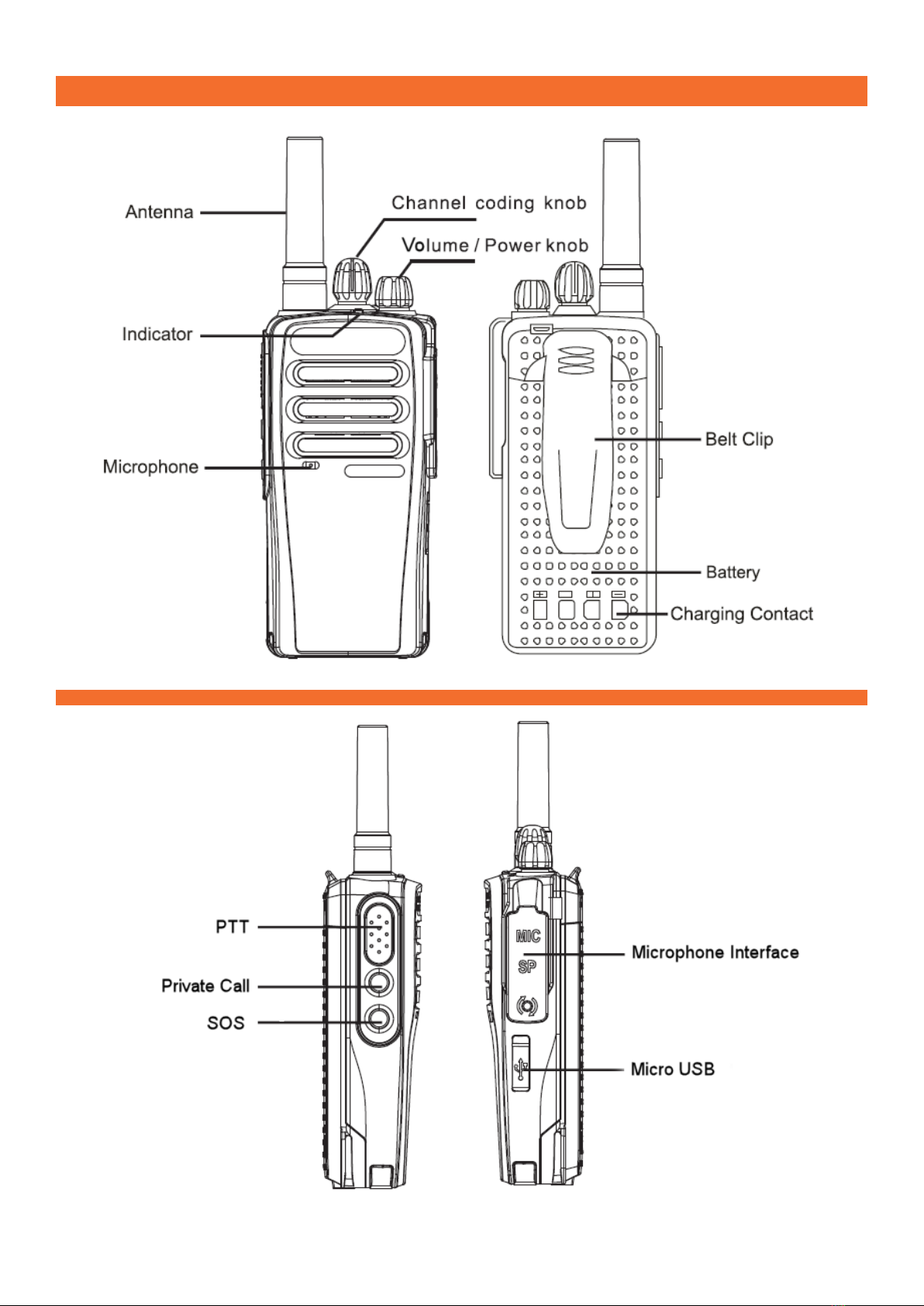

TA-450 DIAGRAM

iii
LED INDICATION
OPERATING STATE
INDICATION
Powering On
Green (Steady)
Connecting to Network
Green (Rapid Blinking)
Idle
Green (Slow Blinking)
Receiving
Green (Steady)
Transmitting
Red (Steady)
Powering Off
NO LED
SPECIFICATIONS
Model Number:
TA-450
Dimensions:
135mm x 60mm x 37mm
Weight:
250g
Working temp:
-30℃to +75℃
Ingress Protection:
IP54
Audio Output:
8Ω, 2W
Battery:
4000mAh
Talk Time:
12.5 hours
Standby Time:
22 hours
LTE FDD:
Band 1/3/5/7/8/20/28A/28B
WCDMA:
Band 1/5/8
WiFi:
IEEE 802.11 a/b/g/n (2.4 & 5Ghz)
Bluetooth:
BT 4.2
GPS:
GPS Positioning, 1.57542GHz & AGPS
Sensitivity:
Catch -144dBm, Track -159dBm;
USB:
Micro USB 2.0
Card Slot:
Micro SIM Card
OS:
Android 7.1
CPU:
MTK6739
Memory:
RAM 1GB
SSD 8GB
Speaker Microphone Interface:
3.5mm + 2.5mm K1 connector
In The Box
Please carefully unpack the radio and check if all items listed below are received. If any items are missing or damaged, please contact your dealer.
Item
Quantity
Handheld Radio
1
Lithium Battery
1
LTE Antenna
1
Power Adapter
1
USB Cable
1
Drop-in Cradle
1
Sling
1
Belt Clip
1
User’s Manual
1

4
BASIC OPERATIONS
Power On
Turn on/off volume switch clockwise to power on, the LED will illuminate solid green as the TA-450 powers up. While the unit attempts to connect to the
network the LED will blink green (this can take 20 seconds).
Power Off
Turn the on/off volume switch anticlockwise to power off, the LED will stop illuminating the radio is now powered off.
Transmitting
Press the PTT and the LED will illuminate red indicating the radio is in transmit mode.
Receiving
When receiving a transmission, the LED will illuminate green indicating the radio is receiving a transmission.
ADVANCED OPERATIONS
Change Group
The unit can change between groups to communicate with different users. Rotate the channel coding knob clockwise or anti clockwise to change between
groups. A voice prompt will call out the group name the radio is changing into or will voice “No Group” if there are no more groups.
Missed Call
In the event a private call is made to the TA-450 and the private call is not acknowledged with a PTT transmission, after 20 seconds a Missed Call Alert audible
noise will prompt for the next 30 minutes.
While the Missed Call alert is active short pressing the PTT button will acknowledge the Missed Call and stop the alert.
Private Call
The TA-450 can create private calls.
1. short press the Private Call button to select desired user to
perform private call.
2. Each short press of the Private Call button will cycle through the
user list of the group the radio is currently in, the radio will voice
the current selected user.
3. Once desired user is selected long press the Private Call button to
initiate private call.
4. A voice prompt will call out if the call is successful and the user
that is in the private call.
5. Long press the Private Call button to exit the private call.
SOS Duress
In the event of an emergency the radio can send an SOS duress to all other
users in the fleet.
1. Press and hold the SOS button for 3 seconds to trigger the SOS
duress.
2. Once the SOS duress has been triggered the microphone will
open for hands free PTT transmission for 20 seconds.
3. When receiving an SOS duress short pressing the PTT button will
acknowledge the SOS duress and stop the alert.

5
IMPORTANT NOTICE
READ ALL INSTRUCTIONS carefully and completely before operating your radio and retain this manual for future reference.
• NEVER connect the radio to a power source other than via supplied power adapter.
• DO NOT place your radio in front of a vehicle airbag.
• DO NOT attempt to modify your radio in any way.
• ALWAYS switch off your radio where notices are displayed that restrict the use of two-way radio or mobile telephones.
• DO NOT hold radio / speaker to ear.
WARRANTY
This warranty against defects is given by Tooo Air Pty Ltd ABN 58 615 252 536
1. Consumer guarantees
1.1 Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a
major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
1.2 To the extent we are able, we exclude all other conditions, warranties and obligations which would otherwise be implied.
2. Warranty against defects
2.1 This warranty is in addition to and does not limit, exclude or restrict your rights under the Competition and Consumer Act 2010 (Australia) or any
other mandatory protection laws that may apply.
2.2 We warrant our goods to be free from defects in materials and workmanship for the warranty period of 12 months from the date of original sale.
Subject to our obligations under clause 1.2, we will at our option, either repair or replace goods which we are satisfied are defective. We warrant any
replacement parts for the remainder of the period of warranty for the goods into which they are incorporated.
2.3 To the extent permitted by law, our sole liability for breach of a condition, warranty or other obligation implied by law is limited
(a) in the case of goods we supply, to any one of the following as we decide –
(i) the replacement of the goods or the supply of equivalent goods;
(ii) the repair of the goods;
(iii) the cost of repairing the goods or of acquiring equivalent goods;
(b) in the case of services we supply, to any one of the following as we decide –
(i) the supplying of the services again;
(ii) the cost of having the services supplied again.
2.4 For repairs outside the warranty period, we warrant our repairs to be free from defects in materials and workmanship for three months from the
date of the original repair. We agree to re-repair or replace (at our option) any materials or workmanship which we are satisfied are defective.
2.5 We warrant that we will perform services with reasonable care and skill and agree to investigate any complaint regarding our services made in
good faith. If we are satisfied that the complaint is justified, and as our sole liability to you under this warranty (to the extent permitted at law), we agree to
supply those services again at no extra charge to you.
2.6 To make a warranty claim you must before the end of the applicable warranty period, return the goods you allege are defective, provide written
details of the defect, and give us an original or copy of the sales invoice or some other evidence showing details of the transaction.
2.7 Send your claim to:
Tooo Air Pty Ltd. Suite 1103, 1 Newland Street, Bondi Junction NSW 2022.
Tel: [phone]
Email: [e-mail]
3. This warranty does not cover
This warranty will not apply in relation to:
(a) goods modified or altered in any way;
(b) repairs performed other than by our authorised representative;
(c) defects or damage resulting from misuse, accident, impact or neglect;
(d) goods improperly installed or used in a manner contrary to the relevant instruction manual; or
(e) goods where the serial number has been removed or made illegal
(f) goods connected to an incorrect power source
4. Warranty period
The warranty on the ToooAir TA-450 Wide Area IP 2 Way Radio and Power Adapter is 12 Months. No repair or replacement during the warranty period will
renew or extend the warranty period past the period from the original date of purchase.

ToooAir Pty. Ltd.
Address: Suite 1103, 1 Newland Street Bondi Junction, NSW 2022
Phone: [phone]
Website: www.toooair.com.au
Email: [e-mail]
