Top ASW200 User manual

Thank you for choosing TOP VME .
ASW200
Mask Vending Machine
User Guide

Content
1. Introduction....................................................................................................................1
1-1. Overview........................................................................................................................ 1
1-2. Features......................................................................................................................... 1
2. Specifications.................................................................................................................2
2-1. General.......................................................................................................................... 2
2-2.Electronic....................................................................................................................... 2
2-3.Mechanical.................................................................................................................... 2
3. Content...........................................................................................................................2
4. Dimensions....................................................................................................................3
5. Main Control Board.....................................................................................................4
5-1. Key Function ................................................................................................................ 4
5-2. Display .......................................................................................................................... 5
5-3. Setting Stock ............................................................................................................... 5
5-4. Setting Price ................................................................................................................ 6
5-5. Motor Test.................................................................................................................... 6
5-6. Lever Position.............................................................................................................. 7
5-7. Pulse Multiplier ........................................................................................................... 7
5-8. Low Level Sensor Test............................................................................................... 7
6. Description.....................................................................................................................8
6-1. Fixing Machine to a wall ........................................................................................... 9
6-2. Machine Feet ............................................................................................................. 10
6-3. Circuit Breaker and Main Switch ............................................................................10
6-4. ASW250Product Display Window ......................................................................... 11
6-5. Locks ............................................................................................................................. 12
6-6. Power Cable................................................................................................................ 13
7. Troubleshooting ...........................................................................................................13

1
ASW2 Series
1. Introduction
1-1. Overview
Front end UI (User Interface) Uses simple and easy to understand text
narration and can be paired with voice guidance/sound to complete the
purchase of products.
The management system uses an online mode to know real-time when
the unit needs replenishment, current transaction amounts and errors.
1-2. Features
ASW200 ASW210 ASW230 ASW250
Convenient refill 󶊇 󶊇 󶊇 󶊇
Large stock volume 󶊇 󶊇 󶊇 󶊇
Simple and fast process 󶊇 󶊇 󶊇 󶊇
UV germicidal lamp 󶊇 󶊇 󶊇 󶊇
Small frame 󶊇 󶊇 󶊇 󶊇
Screen to display videos
or notifications 󶊇 󶊇 󶊇
Instant display of current
stock 󶊇 󶊇 󶊇
Instant notification of
Low level 󶊇 󶊇 󶊇
Error notification 󶊇 󶊇 󶊇
Anti-theft instant
notification 󶊇 󶊇 󶊇
Voice operated 󶊇 󶊇 󶊇

2
Mask Vending Machine
2. Specifications
2-1. General
Model Standing Vending Machine
Railings 3 sets
Storage Capacity 60 per railing (180 total)
Load Capacity Weight limit 3.7 kg /rail
Dimensions L200 xW100xH20 mm
Color White
2-2.Electronic
Power Source 110V AC
Consumption
(ASW200/210/230)
Standby:60.5W
Working:69.3W
Max,:73.7W
(ASW250)
Standby:15.4W
Working:25.3W
Max.:29.7W
Temperature range indoor
2-3.Mechanical
Weight
ASW200 : 117 KG
ASW210 : 117.5 KG
ASW230 : 119.5 KG
ASW250 : 119.5 KG
Average weight ± 5%
Dimension 1941 X 813 X 380 mm ( ± 5mm )
Screen Size 21.5-inch Product display window/
21.5-inch monitor (optional)
3. Content
Main Mask Vending Machine *1
Accessories
Keys x 2
Power Cord *1
User Manual *1

3
ASW2 Series
4. Dimensions
Unit : mm [ inch ]
813 32.01
1893
74.53
30
1.18
48
1.89
380 14.96
1971
77.60
355.5 14.00
500
19.69
1071
42.17
A
R3 0.12
R6 0.24
34
1.34
10 0.39
A

4
Mask Vending Machine

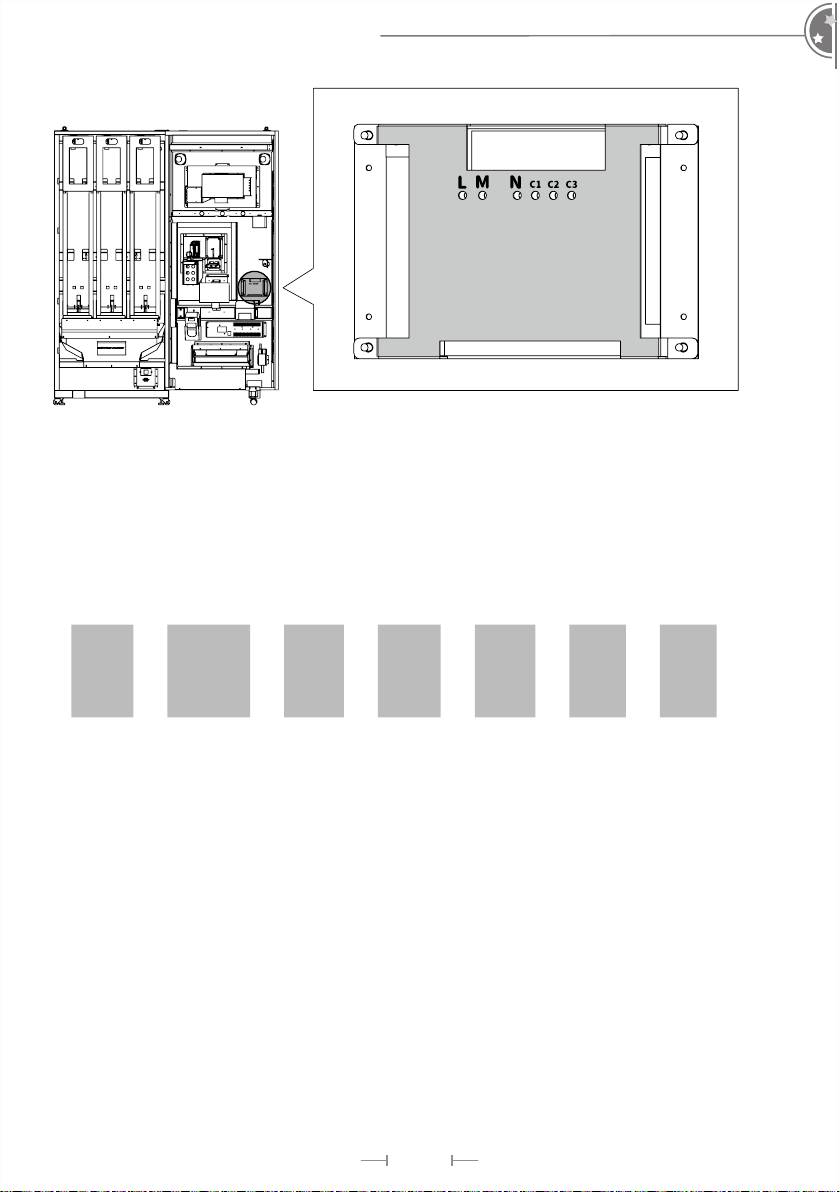

5. Main Control Board
5-1. Key Function
(L) - Previous page: Use to enter menu settings and return to the previous
page.
(M)- Contents: Enter function settings.
Home
Digital
(M)
Amount
(M)
Price
(M)
Motor
(M)
Home
(M)
Muti
(M)
Sen
(M)
→
←
→
←
→
←
→
←
→
←
→
←
→
←
(L) (L) (L) (L) (L) (L) (L)
(N)- Decrease: To reduce values for rails 1 to 3
(C1)- Rail 1 Amount and Price increase, Motor 1 rotation test.
(C2)- Rail 2 Amount and Price increase, Motor 2 rotation test.
(C3)- Rail 3 Amount and Price increase, Motor 3 rotation test.
上
一
頁
目
錄
(+)(+)(+)
倉
道
一
倉
道
二
倉
道
三
(-)
Main screen
digital display

5
ASW2 Series
5-2. Display
Main Screen number: Display the total qty on the vending machine
Amount: Number of stock (ASW200、ASW210、ASW230)
Price: Set the selling price.
Motor: Lever rotation test.
Home: Position the lever, must have stock on the shelves
Muti: Set pulse multiplier (ASW230、ASW250)
Sen: Test all switches except the door open switch, Shelves must be empty
5-3. Setting Stock
1. Press (M) twice to display Amount
2. Press (C1) to display CH1 001, keep pressing (C1) repeatedly to increase
the value for CH1. Press (N) to decrease the value.
3. Press (C2) to display CH2 001, keep pressing (C2) repeatedly to increase
the value for CH2. Press (N) to decrease the value.
4. Press (C3) to display CH3 001, keep pressing (C3) repeatedly to increase
the value for CH3. Press (N) to decrease the value.
5. Press (L) to return to home screen.

6
Mask Vending Machine
5-4. Setting Price
1. Press (M) twice to display Price
2. Press (C1) once to display P1 001, keep pressing (C1) repeatedly to
increase the value for CH1. Press (N) to decrease the value.
3. Press (C2) once to display P2 001, keep pressing (C2) repeatedly to
increase the value for CH2. Press (N) to decrease the value.
4. Press (C3) once to display P3 001, keep pressing (C3) repeatedly to
increase the value for CH3. Press (N) to decrease the value.
5. Press (L) twice to return to home screen.
5-5. Motor Test
1. Press (M) three times to display Motor.
2. Long press (C1) and the motor of rail 1 will turn.
3. Long press (C2) and the motor of rail 2 will turn.
4. Long press (C3) and the motor of rail 3 will turn.
5. Press (L) three times to return to home screen.

7
ASW2 Series
5-6. Lever Position
Minimum of 2 products need to be placed on each shelf
1. Press (M) four times to display Home
2. Press (C1) once and rail 1 will dispense one product.
3. Press (C2) once and rail 2 will dispense one product.
4. Press (C3) once and rail 3 will dispense one product.
5. Press (L) four times to return to home screen.
5-7. Pulse Multiplier
1. Press (M) five times to display Muti.
2. Press (C3) once and press (C3) again to increase the value.
3. Press (C2) once and press (C2) again to decrease the value.
4. Press (L) five times to return to the main screen.
5-8. Low Level Sensor Test
Shelves must be empty.
1. Press (M) six times to show Sen 0.
2. Press each switch and the display will show Sen 1.
3. Press (L) six times to return to main screen.

8
Mask Vending Machine
6. Description
1. Speakers (Except model ASW250)
2. 21.5inch high-resolution monitor (ASW200、210、230)
/Product display window (ASW250)
3. Buttons (ASW230、250)
4. Payment module
5. Lock
6. Pick up tray
ASW200
ASW210
ASW230
ASW250
Easy card
Easy card
NHI card
NHI card
Coin Acceptor
Bill Acceptor
Remaining
quantity display
Bill Acceptor

9
ASW2 Series
6-1. Fixing Machine to a wall
(We recommend using 8mm outer diameter anchor bolts)
1. Drill holes according to the recommended size and following the length
of bolts used.
2. Insert the anchor bolt into the drilled places and use a rubber hammer
to insert into place
3. After placing the machine to its fixed position, install the bolts and
tighten the nuts.
Hole position

10
Mask Vending Machine

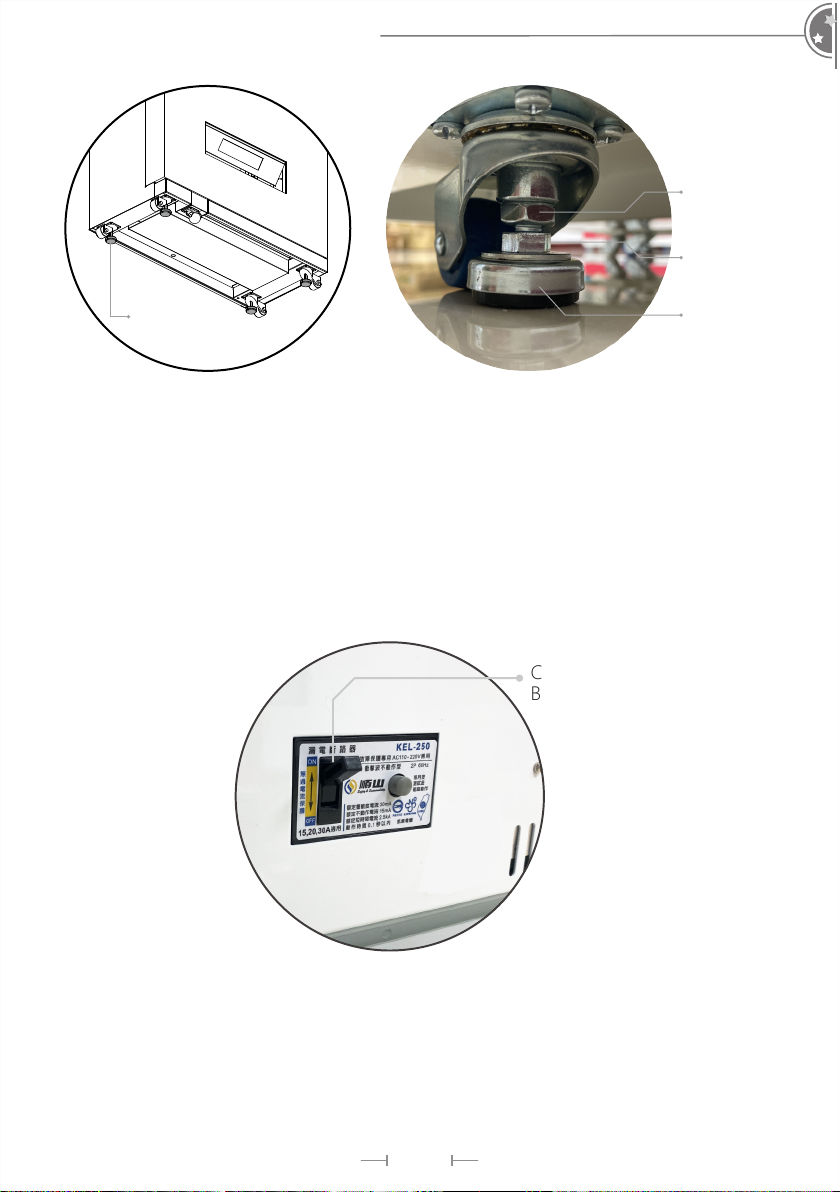

6-2. Machine Feet
1. After placing the unit in the desired position, turn the fixed feet until
they have contact to the ground.
2. Use a wrench to tighten nut A.
3. Use a wrench to tighten nut B upwards. This will keep the unit in place.
6-3. Circuit Breaker and Main Switch
To test the circuit breaker:
1. When power on is completed, be sure to press the jumper button
to confirm the movements are normal. This test should be carried out
regularly.
Fixed position
Nut A
Nut B
Fixed position
Circuit
Breaker

11
ASW2 Series
Replaceable
products
2. If the breaker jumper is triggered, always make sure what is causing it
before returning the machine back to work.
3. If the motherboard needs replacing, always turn off the control board
switch first.
6-4. ASW250Product Display Window
1. Pull A to open the display window.
2. Display merchandise can be changed.

12
Mask Vending Machine
6-5. Locks
1. Insert the key and turn 90 degrees to the right.
2. The lock will automatically pop up. Turn the lock 90 degrees to the right.

6-6. Power Cable
For shipping, the power cord will be placed inside the unit. Please loosen
the three screws on the A plate and remove the power cord and tighten
the plate back into place.
7. Troubleshooting
Display Description Corrective action
Channel Jam Goods out of place, not pressing on
the SENSOR Reposition the goods
Error
If the stock value is not 0，The
three low level SENSORS are not
registering correctly
Confirm if there are products on
the rail, if there are, the sensor is
malfunctioning
Replenish Front door not closed correctly Close and lock the main door.
