Topcom Butler 2920 3
ENGLISH
Topcom Butler 2920
1. BUTTONS 5
2. DISPLAY 7
3. INSTALLATION 7
3.1 Basestation 7
3.2 Handset charger units 8
3.3 Handset 8
4. BATTERY LOW INDICATION 8
5. HANDSET OPERATION 9
5.1 Outgoing calls 9
5.2 Incoming calls 9
5.3 Activate/deactivate hands free function 9
5.4 Programming memory numbers 9
5.5 Calling a memory number 10
5.6 Mute function 10
5.7 Setting the volume 10
5.8 Paging 10
5.9 Cut of range warning 10
5.10 Flash button (R) 10
5.11 Setting the ring volume and melody 10
5.12 Key lock 11
5.13 Setting the dialling mode 11
6. CALLER-ID FUNCTION (CLIP) 11
6.1 New calls 11
6.2 Consulting the Call list 11
6.3 Calling a number from the Call list 11
6.4 Erasing a number from the Call list 12
6.5 Store a number from the call log into the memory 12
7. REGISTER/DE-REGISTER A HANDSET 12
7.1 Register to a Topcom B2900/2920 base 12
7.2 Removing a handset 12
8. CALL TRANSFER AND INTERCOM BETWEEN TWO HANDSETS 13
8.1 Call transfer and conference call during an external call 13
8.2 Internal call (intercom) 13
9. BASE TELEPHONE OPERATION 13
9.1 Making a call 13
9.2 Adjusting the speaker volume 13
9.3 Setting the dial mode for the base 13
9.4 Transfer a call from base to handset 14
9.5 Setting the base flash time 14
10. TOPCOM WARRANTY 14
10.1 Warranty period 14
10.2 Warranty handling 14
10.3 Warranty exclusions 14
11. TROUBLESHOOTING 15
12. TECHNICAL DATA 15
13. DEFAULT SETTINGS HANDSET 15
+/B%SGI 

4 Topcom Butler 2920
Topcom Butler 2920
SAFETY INSTRUCTIONS
• Only use the charger plug supplied. Do not use other chargers, as this may damage the battery cells.
• Only insert rechargeable batteries of the same type. Never use ordinary, non-rechargeable batteries. Insert
rechargeable batteries so they connect to the right poles (indicated in the battery compartment of the handset).
• Do not touch the charger and plug contacts with sharp or metal objects.
• The operation of some medical devices may be affected.
• The handset may cause an unpleasant buzzing sound in hearing aids.
• Do not place the basic unit in a damp room or at a distance of less than 1.5 m away from a water source. Keep
water away from the handset.
• Do not use the telephone in environments where there is a risk of explosions.
• Dispose of the batteries and maintain the telephone in an environment-friendly manner.
• As this telephone cannot be used in case of a power cut, you should use a mains-
independent telephone for emergency calls, e.g. a mobile phone.
• This telephone uses rechargable batteries. You have to dispose of the batteries
in an environment friendly manner according to your specific country regulations.
CLEANING
Clean the telephone with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive
solvents.
NiMH
+/B%SGI 

Topcom Butler 2920 5
ENGLISH
Topcom Butler 2920
1. BUTTONS
Butler 2920
R
#
7PQRS
4GHI
2ABC
5JKL
8TUV
0
3DEF
6MNO
9WXYZ
1
/P
7PQRS
4GHI
2ABC
5JKL
8TUV
0
3DEF
6MNO
9WXYZ
1
R
INT
//
#
Butler 2920C
4
5
1
12
16
15
17
19
2876
10
3
13
11
9
18
14
HANDSET
1 Numerical buttons
2 Line button
3 Redial / Pause button
4 Flash R/ Scroll R/
5 Memory button
6 Mute button
7 Int button Int
8 Call log/Scroll /
9 Volume/melody
button /
10 Key lock
11 Ringer
ON/OFF
12 Handsfree
BASE
13 Paging button
(to retrieve the handset)
14 Charge indicator (LED)
15 Base telephone dialling keys
16 Flash key R
17 Redial key
18 OFF-hook base telephone LED
19 Line/Handsfree base telephone key
/P
+/B%SGI 

6 Topcom Butler 2920
Topcom Butler 2920

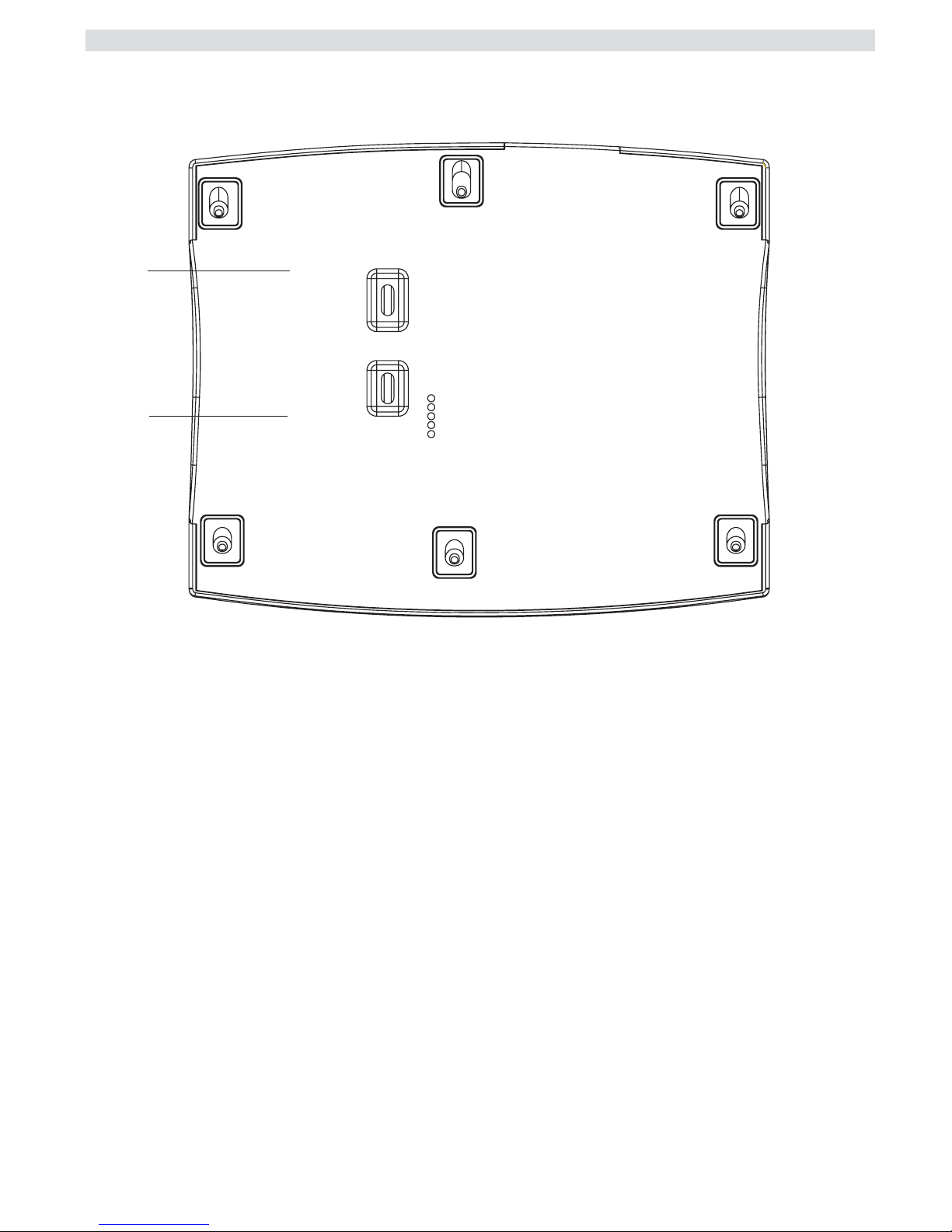

19 Tone/pulse switch
20 Flash time switch
19
20
+/B%SGI 

Topcom Butler 2920 7
ENGLISH
Topcom Butler 2920
2. DISPLAY
3. INSTALLATION
3.1 BASESTATION

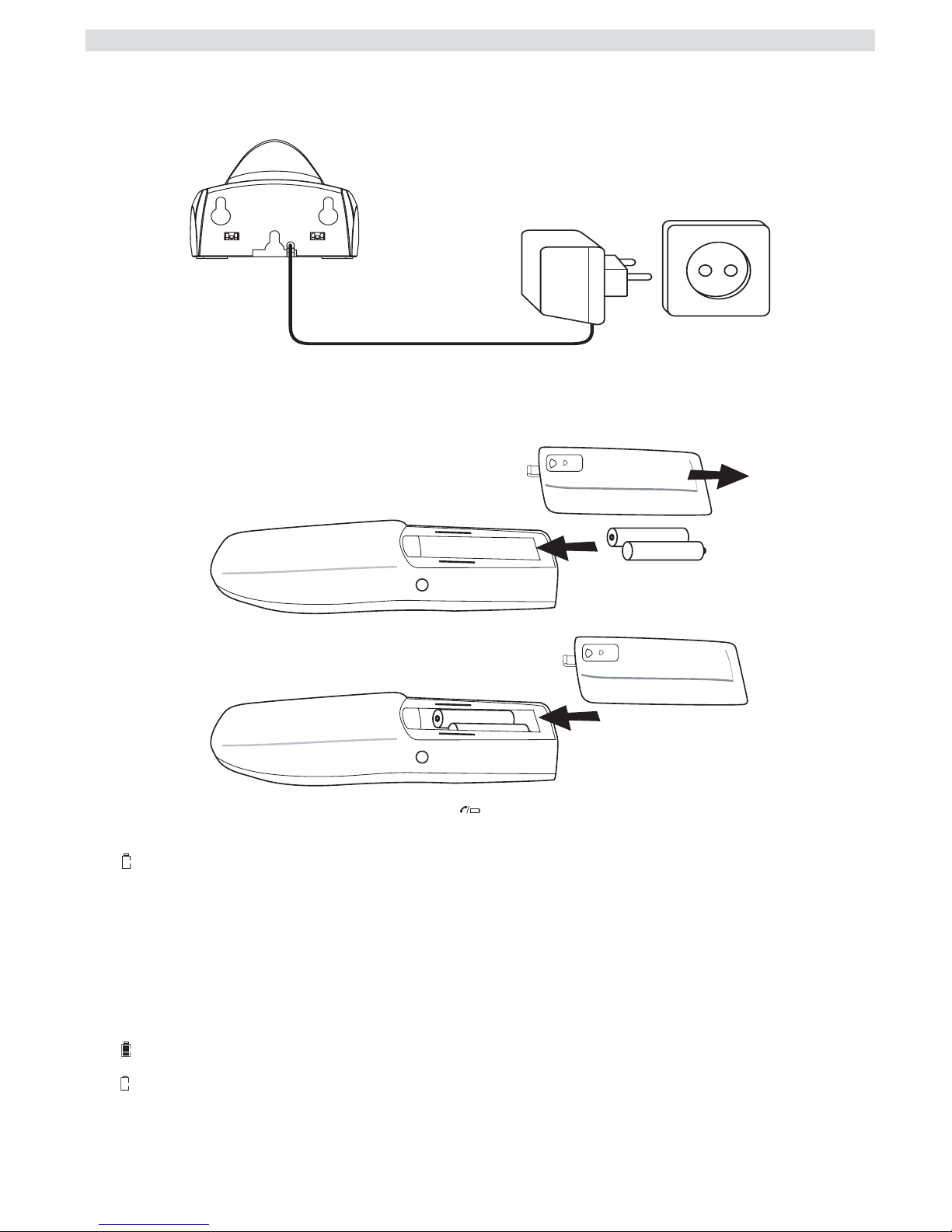

• Plug one end of the phone cable into the phone unit and the other end into the telephone line wall socket.
• Connect the small plug of the AC adaptor to the phone and the other end of the adapter cable to the electric socket.

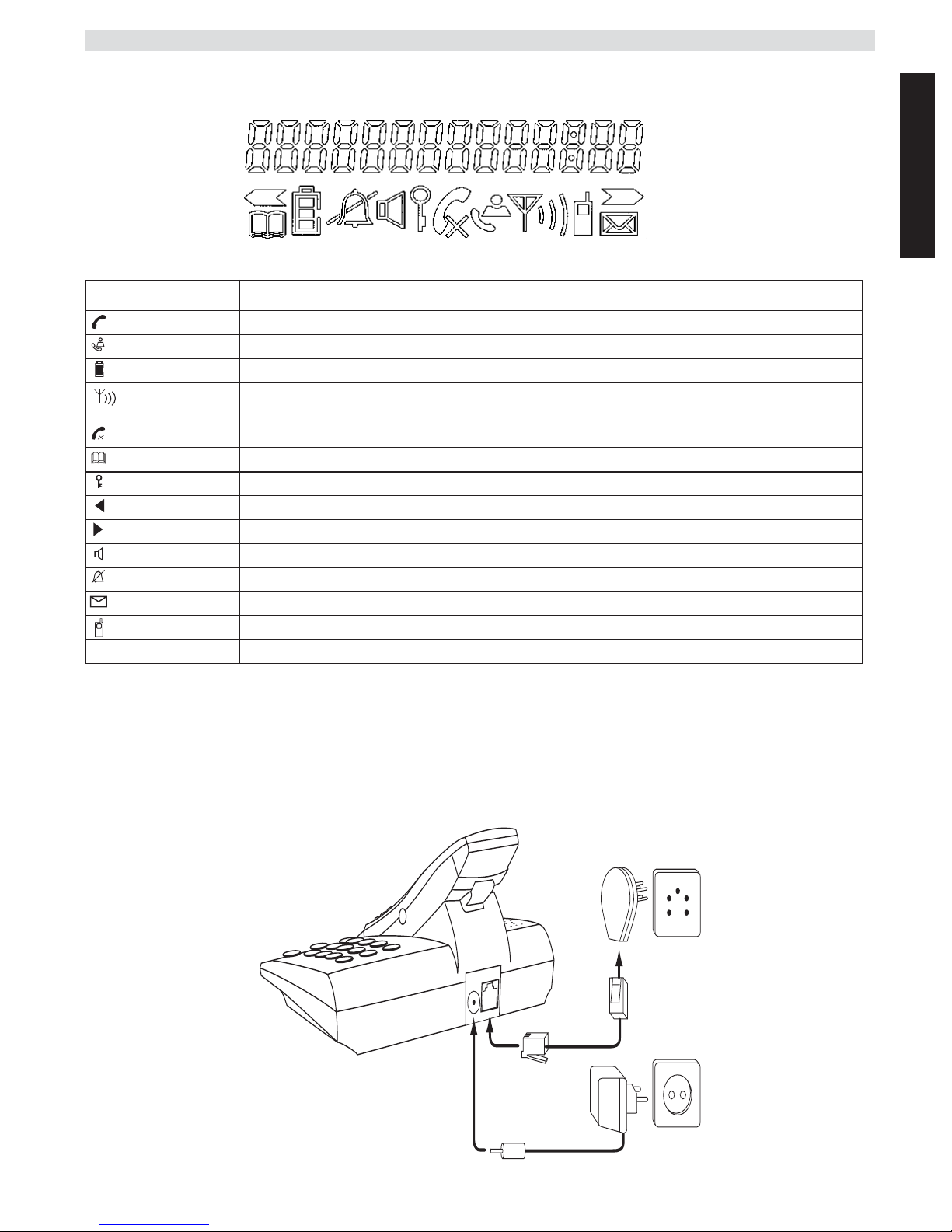

ICON: MEANING:
You are online
New numbers in call list
Rechargeable battery level indicator
The antenna indicates the quality of reception.
The antenna blinks when the handset is out of range!
Microphone is muted
Memory records are being retrieved or set up
The keypad is locked
There are more digits on the left
There are more digits on the right
During hands free
When ring buzzer is turned off
There are new messages in your voice mail
During internal call
HS-x x = handset number
TEL.
SOCKET
Telephone cord
Power cable
+/B%SGI 

8 Topcom Butler 2920
Topcom Butler 2920
3.2 HANDSET CHARGER UNITS
• Connect the AC adaptor to the electric socket
3.3 HANDSET
• Insert 2 rechargeable batteries (AAA) inside the battery compartment of the handset..
Put the handset on the base unit. The red Charge LED will lit as long as the handset is on the base.
Charge the handset for a period of 24 hours before using the handset for the first time. To extend the battery life time,
discharge the batteries completely from time to time. As soon as the handset emits a warning tone or when the battery
icon is empty, you have to put it back on the base unit for charging.
4. BATTERY LOW INDICATION
When the battery is empty, the handset no longer carries out operations. When a battery is completely empty and you
have put the handset on the base unit for a short period of time, the Battery symbol will appear to be fully charged but
this is actually not the case. The battery capacity will decrease rapidly. We advise you to put the handset on the base
unit for 12 hrs so that it can be recharged completely.
• Full battery
• Empty battery
When you are in the middle of a conversation and the battery is almost empty, the handset will emit a warning signal.
Place the handset on the base unit to charge.
+-
-+
+/B%SGI 

Topcom Butler 2920 9
ENGLISH
Topcom Butler 2920
5. HANDSET OPERATION
5.1 OUTGOING CALLS
5.1.1 Making a phone call
• Press the Line button . You will hear the dial tone.
• Enter the desired telephone number.
• Press the Line button when you want to terminate the call.
5.1.2 Call setup with dial preparation
• Enter the desired telephone number. An incorrect number can be corrected by means of the Mute button . When
you haven’t pressed a button for 10 seconds, the number you’ve already entered will disappear and the handset
returns to standby mode.
• Press the Line button . The number will be dialled automatically.
• Press the Line button when you want to terminate the call.
5.1.3 Redialling the last number dialled
• Press the Line key .
• The Line/Charge indicator (LED) on the base unit will blink.
• You will hear the dial tone.
• Press the Redial key . The number you last called is dialled automatically.
5.1.4 Redial one of the last 5 numbers dialled
• Press the Redial key . The number you last called appears on the display. If you would like to dial one of the last
5 numbers dialled, press the Redial key a few times until the desired number appears on the display.
• Press the Line key .
• The number shown on the display is dialled automatically.
• After finishing your call, press the Line key to hang up.
5.2 INCOMING CALLS
• When a call comes in, the handset will start to ring. The LED on the base will blink.
• Press the Line button to answer the incoming call.
5.3 ACTIVATE/DEACTIVATE HANDS FREE FUNCTION
This function allows you to communicate without having to pick up the handset. When you are on the phone, press the
Hands free key to activate the hands free function.
Press the same button to deactivate the hands free function.
Note : When you are calling in hands free mode and you want to change the volume, press the Volume
button.
Attention !! When you use the hands free function for a long time, the batteries will be empty more
quickly!!
5.4 PROGRAMMING MEMORY NUMBERS
You can program 10 indirect numbers (of max. 25 digits) in the phone’s memory.
• Press and hold the Memory button until the -icon appears on the display.
• Enter the telephone number you whish to store.
• Press the Memory button again to confirm.
• Enter the memory location (0-9) where you want to store the number.
• You will hear a confirmation tone and the -icon will disappear.
Remarks :
If you wish to insert a pause, press the Redial/Pause button on the location where you want a pause
of 3 sec.
/P
+/B%SGI 

10 Topcom Butler 2920
Topcom Butler 2920
5.5 CALLING A MEMORY NUMBER
• Press the Memory button , followed by the number of the memory location (0-9).
• Press the Line button . The memory number will be dialled automatically.
• Press the Line button when you want to terminate the call.
5.6 MUTE FUNCTION
It is possible to deactivate the microphone during a conversation. Now you can speak openly without being heard by
your correspondent.
• Press the Mute button during a conversation. The microphone will be deactivated. The MUTE symbol .
appears on the display.
• Press the Mute button again when you want to continue the conversation.
5.7 SETTING THE VOLUME
During a conversation you can set the volume by pressing the Volume button . You can set the volume alternatively
in Hi, Medium and Low.
Note: The hands free receiver volume is also adjustable as above described!
5.8 PAGING
When you press the Paging button on the base unit, the handset emits a ringing signal for 20 seconds. This signal
helps you find a lost handset. Press any key to stop the ringing on a handset.
5.9 OUT OF RANGE WARNING
When the handset is out of the working range of the base unit during a conversation, the unit will emit a warning signal
to warn the user that he has to move closer towards the base unit.
5.10 FLASH BUTTON (R)
When you press the R button, also called flash or recall, the unit generates a line interruption (of 100 ms or 250 ms). It
gives you the possibility to use the special services of your telephone provider and/or to transfer calls when you have
a telephone exchange.
5.10.1 Setting the Flash time
• Press and hold the redial button for 3 sec.
• The display will show:
‘S’ for 100ms
or ‘L’ for 250ms
• The flash time setting will disappear after 2 sec. from the display
Caution:The base flash time is different from the handset flash time.To set the base flash time, please
refer to § 9.5.
5.11 SETTING THE RING VOLUME AND MELODY
5.11.1 Handset melody
• Press and hold the melody button until the current melody is heard.
• Select the desired melody (1-9) by means of the scroll keys or by entering a number (1 - 9).
• Press again to confirm the setting
5.11.2 Handset ring volume
• Press the volume button in standby
• The handset will ring in the current volume
• Press 1-5 or use the scroll keys to select the desired volume
• Press ’0’ to turn the volume OFF
Remark: You can turn the ringer volume of each individual handset ON or OFF by simply press and hold
the key in standby.
+/B%SGI 

Topcom Butler 2920 11
ENGLISH
Topcom Butler 2920
5.12 KEY LOCK
When the keypad is locked, pressing any key will have no effect during standby (except holding the key).
• Press and hold the key
• appears on the display and the keypad is locked
• Press and hold the key again to un-lock the keypad
When there is an incoming call, you can still answer the call by pressing the Line button . During the call, the keypad
functions as normal. When the call is ended, the keypad will be locked again
5.13 SETTING THE DIALLING MODE
There are two types of dialling mode:
DTMF/Tone dialling (the most common) (default)
Pulse dialling (for older installations)
To change the mode of dialling:
• Press and hold the flash R button to toggle between dialling modes:
‘P’ will appear when set to pulse or ‘T’ when set to tone (DTMF) dialling
• After 5 sec. the unit returns to standby
•
Caution:The base dialling mode is independent from the handset.
To set the base dial mode please look at §9.3.
6. CALLER-ID FUNCTION (CLIP)
The Topcom B2920 displays the telephone numbers of incoming calls. This function is only possible if you are
subscribed to a telephone operator that provides this service. Contact your telephone provider for more information.
When you receive a call, the numbers are saved in a Call list. This list can hold 20 telephone numbers (each of max.
25 digits). If the number is longer then 14 digits, you can press the key to show the other digits!
6.1 NEW CALLS
When you’ve received a new unanswered call, the CLIP symbol will blink on the display.
6.2 CONSULTING THE CALL LIST
• Press the Call Log button . The last received call is shown on the display. If the list is empty, ‘NO CLIP’ is shown
on the display.

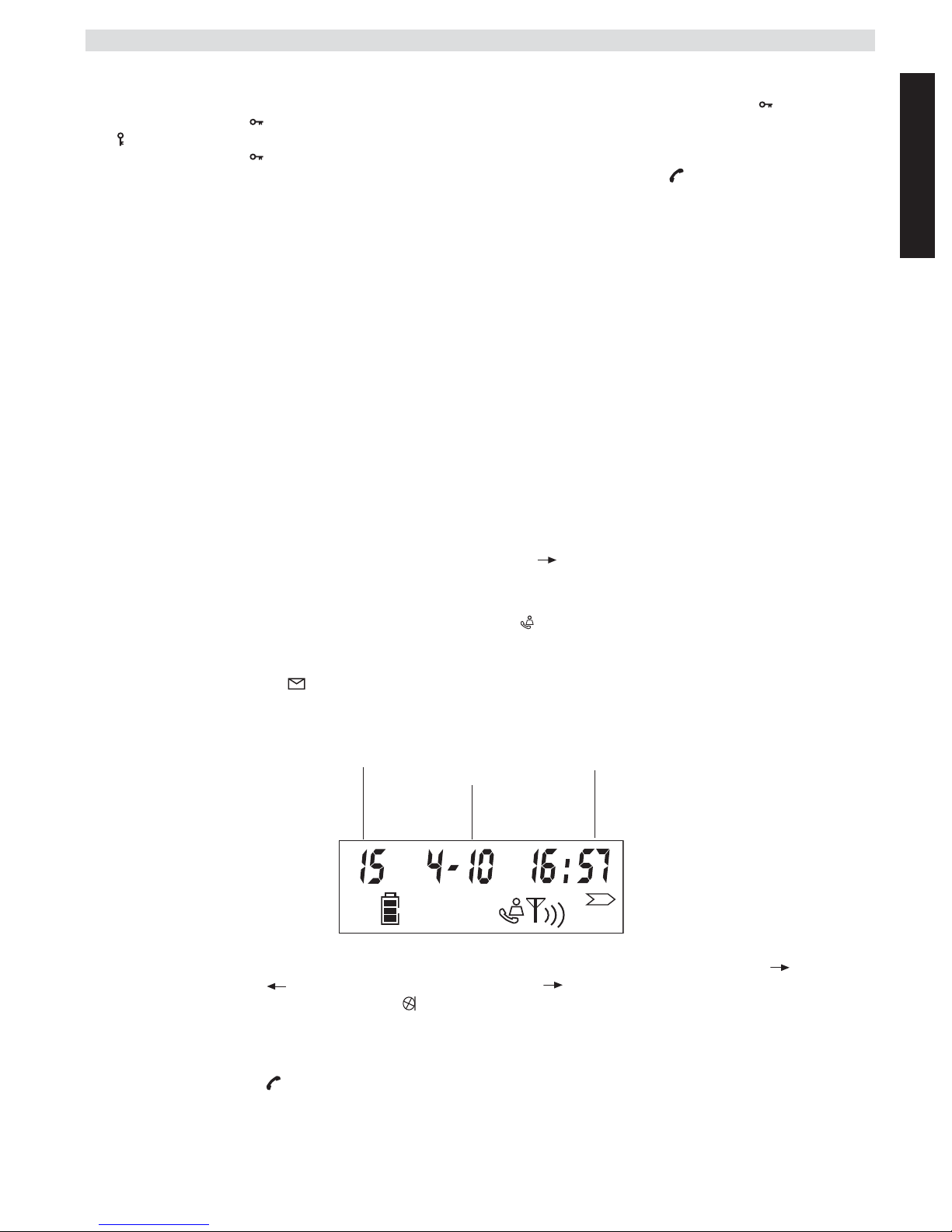

• The following will be shown on the display:
• After 5 seconds, the telephone number will be shown.You can skip the date/time by pressing the button.
• Use the left scroll key to scroll to the previous call. Use the button to show the next call.
• You can leave the Call list by pressing the button.
6.3 CALLING A NUMBER FROM THE CALL LIST
• Scroll through the Call list until the desired number is shown on the display.
• Press the Line button . The number will be dialled automatically.
Date (DD-MM) *
Progress number Time (24h format) *
+/B%SGI 

12 Topcom Butler 2920
Topcom Butler 2920
6.4 ERASING A NUMBER FROM THE CALL LIST
• Scroll through the Call list until the desired number is shown on the display.
• Press and hold the Mute button for 3 sec. to erase the number.
6.5 STORE A NUMBER FROM THE CALL LOG INTO THE MEMORY
• Scroll through the Call list until the desired number is shown on the display.
• Press and hold the Memory button for 3 sec.
• Enter the memory location (0-9) where you want to store the number
• Enter the Memory button again to confirm and to go back to standby
7. REGISTER/DE-REGISTER A HANDSET
7.1 REGISTER TO A TOPCOM B2900/2920 BASE
You can subscribe 5 handsets to one base unit. By default, each handset is subscribed on the base unit upon delivery
(base unit 1).
!!! You only need to subscribe the handset if: !!!
• The handset subscription has been removed from the base unit (e.g. for reinitialisation)
• You want to subscribe a different handset to this base unit.
The underlined procedure is only applicable to a Topcom Butler 24xx, 28xx, 29xx handset and base unit!!
Keep the Paging key on the base unit pressed for 10 seconds until the Line/Charge indicator
on the base unit begins to blink rapidly. The Line/Charge indicator will blink rapidly
for one minute. During this minute, the base unit is in register mode and you must do the
following to subscribe the handset:
• Press and hold the and key for 3 sec.
• The following will appear on the display:
• Enter the number of the base unit you would like to subscribe the handset to (1-4)
• The unit will start searching for the base and when found it will ask to enter the pin code (4 digits):
• Enter the base pin code (0000). If the pin is wrong, the handset will restart the searching for the base.
• When the handset is registered, it will show ‘HS’ followed by the handset number.
7.2 REMOVING A HANDSET
You can remove a handset from a base to allow another handset to be registered:
• Press and hold the mute and redial key for 3 sec.
PIN
+/B%SGI 

Topcom Butler 2920 13
ENGLISH
Topcom Butler 2920
• Enter the pin code (0000). If the pin is wrong, the handset will go back to standby.
• Enter the handset number (1-5) you want to remove
• The unit will go back to standby is the removal is successfully. If not, it will ask again to enter the handset number
Remark:You can only remove existing handsets and others then the one you are using
8. CALL TRANSFER AND INTERCOM BETWEEN TWO
HANDSETS
8.1 CALL TRANSFER AND CONFERENCE CALL DURING AN EXTERNAL CALL
• During an external call, press the INT key followed by the number (1 - 5) of the other handset.
• The other handset will start to ring:
- When the other handset takes the line you can talk internally.
If you hang up, the external line will be connected with the other handset.
If you press and hold the INT key for 3 seconds you can talk with the 2nd handset and external line at the same
time (conference call)
- Or press the INT key again to return to the external call.
• Press the Line button to end the call.
8.2 INTERNAL CALL (INTERCOM)
• In standby press the INT key followed by the number (1-5) of the other handset.
• The other handset will start to ring. You can stop the ringing by pressing the Line button .
• If the other handset answers the call by pressing the Line button you can talk internally.
• Press the Line button to end the call.
9. BASE TELEPHONE OPERATION
You can also make a telephone call by using the base station handsfree speakerphone.
9.1 MAKING A CALL
• Press the Handsfree base dialling key to take the line
• Press the numeric keys on the base to form a telephone number
• Press again the Handsfree base dialling key to end the telephone conversation
9.2 ADJUSTING THE SPEAKER VOLUME
Press the ‘+’ or ‘-’ key during base handsfree conversation to adjust the speaker volume. If the speaker volume is
too loud there is the possibility that the speaker starts to oscillate (flute tone). To avoid this, please lower the speaker
volume.
Caution:The handsfree communication is half duplex which means that if the person on the other side of
the line starts to speak, the microphone is muted, so the person can’t hear you at that time. Please try to
avoid speaking to each other at the same time.
9.3 SETTING THE DIAL MODE FOR THE BASE
You can set the base dialling mode in Pulse(P) or Tone/DTMF(T) by the switch at the bottom of the base.
Caution:The base dialling mode is independent from the handset.
PIN 1234 H5-
+/B%SGI 

14 Topcom Butler 2920
Topcom Butler 2920
To set the handset dial mode please look at §5.13.
9.4 TRANSFER A CALL FROM BASE TO HANDSET
During base handsfree conversation you can transfer the call to any registered handset by
pressing the paging key . The line indicator LED will start to blink.
• You can take over the line by any registered handset when pressing the line-key .
• Or press the paging key again if you don’t want to transfer the call
Note:The handsets will not ring during transfer!!
9.5 SETTING THE BASE FLASH TIME
You can set the base flash time by the switch at the bottom of the base. You can set it in 100ms or 300ms.
Note:The base flash time is different from the handset flash time. To set the handset flash time, please
refer to §5.10.1.
10.TOPCOM WARRANTY
10.1 WARRANTY PERIOD
The Topcom units have a 36-month warranty period. The warranty period starts on the day the new unit is purchased.
The warranty on batteries is limited to 6 months after purchase. Consumables or defects causing a negligible effect on
operation or value of the equipment are not covered.
The warranty has to be proven by presentation of the original purchase receipt, on which the date of purchase and the
unit-model are indicated.
10.2 WARRANTY HANDLING
A faulty unit needs to be returned to a Topcom service centre including a valid purchase note.
If the unit develops a fault during the warranty period, Topcom or its officially appointed service centre will repair any
defects caused by material or manufacturing faults free of charge.
Topcom will at its discretion fulfil its warranty obligations by either repairing or exchanging the faulty units or parts of
the faulty units. In case of replacement, colour and model can be different from the original purchased unit.
The initial purchase date shall determine the start of the warranty period. The warranty period is not extended if the unit
is exchanged or repaired by Topcom or its appointed service centres.
10.3 WARRANTY EXCLUSIONS
Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or
accessories not recommended by Topcom are not covered by the warranty.
Topcom cordless phones are designed to work with rechargeable batteries only. The damage caused by the use of
non-rechargeable batteries is not covered under warranty.
The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor any damage
caused during transportation.
No warranty can be claimed if the serial number on the units has been changed, removed or rendered illegible.
Any warranty claims will be invalid if the unit has been repaired, altered or modified by the buyer or by unqualified, non-
officially appointed Topcom service centres.
+/B%SGI 

Topcom Butler 2920 15
ENGLISH
Topcom Butler 2920
11.TROUBLESHOOTING
12.TECHNICAL DATA
Range: up to 300 m in open space
up to 50 m in buildings
Dialling options: DTMF (tone) and Pulse
Batteries: 2 x 1.2V, 600 mAh AAA Type NiMH rechargeable
Max. standby time: approx. 120 hours
Max. talk time: 13 hours
Ambient temperature: +5 °C to +45 °C
Permitted relative air humidity: 25 to 85 %
Power supply base adapter: 220/230V , 50 Hz
Memories 10 indirect with max. 25 digits
13. DEFAULT SETTINGS HANDSET
Flash time 100 ms
Dialling mode Tone
Ring volume Level 3
Ring melody Ringer 8
Base pin 0000
PROBLEM POSSIBLE CAUSE SOLUTION
No Display Batteries not charged Check the position of the batteries
Recharge the batteries
No dialling tone Telephone cable not
properly connected
Check the connection
of the telephone cable
Volume of conversation partner too low Adjust the volume during the conversation
by pressing the volume key
Handset ringer volume too low Adjust the ringer volume
The CE symbol indicates that the unit complies with the essential requirements of the R&TTE directive.
+/B%SGI 

16 Topcom Butler 2920
Topcom Butler 2920
1. TOETSEN/LED 18
2. DISPLAY 20
3. INSTALLATIE 20
3.1 Basis 20
3.2 Handset lader 21
3.3 Handset 21
4. BATTERIJ LEEG INDICATOR 21
5. WERKING HANDSET 22
5.1 Uitgaande gesprekken 22
5.2 Inkomende oproepen 22
5.3 Handenvrij-functie aan-/uitschakelen 22
5.4 Geheugennummers programmeren 22
5.5 Een geheugennummer oproepen 23
5.6 Tijdelijke uitschakeling van de microfoon (Mute) 23
5.7 Volume regelen 23
5.8 Paging 23
5.9 Buiten Bereik-waarschuwing 23
5.10 Flashtoets (R) 23
5.11 Het belvolume en de beltoon instellen 23
5.12 Toetsenbord blokkeren 24
5.13 De kiesmodus instellen 24
6. NUMMERWEERGAVE (CLIP-CALLER ID) 24
6.1 Nieuwe oproepen 24
6.2 Raadplegen van de Oproeplijst 24
6.3 Oproepen van een nummer uit de Oproeplijst 25
6.4 Telefoonnummers uit de Oproeplijst wissen 25
6.5 Nummer uit de oproeplijst in het geheugen opslaan 25
7. AANMELDEN/AFMELDEN VAN EEN HANDSET 25
7.1 Aanmelden op een Butler 2900/2920 basis 25
7.2 Handset verwijderen (afmelden) 26
8. OPROEPDOORSCHAKELING EN INTERCOMGESPREKKEN
TUSSEN TWEE HANDSETS 26
8.1 Doorverbinden en conferentie gesprek tijdens externe communicatie 26
8.2 Interne oproep (intercom) 26
9. BASISSTATION TELEFOON 26
9.1 Telefoneren 26
9.2 Luidspreker volume aanpassen 27
9.3 Kiesmode op de basis instellen 27
9.4 Gesprek doorverbinden van basis naar handset 27
9.5 Basis flashtijd instellen 27
10. GARANTIE 27
10.1 Garantieperiode 27
10.2 Afwikkeling van garantieclaims 27
10.3 Garantiebeperkingen 27
11. PROBLEMEN VERHELPEN 28
12. TECHNISCHE GEGEVENS 28
13. FABRIEKSINSTELLINGEN HANDSET 28
+/B%SGI 

Topcom Butler 2920 17
NEDERLANDS
Topcom Butler 2920
VEILIGHEIDSVOORSCHRIFTEN
• Gebruik enkel de meegeleverde adapter. Geen vreemde adapters gebruiken, de accucellen kunnen hierdoor
beschadigd worden.
• Gebruik enkel oplaadbare batterijen van hetzelfde type. Gebruik nooit gewone, niet oplaadbare batterijen. Let bij
het plaatsen van de oplaadbare batterijen op de polariteit (aangeduid in de batterijruimte van de handset).
• Raak de laad- en stekkercontacten niet aan met scherpe en metalen voorwerpen.
• De werking van medische toestellen kan worden beïnvloed.
• De handset kan een onaangenaam gezoem veroorzaken in hoorapparaten.
• Het basisstation niet opstellen in vochtige ruimten en niet op minder dan 1,5 m van een waterbron. De handset niet
in aanraking brengen met water.
• De telefoon niet gebruiken in explosieve omgevingen.
• Ontdoe u op een milieuvriendelijke wijze van de batterijen en de telefoon.
• Daar bij stroomuitval met dit toestel niet kan getelefoneerd worden, in geval van nood een telefoon gebruiken die
geen netstroom nodig heeft bvb. een GSM.
• Deze telefoon gebruikt heroplaadbare batterijen die op een milieuvriendelijke manier,
volgens nationale regels dienen te worden ontdaan.
REINIGEN
Veeg de telefoon met een licht vochtig doek of met een antistatische doek af. Gebruik nooit reinigingsmiddelen of
agressieve oplosmiddelen.
NiMH
+/B%SGI 

18 Topcom Butler 2920
Topcom Butler 2920
1. TOETSEN/LED
Butler 2920
R
#
7PQRS
4GHI
2ABC
5JKL
8TUV
0
3DEF
6MNO
9WXYZ
1
/P
7PQRS
4GHI
2ABC
5JKL
8TUV
0
3DEF
6MNO
9WXYZ
1
R
INT
//
#
Butler 2920C
4
5
1
12
16
15
17
19
2876
10
3
13
11
9
18
14
HANDSET
1 Cijfertoetsen
2 Lijntoets
3 Herkies-/Pauzetoets
4 Flash R/ Scroll R/
5 Telefoonboektoets
6 Microfoon-uit (Mute toets)
7 Int toets Int
8 Oproeplijst/Scroll /
9 Volume/melodie toets /
10 Keylock
11 Ringer
Bel Aan/uit
12 Handenvrijtoets
BASE
13 Paging-toets
(om de handset te zoeken)
14 Lijn/Laad indicator (LED)
15 Basisstation telefoonklavier
16 Flash toets R
17 Herkies toets
18 Lijn LED basisstation telefoon
19 Lijn/Handenvrij toets
/P
+/B%SGI 

Topcom Butler 2920 19
NEDERLANDS
Topcom Butler 2920
19 Toon/Puls schakelaar
20 Flash tijd schakelaar
20
19
+/B%SGI 

20 Topcom Butler 2920
Topcom Butler 2920
2. DISPLAY
3. INSTALLATIE
3.1 BASIS
• Sluit de connector van het telefoonsnoer aan op het telefoontoestel en steek het andere uiteinde in de
wandcontactdoos van het telefoonnet.
• Steek de kleine stekker van de AC-adapter in het toestel en het andere uiteinde in het stopcontact..
IKOON: BETEKENIS:
In verbinding
Nieuwe nummers in de Oproeplijst
Laadniveau van de herlaadbare batterijen
De antenne toont de kwaliteit van de ontvangst.
De antenne knippert als de handset niet is aangemeld of buiten bereik van de basis is
Microfoon is gedempt
Telefoonnummers uit het geheugen opvragen of programmeren
Het toetsenbord is geblokkeerd
Er zijn meer tekens links
Er zijn meer tekens rechts
Handenvrije modus geactiveerd
Wanneer het belvolume uitgeschakeld is
U heeft nieuwe berichten in uw voice-mail
Tijdens interne gesprekken
HS-x x = Handset nummer
Tel
Telefoonkabel
Stroomkabel
+/B%SGI 
