Topcon GTS-900A Series User manual

INSTRUCTION MANUAL
AUTO TRACKING TOTAL STATION
GTS-900A SERIES
AUTO TRACKING PULSE TOTAL STATION
GPT-9000A SERIES
SERVO PULSE TOTAL STATION
GPT-9000M SERIES
Rev.8
Specializing in quality
used surveying and
optical equipment
Hodgens Equipment Sales
www.hodgens.net [email protected]et
800-463-4367

1
FOREWORD
Thank you for purchasing the TOPCON Auto Tracking Total Station GTS-900A/
GPT-9000A series, Servo Total Station GPT-9000M series.
For the best performance of the instruments, please carefully read these
instructions and keep them in a convenient location for future reference.

2
General Handling Precautions
Before starting work or operation, be sure to check that the instrument is functioning
correctly with normal performance.
Do not aim the instrument directly into the sun
Aiming the instrument directly into the sun can result in serious damage to the eyes. Damage to the
instrument could also result from exposing the instrument’s objective lens to direct sunlight. The use of a
solar filter is suggested to alleviate this problem.
Setting the instrument on a tripod
When mounting the instrument on a tripod, use a wooden tripod when possible.
The vibrations that may occur when using a metallic tripod can effect the measuring precision.
Installing the tribrach
If the tribrach is installed incorrectly, the measuring precision could be effected. Occasionally check the
adjusting screws on the tribrach. Make sure the base fixing lever is locked and the base fixing screws are
tightened.
Guarding the instrument against shocks
When transporting the instrument, provide some protection to minimize risk of shocks. Heavy shocks may
cause the measurement to be faulty.
Carrying the instrument
Always carry the instrument by its handgrip.
Exposing the instrument to extreme heat.
Do not leave the instrument in extreme heat for longer than necessary. It could adversely affect its
performance.
Sudden changes of temperature
Any sudden change of temperature to the instrument or prism may result in a reduction of measuring
distance range, i.e when taking the instrument out from a heated vehicle.
Let instrument acclimate itself to ambient temperature.
Battery level check
Confirm battery level remaining before operating.
Memory back up
The back-up battery built in the instrument needs to be charged approximately 24hrs. before using it for the
first time after purchase. Connect the fully charged battery to the instrument in order to charge the back-up
battery.
Taking the battery out
Leaving the instrument without the battery for more than an hour will cause the memorized data to be lost,
due to low voltage of the back-up battery. Connect the battery as soon as possible or execute RAM back-up.
No responsibility
TOPCON Corporation has no responsibility for loss of data stored in the memory in case unexpected
accidents.
Battery cover
Completely close the battery cover before using the GTS-900A/GPT-9000A/GPT-9000M.If the battery cover
is not completely closed, the GTS-900A/GPT-9000A/GPT-9000M will not operate normally, regardless of
whether the battery or the external power source is used.
If the battery cover is opened while the GTS-900A/GPT-9000A/GPT-9000M is in operation, operation will
automatically be suspended.
Power OFF
When turning off the power, be sure to turn off the GTS-900A/GPT-9000A/GPT-9000M’s power switch.
Do not turn off the power by removing the battery.
Before removing the battery, press the power switch and confirm that the power is off. Then remove the
battery.
While using the external power source, do not turn off the GTS-900A/GPT-9000A/GPT-9000M with the
switch on the external power source.
If the above-mentioned operating procedure is not followed, then, the next time that power is turned on, it will
be necessary to reboot the GTS-900A/GPT-9000A/GPT-9000M.
Maintenance for driving parts
Every 4,000~5,000 hours operation in total, change grease of driving parts.
Contact your dealer or TOPCON Head Office for the maintenance.
External power source
Use only recommended batteries or external power source. Use of batteries or an external power source not
recommended by us may result in equipment failure.
(For further information see Chapter 14 “BATTERY SYSTEM”.)

3
Display for Safe Use
In order to encourage the safe use of products and prevent any danger to the operator and others or
damage to properties, important warnings are put on the products and inserted in the instruction
manuals.
We suggest that everyone understand the meaning of the following displays and icons before reading
the “Safety Cautions” and text.
• Injury refers to hurt, burn, electric shock, etc.
• Physical damage refers to extensive damage to buildings or equipment and furniture.
Safety Cautions
Display Meaning
WARNING Ignoring or disregard of this display may lead to the danger of death or serious
injury.
CAUTION Ignoring or disregard of this display may lead to personal injury or physical
damage.
WARNING
• There is a risk of fire, electric shock or physical harm if you attempt to disassemble or
repair the instrument yourself.
This is only to be carried out by TOPCON or an authorized dealer, only!
• Cause eye injury or blindness.
Do not look at the sun through a telescope.
• Laser beams can be dangerous, and can cause eye injury’s if used incorrectly.
Never attempt to repair the instrument yourself.
• Cause eye injury or blindness.
Do not stare into beam.
• High temperature may cause fire.
Do not cover the charger while it is charging.
• Risk of fire or electric shock.
Do not use damaged power cable, plug and socket.
• Risk of fire or electric shock.
Do not use a wet battery or charger.
• May ignite explosively.
Never use an instrument near flammable gas, liquid matter, and do not use in a coal mine.
• Battery can cause explosion or injury.
Do not dispose in fire or heat.
• Risk of fire or electric shock.
Do not use any power voltage except the one given on manufacturers instructions.
• To reduce the risk of hazards, use only CSA/UL certified power supply cord set, cord is
Type SPT-2 or heavier, minimum No.18 AWG copper, one end is provided with a moulded-
on male attachment plug cap (with a specified NEMA configuration), and the other end is
provided with a moulded-on female connector body (with a specified IEC non-industrial
type configuration).
• Battery can cause outbreak of fire.
Do not use any other type of charger other than the one specified.
• Risk of fire.
Do not use any other power cable other than the one specified.
• The short circuit of a battery can cause a fire.
Do not short circuit battery when storing it.

4
User
1) This product is for professional use only!
The user is required to be a qualified surveyor or have a good knowledge of surveying, in order to
understand the user and safety instructions, before operating, inspecting or adjusting.
2) Wear the required protectors (safety shoes, helmet, etc.) when operating.
Exceptions from Responsibility
1) The user of this product is expected to follow all operating instructions and make periodic checks of the
product’s performance.
2) The manufacturer, or its representatives, assumes no responsibility for results of a faulty or intentional
usage or misuse including any direct, indirect, consequential damage, and loss of profits.
3) The manufacturer, or its representatives, assumes no responsibility for consequential damage, and loss of
profits by any disaster, (an earthquake, storms, floods etc.).
A fire, accident, or an act of a third party and/or a usage any other usual conditions.
4) The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of profits due
to a change of data, loss of data, an interruption of business etc., caused by using the product or an
unusable product.
5) The manufacturer, or its representatives, assumes no responsibility for any damage, and loss of profits
caused by usage except for explained in the user manual.
6) The manufacturer, or its representatives, assumes no responsibility for damage caused by wrong
movement, or action due to connecting with other products.
CAUTION
• Do not connect or disconnect equipment with wet hands, you are at risk of electric shocks if you
do!
• Use of controls or adjustment or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
• Let the laser beam reach the aimed object or the target without anybody else in the laser beam
path. In case you operate laser beam open, avoid radiating laser beam to the height of man’s
head. It is quite possible for the beam to enter into one’s eyes, and it is possible to lose visual
sight temporarily, and lose one’s caution and awareness of other dangers - avoid glaring beam.
• Risk of injury by overturn the carrying case.
Do not stand or sit on the carrying cases.
• Please note that the tips of tripod can be hazardous, be aware of this when setting up or carrying
the tripod.
• Risk of injury by falling down the instrument or case.
Do not use a carrying case with a damaged which belts, grips or latches.
• Do not allow skin or clothing to come into contact with acid from the batteries, if this does occur
then wash off with copious amounts of water and seek medical advice.
• A plumb bob can cause an injury to a person if used incorrectly.
• It could be dangerous if the instrument falls over, please ensure you attach a handle to the
instrument securely.
• Ensure that you mount the tribrach correctly, failing to do so may result in injury if the tribrach
were to fall over.
• It could be dangerous if the instrument falls over, please check that you fix the instrument to the
tripod correctly.
• Risk of injury by falling down a tripod and an instrument.
Always check that the screws of tripod are tightened.

5
Laser Safety
GTS-900A/GPT-9000A series uses the invisible laser beam to measure the distance.
GTS-900A/GPT-9000A series uses the visible laser beam for auto tracking, optical communication.
The GTS-900A/GPT-9000A series products are manufactured and sold in accordance with “Radiation
Safety of Laser Products, Equipment Classification, Requirements and User’s Guide” (IEC Publication
60825-1) or “Performance Standards for Light-Emitting Products” (FDA/BRH 21 CFR 1040) provided on
the safety standards for laser beam.
As per the said standards, GTS-900A/GPT-9000A series is classified as “Class 2 (CLASS II) Laser
Products”.
The laser beam belongs not very dangerous type but we request you to keep and understand “Safety
standard for users” as mentioned in the manual instruction.
In case of any failure, do not disassemble the instrument. Contact TOPCON or your TOPCON dealer.
Laser class of each mode is as follows.

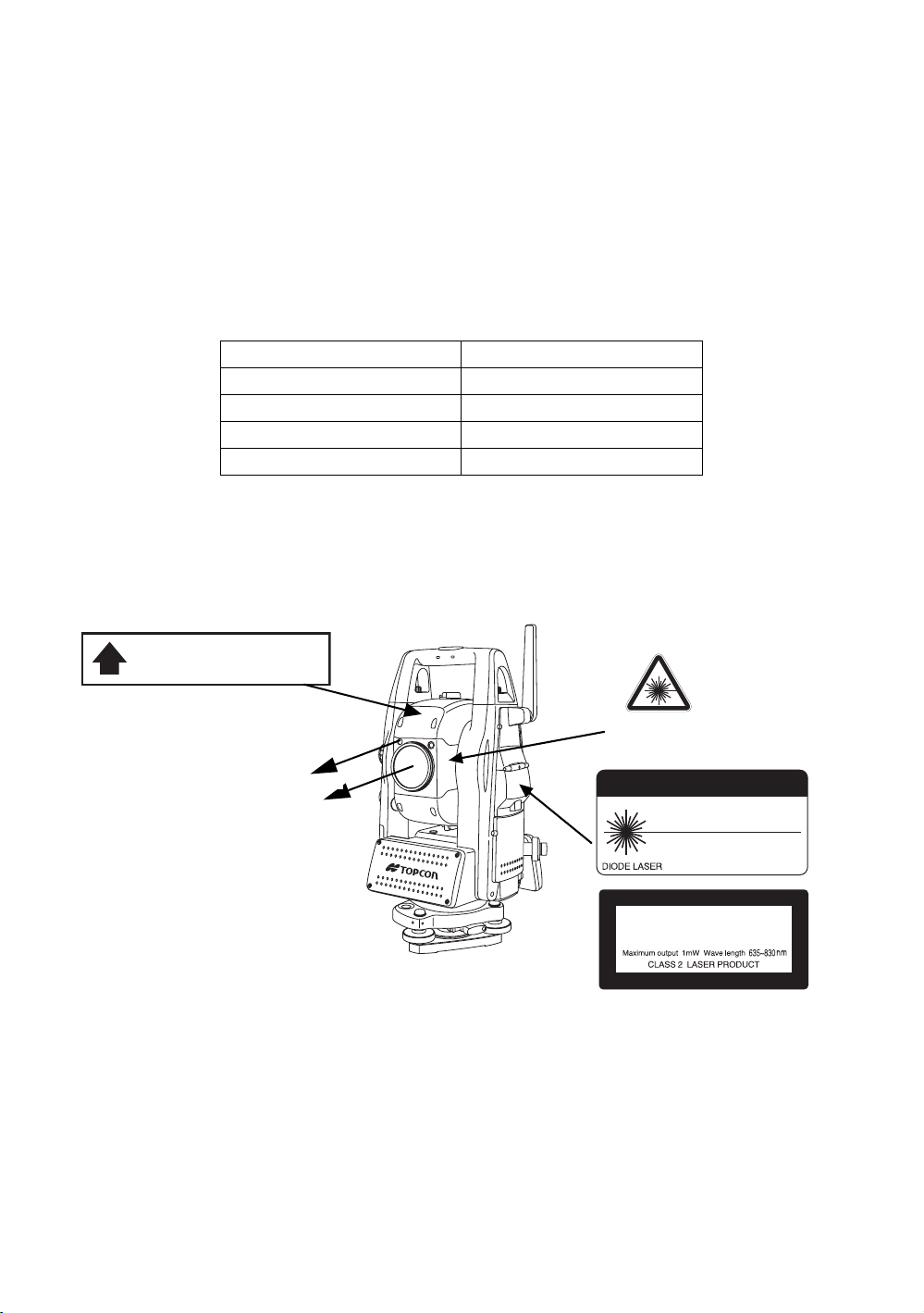

Labels
Find the labels which describes the caution and safety about the laser beam as follows in GTS-900A/
GPT-9000A/GPT-9000M series.
We request you to replace it one anytime the caution labels are damaged or lost and paste a new one
at the same place. You can get the labels from Topcon or your dealer.
Mode Laser class
Distance measurement Class 1 (CLASS I)
Autotracking Class 1 (CLASS II)
Optical communication Class 2 (CLASS II)
Laser pointer Class 2 (CLASS II)
AVOID EXPOSURE
LASER LIGHT IS EMITTED
FROM THIS APERTURE
Warning Label
Aperture Label
Explanatory Label
Each label is differed by the market.
DO NOT STARE INTO BEAM
LASER RADIATION
Beam aperture
CLASS II LASER PRODUCT
WAVE LENGTH 635nm-830nm
1mW MAXIMUM OUTPUT
LASER RADIATION
DO NOTSTARE INTO BEAM
CAUTION

6
Symbol Mark while the Laser is Emitting.
These symbol marks will come on while the laser is working.
When the Laser Pointer light is ON
(Class 2 (CLASS II) Laser)
Auto-collimating, Auto-tracking, Waiting, Searching (Class 1 (CLASS I) Laser)
Optical communication (Class 2 (CLASS II) Laser)
Auto-collimating Auto-tracking
Waiting Searching
When distance is being measured
(Class 1 (CLASS I) Laser)

7
Contents
FOREWORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General Handling Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Display for Safe Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Cautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
User. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Exceptions from Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Symbol Mark while the Laser is Emitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1 NOMENCLATURE AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.1 Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.2 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.2.1 Main Menu Contains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.2.2 Measurement Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.2.3 Display Marks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.2.4 Display Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.2.5 Shortcut Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.3 Backlight, Key Light Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.3.1 How to Adjust Reducing Time of Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.3.2 Adjust the Backlight Brightness by Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.3.3 Selecting the Automatic Lighting Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.3.4 Selecting the Key Light Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.4 RAM Data Backup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.4.1 Execute the Backup Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.4.2 Set the Automatic Backup for Every Suspension. . . . . . . . . . . . . . . . . . . . . . . . . . 22
1.4.3 Set the Restoration Disabled after Hardware Reset . . . . . . . . . . . . . . . . . . . . . . . 22
1.5 Hardware Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
1.6 Cover Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
1.7 Touch Panel Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1.8 Operating Panel Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1.8.1 Operating Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1.8.2 Turning OFF the Touch Panel Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
1.9 Power OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
1.10 Function Key (Soft Key) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
1.11 Star Key Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
1.11.1 Switching Measurement Distance Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
1.11.2 Setting by Using Star Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
1.12 Auto Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
1.13 Rotating Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
1.13.1 Rotating by H/V Shuttle and H/V Jog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
1.13.2 Auto Inversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
1.13.3 Rotating automatically to a required Horizontal and Vertical angle . . . . . . . . . . . 39
1.14 Using together with RC-3 Remote Control System. . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
1.15 Using connecting with Personal Computer (PC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
1.16 Using the USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2 PREPARATION FOR MEASUREMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
2.1 Power Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
2.2 Setting Instrument Up For Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
2.3 Power Switch Key ON. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2.4 Battery Power Remaining Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
2.5 Vertical and Horizontal Angle Tilt Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
2.5.1 Setting Tilt Correction by Soft Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
2.5.2 Correction of a Tilt Sensor setting error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
2.6 Compensation of Systematic Error of Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
2.7 How to Enter Numerals and Alphabet Letters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
2.8 Data Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
2.9 Active Sync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
2.9.1 Getting Connected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
2.10 Confirming the Bluetooth™ Device Address and Setting the PIN code . . . . . . . . . . . . 55
2.11 Inclination of Prism and Measuring Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

8
3 AUTOMATIC TRACKING / AUTOMATIC COLLIMATION . . . . . . . . . . . . . . . . . . . 58
3.1 Automatic Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3.2 Automatic Collimation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
3.3 Range of Laser for Auto-tracking and Auto-collimating. . . . . . . . . . . . . . . . . . . . . . . . . . 62
3.4 Setting Parameters for Auto-Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.4.1 Setting Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.4.2 How to set the parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
4 STANDARD MEASUREMENT MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
4.1 Angle Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
4.1.1 Measuring Horizontal Angle Right and Vertical Angle . . . . . . . . . . . . . . . . . . . . . . 66
4.1.2 Switching Horizontal Angle Right/Left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4.1.3 Measuring from the Required Horizontal Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
4.1.4 Vertical Angle Percent Grade(%) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
4.1.5 Automatic Rotation to a Required Horizontal and Vertical Absolute Angle . . . . . . 70
4.2 Distance Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
4.2.1 Setting of the Atmospheric Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
4.2.2 Setting of the Correction for Prism Constant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
4.2.3 Setting Measurement distance range of Non-prism long mode . . . . . . . . . . . . . . . 73
4.2.4 Distance Measurement (Continuous Measurement) . . . . . . . . . . . . . . . . . . . . . . . 75
4.2.5 Distance Measurement (Single/N-times Measurement). . . . . . . . . . . . . . . . . . . . . 76
4.2.6 Fine / Coarse Measuring Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
4.2.7 Stake Out (S.O) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
4.3 Coordinate Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
4.3.1 Setting Coordinate Values of Occupied Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
4.3.2 Setting of the Instrument Height / Reflector(Prism) Height. . . . . . . . . . . . . . . . . . . 82
4.3.3 Execution of Coordinate Measuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
4.4 Data Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
4.5 Data Output by [REC] Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
4.6 Data output of GTS-900A/GPT-9000A/GPT-9000M series . . . . . . . . . . . . . . . . . . . . . . 86
5 PROGRAM MODE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
5.1 Setting a Direction Angle for Backsight Orientation (BS) . . . . . . . . . . . . . . . . . . . . . . . . 88
5.2 Remote Elevation Measurement (REM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
5.3 Missing Line Measurement (MLM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
5.4 Repetition Angle Measurement (REP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
5.5 AP-L1A Communication Emulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
5.5.1 Activate AP-L1A communication Emulator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
5.5.2 Setup for Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
6 PARAMETERS SETTING MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
6.1 Parameter Setting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
6.1.1 Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
6.1.2 Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
6.1.3 Value Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
6.1.4 Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
6.2 Setting Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
7 CHECK AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
7.1 Checking and Adjusting of Instrument Constant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
7.1.1 Checking of the accuracy of the non-prism mode / non-prism long mode . . . . . . 104
7.2 Checking the Optical Axis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
7.2.1 Checking the optical axis of EDM and theodolite . . . . . . . . . . . . . . . . . . . . . . . . . 105
7.2.2 Checking the optical axis of Laser pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
7.2.3 Inspection and Adjustment of Optic Axis for Auto -Tracking . . . . . . . . . . . . . . . . 111
7.3 Checking/Adjusting the Theodolite Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
7.3.1 Checking / Adjusting the Plate Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
7.3.2 Checking / Adjusting the Circular Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
7.3.3 Adjustment of the Vertical Cross-hair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
7.3.4 Collimation of the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
7.3.5 Checking / Adjusting the Optical Plummet Telescope . . . . . . . . . . . . . . . . . . . . . 117
7.3.6 Adjustment of Vertical Angle 0 Datum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
7.4 How to Set the Instrument Constant Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
7.5 Compensation Systematic Error of Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
7.5.1 Adjustment of Compensation Systematic Error of Instrument . . . . . . . . . . . . . . . 120
7.5.2 Showing Compensation Systematic Error of Instrument . . . . . . . . . . . . . . . . . . . 122
7.6 Self Checking Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

9
8 SETTING THE PRISM / NON-PRISM CONSTANT CORRECTION VALUE . . . . 125
9 SETTING ATMOSPHERIC CORRECTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
9.1 Calculation of Atmospheric Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
9.2 Setting of Atmospheric Correction Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
10 CORRECTION FOR REFRACTION AND EARTH CURVATURE . . . . . . . . . . . 133
10.1 Distance Calculation Formula . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
11 POWER SOURCE AND CHARGING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
11.1 On-board Battery BT-65Q. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
12 DETACH/ATTACH OF TRIBRACH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
13 SPECIAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
14 BATTERY SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
15 PRISM SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
16 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
17 MESSAGE/ERROR DISPLAYS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
17.1 Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
17.2 Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
18 APPENDIX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
18.1 Dual Axis Compensation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
19 INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Specializing in quality
used surveying and
optical equipment
Hodgens Equipment Sales
www.hodgens.net [email protected]et
800-463-4367

1 NOMENCLATURE AND FUNCTIONS
10
1 NOMENCLATURE AND FUNCTIONS
1.1 Nomenclature
Objective lens
Instrument
center mark
Optical plummet
telescope
Leveling screw
Base
Handle fixing screw
Sighting collimator
Carrying handle
Laser pointer
Only for GPT-9000A
Laser aperture
Card cover lever
Card cover
Hardware reset
switch (Inside the
cover)
Tribrach fixing lever
Laser aperture
(for Optical communication)
Tracking indicator
USB connector
GTS-900A/GPT-9000A

Rev.3
AUTO TRACKING TOTAL STATION
GTS-901A
GTS-903A
GTS-905A
GPT-9001A
GPT-9003A
GPT-9005A
GPT-9003M
AUTO TRACKING PULSE TOTAL STATION
SERVO PULSE TOTAL STATION
GTS-900A
SERIES
GPT-9000A
SERIES
GPT-9000M
SERIES
INSTRUCTION MANUAL (SPECIFICATIONS)
Specializing in quality
used surveying and
optical equipment
Hodgens Equipment Sales
www.hodgens.net [email protected]et
800-463-4367

1
SPECIFICATIONS
SPECIFICATIONS
Telescope
Length : 165mm
Objective lens : 45mm (EDM 50mm)
Magnification : 30×
Image : Erect
Field of view : 1°30'
Resolving power : 3"
Minimum focus : 1.3m
Reticle illumination : Provided
Automatic Tracking / Collimating
Maximum Automatic Tracking speed : 15° /sec
Automatic Collimating area : ±5°
Automatic Tracking range *1:
Automatic Collimation accuracy : 2” Standard deviation *2
Search pattern : Pattern 1 / Pattern 2
Search range : Any value can be set, able to set (1° step)
Safety standard for Laser Beam : Class 1 (IEC Publication 825)
Class ll (FDA/BRH 21 CFR 1040)
*1 Condition : Normal (Visibility about 20km), except high humidity time.
Automatic Tracking range of Reflector tape will differ depending on the kind of reflector tape.
*2 The air condition is stable and prism is staying.
Automatic Collimation / Tracking accuracy is available only for prism use except for reflector
tape.
Manual Driving
Maximum rotating speed * : 85° /sec
Coarse movement : Shuttle driving (in 7 steps)
Fine movement : Jog driving (minimum step about 1 second)
*By reverse, rotating instruction
Prism type 2, with 1 prism 8 to 1000 m (26 to 3,280ft)
Prism Unit Type A6 10 to 600 m (33 to 1,960ft)
Reflector tape (5cm×5cm) 10 to 50 m (33 to 164 ft)

2
SPECIFICATIONS
Distance measurement
Measurement range
[GTS-900A series]
•Prism mode
[GPT-9000A/9000M series]
•Prism mode
Condition 1: Slight haze with visibility about 20km (12.5miles) moderate sunlight with light heat
shimmer.
Condition 2: No haze with visibility about 40km(25 miles), overcast with no heat shimmer.
•Non-prism mode
•Non-prism long mode
Prism
Atmospheric conditions
Condition 1 Condition 2
Mini prism 1,000m (3,280ft) ----
1 prism 3,000m (9,842ft) 4,000m (13,123ft)
3 prisms 4,000m (13,123ft) 5,300m (17,388ft)
9 prisms 5,000m (16,404ft) 6,500m (21,325ft)
Prism
Atmospheric conditions
Condition 1 Condition 2
Mini prism 1,000m (3,280ft) ----
1 prism 3,000m (9,842ft) 4,000m (13,123ft)
3 prisms 4,000m (13,123ft) 5,300m (17,388ft)
9 prisms 5,000m (16,404ft) 6,500m (21,325ft)
Target
Atmospheric conditions
In low light condition and without sun glare on target
Kodak gray card
(White surface) 1.5m to 250 m (5 to 820 ft)
Target
Atmospheric conditions
In low light condition and without sun glare on target
Kodak gray card
(Gray surface, A square
wall with sides of 0.5 meter)
5 to 700 m (16.4 to 2296 ft)
Kodak gray card
(White surface, A square
wall with sides of 1 meter)
5 to 2000 m (16.4 to 6561 ft)

3
SPECIFICATIONS
Measurement accuracy/Least Count in Measurement/Measurement Time
[GTS-900A series]
•Prism mode
D:Measuring distance
[GPT-9000A/9000M series]
•Prism mode
D:Measuring distance
•Non-prism mode (Diffusing Surface) D:Measuring distance
Measurement mode Measurement accuracy *1) Least Count
in Measurement
Measurement
Time
Fine
0.2mm mode
± (2mm +2ppm x D) m.s.e.
0.2mm
(0.001ft)
Approx. 3 sec.
(Initial 4 sec.)
1mm mode 1mm
(0.005ft)
Approx. 1.2 sec.
(Initial 3 sec.)
Coarse
1mm mode ± (7mm +2ppm × D) m.s.e. 1mm
(0.005ft)
Approx. 0.5 sec.
(Initial 2.5 sec.)
10mm mode ± (10mm +2ppm × D) m.s.e. 10mm
(0.02ft)
Approx. 0.3 sec.
(Initial 2.5 sec.)
Measurement mode Measurement accuracy *1) Least Count
in Measurement
Measurement
Time
Fine
0.2mm mode
± (2mm +2ppm x D) m.s.e.
0.2mm
(0.001ft)
Approx. 3 sec.
(Initial 4 sec.)
1mm mode 1mm
(0.005ft)
Approx. 1.2 sec.
(Initial 3 sec.)
Coarse
1mm mode ± (7mm +2ppm × D) m.s.e. 1mm
(0.005ft)
Approx. 0.5 sec.
(Initial 2.5 sec.)
10mm mode ± (10mm +2ppm × D) m.s.e. 10mm
(0.02ft)
Approx. 0.3 sec.
(Initial 2.5 sec.)
Measurement mode Measurement accuracy Least Count
in Measurement
Measurement
Time *2)
Fine
0.2mm mode
± (5mm) m.s.e.
0.2mm
(0.001ft)
Approx. 3 sec.
(Initial 4 sec.)
1mm mode 1mm
(0.005ft)
Approx. 1.2 sec.
(Initial 3 sec.)
Coarse
1mm mode
± (10mm) m.s.e.
1mm
(0.005ft)
Approx. 0.5 sec.
(Initial 2.5 sec.)
10mm mode 10mm
(0.02ft)
Approx. 0.3 sec.
(Initial 2.5 sec.)

4
SPECIFICATIONS
•Non-prism long mode *3) *4) (Diffusing Surface) D:Measuring distance
*1)More than 2m
*2)The initial time will be different by a condition.
*3)Measurement distance: No more than 500m, When Kodak gray card (white surface) is used.
*4)However, when the measurement distance is more than 500 m, or when the reflectance of the
measured surface is low, measurement time will become longer.
Laser class for distance measurement : Class 1(IEC Publication 825)
: Class I(FDA/BHR 21 CFR 1040)
Atmospheric Correction Range : –999.9 ppm to +999.9 ppm, in 0.1 ppm increments
Prism Constant Correction Range : –99.9 mm to +99.9 mm, in 0.1 mm increments
Coefficient Factor : Meter / Feet
International feet 1meter = 3.2808398501 ft.
US SURVEY feet 1meter = 3.2808333333 ft.
Electronic Angle Measurement
Method : Absolute reading
Detecting system :
Horizontal : 2 sides
Vertical : 2 sides
Minimum reading
GTS-901A/GPT-9001A : 1"/0.5" (0.5mgon/0.1mgon, 5mmil/2mmil) reading
GTS-903A/GPT-9003A/GPT-9003M/
GTS-905A/GPT-9005A : 5"/1" (1mgon/0.2mgon, 20mmil/ 5mmil) reading
Accuracy(Standard deviation based on DIN 18723)
GTS-901A/GPT-9001A : 1"(0.3mgon)
GTS-903A/GPT-9003A/GPT-9003M : 3"(1.0mgon)
GTS-905A/GPT-9005A : 5"(1.5mgon)
Diameter of circle : 71 mm
Tilt Correction
Type : Automatic vertical and Horizontal index
Method : Liquid type
Compensating Range : ±6'
Correction unit : 1"(0.1mgon)
Computer unit
Microprocessor : Intel PXA255
Processor speed : 400MHz
Operating system : Microsoft Windows CE.NET 4.2
Memory : 64MB / RAM
2MB Flash ROM
128MB SD Card
Measurement mode Measurement accuracy Least Count
in Measurement
Measurement
Time
Fine 1mm mode ± (10mm +10ppm x D)
m.s.e.
1mm
(0.005ft)
Approx. 1.5~6 sec.
(Initial 6~8 sec.)
Coarse
5mm mode ± (20mm +10ppm × D)
m.s.e.
5mm
(0.02ft)
Approx. 1~3 sec.
(Initial 6~8 sec.)
10mm mode ± (100mm) m.s.e. 10mm
(0.02ft)
Approx. 0.4 sec.
(Initial 4~7 sec.)
®
®

5
SPECIFICATIONS
Display
LCD : 3.5 inch TFT color LCD
(240x320 dots)
Touch panel : Electrical analog resistor thin film system
Bluetooth™ Unit
Bluetooth™ Communication distance : About 5m
(The range will be different by a condition)
Bluetooth™ Standard : V1.2
Bluetooth™ Transmitting : Class2
Wireless function
Communication distance : About 1000m
(Distance may vary due to obstruction between the
communication instruments or communication status)
Communication output : 100mW or less
Interface
Based on RS-232C (6 pin)
Based on CompactFlash (Type I/II)*
*CompactFlash is a trademark of SanDisk corporation.
USB : Type miniB Rev.1.1(Active Sync)
Type A Rev.1.1(USB Memory)
Others
Instrument height : 196mm (7.7in) Base unit detachable
(Height from the tribrach dish to the center of
telescope)
Level sensitivity
Circular level : 10'/2mm
Plate level : 30"/2 mm
Optical Plummet Telescope
Magnification : 3×
Focusing range : 0.5m to infinity
Image : Erect
Field of view : 4°
Laser pointer
Light source : LD (Visible laser)
Wave length
GPT-9000A/9000M series : 639nm
Out put : 1mW maximum
Laser class : Class 2(IEC Publication 825)
: Class II(FDA/BHR 21 CFR 1040)
Optical communication
Laser class : CLASS 2 (Class ll) laser product
Dimension : 338 (H) × 212 (W)× 197 (L) mm
(13.3 (H) × 8.3 (W) ×7.7 (L) in)
Weight
Instrument : 5.9 kg (12.9 lbs)
Battery(BT-65Q) : 0.2 kg (0.4 lbs)
Tribrach : 0.8 kg (1.7 lbs)
Carrying case : 4.5kg (9.9 lbs)
Durability
Protection against water and dust : IP54 (Based on the standard IEC60529)
Ambient Temperature Range : –20°C to +50°C (–4°F to +122°F)
External Battery
Input voltage : DC12 V

6
SPECIFICATIONS
Rechargeable Battery BT-65Q (This battery does not contain mercury.)
Output voltage : DC7.4 V
Capacity : 5000mAh
Maximum operating time (when fully recharged) at +20°C (+68°F)
Normal use : Approx. 4.0 hours*
Continuous Tracking : Approx. 3.5 hours
Angle measurement and Distance measurement
: Approx. 4.5hours
* Continuous double face observations by using Automatic collimation
Battery Charger BC-30D (with AC/DC converter AD-12 and AC-cable)
Input voltage : AC 100-240V
Frequency : 50/60Hz
Recharging time (at +20°C /+68°F)
Battery BT-65Q : 5 hours/1 battery
Operating temperature : +10°C to +40°C ( +50°F to 104°F)
Charging signal : Orange charge lamp should glow
Finishing signal : Green charge lamp should glow
Weight(with AC/DC converter) : 0.4kg (0.8 lbs)
•Battery using time will vary depending on environmental conditions and operations done with
GTS-900A/GPT-9000A/GPT-9000M series.
