Topdon Tornado 30000 User manual

6V/12V/24V Battery Charger USER MANUAL

CONTENT
Welcome
DE
17
17
17
18
19
20
24
25
26
EN
5
5
5
6
7
8
12
13
14
FR
29
29
29
30
31
32
36
37
38
ES
41
41
41
42
43
44
48
49
50
IT
53
53
53
54
55
56
60
61
62
65
65
65
66
67
68
72
73
74
PT
77
77
77
78
79
80
86
87
88
RU
91
91
91
92
93
94
98
99
100
JP
About
tornado30000
Safety cautions
What is
included
Product
overview
Function
overview
Specications
FAQ
Warranty

ENGLISH

WELCOME
ABOUT TORNADO 30000
SAFETY CAUTIONS
Thank you for purchasing the TORNADO 30000. If any
issues arise during its use, you are welcome to contact
[email protected].
TORNADO 30000 is a smart battery charger for all types
of 6V/12V/24V lead-acid batteries, including Wet, Gel, MF,
Cal, EFB, AGM, and 12V/24V Li-ion batteries from 50Ah to
1000Ah. Designed to provide safety and reliability, it has 9
charging steps and 12 charging modes for efcient battery
charging, repairing, and maintenance. To be compatible
with a wide range of in-car appliances such as tire inator,
car vacuum, car fridge, the TORNADO 30000 supports
12V/24V DC power supply.
Before using this product, please read carefully and
understand all safety instructions thoroughly. Failure to
follow these safety instructions may lead to Electrical Shock,
Explosion, and Fire, which can result in property damage,
serious injury, and even death.
• We strongly recommend this product NOT to be used for
any application other than for what it was designed.
• Before using this product, refer to your battery
manufacturer's manual to determine the voltage and
chemistry of the battery.
• Do not attempt to charge a damaged or frozen battery.
Incompatible or damaged batteries can explode if the
charger is improperly used.
• Do not use the charger if the power cords are damaged.
• Clean the battery terminal if it is dirty or corroded.
Keep it dry.
• Do not smoke or use any source of electrical spark or
ame during its operation to avoid re.
EN |5

• Make sure the area around the battery is well-ventilated
while the battery isbeing charged. To reduce the risk of
battery explosion, follow all safety instructions published by
the battery manufacturer.
• Wear safety goggles during its whole operation. Batteries
can cause ying debris and emit toxic gases. Remove all
personal items made of metal, such as rings, necklaces, and
watches, when working with a lead-acid battery.
• Place fresh water and soap nearby in case battery acid
touches skin, clothing, or eyes. If acid makes contact with
eyes, then immediately wash it with running cold water for
at least ten minutes and seek medical attention as soon as
possible.
• Place the battery charger as far away from the battery as
possible. Do not put the charger directly above the battery.
• Do not submerge the charger in water or get it wet.
• Keep the charger away from children. It is not a toy.
• Disconnect or connect the cables only when the charger
is powered off. Store the charger in a well-ventilated and dry
place every time you nish charging.
WHAT'S INCLUDED
TORNADO 30000 Smart Charger
Battery Clamp
User Manual

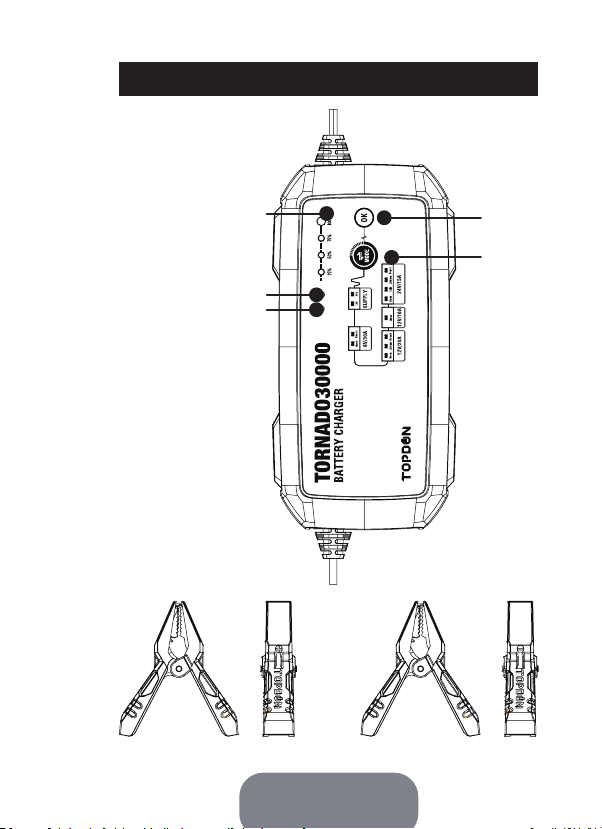

PRODUCT OVERVIEW
Battery Level
Indicators
Mode
OK
Power Indicator
Error Indicator
Positive Clamp (Red) Negative Clamp (Black)
EN |7

FUNCTION OVERVIEW
CHARGING MODES
MODE
12V/30A
NORM
12V/30A
LITHIUM
12V REPAIR
24V/15A
NORM
24V/15A
COLD AGM
24V/15A
LITHIUM
24V REPAIR
14.5V
14.3V
15.5V
29V
29.5V
28.6V
31V
Charge 12V Wet, Gel, MF,
Cal, EFB and AGM batteries
through 9-step smart
charging.
Charge 12V li-ion batteries.
Repair old or sulfated 12V
batteries through small
current and pulse current.
Charge 24V Wet, Gel, MF,
Cal, EFB and AGM batteries
through 9-step smart
charging.
Charge 24V WET, GEL, MF,
CAL, EFB, AGM batteries with
an ambient temperature
below 32ºF (0ºC).
Charge 24V li-ion batteries.
Repair old or sulfated 24V
batteries through small
current and pulse current.
MAX CHARGING VOLTAGE EXPLANATION
The TORNADO 30000 offers 12 charging modes: 12V/30A
NORM, 12V/30A LITHIUM, 12V REPAIR, 24V/15A NORM,
24V/15A COLD AGM, 24V/15A LITHIUM, 24V REPAIR, 6V/15A
NORM, 6V REPAIR, 12V/30A SUPPLY, 24V/15A SUPPLY,
12V/10A NORM. Understanding the differences and
purposes of each charging mode is very important. Read
below a brief description to help with comprehension:

CHARGING YOUR VEHICLE BATTERY
6V/15A
NORM
6V REPAIR
12V/30A
SUPPLY
24V/15A
SUPPLY
12V/10A
NORM
7.25V
7.75V
13.5V
27V
14.5V
Charge 6V Wet, Gel, MF,
Cal, EFB and AGM batteries
through 9-step smart charging.
Repair old or sulfated 6V
batteries through small
current and pulse current.
Convert to DC power to drive
or power DC devices. (e.g.
Tire Inator, Car Vacuum, Car
Fridge, etc.)
Convert to DC power to drive
or power DC devices. (e.g.
Tire Inator, Car Vacuum, Car
Fridge, etc.)
Charge 12V Wet, Gel, MF,
Cal, EFB and AGM batteries
through 9-step smart
charging.
Important: Please do not operate the charger until you
conrm the appropriate charging mode for your battery.
You can verify the voltage and chemistry of the battery by
consulting the manufacturer's manual, or by reading the
label on the battery.
1. Connect the clamps to vehicle battery terminals. Red
clamp to the positive polarity (+), black clamp to the
negative polarity (-).
2. Connect the charger's plug to the socket, it will turn on
automatically and the green indicator will be lit.
(Note: In the event of improper operation such as over
temperature, short circuit, over voltage, reverse connection
or reverse charging, the red warning indicator lights
up and charging will be terminated. )
EN |9

3. Press the MODE button to toggle among
Charging Modes. The corresponding icon will light up once
the mode is selected.
4. Press the OK button to conrm the mode. The
battery level indicator that displays 100% power will light up
and all four battery level indicators will be solid white when
the battery gets fully charged.
CHARGING TIMES
The size of the battery (Ah) and its depth of discharge (DOD)
greatly affect its charging time. The estimated charging
time shown below is based on an average depth of
discharge 50% to a fully charged battery and is for reference
purposes only. Actual data may differ due to battery
conditions and temperature.
Optimum
Battery
Capacity Range
(Ah)
Battery
Capacity
(Ah)
Charging
Time(h)
50 375 /
3.8
5.0
6.3
8.3
16.7
/
/
/
2.5
3.1
4.2
8.3
20.8
3.1
5.6
7.5
9.4
12.5
25.0
/
/
//
5.0
6.3
8.3
16.7
90 675
120 900
150 1125
200 1500
400 3000
1000 7500
CCA
6V
15A 12V 30A 12V 10A 24V 15A
50Ah
~
1000Ah
TORNADO
30000

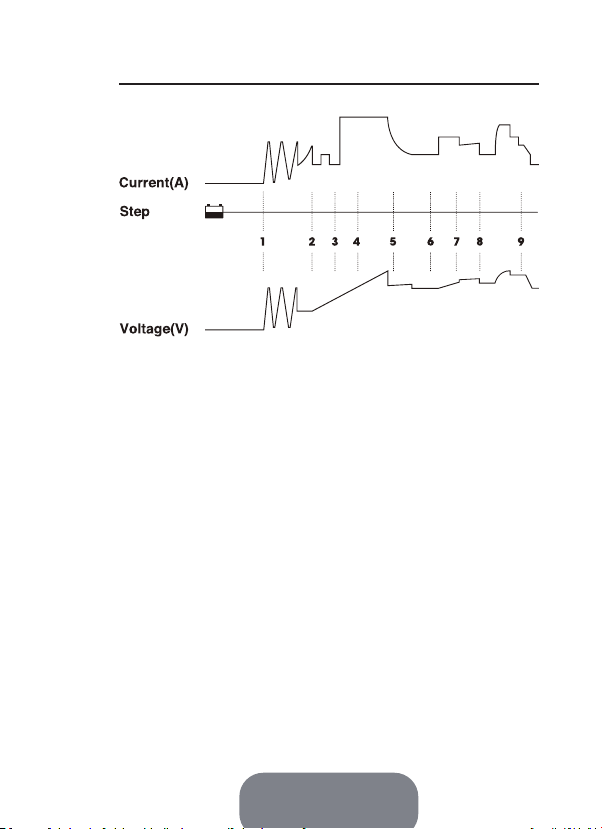

CHARGING STEPS
1) DIAGNOSIS Checks the battery's initial condition
including voltage, state-of-charge, and health, to determine
if the battery is stable before charging.
2) DESULPHATION Uses voltage or high-frequency pulses
to break down the sulfates that have built up over time in
the aging battery to optimize life and performance.
3) PRE-CHARGE Starts the charging process with a low
stable current that gradually increases until the battery
capacity returns 25%. This reduces the stress put on
batteries by sudden surges.
4) SOFT START Provides a medium stable current until the
battery capacity returns 50%.
5) BULK CHARGE Begins the Bulk charging process based
on the condition of the battery until the battery capacity
returns 80%.
6) ABSORPTION Brings the charge level to 100% by
delivering small amounts of current to provide a safe,
efcient charge. This limits battery gas emission and
prolongs life.
EN |11

7) ANALYSIS Monitors whether the battery voltage falls
below its target threshold. If yes, the charger will enter the
Recondition mode.
8) RECONDITION Checks the battery status, and then
recovers small currents to improve the capacity.
9) MAINTENANCE Checks the battery status and brings
the charge level back to 100%. Then the ANALYSIS,
RECONDITION, and MAINTENANCE will form into a charge
cycle to keep the battery at full charge. The battery charger
can be safely left connected indenitely without the risk of
overcharging.
SPECIFICATIONS
Input Voltage

Power
Charging Voltage
Charging Current
Working Temperature
Storage Temperature
Charger Type
Type of Batteries
Battery Chemistries
Chargeable Battery Capacity Range
Dimensions (L x W x H)
Net Weight
100V-240V
85%
360W Max
5.5~7.25V; 11~14.8V; 22~29.6V
30A Max (12V);
15A Max (24V & 6V)
-10°C~40°C(14°F~104°F)
-20°C~75°C(-4°F~167°F)
9-Step Smart Charger
6V; 12V; 24V
Wet, Gel, MF, CA, EFB,
AGM, Li-ion
50Ah~1000Ah
335 x 160 x 78 mm
(13.18 x 6.29 x 3.07")
2800g (6lb)

FAQ
Q: How to select the charging mode?
A: Please select the charging mode according to the battery
type and capacity. We recommend that the current value
should not be greater than 20% of the battery capacity
value. For example, for a 100Ah battery, we recommend
that the current is not greater than 20A.
Q: Will TORNADO 30000 stop charging automatically after
the battery is fully charged?
A: Yes. TORNADO 30000 adopts 9-step smart charging.
When the battery is fully charged, it will automatically
stop charging without the risk of overcharging. If you
still leave the battery connected, the charger will keep
monitoring the battery status and will automatically start
charging when the battery voltage falls below its target
threshold.
Q: Can TORNADO 30000 charge multiple batteries
simultaneously?
A: Yes. Please correctly connect these batteries in series or
parallel before charging. If you have questions about the
connection, you can consult the battery manufacturer or
contact us for help.
Q: Which modes of the charger adopt the 9-step smart
charging?
A: The NORM, COLD mode.
Q: Is REAPIR mode applicable to all battery types?
A: No, it can't be used for lithium batteries. However, it is
applicable to all types of lead-acid batteries.
Q: Why can't some batteries be used normally after repair?
A: We recommend only applying the Repair Mode on
batteries with SOH above 40%.
Q: Why can't some batteries be charged?
A: Generally, a 12V battery with a voltage lower than 8.5V is
damaged and cannot be charged normally.
EN |13

WARRANTY
FCC WARNINGS
"TOPDON Three Years Limited Warranty
The TOPDON Company warrants to its original purchaser
that TOPDON products will be free from defects in material
and workmanship for 3 years from the date of purchase
(Warranty Period). For the defects reported during the
Warranty Period, TOPDON will, according to its technical
support analysis and conrmation, either repair or replace
the defective part or product.
The TOPDON shall not be liable for any incidental or
consequential damages arising from the use, misuse, or
mounting of the device. Some states do not allow limitation
on how long an implied warranty lasts, so the above
limitations may not apply to you.
This limited warranty is void under the
following conditions:
Misused, disassembled, altered or repaired by unauthorized
stores or technicians.
Careless handling and violation of operation.
Notice: All information in this manual is based on the latest
information available at the time of publication and no
warranty can be made for its accuracy or completeness.
Topdon reserves the right to make changes at any time
without notice."
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
"Note: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help."
EN |15

DEUTSCH

WILLKOMMEN
ÜBER TORNADO 30000
SICHERHEITSHINWEISE
Vielen Dank für den Kauf des TORNADO 30000. Wenn
während der Verwendung Probleme auftreten, können Sie
sich gerne an [email protected]om wenden.
TORNADO 30000 ist ein intelligentes Batterieladegerät
für alle Arten von 6V/12V/24V Blei-Säure-Batterien,
einschließlich Nass-, Gel-, MF-, Cal-, EFB-, AGM- und 12V/24V
Li-Ionen-Batterien von 50Ah bis 1000Ah. Entwickelt, um
Sicherheit und Zuverlässigkeit zu bieten, verfügt es über
9 Ladestufen und 12 Lademodi für efzientes Laden,
Reparieren und Warten der Batterie. Der TORNADO
30000 unterstützt eine 12V/24V DC-Stromversorgung, um
mit einer Vielzahl von Fahrzeuggeräten wie Reifenfüller,
Autostaubsauger und Autokühlschrank kompatibel zu sein.
Bitte lesen Sie vor der Verwendung dieses Produkts alle
Sicherheitshinweise sorgfältig durch und verstehen Sie sie
gründlich. Die Nichtbeachtung dieser Sicherheitshinweise
kann zu elektrischem Schlag, Explosion und Feuer führen,
was zu Sachschäden, schweren Verletzungen und sogar
zum Tod führen kann.
• Wir empfehlen dringend, dieses Produkt NICHT für andere
als die dafür vorgesehenen Anwendungen zu verwenden.
• Bevor Sie dieses Produkt verwenden, schlagen Sie im
Handbuch Ihres Batterieherstellers nach, um die Spannung
und die Chemie der Batterie zu bestimmen.
• Versuchen Sie nicht, eine beschädigte oder eingefrorene
Batterie aufzuladen. Inkompatible oder beschädigte Akkus
können explodieren, wenn das Ladegerät unsachgemäß
verwendet wird.
• Verwenden Sie das Ladegerät nicht, wenn die Netzkabel
beschädigt sind.
• Reinigen Sie den Batteriepol, wenn er verschmutzt oder
DE |17

korrodiert ist. Halten Sie es trocken.
• Während des Betriebs nicht rauchen und keine
elektrischen Funken- oder Flammenquellen verwenden,
um Feuer zu vermeiden.
• Achten Sie darauf, dass der Bereich um den Akku gut
belüftet ist, während der Akku geladen wird. Um das Risiko
einer Batterieexplosion zu verringern, befolgen Sie alle vom
Batteriehersteller veröffentlichten Sicherheitsanweisungen.
• Tragen Sie während des gesamten Betriebs eine
Schutzbrille. Batterien können herumiegende Trümmer
verursachen und giftige Gase freisetzen. Entfernen Sie
alle persönlichen Gegenstände aus Metall, wie Ringe,
Halsketten und Uhren, wenn Sie mit einer Blei-Säure-
Batterie arbeiten.
• Stellen Sie frisches Wasser und Seife in die Nähe, falls
Batteriesäure Haut, Kleidung oder Augen berührt. Wenn
Säure in die Augen gelangt, waschen Sie sie sofort mit
ießendem kaltem Wasser mindestens 10 Minuten lang aus
und suchen Sie so schnell wie möglich einen Arzt auf.
• Platzieren Sie das Ladegerät so weit wie möglich vom
Akku entfernt. Stellen Sie das Ladegerät nicht direkt über
den Akku.
• Tauchen Sie das Ladegerät nicht in Wasser und machen
Sie es nicht nass.
• Halten Sie das Ladegerät von Kindern fern. Es ist kein
Spielzeug.
• Trennen oder verbinden Sie die Kabel nur, wenn das
Ladegerät ausgeschaltet ist. Lagern Sie das Ladegerät
nach jedem Ladevorgang an einem gut belüfteten und
trockenen Ort.
WAS IST INBEGRIFFEN
TORNADO 30000 Intelligentes Ladegerät
Batterieklemme
Benutzerhandbuch

PRODUKTÜBERSICHT
Batteriestandsanzeigen
Modus
OK
Kraftmesser
Fehleranzeige
Positive Klemme (Rot) Negative Klemme (Schwarz)
DE |19

FUNKTIONSÜBERSICHT
LADEMODUS
MODUS
12V/30A
NORM
12V/30A
LITHIUM
12V REPAIR
24V/15A
NORM
24V/15A
COLD AGM
24V/15A
LITHIUM
24V REPAIR
14.5V
14.3V
15.5V
29V
29.5V
28.6V
31V
Laden Sie 12-V-Nass-, Gel-
, MF-, Cal-, EFB- und AGM-
Batterien durch intelligentes
Laden in 9 Schritten.
Laden Sie 12-V-Lithium-Ionen-
Akkus auf.
Repariert alte oder sulfatierte
12V Batterien durch kleinen
Strom und Pulsstrom.
Laden Sie 24-V-Nass-, Gel-
, MF-, Cal-, EFB- und AGM-
Batterien durch intelligentes
Laden in 9 Schritten.
Lädt 24V WET-, GEL-, MF-,
CAL-, EFB-, AGM-Batterien bei
einer Umgebungstemperatur
unter 0 °C auf.
Lädt 24V Li-Ion Batterien auf.
Repariert alte oder sulfatierte
24V Batterien durch kleinen
Strom und Pulsstrom.
MAX. LADESPANNUNG ERKLÄRUNG
Der TORNADO 30000 bietet 12 Lademodi: 12V/30A NORM,
12V/30A LITHIUM, 12V REPARATUR, 24V/15A NORM, 24V/15A
KALTE AGM, 24V/15A LITHIUM, 24V REPARATUR, 6V/15A
NORM, 6V REPARATUR, 12V/30A VERSORGUNG, 24V/15A
VERSORGUNG, 12V/10A NORM. Es ist sehr wichtig, die
Unterschiede und Zwecke der einzelnen Lademodi zu
verstehen. Lesen Sie unten eine kurze Beschreibung, um
das Verständnis zu erleichtern:
