Topdon TORNADO 90000 User manual

TORNADO
90000
12V/24V Battery Charger & Stable
Power Supply USER MANUAL

CONTENT
Welcome
DE
21
21
21
22
23
25
32
33
34
EN
5
5
5
6
7
9
15
16
17
FR
37
37
37
38
39
41
47
48
49
ES
51
51
51
52
53
55
61
62
63
IT
65
65
65
66
67
69
76
77
78
81
81
81
82
83
85
91
92
93
PT
95
95
95
96
97
99
105
106
107
RU
109
109
109
110
111
113
119
120
121
JP
About
tornado90000
Safety cautions
What is
included
Product
overview
Function
overview
Specications
FAQ
Warranty

ENGLISH

WELCOME
ABOUT TORNADO90000
Thank you for purchasing the Tornado90000. If any issues arise
during the use of this product, welcome to contact support@
topdon.com for ofcial technical support.
Tornado90000 serves as a smart battery charger for all types of
12V/24V lead-acid batteries, including Wet, Gel, MF, Cal, EFB, and
AGM from 20Ah to 2800Ah(150 CCA and Up). With 9 charging
steps and 6 charging modes, Tornado90000 offers high safety and
reliability for charging, repairing, and maintaining batteries. In
addition, it is able to deliver up to 90 amps of constant voltage for
vehicle programming and extended KOEO diagnostics.
SAFETY CAUTIONS
Before using this product, please read carefully and understand
all safety instructions thoroughly. Failure to follow these safety
instructions may lead to Electrical Shock, Explosion, and Fire, which
can result in property damage, serious injury, and even death.
• We strongly recommend this product NOT to be used for any
application other than for what it was designed.
• Before using this product, refer to your battery manufacturer's
manual to determine the voltage and chemistry of the battery.
• Do not attempt to charge a damaged or frozen battery.
Incompatible or damaged batteries can explode if the charger is
improperly used.
• Do not use the charger if the power cords are damaged.
• Clean the battery terminal if it is dirty or corroded. Keep it dry.
EN |5

WHAT IS INCLUDED
Tornado90000 Charger with Power Cable
• Disconnect or connect the cables only when the charger is
powered off. Store the charger in a well-ventilated and dry place
every time you nish charging.
• Make sure the area around the battery is well-ventilated while the
battery isbeing charged. To reduce the risk of battery explosion,
follow all safety instructions published by the battery manufacturer.
• Do not submerge the charger in water or get it wet.
Battery Clamp
• Keep the charger away from children. It is not a toy.
Hex Wrench
User Manual
• Do not smoke or use any source of electrical spark or ame during
its operation to avoid re.
• Wear safety goggles during its whole operation. Batteries can
cause ying debris and emit toxic gases. Remove all personal
items made of metal, such as rings, necklaces, and watches, when
working with a lead-acid battery.
• Place fresh water and soap nearby in case battery acid touches
skin, clothing, or eyes. If acid makes contact with eyes, then
immediately wash it with running cold water for at least ten
minutes and seek medical attention as soon as possible.
• Place the battery charger as far away from the battery as possible.
Do not put the charger directly above the battery.

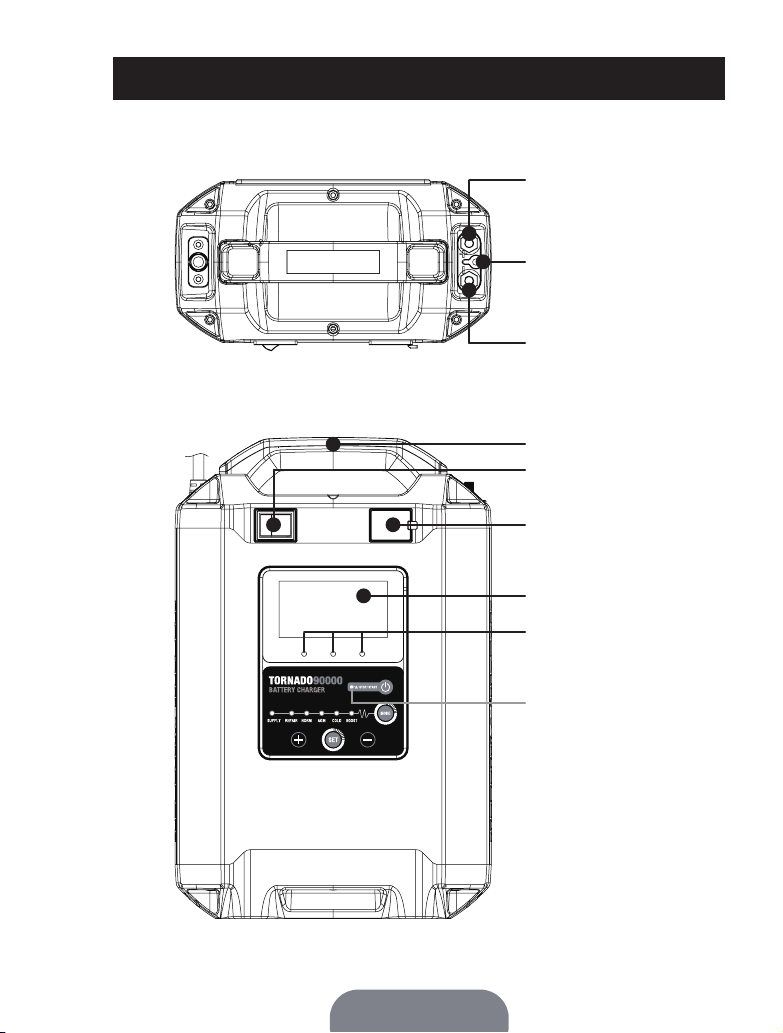

PRODUCT OVERVIEW
Mini USB Port (For Upgrade)
Power Button
Handle
Jack for
Temperature Sensor
Positive Terminal
Negative Terminal
Power Indicator (Red)
Error Indicator (Red)
Over Temperature
Indicator (Red)
Working Indicator (Green)
LCD Display
EN |7

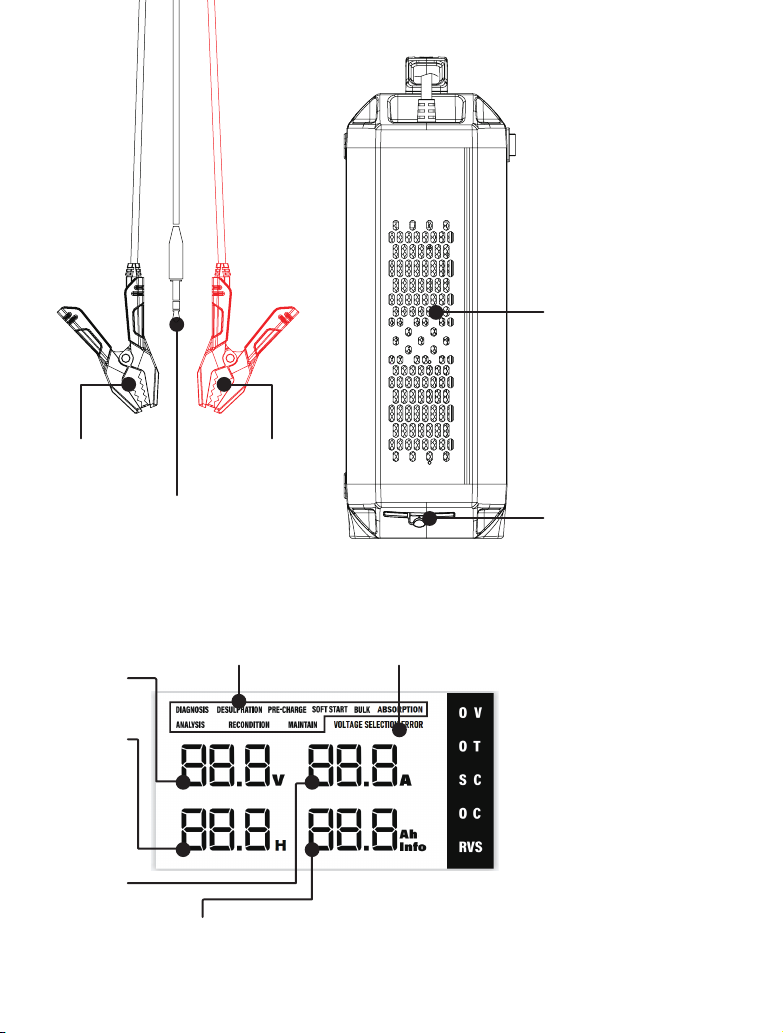

Air Outlet
Temperature Sensor
(up to 65°C/ 149°F)
Negative
Clamp (Black)
Positive
Clamp (Red)
Buckle for Filter
OV- Over Voltage
9-Step Charging Process
Voltage
Value
Charging Capacity
Charging
Time
Current
Value
Voltage Selection Error
OT- Over Temperature
SC- Short Circuit
OC- Over Charge
RVS- Reverse Polarity
TIP: Please clean the lter every six months and keep
it dry. This product is not waterproof.
TIP: If any error occurs during the charging process,
the corresponding prompt will be shown on the
display. Please disconnect the charger and check
your battery. Do not charge again until the problem
is solved.

FUNCTION OVERVIEW
CHARGING MODES
Explanation
Adjustable Range
11V-15.8V 5A-90A / 22V-31.6V 5A-45A
15.5V 5-15A / 31V 5-15A
11V-15.8V 5A-90A / 22V-31.6V 5A-45A
14.6V 5A-90A / 29.2V 5A-45A
14.8V 5A-90A / 29.6V 5A-45A
15.8V 5-90A / 31.6V 5-45A
Provide a stable power supply for vehicle programming and extended maintenance.The actual
output amperage is determined by the device load, but will not exceed the amperage you set.
Repair old or sulfated batteries through small current and pulse
current.
Charge batteries through 9-step smart charging.
Charge AGM batteries through 9-step smart charging.
Provide constant voltage to quickly charge the battery in 2~8 hours.
Charge batteries when the temperature is below 0°C(32°F)
through 9-step smart charging.
Default
13.5V/27V
15.5V/31V
14.5V/29V
14.6V/29.2V
14.8V/29.6V
15.8V/31.6V
Mode
Supply
Repair
Normal
AGM
COLD
BOOST
The Tornado90000 offers 6 charging modes: SUPPLY, REPAIR,
NORMAL, AGM, COLD, and BOOST. Understanding the differences
and purposes of each charging mode is very important. Read below
a brief description to help with comprehension:
EN |9

CHARGING YOUR VEHICLE BATTERY
IMPORTANT:
Please do not operate the charger until you conrm the appropriate
charging mode for your battery. You can verify the voltage and
chemistry of the battery by consulting the manufacturer's manual,
or by reading the label on the battery.
1. Fix one end of the battery clamps with eyelet terminals to the
charger through the Hex Wrench included. Connect the red
terminal to the positive polarity (+), and the black terminal to the
negative polarity (-).
3. Connect the Sensor Plug to the jack on the charger, then attach
the Temperature Sensor to the battery.
2. Connect the other end of the battery clamps to the vehicle
battery. Connect the red clamp to the positive polarity (+), and the
black clamp to the negative polarity (-).
TIP:
When the temperature of the battery is over 65°C (149°F),the Temperature Indicator
light will turn red, and the charger will stop working. Disconnect the charger and wait until
the battery cools down, then recharge it.
Negative
Terminal
Positive
Terminal
Sensor
Jack
Sensor
Plug
Negative Eyelet
Terminal
Hex
Wrench Positive Eyelet
Terminal

4. Connect the power plug of the charger to an outlet.
6. Press the MODE button to toggle to the appropriate
charging mode for the chemistry of your battery.
5. Turn on the Power Button and the Power Indicator
will turn red. The charger will then begin charging mode setup.
7. Press and hold the SET button for 1.5 seconds to conrm
the charging mode, and the charger will enter the voltage mode
setup. Press + or - to select 12V mode or 24V mode.
TIP: If you select the wrong voltage mode, the Error Indicator light will turn red,
and there will be an error prompt on the LCD screen.
8. Press the SET button to conrm the voltage mode,
then press + or - to adjust the voltage value to what you need if it is
possible.
EN |11

9. Press the SET button to conrm the voltage value and
enter the current setup, then press + or - to adjust the current value
to what you need if it is possible.
10. Press the START/STOP button to begin charging.
The Working Indicator light will turn solid green
during the charging process. When the charging nishes, the
Working Indicator light will be OFF.
11. Press the Power Button to turn off the charger. The
Power Indicator light will be OFF in 5 seconds, and the
display will turn off. To store or put away, unplug the power plug
and keep the charger in a well-ventilated and dry place.
TIP:* Press the START/STOP button to stop/start charging if needed.
* Press and hold the SET button for 1.5 seconds to change the charging mode
if necessary.

CHARGING TIMES
The size of the battery (Ah) and its Depth of Discharge (DOD)
greatly affect its charging time. The estimated charging times
shown below are based on an average depth of discharge of 50% to
a fully charged battery, and are for reference purposes only. Actual
data may differ due to battery conditions and temperature.
Charging
Current(A)
Battery
Capacity(Ah)
Approximate Time(h)
12V NORM 24V NORM
Optimum
Battery Capacity
Range(Ah)
520-350
20 1.3 1.3
80 5.0 5.0
80 2.5 2.5
150 4.7 4.7
120 2.5 2.5
180 2.5 2.5
240 2.5
600 6.3
1800 18.8
320 2.5
360 2.5
800 5.6
2800 19.4
600 4.7
2400 18.8
300 4.2 4.2
1400 19.4 19.4
/
/
/
200 4.2 4.2
1000 20.8 20.8
600 18.8 18.8
300 18.8 18.8
80-650
120-1000
180-1400
240-1800
320-2400
360-2800
20
30
45
60
80
90
EN |13

CONSTANT VOLTAGE SUPPLY
The SUPPLY mode maintains power for vehicle programming and
extended maintenance ensuring operational order for both the
vehicle and battery.

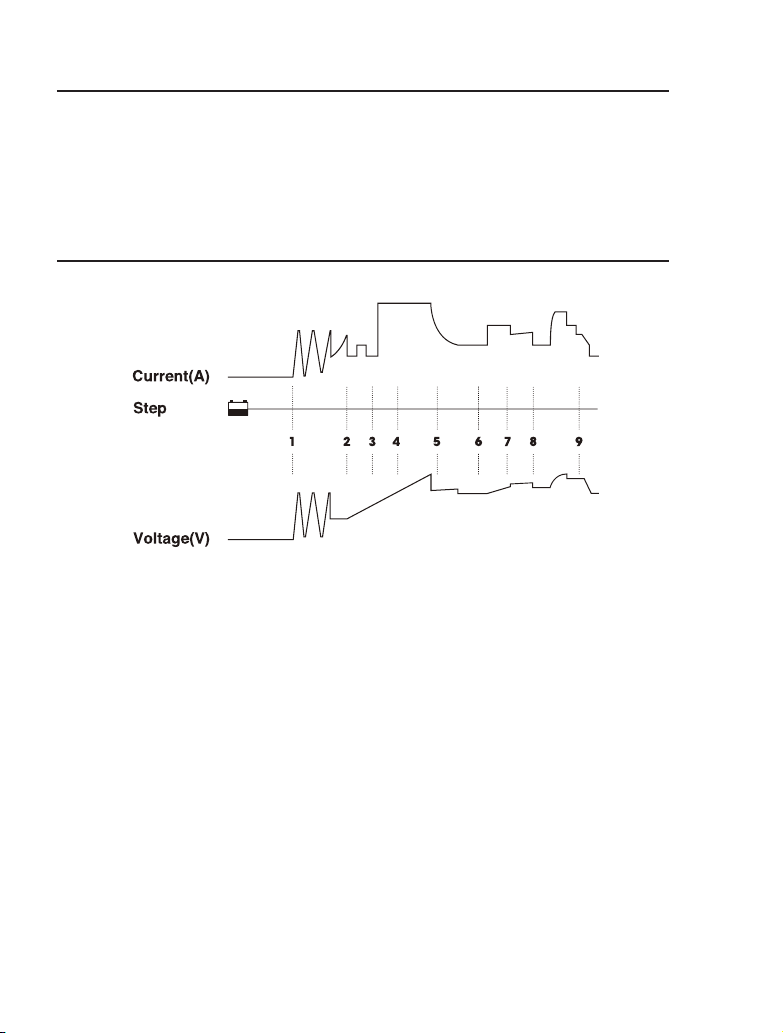

CHARGING STEPS
1) DIAGNOSIS Checks the battery's initial condition including
voltage, state-of-charge, and health, to determine if the battery is
stable before charging.
2) DESULPHATION Uses voltage or high-frequency pulses to break
down the sulfates that have built up over time in the aging battery
to optimize life and performance.
3) PRE-CHARGE Starts the charging process with a low stable
current that gradually increases until the battery capacity returns
25%. This reduces the stress put on batteries by sudden surges.
4) SOFT START Provides a medium stable current until the battery
capacity returns 50%.
5) BULK CHARGE Begins the Bulk charging process based on the
condition of the battery until the battery capacity returns 80%.

6) ABSORPTION Brings the charge level to 100% by delivering small
amounts of current to provide a safe, efcient charge. This limits
battery gas emission and prolongs life.
7) ANALYSIS Monitors whether the battery voltage falls below its
target threshold. If yes, the charger will enter the Recondition mode.
8) RECONDITION Checks the battery status, and then recovers
small currents to improve the capacity.
9) MAINTENANCE Checks the battery status and brings the
charge level back to 100%. Then the ANALYSIS, RECONDITION, and
MAINTENANCE will form into a charge cycle to keep the battery
at full charge. The battery charger can be safely left connected
indenitely without the risk of overcharging.
SPECIFICATIONS
Input Voltage:

Power:
Charging Voltage:
Charging Current:
Low-Voltage Detection:
Working Temperature:
Storage Temperature:
Charger Type:
Type of Batteries:
Battery Chemistries:
Battery Capacity:
Cooling:
Dimensions (L x W x H):
Net Weight:
Two Models: 100-120V~ or 200-240V~
85%
1500W Max
11~15.8V; 22~31.6V
5-90A(12V); 5-45A (24V)
8.5V
-10°C~40°C(14°F~104°F)
-20°C~75°C (-4°F~167°F)
9-Step Smart Charger
12V & 24V
Wet, Gel, MF, CA, EFB & AGM
20-2800Ah
Fan Cooled
8.5kg (18.74lb)
274.63 x 140 x 417.89 mm
(10.81 x 5.51 x 16.45 inches)
EN |15

FAQ
Q: What is the input voltage of TORNADO90000?
A: The TORNADO90000 is produced in two models with different
input voltages: 100-120V and 200-240V. Please check the label
on the back of the product to conrm the input voltage. Do not
connect TORNADO90000 with 100-130V input voltage to a 220V
power supply, which will cause damage and even re.
Q: How to select the charging current?
A: The optimum charging current is related to the battery capacity.
We recommend that the current value should not be greater than
20% of the battery capacity value. For example, for a 100Ah battery,
we recommend that the current is not greater than 20A.
Q: Will TORNADO90000 stop charging automatically after the
battery is fully charged?
A: Yes. TORNADO90000 adopts 9-step smart charging. When the
battery is fully charged, it will automatically stop charging without
the risk of overcharging. If you still leave the battery connected,
then the charger will keep monitoring the battery status and will
automatically start charging when the battery voltage falls below its
target threshold.
Q: Can TORNADO90000 charge multiple batteries
simultaneously?
A: Yes. Please correctly connect these batteries in series or parallel
before charging. If you have questions about the connection, you
can consult the battery manufacturer or contact us for help.
Q: Which modes of the charger adopt the 9-step smart
charging?
A: The NORM, AGM, and COLD.

Q: Does it support charging lithium batteries?
A: No.
Q: How can I restore factory settings?
A: Press and hold the STOP/START button for 5 seconds to restore
the factory settings. Then all charging voltage and current data will
be initialized.
Q: Why can't some batteries be used normally after repair?
A: This depends on the battery. Consult the battery manufacturer
on whether the battery can be xed or should be replaced.
Q: Why can't some batteries be charged?
A: Generally, batteries with a voltage lower than 8.5V are damaged
and cannot be charged normally.
Q: Is REPAIR mode applicable to all battery types?
A: No, it can’t be used for lithium batteries. However, it is applicable
to all types of lead-acid batteries.
WARRANTY
TOPDON THREE YEARS LIMITED WARRANTY
The TOPDON Company warrants to its original purchaser that
TOPDON products will be free from defects in material and
workmanship for 36 months from the date of purchase (Warranty
Period). For the defects reported during the Warranty Period,
TOPDON will, according to its technical support analysis and
conrmation, either repair or replace the defective part or product.
TOPDON shall not be liable for any incidental or consequential
damages arising from the use, misuse, or mounting of the device.
Some states do not allow limitations on how long an implied
EN |17

FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
warranty lasts, so the above limitations may not apply to you.
This limited warranty is void under the following conditions:
Misused, disassembled, altered, or repaired by unauthorized stores
or technicians, careless handling, and violation of operation.
Notice: All information in this manual is based on the latest
information available at the time of publication, and no warranty
can be made for its accuracy or completeness. Topdon reserves
the right to make changes at any time without notice.

EN |19

DEUTSCH
