Topper Topaz UNO PLUS Quick start guide

.toppersailboats.com
Topaz Sailing System
Rigging Instructions
Topaz UNO PLUS Topaz RACE PLUS Topaz RACE X

TOPAZ SAILING SYSTEM
RIGGING INSTRUCTIONS
INDEX
02. Introduction
02. anufacturers Details
Rigging Instructions
03. Topaz UNO Rigging Instructions
07. Topaz UNO reefing
08. Topaz UNO PLUS Rigging Instructions
09. Topaz UNO RACE PLUS Rigging Instructions
10. Topaz UNO RACE X Rigging Instructions
2
INTRODUCTION
These RIGGING INSTRUCTIONS have been compiled
to help you to rig your TOPAZ.
Please also ensure that you refer to your TOPAZ
OWNERS MANUAL. The OWNERS MANUAL has
been compiled to help you to operate your craft with
safety and enjoyment. It contains details of the craft, the
equipment supplied or fitted, it’s systems and information
on its operation and maintenance.
Please read it carefully and familiarise yourself with the
craft before using it.
If this is your first craft, or you are changing to a type
of craft you are not familiar with, for your own comfort
and safety, please ensure that you obtain handling and
operating experience before assuming command of the
craft. Your dealer or national sailing federation or yacht
club will be pleased to advise you of local sea schools,
or competent instructors.
PLEASE KEEP THE RIGGING INSTRUCTIONS and
THE OWNERS MANUAL IN A SECURE PLACE AND
HAND THE OVER TO THE NEW OWNER WHEN YOU
SELL THE CRAFT.
MANUFACTURER DETAILS
For further information, spares and accessories,
please contact the manufacturer:
TOPPER INTERNATIONAL LTD,
Kingsnorth Technology Park,
Wotton Road, Ashford, Kent TN23 6LN
Telephone [phone]
Fax [phone]
email [email protected]

3
TOPAZUNO
3. Open mastgate by lifting plunger sliding open as shown
below. Stand mast upright, lift and place into mastcup.
Ensure leech of sail is facing towards the back of the boat.
MAST & MAINSAIL
1. Assemble upper and lower mast sections. Line up
eyelets on the top section with cleats on lower mast.
Slot upper mast into lower section and make sure that
the two parts of the mast are secure.
2. ENSURE BOAT IS FACING HEAD TO WIND
Slide mainsail over top of mast section.
4. Support mast until gate is closed and plunger is
fully engaged.
BOOM
1. Attach boom to mast.
BOOM & CLEW RING
2. Attach clew ring (stainless steel ring with hook on
boom) to the eye of the sail.
TOPAZ UNO
RIGGING INSTRUCTIONS
TOPAZ UNO
INVENTORY
Topaz Hull
Two piece mast
Boom
Rudder Assembly
Daggerboard
UNO ain Sail
Rope Set

4

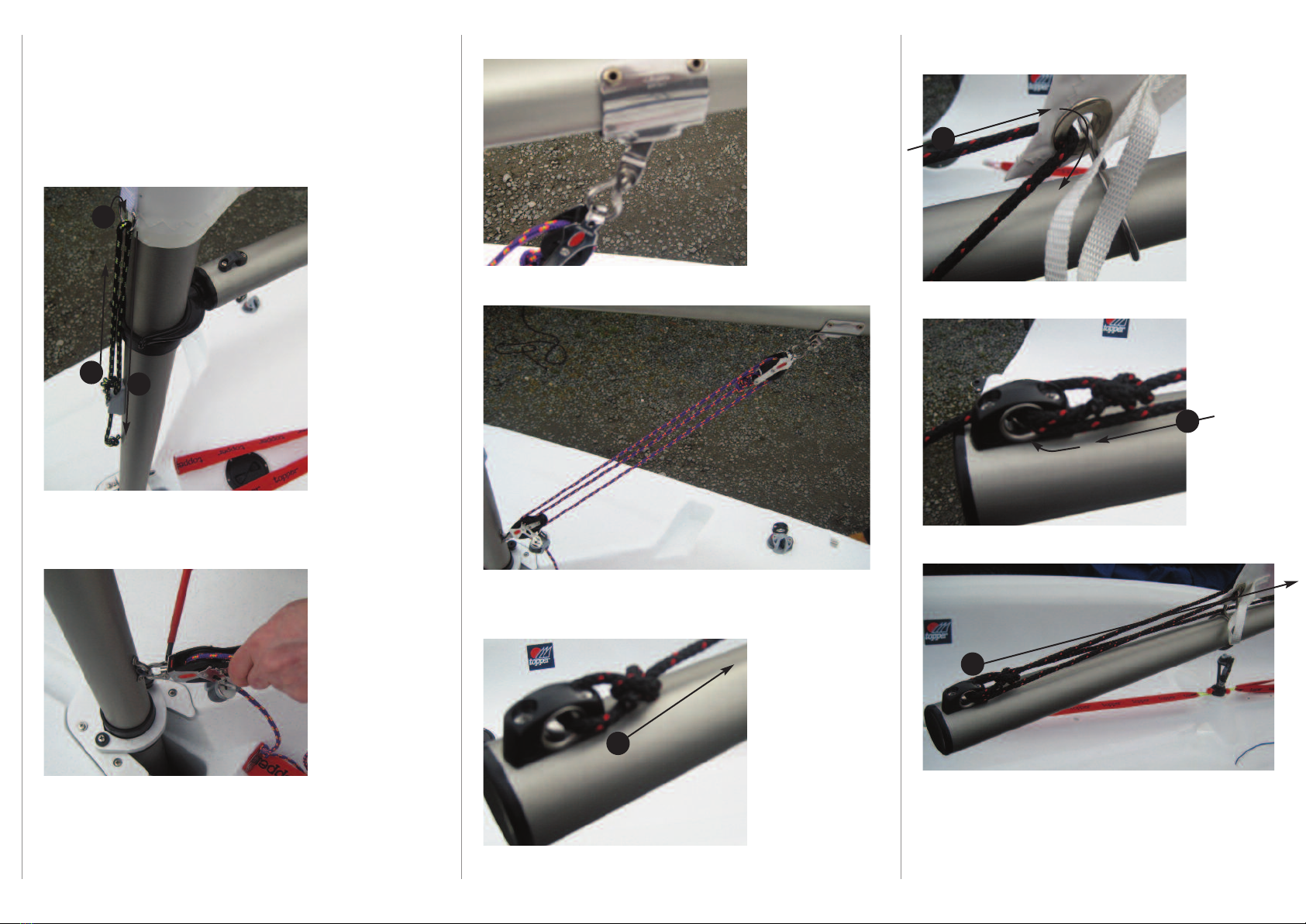

DOWNHAUL
1. Attach downhaul to lower mast cleat by tying with
a bowline onto the top bar of the cleat at the foot of
the mast.
2. Feed downhaul through small metal ring on front/
foot of luff tube.
3. Then feed back through cleat on mast and lock in.
2
13
BOOM & KICKER
Attach kicker shackle to lower mast, attach through eye
fitted to lower mast section with a screw driver.
BOOM & OUTHAUL
1. Attach the Outhaul line to the fairlead at the end of the
boom using a bowline.
Attach kicker key to fitting on boom.
Below; Rigged Kicker
2. Then feed the outhaul forward and through the eye
of the sail.
3. Then feed back through the fairlead.
2
1
3
4. Then feed forward along boom.
4

5

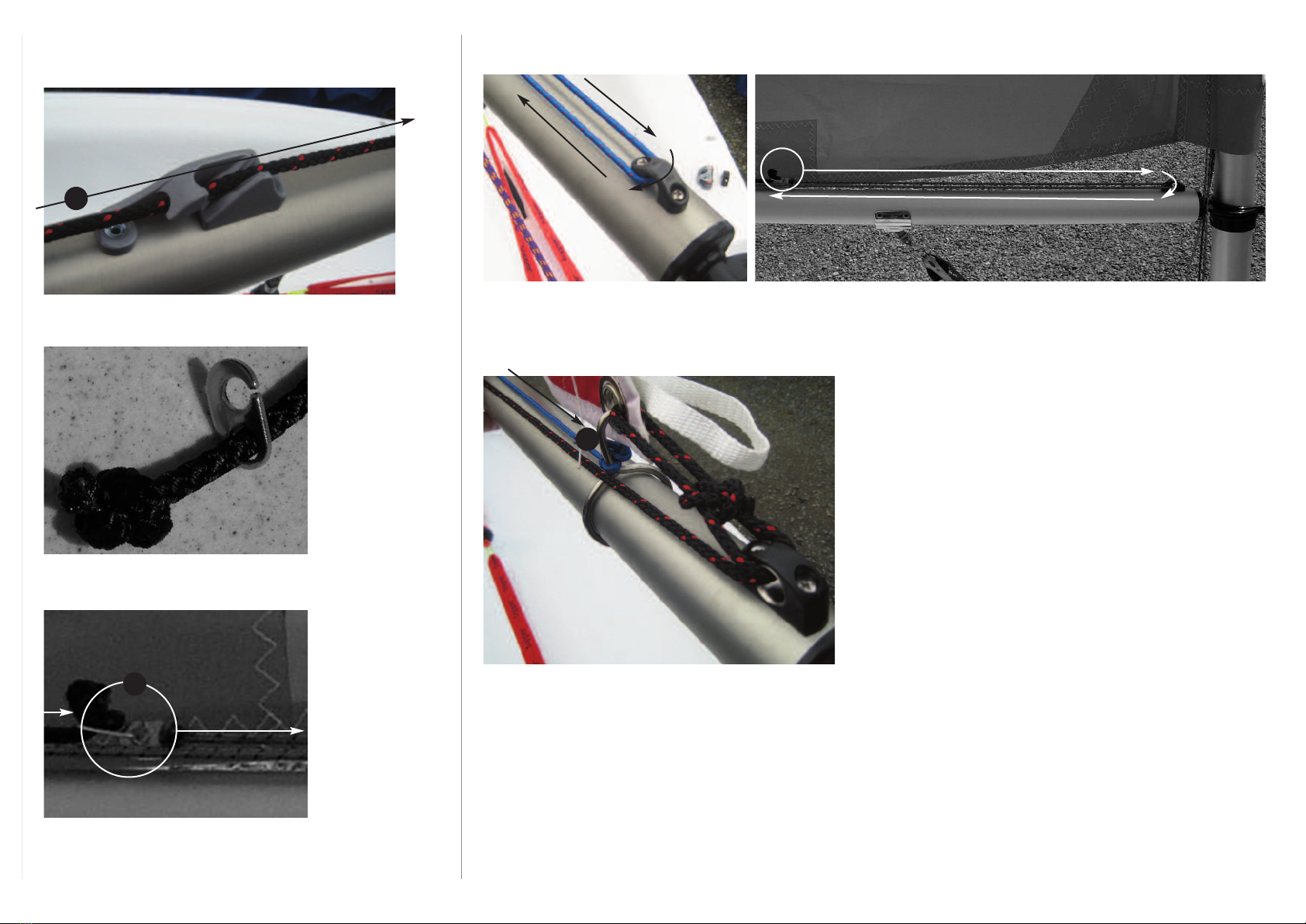

BOOM & OUTHAUL
5. Continue to feed forward and through cleat on top
of boom.
8. Then run the shockcord forward along the top of the boom. Feed through the fairlead at the front of the boom.
(Take care when doing this because the shock cord will recoil at speed if it slips from your grip).
5
9. Then take the shockcord back along the boom towards the
end of the boom and attach to the clew hook using a bowline
(Also take care when doing this because the shock cord will
recoil at speed if it slips from your grip).
6. The outhaul has a small metal clip attached at the end. The
4mm shockcord also has a metal clip.
7. Attach the two clips together to join the rope outhaul to the
shockcord section.
7
9

MAINSHEET
1. Thread the mainsheet through the mainsheet block
assembly in reverse as pictured.
2. Then feed the mainsheet rope up to the boom,
through the boom block and down again.
4. Then take the rope up to the boom and through the
block becket as shown and tie off using a figure of eight
knot as shown.
5. Then pull the tail of the mainsheet rope through the
ratchet block.
RUDDER ASSEMBLY
1. Attach rudder blade assembly to transom plate.
Ensure that rudder retaining clip snaps back into original
position to hold rudder assembly in place.
DAGGERBOARD
1. Attach thick elastic to top of centreboard
and place board into centreboard slot.
Attach the elastic around foot of mast with
the plastic clip.
3. Then feed the rope through the top of the mainsheet
block as shown.
6
Then tie a stop knot using a figure of eight knot.
1

7

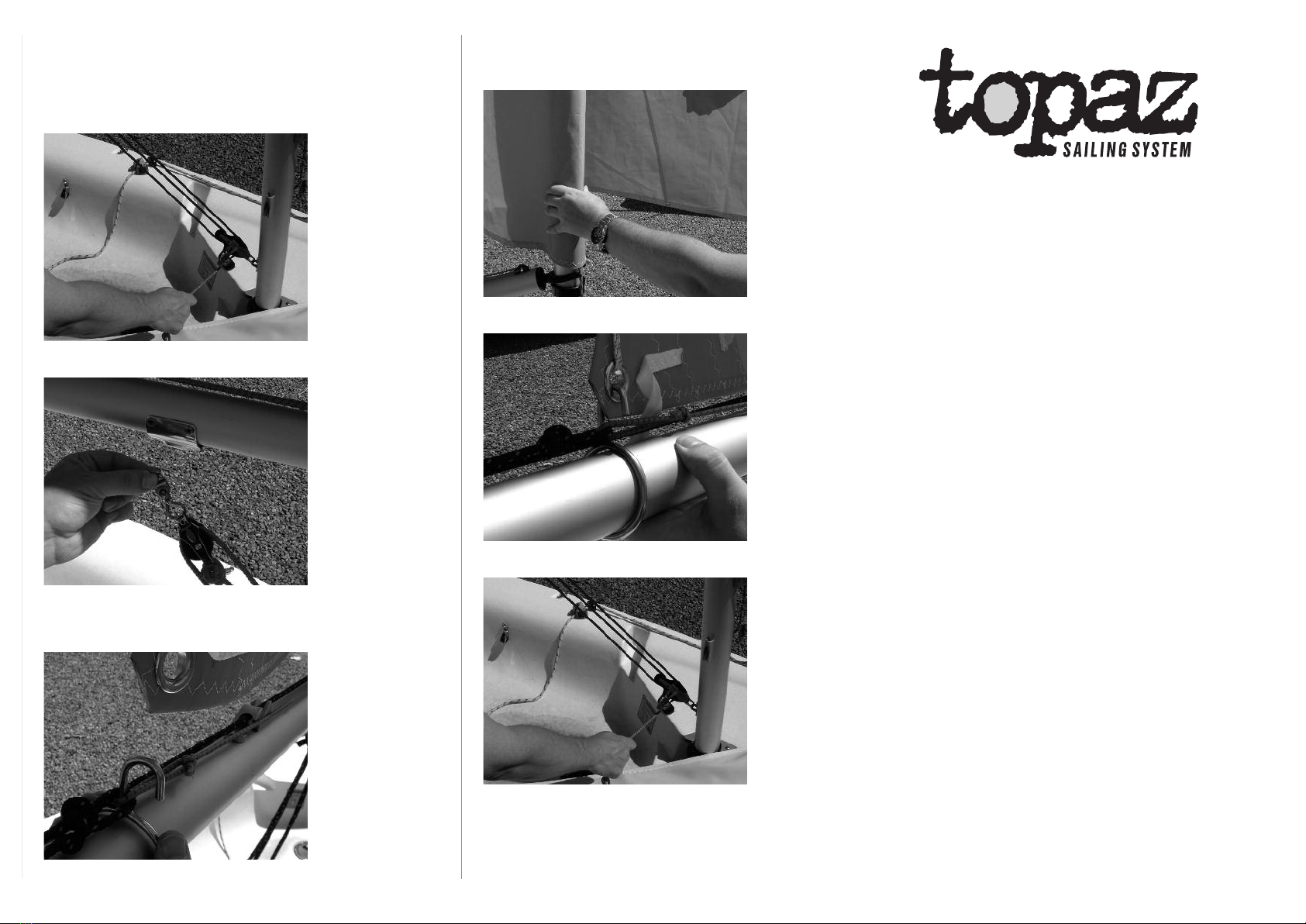

REEFING
In strong winds, or if you are unsure whether you can
cope with the conditions, it is always best to reef the sail
down to reduce its area.
1. First slacken the kicking strap off.
2. Unclip the kicker key from the boom.
3. Uncleat and slacken the clew outhaul line and
ensure that the foot of the sail is loose. (You may
need to slacken the mainsheet in order to do this).
5. Re-attach the clew outhaul and pull it tight.
6. Re-attach and tighten the kicking strap.
4. Wrap the mainsail around the mast in a clockwise
direction. The sail will wrap round up to three times
reducing the sail area incrementally.
The sail can now be rolled around the mast,
thus reducing the sail area. This is reefing.

8
UNOPLUS 2. Thread the jib halyard through the fairlead.
Rig the Uno Plus in the same way as the Uno with the
addition of the jib.
JIB SAIL
1. Ensure that the jib fairlead fitting on the mast is in the
centre of the opening on the mainsail.
3. Tie the jib halyard to the head of the jib sail using a
bowline knot.
4. Hoist the jib up to the top of the mast slot.
5. Cleat off the end of the jib halyard through
the cleat towards the foot of the mast.
TOPAZ UNO PLUS
RIGGING INSTRUCTIONS
TOPAZ UNO PLUS
INVENTORY
As TOPAZ UNO with the addition of:
Jib Sail
Jib Halyard
Jib Sheets
Small Shackle
6. Attach the clew of the jib sail to the rope loop
at the front of the hull as shown.

9

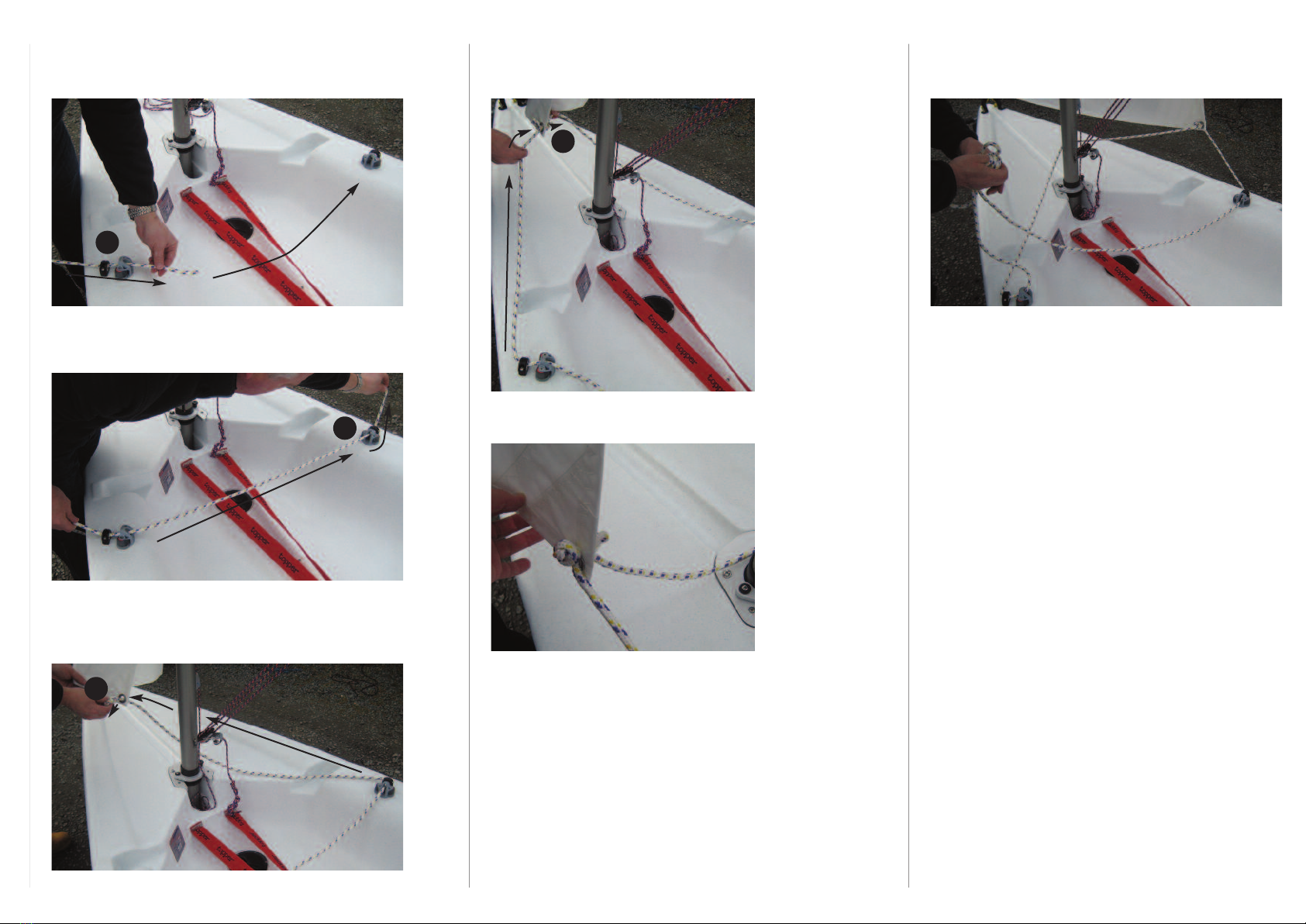

JIB SHEET
1. Thread the jib sheet through the fairlead and cleat on
the side of the hull as shown.
2. Then take the jib sheet across the deck to the
opposite side of the hull and through the block and
fairlead as shown.
3. Then take the end of the jib sheet around the front
of the mast. Then through the clew eye at the back of
the jib sail and tie off using a figure of eight knot at the
end of the jib sheet.
4. Take the other end of the jib sheet around the front of
the mast and then through the clew eye and tie off using
a figure of eight knot at the end of the jib sheet.
5. Your sheets should now be tied off with the knots
either side of the jib sail as pictured.
1
2
3
4
TOPAZUNO
RACEPLUS
TOPAZ UNO RACE PLUS
RIGGING INSTRUCTIONS
TOPAZ UNO RACE PLUS
INVENTORY
Topaz Hull
Two piece mast
Boom
Daggerboard
Rope Set
Jib Sail
Jib Kit
Rudder A embly incl. Extra-Length Rudder Blade
RACE Sail
The Topaz UN RACE PLUS consists of the same
components as the Topaz UN PLUS, with the
exception of the main sail and the rudder blade.
The UN RACE PLUS main sail is a battened mylar
sail with a larger sail area and a slightly fuller cut.
The rudder is an extra length GRP blade which
provides greater control.
In order to rig the UN RACE PLUS, follow the UN
and UN PLUS rigging instructions.
This will give you a continuous line across the deck,
round the front of the mast and linking through the jib
clew from both sides.

10
3. Tie one end of the halyard to the head of the gennaker
using a bowline knot.
4. Take the other end of the gennaker halyard through
the small block at the base of the mast.
5. Then take it underneath the sock, forward to the bow
of the boat until you come to a small block. Take the
halyard through this block.
6. Then take the halyard back towards the stern
of the boat, down through the cleat fitting in the
cockpit of the boat as shown.
7. Then take the halyard through the starboard
(right hand side from back of boat) block as shown.
TOPAZUNO
RACEX
TOPAZ UNO RACE X
RIGGING INSTRUCTIONS
TOPAZ UNO RACE X
INVENTORY
As T PAZ UN RACE PLUS with the addition of:
RACE X Gennaker Sail (8.00m2)
Gennaker Kit

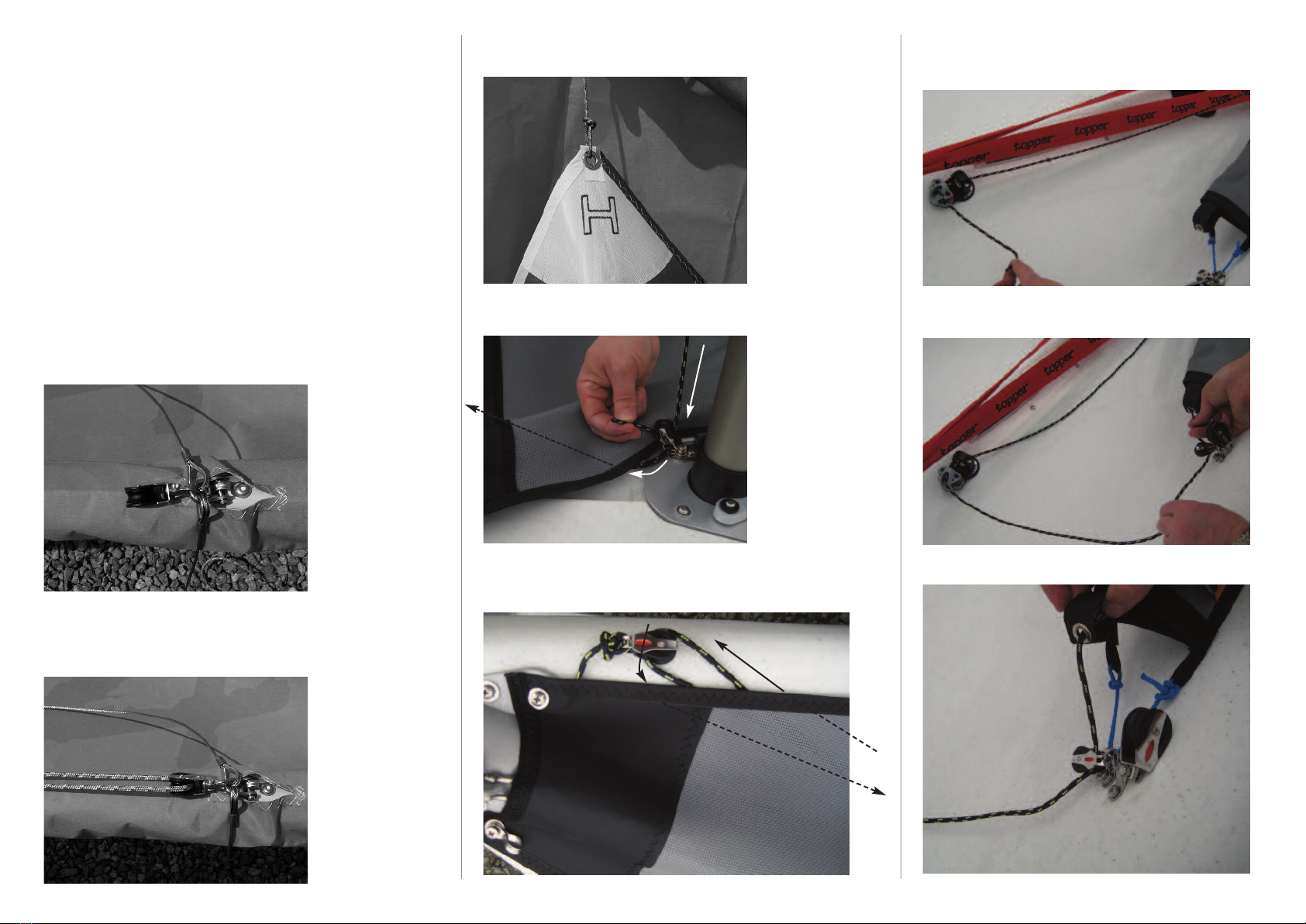

1. Attach the two shroud wires and block using the shackle to
the metal clip attached to the upper mast above the jib fitting.
2. Then thread the gennaker halyard through the block
and pull down to the base of the mast to ensure that
when you raise the mast into the upright position in the
boat that you can reach both ends.
8. And then up the inside of the gennaker sock.

11
9. The halyard then comes out through the chute mouth.
11. Then tie off using a bowline knot to the criss-cross
patch above. You will now have completed a continuous
loop for the sail and the halyard.
14. Thread the gennaker sheet through the auto ratchet
across the boat and around the front of the mast and jib
12. Tie the pole end line to the tack end of the gennaker
using a bowline knot.
13. Attach the shroud wires to the hull shroud pin using
the carbine hooks.
10. Then feed the halyard through the patch as shown.
15. Then thread through the eye at the clew end. Feed
through the opposite sides. Then tie a figure of eight knot
on each side of the gennaker sail.

Topper International Ltd
Kingsnorth Technology Park
Wotton Road
Ashford
Kent
TN23 6LN
Tel. [phone]
Fax [phone]
email [email protected]
www.toppersailboats.com
TOPAZ RIGGING INSTRUCTIONS PART No. TP025 ISSUE 1/ 2009
