Tornado M55 User manual

Tornado M55/M60 DIGITAL MEDIA CENTER 1
Tornado M55/M60 DIGITAL MEDIA CENTER
USER MANUAL
(This manual con ains web se ings opera ional guidelines for
bo h Admin and User roles. If logged in as User and some
sec ions of he menu or par s of dialog are missing, his is
because he User privileges are limi ed o par ial access)
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 2
Con en s
1.Welcome.................................................................................................................................... 4
2. Product Overview..................................................................................................................... 5
2.1. What is Included in the Package........................................................................................ 5
2.2. Device Controls................................................................................................................. 6
2. . Safety Compliances .......................................................................................................... 9
2.4. Warranty ........................................................................................................................... 9
. Product Features...................................................................................................................... 10
.1. Key Features .................................................................................................................... 10
4. Using Tornado M55/M60 Digital Media Center .................................................................... 1
4.1. Getting Familiar with TV/LCD Menu Options ............................................................... 1
4.1.1. Menu Structure.......................................................................................................... 1

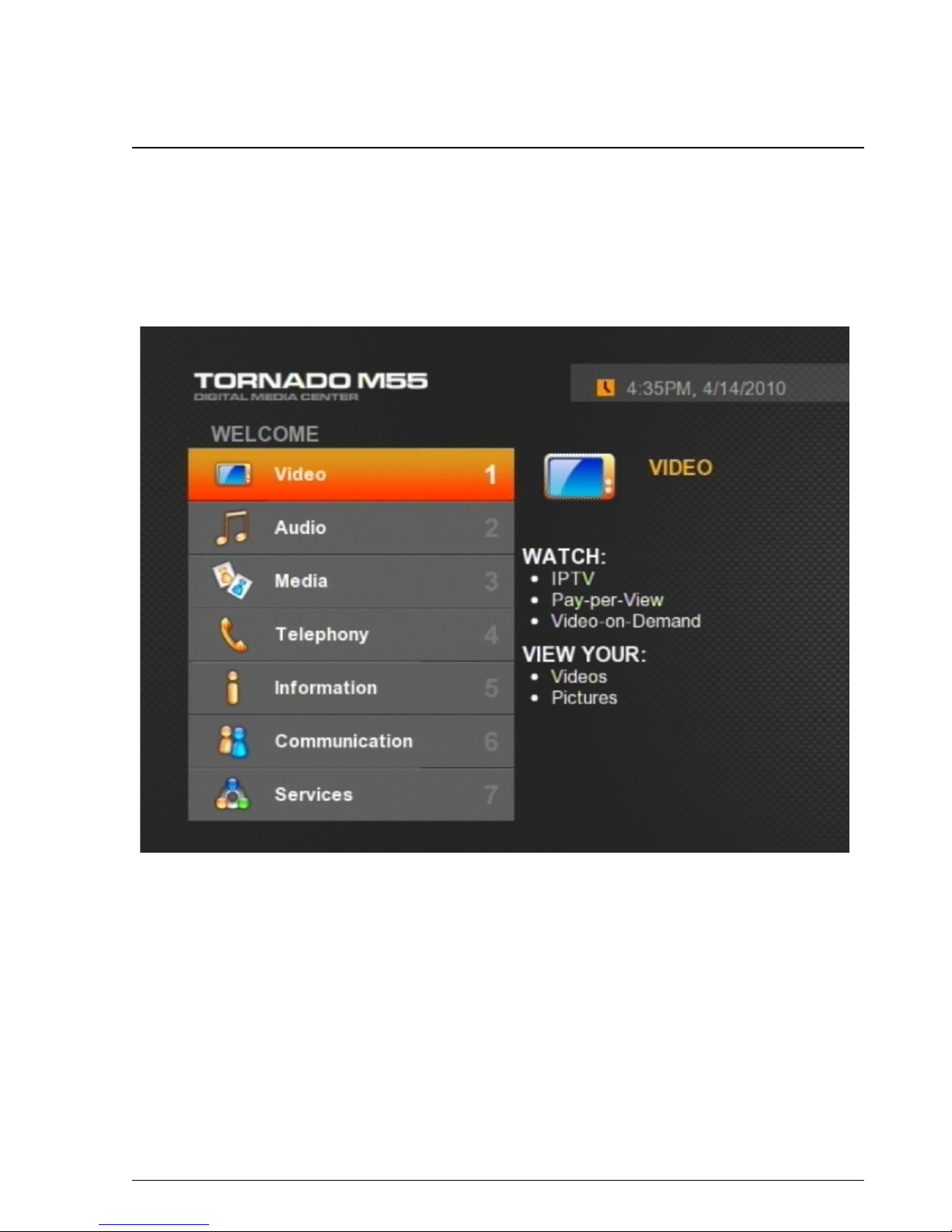

4.1.2. Main Menu................................................................................................................ 15
4.1. . Video Sub-Menu ...................................................................................................... 16
4.1.4. IP Television (this function requires service subscription)....................................... 17
4.1.5. Pay Per View (this function requires service subscription) ...................................... 18
4.1.6. Video On Demand (this function requires service subscription) .............................. 19
4.1.7. User Video ............................................................................................................... 21
4.1.8. Audio Sub-Menu....................................................................................................... 22
4.1.9. Online Radio (this function requires service subscription)....................................... 2
4.1.10. Audio On Demand (this function requires service subscription)............................ 24
4.1.11. User Audio ............................................................................................................. 25
4.1.12. Telephony Sub-Menu.............................................................................................. 26
4.1.1 . Call Center (this function may require service subscription) .................................. 27
4.1.14. Phone Book Service ............................................................................................... 28
4.1.15. History and Media History Service......................................................................... 28
4.1.16. Voicemail Service .................................................................................................. 28
4.1.17. SMS Sending (this function requires service subscription) ................................... 29
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 3
4.1.18. Information Sub-Menu............................................................................................ 29
4.1.19. Currency Exchange Service .................................................................................... 0
4.1.20. Stock Quote Service................................................................................................ 0
4.1.21. Google Maps Services........................................................................................... 0
4.1.22. Communication Sub-Menu ..................................................................................... 1
4.1.2 . Email Service .......................................................................................................... 1
4.1.24. Chat/Messenger Service.......................................................................................... 1
4.1.25. Web Browser.......................................................................................................... 2
4.1.26. Services Sub-Menu .................................................................................................
4.1.27. Calculator Service .................................................................................................. 4
4.1.28. Alarm ...................................................................................................................... 5
4.1.29. Wake-Up Call ......................................................................................................... 6
4.1. 0. Setup Service .......................................................................................................... 6
4.1. 1. Search Service.......................................................................................................... 47
4.1. 2. Media Menu................................................................................................................................... 47
5. Configuration Guide ............................................................................................................... 40
5.1. Configuration with Web Browser .................................................................................... 40
5.1.1. Access the Web Configuration Menu ....................................................................... 40
5.1.2. User Login Dialog...................................................................................................... 40
5.1. . Start Menu.................................................................................................................. 41
5.1.4. System Information Dialog........................................................................................ 41
5.1.5. System Configuration Dialog .................................................................................... 4
5.1.6. SIP Configuration ...................................................................................................... 45
5.1.7. Phone Book Configuration .........................................................................................48
5.1.8. Phone Book Entry Configuration............................................................................... 49
5.1.9. Global Directory Configuration ................................................................................ 50
5.1.10.Local Media Server .................................................................................................. 50
5.1.11. Streaming Services................................................................................................... 52
5.1.12. User Objects.............................................................................................................5
5.1.1 . Payment Services .................................................................................................... 54
5.1.14. Chat/Messenger Services ........................................................................................ 54
5.1.15. Email Services ........................................................................................................ 56
5.1.16. Remote Configuration Upgrade .............................................................................. 56
5.1.17. Remote Firmware Upgrade...................................................................................... 56
5.1.18. Remote Configuration Extract ................................................................................ 57
5.1.19. Saving the Configuration Changes ......................................................................... 57
5.2. Remote Configuration and Firmware Upgrade................................................................. 57
5.2.1. Remote Configuration Upgrade ................................................................................ 58
5.2.2. Remote Firmware Upgrade ....................................................................................... 58
5.2. . Hardware Test Procedure …............................................................................................................. 59
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 4
1. Welcome
Thank you for purchasing SysMaster Corporation award-winning Tornado M55/M60 Digital Media
Center. You made an excellent choice and we hope you will enjoy all its capabilities. SysMaster
Corporation's award-wining Tornado M55/M60 SIP Digital Media Center is the innovative Digital
Media Center that offer a rich set of IPTV, Video Conferencing, and Telephony functionalities and
superb sound quality. They are fully compatible with SIP industry standard and can interoperate with
many other SIP compliant devices and software on the market.
For more information about the company, please visit us at: www. s y s m aster .com
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 5
2. Produc Overview
2.1. Wha is Included in he Package
The Tornado M55/M60 device package contains:
1. One Tornado M55/M60 Main Case
2. One Audio and Video Cable
. Advanced Infra Red Remote Control
4. One Universal Power Adaptor
5. One Ethernet Cable
6. User Manual
The Tornado M55/M60 device package contains:
1. One Tornado M55/M60 STB
2. One Audio and Video Cable
. One Universal Power Adaptor
4. One Ethernet Cable
5. User Manual
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 6
2.2. Device Con rols
Remo e Con rol for Tornado M55/M60
Element Description
1 Turn On/Off the device in Sleep Mode
2 Mute the Audio
Alpha-Numeric Characters used to enter Digits or other Characters
4RECALL – refresh the objects list
5DISPLAY – toggle between objects list and currently playing screen.
6 Page manager keys switch between pages of channels or data pages
7 Volume management keys
8 Navigator Buttons
LEFT – switch to the LEFT selection, or delete the last entered character
RIGHT – switch to the RIGHT selection, or scroll within a selection
UP – scroll between channel selections or data items
DOWN – scroll between channel selections or data items
OK – make a selection, save a selection, confirm
9HO E – switches to the Home menu.
10 RETURN – return to the previous menu.
11 Play management keys.
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 7
PLAY – play Video or Audio or Picture Browser selection
STOP – stop playing Video or Audio or Picture Browser selection
PAUSE – pause the play of Video or Audio or Picture Browser selection
FORWARD – forward Video or Audio or Picture Browser selection
BACKWARD – backward Video or Audio or Picture Browser selection
12 Buttons that provide different types of functionality
PHONE – switch to Phone selection
CA ERA – switch to Camera selection
VIDEO – switch to Video selection
AUDIO – switch to Audio selection
SAVE – record Video or Audio content. Toggle to turn of/on recording.
DELETE – delete a data entry or turn on/off parental locks on channel selection
SETUP – switches to the Setup menu
WEB – switches to the the web browser
E AIL – switches to the built in e-mail client.
CHAT – switch to Chat/Messenger selection
INFO – provide information for the running stream
Keyboard Mapping for Tornado M55/M60
Bellow is a description how a standard USB PC Keyboard buttons map to the buttons of the STB
Remote Control:
Insert: "save"
Delete: "delete";
F2: "video";
F3: "audio";
F4: "info";
F5: "recall";
F6: "play";
F7: "display";
F8: "camera";
F9: "setup";
F10: "rec";
F11: "web";
F12: "hotel";
End: "stop";
KP Add: "volup";
KP Subtract: "voldown";
Home: "home";
Escape: "return";
Return: "ok";
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 8

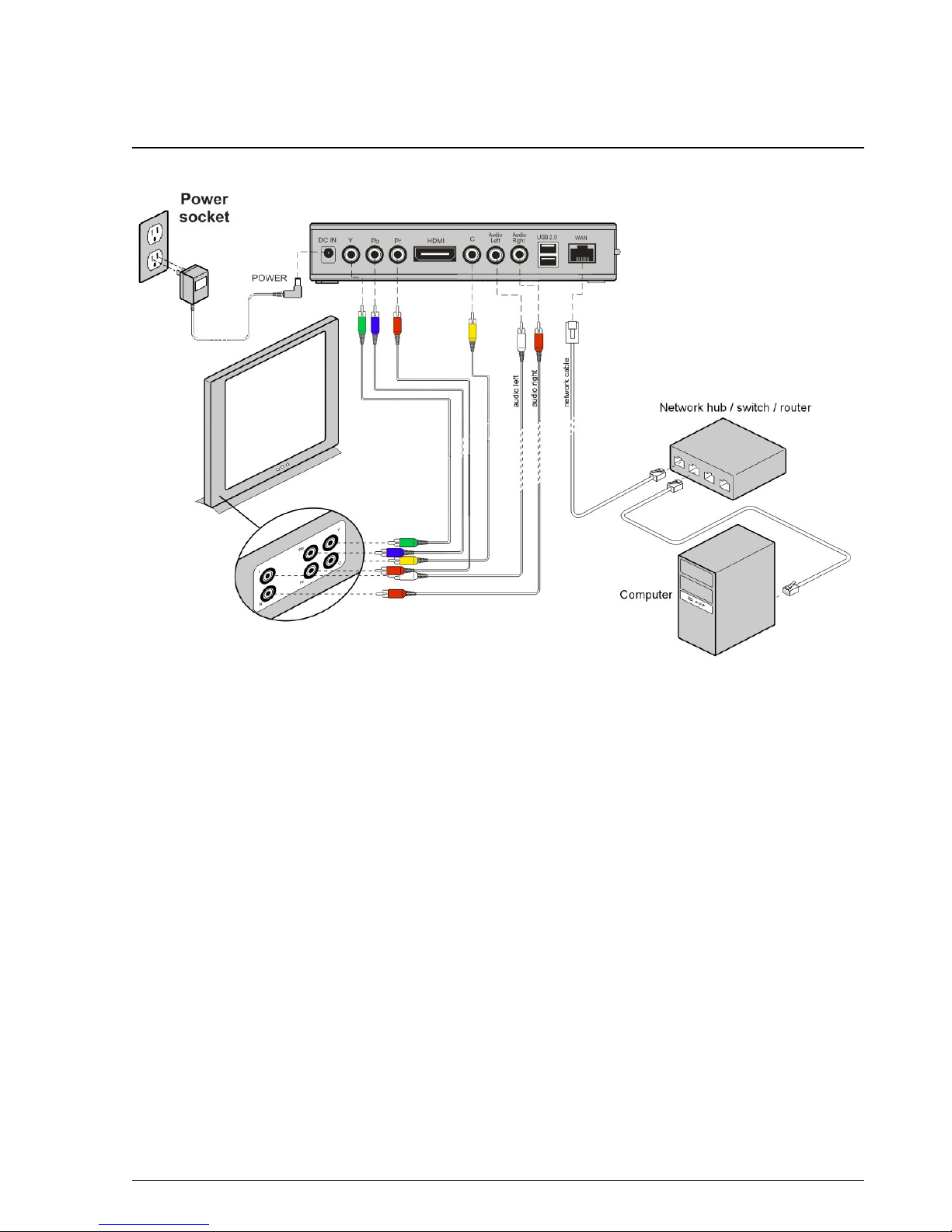

Connecting Video
Tornado M55/M60 provides the following video outputs:
-Component Video (Y, Pr, Pb) which can be used for analog High Definition or best quality Standard
Definition.
-Composite Video (CVBS) which can be used for standard picture quality.
-HDMI which is used for digital High Definition quality.
-S-Video for good picture quality.
With either Video connection the audio outputs must be connected separately.
Connecting Audio
Tornado M55 HD provides the following audio outputs:
-Left and right audio for stereo sound.
-S/P DIF (optical) digital output for best quality surround sound.
Please refer to the above diagram for detail information on connecting the cables.
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 9
2.3. Safe y Compliances
The Tornado M55/M60 Digital Media Center is compliant with various safety standards including
FCC/CE. Its power adaptor is compliant with UL standard. The device should only be operated with
the universal power adaptor provided with the package. Damages to the device caused by using
other unsupported power adaptors are not covered by the manufacturer’s warranty.
2.4. Warran y
SysMaster Corporation has a reseller agreement with our reseller customer. End user should contact
the company from whom you purchased the product for replacement, repair or refund.
If you purchased the product directly from SysMaster Corporation, contact your SysMaster Corporation
Sales and Service Representative for a RMA (Return Materials Authorization) number.
SysMaster Corporation reserves the right to remedy warranty policy without prior notification.
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 10
3. Produc Fea ures
3.1. Key Fea ures
SysMaster Corporation Tornado M55/M60 Digital Media Center is a next generation consumer IP
device system based on industry open standard SIP (Session Initiation Protocol). Built on innovative
technology, SysMaster Corporation Digital Media Center features market leading superb sound quality
and rich functionalities at mass-affordable price. The advanced voice processing capabilities of
M55/M60 are similar to any type of IP Centrex System.
Fea ures and Capabili ies
•Unicast and Multicast operation modes
•IPTV and Video-on-Demand Support
•Digital Music and Internet Radio Delivery
•H.264, MPEG4, MPEG2, WMV/VC1 Support
•High Definition Support
•Online Web Browsing
•Headline News and Weather Reports
•Media Center Functionality
•Dolby 5.1 Audio Support
Technical Specifica ions
Connectors/Interfaces:
•One Ethernet (RJ-45) 10/100M Port
•Two USB 2.0 Ports
•One HDMI Port
•One Composite Port
•One S-Video Port
•One YPbPr Port
•One L/R Audio Port
•One RS2 2 Port
•One Infra Red (IR) Interface
•High Definition Digital Signal Procesor
•HD Digital Signal Procesor
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 11
Video Codecs and Formats
•H.264
•MPEG4
•MPEG2
•DVX
•AVI
•WMV / VC1
•FLV
Audio Codecs and Formats
•MP
•AAC
•Dolby Digital 5.1
•16bit Linear PCM with HDCD Support
Video Resolution
•H.264: Up to 1920x1080p/1080i at 0fps
•MPEG4: Up to 1920x1080p/1080i at 0fps
•MPEG2: Up to 1920x1080p/1080i at 0fps
Protocols
•UDP (RFC768)
•TCP (RFC79 )
•IPv4 (RFC791)
•ARP & RARP
•DNS
•DHCP (RFC21 1)
•PPPOE (RFC2516)
•NTP (RFC 1889)
•IGMPv1, v2, v (RFC1112, RFC22 6, RFC 76)
•IGMP
•BOOTP
•RTP/RTCP
•RTSP
•HTTP
•RTMP
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 12
Dimensions
•9.4" (W) x 1.2" (H) x 6" (D)
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 13
4. Using Tornado M55/M60 Digi al Media Cen er
4.1. Ge ing Familiar wi h TV/LCD Menu Op ions
Tornado M55/M60 device includes advanced display functionally to allow dynamic and easy device
management. The device must be connected to the TV set or to a Monitor with RCA video and audio
input connectors:
4.1.1. Menu S ruc ure
Tornado M55/M60 Digital Media Center features a tree-like, multi-level menu hierarchy to allow
easy menu navigation and access. The table below represents the menu structure:
ain enu Sub- enu Function Function
ID Video Video IP Television 1
Pay Per View 2
Video On Demand
User Video 4
Video Categories 5
Video Favorites 6
TV Scheduler 7
Audio Audio Online Radio 10
User Audio 11
Audio On Demand 12
Audio Favorites 1
edia edia Pictures 10
YouTube 11
Picasa 12
Torrent Browser 1
Telephony Telephony Call Center 14
Phone Book 15
Call History 16
Voicemail 17
Send SMS 18
Information Information Currency 19
Stock Quotes 20
Google Maps 21
Help 22
Communication Communication Email 2
Chat 24
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 14
Web Browser 25
Services Services Setup 26
Search 27
Calculator 28
Alarm 29
Wake Up Call 0
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 15
4.1.2. Main Menu
Upon start-up the device will display the main menu. The menu will allow users to select the sub-menu
functions that they need to access. To enter one of the listed sub-menu options, the users must use
“UP/DOWN” buttons of the navigator. Once the desired selection is high-lighted, the users must press
“OK” button to execute. The navigator buttons are accessible via the Remote Control (Tornado
M55/M60). Both devices allow support “hot-keys” to allow easy access of commonly used functions.
Button Function
Navigator-UP Switches to the UP function.
Navigator-DOWN Switches to the DOWN
function. Navigator-OK Enters the selected function.
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 16
4.1.3. Video Sub-Menu
Tornado M55/M60 supports advanced video option to allow users to watch IP Television, Video on
Demand, Pay per View, and User Video provided content. The sub-menu is entered after the users select
the Video option from the main menu, once they press the “Video” button of the remote control
(Tornado M55/M60). To return to the Main Menu the users must press “Return” button of the remote
control.
Button Function
Navigator-UP Switches to the UP function.
Navigator-DOWN Switches to the DOWN
function. Navigator-OK Enters the selected function.
Return Switches to the upper menu.
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 17
4.1.4. IP Television ( his func ion requires service
subscrip ion)
The IP Television function allows the users to watch online IP TV streaming video content. Once
selected the function will connect to the remote server and retrieve the data content. The system will
display various channel information including name, index, time, rating, artist, and cost information. If
the selected channel requires payment the system will ask the users to confirm the selection.
Button Function
Navigator-UP Switches to the UP channel
Navigator-DOWN Switches to the DOWN channel
Navigator-LEFT Moves Left across Folder selection
Navigator-RIGHT Moves Right across Folder selection
Page-UP Moves one page UP (one page has 6 channels)
Page-DOWN Moves one page DOWN (one page has 6 channels)
Navigator-OK Selects and plays channel/file
PLAY Plays the selected channel/file in BUFFERED mode
STOP Stops paying the selected channel/file
PAUSE Pauses the playing of the channel/file
DISPLAY Switches On/Off Information display mode
MUTE Mutes the audio output
VOLUME +/- Increases/Decreases the volume
SAVE Initiates channel/file recording (if configured)
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 18
4.1.5. Pay Per View ( his func ion requires service
subscrip ion)
The Pay per View function allows the users to watch online Video streaming content. Once selected the
function will connect to the remote server and retrieve the data content. The system will display various
channel information including name, index, time, rating, artist, and cost information. If the selected
channel requires payment the system will ask the users to confirm the selection.
Button Function
Navigator-UP Switches to the UP channel
Navigator-DOWN Switches to the DOWN channel
Navigator-LEFT Moves Left across Folder selection
Navigator-RIGHT Moves Right across Folder selection
Channel-UP Moves one page UP (one page has 6 channels)
Channel-DOWN Moves one page DOWN (one page has 6 channels)
Navigator-OK Selects and plays channel/file
PLAY Plays the selected channel/file in BUFFERED mode
STOP Stops paying the selected channel/file
PAUSE Pauses the playing of the channel/file
DISPLAY Switches On/Off Information display mode
MUTE Mutes the audio output
VOLUME +/- Increases/Decreases the volume
SAVE Initiates channel/file recording (if configured)
DEL Switches On/Off Parental Lock. Requires password.
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 19
4.1.6. Video On Demand ( his func ion requires
service subscrip ion)
The Video On Demand function allows the users to watch online Video streaming content. Once
selected the function will connect to the remote server and retrieve the data content. The system will
display various channel information including name, index, time, rating, artist, and cost information. If
the selected channel requires payment the system will ask the users to confirm the selection.
Button Function
Navigator-UP Switches to the UP channel
Navigator-DOWN Switches to the DOWN channel
Navigator-LEFT Moves Left across Folder selection
Navigator-RIGHT Moves Right across Folder selection
Channel-UP Moves one page UP (one page has 6 channels)
Channel-DOWN Moves one page DOWN (one page has 6 channels)
Navigator-OK Selects and plays channel/file
PLAY Plays the selected channel/file in BUFFERED mode.
STOP Stops paying the selected channel/file
FORWARD >> Forwards the channel/file (if possible)
BACKWARD << Backwards the channel/file (if possible)
PAUSE Pauses the playing of the channel/file
DISPLAY Switches On/Off Information display mode
MUTE Mutes the audio output
VOLUME +/- Increases/Decreases the volume
SysMaster Corporation

Tornado M55/M60 DIGITAL MEDIA CENTER 20
In some cases, the Video on Demand and Pay per View content will require payment and the
subscribers will be prompted to confirm the payment prior to receiving the Video stream.
SysMaster Corporation
