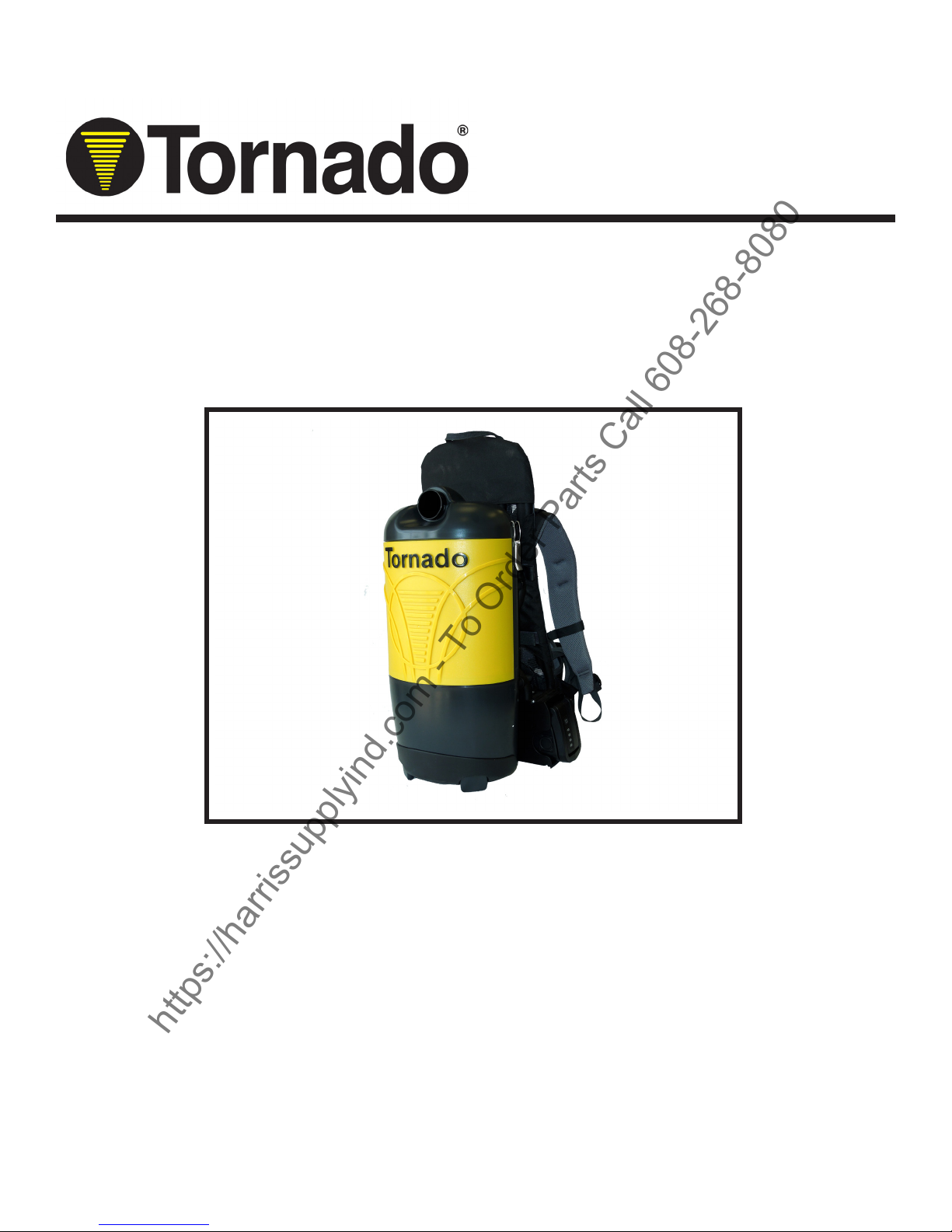

Tornado Pac-Vac 93016 Manual

1
TORNADO INDUSTRIES, LLC
3101 WICHITA COURT
FORT WORTH, TX 76140
PHONE: 800-VACUUMS
FAX: [phone]
WWW.TORNADOVAC.COM
Operations & Maintenance Manual
For Commercial Use Only
Form No. L3016AC 04/17 ©Tornado Industries, LLC. All rights reserved
Pac-Vac™ 6 Roam
MODEL NO: 93016
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

2
Long Term Buyer Protection Limited Warranty
10 Years*
Plastic water tanks and Rotationally-molded bodies
2 Years*
Parts on all Tornado cleaning equipment
1 Year*
Labor on all Tornado cleaning equipment
1 Year*
Warranty on batteries, one year prorated
All battery warranties are handled directly by the battery manufacturer, on a one year prorated basis
Tornado Industries, LLC. (Tornado) warrants to the end/user customer that the Tornado product(s) will
be free from defects in material and workmanship for the duration(s) described below. This limited
warranty DOES NOT cover machines and/or components subject to normal wear and tear, damage
that occurs in shipping, failures resulting from modication, accident, unsuitable operating environ-
ment, misuse, abuse, neglect, or improper maintenance by you. For full details, contact your Autho-
rized Tornado Distributor, Service Center, or the Tornado Technical Service Department. Tornado
sales and service representatives are not authorized to waive or alter the terms of this warranty, or to
increase the obligations of Tornado under the warranty.
Terms subject to change without notice
1. Except all Windshears™ Blowers, Storm, TV2SS, Side and Downdraft, Insulation Blowers, CV 30,
CV 38, CK14/1 PRO, CK 14/2 PRO, SWM 31/9, CK LW13/1, CK LW 13/1 ROAM, CV 38/48 Dual,
PV6, PV10, PV6 ROAM, Wall Mount Vacuum and all chargers are warranted for 1 (one) year for both
parts and labor.
2. All non-wear item parts purchased after warranty expiration are warranted for 90 days.
3. Warranty starts from the date of sale to the consumer or, at Tornado’s discretion, 6 months after
the dealer purchased the unit from Tornado, whichever comes rst.
4. The EB 30 is warranted for a period of 90 days for both parts and labor.
5. The warranty on engines used on propane powered equipment is limited to motor manufacturer’s
warranty.
6. Ride-on Scrubbers are warranted for 24 months, parts, 6 months labor or 1,000 hours, whichever
occurs rst.
Note: Tornado, The Latest Dirt, Floorkeeper,
Carpetkeeper, Carpetrinser, Carpetrinser/Dryer,
Headmaster, Taskforce, PAC-VAC, T-Lite, Glazer,
Windshear, Max-Vac and Trot-Mop are trademarks
of Tornado Industries
Website: www.tornadovac.com
Phone 1-800-VACUUMS
Fax [phone]
Address 3101 Wichita Court
Fort Worth, TX 76140
Form F2662.©2017. All rights reserved
1-800-VACUUMS 90 Years of Cleaning Innovation A Tacony Company
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

3
NOTES
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

4
Your new Tornado unit is a high quality, precision-made product. All parts used in the manufacturing of
this unit have passed rigid quality control standards prior to assembly. Please safeguard the original
receipt / invoice. If you experience any problems with your unit during the warranty period, the original
receipt / invoice will act as proof of purchase. Contact Tornado for any warranty inquiries.
IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT
Read and understand this owner’s manual and all labels on the unit before operating. Safety is a
combination of common sense,staying alert and knowing how your unit works. Use this unit only as
described in this manual. Use only manufacturer’s recommended attachments. To reduce the risk of
personal injury or damage to your unit use only Tornado recommended accessories.
Check the carton for shipping damage. Carefully unpack and inspect your new Tornado vacuum for
shipping damage.
Each unit is tested and thoroughly inspected prior to shipping. If damage is discovered, immediately
notify the transportation company that delivered your machine and request an inspection. As a manu-
facturer, we are unable to act upon any claim for concealed damage; you must originate the claim.
Be sure to keep the carton, packing inserts, packing lists, and carrier’s receipt until the inspector has
veried your claim.
PROTECT THE ENVIRONMENT
Pleasedispose of packagingmaterials in an
environmentallysafe wayaccordingto local
waste disposalregulations.
Alwaysrememberto recycle
Do not operate the vacuum while it is standing on high pile carpet/ It is essential that the exhaust
airow not be restricted
Do not wash or launder the cloth bag as this will destroy the ltration capacity of the fabric.
SAFETY PRECAUTIONS
GENERAL PRECAUTIONS
• You must be trained in the operation of this machine before use. Please read this manual carefully
and obtain operation instructions from your safety director or your authorized Tornado distributor.
• Do not attempt to repair warranted machines. All repairs must be done by a qualied and authorized
repair center. Non warranted repairs will be billed back to the owner of the unit.
• Do not use any replacement parts except those specied in the parts list. Unauthorized parts could
cause the unit to malfunction and will void the warranty.
FAILURE TO COMPLY WITH THE ABOVE WARNING INSTRUCTIONS
WILL VOID THE WARRANTY
Disconnect the battery pack from the appliance before making any adjustments, changing accesso-
ries, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance
accidentally.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidental-
ly occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from
the battery may cause irritation or burns.
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

5
IMPORTANT SAFETY INSTRUCTIONS
FOR COMMERCIAL USE
WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD
ALWAYS BE FOLLOWED INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:
•
• To avoid electrical shock, Use indoors only. Do not use outdoors and do not expose to rain.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachment.
• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.
• Always keep hands feet and loose tting clothing away from moving parts to prevent possible
injuries.
• Do not use machine in areas where ammable and/or explosive vapors or dusts are present.
• Make sure voltage and frequency at the wall receptacle correspond with that indicated on
nameplate before plugging in machine.
• Use extra care when cleaning on stairs.
• Do not pick up anything that is burning or smoking such as cigarettes, matches, or hot ashes.
• Do not use without dust bag and/or lters in place.
SAVE THESE INSTRUCTIONS
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

6
WARNING!
Battery and Charging Safety:
To reduce the risk of electric shock, re, battery explosion, or injury:
1. Use only Tornado charger X1194 and Tornado battery pack X1200
2. DO NOT expose battery packs to temperatures above 122°F (50°C). Never leave battery packs in
automobiles on hot days, where temperatures can be much higher than the outside temperature.
3. DO NOT use or store vacuum or batteries in wet or moist conditions, or with ammable or combus-
tible materials.
4. DO NOT charge batteries or store battery for extended periods,1 month or more, in temperatures
above 90°F (32°C) or below 40°F (5°C).
5. When charging, make sure that the charger has at least 6 inches of clearance on all sides. Ad-
equate airow is required to cool the charger when in use.
6. Connect charging cord to a properly grounded outlet only. See Grounding Instructions.
7. DO NOT use a damaged cord or plug for charging.
8. DO NOT pull on charger’s cord to unplug. Grasp and pull the plug, not the cord.
9. DO NOT handle the charger’s cord plug with wet hands when inserting into electrical outlet.
10. Keep sparks and ames away from batteries.
11. DO NOT smoke near batteries or charger.
12. DO NOT charge the unit outdoors.
13. DO NOT attempt to repair, service, or modify the battery system or charger. Contact Tornado Cus-
tomer Service with any issues.
14. DO NOT short-circuit the battery or charger terminals with conductive items such as paper clips.
This can deliver high current, resulting in heat and re.
15. DO NOT crush, drop, incinerate or damage the battery pack.
16. DO NOT use a battery pack that has been damaged in any way.
17. DO NOT incinerate the battery even if it is severely damaged or nonworking. The battery can
explode in a re.
To avoid damage to the battery contacts, turn off power switch before reconnecting the battery. Bat-
tery must be fully engaged to insure proper electrical connection.

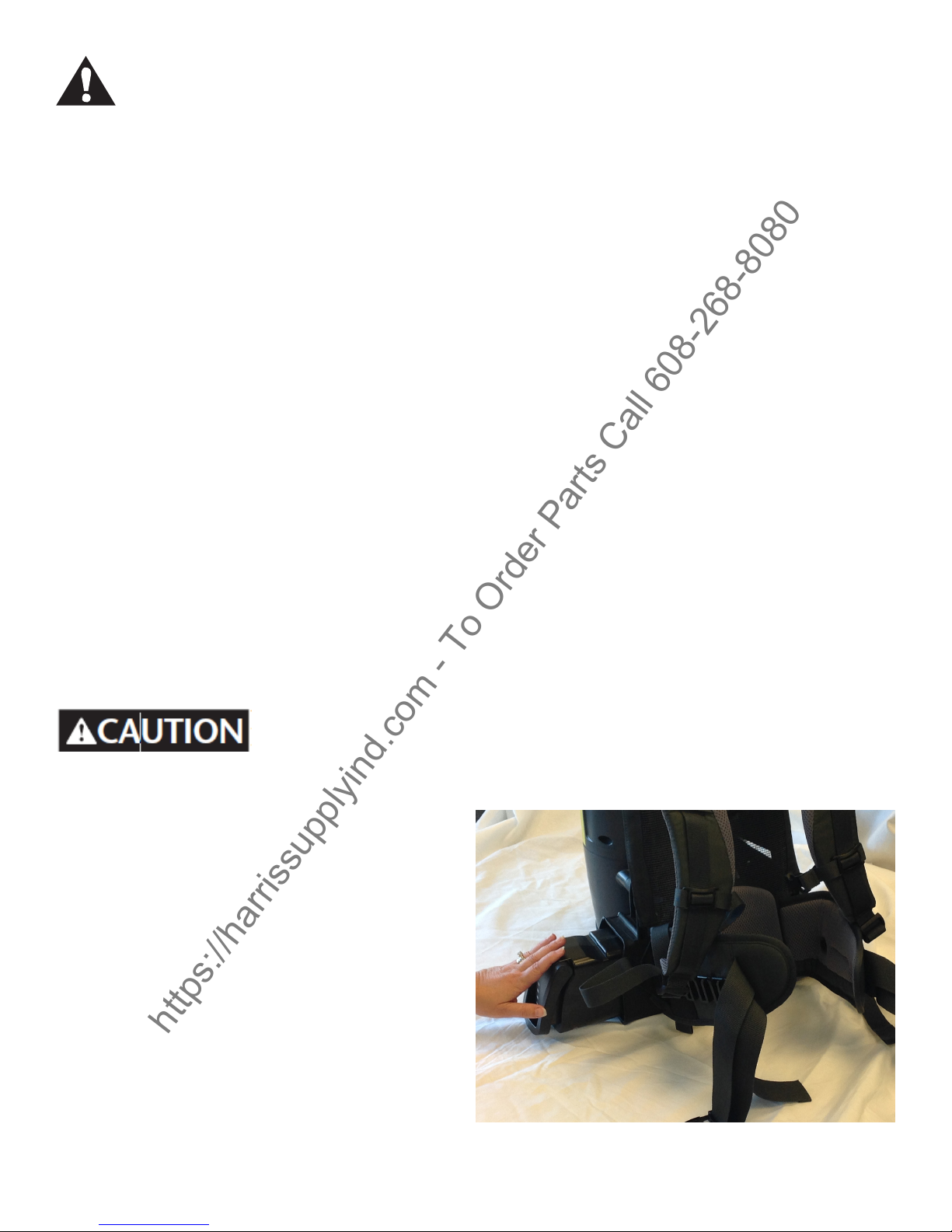

INSTALLING BATTERY PACK INTO VACUUM
1. Holding battery by the front, carefully slide the
battery into the lower housing until it clicks in
place (Fig. 1).
2. Connector is spring-loaded. Battery will need
to be pushed fully into position.
BATTERY FUEL GAUGE
The battery fuel gauge indicates the approximate
run time remaining on the battery. When the
battery button is pressed, one to four indicators
will light up, indicating the approximate battery
charge remaining as follows:
All 4 lights on: Full Charge
3 lights on: 70% Charge
2 lights on: 45% Charge
1 light on: 25% Charge
1 light on and blinking: Low battery, charge when possible
Fig. 1
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

7

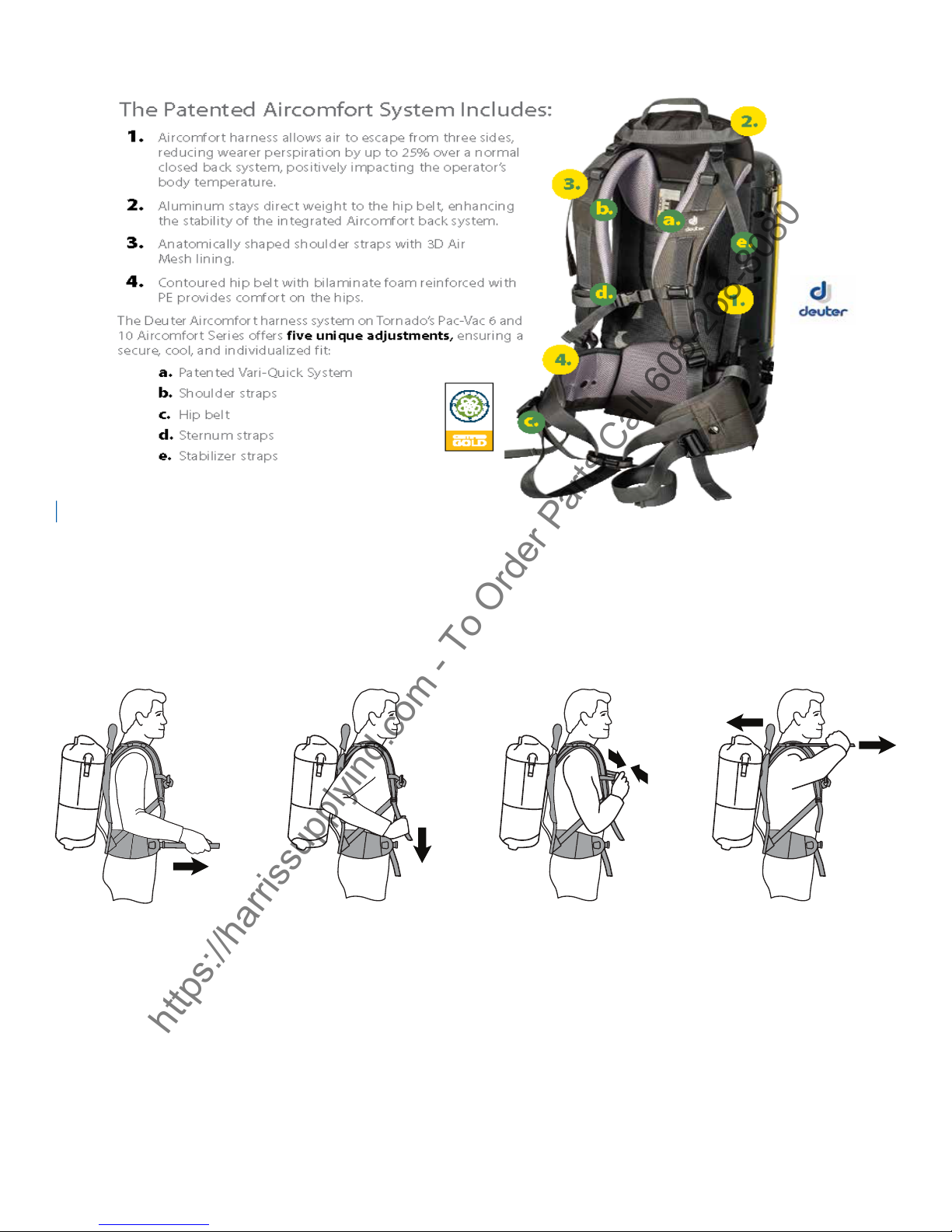

Wearing the Backpack Vacuum
The backpack is designed to balance the weight of the vacuum on the hips, not the shoulders.
1.Adjust the Vari-Quick height adjuster to your back length.
2. Loosen all of the straps and place the vacuum on your back.
Fig. 2 Fig. 3 Fig. 4 Fig. 5
3. Place the hip belt over your hip and connect the buckle. Your hip bones should be centered be-
tween the top and bottom of the belt. Pull the straps forward to tighten the hip belt. (Fig. 2)
4. Pull down the shoulder straps to tighten the backpack on your shoulders. (Fig. 3) Do not tighten
too tight. The main weight of the vacuum should be on the hip belt. The anchor points of the shoulder
straps should ideally be between the shoulder blades. Adjust the Vari-Quick height adjuster if neces-
sary to properly place the vacuum to your back length.
5. Adjust the sternum strap on a comfortable part of your chest and close the strap. (Fig. 4)
6. Loosen or tighten the stabilizer straps as needed, to t your back. (Fig. 5)
7. Do nal adjustments on the shoulder and stabilizer straps as needed to balance the weight of the
vacuum on the hips.
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

8
OPERATION INSTRUCTIONS
Please read the following operating instructions carefully. They will help you to get the best
performance from this professional quality vacuum cleaner and to maintain it in optimum condition.
Follow these simple steps for easy and effective operation of the Backpack vacuum.
Open the lid and ensure that the cloth bag is correctly located and the exible ring provides a proper
seal when the lid is closed. For optimum performance, ltration and maximum hygiene, it is advisable
to use a paper vacuum bag in addition to the standard cloth bag.
If a paper vacuum bag is used, simply insert it into the cloth bag, making sure that the cardboard disk
is centered on the exible sealing ring. When you replace the lid, the short nozzle in the center of the
lid will be forced into the central hole of the cardboard disk of the paper vacuum bag thus providing
a tight seal. Make sure the paper vacuum bag is tightly secured over the short nozzle before
vacuuming.
Lock the lid down with the two latches. Always ensure that the cloth vacuum bag is empty and the
paper bag is no more than ½ full before vacuuming. The vacuum hose is tted into the cuff in the lid.
It should not be necessary to remove the hose in normal operation.
1. Place the Backpack vacuum on your back, adjust the shoulder straps until you feel comfortable
and then tighten the waist belt. The Backpack vacuum is designed to ride higher on your back
for maximum comfort.
2. Attach the extension wand to the hose and t the oor tool or any of the other vacuuming
accessories on the wand.
3. Turn the vacuum on. The toggle switch is located on the lower housing.
4. After you nish cleaning, turn off the main power switch.
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

9

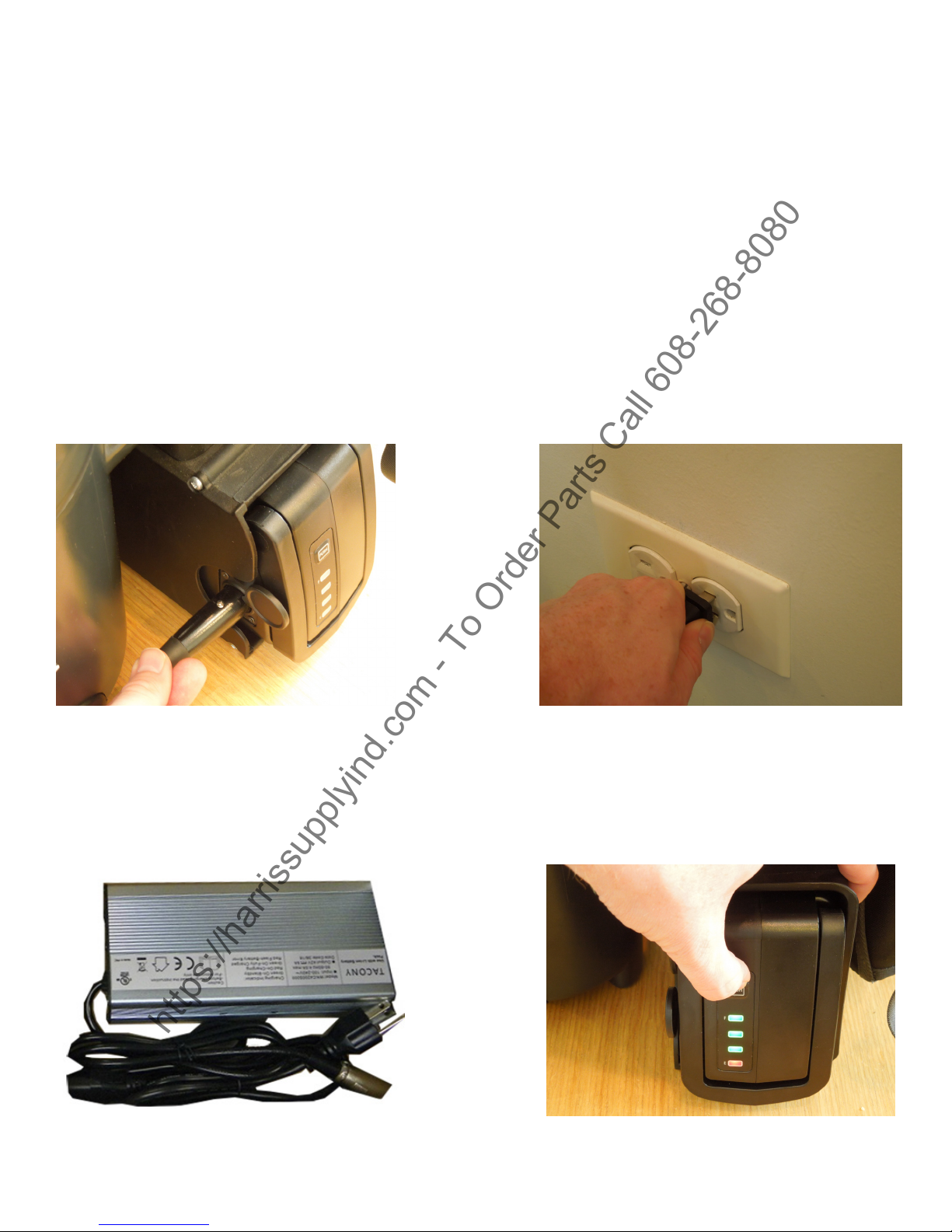

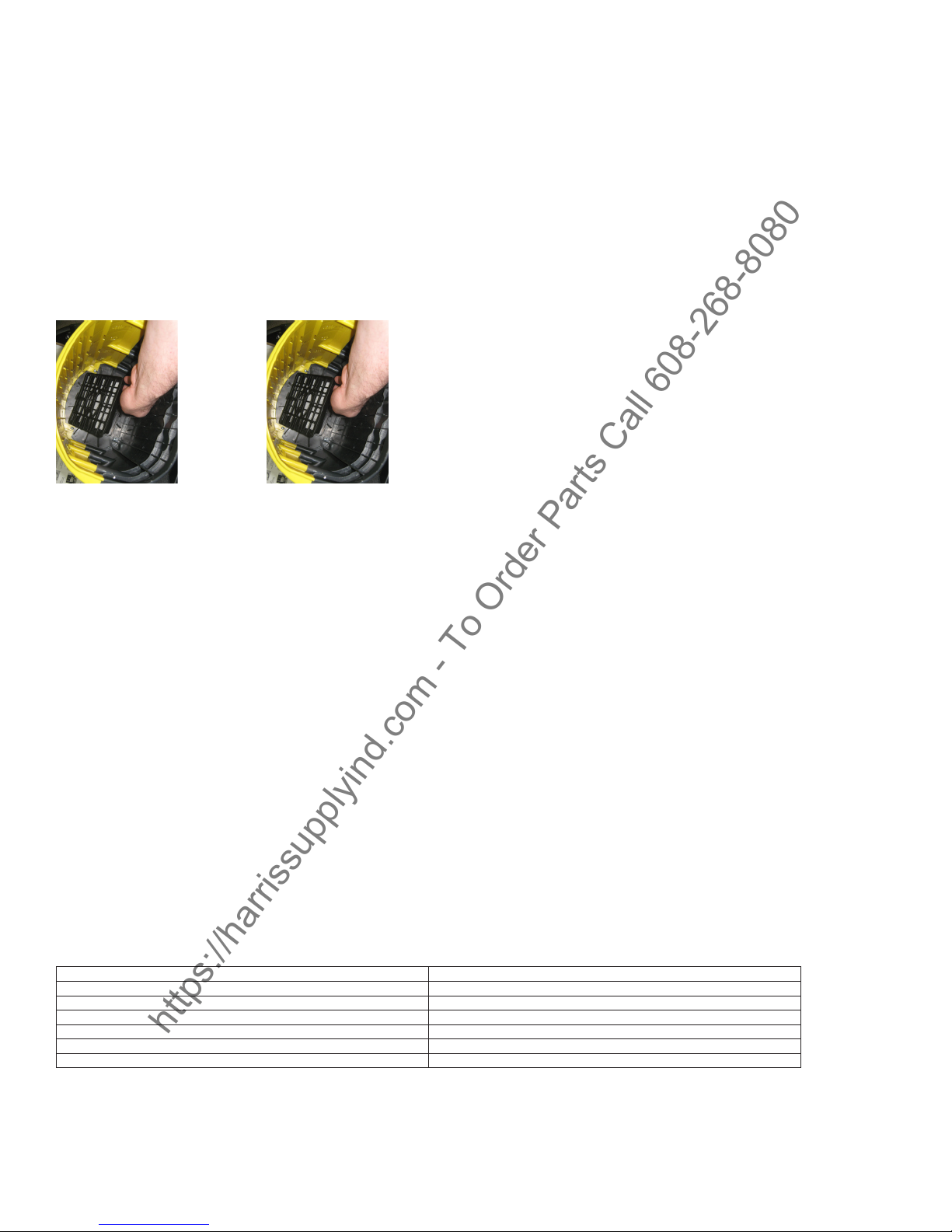

PREPARING BATTERY PACK FOR CHARGING
1. Plug the charger's power cord into the battery (Fig. 6).
2. Plug the charger's power cord into 120V wall outlet (Fig. 7).
3. The indicator light should turn Red and blink while charging and turn Green when fully charged
(Fig. 8). The battery pack may require approximately 2.5 hours to fully charge.
4. Verify the charge level of the battery pack by pressing the power level indicator button on the front
of the pack. (Fig. 9). Four lights (one red and three green) indicate a fully charged battery. Unplug bat-
tery from charger and unplug cord from wall outlet after charging.
*Battery pack may get warm while charging.
Fig. 6 Fig. 7
Fig. 9
Fig. 8
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

10

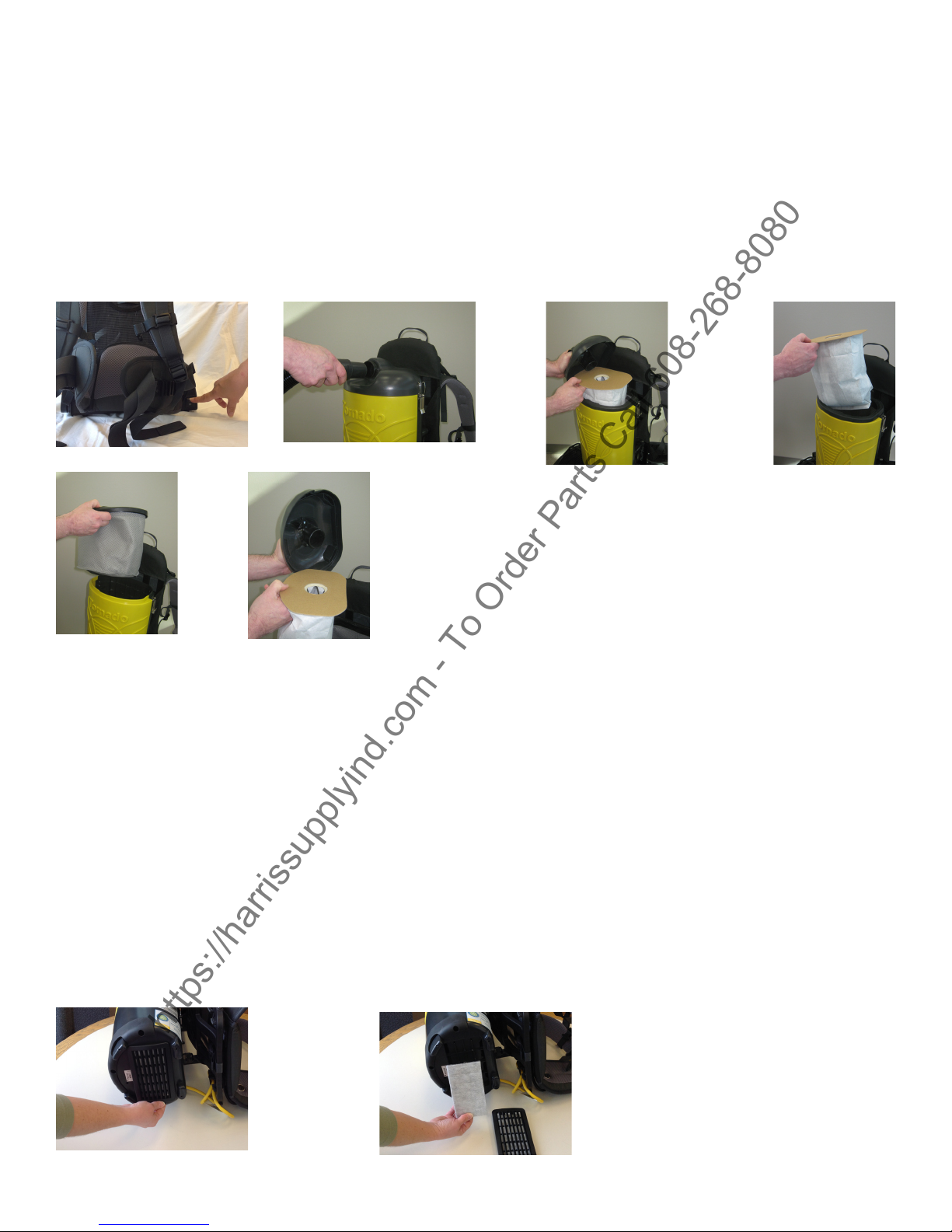

TO CHANGE THE FILTER COLLECTION BAGS
• Turn off the main power switch (Fig. 10).
• Remove vacuum hose from top of unit (Fig 11).
• Release the two latches and lift off lid (Fig. 12).
• Separate lid from paper bag insert and dispose of paper bag (Fig. 13)
• Remove cloth lter bag, clean, dust and replace (Fig. 14).
• Insert new paper bag making sure to align lid nozzle with bag hole and replace latches (Fig. 15)
Fig. 10 Fig. 11
Fig. 12 Fig. 13
Fig. 14 Fig. 15
CHANGING EXHAUST FILTER ASSEMBLY
The Pac-Vac vacuum cleaner is equipped with a HEPA lter and an exhaust lter. These lters
capture ne dust particles and protect the motor from dirt. It is important to replace the HEPA lter
approximately every six months. Replace the exhaust lter every fourth time the paper vacuum bags
are changed.
To change or clean the exhaust lter
1. Turn off the main power switch (Fig. 10).
2. Detach the exhaust lter holder from the bottom of the unit (Fig. 16)
3. Remove the exhaust lter from the holder (Fig. 17)
4. DO NOT THROW AWAY THE FILTER HOLDER.
5. Remove the exhaust lter from the plastic holder and shake or brush dirt from the lter.
6. Replace the exhaust lter in the plastic holder and place into vacuum.
Fig. 16 Fig. 17
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

11
CHANGING HEPA FILTER ASSEMBLY
To change the HEPA lter:
1. Remove the lid, paper bag and cloth bag to expose the HEPA lter.
2. Remove the lter cap on the top of the HEPA lter (Fig. 18)
3. Remove the HEPA lter from the dust compartment
4. Insert a new HEPA lter and replace the lter cap (Fig. 19). Ret the cloth bag, paper bag, and
replace lid.
Note: The HEPA lter can NOT be washed and reused.
Fig. 18 Fig. 19
MAINTENANCE
Clean the cloth vacuum bag regularly. After emptying the vacuum bag, turn it inside out and shake as
much dust out of the fabric as possible. Optimum performance is achieved by using a paper lter bag
with the cloth bag.
Clean the vacuum bag and HEPA lter or free any blockage and ensure that adequate airow is
restored.
Use only approved Tornado paper lter bags.
Ensure the vacuum hose, the extension wand and the vacuuming accessories are not blocked.
Have your unit serviced by an authorized repair service center if you suspect any potential problems.
Ensure that the exible vacuum bag ring provides a proper seal before vacuuming.
Recommended replacement parts:
C352-2500 Paper Bag (10 pack)
B352-2400 Motor Exhaust Micro Filter
B352-2401 HEPA Filter
C352-1400 Shake Out Bag
X1208 Motor
X1200 Battery
X1194 Battery Charger w/Cord
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

12

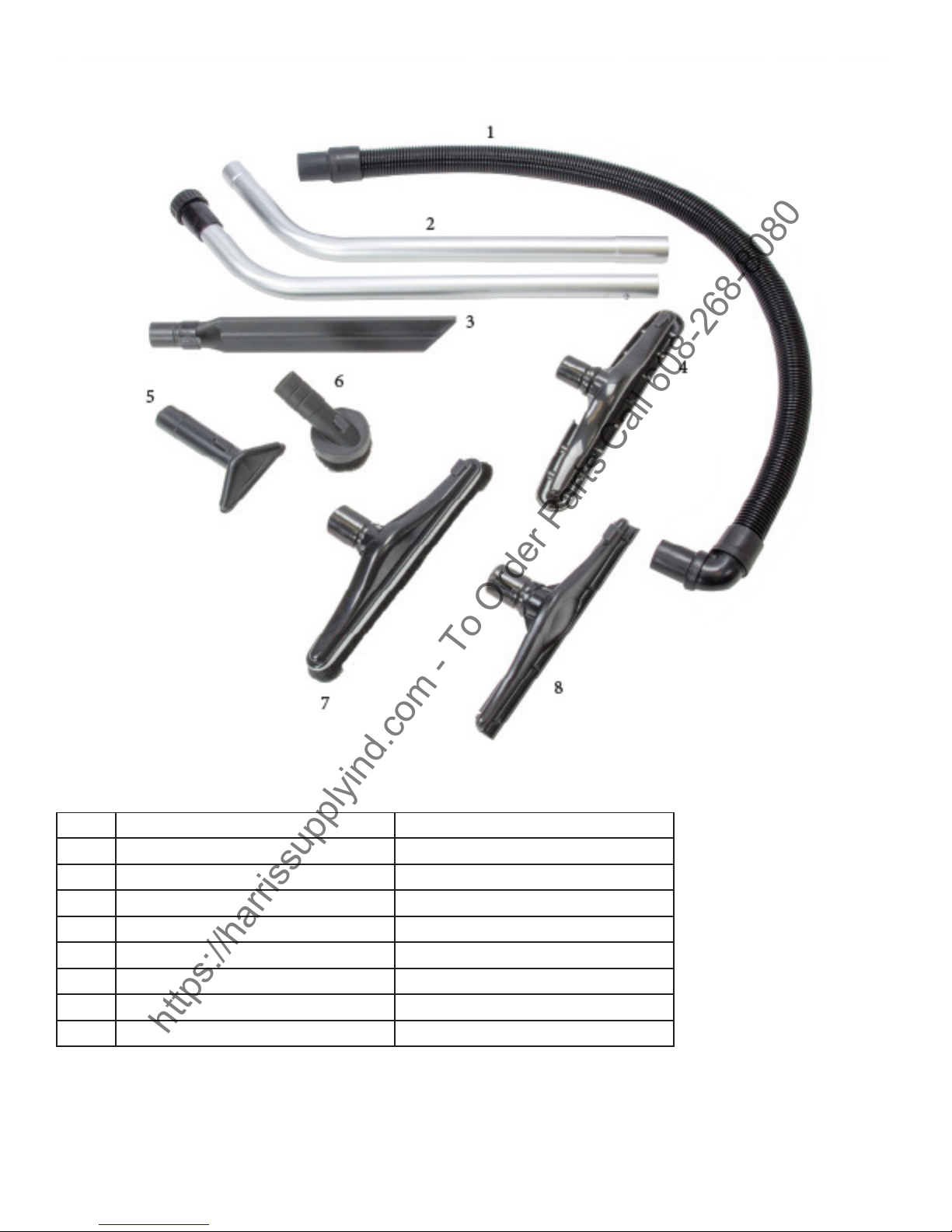

No. Part No. Description
1 J1006 Hose
2 CT171 Wand
3 CT176 Crevice Tool
4 B352-PF10 Carpet Tool
5 CT188 Upholstery Tool
6 CT184 Dusting Tool
7 C352-PF20 Hard Floor Tool
8 CT194 Easy Glide carpet Tool
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

13
Please provide additional information on
Tornado equipment: (Check choices below)
__ Automatic Scrubbers __Sweepers
__Propane Floor Machines __Rotary Floor Machine
__High Speed Burnishers __Carpet Vacuums
__Carpet Extractors & Spotters __Wet/Dry Vacs
__ Steam Cleaners __Jumbo Vacs
__Ride-On Equipment __Pressure Washers
See complete product info at www.tornadovac.com
Selling Dealer:(Required)__________________________
Warranty
Registration
Form
_____________________________________________________________________________
Company/Institution
_____________________________________ ____________________________________
Contact Name Title
_____________________________________ ____________________________________
Address City/State/Zip Code
_____________________________________ ____________________________________
Phone Fax
_____________________________________ ____________________________________
Date of Purchase Email
Please Print Clearly
See white metal plate or sticker on unit for this information.
MACHINE TYPE/MODEL NUMBER: MACHINE SERIAL NUMBER:
1. 1.
2. 2.
3. 3.
4. 4.
How did you rst learn about
Tornado cleaning and
maintenance equipment?
In square feet (meters)
Total Hard Floor Area
Total Carpeted Area
Square feet (square meters)
o Contacted by local dealer
o Previous experience with
Tornado products
o Reputation/
Recommendation
o Advertising
o Direct mail
o Internet
o Other
o 0-10,000 (0-930)
o 10-50,000 (930-4,650)
o 50-250,000 (4,650-23,250)
o Over 250,000 (over
23,260)
o 0-10,000 (0-930)
o 10-50,000 (930-4,650)
o 50-250,000 (4,650-23,250)
o Over 250,000 (over
23,260)
Damage or defect arising from abuse, neglect or other misuse is excluded from this warranty. Other items
may or may not apply based on your specic machine. If any defect occurs, the warranty is voided if service is
attempted by non-Authorized Tornado Service Centers.
©2017 Tornado Industries. All rights reserved.
X8449-TOR 1/2017
Facility Description (please circle all that apply)
1. School 9. Hospital 17. U.S. Govt.
2. Retail Store 10. Nursing Home 18. Other Govt.
3. Restaurant 11. Religious Institution 19. Auto Service
4. Ofce Building 12. Airport 20. Airport
5. Contract Cleaning 13. Warehouse 21. Non-Prot
6. Light Manufacturing 14. Apartment/Condo 22. Other (specify)
7. Heavy Manufacturing 15. Warehouse
8. College/University 16. Supermarket
Return to :
Tornado Industries
3101 Wichita Court
Fort Worth, TX 76140
Fax: [phone]
or online at
www.tornadovac.com
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
