Toro 2226 User manual

FormNo.3414-730RevA
2226DirectionalDrill
ModelNo.23803—SerialNo.400000000andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3414-730*A

WARNING
CALIFORNIA
Proposition65Warning
Thisproductcontainsachemical
orchemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orreproductiveharm.
Dieselengineexhaustandsomeofits
constituentsareknowntotheStateof
Californiatocausecancer,birthdefects,
andotherreproductiveharm.
ItisaviolationofCaliforniaPublicResourceCode
Section4442or4443touseoroperatetheengineon
anyforest-covered,brush-covered,orgrass-covered
landunlesstheengineisequippedwithaspark
arrester,asdenedinSection4442,maintainedin
effectiveworkingorderortheengineisconstructed,
equipped,andmaintainedforthepreventionofre.
Introduction
Thismachineisadirectionaldrillintendedfor
undergrounddrillingandpullbackoperationforutility
linesincluding:electrical,gas,communication,
water,etc.Itisdesignedtooperateawidevariety
ofattachmentseachofwhichperformaspecialized
function.Thismachineistobeusedintemperatures
of17to37°C(0to100°F).
Beforestartingoroperatingthemachine,readthis
informationcarefullytolearnhowtooperateand
maintainyourproductproperlyandtoavoidinjuryand
productdamage.Youareresponsibleforoperating
theproductproperlyandsafely.
YoumaycontactTorodirectlyatwww.Toro.com
forproductsafetyandoperationtrainingmaterials,
accessoryinformation,helpndingadealer,orto
registeryourproduct.
Wheneveryouneedservice,genuineToroparts,or
additionalinformation,contactanAuthorizedService
DealerorT oroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
g217463
Figure1
1.Modelandserialnumberlocation
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafetyalertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.
g000502
Figure2
1.Safetyalertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
©2017—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

Contents
Safety.......................................................................4
GeneralSafety...................................................4
TrammingSafety................................................5
DrillingSafety.....................................................6
SafetyandInstructionalDecals..........................8
ProductOverview...................................................24
Controls...........................................................27
OperatorPlatform.........................................27
FrontControlPanel.......................................29
RearControlPanel........................................33
TravelPendant..............................................33
Specications..................................................34
BeforeOperation.................................................35
BeforeOperationSafety...................................35
UnderstandingHorizontalDirectional
Drilling...........................................................35
GatheringSiteInformation................................36
PlanningtheBorePath.....................................39
PreparingtheJobSiteandtheMachine
......................................................................44
MarkingandPreparingtheBorePath...............44
CheckingtheSafety-InterlockSwitches............44
TestingtheZap-AlertSystem............................45
MountingaFireExtinguisher............................46
LoadingtheDrillPipes......................................46
FillingtheFuelTank..........................................46
PerformingDailyMaintenance..........................47
StartingandShuttingOfftheEngine.................47
TrammingtheMachine.....................................48
LoadingandUnloadingtheMachine.................48
SettingUptheDrillHeadandTracking
System..........................................................50
SettinguptheMachineforDrilling.....................51
DeployingtheZap-AlertSystem.......................51
LoweringtheStakes.........................................52
ConnectingtoaDrilling-FluidSource................52
DuringOperation.................................................54
DuringOperationSafety...................................54
DieselParticulateFilterRegeneration...............55
DrillingtheBore................................................57
BackreamingandPullback...............................60
AfterOperation....................................................62
AfterOperationSafety......................................62
FinishingtheJob..............................................63
UsingtheTJCApplicator..................................63
MovingaDisabledMachine..............................64
Maintenance...........................................................65
RecommendedMaintenanceSchedule(s)...........65
Pre-MaintenanceProcedures..............................67
Pre-MaintenanceSafety...................................67
AccessingInternalComponents.......................67
UsingtheCylinderLock....................................68
Lubrication..........................................................68
GreasingtheMachine.......................................68
EngineMaintenance...........................................72
EngineSafety...................................................72
ServicingtheAirCleaner..................................72
ServicingtheEngineOil....................................74
AdjustingtheEngine-ValveClearance..............76
CleaningtheEngineEGRCooler......................76
InspectingtheEngineCrankcase-Breather
System..........................................................76
CheckingandReplacingFuelHosesand
Engine-CoolantHoses..................................76
LappingorAdjustingtheEngineIntakeand
ExhaustValves.............................................76
InspectingandCleaning
Engine-Emission-ControlComponents
andTurbocharger.........................................77
FuelSystemMaintenance...................................77
ServicingtheFuelSystem................................77
ServicingtheWaterSeparator.........................77
ReplacingtheFuelFilterElement.....................78
ElectricalSystemMaintenance...........................79
BatterySafety...................................................79
ServicingtheBattery.........................................79
ChargingtheBattery.........................................80
Jump-StartingtheMachine...............................80
DriveSystemMaintenance..................................81
CheckingthePlanetaryDriveOilLevel
PlanetaryDrive.............................................81
ChangingthePlanetaryDriveOil.....................82
CheckingtheRotaryGearboxDrive
Oil.................................................................82
ChangingtheRotaryGearboxDrive
Oil.................................................................83
ServicingtheTracks.........................................84
CoolingSystemMaintenance..............................85
CoolingSystemSafety.....................................85
CheckingtheCoolantLevelinthe
Reservoir......................................................85
CheckingtheCoolantLevelinthe
Radiator........................................................86
CheckingtheConditionofthe
Cooling-SystemComponents.......................86
CheckingtheConcentrationofthe
Coolant.........................................................86
CleaningtheCoolingSystem............................87
BeltMaintenance................................................89
ServicingtheEngine-DriveBelt........................89
HydraulicSystemMaintenance...........................90
HydraulicSystemSafety...................................90
ServicingtheHydraulicFluid............................90
Drilling-uidPumpMaintenance...........................94
ServicingtheDrilling-Fluid-PumpOil................94
PreparingtheDrilling-FluidSystemforCold
Weather........................................................95
ControlsMaintenance..........................................97
CalibratingtheJoysticksandtheTravel
Pendant........................................................97
Cleaning..............................................................97
CleaningwiththeSpray-Hose
Attachment....................................................97
CleaningPlasticandResinParts......................98
3

Storage...................................................................99
Troubleshooting....................................................100
Index.....................................................................103Safety
Important:Thismachinewasmanufactured
accordingtotheappropriateregulatorystandards.
Modifyingthismachineinanywaymaycauseit
tobeoutofcompliancewiththosestandardsand
withtheinstructionsinthisOperator’sManual.
Modicationstothismachineshouldonlybe
madebyonlythemanufactureroranAuthorized
ServiceDealer.
Important:Beforeoperatinginanareawith
high-voltagelinesorcables,contacta“One-Call
SystemDirectory”service.IntheUSA,call811
oryourlocalutilitycompany.Ifyoudonotknow
yourlocalutilitycompany’sphonenumber,call
thenationalnumber(USAandCanadaonly)at
1-888-258-0808.InAustralia,call1100forthe
nationwidemarkingservice.Also,contactany
utilitycompaniesthatarenotparticipantsofthe
“One-CallSystemDirectory”service.Pleaserefer
toDrillingNearUtilityLines(page6)formore
information.
GeneralSafety
Thisproductiscapableofamputatinghandsand
feetandofthrowingobjects.Alwaysfollowallsafety
instructionstoavoidseriouspersonalinjury.
Usingthisproductforpurposesotherthanitsintended
usecouldprovedangeroustoyouandbystanders.
•Readandunderstandthecontentsofthis
Operator’sManualbeforestartingtheengine.
•Donotputyourhandsorfeetnearmoving
componentsofthemachine.
•Donotoperatethemachinewithoutallguards
andothersafetyprotectivedevicesinplaceand
workingonthemachine.
•Keepbystandersandpetsasafedistanceaway
fromthemachine.
•Neverallowchildrentooperatethemachine.
•Stopthemachineandshutofftheenginebefore
servicingorfuelingthemachine.
Improperlyusingormaintainingthismachinecan
resultininjury.T oreducethepotentialforinjury,
complywiththesesafetyinstructionsandalwayspay
attentiontothesafety-alertsymbol,whichmeans
Caution,Warning,orDanger—personalsafety
instruction.Failuretocomplywiththeseinstructions
mayresultinpersonalinjuryordeath.
Youcanndadditionalsafetyinformationwhere
neededthroughoutthisOperator’sManual.
4

TrammingSafety
Youmovethemachinetoandfromtheworksitewith
theuseofatravelpendant.Whentramming(moving
themachinewiththependant),observethefollowing
safetyprecautions:

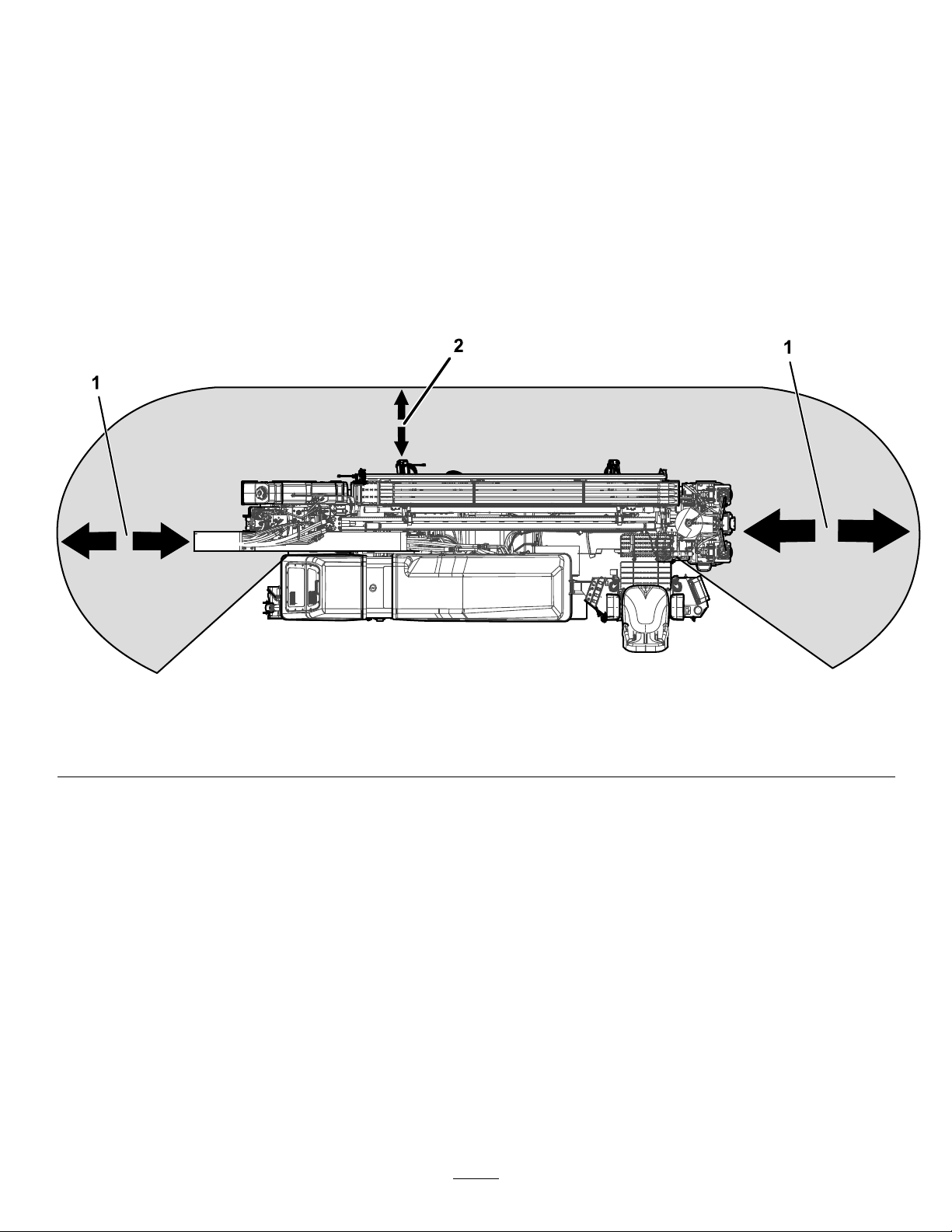

•Operatethetravelpendantalongsidethemachine
outsideofthedangerzone(Figure3).
•Keepallbystandersawaywhiletrammingthe
machine.
•Donotcarrypassengersonthemachine.
•Watchfortheturning-radiussweepofthedrill
frame,asthecenteroftheturningradiusisthe
endofthetrack.
•Moveslowlywhenusingthependantfortramming.
•Usecarewhenloadingorunloadingthemachine
ontoatrailer.
•Watchfortrafcwhencrossingroadways.
•Checkforoverheadclearances(i.e.,doorways,
branches,electricalwires)beforetrammingunder
anyobjectsanddonotcontactthem.
•Whentrammingonaslope,youshouldbeuphill
fromthemachine.
Usethefollowingillustrationtoensurethatbystanders
donotenterthedangerzonewhileyouaretramming
themachine.
g217464
Figure3
DrivingDangerZone
1.1.8m(6ft)safetydistance3.Turning-radiuscenter(endofthetrack)
2.Operator4.2.4m(8ft)safetydistance
5

DrillingSafety
•Alwayslowerthepipeloadingguardbeforedrilling
(Figure4).
•Alwaysengagetheexitsidelockoutbefore
operating.
•Keepbystandersandpetsasafedistanceaway
fromthemachine.
•Stopoperatingthemachineifanyoneentersthe
drillingdangerzone.
•Ensurethatnooneapproachesapipewhileitis
spinning.
DrillingDangerZone
Thedangerzoneistheareawithinandaroundthe
machinewhereapersonisexposedtotheriskof
injury.
Thedangerzonedenestheamountofspaceneeded
forsafedrillingoperation,includingmovementofthe
carriage.
Usethefollowingillustrationtoensurethatbystanders
donotenterthedangerzonewhileyouaredrilling.
g217462
Figure4
DrillingDangerZone
1.3m(10ft)safetydistance2.1.8m(6ft)safetydistance
DrillingNearUtilityLines
Important:Beforeoperatinginanareawithhigh-voltagelinesorcables,contacta“One-CallSystem
Directory”service.IntheUSA,call811oryourlocalutilitycompany.Ifyoudonotknowyourlocal
utilitycompany’sphonenumber,callthenationalnumber(USAandCanadaonly)at1-888-258-0808.In
Australia,call1100forthenationwidemarkingservice.Also,contactanyutilitycompaniesthatarenot
participantsofthe“One-CallSystemDirectory”service.
6

UtilityLineColor
Refertothefollowingtablefortheproperutilityline
andthecorrespondingutilitylinecolor(USAand
Canada).
UtilityLineUtilityLineColor
ElectricRed
Telecommunication,alarmorsignal,
cables,orconduit
Orange
Naturalgas,oil,steam,petroleum,or
othergaseousorammablematerial
Yellow
SeweranddrainGreen
DrinkingwaterBlue
Reclaimedwater,irrigation,and
slurrylines
Purple
TemporarysurveymarkingsPink
ProposedexcavationlimitsWhite
ElectricalandCommunication
LineSafety
WARNING
Ifyouleavetheseatofthemachineortouch
anypartofthemachinewhenitischarged
withelectricity,seriousinjuryordeathcould
result.
Donotleavetheseatofthemachineifthe
machineischargedwithelectricity.
CAUTION
Ifyoudamagetheber-opticcableandlook
intotheexposedhighly-intenselight,youmay
harmyoureyes.
•Shutoffthemachineandremovethekey.
•Removeallindividualsfromtheworkarea.
•Immediatelycontacttheproperemergency
andutilityauthoritiestosecurethearea.
Intheeventofanelectricstrikethatchargesthe
machine,theZap-Alertalarmsystemwillsoundforas
longasthemachineischargedwithpower.
Note:Immediatelycontacttheproperemergency
andutilityauthoritiestosecuretheareaincasethe
machineischargedandyoucannotleavetheseat
ofthemachine.
Note:Itispossibletostrikeautilitylinewithoutthe
machinebecomingcharged.
•Thealarmwillsoundifthedrillcontactsan
electricalpowersource.
•Donotattempttoleavethemachine.
Note:Youwillbesafeaslongasyoudonotleave
theseatofthemachine.
•Touchinganypartofthemachinemaygroundyou.
•Donotallowanotherindividualtotouchor
approachthemachinewhencharged.
•Thealarmmaysoundifacommunicationline
isbroken,butuntilyouarecertain,youmust
considerthealarmtobeanelectricstrike.
GasLineSafety
WARNING
Ifyoudamageagasline,animmediate
explosionandrehazardcouldoccur.
Leakinggasisbothammableandexplosive
andmaycauseseriousinjuryordeath.
•Donotsmokewhileoperatingthemachine.
•Shutoffthemachineandremovethekey.
•Removeallindividualsfromtheworkarea.
•Immediatelycontacttheproperemergency
andutilityauthoritiestosecurethearea.
WaterLineSafety
Ifyoudamageawaterline,apotentialood
hazardcouldoccur.
•Shutoffthemachineandremovethekey.
•Removeallindividualsfromtheworkarea.
•Immediatelycontacttheproperemergencyand
utilityauthoritiestosecurethearea.
7

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decalbatterysymbols
BatterySymbols
Someorallofthesesymbolsareonyourbattery
1.Explosionhazard6.Keepbystandersasafe
distancefromthebattery.
2.Nore,opename,or
smoking.
7.Weareyeprotection;
explosivegasescan
causeblindnessandother
injuries
3.Causticliquid/chemical
burnhazard
8.Batteryacidcancause
blindnessorsevereburns.
4.Weareyeprotection9.Flusheyesimmediately
withwaterandgetmedical
helpfast.
5.ReadtheOperator's
Manual.
10.Containslead;donot
discard.
g228534
Figure5
1.137-7160
decal137-7160
137-7160
1.Emergencyenginestop—release10.Trammingdirection—forward-right
2.Emergencyenginestop—engage11.Trammingspeed—fast
3.Setupoperatorpresence—on12.Trammingspeed—slow
4.Setupoperatorpresence—off13.Trammingdirection—backward-right
5.Trammingoperatorpresence—on/off14.Trammingdirection—backward
6.Enginespeed—decrease15.Trammingdirection—backward-left
7.Enginespeed—increase16.Thrustframe—raise/lower
8.Trammingdirection—forward-left17.Leftstabilizerfoot—raise/lower
9.Trammingdirection—forward18.Rightstabilizerfoot—raise/lower
8

g228521
Figure6
1.125-61303.125-6115
2.125-6128
decal125-6130
125-6130
1.Warning—readtheOperator’sManual;stayatleast3m(10ft)awayfromthefrontandrearofthemachineand1.8m(6ft)
awayfromthesidesofthemachine.
decal125-6128
125-6128
1.Highpressureuidhazard,injectionintothebody—read
theOperator’sManualbeforeperformingmaintenance.
decal125-6115
125-6115
1.Crushinghazard—deploycylinderlocksbeforeperforming
maintenance.
9

g228522
Figure7
1.137-7166
decal137-7166
137-7166
1.Crushinghazard—donotstandunderthemachine.
g228523
Figure8
1.137-7167
decal137-7167
137-7167
1.Thrownobjecthazard—keepbystandersawayfromthe
machine.
10

g228524
Figure9
1.137-7168
decal137-7168
137-7168
1.Electrocutionhazard—donottouchthemachinewhenthe
alarmissounding.
g228525
Figure10
1.137-7172
decal137-7172
137-7172
1.Runover/backoverhazard—readtheOperator’sManual.
11

g228526
Figure11
1.125-61273.137-7164
2.125-61294.137-7174
decal125-6127
125-6127
1.Cutting/dismembermenthazard,fan—keepawayfrom
movingparts.
decal125-6129
125-6129
1.Hotsurface—keepawayfromhotsurfaces.
decal137-7164
137-7164
1.ReadtheOperator’sManual—rotatecounterclockwise
todisconnectthebattery;rotateclockwisetoconnectthe
battery;thenegativepostislocatedbelowtheswitch;the
positivepostislocatedtothesideoftheswitch.
decal137-7174
137-7174
1.ReadtheOperator’s
Manualforinformationon
fuses.
8.Operatorplatform
2.Emergencyenginestop
button
9.Display
3.Electric10.Cam
4.Keyswitch11.Stake
5.Headlights12.Autodrill
6.Enginecontrolunit13.Airhammer
7.Worklights
12

g231766
Figure12
1.125-61523.137-7175
2.137-7171
decal125-6152
125-6152
1.Moveseatforwardandbackward.
decal137-7171
137-7171
1.Fallinghazard—donotrideonthemachinewhileitis
moving.
decal137-7175
137-7175
1.Rotatetheoperatorplatform.
g228528
Figure13
1.125-6694
decal125-6694
125-6694
1.Tie-downlocation
13

g228532
Figure14
1.137-71792.137-7178
decal137-7179
137-7179
1.Warning—hazardousarea;keepatleast3m(10ft)away
fromthemachineduringoperation.
decal137-7178
137-7178
1.Entanglementhazard—keepawayfrommovingparts.
g228533
Figure15
1.125-61972.125-4967
decal125-6197
125-6197
1.Maxweightlimit—1342kb(2,958lb)
decal125-4967
125-4967
1.Liftpoint
14

g228531
Figure16
1.137-71803.125-6119
2.125-8473
decal137-7180
137-7180
1.Impacthazard—donotuseapipewrench;refertothe
Operator’sManual.
decal125-8473
125-8473
1.Explosionhazard—wear
eyeprotection.
3.Firehazard—keepopen
amesaway.
2.Causticliquid/chemical
burnhazard—rinse
affectedareaandseek
medicalassistance.
4.Poisonhazard—donot
tamperwiththebattery.
decal125-6119
125-6119
1.Entanglementhazard—keepawayfrommovingobjects.
15

g228960
Figure17
1.117-27182.137-7161
decal117-2718
117-2718
decal137-7161
137-7161
1.Engine—stop5.Headlights
2.Engine—run6.On
3.Engine—start7.Off
4.Spraygun
16

g228527
Figure18
1.125-61403.137-7182
2.137-71834.125-6124
decal125-6140
125-6140
1.Rotatethechair.
decal137-7183
137-7183
1.ReadtheOperator’sManual.
17

decal137-7182
137-7182
1.Loadpipesfrombackrowrst.
decal125-6124
125-6124
1.Centerthepipejointbetweentheupperandlower
wrenches.
18

g228530
Figure19
1.137-71654.137-7170
2.125-84835.127-1829
3.137-7169
decal137-7165
137-7165
1.Antifreeze
decal125-8483
125–8483
1.Hydraulicuid;readtheOperator’sManual.
decal137-7169
137-7169
1.Warning—readtheOperator’sManual.4.Warning—keepawayfrommovingparts;keepallguardsand
coversinplace.
2.Warning—alloperatorsmustbetrainedbeforeoperatingthe
machine.
5.Warning—hearingprotectionmustbeworn.
3.Warning—keepbystandersawayfromthemachine.6.Explosionandelectricalshockhazard—donotdig;callyour
localutilitycompany.
19

decal137-7170
137-7170
1.Fallinghazard—donotclimbonthemachinewhileitis
moving.
decal127-1829
127-1829
1.Oildrain
g228520
Figure20
1.125-6107
decal125-6107
125-6107
1.Crushinghazardofhandandfoot—keephandsandfeet
away.
20
