Toshiba teli Sps02 User manual

D4213658C

Smart Photo Sensor

SPS02

Instruction Manual

Information contained in this document is subject to change without prior notice.

Thank you for purchasing our product.

Before using this product, Please read through this instruction manual

carefully in order to use this product correctly and safely.

After reading, keep this instruction manual handy so that you can refer to,

whenever you need it.

D4213658C

Contents

Safety Precautions................................................................................................................................... 1

General Handing.......................................................................................................................................2

RESTRICTION FOR USE..........................................................................................................................6

CASES FOR INDEMNITY (LIMITED WARRANTY).................................................................................7

Notes on using this product ...................................................................................................................8

1Overview ..........................................................................................................................................11

2Product Configuration.................................................................................................................... 11

3Option...............................................................................................................................................12

4Name of all parts.............................................................................................................................13

5Connection Example ......................................................................................................................14

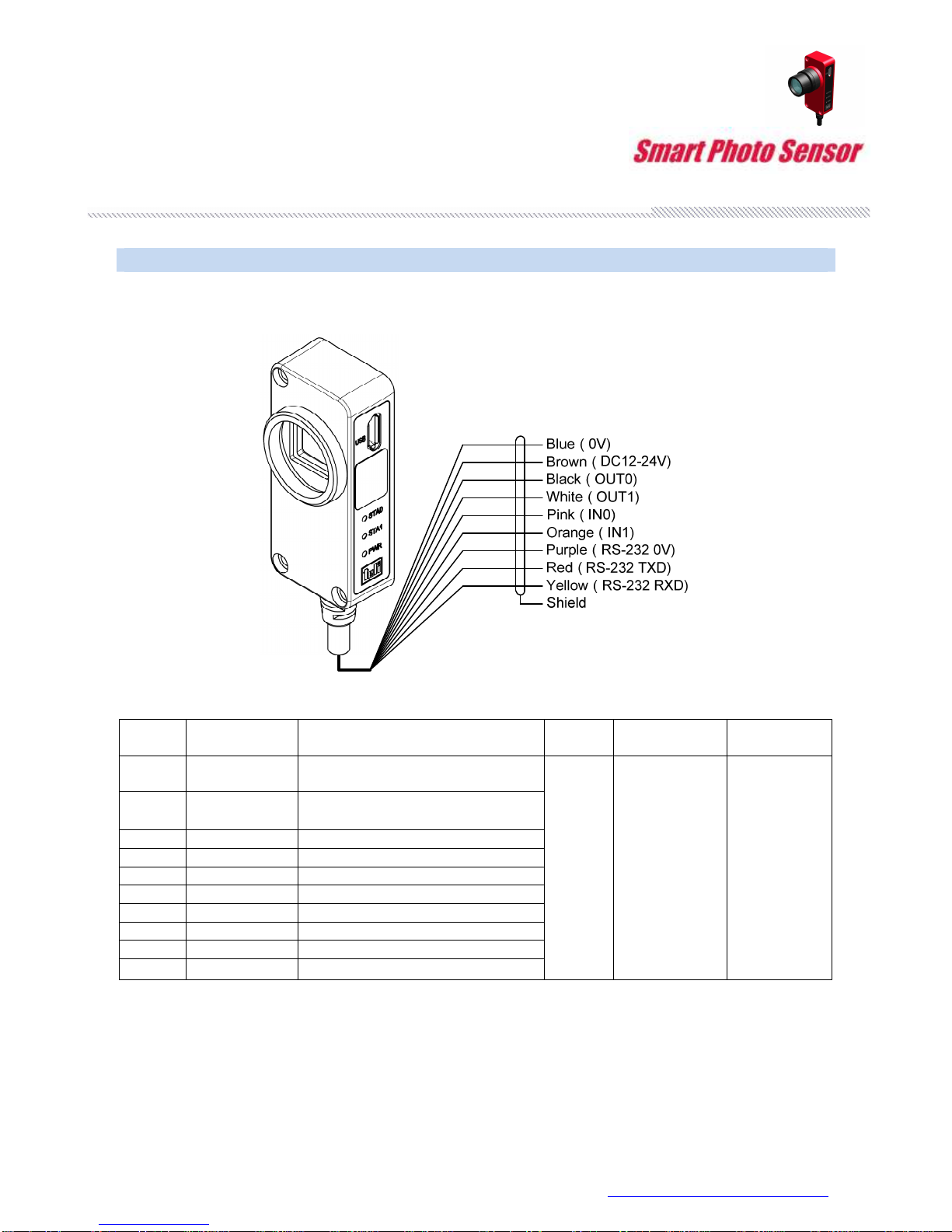

6Wiring............................................................................................................................................... 15

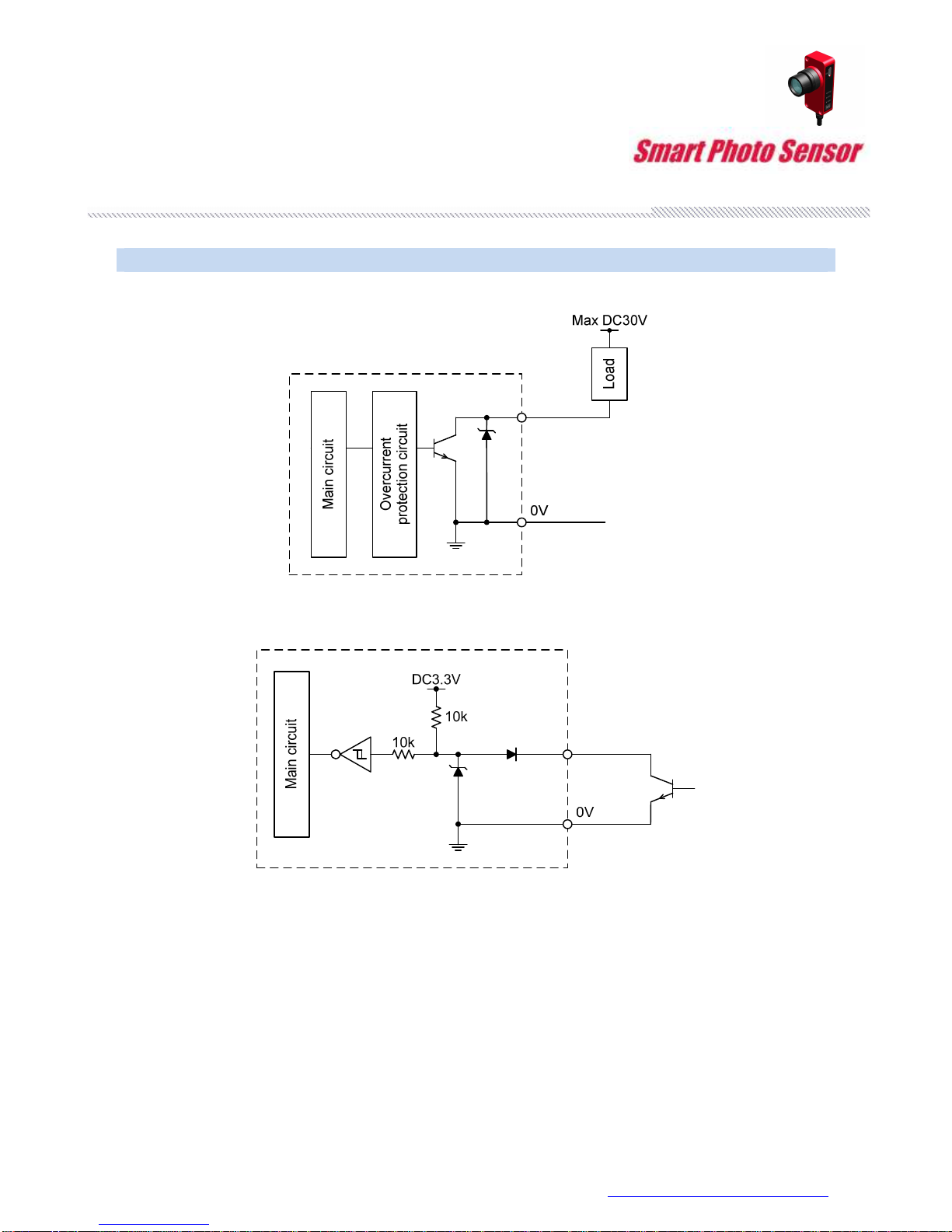

7Input and Output Circuit.................................................................................................................16

8Application Example....................................................................................................................... 17

9Specifications.................................................................................................................................. 17

10 Related Materials ............................................................................................................................19

11 Dimensions...................................................................................................................................... 20

12 Spectral Response Example..........................................................................................................21

13 Warranty Rules................................................................................................................................22

14 Repair............................................................................................................................................... 23

D4213658C

Safety Precautions

Before using this product, read these safety precautions carefully. Important information is shown in this

Instruction Manual to protect users from bodily injuries and property damages, and to enable them to

use the product safely and correctly.

Please be sure to thoroughly understand the meanings of the following signs and symbols before

reading the main text that follow, and observe the instructions given herein.

[Definition of Safety Signs]

Safety Signs Description

WARNING Indicates a potentially hazardous situation that may result in death or serious

injury (*1) in the event of improper handling.

CAUTION

Indicates a potentially hazardous situation that may result in light to moderate

injuries (*2) or only in property damage (*3)in the event of improper handling.

Notes *1: “Serious injury” refers to cases of loss of eyesight, wounds, burns (high or low

temperature), electric shock, broken bones, poisoning, etc., which leave after-effects

or which require hospitalization or a long period of outpatient treatment of cure.

*2: "Light to moderate injuries" refers to injuries, burns, electric shock etc. that do not

require hospitalization or long-term treatment.

*3: "Property damage" refers to cases of extensive damage involving damage to

buildings, equipment, farm animals, pet animals and other belongings.

[Explanation of Safety Symbols]

Safety Symbols

Description

PROHIBITED

This sign indicates PROHIBITION (Do not).

The content of prohibition is shown by a picture or words beside the symbol.

MANDATORY

This sign indicates MANDATORY ACTION (You are required to do).

The content of action is shown by a picture or words beside the symbol.

D4213658C

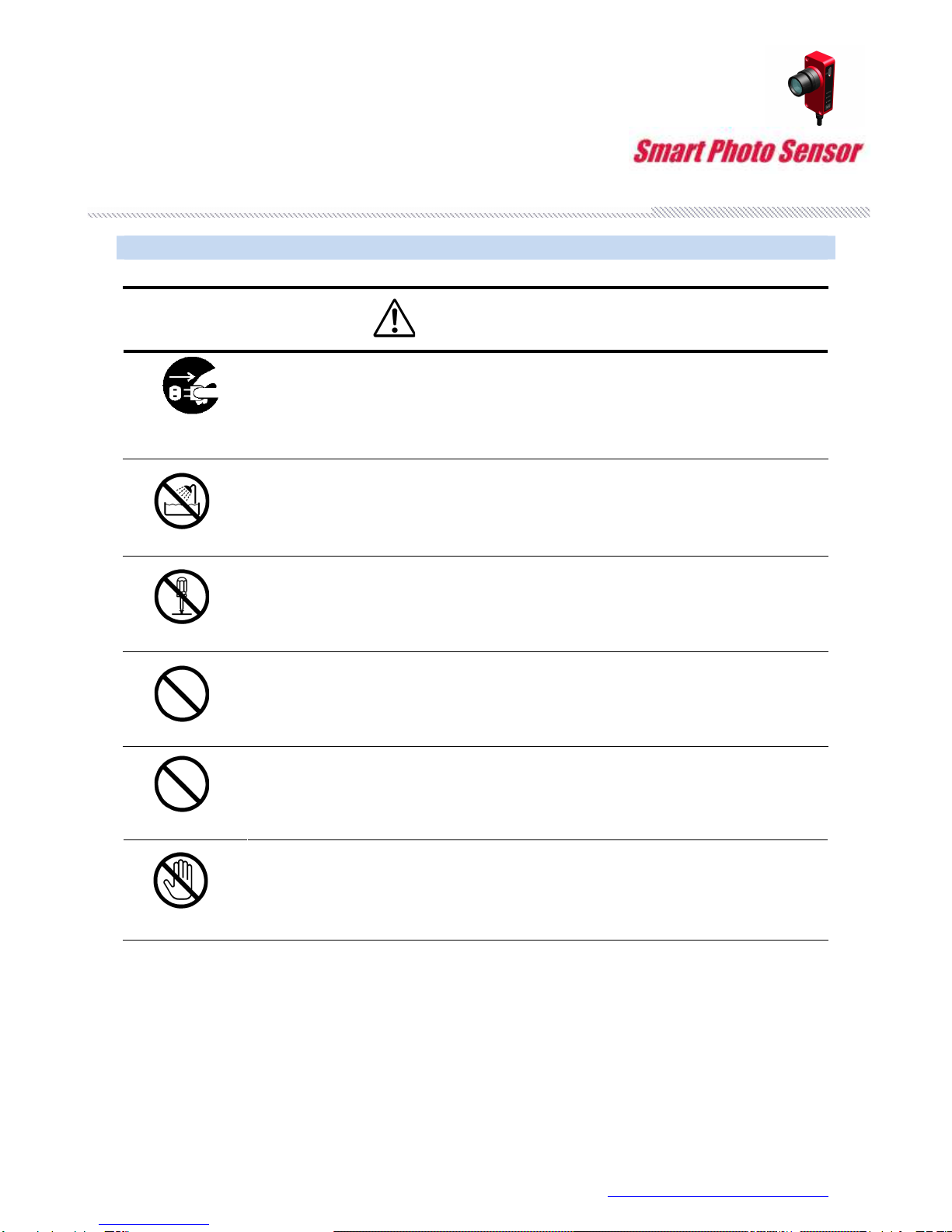

General Handing

WARNING







Stop oper

ation immediately when any abnormality or defect occurs.

If abnormal conditions are present, such as smoke, a burning smell, ingress of

water or foreign matter, or if the equipment is dropped or malfunctions, fire or

electric shock may result.

Be always sure to disconnect the power cable from the wall socket at once and

contact your dealer.

Unplug





Do not use the equipment in locations subject to water splashes.

Otherwise, fire or electric shock may result.

Do not get wet





Do not disassemble, repair, or modify the equipment.

Otherwise, fire or electric shock may result.

For internal repair, inspection, or cleaning, contact your sales representative.

Do not get wet





Do not place anything on the equipment.

If metallic objects, liquid, or other foreign matter enters the equipment, fire or

electric shock may result.

Avoid





Do not install the equipment in an unstable or inclined location or locations

subject to vibration or impact.

Otherwise, the equipment may topple over and cause personal injury.

Avoid





During an electrical storm, do not touch the power cable and the

connection cable.

Otherwise, an electric shock may result.

Do not touch

D4213658C





Use the specified voltage.

Use of an unspecified voltage may result in fire or electric shock.

Instruction





Do not be handled roughly, damaged, fabricated, bent forcefully, pulled,

twisted, bundled, placed under heavy objects or heated the power cable

and the connection cable.

Otherwise, fire or electric shock may result.

Avoid

D4213658C

CAUTION





Observe the following when installing the equipment:

·Do not cover the equipment with a cloth, etc.

·Do not place the equipment in a narrow location where heat is likely to

accumulate.

Otherwise, heat will accumulate inside the equipment, possibly resulting in a fire.

Instruction





Do not place the equipment in locations subject to high moisture, oil fumes,

steam, or dust.

Otherwise, fire or electric shock may result.

Avoid





Do not install the equipment in locations exposed to direct sunlight or

humidity.

Otherwise, the internal temperature of the equipment will rise, which may cause a

fire.

Avoid





Use only specified the power cable and the connection cables.

Otherwise, fire or electric shock may result.

Instruction





Do not give strong impact against the equipment.

It may cause the trouble.

Avoid





When performing connection, turn off power.

When connecting the power cable and the connection cable, turn off the

equipment power.

Otherwise, fire or electric shock may result.

Instruction





Do not expose this product head to any intensive light (such as direct

sunlight).

Otherwise, its inner image pickup device might get damaged.

Avoid





Avoid short-circuiting signal output.

Otherwise, a malfunction may occur.

Avoid

D4213658C







Avoid giving a

strong shock against the

product

body.

It might cause a breakdown or damage. If the product is used in a system where

its connector is subjected to strong repetitive shocks, its connector is possible to

break down. If you intend to use the product in such a situation, if possible,

bundle and fix a cable in the place near the product, and do not transmit a shock

to the connector.

Avoid





Contact your sales representative to request periodic inspection and

cleaning (every approx five years).

Accumulation of dust inside the equipment may result in fire or electric shock.

For inspection and cleaning costs, contact your sales representative.

Instruction

D4213658C

RESTRICTION FOR USE

•Should the equipment be used in the following conditions or environments, give consideration to

safety measures and inform us of such usage:

1. Use of the equipment in the conditions or environment contrary to those specified, or use

outdoors.

2. Use of the equipment in applications expected to cause potential hazard to people or property,

which require special safety measures to be adopted.

•This product can be used under diverse operating conditions. Determination of applicability of

equipment or devices concerned shall be determined after analysis or testing as necessary by the

designer of such equipment or devices, or personnel related to the specifications. Such designer or

personnel shall assure the performance and safety of the equipment or devices.

•This product is not designed or manufactured to be used for control of equipment directly concerned

with human life (*1) or equipment relating to maintenance of public services/functions involving factors

of safety (*2). Therefore, the product shall not be used for such applications.

(*1) : Equipment directly concerned with human life refers to.

- Medical equipment such as life-support systems, equipment for operating theaters.

- Exhaust control equipment for exhaust gases such as toxic fumes or smoke.

- Equipment mandatory to be installed by various laws and regulations such as the Fire Act or

Building Standard Law.

- Equipment related to the above.

(*2) : Equipment relating to maintenance of public services/functions involving factors of safety

refers to.

- Traffic control systems for air transportation, railways, roads, or marine transportation.

- Equipment for nuclear power generation

- Equipment related to the above

D4213658C

CASES FOR INDEMNITY (LIMITED WARRANTY)

We shall be exempted from taking responsibility and held harmless for damage or losses incurred by the

user in the following cases.

•In the case damage or losses are caused by natural disasters, such as an earthquake and thunder,

fire, or other acts of God, acts by a third party, deliberate or accidental misuse by the user, or use

under extreme operating conditions.

•In the case of indirect, additional, consequential damages (loss of business interests, suspension of

business activities) are incurred as result of malfunction or non-function of the equipment, we shall be

exempted from responsibility for such damages.

Also, in the case damage or losses are caused by an application using with this product.

•In the case damage or losses are caused by failure to observe the information contained in the

instructions in this instruction manual and specifications.

•In the case damage or losses are caused by use contrary to the instructions in this instruction manual

and specifications.

•In the case damage or losses are caused by malfunction or other problems resulting from unintended

use of equipment or software etc. that are not specified.

•Expenses we bear on this product shall be limited to the individual price of the product.

•The item that is not described in specifications of this product is out of the guarantee.

•The case of damages or losses which are caused by incorrect connection of the cable is out of the

guarantee.

D4213658C

Notes on using this product

•Handle carefully

Do not drop the equipment or allow it to be subject to strong impact or vibration, as such action may

cause malfunctions. Further, do not damage the connection cable, since this may cause wire

breakage.

•Environmental operating conditions

Do not use the product in locations where the ambient temperature or humidity exceeds the

specifications. Otherwise, internal components may be adversely affected. In particular, do not use the

product in areas exposed to direct sunlight. Moreover, during shooting under high temperatures, white

spots (noise) may be produced, depending on the subject or product conditions (such as increased

gain). However, such phenomena are not malfunctions.

•This product can be used under various conditions, please be sure to test operation under the

condition and the environment you use.

•Check a combination with the lens

Depending on the lens and lighting you use, an image is reflected as a ghost in the imaging area.

However, this is not because of a fault of the product. In addition, depending on the lens you use, the

performance of the product may not be brought out fully due to deterioration in resolution and

brightness in the peripheral area, aberration and others. Be sure to check a combination with the

product by using the lens and lightning you actually use. When installing a lens in the product, make

sure carefully that it is not tilted. In addition, use a mounting screw free from defects and dirt.

Otherwise, the lens etc. may be unable to be removed.

•Do not expose the product's image-pickup-plane to sunlight or other intense light directly

Its inner CMOS (Complementary Metal-Oxide Semiconductor) sensor might be damaged.

•Occurrence of noise on the screen

If an intense magnetic or electromagnetic field is generated near the product or connection cable,

noise may be generated on the screen. If this occurs, move the product or the cable.

•Handling of the protective tape

If the product is not in use, affix the protective tape to the product to protect the CMOS sensor.

•If the equipment is not to be used for a long duration

Turn off power to the product for safety.

D4213658C

•Maintenance

Turn off power to the equipment and wipe it with a dry cloth.

If it becomes severely contaminated, gently wipe the affected areas with a soft cloth dampened with

diluted neutral detergent. Never use alcohol, benzene, thinner, or other chemicals because such

chemicals may damage or discolor the paint and indications.

If the image pickup surface becomes dusty, contaminated, or scratched, consult your sales

representative.

•Disposal

When disposing of the product, it may be necessary to disassemble it into separate parts, in

accordance with the laws and regulations of your country and/or municipality concerning

environmental contamination.

This product is marked this symbol to subject to EU Waste Electrical & Electronic Equipment (WEEE)

directive.

Following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household

waste. By ensuring this product is disposed of correctly, you will help prevent potential

negative consequences for the environment and human health, which could otherwise

be caused by inappropriate waste handling of this product. For more detailed

information about the take-back and recycling of this product, please contact your

supplier where you purchased the product.

“This symbol is applicable for EU member states only”

This equipment has been tested and found to comply with the limits for a class A digital device,

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instruction manual, may cause harmful interference to radio communication.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be require to correct the interference at his own expense.

D4213658C

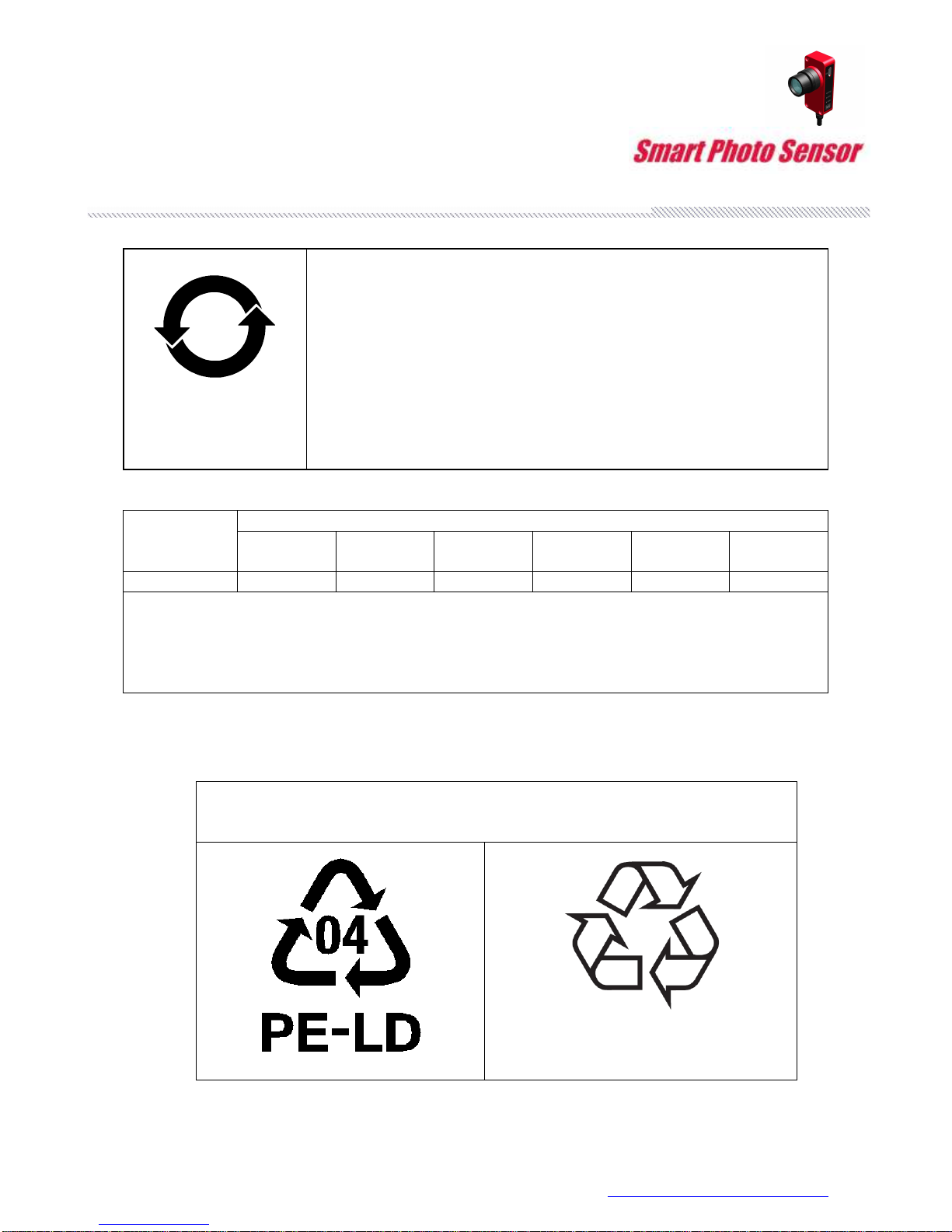

环保使用期限标识，是根据电子信息产品污染控制管理办法以及，电子

信息产品污染控制标识要求(SJ/T11364-2006)、电子信息产品环保使用

期限通则，制定的适用于中国境内销售的电子信息产品的标识。

电子信息产品只要按照安全及使用说明内容，正常使用情况下，从生产

月期算起，在此期限内，产品中含有的有毒有害物质不致发生外泄或突

变，不致对环境造成严重污染或对其人身、财产造成严重损害。

产品正常使用后，要废弃在环保使用年限内或者刚到年限的产品时，请

根据国家标准采取适当的方法进行处置。

另外，此期限不同于质量/功能的保证期限。

The Mark and Information are applicable for People's Republic of

China only.

＜

＜＜

＜产

产产

产品中有毒有害物

品中有毒有害物品中有毒有害物

品中有毒有害物质

质质

质或元素的名称及含量

或元素的名称及含量或元素的名称及含量

或元素的名称及含量＞

＞＞

＞

部件名称

有毒有害物质或元素

铅(Pb) 汞(Hg) 镉(Cd) 六价铬

(Cr(VI))

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

相机本体

× ○ ○ ○ ○ ○

○：表示该有毒有害物质在该部件所有均质材料中的含量均在电子信息产品中有毒有害物质的限

量要求标准规定的限量要求(SJ/T11363-2006)以下

×：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出电子信息产品中有毒有害物

质的限量要求标准规定的限量要求(SJ/T11363-2006)

This information is applicable for People's Republic of China only.

リサイクルに関する情報（包装物）

リサイクルに関する情報（包装物）リサイクルに関する情報（包装物）

リサイクルに関する情報（包装物）

有关再利用的信息

有关再利用的信息有关再利用的信息

有关再利用的信息(

((

(包装物

包装物包装物

包装物)

))

)

Information on recycling of wrapping composition

Information on recycling of wrapping compositionInformation on recycling of wrapping composition

Information on recycling of wrapping composition

内部緩衝材料

内部緩衝材料内部緩衝材料

内部緩衝材料・

・・

・袋

袋袋

袋

内部

内部内部

内部缓冲材料

缓冲材料缓冲材料

缓冲材料·

··

·袋

袋袋

袋

Int

IntInt

Internal buffer materials

ernal buffer materialsernal buffer materials

ernal buffer materials・

・・

・Bag

BagBag

Bag

紙

紙紙

紙

纸

纸纸

纸

Paper

PaperPaper

Paper

中华人民共和国

环保使用期限

D4213658C

1 Overview

A Smart Photo Sensor is ultra-compact and contains high-speed image processing system. A device

that can construct an image system by one chip is used in this sensor. It is capable to high-speed

process the image because of preprocessing in the device, and it is also capable to determine a result

that a former photoelectric sensor was incapable to.

An interface supplies GPIO, USB and RS-232, and it is possible to embed them in various uses. GPIO is

used for determining the permission for the result of preprocessing, and USB is used for changing the

parameters and the image transfer. RS-232 is prepared for recognition of the object position and PLC

transmission.

It is possible to choose a suitable application and embed it according to conditions of use such as the

environment, the object and the result of preprocessing. As for application development, Visual Architect

(optional) with user-friendly and graphical programming environment is prepared and the customers can

arrange it.

The Smart Photo Sensor is the most ideal for a customer who requests a scene that the former

photoelectric sensor was incapable to determine or simple preprocess that does not require high-quality

image processing system.

The Smart Photo Sensor supports RoHS restricting of the use of certain Hazardous Substances in

electrical and electronic equipment.

2 Product Configuration

SPS02 body×1

Manual×1

S-Mount Adapter×1

Lens Locking Ring×1

D4213658C

L=5mm×1 L=10mm×1 L=15mm×1 L=20mm×1

3 Option

Development Environment Visual Architect

USB cable (TypeA – microB)

Various of S-Mount Lens

Contact your dealer / distributor for details.

Extension Tube for S-Mount Lens

LED Lamp

Power Supply for LED Lamp

D4213658C

4 Name of all parts

(1)Lens Mount

Attach the lens or the lens adapter according to the purpose of use.

(2)Micro-USB Type B Receptacle

Connector receptacle to connect with USB cable.

This port operates at USB2.0 high speed.

You can also transfer the image or set up parameter in real time via USB.

(3)LED Signal Light

・STA0（Red）When setting “RED LED” block in Visual Architect, you can link LED

display to any event.

・STA1（Green）When setting “Green LED” block in Visual Architect, you can link

LED display to any event.

・PWR（Orange）When you turn on power, it lights up.

(4)I/O cable for the power supply

Direct cable for power and input / output signal, when stand-alone is operating, use this cable only.

D4213658C

5 Connection Example

In the case of connect an I/O cable for the power supply to a terminal block.

In the case of connect an I/O cable for the power supply and a USB cable to a terminal block.

Notes on Connection:

・ Please confirm the power supply of this product off when wiring of an I/O cable for the power supply. It causes the

breakdown.

・ When wiring of an I/O cable for the power supply, please confirm the combination of color and signal name carefully to

avoid a wrong connection. It causes the breakdown.

・ In the case that USB Cable is long or thin, input voltage may not satisfy specifications of the power supply voltage of

this product by voltage drop. Please confirm it before use.

・ Lost packets may occur by an electrical characteristic of the transmission line of using USB devices (USB Cable,

Interface Card)

D4213658C

6 Wiring

The tip of an I/O cable for the power supply is scattering. Please wire it with a terminal block or a

connector.

Color Signal Name Function Size Cable length Bend Radius

[Minimum]

Blue 0V GND of the external power supply

GND of the I/O Signal AWG26

1[m] 44[mm]

Brown DC12-24V External Power Supply

DC12～24V

Black OUT0 Signal Output

White OUT1 Signal Output

Pink IN0 Signal Input

Orange

IN1 Signal Input

Purple RS-232 0V GND of the RS-232

Red RS-232 TXD TXD of the RS-232

Yellow RS-232 RXD RXD of the RS-232

－Shield Shield of the cable

D4213658C

7 Input and Output Circuit

7-1 Output Circuit

7-2 Input Circuit

D4213658C

8 Application Example

Checking if all the parts are ready.

Counting the number of the part.

Positioning of the circuit board.

Deciding the amount of liquid in the bottle.

Checking the label.

9 Specifications

Imager

Image Sensor Type 1/2 CMOS sensor

Number of Effective Pixels 144 × 176

Cell Size 33.6 × 33.6[µm]

Sensing Area 4.8 × 5.9[mm]

Exposure Time 1µ～20ms

I/O Specification

Output 2 Line

NPN Open Collector

Power Supply Voltage：30V (maximum)

Residual Voltage：1V (maximum)

Load Current：100mA (maximum)

Input 2 Line

ON Voltage : 0.5V (maximum)

ON Current : 330µA (short-circuit)

OFF Current : 50µA (maximum)

USB USB2.0 High speed

USB-Micro Type-B Receptacle

RS-232 TXD / RXD

Protection Circuit for GPIO Output : Over Current Protection

Input : Over Voltage Protection

LED Signal Light STA0 : Red STA1 : Green PWR : Orange

Power Supply I/O cable for the power supply: DC12~24V±10%(ripple 10% or less)

USB cable : DC5V±5% (ripple 10% or less)

If both an I/O cable for the power supply and a USB cable are

connected, power is supplied from an I/O cable for the power

supply.

Power Consumption 2.4W

Ambient Conditions

Operation Temperature 0～40°C

Storage Temperature -10～60°C

Operation / Storage Humidity

35～85%RH (no condensation)

D4213658C

EMC condition EMI ：EN61000-6-4、

FCC Part 15 Subpart B Class A

EMS ：EN61000-6-2

Vibration Resistance 10～55Hz Double Amplitude 1.5mm

Two hours for each XYZ direction

Shock Resistance 500m/s

6direction For each three times

Dimensions 22(W) x 50(H) x 12(D)[mm] (not including protrusion)

Mass (including 1meter cable) About 56g

Lend Mount M17 P=0.75

Notes on Heat Radiation:

The temperature of this product housing must be kept less than 60 °C.

Please provide sufficient heat radiation depending on your installation.

Notes on Heat Radiation:

The power consumption differs from an SPS Application you write on in this product. When using the

SPS Application you arranged, please be sure about the influence of the heat under the condition and

the environment you use.

Notes on Conformity of the EMC:

The adaptability of the safety standard of this product is assured in the condition of combination with the

following parts:

- USB Cable U2C-MF20BK (ELECOM Co., Ltd)

- USB Connector Adaptor USA-MMC (Miyoshi Co., Ltd)

Please confirm the EMC compatibility of equipment and device.
