Toshiba MMU-AP0091H Guide

VRF model Digital Inverter / Super Digital Inverter
MMU-AP0091H, AP0121H RAV-SM560UT-E
MMU-AP0151H, AP0181H RAV-SM800UT-E
MMU-AP0241H, AP0271H RAV-SM1100UT-E
MMU-AP0301H, AP0361H RAV-SP1100UT-E
MMU-AP0481H, AP0561H RAV-SM1400UT-E
Accessories for
4-Way Air Discharge Cassette Type
Design Guide
Jan. 2005
Indoor unit
(Design sample)
Accesory parts list
1.
2. Combination pattern
3. Super long life filter TCB-LF1601UE
4. High efficiency filter TCB-UFM1601UE / UFH1601UE
5. Fresh air and filter chamber TCB-GFC1601UE
6. Fresh air inlet box TCB-GB1601UE
7.
8.
Fresh air intake (Design guide)
Auxiliary fresh air flange
9.
10.
TCB-FF101URE
Spacer for hight direction kit TCB-SP1601UE
Air dischage direction kit TCB-BC1601UE
11. Branchind duct

Name Model name Note
TCB-LF1601UE
Dust collecting effect : 50 %
(Weight method)
Operation time : 10,000 hours
Reuse is available
Use with TCB-GFC1601UE
High Efficiency Filter 65 TCB-UFM1601UE
Dust collecting effect : 65 %
(NBS Colorimetric method)
Operation time : 2500hours
Reuse is not available
Use with TCB-GFC1601UE
High Efficiency Filter 90 TCB-UFH1601UE
Dust collecting effect : 90 %
(NBS Colorimetric method)
Operation time : 1800 hours
Reuse is not available
Use with TCB-GFC1601UE
Fresh Air and Filter
Chamber TCB-GFC1601UE For fresh air intake and installing high
efficiency filter or super long life filter
Fresh Air Inlet Box TCB-GB1601UE Use with TCB-GFC1601UE
Auxiliary Fresh Air Flange TCB-FF101URE
Easy fresh air intake by using the
knockout hole of indoor unit.
(dia.=100mm)
Spacer for Height
Adjustment TCB-SP1601UE Height = 50mm
Air Discharge Direction kit TCB-BC1601UE Air direction change by cutting off of
air discharge port (3 pieces)
TCB-GFC1601UE
TCB-SP1601UE
TCB-UFM1601UE
TCB-UFH1601UE
TCB-LF1601UE
TCB-BC1601UE
RBC-U21PG(W)-E
TCB-FF101URE
TCB-GB1601UE
1
1. Accessory Parts for 4-Way Air Discharge Cassette type
External view
Super Long Life Filter

Ceiling Panel
RBC-U21PG(W)-E
Wirless remote controller kit
TCB-AX21U(W)-E
Auxiliary fresh air flange
TCB-FF101URE
Fresh air and filter chamber (as filter frame)
TCB-GFC1601UE
Fresh air inlet box + Fresh iar and filter chamber
TCB-GB1601UE + TCB-GFC1601UE
Super long life filter
TCB-LF1601UE
High efficiency filter (65%)
TCB-UFM1601UE
High efficiency filter (90%)
TCB-UFH1601UE
Spacser for height adjustment
TCB-SP1601UE
Air discharge direction kit
TCB-BC1601UE
Panel Ceiling Panel RBC-U21PG(W)-E
Wireless remote controller kit TCB-AX21U(W)-E Auxiliary fresh air flange TCB-FF101URE Fresh air and filter chamber TCB-GFC1601UE
Optional ( Used as filter frame)
Parts Fresh air inlet box + TCB-GB1601UE +
Fresh air and filter chamber TCB-GFC1601UE Super long life fitler TCB-LF1601UE High efficiency filter (65%) TCB-UFM1601UE High efficiency filter (90%) TCB-UFH1601UE Spacer for height adjustment TCB-SP1601UE Air discharge direction kit TCB-BC1601UE (*1) Setup of air volume by connecting main wired remote controller and item code setting is necessary. (*2) Procedure same as (*1) is necessary when indoor unit is used under the different air volume from setting at shipment.
OK
-OK
-OK
OKOK
OK
-
OK
OKOK
-
OK
-
-
OK OK
OKOK ---
-
-
OK OK OK -
-OK
-
OK
OK OK OK
OK OK
OKOK
OK OK
OK
OKOK OKOK OK OK OK
OK(*1)
OK(*1)
OKOK
OK OK OK
OK(*2)
OK
OK(*1)
OK OK OK OK
OK(*1)
OK
OK(*2)
OK OK
- -
OK OK
OK OK
OK OK OK OK
OK(*1) OK(*1)
OK OK OK OK OK OK OK
2
2. Accessory for 4 - way air discharge cassette type : Combination pattern

[ Specification ]
filter name Super long life filter
model name TCB - LF 1601 UE
dust collecting effect weight method 50%
operation time 10,000 hours
initial pressure drop 9.8 Pa or less
final pressur drop 29.4 Pa or less
reuse Available
area 1.1 m2
fresh air and filter chamber TCB - GFC 1601 UE
conform panel model name RBC - U21PG (W)- E
[ Note ]
1. To install the super long life filter, fresh air and filter chamber ( TCB-GFC1601UE )
is required.
2. This filter can not be used with the standard filter packed with the ceiling panel
( RBC-U21PG (W)- E )
3. Change procedure for DC fan tap is necessary when super long life filter is used.
(a) Setting by main wired remote controller
Item code 5d
At shipment
Super long life filter
(b) Setting by wireless remote controller (W)- E )
Dip Switch ( S003 ) Tap 1 Tap 2
At shipment off off
Super long life filter off on
(c ) Setting by short plug on indoor P.C.board
Short plug status
At shipment
Super long life filter
Dimension
Side frame
Top frame
Filter material
Blind rivet
Adhesive (1)
Air flow label
Adhesive (2)
CN 112
CN 111
Settin
g
data
0000
0001
PIN No.
3

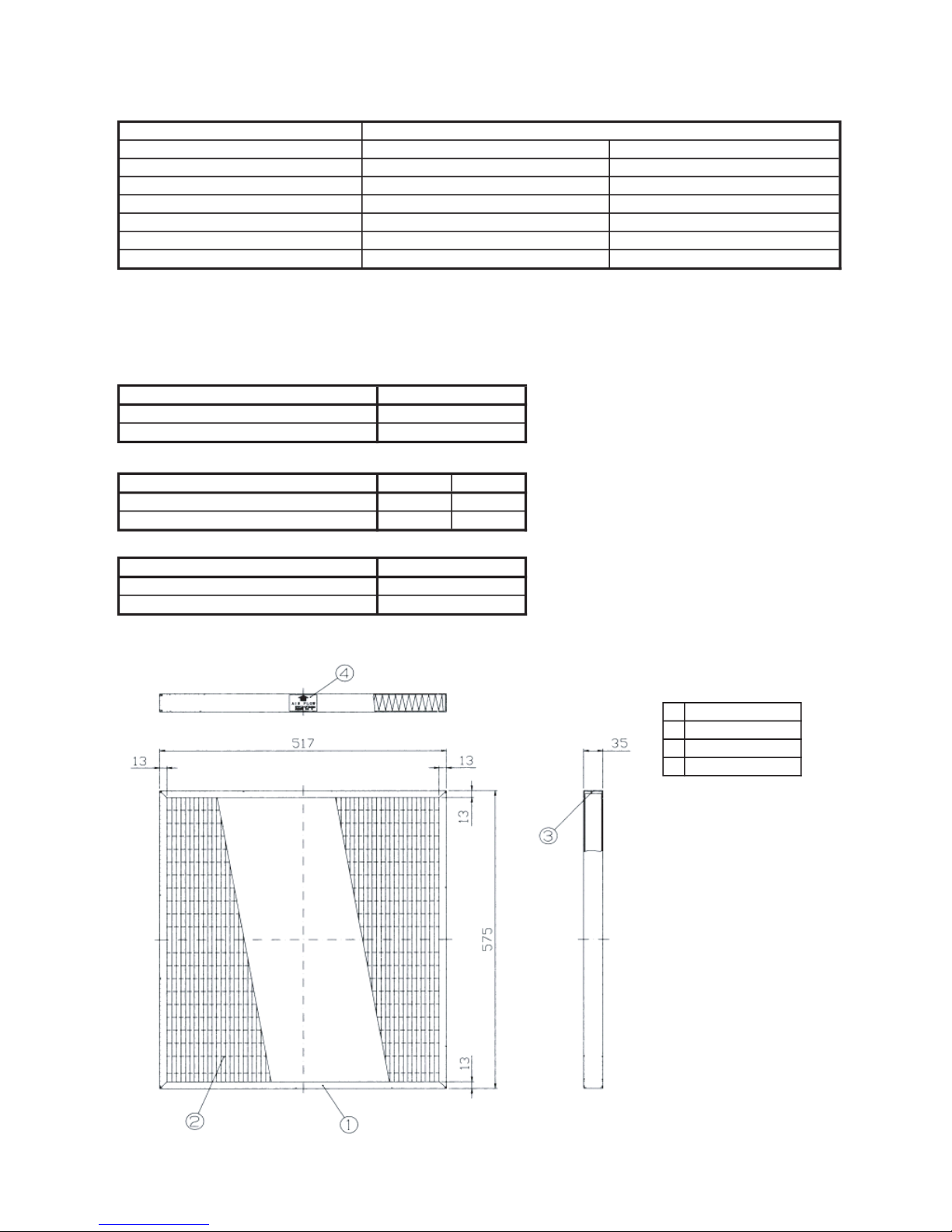

Super long life filter
3. ( TCB-LF1601UE )
( TCB-AX21U

Specification
filter name
model name
dust collecting effect
operation time
initial pressure drop
final pressur drop
reuse
conform panel model name
Note
1. To install the high efficiency filter, fresh air and filter chamber ( TCB-GFC1601UE ) is required.
2. This filter can be used with standard filter packed with ceiling panel ( RBC-U21PG(W)-E )
3. Change procedure for DC fan tap is necessary when high efficiency filter is used.
(a) Setting by main wired remote controller
Item code 5d
At shipment
High efficiency filter
(b) Setting by wireless remote controller ( TCB-AX21U (W)- E )
Dip Switch ( S003 ) Tap 1 Tap 2
At shipment off off
High efficiency filter on off
(c ) Setting by short plug on indoor P.C.board
Short plug status
At shipment
Super long life filter
Dimension
Side frame
Filter material
Seal material
Air flow label
CN 112
CN 110
Settin
g
data
0000
0003
PIN No.
TCB - UFM 1601 UE
65% (NBS Colorimetric method)
2,500 hours
high efficinecy filter
TCB - UFH 1601 UE
90% (NBS Colorimetric method)
1,800 hours
26 Pa
80 Pa
Not available
RBC - U21PG (W) - E
37 Pa
80 Pa
Not available
RBC - U21PG (W) - E
4
4. High Efficiency filter ( TCB-UFM1601UE / UFH1601UE )

Usage
The fresh air and filter chamber is used as the filter chamber.
The fresh air intake by using the fresh air and filter chamber and
fresh air inlet box .
Notes
In order to increase air volume, setting data shall be changed according to
setting procedure of DC fan tap.
(a) Setting by wired remote controller (b) Setting by wireless remote controller
RBC-AMT21E TCB-AX21U(W)-E
Item code 5d Setting data Dip switch ( S003 ) Tap 1 Tap 2
at shipment 0000 at shipment off off
high efficiency filter 0003 high efficiency filter on off
super long life filter 0001 super long life filter off on
(c ) Setting by short plug ( Indoor P.C. board )
shor plug PIN No.
at shipment CN 112
high efficiency filter CN 110
super long life filter CN 111
Filter frame
The high efficiency filter or super long life filter shall be installed to the filter chamber and
these filter are placed between the indoor unit and the ceiling panel.
The high efficiency filter can not be reproduced. Periodical replacement is necessary.
Fresh air and filter chamber
Applicable filter Applicable model
super long life filter TCB-LF1601UE model name size A
high efficiency filter 65 TCB-UFM1601UE MMU-AP0091H to AP0301H
high efficiency filter 90 TCB-UFH1601UE RAV-SM560UT-E, SM800UT-E
RAV-SM1100UT-E
Applicable fresh air inlet box MMU-AP0361H to AP0561H
fresh air inlet box TGB-GB1601UE RAV-SP1100UT-E, SM1400UT-E
358
421
5. Fresh air and filter chamber ( TCB-GFC1601UE )
5
275
215
114
35
789
731
821
746
845
845
669 703
698
669
2 - O8
100
2-R4.5
4 - O7.4
115
312
190
A
Installation Space
1000 or more
Obstacle
15 or more
15 or more
1000 or more 1000 or more
Drain Port
Insuration
Camber
Refrigerant pipe (Liquid side)
Refrigerant pipe
(Gas side)
Bottom face of ceiling

model name size A
MMU-AP0091H to AP0301H
RAV-SM560U-E, SM800UT-E
RAV-SM1100UT-E
MMU-AP0361H to AP0561H
RAV-SP1100UT-E, SM1400UT-E
358
421
Note
This inlet box shall be used
with the fresh air and filter
chamber.
6. Fresh air inlet box ( TCB-GB1601UE )
dimension
installationaccessories
6
215
275
35
121
114
95 77
190
312
A
950
950
216
O97
O123
6522 9011
144 77 95
194
35 45
108
98150
Flesh Air
Bottom face of ceiling
Drain Port inlet box
Flesh air and filter chamber
( Sold separately )
Refrigerant pipe (Gas side)
Refrigerant pipe (Liquid side)

Usage
The fresh air and filter chamber is used as the filter chamber.
Fresh air intake by using the fresh air and filter chamber and
fresh air inlet box.
Usage as the filter chamber
In case the optional filter is used, air volume may decrease. This can cause decrease temperature
of cooling air flow and dew drop. Therefore, be sure to change DC fan tap setting
by main wired remote controller.
(Setting change should be performed according to the installation manual provided
with the optional filter. To install the super long life filter, change the setting data to 0001.
To install the high efficiency filter, change the setting data to 0003.
1. Be sure to provide air return.
2. The fresh air shall be treated by heat reclaim ventilator or the like.
3. Recommended treated air temperature is 12C to 30C.
4. Be sure to decide the fresh air volume so that mixed suction air with fresh air keep
operating temperature.
Provide an air filter in fresh air way to prevent sucking dust.
6. Be sure to insulate the fresh air duct.
In order to accelate starting up in heating mode, implement pre-heating operation
by cutting off fresh air intake.
Up to 20% fresh air intake ratio is available by using the booster fan.
fresh air intake ratio = ( fresh air volume ) / ( total air volume ) X 100 %
Inter - lock circuit
1. Connect the driving relay of the duct fan ( DC 12 V ) between 1 and 6
on the indoor P.C.board.
Part indicated with a bold line is the connecting circuit.
After installation, implement a trial operation to check that the duct fan of the
indoor unit start / stop simultaneously.
(Implement the trial operation following to the installation manual of the indoor unit.)
Rated current of the relay for duct fan shall be up to 75 mA .
Duct fan motor
AC220
to 240V
CN60
(White)
Indoor
P.C.board
Relay for
duct fan
Closed and
terminal
Closed and
terminal
Booster fan
P1P
(Atmospheric)
Fresh
Chamber Static Pressure = P (atmospheric) - P1

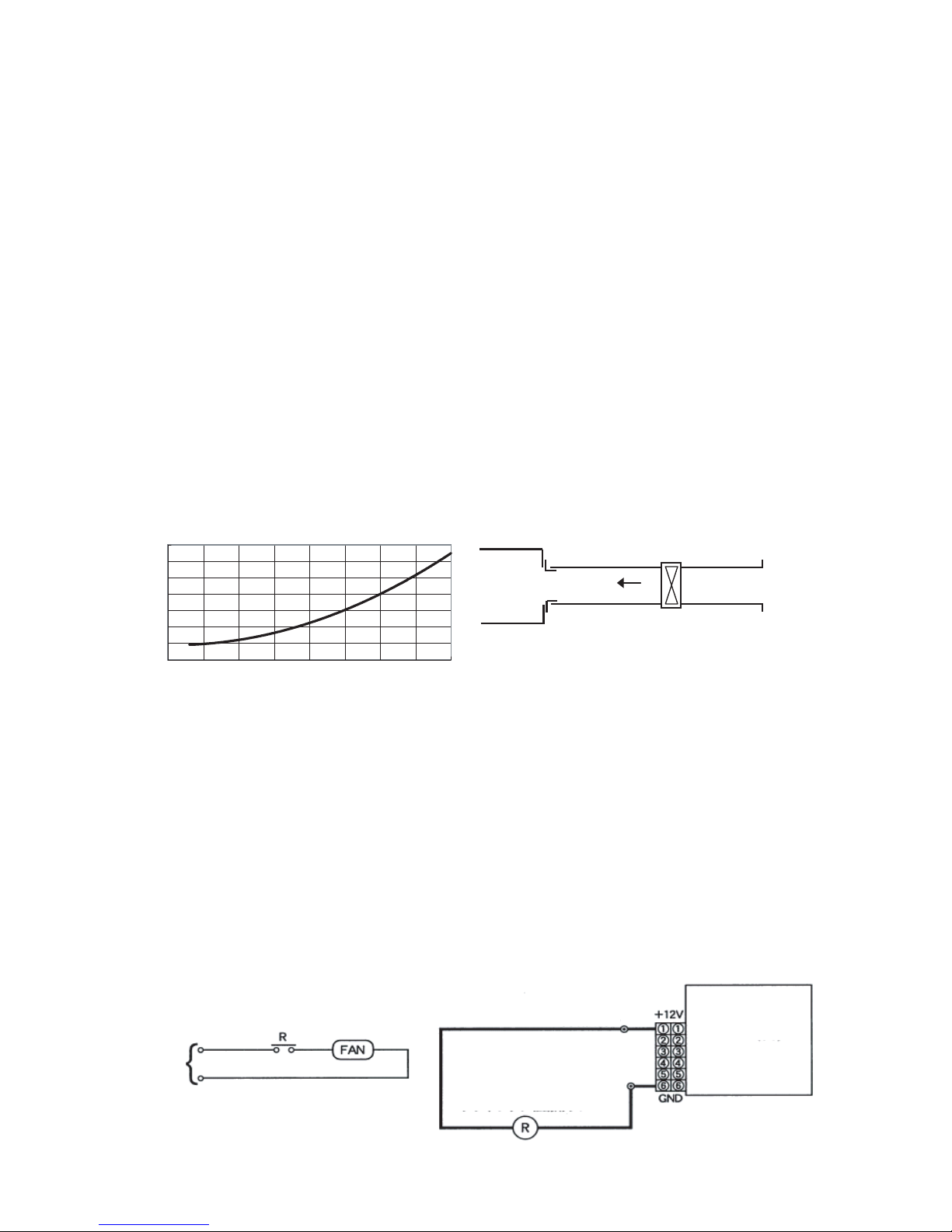

7. Fresh air intake ( design guide )
Characteristics between air volume of branching duct and static pressure
Caution
7
050 100 150 200 250 300 350 400
300
250
200
150
100
50
0
-50
Static Pressure (Pa)
Fresh Air Volume (m3/h)
Air

(1) Using the knockout of the indoor unit, In order to take fresh air, provide the duct fan
as a marker, cut off the frange with separately.
the heat insulator (styrol) with cutting 1) Install the filter for fresh air
plers or cutter. 2) Provide the check port beneath the duct fan
for maintenance.
3) Connect the duct fan and the indoor unit
with inter-lock wiring.
4) Provide the silencer to prevent the effect
of noise.
(2) A gap between the styrol and steel plate
may cause a trouble such as dew drop
to occur. Be sure to first attach accessory
heat insulator A with it aligned to the
screw hole then attach B, according to
the figure below.
(3) Install auxiliary fresh air flange to the
indoor unit main body with accessory
4 fixing screws.
Fixing hole of indoor unit
Indoor unit
Check
port
Duct fan
Silencer (Chamber)
Filter for fresh air
Treated
fresh air
Installation status of indoor unit

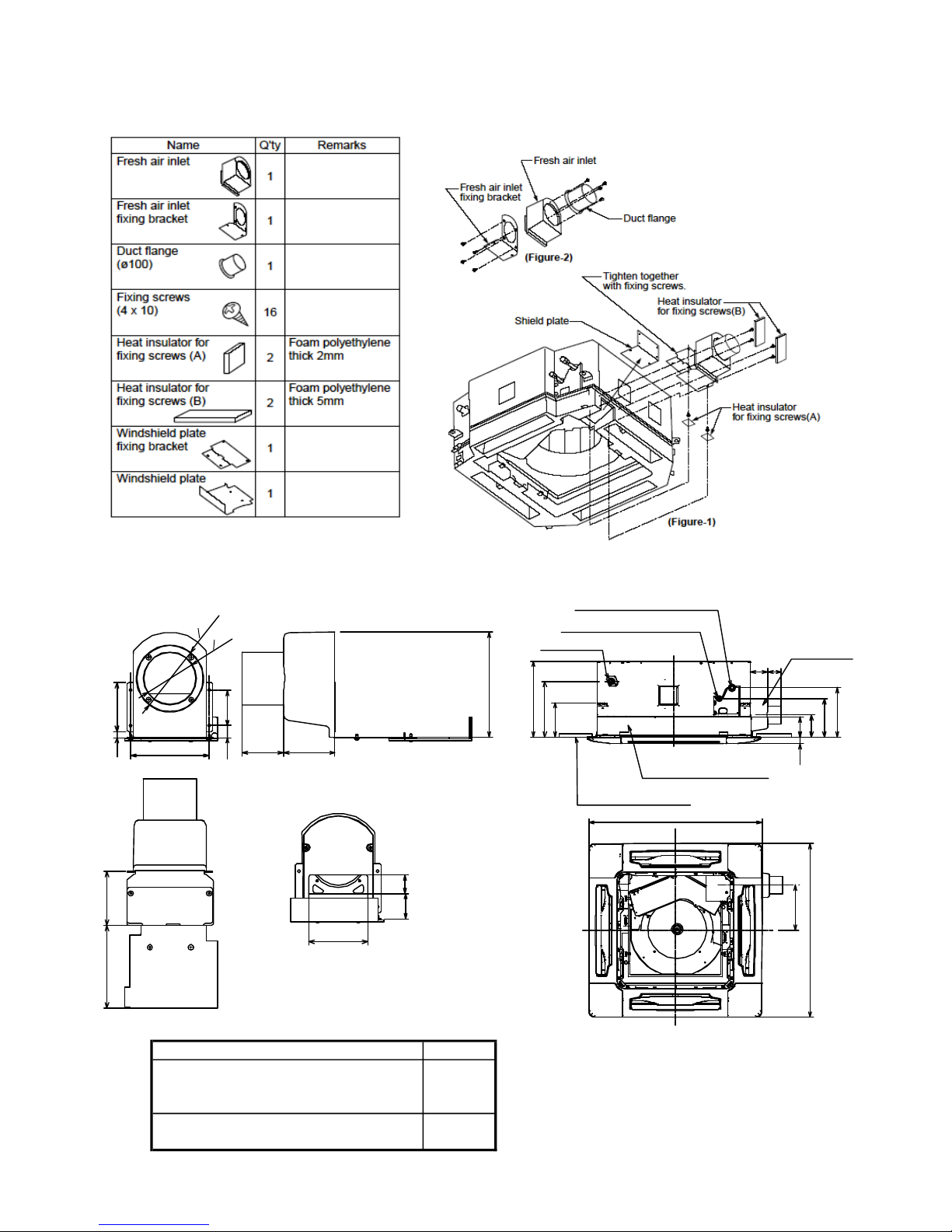

8. Auxiliary fresh air flange ( TCB-FF101URE )
Duct fan
Installation
dimension
8

model name
material
color
TCB-SP1601UE
styrene foam
moon white
9. Specer for height adj ustment ( TCB-SP1601UE )
The height of this specer : up to 50 mm.
Installation is available in the narrow space above the ceiling.
9

Parts name Dimension Appearance Q'ty
A 470 x 75 x 40 1
Cover B 390 x 75 x 40 1
C 450 x 75 x 40 1
Packing A 500 x 105 x 2 1
B 460 x 105 x 2 1
Be sure to cover the discharge port according to the figure.
(Note) The cover of discharge port "D" is not available.
Air
discharge
direction
Discharge
port D
Cover
part
Drain
port
Refrigerant
pipe
Branch
duct
Cover
"C"
Cover "B"
Cover "A" Drain pipe
side
Packing "B"
Packing "A"
Packing "B"
(50mm cut off)
Ref.Pipe
side
Discharge port
Cover
Drain
Pan
Styrene foam
Packing
Adhesive
face
Outer body of
Indoor unit
3 - Way
Air Discharge
2 - Way
Air Discharge
In case
connecting
Branching Duct
Branching
duct
Branching
duct
Discharge direction
Drain pipe
Ref. pipe
Cover "A" (*1)
Packing "A"
Cover "B" (Cut off packing
"B" by 50mm)
Cover
Packig "B"
Cover "C"
Packing "B"
Upper side: Cover "A" (*1)
Packing "A"
Lower side: Cover "C"
Packing "B"
Cover "B"
(Cut off packing "B" by
50mm
)
Upper side: Cover "A" (*1)
Packing "A"
Lower side: Cover "C"
Packing "B"
(*1) Cut off the cover "A" by 60mm in case of "015" type indoor unit.
Be sure to perform setting change of air volume according
to the indicated procedure. If not, decrease of air discharge
temperature and dew drop may occur.
( Item code (DN) ="88", Setting data = "0065")
( Parts )
( Installation )
10. Air discharge direction kit ( TCB-BC1601UE )
10
"C"

11. Branching
In case of connecting dia.=150mm branching duct, static pressure is as follows.
VRF DI, SDI *
056 type -
048 type SM1400UT-E
036 type SP1100UT-E
SM1100UT-E
030 type -
024,027 type SM800UT-E
018 type SM560UT-E
009 to 015 type -
* Digital Inverter and
Super Digital Inverter
Dimension
Air volume (m3/h)
Static Pressure (Pa)
Knockout square for
branching duct
in indoor unit
Install the cover
Use air discharge derection kit
( TCB-BC1601UE )
to cover the air discharge port.
Design sample of branching duct flange
Installation sample

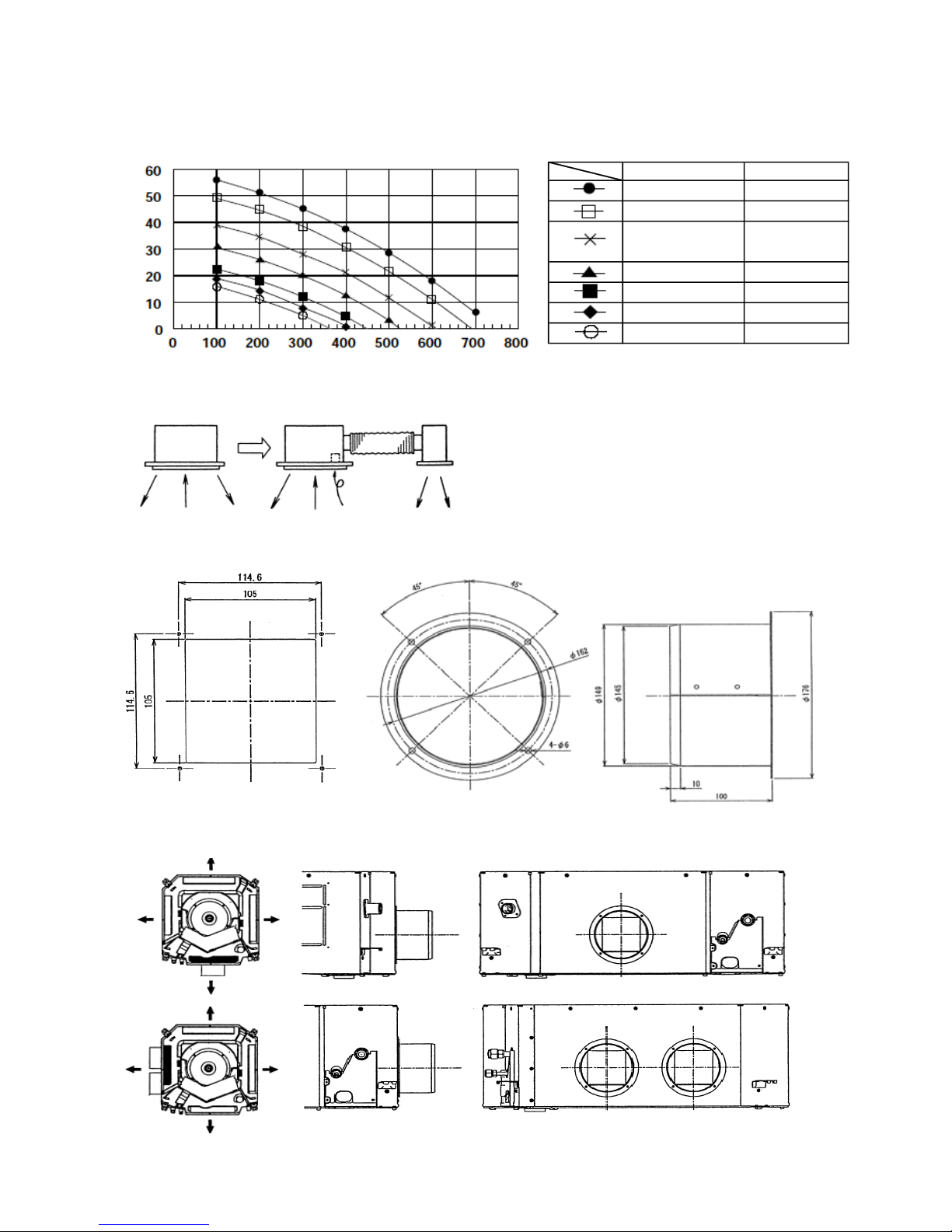

Characteristics between air volume of branching duct and static pressure
Cover method
11
duct (design guide)
