Toshiba RAS-07BKV-A1 User manual

AIR CONDITIONER (SPLIT TYPE)
For general public use
Indoor unit
RAS-07BKV-A
RAS-07BKV-A1
Outdoor unit
RAS-07BAV-A
RAS-07BAV-A1
OWNER’S MANUAL
1118350215-1
1118350215-1_EN.indd 11118350215-1_EN.indd 1 3/23/2560 BE 08:453/23/2560 BE 08:45

SWING FAN
FIX
QUIET
ONE-TOUCH
COMFORT
SLEEP
Hi POWER
4
5
!
-
"
%
(
8
1
2
$
)
,
&
#
3
+
7
6
~
9
PRECAUTIONS FOR SAFETY
INDOOR UNIT DISPLAY
1
1
Press
FIX
: Move the louver in
the desired vertical direction.
2
Press
SWING
: Swing the air
automatically and press again to stop.
3
For horizontal direction, adjust
manually.
AIR FLOW DIRECTION
3
Note:
●Do not move the louver manually by others.
●The louver may automation positioning by some operation mode.
Note:
●The provided Remote Controller is a wireless type, which also can be
used as a wire. Please see “How to Connect The Remote Controller
for Wired Operation”, located in installation instruction, in case of wired
control is required.
●In wire operation, remote controller will return to initial condition (PRESET,
TIMER and CLOCK will return to initial condition) when user shutdown
power supply of Air conditioner.
ONE-TOUCH
AUTOMATIC OPERATION
6
To automatically select cooling, heating or fan only operation
1. Press
MODE
: Select A.
2. Press : Set the desired temperature.
3. Press
FAN
: Select AUTO, LOW , LOW+ , MED ,
MED+ , or HIGH .
5
Press the “ONE-TOUCH” button for fully automated operation that is
customized to the typical consumer preferences in your region of the world.
The customized settings control temperature air flow strength, air flow
direction and other settings to provide you alternate contact with “ONE-
TOUCH” of the button. If you prefer other settings you can select from the
many other operating functions of your Toshiba unit.
Press
ONE-TOUCH
: Start the operation.
REMOTE CONTROL
4
PREPARATION BEFORE USE
2
1Infrared signal emitter
2Start/Stop button
3Mode select button (MODE)
4Temperature button (TEMP)
5Fan speed button (FAN)
6Swing louver button (SWING)
7Set louver button (FIX)
8On timer button (ON)
9Off timer button (OFF)
!Setup button (SET)
"Clear button (CLR)
#Memory and Preset button (PRESET)
$One-Touch button (ONE-TOUCH)
%High power button (Hi-POWER)
&Economy button (ECO)
(Quiet button (QUIET)
)
Comfort sleep button (COMFORT SLEEP)
~Filter reset button (FILTER)
+Set clock button (CLOCK)
,Check button (CHECK)
-Reset button (RESET)
Preparing Filters
1. Open the air inlet grille and remove the air filters.
2. Attach the filters. (see detail in the accessory sheet).
Loading Batteries (when use wireless operation.)
1. Remove the slide cover.
2. Insert 2 new batteries (AAA type)
following the (+) and (–) positions.
Clock Setup
1. Push by tip of the pencil.
If timer indication is flashing, go to the next step 2.
2. Press or : adjust the time.
3. Press : Set the time.
Remote Control Reset
Push by tip of the pencil or
1. Remove the batteries.
2. Press .
3. Insert the batteries.
COOLING / HEATING / FAN ONLY OPERATION
DRY OPERATION
8
For dehumidification, a moderate cooling performance is controlled automatically.
1. Press
MODE
: Select Dry .
2. Press : Set the desired temperature.
7
1. Press
MODE
: Select Cool , Heat or Fan only .
2. Press : Set the desired temperature.
Cooling: Min. 17°C, Heating: Max. 30°C, Fan Only: No temperature indication
3. Press
FAN
: Select AUTO, LOW , LOW+ , MED ,
MED+ , or HIGH .
Hi-POWER OPERATION
9
To automatically control room temperature and airflow for faster cooling or
heating operation (except in DRY and FAN ONLY mode)
Press
Hi POWER
: Start and stop the operation.
DANGER
●
Do not install, repair, open or remove the cover. It may expose you to
dangerous voltages. Ask the dealer or the specialist to do this.
●
Turning off the power supply will not prevent potential electric shock.
●
The appliance shall be installed in accordance with national wiring
regulation.
●
Means for disconnection from the supply having a contact separation of
at least 3 mm in all poles must be incorporated in the fixed wiring.
WARNING
●
Do not expose your body directly to cool air for a long time.
●
Do not insert your finger or any article into the air inlet/outlet.
●
When an abnormality (burning smell, etc.) occurs, stop the air
conditioner and disconnect the power supply or turn off the breaker.
●
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety.
●
Children should be supervised to ensure that they do not play with the
appliance.
●
Do not use any refrigerant different from the one specified (R410A) for
complement or replacement. Otherwise, abnormally high pressure may
be generated in the refrigeration cycle, which may result in a failure or
explosion of the product or an injury to your body.
CAUTION
●
Do not wash the unit with water. It may cause an electric shock.
●
Do not use this air conditioner for other purposes such as preserving
food, breeding animal, etc.
●
Do not step or put anything on the indoor/outdoor unit. It may cause an
injury or damage the unit.
●
Do not touch aluminium fin because it may cause an injury.
●
Before cleaning the unit, turn off the main switch or the circuit breaker.
●
When the unit won’t be used for a long time, turn off the main switch or
the circuit breaker.
●
It is recommended that maintenance be performed by a specialist when
the unit has been operated for a long time.
●
The manufacturer shall not assume any liability for the damage caused
by not observing the description of this manual.
1TIMER (White)
2OPERATION (White)
1118350215-1_EN.indd 21118350215-1_EN.indd 2 3/23/2560 BE 08:453/23/2560 BE 08:45

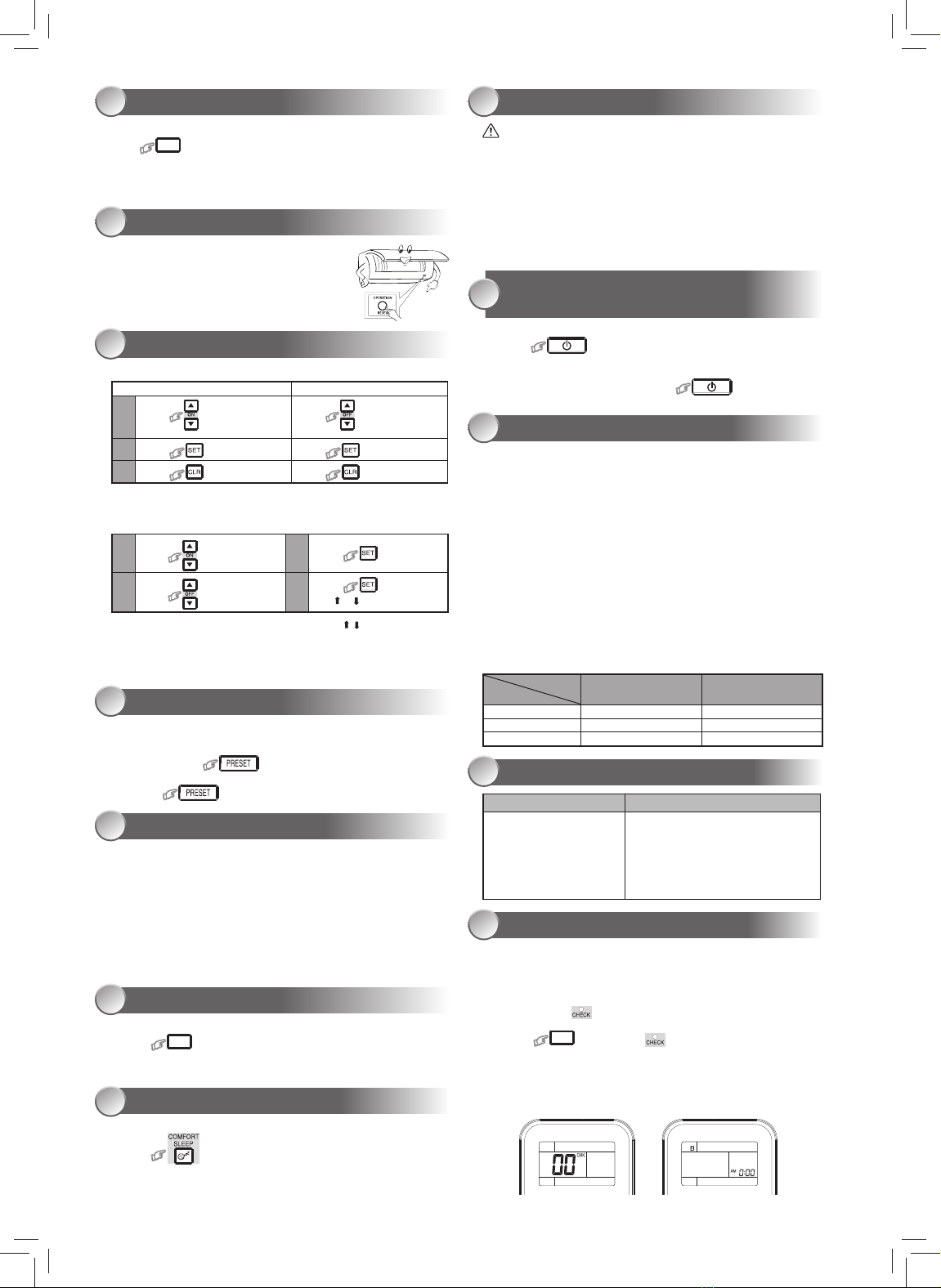

TEMPORARY OPERATION
TIMER OPERATION
12
Daily timer allows the user to set both the ON & OFF timers and will be
activated on a daily basis.
Setting Daily Timer
Setting the ON Timer Setting the OFF Timer
1
Press : Set the desired
ON timer.
Press : Set the desired
OFF timer.
2
Press : Set the timer. Press : Set the timer.
3
Press : Cancel the timer. Press : Cancel the timer.
●During the daily timer is activating, both arrows ( , ) are indicated.
Note:
●Keep the remote control in accessible transmission to the indoor unit;
otherwise, the time lag of up to 15 minutes will occur.
●The setting will be saved for the next same operation.
1
Press : Set the ON timer.
3
Press .
2
Press : Set the OFF timer.
4
Press button during
the ( or ) mark flashing.
Set the timer when the air conditioner is operating.
11
In case of the misplaced or discharged remote control
●Pressing the RESET button, the unit can start or
stop without using the remote control.
●Operation mode is set on AUTOMATIC operation,
preset temperature is 24°C and fan operation is
automatic speed.
ECO OPERATION
10
To automatically control room to save energy (except in DRY and FAN ONLY mode)
Press
ECO
: Start and stop the operation.
Note: Cooling operation; the set temperature will increase automatically 1 degree/
hour for 2 hours (maximum 2 degrees increase). For heating operation the set
temperature will decrease.
PRESET OPERATION
AUTO RESTART OPERATION
To operate at super low fan speed for quiet operation (except in DRY mode)
Press
QUIET
: Start and stop the operation.
Note: Under certain conditions, QUIET operation may not provide adequate
cooling due to low sound features.
For comfortable sleep, automatically control air flow and automatically turn OFF.
Press : Select 1, 3, 5 or 9 hrs for OFF timer operation.
Note: The cooling operation, the set temperature will increase automatically
1 degree/hour for 2 hours (maximum 2 degrees increase). For heating
operation, the set temperature will decrease.
COMFORT SLEEP OPERATION
16
Firstly, turn off the circuit breaker.
Indoor Unit and Remote Control
●Clean the indoor unit and the remote control with a wet cloth when needed.
●No benzine, thinner, polishing powder or chemically-treated duster.
Air filters
Clean every 2 weeks.
1. Open the air inlet grille.
2. Remove the air filter.
3. Vacuum or wash and then dry them.
4. Reinstall the air filters and close the air inlet grille.
MAINTENANCE
17
QUIET OPERATION
15
14
To automatically restart the air conditioner after the power failure (Power of
the unit must be on.)
Setting
1. Press and hold the RESET button on the indoor unit for 3 seconds to set
the operation. (3 beep sound and OPERATION lamp blink 5 time/sec for
5 seconds)
2. Press and hold the RESET button on the indoor unit for 3 seconds to
cancel the operation. (3 beep sound but OPERATION lamp does not
blink)
●In case of ON timer or OFF timer are set, AUTO RESTART OPERATION
does not activate.
13
Set your preferred operation for future use. The setting will be memorized by
the unit for future operation (except airflow direction).
1. Select your preferred operation.
2. Press and hold for 3 seconds to memorize the setting.
The Pmark displays.
3. Press : Operate the preset operation.
SELF CLEANING OPERATION
(COOL AND DRY OPERATION ONLY)
18
To protect bad smell caused by the humidity in the indoor unit.
1. If the button is pressed once during “Cool” or “Dry” mode,
the fan will continue to run for other 30 minutes, then it will turn off
automatically. This will reduce the moisture in the indoor unit.
2. To stop the unit immediately, press the more 2 times within
30 seconds.
The unit does not operate. Cooling or Heating is abnormally low.
●
The power main switch is
turned off.
●
The circuit breaker is
activated to cut off the
power supply.
●
Stoppage of electric current.
●
ON timer is set.
●The filters are blocked with dust.
●The temperature has been set improperly.
●The windows or doors are opened.
●The air inlet or outlet of the outdoor unit
is blocked.
●The fan speed is too low.
●The operation mode is FAN or DRY.
TROUBLESHOOTING (CHECK POINT)
20
REMOTE CONTROL A-B SELECTION
21
To separate using of remote control for each indoor unit in case of 2 air
conditioners are installed nearly.
Remote Control B Setup.
1. Press RESET button on the indoor unit to turn the air conditioner ON.
2. Point the remote control at the indoor unit.
3. Push and hold button on the Remote Control by the tip of the
pencil. “00” will be shown on the display.
4. Press
MODE
during pushing . “B” will show on the display and
“00” will disappear and the air conditioner will turn OFF. The Remote
Control B is memorized.
Note: 1. Repeat above step to reset Remote Control to be A.
2. Remote Control A has not “A” display.
3. Default setting of Remote Control from factory is A.
12
OPERATION AND PERFORMANCE
19
1. Three-minute protection feature: To prevent the unit from being activated for 3
minutes when suddenly restarted or switched to ON.
2. Preheating operation: Warm up the unit for 5 minutes before blowing warm air.
3. Warm air control: When the room temperature reaches the set temperature,
the fan speed is automatically reduced and the outdoor unit will stop.
4. Automatic defrosting: Fans will stop during defrost operation.
5. Heating capacity: Heat is absorbed from outdoor and released into the room.
When the outdoor temperature is too low, use another recommended heating
apparatus in combination with the air conditioner.
6. Consideration for accumulated snow: Select the position for outdoor unit where
it will not be subjected to snow drifts, accumulation of leaves or other seasonal
debris.
7. Some minor cracking sound may occur when unit operating. This is normal
because the cracking sound may be caused by expansion/contraction of plastic.
Note: Item 2 to 6 for Heating model
Air conditioner operating conditions
Temp.
Operation Outdoor Temperature Room
Temperature
Heating –15°C ~ 24°C Less than 28°C
Cooling –15°C ~ 46°C 21°C ~ 32°C
Dry –15°C ~ 46°C 17°C ~ 32°C
1118350215-1_EN.indd 31118350215-1_EN.indd 3 3/23/2560 BE 08:453/23/2560 BE 08:45

1118350215-1
1118350215-1_EN.indd 41118350215-1_EN.indd 4 3/23/2560 BE 08:453/23/2560 BE 08:45
