FILE NO. SVM-04001
SERVICE MANUAL
AIR CONDITIONER
SPLIT WALL TYPE
RAS-13UKHP-ES3 / RAS-13UAH-ES3
RAS-13UKHP-AS3 / RAS-13UAH-AS3
RAS-10UKHP-ES3 / RAS-10UAH-ES3
RAS-10UKHP-AS3 / RAS-10UAH-AS3
RAS-13UKP-ES3 / RAS-13UA-ES3
RAS-13UKP-AS3 / RAS-13UA-AS3
RAS-10UKP-ES3 / RAS-10UA-ES3
RAS-10UKP-AS3 / RAS-10UA-AS3
RAS-07UKP-ES3 / RAS-07UA-ES3

− 1−
FILE NO. SVM-04001
CONTENTS
1. SPECIFICATIONS
2. CONSTRUCTION VIEWS
2-1 Indoor Unit
2-2 Outdoor Unit
3. WIRING DIAGRAM
3-1 RAS-13UKHP-ES3 / RAS-13UAH-ES3
RAS-13UKHP-AS3 / RAS-13UAH-AS3
3-2 RAS-10UKHP-ES3 / RAS-10UAH-ES3
RAS-10UKHP-AS3 / RAS-10UAH-AS3
3-3 RAS-13UKP-ES3 / RAS-13UA-ES3
RAS-13UKP-AS3 / RAS-13UA-AS3
3-4 RAS-10UKP-ES3 / RAS-10UA-ES3
RAS-10UKP-AS3 / RAS-10UA-AS3
4. SPECIFICATION OF ELECTRICAL PARTS
4-1 Indoor Unit (RAS-13UKHP-ES3, RAS-13UKHP-AS3,
RAS-10UKHP-ES3, RAS-10UKHP-AS3)
4-2 Outdoor Unit (RAS-13UAH-ES3, RAS-13UAH-AS3)
4-4 Outdoor Unit (RAS-10UAH-ES3, RAS-10UAH-AS3)
4-5 Indoor Unit (RAS-13UKP-ES3, RAS-13UKP-AS3, RAS-10UKP-ES3,
4-6 Outdoor Unit (RAS-10UA-ES3, RAS-10UA-AS3)
5. REFRIGERATION CYCLE DIAGRAM
5-1 RAS-13UKHP-ES3 / RAS-13UAH-ES3
RAS-13UKHP-AS3 / RAS-13UAH-AS3
5-2 RAS-10UKHP-ES3 / RAS-10UAH-ES3
RAS-10UKHP-AS3 / RAS-10UAH-AS3
5-3 RAS-13UKP-ES3 / RAS-13UA-ES3
RAS-13UKP-AS3 / RAS-13UA-AS3
5-4 RAS-10UKP-ES3 / RAS-10UA-ES3
RAS-10UKP-AS3 / RAS-10UA-AS3
6. CONTROL BLOCK DIAGRAM
6-1 RAS-13UKHP-ES3 / RAS-13UAH-ES3
RAS-13UKHP-AS3 / RAS-13UAH-AS3
RAS-10UKHP-ES3 / RAS-10UAH-ES3
RAS-10UKHP-AS3 / RAS-10UAH-AS3
6-2 RAS-13UKP-ES3 / RAS-13UA-ES3
RAS-13UKP-AS3 / RAS-13UA-AS3
RAS-10UKP-ES3 / RAS-10UA-ES3
RAS-10UKP-AS3 / RAS-10UA-AS3
RAS-07UKP-ES3 / RAS-07UA-ES3
4-3 Outdoor Unit (RAS-13UA-ES3, RAS-13UA-AS3)
RAS-07UKP-ES3 / RAS-07UA-ES3
5-5
RAS-10UKP-AS3, RAS-07UKP-ES3)
RAS-07UKP-ES3 / RAS-07UA-ES3
Outdoor Unit (RAS-07UA-ES3)4-7

− 2−
FILE NO. SVM-04001
7. OPERATION DESCRIPTION
7-1 Outline of Air Conditioner Control
7-2 Description of Operation Circuit
7-3 Hi POWER Mode
7-4 High-Temperature Limit Control
7-5 Low-Temperature Limit Control
7-6 Auto Restart Function
7-7 Filter Check Lamp
8. INSTALLATION PROCEDURE
8-1 Safety Cautions
8-2 Installation Diagram of Indoor and Outdoor Units
8-3 Installation
8-4 Indoor Unit
8-5 Outdoor Unit
8-6 How to Set Remote Control Selector Switch
8-7 Others
9. TROUBLESHOOTING CHART
9-1 Troubleshooting Procedure
9-2 Basic Check Items
9-3 Primary Judgement
9-4 Self-Diagnosis by Remote Control (Check Code)
9-5 Troubleshooting Flowcharts
9-6 Troubleshooting for Remote Control (Including The Indoor P.C. Board)
10. PARTS REPLACEMENT
10-1 Indoor Unit
10-2 Outdoor Unit
11. EXPLODED VIEWS AND PARTS LIST
11-1 Indoor Unit (E-Parts Assy)
11-2 Indoor Unit
11-3 Outdoor Unit (RAS-13UAH-ES3, RAS-13UAH-AS3)
11-4 Outdoor Unit (RAS-10UAH-ES3, RAS-10UAH-AS3)
11-5 Outdoor Unit (RAS-13UA-ES3, RAS-13UA-AS3)
11-6 Outdoor Unit (RAS-10UA-ES3, RAS-10UA-AS3)
ı•This air conditioner is charged with
HFC (R410A) that doesn't deplete the
Ozone layer.
ı•This air conditioner requires special
installation for the refrigerant R410A.
Outdoor Unit (RAS-07UA-ES3)
11-7

− 3−
FILE NO. SVM-04001
MODEL RAS-13UKHP-ES3, AS3RAS-13UKP-ES3, AS3
RAS-13UAH-ES3, AS3RAS-13UA-ES3, AS3
ITEM Cooling Heating Cooling
Capacity 220V 240V 220V 240V 220V 240V
kW 3.60 3.60 4.20 4.26 3.75 3.75
Phase 1∅ı
Power source V 220 −240
Hz 50
Power consumption kW 1.10 1.12 1.14 1.18 1.13 1.17
Power factor % 98 97 97 96 98 97
Running Indoor A 0.15
current Outdoor A 4.95 4.65 5.20 4.95 5.10 4.90
Starting current A 27 28
Moisture removal lit/h 2.0
Noise Indoor (H/M/L) dB 41/35/31
Outdoor (220-240V) dB 49 51 49 51 49 50
Refrigerant Name of refrigerant
Rated amount
Refrigerant control
Gas side size
Connection type Flare connection
Liquid side size mm ı∅6.35
Interconnection Connection type Flare connection
pipe Maximum length 15*1
(One way)
Maximum height
difference
INDOOR UNIT RAS-13UKHP-ES3, AS3RAS-13UKP-ES3, AS3
Height mm 275
Dimensions Width mm 790
Depth mm 208
Net weight kg 10
Evaporator type Finned tube
Indoor fan type Cross flow fan
High fan m3/h 630 650 630
Air volume Medium fan m3/h 520 550 520
Low fan m3/h 430 490 430
Fan motor output W 20
Air filter Honeycomb woven filter with PP frame
OUTDOOR UNIT RAS-13UAH-ES3, AS3RAS-13UA-ES3, AS3
Height mm 550
Dimensions Width mm 780
Depth mm 270
Net weight kg 39 37
Condenser type Finned tube
Outdoor fan type Propeller fan
Airflow volume m3/h 2120 2200 2120 2200 2030 2150
Fan motor output W 42
Compressor Model PA150X2T-4FM1
Output W 1100
Safety device Fuse, Overload relay
Louver type Automatic louver
Usable outdoor temperature range °C 15 ~ 43 −10 ~ 24 15 ~ 43
1. SPECIFICATIONS
R410A
kg 0.95
Capillary tube
mm
m
m6
30
∅12.7

− 4−
FILE NO. SVM-04001
MODEL RAS-10UKHP-ES3, AS3RAS-10UKP-ES3, AS3
RAS-10UAH-ES3, AS3RAS-10UA-ES3, AS3
ITEM Cooling Heating Cooling
Capacity 220V 240V 220V 240V 220V 240V
kW 2.70 2.70 2.90 2.96 2.70 2.70
Phase 1∅ı
Power source V 220 −240
Hz 50
Power consumption kW 0.82 0.84 0.78 0.82 0.82 0.84
Power factor % 98 97 97 96 98 97
Running Indoor A 0.15
current Outdoor A 3.65 3.45 3.50 3.40 3.80 3.60
Starting current A 18
Moisture removal lit/h 1.2
Noise Indoor (H/M/L) dB 39/33/26
Outdoor (220-240V) dB 47 49 47 49 46 47
Refrigerant Name of refrigerant R410A
Rated amount kg 0.700.65
Refrigerant control Capillary tube
Gas side size mm ∅9.52
Connection type Flare connection
Liquid side size mm ∅6.35
Interconnection Connection type Flare connection
pipe Maximum length m 10*1
(One way)
Maximum height
difference
INDOOR UNIT RAS-10UKHP-ES3, AS3RAS-10UKP-ES3, AS3
Height mm 275
Dimensions Width mm 790
Depth mm 208
Net weight kg 10
Evaporator type Finned tube
Indoor fan type Cross flow fan
High fan m3/h 570 610 610
Air volume Medium fan m3/h 460 520 460
Low fan m3/h 340 400 340
Fan motor output W 20
Air filter Honeycomb woven filter with PP frame
OUTDOOR UNIT RAS-10UAH-ES3, AS3RAS-10UA-ES3, AS3
Height mm 550
Dimensions Width mm 780
Depth mm 270
Net weight kg 35 30
Condenser type Finned tube
Outdoor fan type Propeller fan
Airflow volume m3/h 2030 2150 2030 2150 1740 1850
Fan motor output W 30 20
Compressor Model PA108X1T-4FZ1
Output W 750
Safety device Fuse, Overload relay
Louver type Automatic louver
Usable outdoor temperature range °C 15 ~ 43 −10 ~ 24 15 ~ 43
m5

− 5−
FILE NO. SVM-04001
MODEL RAS-07UKP-ES3
RAS-07UA-ES3
ITEM Cooling
Capacity 220V 240V
kW 2.15 2.18
Phase 1∅ı
Power source V 220 −240
Hz 50
Power consumption kW 0.66 0.68
Power factor % 97 90
Running Indoor A 0.15
current Outdoor A 3.10 3.15
Starting current A 12
Moisture removal lit/h 0.8
Noise Indoor (H/M/L) dB 38/32/26
Outdoor (220-240V) dB 44 45
Refrigerant Name of refrigerant R410A
Rated amount kg 0.65
Refrigerant control Capillary tube
Gas side size mm ∅9.52
Connection type Flare connection
Liquid side size mm ∅6.35
Interconnection Connection type Flare connection
pipe Maximum length m 10*1
(One way)
Maximum height
difference
INDOOR UNIT RAS-07UKP-ES3
Height mm 275
Dimensions Width mm 790
Depth mm 208
Net weight kg 10
Evaporator type Finned tube
Indoor fan type Cross flow fan
High fan m3/h 570
Air volume Medium fan m3/h 460
Low fan m3/h 340
Fan motor output W 20
Air filter Honeycomb woven filter with PP frame
OUTDOOR UNIT RAS-07UA-ES3
Height mm 530
Dimensions Width mm 660
Depth mm 240
Net weight kg 27
Condenser type Finned tube
Outdoor fan type Propeller fan
Airflow volume m3/h 1420 1520
Fan motor output W 30
Compressor Model PA79X1T-4FZ5
Output W 605
Safety device Fuse, Overload relay
Louver type Automatic louver
Usable outdoor temperature range °C 15 ~ 43
m
5
m

− 6−
FILE NO. SVM-04001
Note : 1
•Capacity is based on the following temperature conditions.
Note : 2
•Charge refrigerant according to the table below.
RAS-13UKHP-ES3 / RAS-13UAH-ES3 RAS-10UKHP-ES3 / RAS-10UAH-ES3
Refrigerant RAS-13UKHP-AS3 / RAS-13UAH-AS3 RAS-10UKHP-AS3 / RAS-10UAH-AS3
RAS-13UKP-ES3 / RAS-13UA-ES3 RAS-10UKP-ES3 / RAS-10UA-ES3
RAS-13UKP-AS3 / RAS-13UA-AS3 RAS-10UKP-AS3 / RAS-10UA-AS3
*1 No need to charge 15m or less 10m or less
extra refrigerant
Temperature
Condition JIS C9612-1994
Cooling Heating
Indoor unit inlet air temperature (DB) 27°C 20°C
(WB) 19°C 15°C
Outdoor unit inlet air temperature (DB) 35°C 7°C
(WB) 24°C 6°C
RAS-07UKP-ES3 / RAS-07UA-ES3

− 7−
FILE NO. SVM-04001

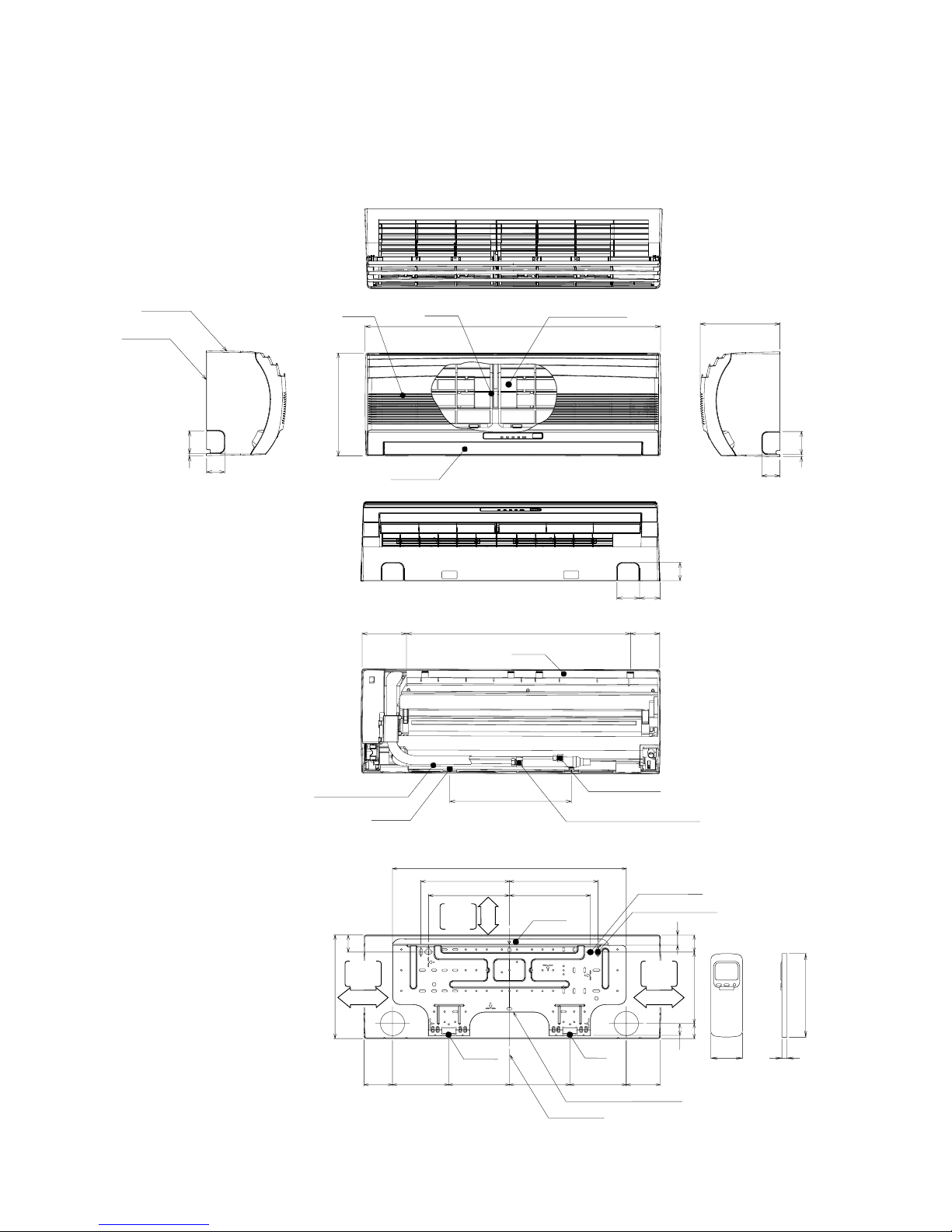

2. CONSTRUCTION VIEWS
2-1. Indoor Unit
Knock out system
Back body
Front panel
Air outlet
Air inlet Air filter Heat exchanger
Knock out system
6 60
275
790 208
48
48
26
4519040
32
64
590
320
620
235 235
215 215
9090
275
45
150150 160160
120 80
53
6 60
Hanger
Hanger
Hanger
Hanger Hanger
Drain hose (0.54m) Connecting pipe (0.43m)
(Flare ∅ı6.35)
For stud bolt
(∅8~∅ı10)
For stud bolt (∅ı6)
Installation plate outline
Center line
Minimum
distance
to ceiling
170 or more
Minimum
distance
to ceiling
170 or more
65or more
Minimum
distance
to ceiling
Wireless remote control
57 18
160
(For 13 series ; Flare ∅ı12.7
For 07, 10 series ; Flare ∅ı 9.52)
Connecting pipe (0.33m)

− 8−
FILE NO. SVM-04001

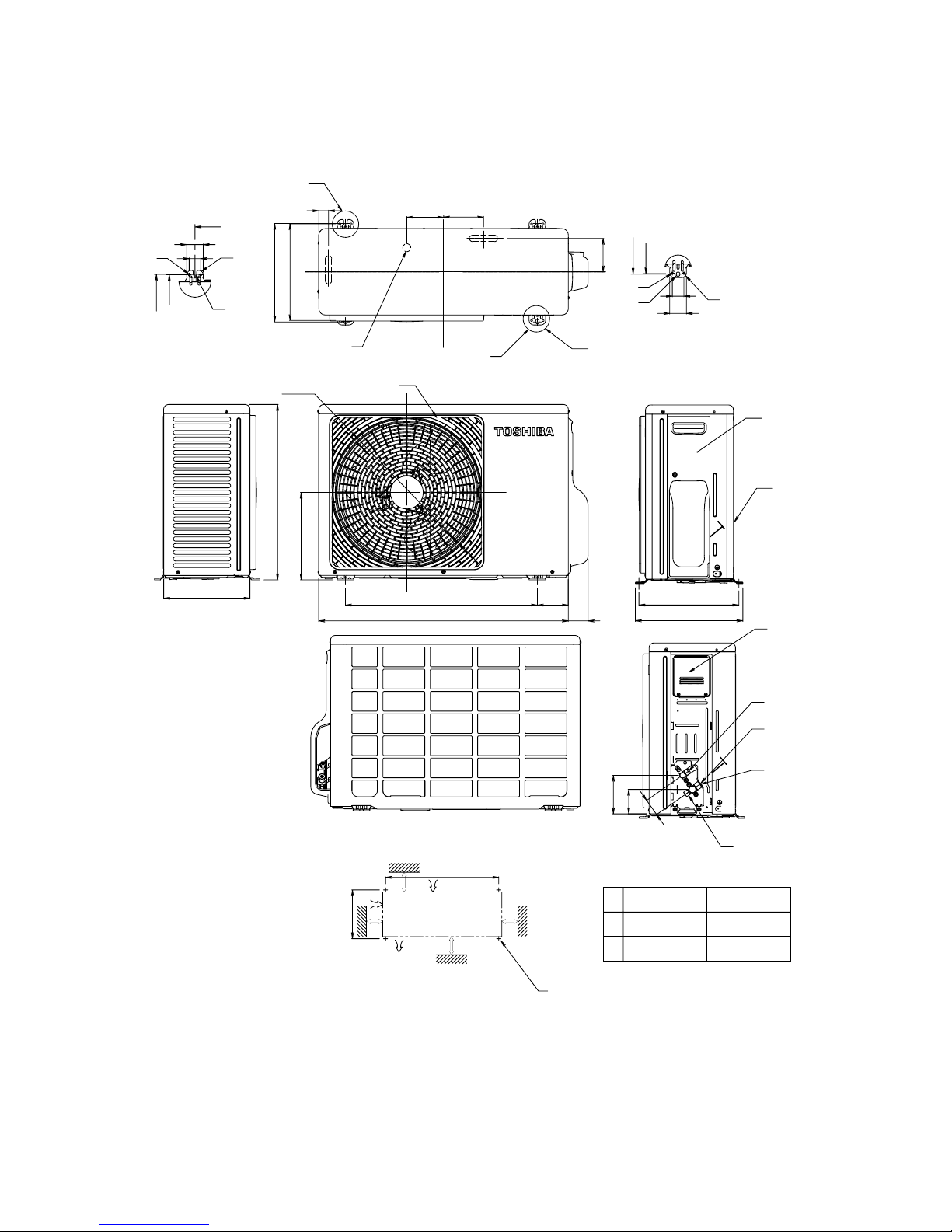

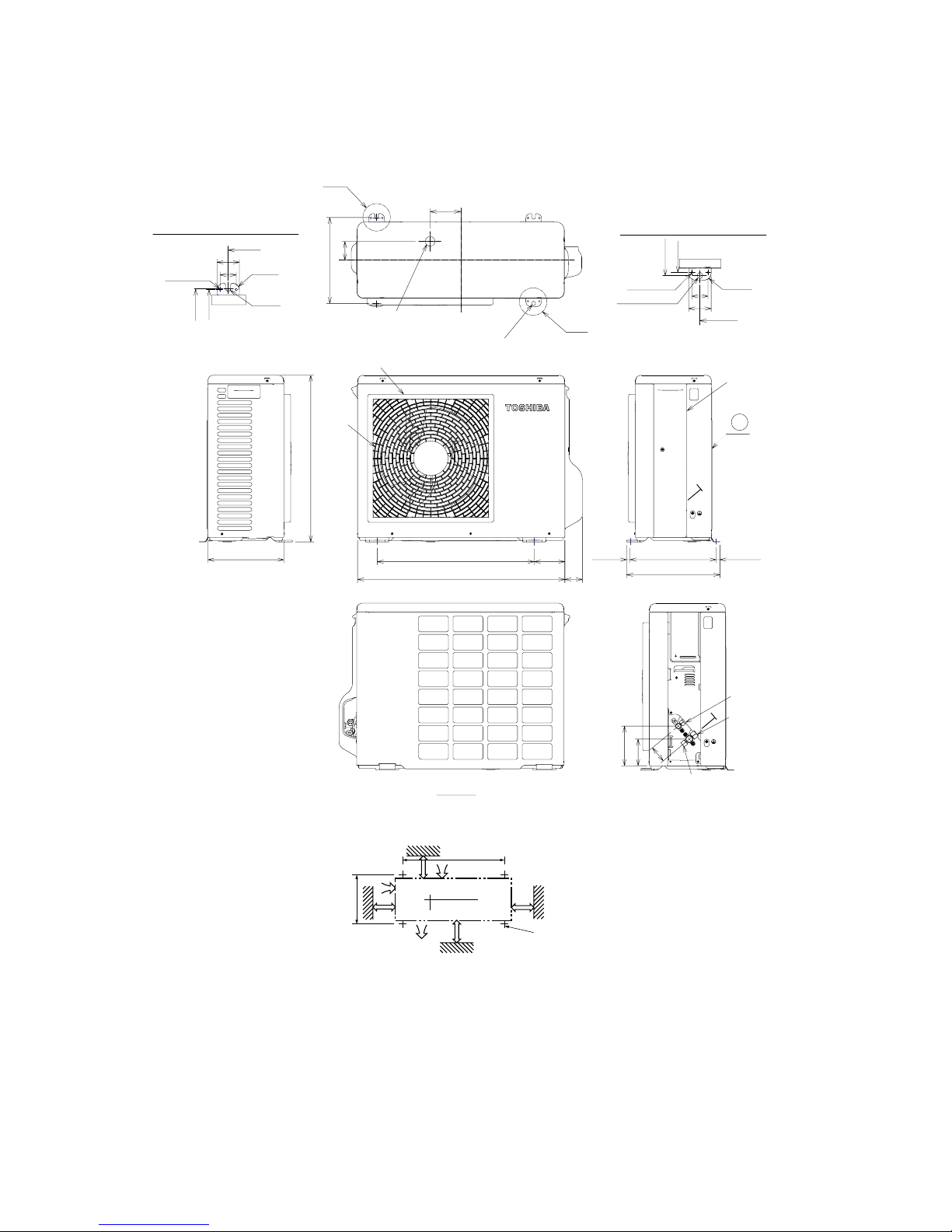

2-2. Outdoor Unit (RAS-13UAH-ES3, RAS-13UAH-AS3, RAS-10UAH-ES3, RAS-10UAH-AS3,
310
310 302
102
310
302
302
530
265
600
A Detail Drawing (Back Leg)
A
B Detail Drawing (Front Leg)
52
R15
32.5 115 125
R5.5
∅ 30 Drain outlet
FAN GUARD
36
∅ 6 Hole
2-
∅ 11x14 Hole
(For
∅ 8- ∅ 10 anchor bolt)
∅ 436
4x
∅ 11 Long holes (For ∅ 8- ∅ 10 anchor bolt)
∅ 11x14 Hole
∅ 6 Hole
36
52
310
330
R15
270 600 90
780 62
COVER PV
Electrical
part cover
Liquid side
(Flare
∅ 6.35)
Gas side
(Flare
∅ 9.52)
10 Series
Gas side
(Flare
∅ 12.7)
13 Series
Service port
600 or more 13 Series
A 600 mm 400 mm
B 100 mm 45 mm
10 Series
B or more
A or more
100 or more
325
600
Air inlet
Air outlet
Installation dimension
120
75
54
B
Z
Z View
RAS-13UA-ES3, RAS-13UA-AS3, RAS-10UA-ES3, RAS-10UA-AS3)

FILE NO. SVM-04001
−9−
Outdoor Unit (RAS-07UA-ES3)
Z
Cover PV
54
273.5
59.5
∅ 420
500 97.5 (11)
297
(12.5)273.5 (pitch)
660
242
56
A Detail Drawing (Back Leg)
660
50
36 R 15
R 5.5
273.5
265
∅ 6 Hole
B Detail Drawing (Front Leg)
50
36 R 15
660
265
273.5
∅ 6 Hole
∅ 11x14 Hole
A
B
Z
View
97
∅ 25Drain outlet
2-
∅ 11x14 hole
(for
∅ 8- ∅ 10 anchor bolt)
Fan guard
530
Liquid side
(Flare
∅ 6.35)
Gas side
(Flare
∅ 9.52)
Service port
126
48
325
100 or more
100 or more 600 or more
600 or more
Installation dimension
600
Air inlet
Air outlet
4x
∅ 11x14 Long holes (for ∅ 8- ∅ 10 anchor bolt)

− 10 −
FILE NO. SVM-04001
3. WIRING DIAGRAM
3-1. RAS-13UKHP-ES3/ RAS-13UAH-ES3
RAS-13UKHP-AS3/ RAS-13UAH-AS3
CN13
CN07
BLK
GRN&YEL
CHASSIS
BRW
BLU
BLK
RY03
BLK
RED
BLK
SOLENOID COIL
BLU
CAPACITOR
WHI
COMPRESSOR
RY04
YEL
BLK WHI RED BLU GRN&YEL
150
GRY BRW
BLK
WHI RED
CR01
CR02
CN27
INDOOR
TERMINAL
BLOCK
OUTDOOR
TERMINAL
BLOCK
WHI
T02
C.T
DSA VARISTOR
RY01
4
3
F01
C15
L01
IC03
C58
R48
CN01CN03
THERMO
SENSOR
(TA)
HEAT
EXCHANGER
SENSOR
(TC)
CN10
R46
CR03
D38
C01 R01 DB01
POWER
SUPPLY
CIRCUIT
C02
DC 12V
DC 5V
R21
VARISTOR
MAIN P.C. BOARD
MCC-862
T6.3A
250V
P04 SG01
CN04
R22
YEL YEL YEL WHI
GRN&YEL
CN11
AC FAN MOTOR
INDOOR
OUTDOOR
BLK BLK
13 5
13 5
2 4
2 4
6
6
3
3
2
1
1
4
4
2 1
3
54
2 1
3
54
73°C
THERMAL FUSE
YEL
PNK
PNK
12
12
1
3
5
1
3
5
12
12
3
3
1
1
2
2
BLK BLK
1
1
2
2
1
3
R47
(L)
2
(N)
BLU
RED
RED
CAPACITOR
WHI
FAN
MOTOR
PNK
Power Cord
4
BLU
5
BLU
6
BLU
7
BLU
8
BLU
9
BLU
10
BLU
11
BLU
3
1
BLU
2
BLU
4
WHI
5
CN25
6 7 8 9 10 11
3
12
INFRARED RAYS RECEIVE
AND INDICATION PARTS
4 5 6 7 8 9 10 11
3
12
4 5 6 7 8 9 10 11
3
12
POWER SUPPLY
SINGLE PHASE
220-240V~ , 50 Hz

− 11 −
FILE NO. SVM-04001

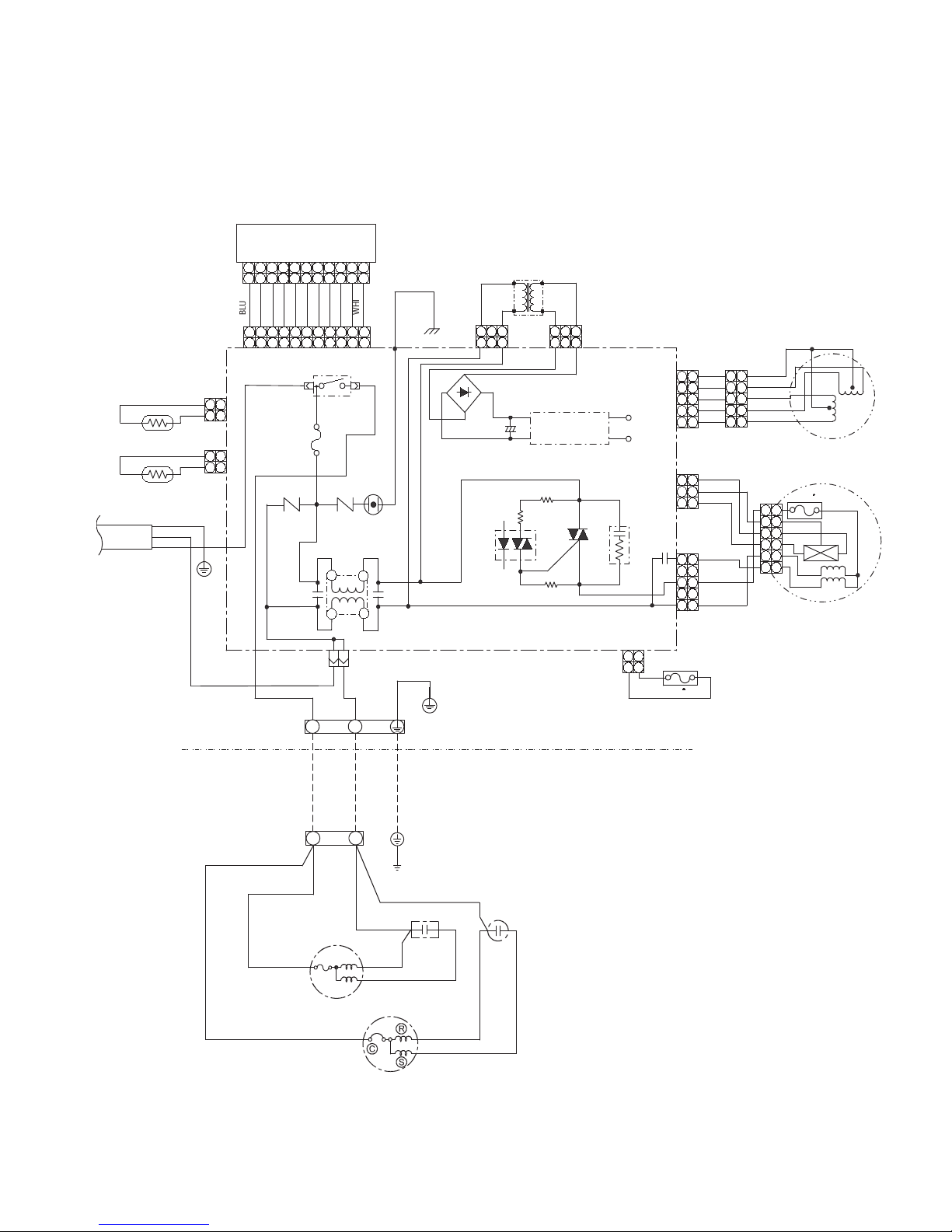

3-2. RAS-10UKHP-ES3/ RAS-10UAH-ES3
RAS-10UKHP-AS3/ RAS-10UAH-AS3
YEL
CN13
CN07
BLK
GRN&YEL
BRW
BLU
GRN&YEL
BLK
RY03 RY04
YEL
BLK WHI RED BLU GRN&YEL
150
GRY BRW
BLK
WHI RED
CR01
CR02
CN27
INDOOR
TERMINAL
BLOCK
WHI
T02
C.T
DSA VARISTOR
RY01
4
3
F01
C15
L01
IC03
C58
R48
CN01CN03
THERMO
SENSOR
(TA)
HEAT
EXCHANGER
SENSOR
(TC)
CN10
R46
CR03
D38
C01 R01 DB01
POWER
SUPPLY
CIRCUIT
C02
DC 12V
DC 5V
R21
VARISTOR
MAIN P.C. BOARD
MCC-862
T6.3A
250V
P04 SG01
CN04
R22
YEL YEL YEL WHI
CN11
AC FAN MOTOR
INDOOR
OUTDOOR
BLK BLK
13 5
13 5
2 4
2 4
6
6
3
2
1 4
2 1
3
54
2 1
3
54
PNK
PNK
12
12
1
3
5
1
3
5
12
12
3
3
1
1
2
2
BLK BLK
1
1
2
2
1
3
R47
Louver motor
CHASSIS
BLK
RED
RED
RED
CAPACITOR
WHI BLK
SOLENOID COIL
BLK
CAPACITOR
FAN
MOTOR
PNK
WHI
COMPRESSOR
OUTDOOR
TERMINAL
BLOCK
3
14
(L)
2
(N)
BLK
73°C
THERMAL FUSE
Power Cord
POWER SUPPLY
SINGLE PHASE
220-240V~ , 50 Hz
4
BLU
5
BLU
6
BLU
7
BLU
8
BLU
9
BLU
10
BLU
11
BLU
3
1
BLU
2
BLU
4
WHI
5
CN25
6 7 8 9 10 11
3
12
INFRARED RAYS RECEIVE
AND INDICATION PARTS
4 5 6 7 8 9 10 11
3
12
4 5 6 7 8 9 10 11
3
12

− 12 −
FILE NO. SVM-04001
3-3.RAS-13UKP-ES3/ RAS-13UA-ES3, RAS-13UKP-AS3 / RAS-13UA-AS3
RAS-10UKP-ES3/ RAS-10UA-ES3, RAS-10UKP-AS3 / RAS-10UA-AS3
Regulator
circuit
R21 R22
SG01
DSA
F01
T6.3 A
250 VAC
CN01
CN03
RY01
C01
4
3
CN04
IC03
R46
R47
D38
CR03
R48
C58
DC 12 V
DC 5 V
MCC-920
C50
DB50
+
CN07
CN11
CN10
YEL
GRY
BRW
WHI
BLK
RED
Louver motor
Indoor FAN motor
1
1
2
2
4
5
3
1
2
4
5
3
1
2
3
1
2
3
1
2
4
5
3
1
2
4
5
3
1
2
1
3
5
1
3
5
1
1
3
3
1
1
3
3
2
5
3
1
5
3
1
22
44
6 6
150 C
C15
L01
BLK
P04
TRANS (TT-10)
RED
WHI BLU
GRY
CN05 CN06
1
2
1
2
1
2
1
2
WHI
YEL
YEL
YEL
YEL
21
4
3
PNK
TEMP FUSE
220-240V 50Hz
GRN&YEL
BLU (N)
BRW (L)
Heat Exchanger
Sensor (TC)
Thermo Sensor (TA)
73 C
Single Phase
PNK
CN31
BLU
CN14
CN25
BLU
Infrared rays receiver
and indication parts.
Power Cord
BLU BLU BLU BLU BLU BLU BLU BLU WHI
12
6
587 911
10
143
2
6
58
7911 10
1432
6
58
7911 10
1432
6
58
79 11 10
143
2
BLK
WHI
GRN&YEL
INDOOR
TERMINAL
BLOCK
OUTDOOR
TERMINAL
BLOCK 1(L) 2(N) CHASSIS
BLK BLK RED
RED
CAPACITOR
FAN MOTOR
COMPRESSOR
PNK
WHI
WHI
RED
CAPACITOR
INDOOR
OUTDOOR
RAS-07UKP-ES3/ RAS-07UA-ES3, RAS-07UKP-AS3 / RAS-07UA-AS3

− 13−
FILE NO. SVM-04001
4. SPECIFICATION OF ELECTRICAL PARTS
4-1. Indoor Unit (RAS-13UKHP-ES3, RAS-13UKHP-AS3, RAS-10UKHP-ES3,
RAS-10UKHP-AS3)
No. Parts name Type Specifications
1 Fan motor (for indoor) SKF-220-20-4A-1 mo fuse
2 Thermo sensor (T
3 Switching transformer (T01) SWT-47
4 Microcontroller unit (IC30) TMP87CM40AN
5 Heat exchanger sensor
(TC-sensor)
6 Line filter (L01) LC*SS11V-06270
7 Bridge rectifier (DB01) D3SBA60 4A, 600V
8 Capacitor (C02) KMH400VSSN47M22S 47µˇ F, 400V
9 Fuse (F01) TSCR6.3A T6.3A, 250VAC
10 Varistor (R21, R22) 15G561K 560V
11 Resistor (R01) RF-2TK5R6 5.6Ω, 2W
12 Louver motor MP24Z12VDC
13 Relay (Comp., RY01) DI12D1 Rating 20A/AC250V, 12VDC
14 Relay (Fan, RY03) G5N-1A Rating 3A/AC250V, 12VDC
15 Relay (Solenoide, RY04) G5N-1A Rating 3A/AC250V, 12VDC
4-2. Outdoor Unit (RAS-13UAH-ES3, RAS-13UAH-AS3)
No. Parts name Type Specifications
Output (Rated) 1100W, 2poles, 1 phase, 220 −240V, 50Hz
1 Compressor PA150X2T-4FM1 Winding resistance (Ωı) C-R C-S
(at 20°C) 2.49 3.95
Output (Rated) 42W, 6poles, 1 phase, 220 −240V, 50Hz
2 Fan motor (for outdoor) HF-240-42AWinding resistance (Ω) Red-Black White-Black
(at 20°C) 176.2 290.5
3Running capacitor DS451155BPQC AC 450V, 1.5µˇF
(for fan motor)
4Running capacitor DS371306CPNB AC 370V, 30µˇF
(for compressor)
Solenoid coil
5 (for 4-way valve) VHV-01AJ503C1 AC 220 −240V, 50Hz
(for Heat pump model)
AC Motor with 150°C ther
A-sensor) 10kΩat 25°C
10kΩat 25°C
27mH, 600mA
ΩΩ

− 14−
FILE NO. SVM-04001
4-3. Outdoor Unit (RAS-13UA-ES3, RAS-13UA-AS3)
No. Parts name Type Specifications
Output (Rated) 1100W, 2poles, 1 phase, 220 −240V, 50Hz
1 Compressor PA150X2T-4FM1 Winding resistance (Ωı) C-R C-S
(at 20°C) 2.49 3.95
Output (Rated) 30W, 6poles, 1 phase, 220 −240V, 50Hz
2 Fan motor (for outdoor) HF-240-30B Winding resistance (Ωı) Red-Black White-Black
(at 20°C) 245 388.3
3Running capacitor DS451155BPQC AC 450V, 1.5µˇF
(for fan motor)
4Running capacitor DS371306CPNB AC 370V, 30µˇF
(for compressor)
4-4. Outdoor Unit (RAS-10UAH-ES3, RAS-10UAH-AS3)
No. Parts name Type Specifications
Output (Rated) 750W , 2poles, 1 phase, 220 −240V, 50Hz
1 Compressor PA108X1T-4FZ1 Winding resistance (Ωı) C-R C-S
(at 20°C) 3.89 4.51
Output (Rated) 30W, 6poles, 1 phase, 220 −240V, 50Hz
2 Fan motor (for outdoor) HF-240-30B Winding resistance (Ωı) Red-Black White-Black
(at 20°C) 245 388.3
3Running capacitor DS451155BPQC AC 450V, 1.5µˇF
(for fan motor)
4Running capacitor DS371256CPNB AC 370V, 25µˇF
(for compressor)
5Solenoid coil
(for 4-way valve) SQ-373 AC 220 − 240V

− 15−
FILE NO. SVM-04001
4-6. Outdoor Unit (RAS-10UA-ES3, RAS-10UA-AS3)
No. Parts name Type Specifications
Output (Rated) 750W, 2poles, 1 phase, 220 −240V, 50Hz
1 Compressor PA108X1T-4FZ1 Winding resistance (Ωı) C-R C-S
(at 20°C) 3.89 4.51
Output (Rated) 20W, 6poles, 1 phase, 220 −240V, 50Hz
2 Fan motor (for outdoor) HF-240-20B or Winding resistance (Ω)ı Red-Black White-Black
(at 20°C) 387.3 or 235.2 466.2 or 260.1
3Running capacitor DS451155BPQC AC 450V, 1.5µˇF
(for fan motor)
4Running capacitor DS371256CPNB AC 370V, 25µˇF
(for compressor)
4-5. Indoor Unit (RAS-13UKP-ES3, RAS-13UKP-AS3, RAS-10UKP-ES3,
RAS-10UKP-AS3, RAS-07UKP-ES3)
No. Parts name Type Specifications
1 Fan motor (for indoor) SKF-220-20-4A-1 AC Motor with 150°C thermo fuse
2 Thermo sensor (TA-sensor) 10kΩıat 25°C
3 Switching transformer TT-10
4 Microcontroller unit (IC30) TMP87CM40AN
5 Heat exchanger sensor 10kΩıat 25°C
(TC-sensor)
6 Line filter (L01) LC*SS11V-06270 27mH, 600mA
7 Bridge rectifier (DB50) KBP06M/51 1.5A, 600V
8 Capacitor (C50) PF1E222MNN1625 2200µF, 25V
9 Fuse (F01) BET6.3A T6.3A, 250VAC
10 Varistor (R21, R22) 15G561K320 560V
11 Louver motor MP24Z 12VDC
12 Relay (Comp., RY01) DI1U Rating 25A/AC250V, 3~48VDC
SKF-240-20B

– 16–
FILE NO. SVM-04001
No. Parts name Type
1
, 220 −240V, 50Hz
C-R C-S
4.80 8.37
, 220 −240V, 50Hz
2 Fan motor (for outdoor) k White-Black
245 388
3Running capacitor DS451155BPQC
(for fan motor)
4Running capacitor
(for compressor) DS371156CPNB AC 370V, 15µF
4-7. Outdoor Unit (RAS-07UA-ES3)
Specifications
Compressor
Output (Rated) 605W, 2poles, 1 phase
Winding resistance (Ω)
(at 20°C)
Output (Rated) 30W, 6poles, 1 phase
HF-240-30B Winding resistance (Ω) Red-Blac
(at 20°C)
AC 450V, 1.5µF
PA79X1T-4FZ5

−17−
FILE NO. SVM-04001
5. REFRIGERATION CYCLE DIAGRAM
5-1. RAS-13UKHP-ES3/ RAS-13UAH-ES3
RAS-13UKHP-AS3/ RAS-13UAH-AS3
Note :
ı Measure the heat exchanger temperature at the center of U-bend. (By means of TC sensor)
*1 ı During heating overload operation, a value for the high temperature limit control operation is included.
Ambient temp.
conditions DB/WB
(°C)
Indoor Outdoor
Standard 2.7044.0 High 20/15 7/6
Heating Overload*1 3.20 ~ 3.70 52.0 ~ 59.0 Low 27/−24/18
Low temperature 2.20 35.0 High 20/− −10/−10
Standard 0.90 10.0 High 27/19 35/24
Cooling Overload 0.99 14.0 High 32/23 43/26
Low temperature 0.70 2.0 Low 21/15 21/15
Standar d
pressure
P
(MPaG)
Surface temp. of heat
exchang er inter changing
pipe
T1
(°C)
Fan speed
(indoor)
50Hz
Evaporator
Indoor unit
Cross flow fan
Cooling
Heating
4-way valve
Heating Cooling Compressor
Accumulator
Condenser
Propeller fan
Outdoor unit
Capillary tube
∅1.0x600l
Capillary tube
∅1.5x1100l
PA150X2T-4FM1
Cooling
Heating
Mark( )means check points of Gas Leak.
O.D.:12.7mm O.D.:6.35mm
Cooling
Heating
Packed valve Packed valve
0.39m
(Connecting pipe)
0.49m
(Connecting pipe)
T1
P
Refrigerant
R410A : 0.95 kg.
(∅12.7) (∅6.35)
∅12.7 ∅6.35
•
•

−18 −
FILE NO. SVM-04001
5-2. RAS-10UKHP-ES3/ RAS-10UAH-ES3
RAS-10UKHP-AS3/ RAS-10UAH-AS3
Note :
ı Measure the heat exchanger temperature at the center of U-bend. (By means of TC sensor)
Ambient temp.
conditions DB/WB
(°C)
Indoor Outdoor
Standard 2.45 40.0 High 20/15 7/6
Heating Overload 3.45 52.0 Low 27/−24/18
Low temperature 2.10 35.0 High 20/−−10/−10
Standard 0.9011.0 High 27/19 35/24
Cooling Overload 1.07 16.0 High 32/23 43/26
Low temperature 0.85 5.0 Low 21/15 21/15
Fan speed
(indoor)
50Hz
Indoor unit
Cross flow fan
Cooling
Heating
4-way valve
Heating Cooling Compressor
Condenser
Propeller fan
Outdoor unit
PA108X1T-4FZ1
Cooling
Heating
Mark( )means check points of Gas Leak.
O.D.:9.52mm O.D.:6.35mm
Cooling
Heating
Packed valve
(∅9.52)
Packed valve
(∅6.35)
0.39m
(Connecting pipe)
∅9.52
0.49m
(Connecting pipe)
∅6.35
T1
P
Refrigerant
R410A : 0.70kg.
Capillary tube
∅1.0x1300
Accumulator
Evaporator
Capillary tube
∅1.2x600
Standar d
pressure
P
(MPaG)
Surface temp. of heat
exchanger inter changing
pipe
T1
(°C)
•
ll

−19 −
FILE NO. SVM-04001
Heat exchanger
Indoor unit
Cross flow fan
Cooling
Cooling Compressor
Condenser
Propeller fan
Outdoor unit
Capillary tube
∅1.5x500
PA150X2T-4FM1
Cooling Mark( )means check points of Gas Leak.
O.D.:12.7mm O.D.:6.35mm
Cooling
Packed valve
(∅12.7)
Packed valve
(∅6.35)
0.39m
(Connecting pipe)
∅12.7
0.49m
(Connecting pipe)
∅6.35
T1
P
Refrigerant
R410A : 0.95kg.
5-3. RAS-13UKP-ES3/ RAS-13UA-ES3
RAS-13UKP-AS3/ RAS-13UA-AS3
Note :
•ı Measure the heat exchanger temperature at the center of U-bend. (By means of TC sensor)
Ambient temp.
conditions DB/WB
(°C)
Indoor Outdoor
Standard 0.90 9.0 High 27/19 35/24
Cooling Overload 1.03 13.0 High 32/23 43/26
Low temperature 0.70 2.0 Low 21/15 21/15
Fan speed
(indoor)
50Hz
Standar d
pressure
P
(MPaG)
Surface temp. of heat
exchang er inter changing
pipe
T1
(°C)
l
