Toshiba RAS-B10U2FVG-E User manual

AIR CONDITIONER (SPLIT TYPE)
INSTALLATION MANUAL
Indoor unit
RAS-B10, 13, 18U2FVG-E
R32
1112151199

CONTENTS
PRECAUTIONS FOR SAFETY.................................................................................................................................................... 1
ACCESSORY PARTS.................................................................................................................................................................. 5
INSTALLATION DIAGRAM OF INDOOR UNIT .......................................................................................................................... 6
 Optional Installation Parts ......................................................................................................................................................... 6
INDOOR UNIT.............................................................................................................................................................................. 7
 Installation Place ....................................................................................................................................................................... 7
 Cutting a Hole and Mounting Installation Plate ......................................................................................................................... 7
 How to Install Indoor Unit .......................................................................................................................................................... 8
 Concealed Installation............................................................................................................................................................... 9
OTHERS..................................................................................................................................................................................... 10
 Gas Leak Test......................................................................................................................................................................... 10
 Setting of Remote Control Selector Switch ............................................................................................................................. 10
 Remote Control A-B Selection ................................................................................................................................................ 10
 Test Operation ........................................................................................................................................................................ 10
 Auto Restart Setting ............................................................................................................................................................... 10
EN

PRECAUTIONS FOR SAFETY
PRECAUTIONS FOR SAFETY
Read the precautions in
this manual carefully before
operating the unit.
This appliance is filled with R32.
• Before installation, please read these precautions for safety carefully.
• Be sure to follow the precautions provided here to avoid safety risks. The
symbols and their meanings are shown below.
WARNING : It indicates that incorrect use of this unit may cause severe injury or
death.
CAUTION : It indicates that incorrect use of this unit may cause personal injury
(*1), or property damage (*2).
*1: Personal injury means a slight accident, burn, or electrical shock
which does not require admission or repeated hospital treatment.
*2: Property damage means greater damage which affects assets or
resources.
For general public use
Power supply cord and connecting cable of appliance use shall be at least
polychloroprene sheathed flexible cord (design H07RN-F) or cord designation
60245 IEC66. (Shall be installed in accordance with national wiring regulations.)
CAUTION
This appliance must be connected to the main power supply by means of a circuit
breaker or a switch with a contact separation of at least 3 mm in all poles.
DANGER
• FOR USE BY QUALIFIED PERSONS ONLY.
• TURN OFF MAIN POWER SUPPLY BEFORE ATTEMPTING ANY
ELECTRICAL WORK. MAKE SURE ALL POWER SWITCHES ARE OFF.
FAILURE TO DO SO MAY CAUSE ELECTRIC SHOCK.
• CONNECT THE CONNECTING CABLE CORRECTLY. IF THE CONNECTING
CABLE IS CONNECTED WRONGLY, ELECTRIC PARTS MAY BE DAMAGED.
• CHECK THE EARTH WIRE THAT IT IS NOT BROKEN OR DISCONNECTED
BEFORE INSTALLATION.
• DO NOT INSTALL NEAR CONCENTRATIONS OF COMBUSTIBLE GAS OR
GAS VAPORS.
FAILURE TO FOLLOW THIS INSTRUCTION CAN RESULT IN FIRE OR
EXPLOSION.
To disconnect the appliance from the main power supply
EN
ES
FR
IT
PT
PL
CZ
RU
CR
HU
TR
NL
GR
SV
FI
NO
DK
RO
BG
EE
LV
SK
SI
DE
1

• TO PREVENT OVERHEATING THE INDOOR UNIT AND CAUSING A FIRE
HAZARD, PLACE THE UNIT WELL AWAY (MORE THAN 2 M) FROM HEAT
SOURCES SUCH AS RADIATORS, HEATERS, FURNACE, STOVES, ETC.
• WHEN MOVING THE AIR CONDITIONER FOR INSTALLING IT IN ANOTHER
PLACE AGAIN, BE VERY CAREFUL NOT TO GET THE SPECIFIED
REFRIGERANT (R32) WITH ANY OTHER GASEOUS BODY INTO THE
REFRIGERATION CYCLE. IF AIR OR ANY OTHER GAS IS MIXED IN THE
REFRIGERANT, THE GAS PRESSURE IN THE REFRIGERATION CYCLE
BECOMES ABNORMALLY HIGH AND IT RESULTINGLY CAUSES BURST OF
THE PIPE AND INJURIES ON PERSONS.
• IN THE EVENT THAT THE REFRIGERANT GAS LEAKS OUT OF THE PIPE
DURING THE INSTALLATION WORK, IMMEDIATELY LET FRESH AIR
INTO THE ROOM. IF THE REFRIGERANT GAS IS HEATED BY FIRE OR
SOMETHING ELSE, IT CAUSES GENERATION OF POISONOUS GAS.
WARNING
• Never modify this unit by removing any of the safety guards or bypassing any of
the safety interlock switches.
• Do not install in a place which cannot bear the weight of the unit.
Personal injury and property damage can result if the unit falls.
• Before doing the electrical work, attach an approved plug to the power supply
cord.
Also, make sure the equipment is properly earthed.
• Appliance shall be installed in accordance with national wiring regulations.
If you detect any damage, do not install the unit. Contact your dealer
immediately.
• Do not use any refrigerant different from the one specified for complement or
replacement.
Otherwise, abnormally high pressure may be generated in the refrigeration
cycle, which may result in a failure or explosion of the product or an injury to
your body.
• Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition
sources (for example: open flames, an operating gas appliance or an operating
electric heater).
• Be aware that refrigerants may not contain an odour.
• Do not pierce or burn as the appliance is pressurized. Do not expose the
appliance to heat, flame, sparks, or other sources or ignition. Else, it may
explode and cause injury or death.
2

• For R32 model, use pipes, flare nut and tools which is specified for R32
refrigerant. Using of existing (R22) piping, flare nut and tools may cause
abnormally high pressure in the refrigerant cycle (piping), and possibly result in
explosion and injury.
• Thickness of copper pipes used R32 must be more than 0.8 mm. Never use
copper pipes thinner than 0.8 mm.
• Do not perform flare connection inside a building or dwelling or room, when
joining the heat exchanger of indoor unit with interconnection piping. Refrigerant
connection inside a building or dwelling or room must be made by brazing or
welding. Joint connection of indoor unit by flaring method can only be made
at outdoor or at outside of building or dwelling or room. Flare connection may
cause gas leak and flammable atmosphere.
• After completion of installation or service, confirm there is no leakage of
refrigerant gas. It may generate toxic gas when the refrigerant contacts with fire.
• Appliance and pipe-work shall be installed, operated and stored in a room with a
floor area larger than Amin m2.
How to get Amin m2: Amin = (M / (2.5 x 0.22759 x h0))2
M is the refrigerant charge amount in appliance in kg. h0is the installation height
of the appliance in m: 0.6 m for floor standing/1.8 m for wall mounted/1.0 m
for window mounted/2.2 m for ceiling mounted (For these units recommend
installation height 1.0 m or less.).
• Comply with national gas regulations.
CAUTION
• Exposure of unit to water or other moisture before installation could result in
electric shock.
Do not store it in a wet basement or expose to rain or water.
• After unpacking the unit, examine it carefully for possible damage.
• Do not install the unit at place where leakage of flammable gas may occur. In
case gas leaks and accumulates at surrounding of the unit, it may cause of fire.
• Do not install in a place that can increase the vibration of the unit. Do not
install in a place that can amplify the noise level of the unit or where noise and
discharged air might disturb neighbors.
• To avoid personal injury, be careful when handling parts with sharp edges.
• Please read this installation manual carefully before installing the unit. It contains
further important instructions for proper installation.
• The manufacturer shall not assume any liability for the damage caused by not
observing the description of this manual.
EN
ES
FR
IT
PT
PL
CZ
RU
CR
HU
TR
NL
GR
SV
FI
NO
DK
RO
BG
EE
LV
SK
SI
DE
3

REQUIREMENT OF REPORT TO THE LOCAL POWER SUPPLIER
Please make absolutely sure that the installation of this appliance is reported
to the local power supplier before installation. If you experience any problems
or if the installation is not accepted by the supplier, the service agency will take
adequate countermeasures.
■ Important information regarding the refrigerant used
This product contains fluorinated greenhouse gases.
Do not vent gases into the atmosphere.
Refrigerant type: R32
GWP(1) value: 675 * (ex. R32 ref. AR4)
(1)GWP = global warming potential
The refrigerant quantity is indicated on the unit name plate.
* This value is based on F gas regulation 517/2014.
4

ACCESSORY PARTS
ACCESSORY PARTS
ACCESSORY AND INSTALLATION PARTS
No. Parts name (Q’ty) No. Parts name (Q’ty)
1
Installation plate* x 1
2
Wireless remote control* x 1
3
Battery x 2
4
Remote control holder* x 1
5
Filter**
6
Filter**
7
Mounting screw** ø4 x 25 sx 8
8
Pan head wood screw ø3.1 x 16 sx 2
9
Insulation sheet x 1 (for some models only)
!
Drain nipple*** x 1 (for heating model only)
"
Cap water proof*** x 2 (for some models only)
#
Owner’s Manual
$
Installation Manual
%
B Label x 2 (for Multi model)
* The part may differ from that shown.
** The number of parts may differ by model.
*** The part is packed with the outdoor unit.
Air filters
Clean every 2 weeks.
1. Open the air inlet grille.
2. Remove the air filters.
3. Vacuum or wash and then dry them.
4. Reinstall the air filters and close the air inlet grille.
Filter
Maintenance & Shelf-life
Clean every 3-6 months when dust tuck or covers the filter.
1. Recommend to use vacuum to clean by sucking the dusts which stick or dip inside the filter or use the blower to blow the dust go out through the filter.
2. If necessary to use water to clean, simply use the plain water to wash the filter, dry with the sunlight for 3-4 hours or until it completely dry.
Nevertheless, use hair dryer to dry it. However, washing with water, it may reduce the performance of the filter.
3. Replace every 2 years or sooner. (contact your dealer to purchase new filter) (P/N : RB-A620DE)
Note: Filter life depends on the level of impurities in your operating environment. Higher levels of impurities may require more frequent cleaning and
replacement. In all cases, we recommend an additional set of filters to improve the purifying and deodorizing performance of your air conditioner.
Filter
EN
ES
FR
IT
PT
PL
CZ
RU
CR
HU
TR
NL
GR
SV
FI
NO
DK
RO
BG
EE
LV
SK
SI
DE
5

1Installation plate
50 mm or more
50 mm or more
Shield pipe
Air filter
5Filter
6Filter
70 mm or more

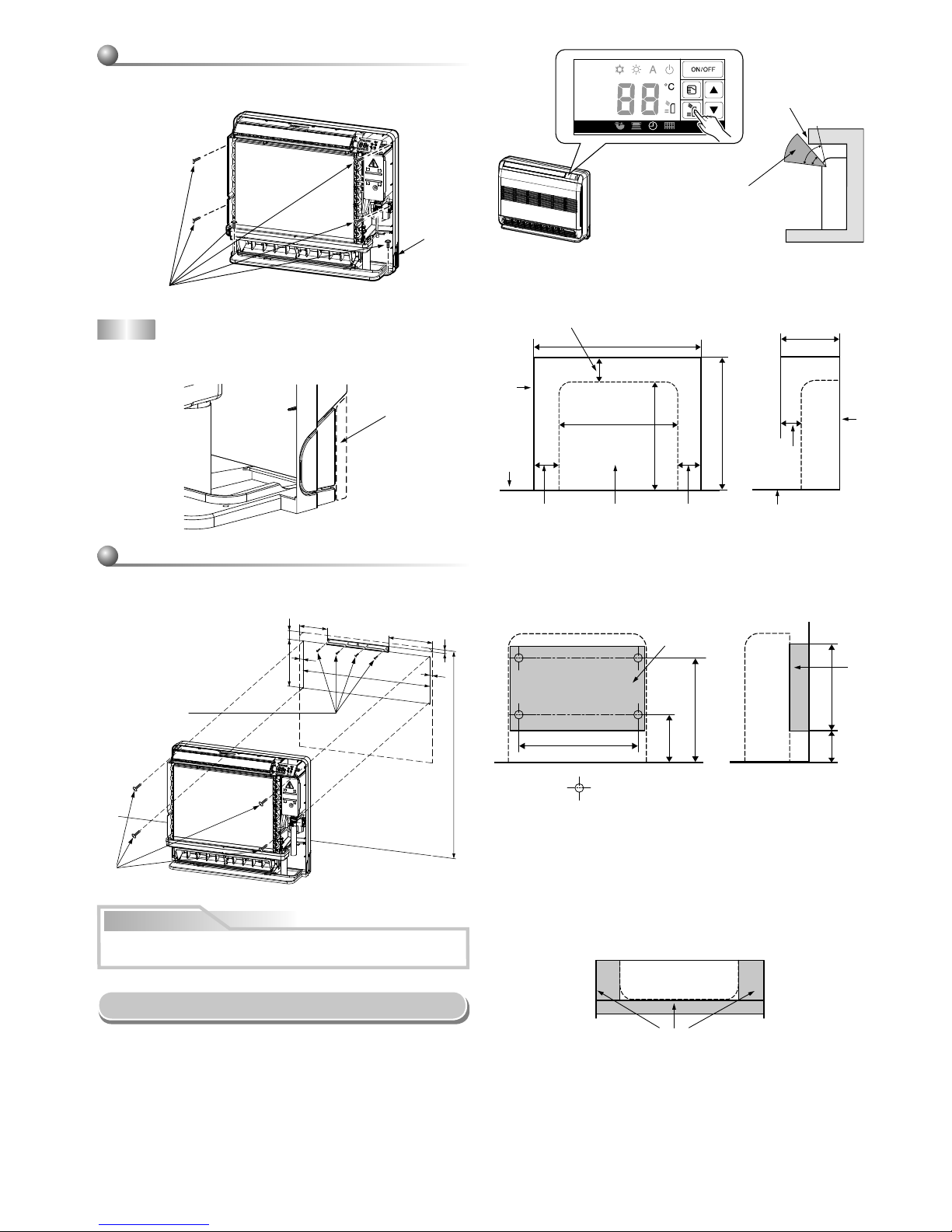

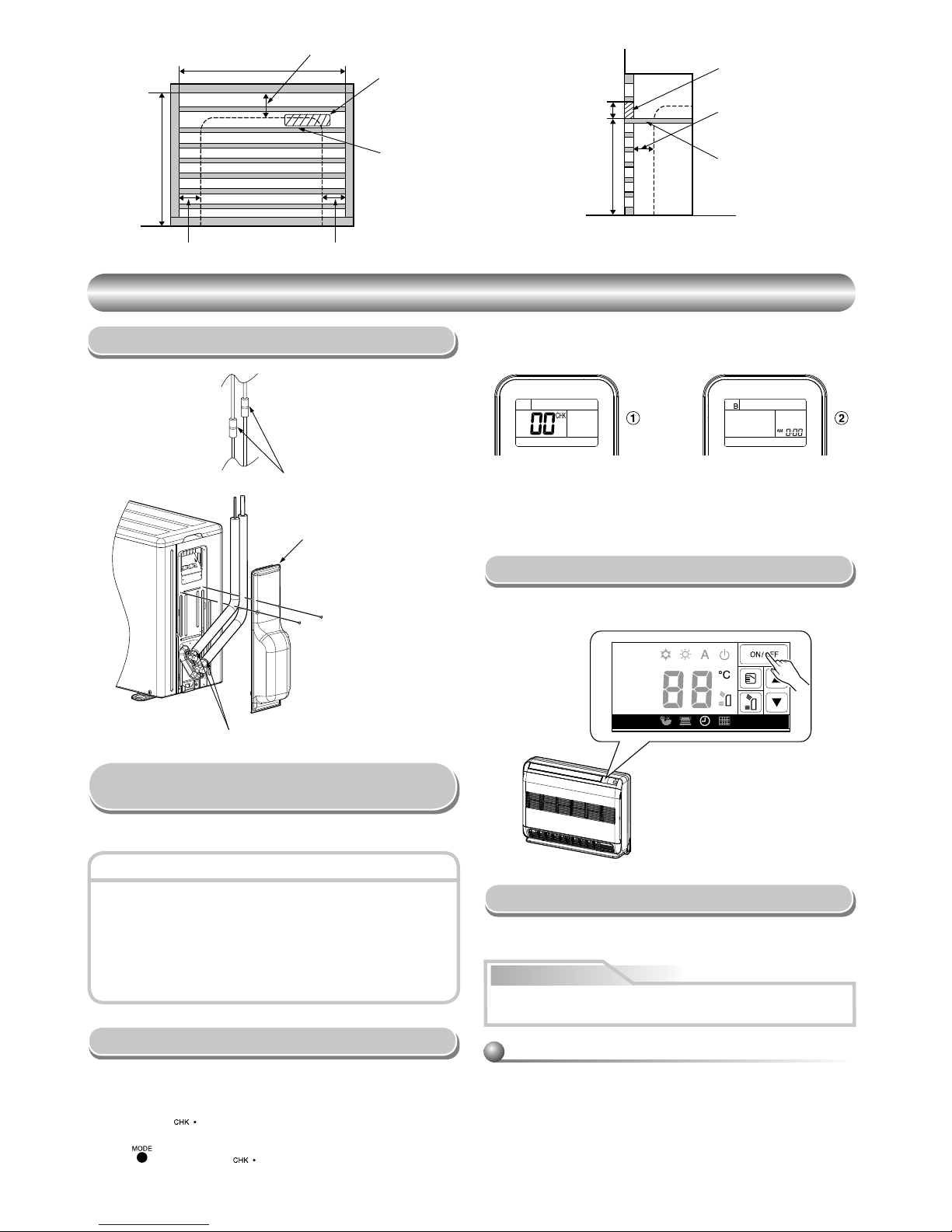

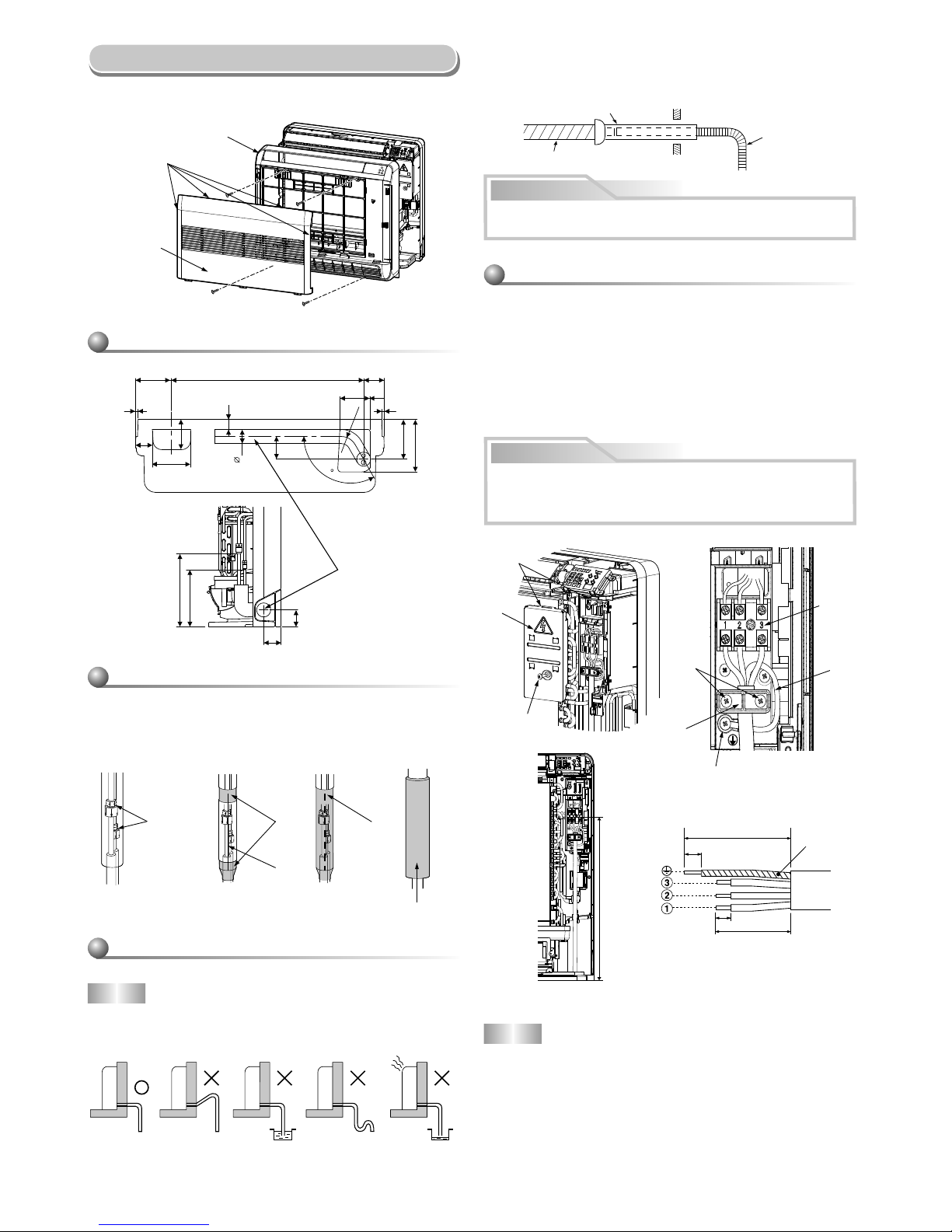

INSTALLATION DIAGRAM OF INDOOR UNIT
INSTALLATION DIAGRAM OF INDOOR UNIT
Part
code Parts name Q’ty
A
Refrigerant piping
Liquid side : ∅6.35 mm
Gas side : ∅9.52 mm
(RAS-B10, 13U2FVG-E)
: ∅12.7 mm
(RAS-B18U2FVG-E)
One
each
BPipe insulating material
(polyethylene foam, 8 mm thick) 1
CPutty, PVC tapes One
each
Optional Installation Parts
3Batteries
8Pan head
wood screw 4Remote control holder
Do not allow the drain hose to get
slack.
Make sure to run the drain hose
sloped downward.
The auxiliary piping can be
connected to the left, rear left, rear
right, right, bottom right or bottom
left.
Insulate the refrigerant pipes
separately with insulation, not
together.
8 mm thick heat resisting
polyethylene foam
Cut the piping
hole sloped
slightly.
Right
Rear right Left
Bottom right Rear left
Bottom left
Cut dot-line area
In case of right or left piping
7Mounting screw 9Insulation sheet
2Wireless remote control
Refrigerant piping
must be protected from
physical damage.
Install a plastic cover or
equivalent.
Vinyl tape
Apply after carrying
out a drainage test.
6

7 m
60
90
7 m
7 m
45
45
60100 45
45 45 45
100 70
60
100
230
150
(700)
(600)
(205)
15 15
90
15
15
272
560
590
670
INDOOR UNIT
INDOOR UNIT
Installation Place
Remote control
•A place where there are no obstacles such as a curtain that may block the
signal from the remote control.
•Do not install the remote control in a place exposed to direct sunlight or
close to a heating source such as a stove.
•Keep the remote control at least 1 m apart from the nearest TV set or
stereo equipment (This is necessary to prevent image disturbances or
noise interference).
•The location of the remote control should be determined as shown below.
Cutting a Hole and Mounting
Installation Plate
When the installation plate is directly mounted
on the wall
1. Securely fit the installation plate onto the wall by screwing it in the upper
and lower parts to hook up the indoor unit.
2. To mount the installation plate on a concrete wall with anchor bolts, use
the anchor bolt holes as illustrated in the below figure.
3. Install the installation plate horizontally in the wall.
NOTE
•When drilling a wall that contains a metal lath, wire lath or metal plate, be
sure to use a pipe hole brim ring sold separately.
•A place which provides the spaces around the indoor unit as shown in the
diagram.
•A place where there are no obstacles near the air inlet and outlet.
•A place which allows easy installation of the piping to the outdoor unit.
•A place which allows the front panel to be opened.
•In case of block, brick, concrete or similar type walls, make ∅5 mm holes
in the wall.
•Insert clip anchors for appropriate mounting screws 7.
Installation plate
(Keep horizontal direction)
∅5 mm hole
Clip anchor
(local parts)
Anchor bolt
Projection
15 mm or less
Cutting a hole
Mounting the installation plate and screw position
CAUTION
•Direct sunlight to the indoor unit’s wireless receiver should be avoided.
•The microprocessor in the indoor unit should not be too close to RF
noise sources.
(For details, see the owner’s manual)
1. After determining the pipe hole position, drill the pipe hole (∅65 mm) at a
slight downward slant to the outdoor side.
7Mounting screw
∅4 mm x 25 s
CAUTION
Failure to firmly install the unit may result in personal injury and property
damage if the unit falls.
Remote
control
Indoor unit
Reception range
(Side view) (Top view)
Reception range
* : Axial distance
: Pipe hole (∅65 mm)
(Side piping)(Rear piping)
(Bottom piping)
(Unit : mm)
Floor
Wall
Remote control
EN
ES
FR
IT
PT
PL
CZ
RU
CR
HU
TR
NL
GR
SV
FI
NO
DK
RO
BG
EE
LV
SK
SI
DE
7

47
49
210
163
64
29
85
66
40
100
108
49
542 58
4085
112
148
R45
120
How to Install Indoor Unit
1. Remove the air inlet grille. Open the air inlet grille and remove the strap.
2. Remove the front panel (Remove the 4 screws).
NOTE
•The hole should be made at a slight downward slant on the outdoor side.
Shield pipe
Drain hose
Extension drain hose
Inside the room
2. Put water in the drain pan and make sure that the water is drained out of
doors.
3. When connecting extension drain hose, insulate the connecting part of
extension drain hose with shield pipe.
CAUTION
Arrange the drain pipe for proper drainage from the unit.
Improper drainage can result in dew-dropping.
Front panel
Air inlet grille
Hook
Treatment of piping connection
1) Check the flare nut connections for the gas leak with a gas leak detector
or soap water.
2) To prevent gap in slit, fasten top and bottom with tape.
3) Slit is covered with tape.
4) Fasten with supplied Insulate sheet to prevent gap on the top of slit.
Gas leak check Tape
Slit
9Insulation sheet
Do not rise the
drain hose.
Do not form the
drain hose into
a wavy shape.
Do not put the
drain hose end
into water.
Do not put the
drain hose end in
the drainage ditch.
Drainage
1. Run the drain hose sloped downwards.
Wiring connection
Wiring of the connection cable is necessary to remove the front panel.
1. Remove the terminal cover and cord clamp.
2. Insert the connecting cable (according to the local rule) into the pipe hole
on the wall.
3. Take out the connecting cable through the cable slot on the rear panel so
that it protrudes about 50 cm from the front.
4. Insert the connecting cable fully into the terminal block and secure it
tightly with screws.
5. Tightening torque : 1.2 N·m (0.12 kgf·m)
6. Secure the connecting cable with the cord clamp.
7. Fix the terminal cover, install the front panel and grille inlet.
CAUTION
•Be sure to refer to the wiring system diagram labeled inside the front
panel.
•Check local electrical cords and also any specific wiring instructions or
limitations.
110 mm
20 mm
10 mm
50 mm
NOTE
•Use stranded wire only.
•Wire type : H07RN-F or 60245 IEC66 (1.0 mm2or more)
Stripping length of the connecting cable
Terminal
block
Earth line
Screw
Cord clamp
Earth screw
Earth line
Screw
Terminal cover
Hook
Layout of connection piping
Connection piping
430 mm
Tape
8

(700)
(600)
272
560
670
240 340
Concealed Installation
The special method to install the indoor unit bury in the wall is shown here.
Please make sure to change to wall burying mode.
1. To switch to the wall burying mode
To switch to the wall burying mode, press and hold AIR OUTLET
SELECT button for 20 seconds.
- When the operation set up and 5 beep sounds. Then indication at
Temperature indicator will light up for 5 seconds.
- To cancel, press AIR OUTLET SELECT button for 20 seconds then, 5
beep sounds. Then indication at Temperature indicator will blinks for 5
seconds.
- To prevent dewfall, above plate angle should be narrow.
3. Installation using the supporting plate
•To install into the existing wall hole, if it is impossible to keep 20-30 mm
of depth, use the supporting plate for securing the distance.
•Arrange the screw positions and supporting plate as shown in the
figure.
•Be sure to switch to wall burying mode.
(Rear screws potion)
(Field supply)
: Screw holes
(Field supply)
(Unit : mm)
Wall burying mode
For prevent dewfall
2. Wall hole size
Wall hole size should be enough to keep the distance with indoor unit as
shown in the following figure.
50 or more Indoor unit 50 or more
(Front view)
70 or more
800 or more
Wall
Floor
670 or more
2
0 to 30
240 to 250
Floor
Wall
(Side view)(Unit : mm)
4. In case of lattice establishment
•Follow the following figure, make sure to keep enough distance
between lattice, frame and wall.
•Be sure to switch to wall burying mode.
•The lattice should be make of wood.
•Between the air inlet and outlet, should be devided with partition board.
•Be sure to establish the open part for RECEIVER.
•The open part of lattice must be opens 70 % or more of the wall hole.
•The open part of lattice must be arranged uniformly.
(Top view)
Partition board
(Unit : mm)
(Side view)
NOTE
•In case the plinth is fixed to the wall, please make sure to cut out the slit
on the left and right side of the main part.
Mounting directly on the floor.
1) Fix the leg of indoor unit on the floor with 2 mounting screws.
2) Fix the upper part of indoor unit on the wall with 4 mounting screws.
Cut dot-line area
Slit
6 screw
(M4 x 25L)
Installation on the wall
1) Fix the installation plate on the wall with 4 mounting screws.
2) Hook the indoor unit on the installation plate.
3) Fix the upper part of indoor unit on the wall with 4 mounting screws.
(Floor installation)
CAUTION
Make sure to fix it at a designated position with the screws.
Failure may result the damage of piping by the turning over of a set.
(Wall installation)
230
150
10
15
15
40
288
670
1000 mm or less
4 screw
(M4 x 25L)
4 screw
(M4 x 25L)
EN
ES
FR
IT
PT
PL
CZ
RU
CR
HU
TR
NL
GR
SV
FI
NO
DK
RO
BG
EE
LV
SK
SI
DE
9

500 140
(Side view)
Partition board
20 to 30
Opening for receiver
(Front view)
800 or more
670 or more
Partition board
Opening for receiver
50 or more 50 or more
70 or more
• Check the flare nut
connections for the gas
leak with a gas leak
detector or soap water.
Gas Leak Test
Check places for flare nut connection
(Indoor unit)
Check places for the outdoor unit.
Valve cover
Remote control selector switch
•When two indoor units are installed in the same room or adjacent two
rooms, if operating a unit, two units may receive the remote control
signal simultaneously and operate. In this case, the operation can
be preserved by setting either one indoor unit or remote control to B
setting (Both are set to A setting in factory shipment).
•The remote control signal is not received when the settings of indoor
unit and remote control are different.
•There is no relation between A setting/B setting and A room/B room
when connecting the piping and cables.
When two indoor units are installed in the separated rooms, it is not
necessary to change the selector switches.
Setting of Remote Control
Selector Switch
Remote Control A-B Selection
To separate using of remote control for each indoor unit in case of 2 air
conditioners are installed nearly.
Remote Control B Setup.
1. Push and hold button on the Remote Control by the tip of the pencil.
“00” will be shown on the display (Picture 1).
2. Press during pushing . “B” will show on the display and “00” will
disappear and the air conditioner will turn OFF. The Remote Control B is
memorized (Picture 2).
Note : 1. Repeat above step to reset Remote Control to be A.
2. Remote Control A has not “A” display.
3. Default setting of Remote Control from factory is A.
Unit B setup.
Press and hold MODE button for more than 20 seconds.
When A setup changed to B setup : 5 beeps will sound and operation
lamp blinks for 5 seconds.
When B setup changed to A setup : 5 beep will sound.
OTHERS
OTHERS
Test Operation
Auto Restart Setting
How to set the Auto Restart
1. Press and hold OPERATION button on the indoor unit for 3 seconds to set
the operation (3 beep sound and OPERATION lamp blink 5 time/sec for 5
seconds).
2. Press and hold
OPERATION button on the indoor unit for 3 seconds to
cancel the operation (3 beep sound but OPERATION lamp does not blink).
• In case of ON timer or OFF timer are set, it dose not activate.
This product is designed so that, after a power failure, it can restart
automatically in the same operating mode as before the power failure.
To switch the TEST RUN (COOL) mode, press OPERATION button for 10
seconds (The beeper will make a short beep).
Information
The product are shipped with Auto Restart function in the off position.
Turn it on as required.
10

1112151199
