User’s Manual
Camileo Pro HD
NL
PT
TR
DE
ES
FR
IT

1
Welcome:
Welcome and thank you for choosing a TOSHIBA product.
For your convenience, your TOSHIBA product is furnished with two guides:
a) a Quick Start Guide, and
b) a comprehensive PDF* User’s Manual on the included CD.
* Requires Adobe Acrobat / Reader v. 5 or later. Free Reader Downloads at:
www.adobe.com/products/acrobat/readstep2.html

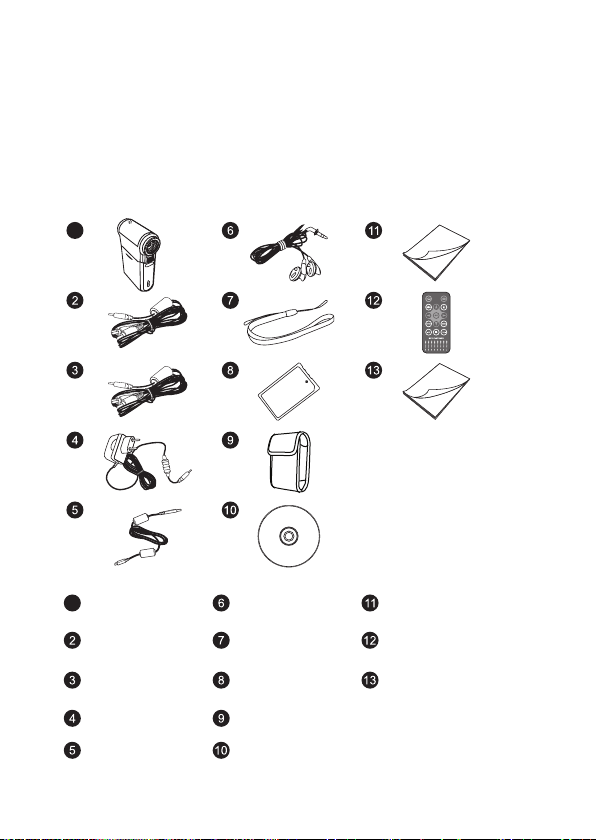

Check the Components
1
1
Camcorder Earphone Quick Start Guide
AV Cable Strap Remote control
Component Video
Cable Li-Ion Battery Warranty Leaet
AC Adaptor Pouch
USB cable CD (Software,
User’s Manual)

2
Safety Instructions:
1. Do not drop, puncture or disassemble the camcorder; otherwise the warranty will be
voided.
2. Avoid all contact with water, and dry hands before using.
3. Do not expose the camcorder to high temperature or leave it in direct sunlight. Doing so
may damage the camcorder.
4. Use the camcorder with care. Avoid pressing hard on the camcorder body.
5. For your own safety, avoid using the camcorder when there is a storm or lightning.
6. Do not use batteries of different specications. Doing so may lead to the potential for
serious damage.
7. Remove the battery during long periods between usage, as a deteriorated battery may
affect the functionality of the camcorder.
8. Remove the battery if it shows signs of leaking or distortion.
9. Use only the accessories supplied by the manufacturer.
10. Keep the camcorder out of the reach of infants.
11. Risk of explosion if battery is replaced by an incorrect type.
12. Dispose of used batteries according to the instructions.
Important Safety Information:
1. Avoiding water and wet locations
Do not use the product in rain, or near washbasins or other wet locations. Take care
not to spill any food or liquid into the product. In case the product gets wet, unplug all
cables, turn it off and allow it to dry thoroughly before turning it on again.
2. Avoid hearing damage
Permanent hearing loss may occur if earphones are used at high volume. Set the
volume to a safe level. You can adapt over time to a higher volume of sound that may
sound normal but can be damaging to your hearing. If you experience ringing in your
ears of mufed speech, stop listening and have your hearing checked. The louder the
volume, the less time is required before your hearing could be affected. Hearing experts
suggest that to protect your hearing:
- limit the amount of time you use earphones at high volume
- avoid turning up the volume to block out noisy surroundings
- turn the volume down if you can’t hear people speaking near you

3
System Requirements:
System requirements are different in different video resolution settings:
Video Resolution PC system requirements
HD (1280x720) @30fps
OS = Windows XP SP2, Vista or above (QuickTime
7.0 or above)
CPU = Pentium 4 3.0GHz or above
System RAM = 512MB (1GB recommended)
Display card = 256MB of RAM
DVD (720x576) @30fps OS = Windows 2000/XP, Vista or above (QuickTime
7.0 or above)
CPU = Pentium 4 1.5GHz or above
System RAM = 256MB (512MB or above recommended)
Display card = 64MB (128MB or above recommended)
VGA (640x480) @30fps
CIF (352x240) @30fps

4

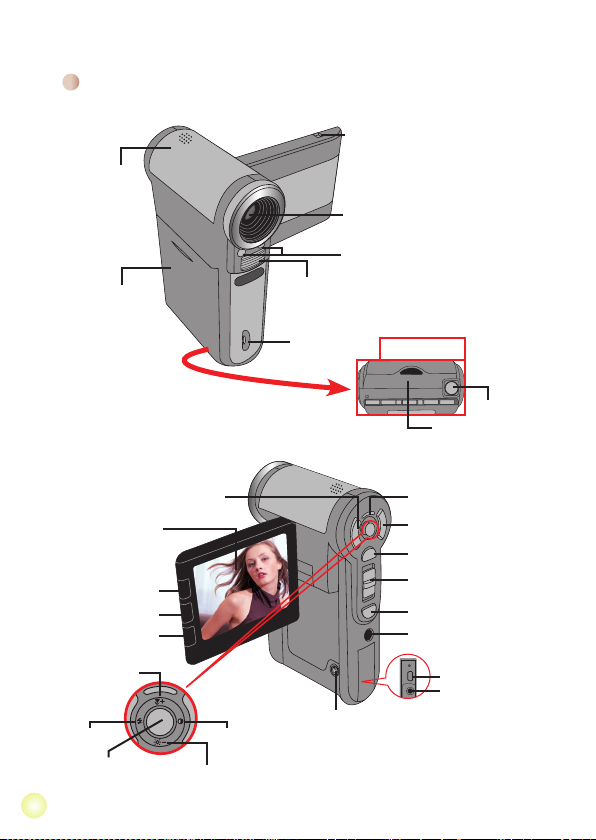

Knowing your camcorder parts
SD card slot
(inside the battery cover)
Bottom view
Tripod socket
Macro mode
switch
LED lights switch
White balance switchFlash switch
OK key/
Joystick 5-way
Battery cover Flash strobe
Lens
Speaker
Strap hook
LED lights
Microphone
Shutter button
AV OUT connector
/Earphone
LCD monitor
Zoom (in/out) button
Record button
MENU button
Status LED (left) /
Charging LED (right)
MODE button
Power button
Previous button/
Fast backward button
Next button/
Fast forward button
Play/Pause button
Getting Started
USB connector
HD OUT

5
Please charge the battery at least 8 hours for rst time use.
1. Connect the cable.
Connect one end of the supplied AC adapter to the USB port of the
camcorder and the other end to a wall outlet.
OR
Connect one end of the supplied USB cable to the USB port of the camcorder and the
other end to a powered PC. Make sure the camcorder is powered off.
2. The charging LED turns red and the charge starts.
3. When the charging is interrupted or the battery pack is fully charged, the charging LED
will turn green.
When using a PC to charge the battery, do not power on the camcorder, or
the charge will stop.
Installing the battery
1. Slide the battery cover open.
2. Place the accessory Li-Ion battery into the compartment. Note
that the metallic contacts must be aligned with the contacts in the
compartment.
3. After the battery is properly installed, replace the battery cover.
Charging the battery
Open the LCD monitor or press and hold down the Power button
for 1 second to turn on the camcorder.
To turn off the camcorder, press and hold down the Power button
for 1 ~ 3 seconds or close the LCD monitor.
Turning on/off your camcorder
If the camcorder stays inactive for a long period of time, it may automatically
shut down due to the Auto-Off setting.
To insert a memory card, do the followings:
(1) Open the battery cover.
(2) Gently push the card as indicated until the card reaches the bottom of the slot.
To remove the memory card, gently push the card and it will pop up. Then pull the card
out of the slot.
Inserting a memory card (optional)

6
Setting language
1. Power on the camcorder.
2. Press the MODE key to enter the MODE menu.
3. Use the Joystick switch to select the Setting mode and press
OK to enter the menu screen.
4. Use the Joystick to select the Language item, and then Press
OK to conrm.
5. Move the Joystick up/down to select a language.
6. When done, press OK to conrm the setting.
Setting time
1. Power on the camcorder.
2. Press the MODE key to enter the MODE menu.
3. Use the Joystick switch to the Setting mode and press OK to enter the menu screen.
4. Use the Joystick to select the Date & Time item, and then Press OK to conrm.
5. Move the Joystick up/down to adjust value. Move the Joystick left/right to shift
between elds.
6. When done, press OK to conrm the setting.

7
The LCD will display 4:3 ratio while setting as DVD (720x576), VGA or CIF
video resolution. (Please refer to the page 9 for more detailed instructions.)

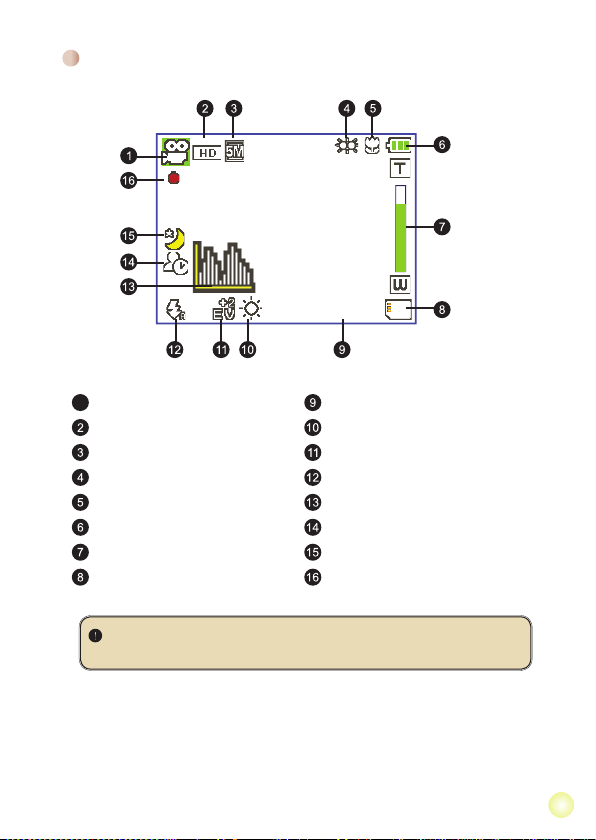

Reading LCD indicators
1
Mode icon Remaining recordable time
Video resolution While Balance mode
Picture resolution Exposure mode
LED lights mode Flash mode
Macro mode Histogram mode
Battery life Selftimer mode
Zoom ratio indicator NightShot mode
SD card inserted Recording time
00:06:40
00:00:05

88

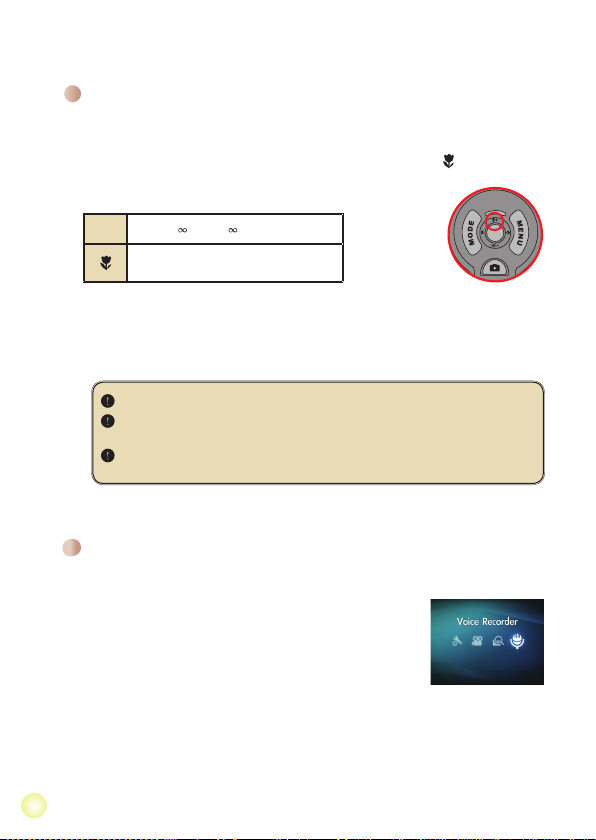

Recording a video clip

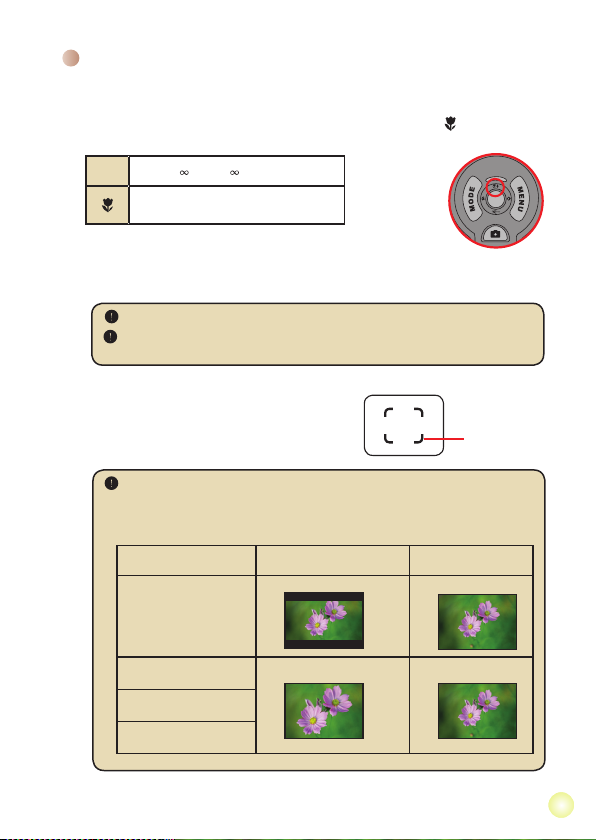

1. Adjust the focus:
Normally the camcorder can auto focus without adjusting focus. If you want to take close-
up pictures, you can push the Up button to switch to Macro mode ( ).
Note: Please make sure your memory card is inserted before
recording.
-30cm ~ (12” ~ )
5cm ~ 30cm (2” ~ 12”)
* At 1.5X xed zoom
2. Zooming:
Move the Zoom button up or down to zoom in or zoom out the screen. The optical
magnication is 3X.
3. Press the Record button to start recording.
4. Press the Record button again to stop recording.
The zoom function is also available during recording (except in macro mode).
If the surroundings are dark, you can switch the LED lights mode to On or
Auto to help focus and lighting.
It’s normal that the camcorder will feel slightly warm with continuous use /
recording due to its high performance.
Recording a voice clip
1. Power on the camcorder.
2. Press the MODE key to enter the MODE menu.
3. Use the Joystick switch to select the Voice Recorder mode
and press OK to enter the menu screen.
4. Press the Record button to start recording
5. Press the Record button again to stop recording.
Basic Operations

99
1. Adjust the focus:
Normally the camcorder can auto focus without adjusting focus. If you want to take close-
up pictures, you can push the Up button to switch to Macro mode ( ).
Note: Please make sure your memory card is inserted before recording.
-30cm ~ (12” ~ )
5cm ~ 30cm (2” ~ 12”)
* At 1.5X xed zoom
2. Zooming:
Move the Zoom button up or down to zoom in or zoom out the screen. The optical
magnication is 3X.
3. Press the Shutter button half way down and
hold for the camcorder to auto focus. When the
focus frame turns green, press the button fully
down to take a still picture.
Taking a still picture
Adjust other advanced settings if necessary.
If the surroundings are dark, you can switch the LED lights mode to On or
Auto to help focus and lighting.
focus frame
Due to the sensor capture feature, the LCD preview and ratio of still picture
capture will vary depending upon different video resolution settings.
The image capture of the camcorder is set where as video resolutions are
different.
Video resolution Preview Taking pictures
and focusing
HD(1280x720p)
16:9 ratio 4:3 ratio
DVD(720x576) 4:3 ratio 4:3 ratio
VGA(640x480)
CIF(352x240)

1010
Playing back your recordings
1. Press the MODE button and use the Joystick to switch to
“My Works” mode.
Or press the Play/Pause button ( ) on the left side of the
LCD monitor.
2. There are three folders below My works: Video, Picture,
and Voice. Select Video, Picture or Voice, and then press
the OK key to enter the index mode.
3. Operations in playback mode:
File type How to... Action
Index mode
Full-screen mode
Shift between Index
mode and Full-
screen mode
In Index mode, press the OK key to switch to Full-
screen mode. In Full-screen mode, press the MENU
button to switch to Index mode.
Shift between les
1. In Index mode: Use the Joystick to move the
highlight box.
2. In Full-screen mode: Use the Joystick to move
left or right.
Video & Audio
Start playing When selected (in full-screen mode), the le
automatically starts playing.
Pause/Resume
playing During playing/While paused, press the OK key.
Adjust the volume
level
During playing, use the Joystick to move up or
down.
Stop playing During playing, press the MENU button.
Return to the
preview screen Press the Shutter button.
Fast forward During playing, press the Next ( ) button. To stop,
press the Play/Pause ( ) button.
Fast backward During playing, press the Previous ( ) button. To
stop, press the Play/Pause ( ) button.
Select the next le While paused/stopped, press the Next ( ) button.
Select the previous
le
While paused/stopped, press the Previous ( )
button.
Zoom in/out Use the Joystick to move up or down.
Lock/Release zoom
ratio
When the zoom ratio is greater than 1.0x, press
the OK key.
Browse the enlarged
When the zoom ratio is locked, use the Joystick to
browse the picture.

1111
Playing back your recordings on PC
Installing software
Please notice that the recorded videos are .mp4 format. So you need some special
programs to view the recordings on PC.
Please install the HD-DV DECODER program on the bundled CD.
(* HD-DV DECODER is designed for playing back the .mp4 les recorded by our
camcorder with Windows Media Player 10 & 11.)
Connecting PC and Save les
After the software is properly installed on your PC, please follow below procedures.
1. Turn on the camcorder.
2. Connect the camcorder (with SD card inserted) to your computer with the USB
cable.
3. A dialogue window will appear automatically. Please select the item “Open folder to
view les” and click “OK”.
4. If the dialogue window does not appear automatically, you may double click on “My
computer” and open the “Removable Drive”.
5. Double-click on the DCIM le folder.
6. Double-click on the 100MEDIA le folder.
7. Copy the les you wish to keep and save them to the desired location on your
computer.

1212
Connecting the camcorder to TV
Please follow the below instructions to connect your camcorder and
TV via accessory AV cables for real-time display. You can display your
video clips and still pictures on your TV, sharing them with your friends
and family.

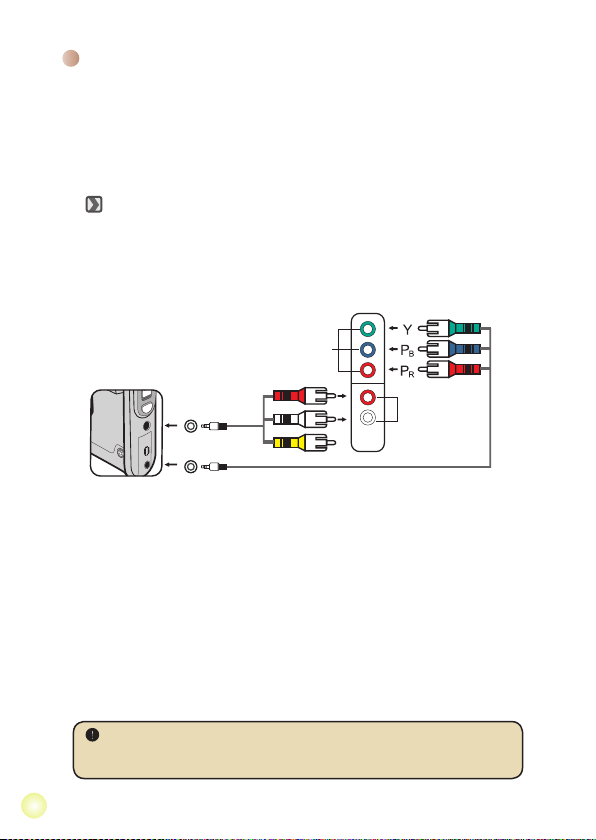

Connecting the camcorder to HDTV
1. Turn on your HD TV.
2. Turn on the Camcorder.
3. Plug one end of the component video cable into the (Component
Video IN) port on the HDTV and the other end into the (HD OUT) port
on Camcorder.
4. Plug one end of the other AV cable into the (Component Audio IN) port
on the HDTV and the other end into the (AV OUT) port on Camcorder.
(Please do not plug in the yellow connector to HDTV’s AV-IN.)
5. Press the input switch mode on HD TV and select “Component Input”.
If you record an HD resolution clip while connected to your HD TV, the TV
display video resolution will down size to DVD (720x576) resolution due to
data bit rate, but the recorded le will remain HD with no change.
HD TV hereby means the HDTV built-in component input ports, thus can perform
HD high resolution quality while connected.
AV OUT
HD OUT
HD TV
Component Audio in
Component Video in
<Component Video cable>
<AV cable>
(red)
(yellow)
(white)
(green)
(red)
(blue)
(Do not plug in Yellow Cable)

1313

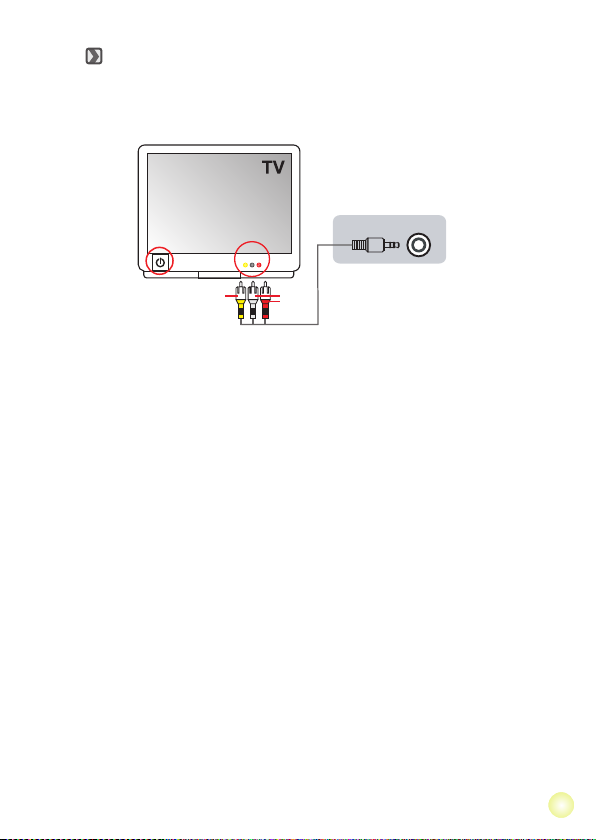

Connecting the camcorder to Standard TV
TV = Traditional CRT TV
1. Power on your TV and switch the TV to AV mode.
2. Connect the audio and video ends of the AV cable (yellow/white/red color)
to the TV “AV-IN” jacks.
3. Power on the camcorder.
4. Connect the other end of the AV cable to the “AV out” port on your
camcorder. When the pop-up message appears on the screen, please
select “AV-Out”.
AV cable
Video Audio
AV mode
AV-IN
AV Out

14
Menu operation
The menu items provide several options for you to ne-tune your camcorder functions.
The following table gives details on menu operations.
How to... Action
Bring up the menu Press the MENU button.
Move the highlight bar Use the Joystick to move up or down.
Enter sub-menu/Conrm an item Press the OK key.
Exit menu/Go back to upper menu Press the MENU button (when in sub-menu).
Advanced Operations
Menu items in Camcorder mode
Power-on → Press the Menu button.
Item Option Description
Video
resolution
HD Set the video resolution to HD (1280x720 pixels).
DVD Set the video resolution to DVD (720x576 pixels).
VGA Set the video resolution to VGA (640x480 pixels).
CIF Set the video resolution to CIF (352x240 pixels).
Resolution
3M Set picture resolution to 3 mega pixels.
5M Set picture resolution to 5 mega pixels.
8M Set picture resolution to 8 mega pixels.
NightShot On/Off
Enabling this setting allows you to take a photograph with
a dark background. Since the shutter speed will slow down
when taking photographs at a dark place, we recommend
using a tripod to eliminate blurring from hand shake.
Warning: Noise increases when NightShot is enabled.
WB
Auto The camcorder automatically adjusts white balance.
Sunny This setting is suitable for outdoor recording in sunny
weather.
Cloudy This setting is suitable for recording in cloudy weather or
shady environments.
Fluorescent This setting is suitable for indoor recording with uorescent
lamp lighting, or environments with high color temperature.
Tungsten This setting is suitable for indoor recording with incandescent
lamp lighting, or environments with low color temperature.

15
Menu items in Playback mode
Power-on → Press the MODE button → Use the Joystick to switch to My Works
mode → Select Video, Picture or Voice folder→ Press the OK button → Press the
MENU button.
Item Option Description
Delete One
Yes/No Delete current le.
Delete All
Yes/No Delete all pictures and video/audio les stored in the memory.
Slide Show/
Video play
-
The camcorder displays images/video clips in sequence. You can
press the OK key to stop the slide show/video play.
Lock
Yes/No
Single, multiple, or all les can be locked. A locked le cannot be
erased by a delete function. While the formatting function will erase all
locked/unlocked les.
* If there are no les in the camcorder, no items will be seen.
Menu items in Camcorder mode
Item Option Description
Flashlight
On The ash is forced to re in every shot.
Auto The ash automatically res when the lighting is insufcient.
Off The ash is disabled.
Video Light On/Auto/Off This setting allows you to add extra light when the lighting is
insufcient during recording video clips.
Effect
Normal Make recordings in natural color.
B&W Make recordings in black and white.
Classic Make recordings in sepia-toned color.
Exposure -2~+2
Manually adjust the exposure to gain better effect when the
preview image appears too bright or too dark. A positive
value indicates the image will be brighter than usual; while a
negative value makes the image dimmer.
Selftimer On/Off
Enable/Disable the selftimer. After the selftimer is turned on,
the camcorder will have ten seconds delay before recording
when the Shutter button is pressed.
Histogram On/Off Enable/Disable image histogram display on the screen.
Icon On/Off Enable/Disable OSD (on screen display) icons to display on
the screen.

16
Menu items in Setting mode
Power-on → Press the MODE button → Select the Setting ( ) mode → Press
the OK button.
Item Option Description
Date & Time - Set date and time.
Beep On/Off Enable/Disable beep sound.
Flicker
50Hz Set icker frequency to 50Hz*.
60Hz Set icker frequency to 60Hz*.
TV-Out
NTSC
Set TV system compatibility to NTSC. This option is suitable for
America, Taiwan, Japan, and Korea areas.
PAL
Set TV system compatibility to PAL. This option is suitable for
Germany, England, Italy, Netherlands, China, Japan, and Hong
Kong.
Icon On/Off Enable/Disable OSD icons to display on the screen.
LCD Bright -2~+2
Set LCD brightness. A positive value makes the LCD brighter;
while a negative value makes the LCD dimmer.
Format
Yes
Format the storage medium. Note that all les stored in the
medium will be gone.
No Cancel action.
Auto Off
Off Disable Auto-off function.
1 min
The camcorder automatically shuts down when staying inactive
for over 1 minute.
3 min
The camcorder automatically shuts down when staying inactive
for over 3 minutes.
5 min
The camcorder automatically shuts down when staying inactive
for over 5 minutes.
Language - Lets you select the language used for OSD.
Default
On
Restore factory defaults. Note that your current settings will be
overridden.
Off Cancel action.

17
Icon Description
Full battery life
Moderate battery life
Low battery life
* The ash strobe and the LED lights will be disabled.”
Empty battery life
Note: To avoid sudden outage of power supply, you are recommended to replace the battery
when the icon indicates low battery life.
Battery Life Indicator

18
Still picture Video clip
Number of shots Recording time (minute)
110 60
* shoot every 30 seconds
** ash is off
*** resolution is set to 5M (2592x1944)
* resolution is set to HD (1280x720 pixels)
Note: This table is for your reference only. The actual battery life depends on your battery
type and recharge level.
Battery Life
Storage Capacity
Memory Video (min.) Still picture
HD DVD VGA CIF 8M 5M 3M
SD card (256MB) 7 18 40 95 145 230
SD card (512MB) 15 36 80 190 290 460
SD card (1GB) 30 72 160 380 580 920
SD card (2GB) 60 144 320 770 1160 1840
SD card (4GB) 120 288 640 1540 2320 3680
Note: The actual value of capacity may vary (up to ± 30%) depending on the color saturation
and complexity of your subject and surroundings.

19
Specications
Item Description
Model 5 Mega-pixel camcorder
Image sensor 5 Mega (2592x1944 pixels)
Resolution
Still image: 3M/5M/8M
1280x720 (HD)
720x576 (DVD)
640x480 (VGA)
352x240 (CIF)
Lens 3X optical zoom lens
File format MP4, JPEG, WAV
Video frame rate
1280x720, up to 30fps
720x576, up to 30fps
640x480, up to 30fps
352x240, up to 30fps
Internal memory 128MB built-in; 90MB for storage
External memory SD/MMC card (minimum 256MB up to 32GB SDHC)
LCD display 2.4” LCD
TV out HDTV Component out, NTSC/PAL system supported
Interface USB 2.0
Microphone Yes
Speaker Yes
Voice Recorder Yes
Nightshot Yes (both in still image and video modes)
Battery NP60 compatible Li-ion rechargeable battery
Note: Specications are subject to change without notication.
