Toshiba G8000 Series User manual

Uninterruptible Power System (UPS)
G8000 Series
Installation Manual
•Read this operation manual carefully before
installing the UPS.
•Retain this manual with the UPS for easy
reference when required.
•This manual was written for the consulting
engineer, architect, and electrical contractor.
© TOSHIBA Corporation 2005
All Rights Reserved.
REQUIREMENT
S
Document Number: 57490-000
February 2005

1
The instructions contained in this manual are not intended to cover all of the details or variations in
equipment, or to provide for every possible contingency concerning installation, operation, or
maintenance. Should further information be required or if problems arise which are not covered
sufficiently contact your Toshiba sales office.
The contents of this instruction manual shall not become a part of or modify any prior or existing
agreement, commitment, or relationship. The sales contract contains the entire obligation of Toshiba
International Corporation's UPS Division. The warranty contained in the contract between the parties
is the sole warranty of Toshiba International Corporation's UPS Division and any statements
contained herein do not create new warranties or modify the existing warranty.
Any electrical or mechanical modifications to this equipment without prior written consent of
Toshiba International Corporation will void all warranties and may void the UL/CUL listing.
Unauthorized modifications can also result in personal injury, death, or destruction of the
equipment.
1. Introduction
This manual is intended to help implement safe and correct transportation, installation and wiring of the
G8000 Series Uninterruptible Power System (hereafter referred to "UPS").
Before transportation, installation and wiring of the UPS, please read through all of the chapters. Above
all, read the “General Safety Instructions,” “Important Safety Instructions,” “Safety Precautions” and
“Installation Precautions” chapters, as these must be carefully read. Please make sure that you have a
thorough understanding of the information in these 4 chapters.
Personnel that will install the UPS should carefully read this manual before installation.
Keep this manual close to the UPS so you can refer whenever necessary.
Also, please read through the "Operation Manual." The Operation Manual describes the important
instructions to be used during UPS operation. The manuals should remain together.
Notice
Please inform Toshiba Corporation or authorized representatives in case of inconsistencies,
omissions, or questions.

2
UNINTERRUPTIBLE POWER SUPPLY
Complete the information below for the UPS system received.
Unless otherwise specified, the warranty period for the UPS or UPS part is 36 months from the
shipment date (see TIC bill of lading).
Unless otherwise specified, the warranty period for a UPS battery is 24 months from the shipment
date (see TIC bill of lading).
Please complete the following information and retain for your records.
Job Number:
Model Number:
Serial Number:
Application:
Shipment Date:
Installation Date:
Inspected By:

3
Manual’s Purpose and Scope
This manual provides information on how to safely install, operate, and maintain your TIC power
electronics product. This manual includes a section of general safety instructions that describes the
warning labels and symbols that are used throughout the manual. Read the manual completely
before installing, operating, or performing maintenance on this equipment.
This manual and the accompanying drawings should be considered a permanent part of the
equipment and should be readily available for reference and review. Dimensions shown in the
manual are in metric and/or the English equivalent.
Toshiba International Corporation reserves the right, without prior notice, to update information,
make product changes, or to discontinue any product or service identified in this publication.
TOSHIBA is a registered trademark of the Toshiba Corporation. All other product or trade references
appearing in this manual are registered trademarks of their respective owners.
Toshiba International Corporation (TIC) shall not be liable for direct, indirect, special, or
consequential damages resulting from the use of the information contained within this
manual.
This manual is copyrighted. No part of this manual may be photocopied or reproduced in any form
without the prior written consent of Toshiba International Corporation.
© Copyright 2005 Toshiba International Corporation.
All rights reserved.
Printed in the U.S.A.
Contacting Toshiba’s Customer
Support Center
Toshiba’s Customer Support Center can be contacted to obtain help in resolving any
Uninterruptible Power Supply system problems that you may experience or to provide application
information.
The center is open from 8 a.m. to 5 p.m. (CST), Monday through Friday. The Support Center’s toll
free number is US [phone]/Fax [phone].
You may also contact Toshiba by writing to:
Toshiba International Corporation
13131 West Little York Road
Houston, Texas 77041-9990
Attn: UPS Product Manager.
For further information on Toshiba’s products and services, please visit our website at
www.tic.toshiba.com.

4
2. General Safety Instructions
DO NOT attempt to install, operate, maintain or dispose of this equipment until you have read and
understood all of the product safety information and directions that are contained in this manual.
Safety Alert Symbol
The Safety Alert Symbol indicates that a potential personal injury hazard exists. The symbol is
comprised of an equilateral triangle enclosing an exclamation mark.
Signal Words
Listed below are the signal words that are used throughout this manual followed by their descriptions
and associated symbols. When the words DANGER, WARNING and CAUTION are used in this
manual they will be followed by important safety information that must be carefully adhered to.
The word DANGER preceded by the safety alert symbol indicates that an imminently hazardous
situation exists that, if not avoided, will result in death or serious injury to personnel.
The word WARNING in capital letters preceded by the safety alert symbol indicates that a potentially
hazardous situation exists that, if not avoided, could result in death or serious injury to personnel.
The word CAUTION in capital letters preceded by the safety alert symbol indicates that a potentially
hazardous situation exists which, if not avoided, may result in minor or moderate injury.
The word CAUTION or ATTENTION in capital letters without the safety alert symbol indicates a
potentially hazardous situation exists which, if not avoided, may result in equipment and property
damage.
DANGER
WARNING
CAUTION/ATTENTION
CAUTION

5
3. IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS This instruction contains important
instructions for the G8000 Series
that should be followed during the installation, operation, and maintenance of the UPS systems.
Please refer to the battery manufacturer’s instructions for details on operating and maintaining the
batteries for each system.
The input and output of the UPS System are NOT equipped with an over-current protection
device, or an output disconnection at the AC output. Therefore, a circuit breaker should be
provided by the user between the UPS output and the critical load input. The minimum device
ratings should be as follows:
Capacity Rated Output Breaker Rating Capacity Rated Output Breaker Rating
100kVA 480V/277Vac 480V-150A
125kVA 380V/220Vac 380V-250A 150kVA 480V/277Vac 480V-225A
180kVA 380V/220Vac 380V-350A 225kVA 480V/277Vac 480V-350A
250kVA 380V/220Vac 380V-500A 300kVA 480V/277Vac 480V-450A
Circuit breakers should be provided by the user between AC input (or Bypass input) and power sources.
The minimum device ratings should be as follows:
Capacity Rated Input Breaker Rating Capacity Rated Input Breaker Rating
100kVA 480V/277Vac 480V-150A
125kVA 380V/220Vac 380V-250A 150kVA 480V/277Vac 480V-225A
180kVA 380V/220Vac 380V-350A 225kVA 480V/277Vac 480V-350A
250kVA 380V/220Vac 380V-500A 300kVA 480V/277Vac 480V-450A
The maximum ambient temperatures in which the UPS should be operated is 40°C (104°F) or 32°C
(90°F) maximum if the battery system is to be subje cted to the same temperature.
The nominal battery voltage for these models is 336Vdc for 125, 180 & 250kVA, and is 360Vdc for 100,
150, 225 & 300kVA. The nominal battery float voltage is 375Vdc for 125, 180 & 250kVA, and is 405Vdc
for 100, 150, 225 & 300kVA.
Only a certified service representative with battery experience should perform service on batteries. Keep
unauthorized people away from batteries.
Please refer to the battery manufacturer’s instruction when battery maintenance and/or replacement are
scheduled.
CAUTION Misuse of this equipment could result in personal injury and/or
equipment damage.
In no event will Toshiba Corporation be responsible or liable for either
indirect or consequential damage or injury that may come from the use
of this equipment.

6
4. Safety Precautions
Application
The UPS shall NOT be applied to support equipment (*) that could affect the
human lives.
Special considerations are required when applying this UPS to the equipment
(**) that affect human safety and/or maintain public services.
Be sure to contact/inform Toshiba if it is such a case. The application without
special consideration may cause serious accidents.
*•Medical operation room equipment
•Life support equipment (artificial dialysis, incubators, etc.)
•Toxic gas or smoke eliminators
•Equipment that must be provided under fire laws, construction standards or other
ordinances
•Equipment equivalent to the above
** •Equipment to supervise or control airways, railways, roads, sea-lanes or other
transportation.
•Equipment in nuclear power plants.
•Equipment to control communications.
•Equipment equivalent/similar to the above mentioned.
Disclaimer
In no event will Toshiba Corporation be responsible or liable for either
indirect or consequential damage or injury that may come from the use of
this equipment.
Any modifications without authorization by Toshiba could result in personal
injuries, death or destruction of the UPS.
Warning Labels Check

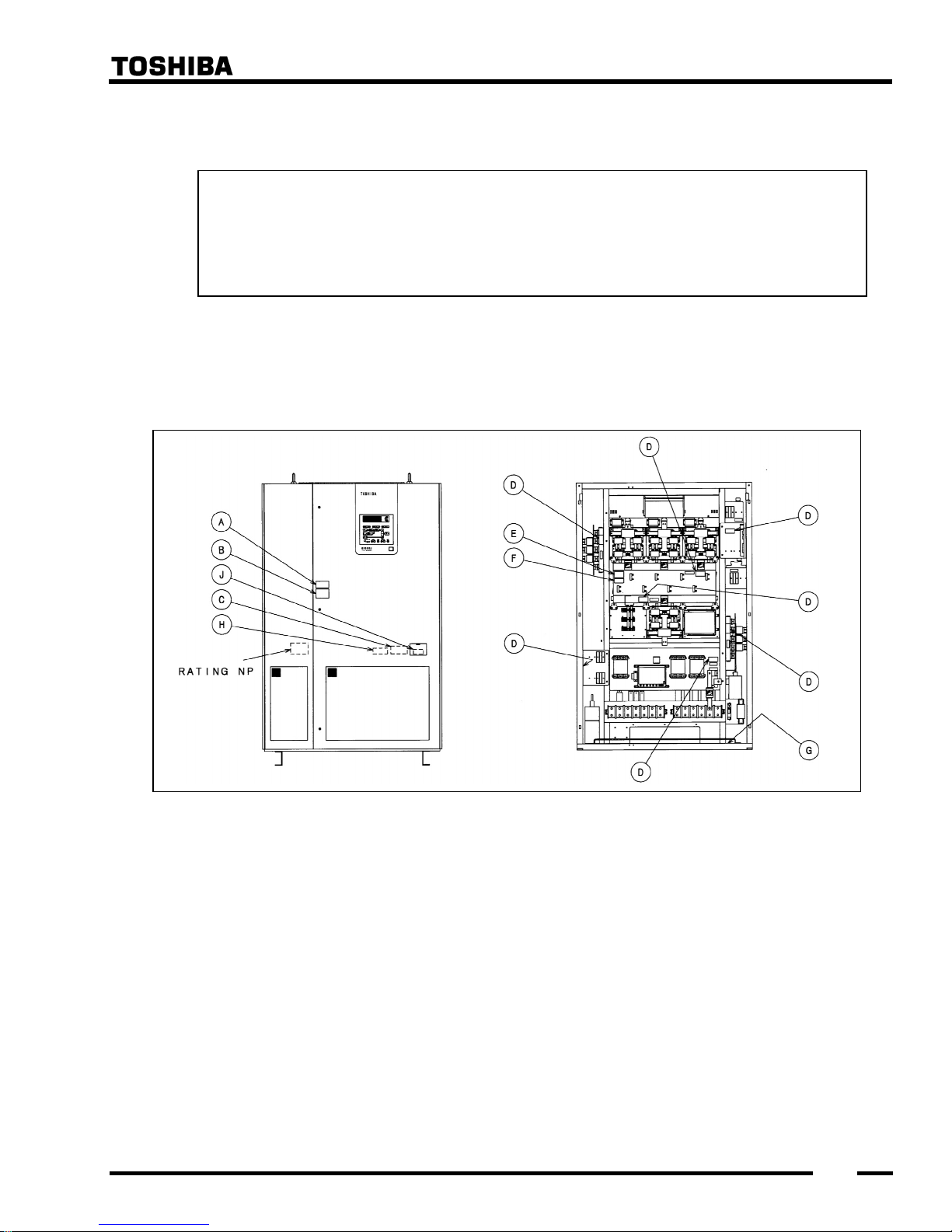

Make sure all the warning labels are accordingly placed in the appropriate
locations (see page 10~13).
If a label is missing or illegible, contact Toshiba or authorized
representatives.

7
General Terms
WARNING
Do NOT remove the rear/side panels.
The parts inside carry energy-high current. That may result
in electric shock, burns, personal injuries or UPS faults by
removing these panels.
Do NOT modify the UPS, relocate after initial installation or replace parts by
untrained personnel.
Electrical shock, injury or UPS faults may result if non-certified
technicians attempt to modify or relocate the UPS.
Please contact Toshiba if you need UPS modifications or plan
to move the UPS.
Transportation
WARNING
When moving the UPS using a crane, follow the specified work procedure (*)
and keep the suspension wire angle within 60°
°°
°.
Moving the UPS by any method other than that specified may cause
personal injury by being crushed or trapped by the UPS when it falls
or overturns.
* As per specification in chapter 8.
When moving the UPS, do NOT tilt the UPS more than 10°
°°
°from upright.
Titling the UPS more than 10°may cause personal injury by
being crushed or trapped by the UPS when it falls or overturns.
MANDATORY
MANDATORY
PROHIBITED
PROHIBITED

8
5. Installation Precautions
Personnel
WARNING
Please have a certified/qualified electrician install the UPS per local and/or
national electric codes.
UPS faults or improper operation may occur if not installed
properly per codes and the installation manual.
Transportation/Unpacking
CAUTION
Do not transport, move, store, or place the UPS on its side.
Excessive force applied from heavy objects inside may
damage the UPS.
Avoid vibration or shock exceeding 0.5G to the UPS.
Failing to observe this precaution may cause damage to
the UPS.
When unpacking the unit, do not give a direct shock or impact to the UPS
with a hammer or disassembling tool.
It may cause damage to the UPS.
MANDATORY
PROHIBITED
PROHIBITED
PROHIBITED

9
Installation Environment
CAUTION
The UPS is to be installed in a controlled environment.
Improper storage and installation environment may deteriorate
insulation, shorten component life and cause malfunctions.
Keep the installation environment per standard described in Table
5.1.
Table 5.1 - UPS Installation Environment Standard
No. Item Environment standard
1 Installation location Indoors
2Ambient
temperature Minimum temperature: 0°C, Maximum temperature: 40°C The average temperature
over any 24-hour period must be in the range 5 to 35°C.
3 Relative humidity The relative humidity must be held between 30 and 90%. There must be no
condensation due to temperature changes.
4 Altitude This equipment must not be applied at altitudes that exceed 1000m (3240 ft) above
seal level.
5Vibration and
mechanical shock
Vibrations in the installation environment must have frequencies either lower than
10 Hz, or higher than 20 Hz.
For vibrations under 10 Hz, the acceleration due to those vibrations must not
exceed 0.5 G.
For vibrations over 20 Hz and under 50 Hz, the acceleration due to those vibrations
must not exceed 0.5 G.
For vibrations over 50 Hz and under 100 Hz, the total amplitude must not exceed
0.1 mm.
6 Dust Dust in the room where the UPS is installed must not exceed normal atmospheric dust levels. In particular, that dust must not include iron particles, oils or fats, or
organic materials such as silicone.
7 Flammable gas There should be no flammable/explosive gas.
Hydrogen sulfide (H2S) No more than 0.0001 PPM
Sulfurous acid gas (SO2) No more than 0.05 PPM
Chlorine gas (Cl2) No more than 0.002 PPM
Ammonia gas (NH3) No more than 0.1 PPM
Nitrous acid gas (NO2) No more than 0.02 PPM
Nitrous oxides (NOx) No more than 0.02 PPM
Ozone (O3) No more than 0.002 PPM
Hydrochloric acid mist (HCl) No more than 0.1 mg/m3
MANDATORY

10
WARNING
Keep the specified clearance around the UPS.
Leaving no space makes it difficult to carry out maintenance,
inspections, causes insufficient ventilation, and cooling leading to
malfunctions.
Keep the UPS room clean.
Use a vacuum cleaner to clean the UPS.
Also, Do NOT use silicon-contained waxes on the floor in the UPS
room and in the related room as this may cause static electricity.
Make sure the air vents on the front and top of the UPS are NOT blocked
Blocking the vents will cause the temperature inside the UPS to
rise and may result in fire or UPS faults.
Do NOT install the UPS close to a water source.
It may cause electrical shock, UPS fault, or other accidents.
Please ask Toshiba or authorized representatives where the UPS and/or
components are to be disposed.
It is illegal to dispose of certain components without conforming to
environmental regulation for industrial/commercial waste.
MANDATORY
MANDATORY
PROHIBITED
MANDATORY
PROHIBITED

11
Wiring/Connection
WARNING
Be careful when connecting the UPS to the battery panel.
A wrong connection may cause damage to the UPS, battery, or
charger.
Perform wiring and connections with correct polarity.
The tightening torque of screws must conform to the tightening criteria.
Loose connections may cause fire due to heating.
When making wire connections or handling the wires, observe the following
precautions.
•Do not forcibly bend or pull the wires or damage the insulation.
•Do not place heavy objects on top of the UPS.
Failing to observe this precaution may damage the insulation of
the wires or may cause a fire or an electric shock hazard.
Connect ground wire to the earth ground terminal only.
A missing ground wire may cause an electrical shock hazard.
Connecting to more than one ground may cause ground loop.
See the chapter titled “Wiring” for wiring details. MANDATORY
MANDATORY
PROHIBITED
MANDATORY

12
Warning label check
(1) Warning label locations on the UPS are shown in the Figures below.
Please make sure these warning labels are placed in specified spots.
(2) Please read all warning labels and understand what they mean.
(3) Make sure warning labels are always legible. Do NOT allow the labels to be
removed or covered.
Locations of the Warning Labels (100/125 kVA).
Figure 5.1 - 100/125kVA UPS exterior/interior showing warning labels.

13
Figure 5.3 - 250/300kVA UPS exterior/interior showing warning labels.
Locations of the Warning Labels (150/180/225 kVA ).
Figure 5.2 - 150/180/225kVA UPS exterior/interior showing warning labels.

14
The meanings of the following label symbols are as follows:
1) The lightning flash with arrowhead within a triangle is intended to tell the user or the service
personnel that parts inside the product are a risk of electric shock to personnel.
2) The ground symbol in a blue circle is intended to tell the user or the service personnel the
location of the equipment-grounding conductor.
A
DANGER
CONTAINS PARTS NOT SERVICEABLE
BY THE USER
Do not remove cover
No user serviceable parts inside.
Refer servicing to qualified service
personnel.
Intended for installation in a controlled
environment.
C for 125/180kVA
USE COPPER CONDUCTORS ONLY
REFER TO INSTRUCTION MANUAL REGARDING
TIGHTENING TORQUE OF TERMINAL BLOCKS.
1 2 3 4 5 6 7 8 9 10 11 12 13
U V W U V W N U V W N - +
380V 380V 380V 375V
AC INPUT BYPASS INPUT AC OUTPUT BATTERY
B
RISK OF ELECTRIC SHOCK
This UPS receive power from more than
one source-disconnection of all sources
is required to de-energize this unit before
servicing.
Dangerous electric charge may be stored
in capacitors and associated circuitry.
Wait at least five (5) minutes for power to
dissipate then check voltage before
servicing.
D
WARNING
CRITICAL FUSE SIZING
Incorrect fuse replacement size
may result in fire or
inadequate equipment
protection.
Replace only with same type
and rating of fuse.
C for 100/150/225kVA
USE COPPER CONDUCTORS ONLY
REFER TO INSTRUCTION MANUAL REGARDING
TIGHTENING TORQUE OF TERMINAL BLOCKS.
1 2 3 4 5 6 7 8 9 10 11 12 13
U V W U V W N U V W N - +
480V 480V 480V 400V
AC INPUT BYPASS INPUT AC OUTPUT BATTERY

15
F
DANGER
RISK OF ELECTRIC SHOCK OR ELECTRIC
ENERGY-HIGH CURRENT LEVELS
Dangerous electric charge may be stored
in capacitor and associated circuitry.
Test before touching.
E
DANGER
RISK OF ELECTRIC SHOCK
Capacitors stay charged after power has
been shut off.
Accidental contact with live parts can
cause personal injury and death.
Turn off and lock out all power sources.
Wait at least five (5) minutes for power to
dissipate then check voltage before
servicing
G
Grounding Electrode
Terminal
H
The output ac circuit is considered as a
separately derived source. If local codes
require grounding of this circuit, use
terminal (identify terminal) for bonding
this circuit to the enclosure. Ground the
enclosure to a suitable grounding
electrode in accordance with local code
requirements.
I
CAUTION
RISK OF ELECTRIC SHOCK
Heat Sink (IGBT) is not grounded.
Test before touching.
J
CAUTION
8A
( control power source switch )
Do not turn off while operating.
K for 250kVA
USE COPPER CONDUCTORS ONLY
REFER TO INSTRUCTION MANUAL REGARDING
TIGHTENING TORQUE OF TERMINAL BLOCKS.
1 2 3 4 5 6 7 8 9 10 11 12
U V W - + U V W N U V W
380V 375V 380V 380V
AC INPUT BATTERY BYPASS INPUT AC OUTPUT
K for 300kVA
USE COPPER CONDUCTORS ONLY
REFER TO INSTRUCTION MANUAL REGARDING
TIGHTENING TORQUE OF TERMINAL BLOCKS.
1 2 3 4 5 6 7 8 9 10 11 12
U V W - + U V W N U V W
480V 400V 480V 480V
AC INPUT BATTERY BYPASS INPUT AC OUTPUT
* The label G is attached at the ground wire connection point.
** The label E is mounted in the vicinity of the main circuit transformers and reactors that can be seen from
the back of the UPS. Figure 5.4 - Warning Labels.

16
6. Contents
1. Introduction 1
2. GENERAL SAFETY INSTRUCTIONS 4
3. IMPORTANT SAFETY INSTRUCTIONS 5
4. Safety Precautions 6
5. Installation Precautions 8
6. Contents 16
7. Dimensions and Weight 17
8. Transportation 20
8.1 Transportation by a crane 20
8.2 Transportation by a forklift 22
9.0 Storage 23
10.0 Installation 24
10.1 Unpacking 25
10.2 UPS Clearance 25
10.3 Anchor Bolts 26
11.0 Wiring 27
11.1 Overview 27
11.2 Terminal Blocks and Power Cables 28
11.3 External Breakers 34
11.4 Grounding Wire 35
11.5 Control Wires 36
11.6 Grounding configuration 37

17
7. Dimensions and Weight
Figure 7.1~7.3 show the outline dimensions and weights of G8000 UPS.

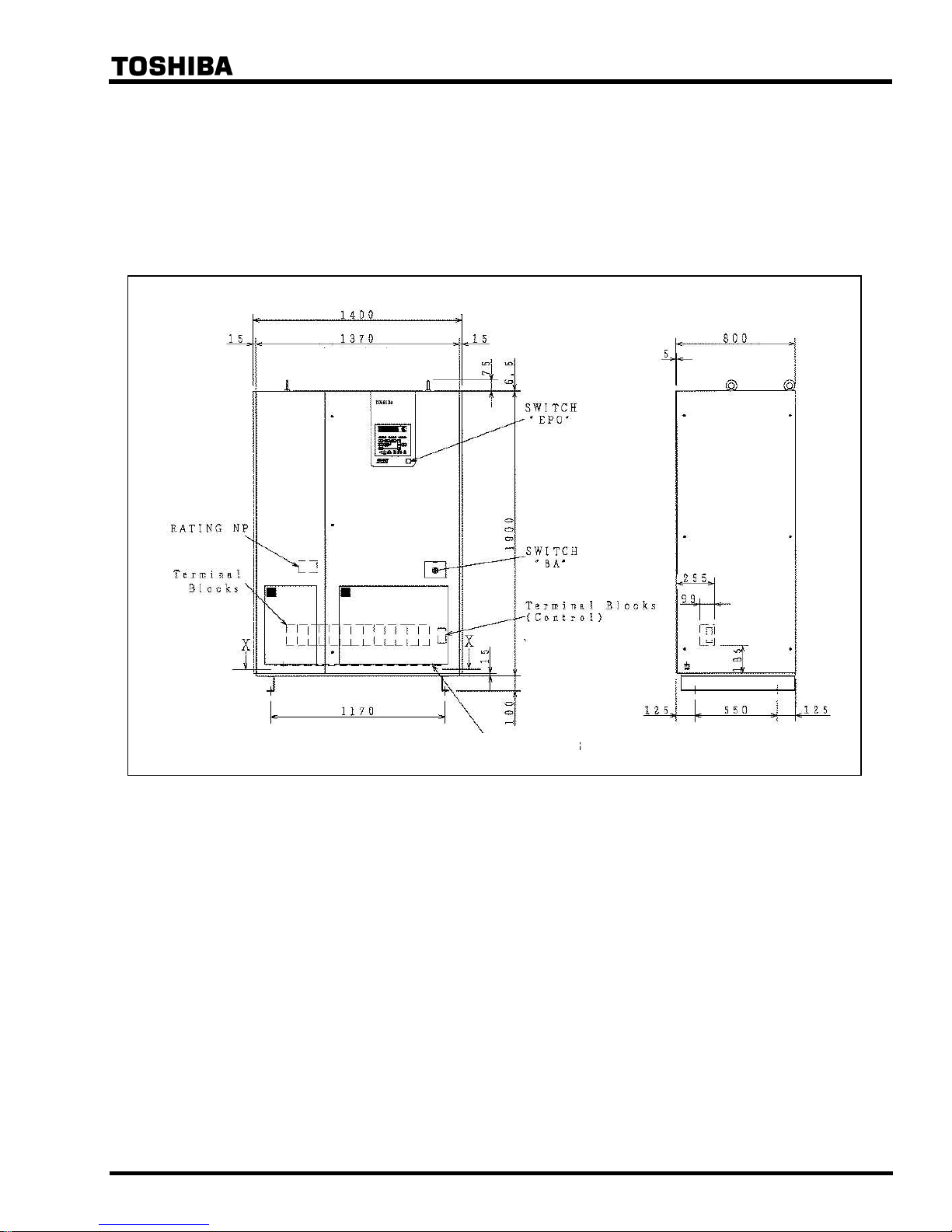

Figure 7.1 - 100/125kVA UPS Exterior dimensions (front & right side).
(74.8”)
(3.9”)
Earth Ground Bus
(41.3”)
(50.4”) (31.5”)
Weight
100kVA: 1,000kg (2,200lbs)
125kVA: 1,200kg (2,640lbs)

18

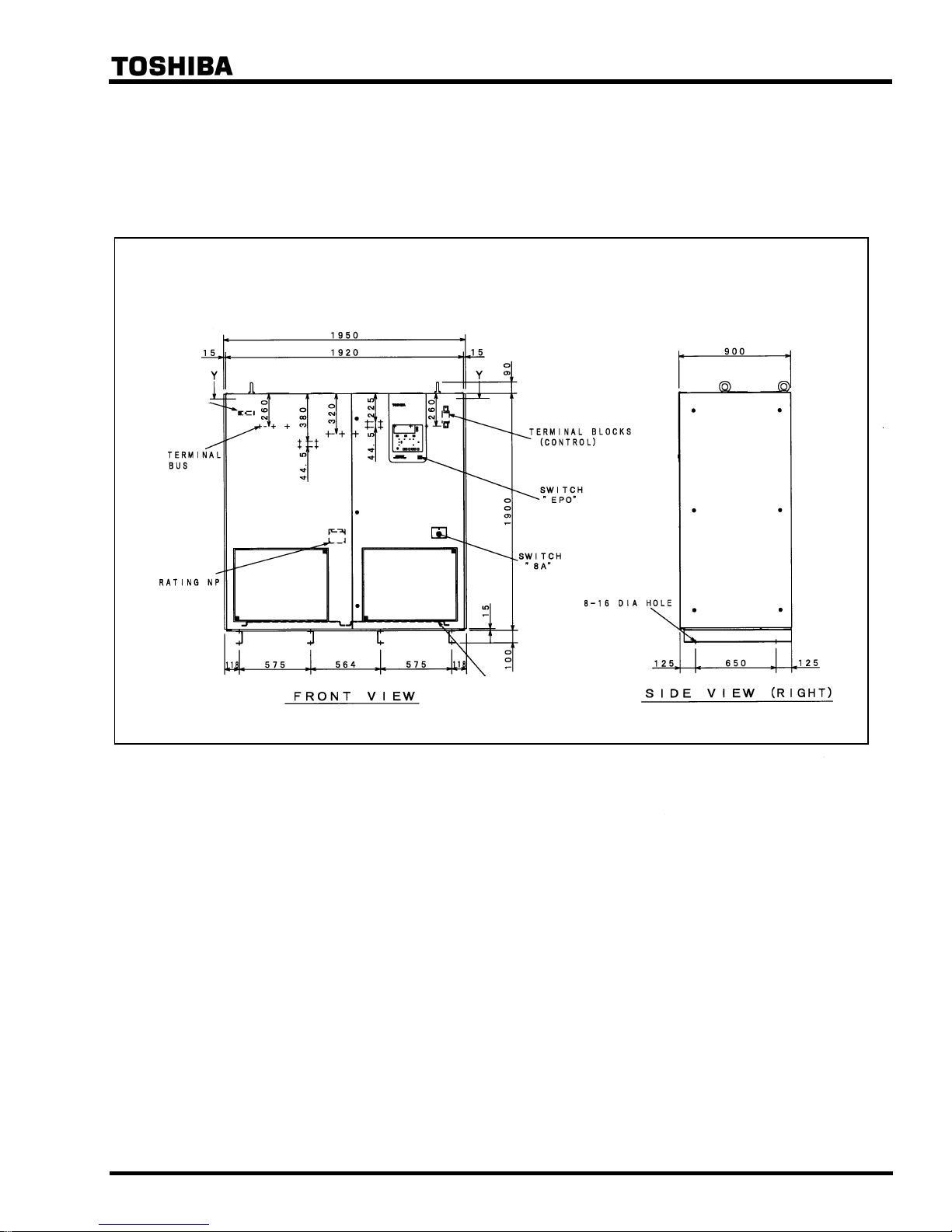

Figure 7.2 - 150/180/225kVA UPS Exterior dimensions (front & right side).
(55.1”)
(31.5”)
(46
”
)
(74.8”)
(3.9”)
Earth Ground Bus
Weight
150kVA: 1,200kg (2,640lbs)
180/225kVA: 1,500kg (3,300lbs)

19
(76.8”)
Weight: 2,000kg (4,400lbs)
Earth
Ground Bus
Earth Ground Bus
(74.8”)
(3.9”)
(35.4”)
Figure 7.3 - 250/300kVA UPS Exterior dimensions (front & right side).
