Toshiba IK-WB30A User manual

NETWORK CAMERA
Model: IK-WB30A
Quick Start Guide and Important Safeguards
This guide describes the hardware installation.
Refer to the user's manual (PDF file) contained in the CD-ROM for settings, operations
and other information.
The application Adobe Reader is needed to view PDF files. If you do not have this
application, download it from the Adobe Systems Incorporated website.
For information on our latest products and peripheral devices, refer to the following
Website:
http://www.toshibasecurity.com
If the URL changes, refer to the Toshiba website (http://www.toshiba.com/tai/products/
prod_biz.jsp).

2
Introduction
FCC (USA)-INFORMATION
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
USER-INSTALLER CAUTION: Your authority to operate this FCC verified
equipment could be voided if you make changes or modifications not expressly
approved by the party.

3
Thank you for purchasing the IK-WB30A Network Camera. Before you start using
the camera, read this quick start guide carefully to ensure correct usage. Once you
have finished reading this quick start guide, keep it in a convenient place for future
reference.
The design, specifications, software, and quick start guide contents are subject to
change without prior notice.
Terms and Trademarks
The term "OS" is used in this manual to indicate operating systems compatible
with this product.
-- Windows®XP: Microsoft® Windows®XP operating system
-- Windows Vista®: Microsoft®Windows Vista®Business operating system
The formal name of Windows®is Microsoft®Windows®Operating System.
Microsoft®, Windows®and Windows Vista®are trademarks or registered
trademarks of Microsoft®Corporation in the United States and other countries.
Adobe is a registered trademark and Adobe Reader is a trademark of Adobe
Systems Incorporated.
Other product names appearing in this quick start guide may be trademarks or
registered trademarks of their respective holders.
NOTE
The performance of the network camera may vary depending on the network
environment.

4
Table of Contents
Introduction
Introduction....................................................................................................... 2
Terms and Trademarks ..............................................................................................3
Table of Contents.............................................................................................. 4
IMPORTANT SAFEGUARDS ........................................................................... 5
NOTES ON USE AND INSTALLATION............................................................ 9
Setting the Network Camera Environment ..................................................... 10
Items needed for network camera monitoring.........................................................10

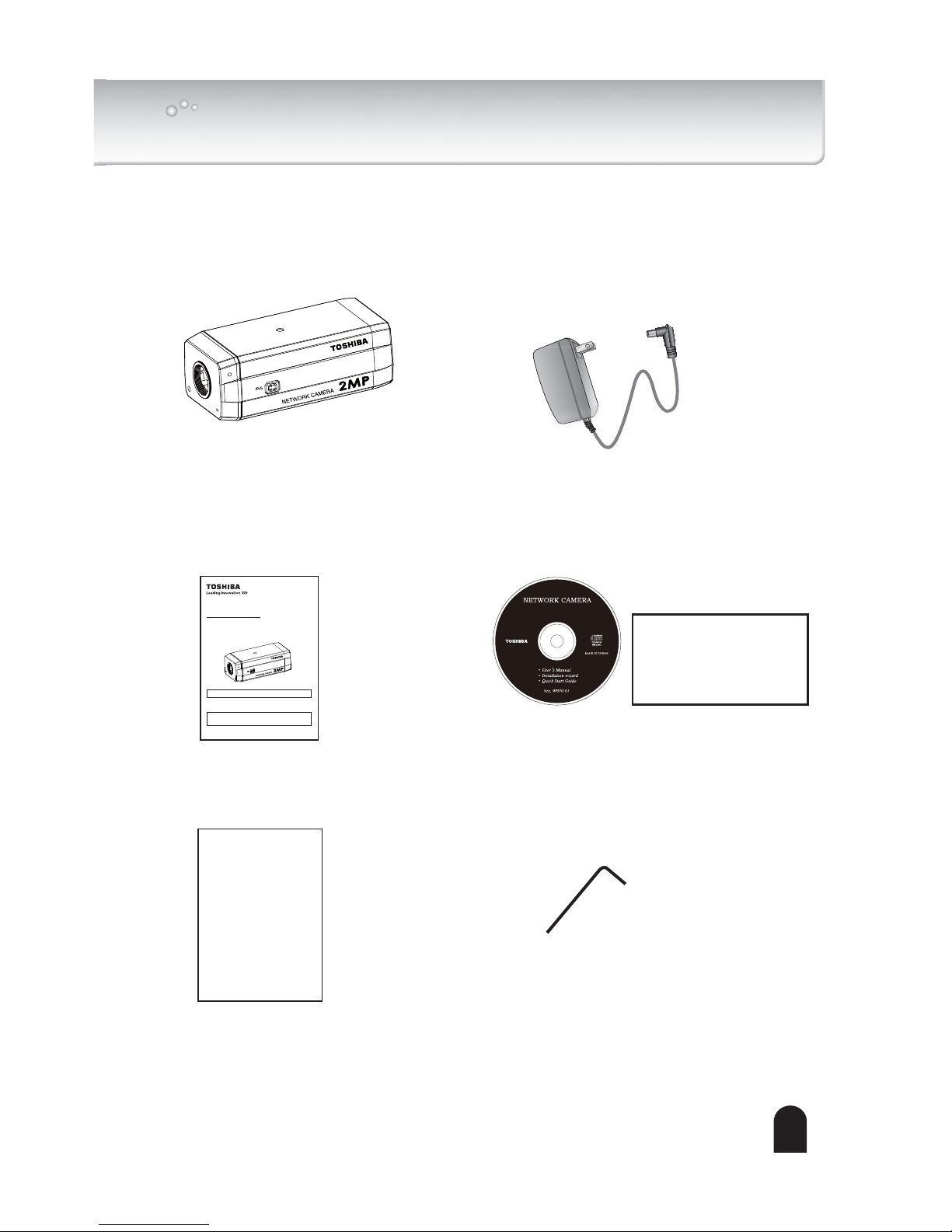

Contents ..........................................................................................................11
Physical Description ....................................................................................... 12

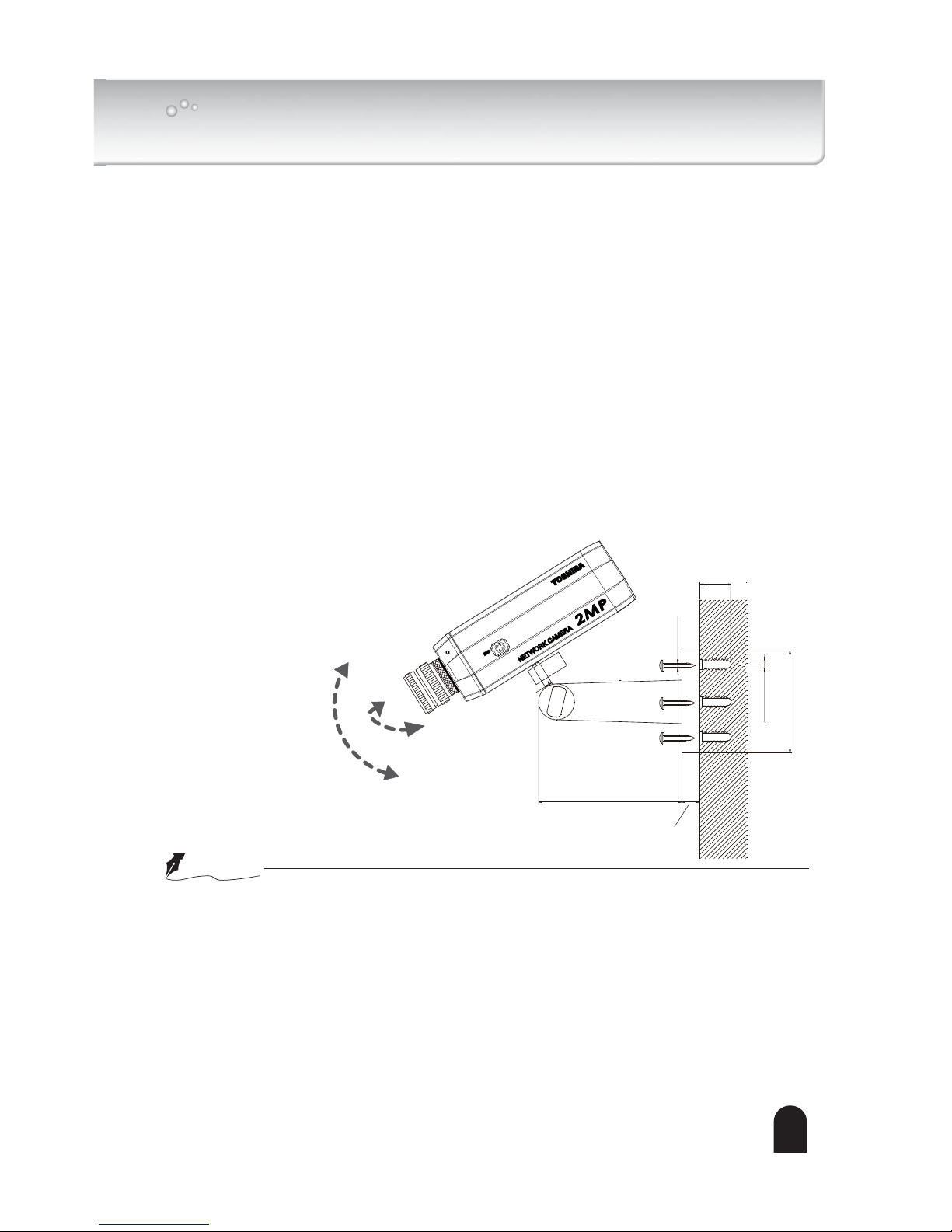

Hardware Installation...................................................................................... 13

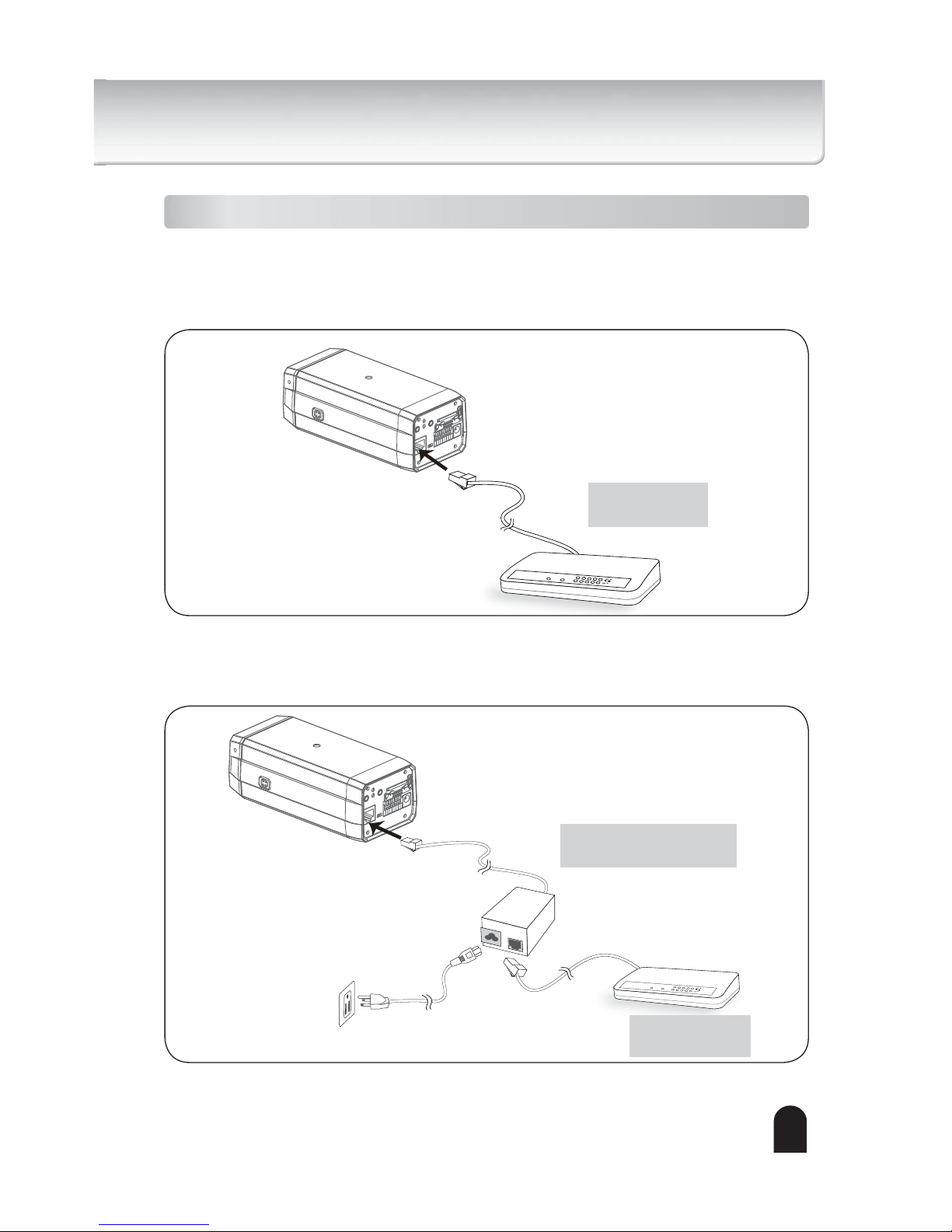

Network Deployment ...................................................................................... 14
Assigning IP Address...................................................................................... 16
Retrieving Images........................................................................................... 17
Quick Start Guide

5
IMPORTANT SAFEGUARDS
1. Read Instructions
Read all the safety and operating instructions before operating the product.
2. Retain Instructions
Retain the safety instructions and user's manual for future reference.
3. Warnings
Comply with all warnings on the product and in the user's manual.
4. Follow Instructions
Follow all operating and use instructions.
5. Cleaning
Disconnect this video product from the power supply before cleaning.
6. Attachments
Do not use attachments not recommended by the video product manufacturer
as they may pose safety risks.
7. Water and Moisture
Do not use this video product near water. Some examples are: near a bath tub,
wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming
pool.
8. Accessories
Do not place this video product on an unstable cart, stand, tripod, bracket
or table. The video product may fall, causing serious injury to a person, or
serious damage to the product. Use only with stand, tripod,bracket,or table
recommended by the manufacturer, or sold with the video product. Any
mounting of the product should follow the manufacturer's instructions, and
should use a mounting accessory recommended by the manufacturer.
9. Ventilation
This video product should never be placed near or over a radiator or heat
register. If this product is placed in a built in installation verify that there is proper
ventilation so that the camera temperature operates within the recommended
temperature range.

6
IMPORTANT SAFEGUARDS (Cont.)
10. Power Sources
This video product should be operated only from the type of power source
indicated on the information label. If you are not sure of the type of power
supply at your location, consult your product dealer.
11. Power-Cord Protection
Power cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them. Pay particular attention to cords
at plugs, screws and the point where they exit the product.
12. Installation
Install this video product on a secure part of the ceiling or wall. If installed on an
unsecured location, the camera could fall causing injury and damage.
13. Lightning
For additional protection on this video product during a lightning storm, or when
it is left unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the power supply and cable system. This will prevent
damage to the video product due to lightning and power-line surges. If lightning
occurs, do not touch the unit or any connected cables in order to avoid electric
shock.
14. Overloading
Do not overload the power supply or extension cords as this can result in a risk
of fire or electric shock.
15. Object and Liquid Entry
Never push objects of any kind into this video product through openings as they
may touch dangerous electrical points or short-out parts that could result in a
fire or electrical shock. Never spill liquid of any kind on the video product.
16. Servicing
Do not attempt to service this video product yourself as opening or removing
covers may expose you to dangerous electrical or other hazards. Refer all
servicing to qualifi ed service personnel.

7
17. Damage Requiring Service
Disconnect this video product from the power supply and refer servicing to
qualified service personnel under the following conditions.
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been submerged in water.
d. If the video product does not operate normally by following the operating
instructions in the user's manual. Adjust only those controls that are covered
by the user's manual as an improper adjustment of other controls may result
in damage and will often require extensive work by a qualifi ed technician to
restore the video product to its normal operation.
e. If the video product has been dropped or the cabinet has been damaged.
f. When the video product exhibiting a distinct change in performance which
indicates a need for service.
18. Replacement Parts
When replacing parts be sure the service technician uses parts specified
by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
19. Safety Check
Upon completion of any service or repairs to this video product, ask the service
technician to perform safety checks to determine that the video product is in
proper operating condition.

8
IMPORTANT SAFEGUARDS (Cont.)
CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
FIELD INSTALLATION MARKING:
WORDED: “THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE
PERSON AND SHOULD CONFORM TO ALL LOCAL CODES.”

9
NOTES ON USE AND INSTALLATION
Do not aim the camera at the sun
Never aim the camera at the sun even with the camera power off.
Do not shoot intense light
Intense light such as a spotlight may cause a bloom or smear. A vertical stripe
may appear on the screen. However, this is not a malfunction.
Treat the camera with care
Dropping or subjecting the camera to intense vibration may cause it to
malfunction.
Never touch internal parts
Do not touch the internal parts of the camera other than the parts specified.
Keep the camera installation away from video noise
If cables are wired near electric lighting wires or a TV set, noise may appear in
images. In this event relocate cables or reinstall equipment.
Check the ambient temperature and humidity
Avoid using the camera where the temperature is hotter or colder than the
specified operating range. Doing so could affect the internal parts or cause the
image quality to deteriorate. Special care is required to use the camera at high
temperature and humidity.
Should you notice any trouble
If any trouble occurs while you are using the camera, turn off the power and
contact your dealer. If you continue to use the camera when there is something
wrong with it, the trouble may get worse and an unpredictable problem may
occur.

10
Setting the Network Camera Environment
Items needed for network camera monitoring
Administrator's personal computer
The personal computer that allows setting, operating, monitoring and other
functions with the network camera is called the "administrator's personal
computer" in this guide.
* The personal computer for viewing monitored images is called the "user's
personal computer" in this quick start guide. The network camera can be
viewed by more than one personal computer at the same time.
Recommended personal computer system requirements:
-- Windows®XP, or Vista Business (Windows 7 is due to support in the future.)
-- Internet Explorer Ver 7.0 or 8.0
-- CPU: Minimum of 2GHz CPU
-- Memory: 1GB RAM and 512MB Graphics Adapter
Connection equipment such as Ethernet cables, and hub or router.
-- The LAN cable type differs depending on the connection method.
Camera search application "Installation Wizard"
-- Install this application from the CD-ROM supplied as an accessory (Double-click
"Setup.exe" in the CD-ROM and install the application by following the onscreen
instructions.)
-- This application is the tool which gets to know the IP address of a camera. If this
application is used, the IP address of a camera can be known easily.

11
IK-WB30A
IK-WB30A
Warranty Card
AC Adapter
Quick Start Guide and Important
Safeguards
Software CD
L-type Wrench
(For securing screw of SD card slot.)
Contents
NETWORK CAMERA
Model: IK-WB30A
Quick Start Guide and Important Safeguards
This guide describes the hardware installation.
Refer the user's manual (PDF file) contained in the CD-ROM for settings,
operations and other information.
The application Adobe Reader is needed to see PDF files. If you do not
have this application, download it from the Website of Adobe Systems
Incorporated.
For information on our latest products and peripheral devices, refer to the
following Website:
http://www.toshibasecurity.com
The above URL is subject to change without prior notice.
If the URL changes, refer to the Toshiba website (http://www.toshiba.com).
Content:
User's Manual
Quick Installation Guide
Installation Wizard
Cord length: 72 inches (1828 mm)

12
Power Cord Socket
Ethernet 10/100
RJ45 Socket
Recessed Reset
Button
General I/O
Terminal Block
Audio Out
External/Internal MIC Switch
Microphone In
Front Panel
Back Panel
Built-in Microphone
Light Sensor
Status LED
SD/SDHC Card Slot
CS lens mount
ring
Physical Description
Fixing Hole

13
Hardware Installation
Follow the steps below to mount the Network Camera:
The Installation example is for reference only. Mounting bracket is not included.
1. Drill six pilot holes (φ0.24 inch x 0.37 inches(D)). And Hammer the plastic
anchors (not included) into the holes.
2. Align the six holes of the mounting Bracket (not supplied) with the six plastic
anchors, insert the appropriate screws (φ0.16 inch x 0.96 inches(D)) (not
included) to corresponding holes.
3. Secure the Mounting Bracket to the wall.
4. Mounting the Lens to the camera. Use the appropriate lens (not supplied).
5. Turn the camera to the desired position when install the camera to the Mounting
Bracket. And secure using a screw driver.
Example of Horizontal installation
NOTE
Since this camera is using a 2 megapixel sensor, the recommended lens is a 2
megapixel lens for 1/3 inch sensors.
Do not block the light sensor when using an auto iris lens.
When installing in high locations, take caution to secure the camera from falling and
causing possible injury.
Tie using Fixing Hole to prevent from unplugging of power cord or other
cable.
112 (4.41)
15 (0.59)
Wall
9.5 (0.37)
4 (0.16)

6 (0.24)
80 (3.15)
1/4"-20UNC
UP
DOWN
LEFT
RIGHT
The mounting hole of camera is
tripod socket hole. mm(inch)

14
1. If you have external devices such as sensors and alarms, make the connections
from general I/O terminal block.
2. Use Category 5 or equivalent Cable to connect the Network Camera to a
network switch.
Use Category 5 or equivalent Cross Cable when Network Camera is directly
connected to a PC.
3. Connect the supplied AC adapter.
Power input
Connect the power adapter of the supplied AC adapter, 24V AC UL Listed Class2
power supply.
The power supply of this camera is 12V DC or 24V AC.
POWER COLLISION
LINK
RECEIV E
PARTITION
12345
Ethernet hub
(not supplied)
1: 12 VDC Output
2: Digital output
3: Digital input
4: Ground
5: Power in 24 VAC
6: Power in 24 VAC
7: RS485+
8: RS485-
Network Deployment
General Connection (without PoE)
Connect the AC adapter jack to the Network Camera before plugging in to the
power socket. This will reduce the risk of accidental electric shock.

15
When using a non-PoE hub
Use a PoE power injector to connect between the Network Camera and a non-PoE
switch.
POWER COLLISION
LINK
RECEIVE
PARTITIO N
12345
When using a PoE switch
The Network Camera is PoE-compliant, allowing transmission of power and data
to both run in a single Ethernet cable. See the following illustration to connect the
Network Camera to a PoE switch via Ethernet cable.
POWER COLLISION
LINK
RECEIV E
PARTITION
12345
PoE hub
(not supplied)
Non-PoE switch
(not supplied)
PoE power injector
(not supplied)
Power over Ethernet (PoE)
In this instance, have no use for
AC adapter.
In this instance, have no use for
AC adapter.

16
MAC:0002D1714270
0002D1714270
00-02-D1-71-42-70 169.254.0.99 IK-EB30A
Installation
Wizard
1. Install the "Installation Wizard" under the Software Utility directory from the CD-
ROM.
2. The program will analyze your network environment. After your network is
analyzed, please click on the "Next" button to continue the program.
3. The program searches for other Network Cameras on the same network.
4. After searching, the main installer window will pop up. Click on the MAC that
matches the one labeled on the side of the camera lens to connect to the
Network Camera.
Assigning IP Address
NOTE
If "Installation Wizard" does not perform normally or the camera can not be found
during the search even though the camera and a PC are connected correctly, please
switch off the wireless LAN of a PC.
Installation Wizard can search the location of the Network Camera even though
DHCP is not used on the network. Reassign the static IP address because IP address
of the Network Camera has been set 169.254.*.* by default.

17
For more information on camera configuration, please refer to user's
manual on the CD-ROM.
1. Access to the Network Camera from the network.
2. Retrieve live video through Internet Explorer®.
Retrieving Images

TOSHIBA AMERICA INFORMATION SYSTEMS, INC.
Surveillance & IP Video Products
9740 Irvine Boulevard,
Irvine, CA 92618-1697
Phone Number: [phone]
625010400G
