Total Chaos 58880 User manual
INSTALL INSTRUCTIONS 58880
installation instructions
COMPONENT: REAR RESERVOIR SHIELDS (KING 3.0)
PART #: 58880
FITS: 2008-2020 toyota land cruiser 200 series
INSTALL INSTRUCTIONS 58880
STEP 1
REQUIRED TOOLS

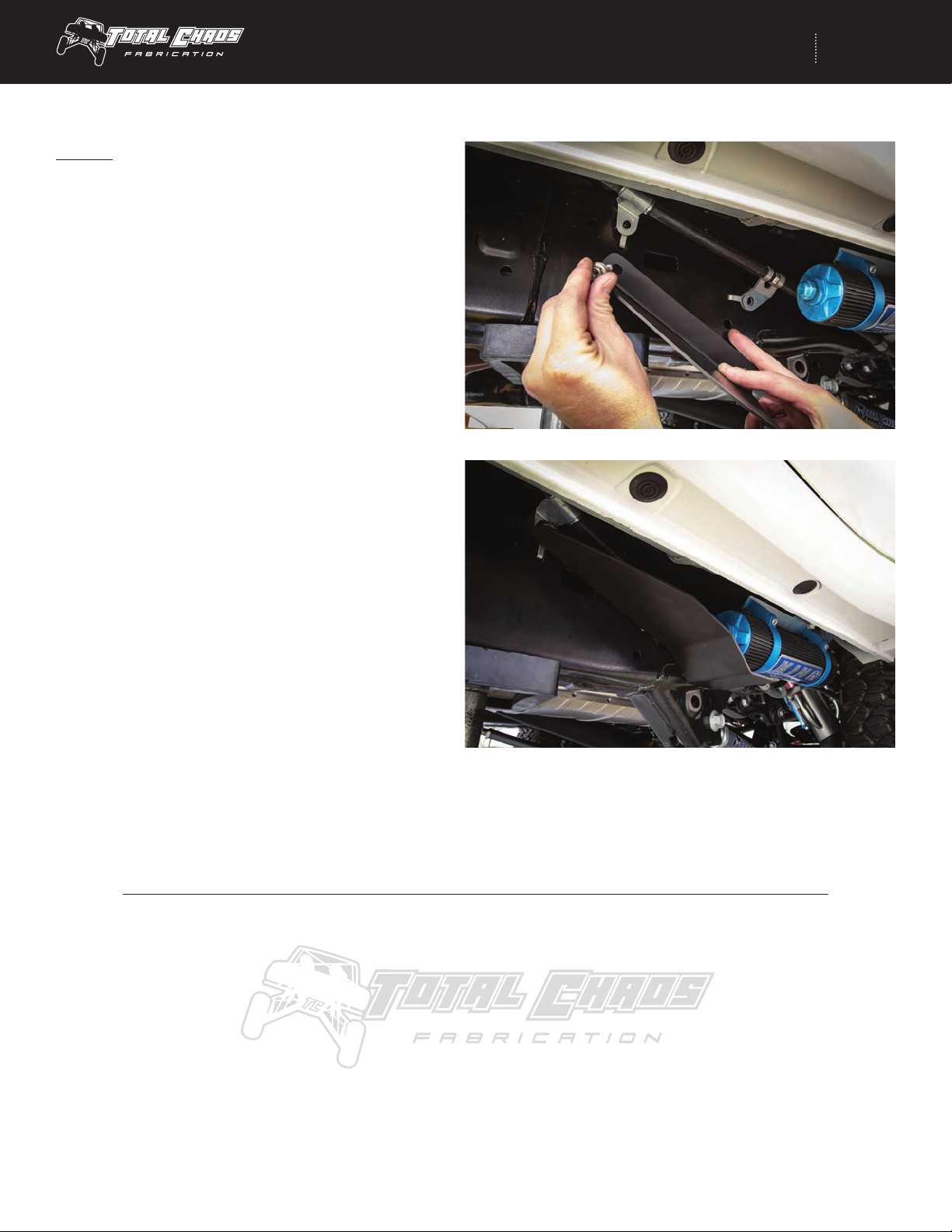

Remove both bolts that secure the
emergency brake cable using a 12mm
wrench or socket.
- 12mm Wrench
PARTS LIST:
ITEM # PART # QTY ITEM DESCRIPTION
1 58881L 1 3.0 REAR RESERVOIR SHIELD: LEFT
2 58881R 1 3.0 REAR RESERVOIR SHIELD: RIGHT
IMPORTANT
- These reservoir shields are only compatible with King 3.0 rear shocks.
INSTALL INSTRUCTIONS 58880
STEP 2
Leaving the stock emergency brake
tabs against the frame, re-use the
stock bolts and insert them through the
holes in the reservoir guard. Re-tighten
the hardware to 25 ft/lbs.
reservoir SHIELD INSTALLATION IS NOW COMPLETE!
