Total Source TRSM0004 User manual

OPERATING MANUAL
MANUAL SCISSOR PALLET TRUCK
TRSM0004
Original operating
manual
01/2022 – V01
from serial n° G21041386

2/32
© 01-2022. TVH
®
and TotalSource
®
are registered trademarks. TVH Parts Holding NV, Brabantstraat 15, B-8790 Waregem. All rights reserved.
No part of this publication may be reproduced or communicated in any form or by any means, electronic or mechanical, including copying,
recording or use in an information storage or retrieval system, without prior and explicit permission of TVH Parts Holding NV. Printing errors
reserved. Photographs and illustrations are included for reference purposes only.
Responsible editor: TVH Parts Holding NV, Brabantstraat 15, BE-8790 Waregem
TVH is a supplier of after-market spare parts and accessories that are suitable for the maintenance and repair of OEM equipment.

3/32
https://www.tvh.com/trsm0004-rv01
BG Bulgarian Можете да намерите това ръководство на Вашия език чрез линка, посочен по–
долу.
CS Czech Tento návod najdete ve svém jazyce prostřednictvím odkazu níže.
DA Danish Du kan finde denne vejledning på dit sprog via nedenstående link.
DE German Sie finden diese Bedienungsanleitung in Ihrer Sprache unter folgendem Link.
EL Greek Μπορείτε να βρείτε αυτό το εγχειρίδιο στη γλώσσα σας μέσω του παρακάτω
συνδέσμου.
EN English You can find this manual in your language via below link.
ES Spanish Encontrarás este manual en su propio idioma a través del siguiente enlace.
ET Estonian Oma emakeelse juhendi leiate allolevalt lingilt.
FI Finnish Löydät tämän manuaalin omalla kielelläsi alla olevan linkin takaa.
FR French Vous trouverez ce manuel dans votre langue via le lien ci-dessous.
GA Irish Tá an lámhleabhar seo ar fáil i do theanga tríd an nasc thíos.
HR Croatian Ovaj prirucnik mozete pronaci na svom jeziku putem donjeg linka.
HU Hungarian Ez a kézikönyv az Ön nyelvén az alábbi link alatt található.
IS Icelandic Hægt er að finna þessa handbók á þínu tungumáli á tenglinum hér að neðan.
IT Italian Cliccando sul link sottostante troverai il manuale nella tua lingua.
LT Lithuanian Šį vadovlėlį savo kalba rasite spustelėję žemiau esančią nuorodą.
LV Latvian Rokasgrāmatu latviešu valodā Jūs varat atrast izmantojot zemāk esošo saiti.
MT Maltese Tista’ ssib dan il-manwal bil-lingwa tiegħek permezz tal-link ta’ hawn taħt.
NL Dutch Je vindt deze handleiding in jouw taal via onderstaande link.
NO Norwegian Du finner denne håndboken på ditt språk via linken nedenfor.
PL Polish Niniejsza instrukcja obsługi dostępna jest w Twoim języku za pośrednictwem
poniższego linku.
PT Portuguese Pode encontrar este manual no seu idioma através do link abaixo.
RO Romanian Puteți găsi acest manual în limba dvs. prin link-ul de mai jos.
SK Slovak Manuál vo vašom jazyku môžete nájst v priloženom vysvietenom riadku.
SL Slovenian Ta priročnik najdete v svojem jeziku preko spodnje povezave.
SV Swedish Du kan hitta denna manual på ditt språk via länken nedan.
TR Turkish Bu kılavuzu aşağıdaki bağlantıdan kendi dilinizde bulabilirsiniz.

4/32
Thank you for using our product. For your safety and to ensure a correct operation, we would
like to bring to your attention some aspects of this manual:
• This booklet supplies useful instructions for the correct operation and maintenance of the
product. It is therefore necessary to pay the utmost attention to all of the paragraphs that
illustrate the most simple and secure way to operate and use this product.
• This booklet must be considered an integral part of the machine and must be included
with the deed of sale.
• Neither this publication, nor part of it, can be reproduced without written authorisation on
the part of the manufacturer.
• All of the information reported herein is based on data available at the moment of printing;
the manufacturer reserves the right to carry out modifications to its own products at any
moment, without notice and without incurring in any sanction. It is therefore suggested to
always check for possible updates.
The person responsible for the use of the product must make sure that all of the safety rules
in force in the country of its use are applied, to guarantee that the equipment is used in
conformity with the use for which it is destined and to avoid any dangerous situation for the
user.
The following warning signs are used in this manual to warn you for dangers and risks:
Informative, be careful.
Warning, can lead to injury and damage if instructions aren’t followed.
Danger, can lead to serious or fatal injury and serious damage if instructions
aren’t followed.
The following conventions are used in this manual:
5
1
6
2
4
3
1 Right
2 Left
3Front
4 Back
5Top
6 Bottom

5/32
TABLE OF CONTENTS
1. INTRODUCTION..................................................................................... 6
2. DESCRIPTION....................................................................................... 7
2.1. Technical data .......................................................................................7
2.2. Main components of the product.................................................................8
2.3. Placement of the decals...........................................................................8
2.4. Type plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3. SAFETY INSTRUCTIONS.........................................................................10
3.1. Explanation of the safety decals ................................................................10
3.2. General safety instructions ......................................................................12
4. TRANSPORT AND STORAGE ....................................................................13
4.1. Parking the scissor pallet truck.................................................................13
4.2. Transporting the scissor pallet truck ..........................................................13
5. ASSEMBLY AND INSTALLATION ...............................................................14
5.1. Packing list..........................................................................................14
5.2. Safety instructions for assembly and installation of the product .........................14
5.3. Required material for assembly.................................................................14
5.4. Assembly of the tiller handle and commissioning the pallet truck .......................14
6. OPERATION.........................................................................................16
6.1. Safety instructions for operating the product ................................................16
6.2. Operating instructions ............................................................................16
7. MAINTENANCE ....................................................................................20
7.1. Safety instructions for the repair of the product .............................................20
7.2. Maintenance schedule............................................................................20
7.3. Maintenance instructions ........................................................................20
8. TROUBLESHOOTING .............................................................................23
9. FINAL DECOMMISSIONING AND DISPOSAL ................................................25
10. ANNEXES ...........................................................................................26
10.1. CEcertificate .......................................................................................26
10.2. Hydraulic diagram .................................................................................28
10.3. Spare parts list .....................................................................................29
10.4. Replacement of the wheels ......................................................................29

6/32
1. INTRODUCTION
This scissor pallet truck is a manually operated scissor pallet truck designed to lift and
transport pallets indoors on hard and even surfaces. Only lift and transport one pallet at a
time. Suitable ambient temperature is 5 °C up to 40 °C. It can also be used stationary as a
working platform.
We guarantee a long period of trouble free operation if the unit is operated and maintained
correctly.
This scissor pallet truck may be unsafe / hazardous if adequate maintenance is
neglected. Therefore, adequate maintenance facilities, trained personnel and
procedures should be provided.
Maintenance and inspection shall be performed in conformity with the following
practices:
1. A scheduled planned maintenance, lubrication and inspection system should be
followed (see maintenance instructions in chapter 7).
2. Only qualified and authorized personnel shall be permitted to maintain, repair,
adjust and inspect the scissor pallet truck.
3. Modifications and additions which affect capacity and safe operation shall not
be performed by the customer or user without the manufacturers, prior written
approval. Capacity, operation and maintenance plates or decals shall be changed
accordingly.
4. If modifications are made without the written approval of the manufacturer, the
warranty will no longer apply.
This manual contains all the necessary information on the installation and operation of the
manual scissor pallet truck. Some of the maintenance operations should only be carried
out by professional technicians. If you require this information and the maintenance steps,
pleasecontact your dealer.

7/32
2. DESCRIPTION
2.1. Technical data
Always check the type plate for the correct information.
Model TRSM0004
Load capacity (kg) 1500
Material of the pump Painted steel (welded)
Total length (L2) (mm) 1570
Length of the forks (L1) (mm) 1170
Width across the forks (W1/W3) (mm) 560
Minimum height (H1) (mm) 85
Lifting height (H2) (mm) 800
Material of the steering wheels Polyuthane
Material and number of fork wheels Single / polyurethane
Material of the scissor pallet truck Steel
Weight (kg) 135
Centre of gravity (GC) (mm) 595
H2
H1
L1
L2
L2
W1

8/32
2.2. Main components of the product
1
25
4
1
2
3
47
6
5
N° Component
1Tiller with handle
2Pump unit
3Steering wheels
4 Supports
5 Frame
6Scissor mechanism
7Fork wheels
2.3. Placement of the decals
The safety and warning labels should be placed as described in the pictures below.
Seechapter3 for the explanation of the safety warnings. If the decals are damaged or
missing, replace them.
3
9
8
7
4
2
1
5
610
10
N° Decal Explanation Reference
1Brand decal 166TA2311
2 CElogo 151TA2190

9/32
2.4. Type plate
N° Type plate Explanation
3
Type of pallet truck
Manufactured outside the EU for:
TVH PARTS HOLDING NV
Brabantstraat 15 • 8790 Waregem • Belgium
xxxx Fork length xxxx mm
Serial n° xxxxxx Width over forks xxx mm
Capacity xxxx kg Wheels xxx
Net weight xx kg Year of manufacturing xxxx
1 6
7
8
9
10
2
3
4
5
1Type of pallet truck
2Serial number
3Capacity of the pallet truck
4Weight of the pallet truck
5Name and address of the
manufacturer
6Length of the forks
7Width across the forks
8Wheel combination
(fork wheels/steering wheels)
9Year of manufacture
10 CElogo

10/32
3. SAFETY INSTRUCTIONS
3.1. Explanation of the safety decals
If the decals are damaged or missing, please replace them.
N° Decal Explanation Reference
4
1
2
3
Operating instructions for the lever:
1. Lever up: lower the forks
2. Neutral: driving position
3. Lever down: raise the forks
166TA5227
5It is forbidden to carry or lift passengers. It is
forbidden for people to stand underneath the
forks.
166TA5226
6Maximum load capacity: 1500kg 166TA7633
7
1
2
3
4
1/2. The load should be positioned against the
back of the scissor pallet truck forks.
The weight of the goods should be distributed
over the two forks, do not use only one fork.
The centre of gravity of the goods should be
in the centre of the two forks.be in the centre
of the two forks.
3. When transporting goods, raise the forks as
little as possible.
4. When driving the scissor pallet truck, do this
in such a way that you have a clear view of the
load.
Contact
your dealer

11/32

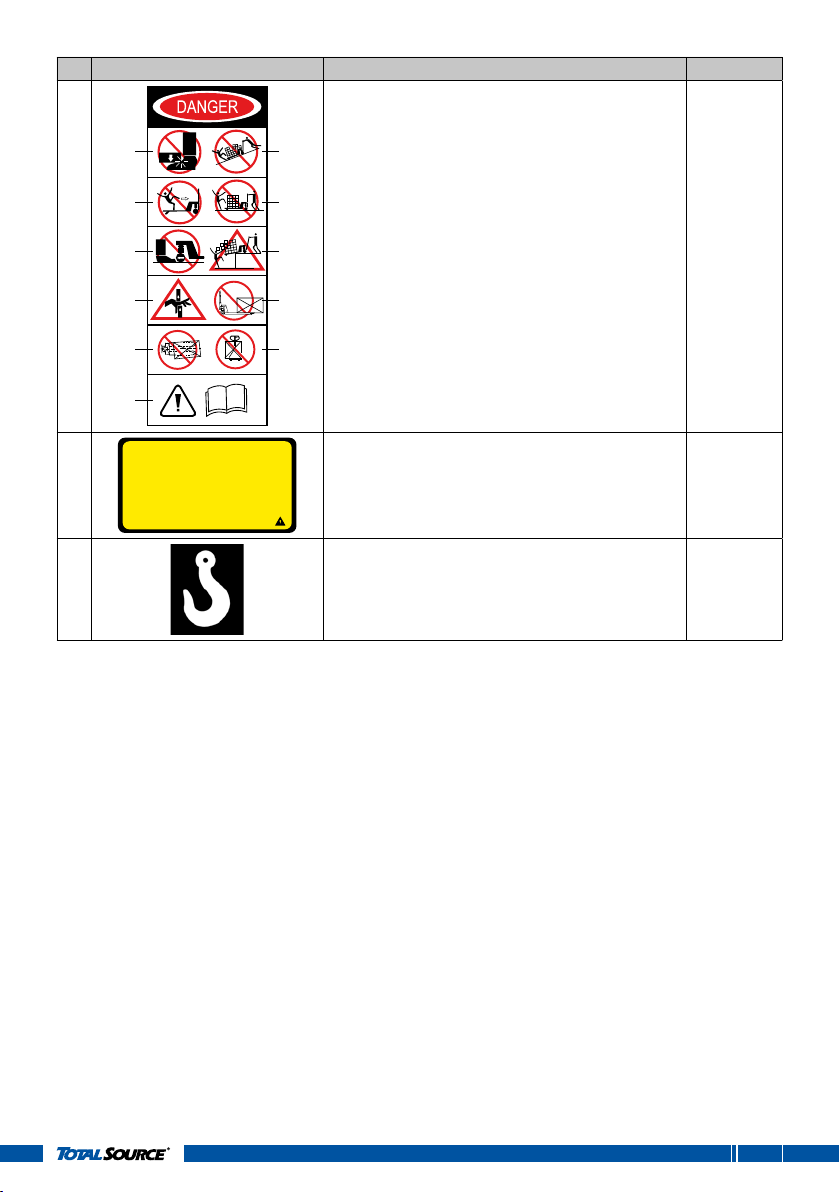

N° Decal Explanation Reference
8
1
3
5
7
9
11
2
4
6
8
10
1. Foot crushing hazard, wear safety shoes
2. Do not use on a slope
3. Do not use to lift or transport people
4. Keep other persons at a distance while
operating the pallet truck
5. Do not put feet in front of rolling wheels, wear
safety shoes
6. Keep other persons at a distance and be
aware of loading bridges and docks to prevent
the pallet truck or the load from falling down
7. Hand crushing hazard, wear safety gloves and
be careful where you put your hands
8. The load must cover the full length and width
of the forks
9. The load must be centred on the forks
10. The centre of gravity of the goods should be in
the centre of the two forks
11. Read the manual before using the pallet truck
166TA2313
9To prevent oil leaking from oil tank during transportations, air
screw is replaced with oil sealing screw from the factory. But it
has to be replaced back when you put this truck in use.
Diese Verschlussschraube ist zwecks Verpackung und
Transport angezogen. Entfernen Sie die Verschlussschraube
und ersetzen Sie diese mit einer Entlüftungsschraube vor der
Verwendung des Scherenhubwagens.
La vis du bouchon de remplissage est serrée pour l'expédition
et la manipulation. Enlevez ce bouchon et remplacez-le par le
bouchon de purge avant d'utiliser le transpalette à ciseaux.
Warning to replace bleeder screw after transport,
see chapter 5
166TA5083
10 ‘Sling’ label.
Warning when lifting the pallet truck. Only lift it in
unloaded condition.
Install the sling as indicated on the warning
symbol.
123TA7299

12/32
3.2. General safety instructions
• The operator should read all warning signs and instructions in the manual and on
the scissor pallet truck before using it.
• Do not operate a scissor pallet truck unless you have been trained or authorised to
do so.
• The scissor pallet truck can’t be used if it’s damaged or when faults appear.
• Do not use the scissor pallet truck on a slope. It is designed to be used on even and
level floors.
• It is forbidden to carry or lift passengers.
• Do not exceed the maximum capacity.
• The weight of the goods should be distributed over the two forks, do not use only
one fork. The centre of gravity of the goods should be in the centre of the two forks.
• Be aware of hazardous situations like ledges or potholes, bumps and floor
obstructions, debris, overhead obstructions and high-voltage conductors,
inadequate surface support to withstand all load forces imposed by the machine.
• The operator should wear safety shoes and gloves when using or maintaining the
• scissor pallet truck.
• When goods are being transported or lifted, bystanders should keep a minimum
distance of 1 metre.
• When transporting goods, raise the forks as little as possible. Transport with
raised forks should be carried out slowly and for as short a distance as possible.
• Do not operate the product unless you are of age.
• The person responsible for the use of the product must make sure that all of the
safety rules in force in the country of its use are applied, to guarantee that the
equipment is used in conformity with the use for which it is destined and to avoid
any dangerous situation for the user.
• Don’t balance the scissor pallet truck on the left or right side.
• Only release the handle once the pallet truck has come to a complete stop.
• Do not load unstable or loosely stacked loads.
TVH cannot envisage each possible circumstance that may result in danger.
Therefore the warnings given in this publication and which appear on the equipment
are not exhaustive.
In the event that equipment, procedures, work methods or working techniques are
used that are not specifically advised by the TVH company, it is necessary to make
sure that there is no danger to the operator or other people.
The pallet truck is equipped with a pressure valve and an overflow valve:
• The pressure valve on the machine is factory-set for the maximum load capacity of
1500kg or according to the capacity mentioned on the pallet truck.
• The pressure relief valve is set to avoid the risk of overloading. When the machine
is overloaded, the overflow valve opens to prevent lifting, because that could result
in a dangerous situation.

13/32
4. TRANSPORT AND STORAGE
4.1. Parking the scissor pallet truck
Park the scissor pallet truck securely in a dry and frost-free environment. Do not
park on an inclined surface. Always completely lower the forks. If the scissor pallet
truck is parked for longer than a month, lubricate the necessary parts, follow the
instructions in chapter7.
Safely park the scissor pallet truck by following these steps:
1. Bring the forks to their lowest position by pulling the lever upwards.
2. Store the scissor pallet truck on a firm, flat floor, without any load, and in a dry area.
3. The pallet truck is parked.
4.2. Transporting the scissor pallet truck
Make sure that the scissor pallet truck is in a secured and stable position, ensuring
that it will not suddenly move.
Safely transport the pallet truck by following the next steps:
1. Check the type plate to know the weight of the scissor
pallet truck. Select the appropriate material according to
the weight (lift truck, chains and slings).
2. Attach the slings to the scissor pallet truck as indicated in
the picture on the right.
3. Lift the pallet truck with a crane or lift truck. Only use a
crane or lift truck with sufficient capacity.
4. Put the pallet truck onto a pallet with sufficient capacity.
5. Secure the pallet truck onto the pallet.

14/32
5. ASSEMBLY AND INSTALLATION
5.1. Packing list
Description Amount Reference
Axle 2 165TA4873
Bleeder screw 1 165TA4937
Tiller arm 1 165TA4900
Chassis with pump unit 1Contact your
dealer
Operating manual 1 167TA1630
Spare parts list 1 166TA9530
5.2. Safety instructions for assembly and installation of the product
• Wear safety gloves and safety shoes when assembling the scissor pallet truck.
• Position the scissor pallet truck on a level surface
• Be careful when removing the packaging.
5.3. Required material for assembly
• Utility knife
• Hammer
• Screwdriver
5.4. Assembly of the tiller handle and commissioning the pallet truck
1. Remove the packaging from the lever.
Attention: the bleeder screw is supplied
in a little bag attached to the handle.
2. Remove the axles using a screwdriver
3. Take the lever and position it above the
pump. Make sure the handle is in the
correct position, the lever on the handle
should be on the right.
4. Insert the axles in the pump through the
holes in the pump and the holes of the
lever.

15/32
5. Take the chain in the lever and run it
through the hole in the axle. Attach the
chain to the lever of the lowering valve.
6. Remove the safety plate.
7. To prevent oil from leaking from the
oil tank during transport, the bleeder
screw has been replaced by a sealing
screw in the factory. Remove the sealing
screw and replace it with the bleeder
screw
8. If the pump functions unsatisfactorily:
loosen the nut and adjust by tightening
or loosening the screw. After
performing the adjustment, retighten
the nut.
9. The pallet truck is now ready to use!

16/32
6. OPERATION
6.1. Safety instructions for operating the product
• A damaged or malfunctioning machine must never be used. If damage or
malfunctions are discovered during pre-operation inspection or function tests, the
machine must be tagged and removed from service.
• The operator may not wear any loose objects, such as necklaces, rings, scarves…
as they may become entangled in the machine and thus cause harm to the
operator.
• Do not operate a pallet truck unless you have been trained or authorised to do so.
• Do not exceed the maximum load capacity.
• The operator should wear safety shoes and gloves when using the pallet truck.
• Never leave a loaded scissor pallet truck unattended.
• When goods are being transported or lifted, bystanders should keep a minimum
distance of 1metre.
• Make sure that the flooring can support the combined weight of the pallet truck
and its load.
• Be aware of hazardous situations like ledges or potholes, bumps and floor
obstructions, debris and overhead obstructions.
• Make sure that no elements can hinder the lowering of the forks.
• When transporting goods, raise the forks as little as possible. Transport with
raised forks should be carried out slowly and for as short a distance as possible.
• When loading and unloading the pallet truck, always do this with the forks in the
lowest position.
• In normal conditions the pallet truck moves without a lot of effort or noises.
• If the wheels are dragging, they are probably blocked by dirt in or around the axles.
• If the forks descend automatically, check the troubleshooting in chapter8.
• Don’t balance the pallet truck on the left or right side. Otherwise there is a risk that
the forks will bend.
6.2. Operating instructions
Please see chapter7 for the daily maintenance schedule.
1. Positions of the operating lever:
On the drawbar of the scissor pallet truck , you can find the control lever which can be
regulated in three positions:
1
2
3
1. UP = to lower the forks
2. NEUTRAL = to move the load
3. LOWER = to pump up the forks

17/32

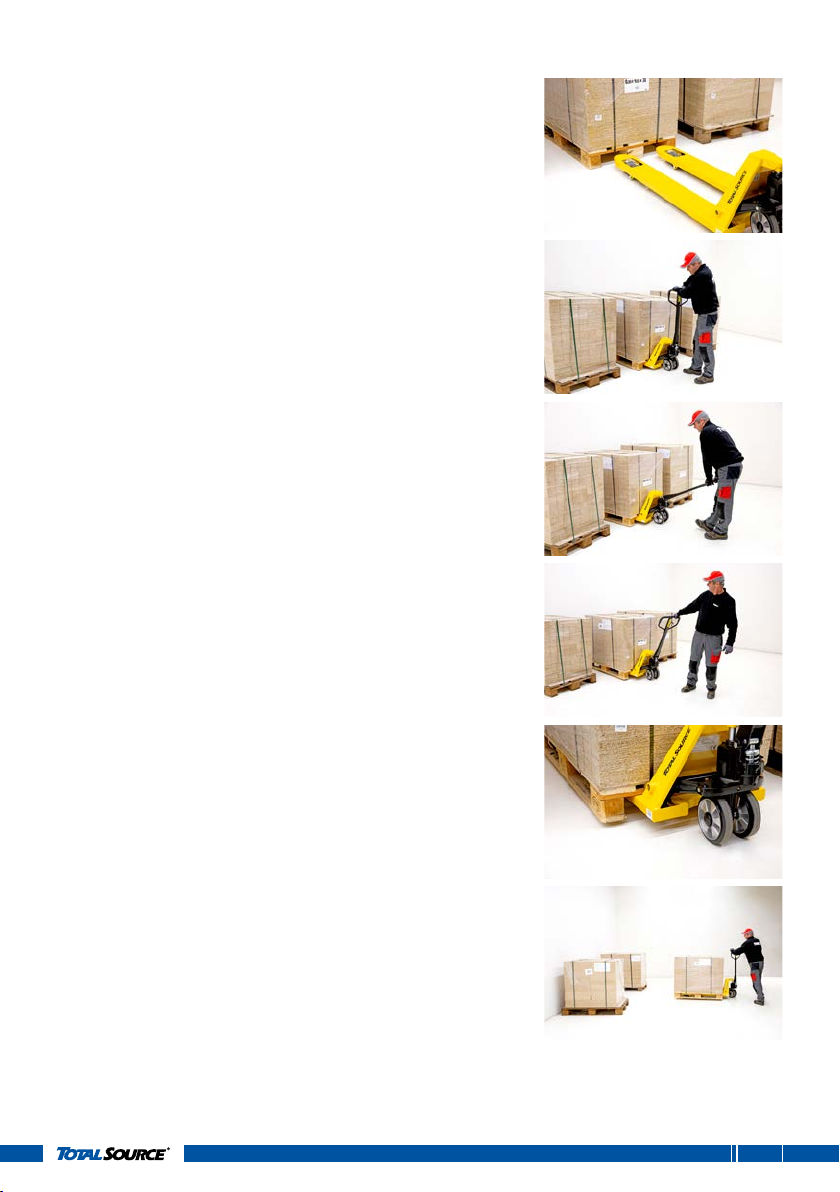

2. Loading and unloading the pallet truck:
1. Position and level the forks so that they are in line with
the pallet inlets.
2. Slowly insert the forks into the inlets until the pallet hits
the back of the forks.
3. Pump up the forks to lift the pallet off the ground.
4. Move backwards and pay attention to the load to make
sure it’s stable.
5. Transport the goods with the forks raised as little as
possible.
6. Position the pallet truck in line with the storage space.

18/32
7. Move the goods into the storage space.
8. Unload the pallet truck by bringing the forks to their
lowest position.
9. Pull back the pallet truck, the pallet is now in the
desired space.
10. If the job is finished, safely store the pallet truck
(seechapter4).

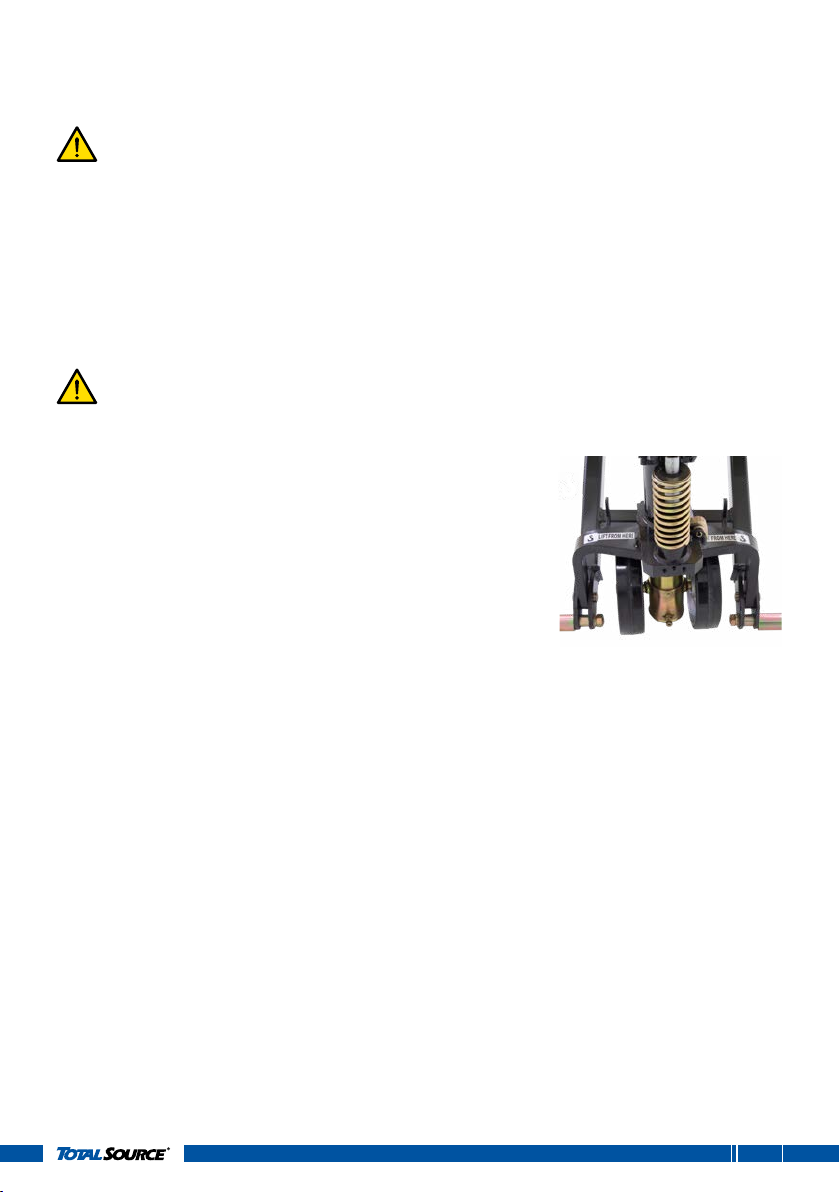

The scissor pallet truck is equipped with 2supports. At a
height of 400mm, the supports automatically hit the floor.
Once the supports are in place, the scissor pallet truck can
no longer be moved.
If the scissor pallet truck doesn’t lower or lift, see the following steps to adjust the lever.

19/32

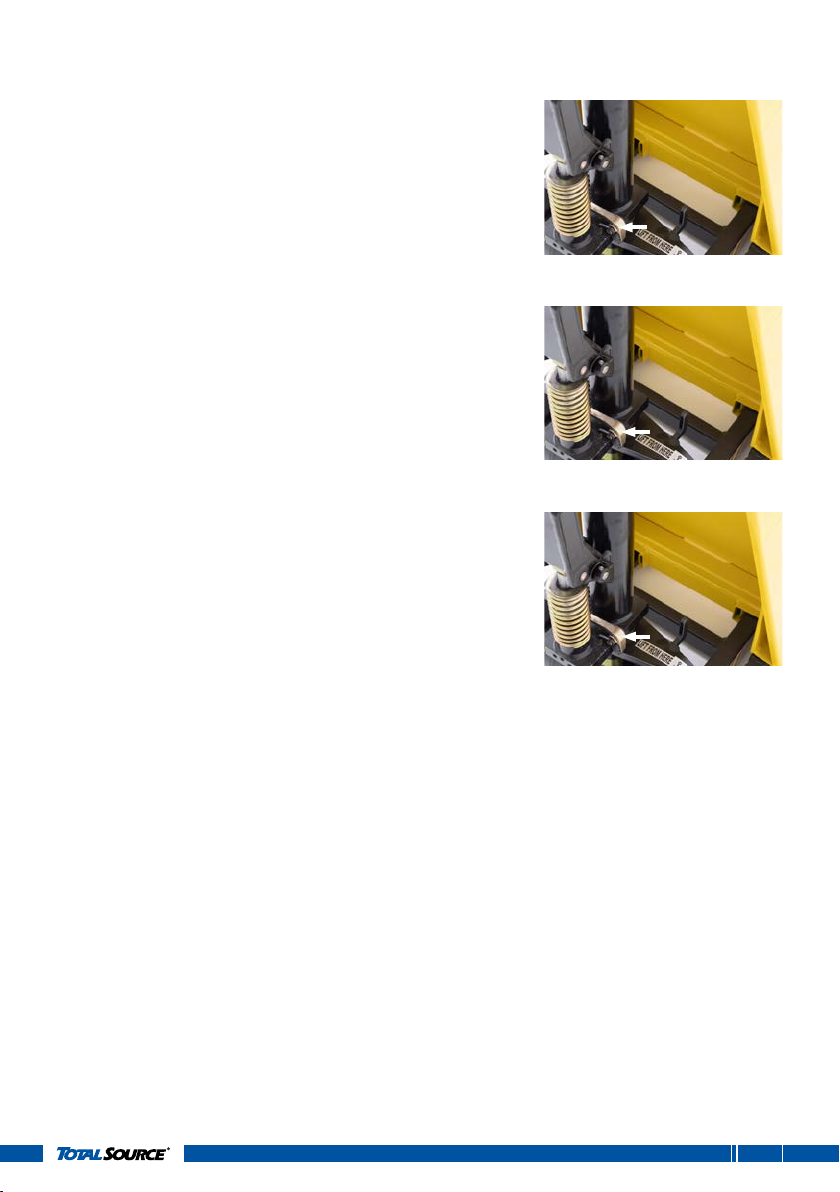

3. Adjustments of the operating lever
Adjustment of neutral position:
1. Place the operating lever in the normal position.
2. Push the tiller handle into the lowest position.
3. Regulate the adjuster nut and screw on the linkage so
that, when the tiller handle is pumped, the forks neither
raise nor lower.
Adjustment of lifting position:
1. Place the operating lever in the lifting position.
2. Pump the tiller handle; the linkage is not operated,
the forks raise and tilt while the release valve remains
completely closed.
3. If the forks do not lift or tilt, regulate the adjuster nut
and screw until a normal lifting and tilting action is
attained.
Adjustment of lowering position:
1. Pull the operating lever in the lowering position.
2. The linkage is operated, causing the release and
pressure valve to open completely, and the forks to
lower.
3. If the forks don’t lower, regulate the adjuster nut and
screw until a normal lowering action is attained.

20/32
7. MAINTENANCE
7.1. Safety instructions for the repair of the product
• No modifications or alterations which could affect capacity, stability or safety
requirements of the pallet truck, but not limited to these examples, shall be made
without the prior written approval of the original manufacturer, its authorised
representative, or a successor thereof.
• Make sure that the truck is in a secured and stable position, ensuring that it will not
suddenly move.
• Before servicing the scissor pallet truck, remove the load and lower the forks to
their lowest position
• The operator should wear safety shoes and gloves when using or maintaining the
pallet truck.
7.2. Maintenance schedule
Task D W M 6M
1. Cleaning 
2. Daily maintenance check 
3. Lubrication 
4. Check oil level 
D: daily, W: weekly, M: monthly, 6M: every 6months
7.3. Maintenance instructions
1. Cleaning
When cleaning the machine, do not direct the jet onto bearings and seals, otherwise the
grease will be washed out and the lifespan of the product will be shortened.
The environment in which the truck is used, determines the cleaning frequency. It is
recommended to assess the need for cleaning based on the applicable rules in the company.
The pallet truck can be cleaned with warm water and maintenance cleaner
(REF165TA7474). After cleaning, wipe down the truck and lubricate the moving parts
(seepoint3 in this chapter).
