Toto TYC602P User manual

. Embed the junction box in the wall, connect the electrical cables.
※Please use electrical cables with specifications of 1.5mm² ~ 2.5mm².
. The junction box is to be positioned on the right side of the main unit.
The center of junction box is positioned as follows
※Back side: 1096mm vertically below the installation position, 95mm away from
the centerline.
. Cable length: extending approximately 400mm out of the wall.
F06737S
Sensor Activated High-speed Hand Dryer (Recessed, multi-functional )
Forbidden
Forbidden
Do not disassemble
Must be followed
These symbols and their meanings are described below.
Symbols Meaning
Recessed Hand Dryer Main Unit
Installation Screws
6 (Φ4.5 × 30) 1 (M4 × 8)
User Manual
(Warranty attached)
Keys Ground Screw
Main Unit
Connecting the
Ground Wire
Paper towel
dispenser
Machine
unit
Power cable inlet
Filter
Drip tray
Trash bin
Main unit <Bottom view>
Sensor Ground Terminal
Heater ON/OFF
switch
Filter case
Power switch
Air nozzles
Wall surface
Warning
Warning
Warning
Warning
Warning
Caution
Caution
Safety Precautions (For your safety, please follow these instructions)
How to Install
Safety precautions before installation Preparing for wall installation
Pull in the cable
Fix the power cable
Building in and wiring the junction box.
Instructions for installing the main unit
Junction Box
(Self-configured on-site)
Wall plug installation hole
6 (3 Left, 3 Right)
2 (1 Left, 1 Right)
Power cable installation hole
BACK SIDE
Floor surface
Wall
Machine unit
panel Plastic cover
Drip tray
Trash bin
Junction
box
Ground
wire
Power terminal block
Power terminal block
Clip
Installation screws
(Φ4 × 16,1 pieces)
Using bent power cable Not fully inserted Power cables of varying lengths
Fully insert the power cable
Strip wire15mm
15mm 15mm
Power
cable
Installing the Ground Wire ※
M4 grounding screw
Metal cover
Continued on reverse side
Screws (6)
Fixing
screws (2)
(Φ4.5 × 30)
(M4 × 12)
Fixing screws (2)
(Φ4 × 10)
Fixing screws (2)
(M4 × 12)
Machine unit
Main unit
Wall
Self-prepared on-site
Floor surface
Floor surface
322mm (+8, -0)
174mm
109mm
109mm
350mm
1680mm
1096mm
95mm
83mm
83mm
83mm
450mm
750mm291mm
1005mm
1642mm
174mm
134mm
90mm
Wall plugs (6)
11mm 312mm
1642mm
1652mm
How to install the cables
Components
Accessories
TYC602P / TYC603P
2016.9
Installation Manual
1
2
3
4
Before installing, please read "Safety Precautions" and install properly according to their instructions.
This manual contains various symbols to enable you to install
and use this product safely and correctly, and to prevent
causing harm to you or other people's safety and property
damage.
For the following symbols, the instruction must
be followed.
Inappropriate operation due to ignoring
these symbols may result in serious
injuries or death.
Do not use in locations with corrosive, flammable gases.
Otherwise, product malfunctions or incorrect operations
may occur.
Electrical works must be performed by a qualified electrician
in accordance with national regulations. Incorrect installation
may cause electric shocks.
Please install a circuit breaker. Otherwise malfunctions and
current leakages may result in electric shock incidents.
Please use the specified cables. Otherwise improper
connection may cause fires.
Please contract a qualified professional to install this product.
People with physical disabilities, mental disabilities and those
who lack common sense (including children) need to be
supervised by a responsible person while using this product.
Connect the ground wire to the grounding screw on the main
unit. Failure to do so may result in electrical shocks.
Be make sure to secure the main unit with the main body
mounting screws.
To prevent the main unit from falling forward and causing
damages to the machine or injuries to personnel.
Connecting
the Ground
Wire
Must be
followed
Must be
followed
Do not modify and disassemble the product. This may
cause fires, electric shocks, injuries and product failures.
Do not install in locations with high humidity such as
bathrooms. This may cause accidents such as current
leakages, electric shocks or fires.
Inappropriate operation due to ignoring
these symbols may result in personal
injuries or property damages.
Do not install
in a humid
environment
Left, right, back
(3 in total)
<When the surface cover is
removed>
Electrical works must be in accordance with the relevant
regulations of the country and installations to be performed
according to the instructions given in this Installation Manual. The
installer must be qualified.
If the connection is done incorrectly, the
connection terminal may ignite which may cause fires.
Please install a circuit breaker. Otherwise malfunctions and current
leakages may result in electric shock incidents.
Connect the ground wire to the grounding screw on the main unit.
Otherwise this may cause electric shocks.
Please use a dedicated circuit breaker rated for 10A current and AC220V
voltage. When fixing the wiring, you must connect an all-pole disconnection
switch protection device.
. After removing the machine unit panel, remove the plastic cover, remove the
screws on the machine unit (2), and then remove the machine unit.
. After removing the drip tray, tear the transparent plastic film off the door panel,
open the door panel, take out the trash bin (invert the trash bin when removing
it).
. Wall installation approximate dimensions (mm): H1652 × W322 × D180
. When installing the screw into the wall, first use the expansion tube.
(Expansion tube self-configured on-site)
. During installation, the bottom side of the main unit should be
approximately 109mm from the floor surface.
Power cable
installation hole
(For ground line)
. Insert wall plugs into the wall.
. Secure the bottom part of the main unit, then pull the power cable in the wall through the wiring hole
at the back side of the main unit. Pull the ground wire through a hole on the right side (or left side) of
the main unit. (As shown below)
. After the power cable is in place, and the whole unit is embedded in the wall, then use screws (Φ4.5
× 30) to secure (6).
. Finally, install the machine unit to the main unit and secure with 2 screws (M4 × 12).
(See overall
installation
instructions)
※Note: Due to the heavy weight of the product, please pay attention to safety during
installation, to avoid product from toppling over.
Connect the ground wire to the grounding screw on the main
unit.Otherwise this may cause electric shocks.
. Connect the power cable for stainless steel main unit to the hand dryer power
supply terminal block.
Wrong
Examples
To maximize the product's performance, please follow the instructions given in this manual for correct installation. After installation, please explain in detail the
operating instructions to the customer. The product contains the user manual (warranty attached).
Do not install in a
humid location
Connecting the
Ground Wire
Do not
disassemble

Installation Procedure
Paper towels
Machine unit panel
Plastic case
Drip tray
Trash bin
(Self-prepared)
Fixing screws (2)
Fixing screws (2)
(Φ4 × 10)
(M4 × 12)
Trial operation
5

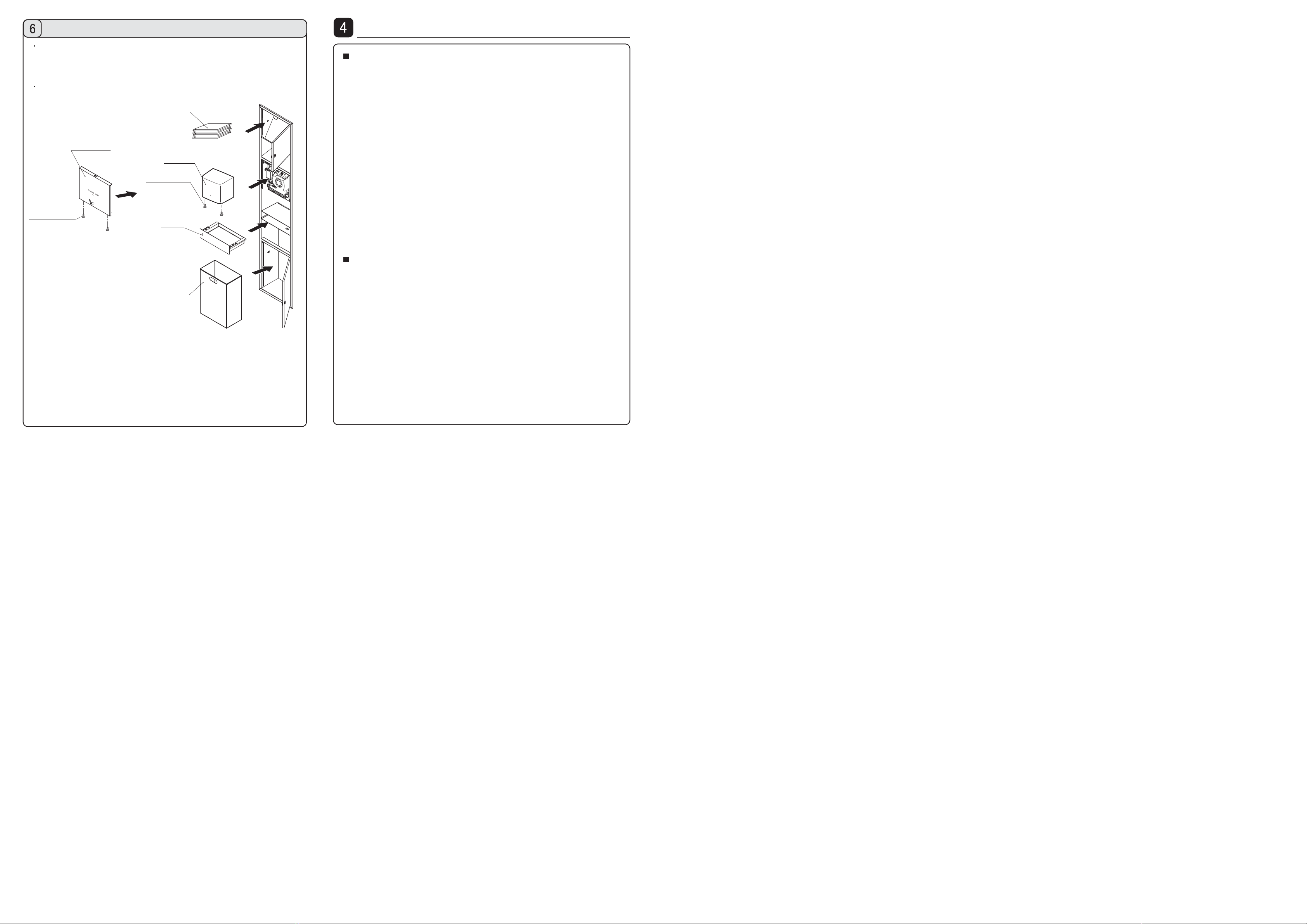

After securing the power cable, place the plastic cover over the
machine unit, secure with fixing screws (2), then secure the machine
unit panel with screws (2).
Place the trash bin in the main unit, and lock the door.
Place back the drip tray, add paper towels if necessary, then lock the
door.
After installation, perform a trial run in the following manner
1. Power
. Turn the circuit breaker "ON".
2. Verify that the power switch is set to "ON".
. Set the power switch to "ON".
3. Verify that product is operational
. Place your hand under the air nozzles to check if air blows out.
4. Verify the heater switch
. Set the heater switch the other status, verify if the air temperature
changes.
※When switching, do so after the motor stops completely.
After the trial operation
.After the trial operation is completed, please give the "User
Manual (Warranty attached " to the customer and explain the use
of the product in detail to the customer.
