Toto TYC602P User manual

You are advised to record the following information to allow for quick service.
Date of purchase: Name of shop:
Date: year month day
Tel:
2016.09
F06736S
TYC602P / TYC603P
....................1
......2
...........................3-4
...........................5-6
.............................7
............7
.........................8
......................................9
Sensor Activated High-Speed Hand Dryer
(Recessed, multi-functional)
Features and Components
How to Use
Maintenance
Specifications
Troubleshooting
Hazardous Substances
Warranty
User Manual Attached warranty
Please read this user manual thoroughly
to ensure the product is used correctly.
After reading, please keep this manual in a
safe place for future reference.
Thank you for purchasing TOTO hand dryer.
Safety Precautions
Before UseHow to UseMaintenanceOthers

Safety Precautions
Warning
Caution
These symbols and their meanings are as follows:
Symbols Meaning Forbidden
Do not disassemble
Must be followed
No wet hands
Various symbols are presented in this manual to enable you to install and use this
product safely and correctly, and to prevent causing harm to you or other people's
safety and property damage.
When this symbol is ignored and the product is
used incorrectly, it may result in severe injuries or
death.
When this symbol is ignored and the product is
used inappropriately, it may result in personal
injury or property damages.
During maintenance, do not splash water into the hand dryer. This may
cause electric shocks or malfunctions.
Forbidden
Do not
disassemble
Must be
followed
Do not use any voltages other than the voltage specified. This may cause
fires.
Do not block the air nozzle with your hand or insert other long, thin objects
into the air nozzle.This may cause electric shocks or malfunctions.
Do not place lit cigarettes on the hand dryer.This may scorch the cover
surface and cause fires.
Do not disassemble, repair or modify the product.This may cause electric
shocks or fires.
During maintenance, always set the power switch to the "off" position.
Failure to do so may cause unexpected accidents.
Warning / Caution
Before Use
People with physical disabilities, mental disabilities, the elderly and those
who lack common sense (including children) need to be supervised by a
responsible person while using this product.
Please contact a qualified professional to install this product.
Please read the "Safety Precautions" section thoroughly before use
to ensure the product is used correctly.
Take note of the following
symbols and meanings:

TYC602P
TYC603P
605 ~ 675W
605W
380 ~ 440W
380W
(M4 × 8)(4.5 × 30)

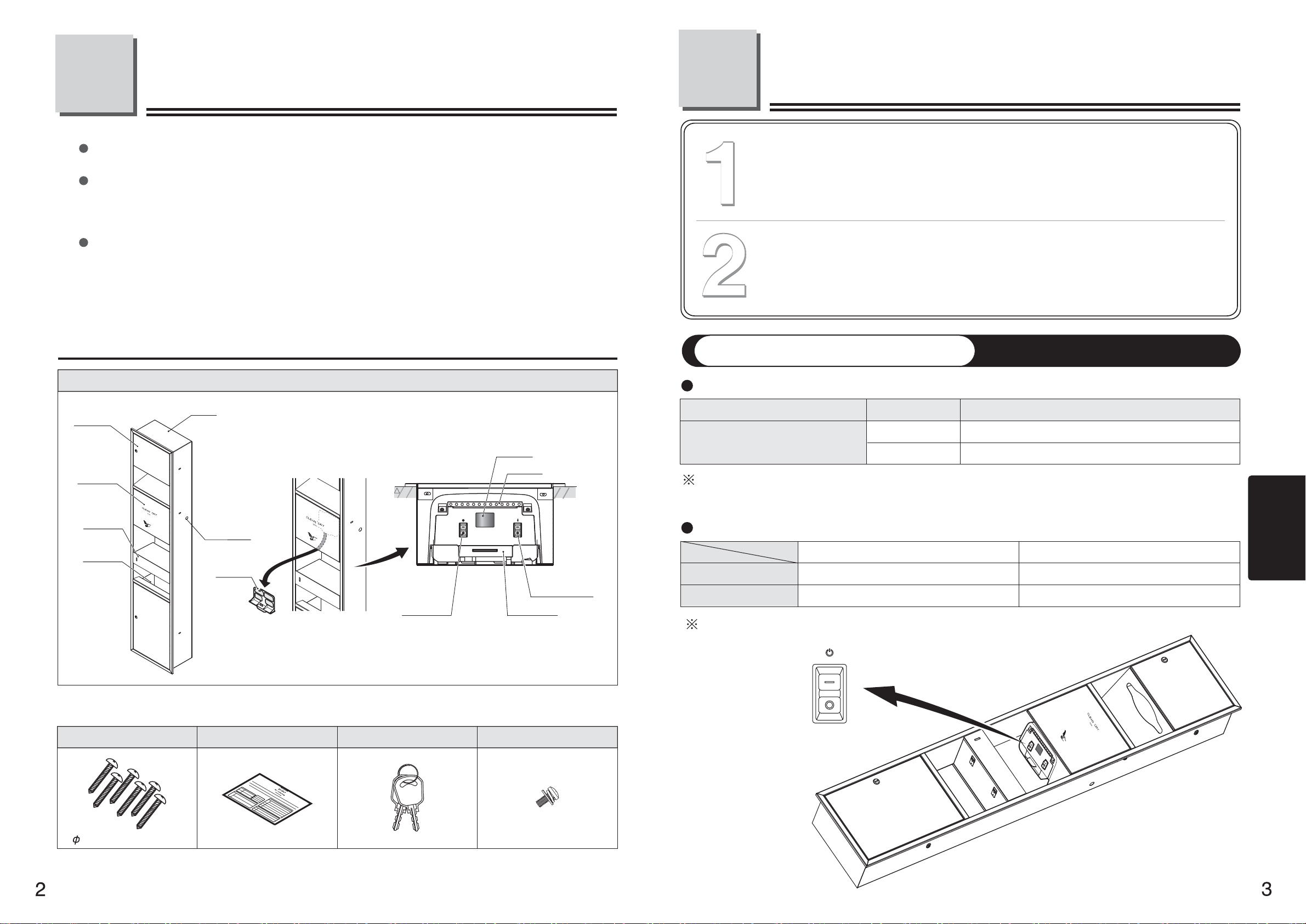

How to Use
Features
The "Heater: On/Off" switch can be changed according to the usage conditions.
Components
Main Unit
Paper towel
dispenser
Machine
unit
Drip tray
Trash bin
Main Unit
Power cable
inlet
Filter
Wall surface
Sensor
Air nozzles
Power
switch
Heater ON/OFF
switch
Filter case
Accessory
Installation Screws Installation Manual Door Keys Grounding Screw
1Piece(s)6Piece(s)
How to Use
Set the power switch to "ON".
Set the heater switch as required.
How to use the mode switch
Depending on the operating environment, set the heater switch accordingly.
Switch Name Mode
Heater ON
OFF
Purpose of Use
Warm air, faster drying
Save Power
Factory setting "Heater: ON"
Combined power usage for each mode is shown in the table below.
Heater: ON
TYC602P
TYC603P
Heater: Off
Approximate power consumption during standby <0.5W.
The product is designed to stop automatically after 60 seconds of continuous
operation. This is to prevent continuous operation due to incorrect operation by
human or product. Once the incorrect operation or sensor error is removed, the
product will automatically return back to normal operation.
<Bottom view>
The product will activate automatically and blow out dry air when hands
are placed under the air nozzles; when hands move away from the
sensor detection area under the air nozzles, the product will
automatically stop.
The product will automatically activate when hands are placed under the air
nozzles. Hands will not have any contact with the product or switches, making it
convenient and sanitary.

household cleanser
Diluting agent
Acidic
Alkaline
Fast Drying Method Follow these steps for faster drying.
Heater switch set to "ON".
The closer your hands are to the air nozzles, the faster they dry.
If your hand movements are too big, water from your hands may splash in all directions.
Finally, rub your hands together.
Maintenance
Warning / Caution
Forbidden
Must be followed
Maintenance of the Main Unit
Sensor Maintenance1 Times / month
When the sensor unit is dirty, it can result in sensor not detecting or incorrect operation.
Wipe with a well-wrung wet cloth.
Do not use detergent.
May cause sensor not detecting or incorrect operation.
Sensor
Wall surface
Bottom view
Do not
use toilet
cleaner
Please do not use acidic or alkaline
toilet cleaners, volatile liquids. diluting
agent and household cleanser, nylon
fabrics. This may damage the product
surface.
After cleaning with diluted neutral
kitchen detergent, wipe again with
water.
Do not
use
detergent
Maintenance
When the product is dirty, please wipe with a soft cloth. If it is
very dirty, wipe with a cloth dipped in diluted neutral detergent
and then wipe again with water.
During maintenance, do not spill water into the product. This may
cause electric shocks or malfunctions.
During maintenance, set the power switch to "OFF". Failure to do so
may cause incorrect operation.
Place your hands under the air nozzles with
the back of your hands facing upwards and
fingers straight, until your fingers are near
the inner wall.
After the air starts blowing out, slowly move
your hands back and forth.
Then with your palms facing upwards, place
your hands under the air nozzles again.
Move your fingers close to the inner wall,
slowly moving your hands back and forth.
The hand dryer will automatically stop after 60 seconds of continuous operation.
To continue using the product, first remove your hands and then re-insert them.

Filter Maintenance 1 Time(s)/ month
If the filter is dirty, this may result in malfunctions such as reduced airflow, abnormal noises, etc.
Please clean the filter regularly.
Clean the filter
Drain Tray Maintenance Recommendation 2~3Times / Week
Washable
FULL Line

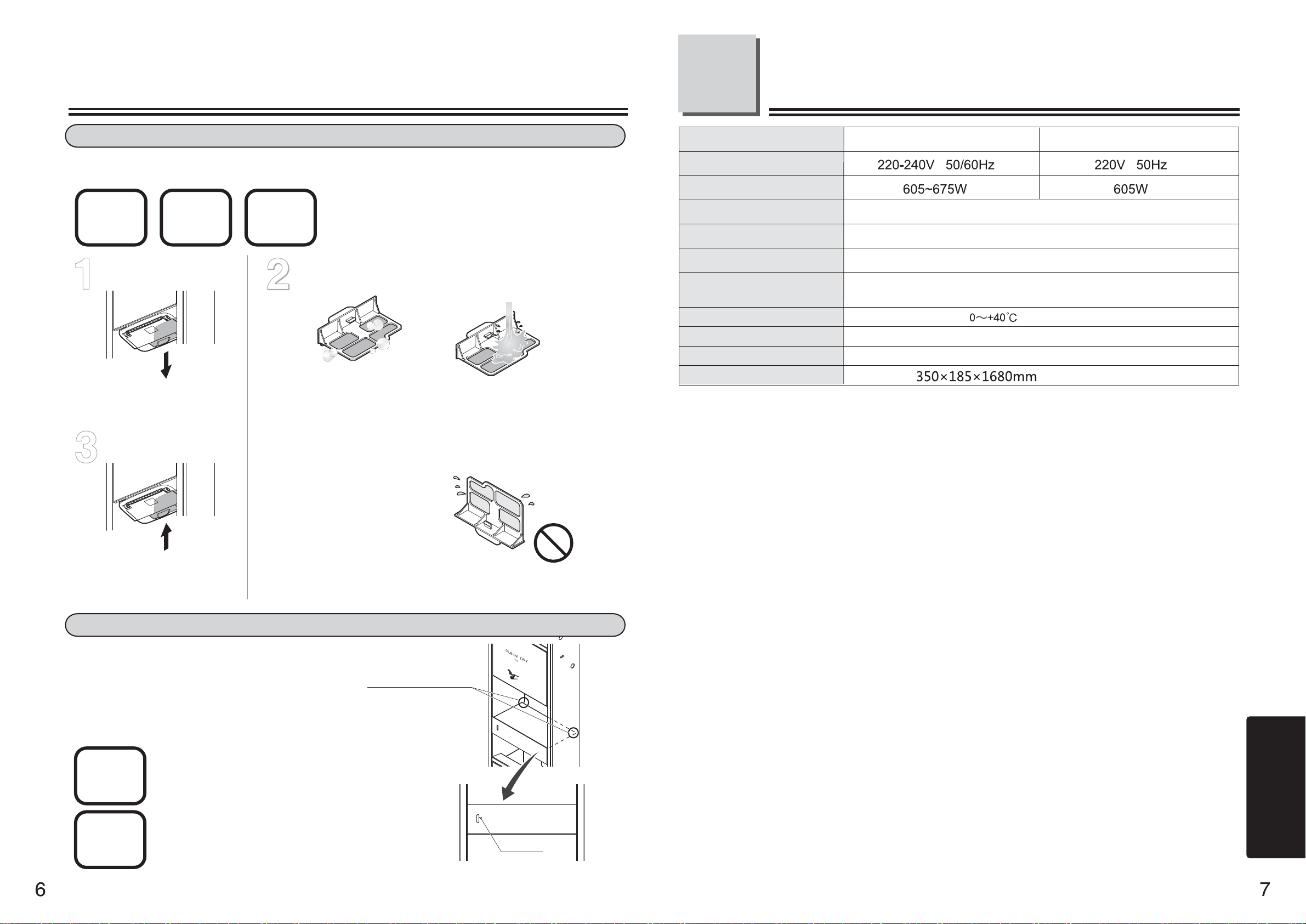

Specifications
Model
Supply Voltage
Rated Power
Heater
Motor
Mechanical Fan
Safety Devices
Net Weight
Product Dimensions
Temperature Range
Gross Weight
TYC602P TYC603P
Approximately 22kg
About 30kg
PTC Heater
Brushed AC motor
Turbo fan
Temperature fuse (motor, heater, power terminal block),
current fuse
(No condensation)
Others
Washable
Do not use
toilet
detergents
Do not use
when the
filter is wet
Allow it to dry thoroughly before using.
Using wet filters may cause malfunction.
Do not use toilet cleaner.
This may cause malfunctions.
When the filter is very dirty, please wash it with water and dry it
thoroughly before using again.
When there are sticky stains, add diluted neutral detergent to
warm water, dip a soft sponge in the nuetral detergent solution
and use it to remove the stains and then allow it to dry after
cleaning.
Please allow the product to dry thoroughly before use.
If you install and use the product in humid conditions, it may
cause malfunctions.
Simply pull the protrusion
at the middle of the case
downward to remove it.
Remove the filter case
Reinsert the filter case
Insert into the original
position, make sure it is
installed properly.
Water must be disposed before water in the tray goes
above the FULL line.
[If water goes above the FULL line, then the water will
overflow.]
When pulling out the drip tray, keep it horizontal.
[Otherwise, water may spill out of the tray.]
Please do not use the product if there is residual
detergent left in the drip tray.
[Otherwise this may result in malfunctions.]
During cleaning,
pay attention to
the corners
.Remove the drip tray from the main unit and then pour
out the water.
.If the drip tray is dirty, clean it with water.
.If there is odor or tough stains, clean with a neutral
detergent and then wipe dry with a soft cloth.
.Return drain tray to its original position and make sure
that it is installed properly.
Do not use
when there is
residual
detergent left
(Width x Depth x Height)

Others
Troubleshooting
9
Warning
Do not
disassemble
If you think there is a malfunction, please confirm the following before sending for repair.
Problems Inspection and Solutions
No warm air
Reduced air flow
Power switch is set to "ON"?
If switch set to "OFF", set it to "ON."
AC power supply circuit breaker is set to "ON"?
If switch is set to "OFF", set it to "ON."
Is the sensor dirty?
If it is, then wipe it with a soft, dry cloth.
Is there any items in the drip tray?
If there is, remove it.
Is the sensor area dirty?
If it is, then wipe it with a soft, dry cloth.
Heater switch is set to "ON"?
If switch is set to "OFF", set it to "ON."
Is the filter dirty?
If yes, please clean it.
Is the drip tray clogged or dirty?
Do not disassemble, repair or modify the product.
This may cause electric shocks, fires and other
accidents.
Air does not blow
when hands are in
place
Air does not stop
blowing after
hands are
removed
There is water
deposit in the
water drip tray.
Requirements
If there is blockage or dirt, etc., please clean with a thin long object such
as a cotton swab.
If you need to dispose of this product, do not treat it as a general household waste. Please follow the
regulations in accordance to the local recycling system for appropriate disposal, collection and
recycling.
WARRANTY
LIMITED ONE YEAR WARRANTY
1. TOTO warrants its products to be free from manufacturing defects under normal use and service for a period of
one (1) year from the date of purchase. This warranty is extended only to the ORIGINAL PURCHASER.
2. TOTO’s obligations under this warranty are limited to repair or replacement, at TOTO’s option, of products or
parts found to be defective, provided that such products were properly installed and used in accordance with the
INSTRUCTION MANUAL. TOTO reserves the right to make such inspections as may be necessary in order to
determine the cause of the defect. TOTO will not charge for the labor or parts in connection with warranty
repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of products.
3. This warranty does not apply to the following items:
a) Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b) Damage or loss resulting from any unreasonable use, misuse, abuse, negligence, or improper maintenance of
the product.
c) Damage or loss resulting from removal, improper repair or modification of the product.
d) Damage or loss resulting from sediments or foreign matter contained in a water system.
e) Damage or loss resulting from improper installation or from installation of a unit in a harsh and/or hazardous
environment.
4. This warranty gives you specific legal rights. You may have other rights which may vary from Country to
Country.
5. To obtain warranty repair service under this warranty, you must take the product or deliver it prepaid to a TOTO
service facility together with a letter stating the problem, or contact with a TOTO distributor or products service
contractor, or write directly to TOTO sales office. If, because of the size of the product or nature of the defect,
the product cannot be returned to TOTO, receipt by TOTO of written notice of the defect shall constitute delivery.
In such case, TOTO may choose to repair the product at the purchaser’s location or pay to transport the product
to a service facility.
THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR OR
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY
AVAILABLE TO THE PURCHASER, TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE
PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES
INCURRED BY PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR
REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT
SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY
IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE, ARE
EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND
EXCLUSION MAY NOT APPLY TO YOU.
TOTO ASIA OCEANIA PTE. LTD.
Yangon Branch
#303, Prime Hill Business Square,
No.60,Shwe Dagon Pagoda Road,
Dagon Township, Yangon, Myanmar.
Phone : [phone]
TOTO ASIA OCEANIA PTE. LTD.
10, Eunos Road 8, #12-07,
Singapore Post Centre.
Singapore 408600.
Phone : [phone]
Fax : [phone]
http://asia.toto.com/ Fax : [phone]
TOTO ASIA OCEANIA PTE. LTD.
Middle East Branch
LOB19-1701-1702, Jebel Ali Free Zone,
P.O. box 261804,
Dubai U.A.E.
Phone : [phone]
Fax : [phone]
http://asia.toto.com/
TOTO ASIA OCEANIA PTE. LTD.
Manila Representative Office.
Unit 1010, 10th Floor Rufino Building,
Ayala Avenue cor.V.A. Rufino Street,
Makati City,1226 Philippines.
Phone : [phone]
Fax : [phone]
http://asia.toto.com/ http://asia.toto.com/
TOTO INDIA INDUSTRIES PVT. LTD
101,Kamla Executive Park, Opp. Vazir
Glass Works, Off. Andheri Kurla Road,
Andheri (East), Mumbai 400 059,
India.
Phone : [phone]
Fax [phone]
http://asia.toto.com/
TOTO (THAILAND) CO., LTD.
G Tower Grand Rama 9, 12th Floor.
South Wing, 9 Rama IX Road,
Huaykwang Sub-district, Huaykwang
District,
Bangkok 10310 Thailand.
Phone : +66 2 - 117-9520
Fax : +66 2 - 117-9527
http://www.toto.com.th/
TOTO VIETNAM CO., LTD
Unit 1104, 11th Floor, Eastern Tower,
Lotte Center Hanoi,
54, Lieu Giai Str, Ba Dinh Dist.,
Ha Noi, Vietnam.
Phone : [phone]
Fax : [phone]
http://www.toto.com.vn/
