Toto washlet C100 SW2034 User manual

C100
A100
SW2034
(TCF6631U)
SW2033
(TCF6630U)
SW2014
(TCF6601U)
WASHLET
Instruction Manual
■ Thank you for your recent purchase of the product. Please read the enclosed
information to ensure the safe use of your product.
■ Be sure to read this Instruction Manual before using your product and keep it in a
safe place for future reference.

2
The available functions vary according to the model.
Functions
C100 A100
Ref.
Page
SW2034 SW2033 SW2014
Basic
Functions
Cleansing
Rear cleansing ●●●
15
Rear soft cleansing ●●●
Front cleansing ●●●
Changing the washing
method
Wand position adjustment
●●●
Water pressure adjustment
●●●
Oscillating cleansing ●●●
Drying Warm air drying ●●—
Changing the temperature
Temperature adjustment ●●● 18, 19
Sanitary
Functions
Removing odors Deodorizer ●●—
16, 17
Bowl pre-cleaning Pre-mist ●●—
Convenient
Functions
Heating the toilet seat Heated seat ●●●
-
Saving energy Energy saver ●●●
20, 21
Maintenance
Main Unit
One-touch removal ●●●
26
Removable toilet lid ●●●
27
Wand cleaning ●●●
28
Your Model
Part No.
Check your model name
and write a check mark in
this field as needed.
Product name (Model)
7
1

3
Product name,
Part No.
Safety Precautions .................... 4
Operational Precautions.......... 11
Parts Names ........................... 12
Preparation.............................. 14
Changing Settings ................... 30
What to Do?............................. 34
●
Freeze Damage Prevention ... 34
●Long Periods of Disuse........ 35
Troubleshooting....................... 36
Specifications .......................... 40
Warranty .................................. 41
Basic Operations ..................... 15
Automatic Functions................ 16
DEODORIZER, PRE-MIST
Temperature Adjustment.......... 18
Energy Saver Feature ............. 20
Power Plug .............................. 24
Main unit.................................. 25
Deodorizing Filter .................... 25
Gap between the Main Unit
and the Toilet Bowl .................. 26
Gap between the Main Unit
and the Toilet Lid ..................... 27
Wand ....................................... 28
Wand cleaning
Water Filter Drain Valve........... 29
As you sit
 A mist is sprayed in the toilet bowl.
 The deodorizer operates.
The self-cleaning functions operate
automatically.
(See pages 16 and 17 for details.)
Table of Contents
A mist is automatically sprayed
in the toilet bowl to create a water
cushion, which prevents dirt from
adhering to the surface.
ReferenceMaintenanceOperation
Introduction

4
These precautions are important for safe usage. Be sure to follow them and use the product
correctly.
Symbols and Meanings
WARNING May result in death or serious injury.
CAUTION May result in injury or property damage.
The following symbols are used to indicate important safety instructions for the use of the product.
Symbol Meaning
This symbol indicates a prohibited use of the product.
This symbol is used to indicate a required step in the use of this product.
 This product is classified as Class 1 Equipment and must be grounded.
 Install this equipment where the electrical outlet is accessible.
 This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
 Use the new hose set included with this equipment. Do not reuse an old hose set.
WARNING
Do not plug or unplug the power plug with wet hands.
 Doing so may cause electrical shock.
Do not get any water or cleaning solution on the main unit or power plug.
 Doing so may cause fire, electrical shock, heat or short circuit.
 Doing so may cause the product to crack resulting in injury or water damage.
Never disassemble, repair or alter.
 Doing so may cause fire, electrical shock, heat or short circuit.
Do not install the product on moving vehicles such as wheeled vehicles or boats.
 Doing so may cause fire, electric shock, short circuit or malfunction.
 The toilet seat, toilet lid, main unit or other parts may come loose and fall off, resulting in injury.
Safety Precautions

5
WARNING
Do not use the Washlet if a malfunction occurs.
Always unplug the plug from the outlet.
 Close the water shutoff valve to stop water supply.
Possible malfunctions:
 Water is leaking from a pipe or the main unit.
 The product is cracked or broken.
 The product makes a strange noise or emits a strange odor.
 The product emits smoke.
 The product is abnormally hot.
 The toilet seat cushion is out of place.
 Continued use after malfunction could cause a fire, electric shock, heat, short circuit, injury or
water damage.
Only use tap water or potable well water (underground water).
Do not use seawater.
 Doing so may cause irritation to the skin and malfunction.
Do not touch the power plug during thunderstorms.
 Doing so may cause electrical shock.
Do not allow the water supply hose to touch the power plug or outlet.
 Doing so may cause condensation resulting in a fire, electrical shock, heat or a short.
Do not do anything that may damage the power cord, power plug.
Do not strike, yank, twist, excessively bend, damage, alter, or heat the electrical cords. Also, do
not place anything heavy on, bind or pinch the electrical cords.
 Using a damaged electrical cord may result in a fire, electrical shock, heat or short.
Do not use a loose or faulty electrical outlet.
 Doing so may cause fire or short circuit.
Do no use any outlet or wiring equipment beyond its specified rating.
 Plugging too many plugs into the same outlet, for example using outlet splitters, can cause fire
due to heat.
Do not use any power supply other than the one specified.
AC 120V,60Hz
 Doing so may cause fire or excessive heat.
Do not stick a finger or anything else into the warm air outlet.*
Do not place anything on the warm air outlet or drape clothes over it.
 Doing so may cause burns, electrical shock or malfunction.
Keep cigarettes and other open flames away from the product.
 Failure to do so may cause fire.
* Except SW2014
Introduction

6
WARNING
Beware of irritation or burn.
 Improper use of the toilet seat may cause irritation or burn.
When sitting for a long time on the toilet seat, switch the toilet seat temperature adjustment to "OFF".
When any of the following persons use a heated seat or warm air drying, someone should switch the
toilet seat temperature adjustment to "OFF" and switch the drying air temperature to "Low".

Young children, the aged and other users unable to set the temperature appropriately themselves.
 The ill, physically disabled and others who do not have freedom of movement.
 Those using any medicines that cause drowsiness (sleeping or cold medicine), those who have
been drinking heavily, anyone severely fatigued and anyone else liable to fall asleep.
This is an electrical product. Do not install it anywhere water is likely to get on
the product or anywhere with humidity high enough that water is likely to form
on the surface of this product. When using the product in a bathroom, install
a fan or ventilation port and ensure good air flow through the bathroom.
 Failure to do so may cause fire or electrical shock.
Always connect the Washlet to the cold water supply.
 Connecting to hot water supply may result in burns and equipment damage.
Make sure that a properly grounded (3 prong) outlet has been installed.
 Failure to install a grounded outlet could cause electrical shock in the event of a malfunction or
short circuit.
Insert the power plug securely into the outlet.
 Failure to do so may cause fire, heat or short circuit.
To unplug, hold the plug, not the cord.
Do not unplug by pulling the cord.
 Pulling on the cord may cause damage and result in fire or heat.
If the electric cord is damaged, avoid danger by having the manufacturer’s
repair department or equivalent specialist replace it.
Always disconnect the power plug from the outlet before cleaning,
maintenance or inspection.
 Failure to do so may cause electrical shock or malfunction.
* Except when using "Wand cleaning".
Periodically remove dust and dirt from the electrical plug and make sure it is
securely plugged into the wall outlet.
 Failure to do so may cause fire, heat or short circuit.
Pull the plug out from the outlet and wipe clean with a dry cloth.
Always unplug the plug from the outlet before removing the main unit.
 Failure to do so could cause a fire or electrical shock.
Safety Precautions (Continued)

7
WARNING
Preliminary studies in females suggest that overuse of continuous spraying
can increase the possibility of vaginal mucosa drying and potential
reduction in desirable microbial organisms.
Although these studies have not been validated, please consult your
healthcare provider for concerns regarding whether these circumstances
may apply to you.
More importantly, if you are an individual suffering from any immune
deficiency as a result of disease, chemotherapy, or other medical condition
compromising the immune system you should consult your healthcare
provider before use of this product.
CAUTION
Do not use the product if the main unit is unstable.
 Doing so may cause the main unit to come loose and fall, resulting in injury.
If the product is damaged, do not touch the damaged section.
 Doing so may cause electrical shock or injury.
Replace it immediately.
Do not apply strong force, mechanical shock, step on or stand on the toilet
seat, toilet lid or main unit. Also do not place any heavy object on the toilet
seat, toilet lid or main unit.
 Doing so may cause cracking or cause the main unit to come loose and fall, resulting in injury.
 Doing so could damage the product and cause injury or water damage.
Do not lift up this product by the toilet seat or lid.
Do not raise the toilet seat or lid while objects are resting on top of the toilet.
 Doing so may cause the main unit to come loose and fall, resulting in injury.
When cleaning or maintaining the plastic parts (main unit etc.) or the water
supply hose, use a kitchen cleaner diluted with water. Do not use any of the
following.
Toilet cleaner, household cleaner, benzene, paint thinner, powdered cleanser or nylon scrubbing pads.
 These items may damage or crack the plastic and cause injury or malfunction.
 These items could damage the water supply hose and cause a water leak.
Introduction

8
Safety Precautions (Continued)
CAUTION
To prevent a sudden water leak, do not remove the water filter drain valve
when the shutoff valve is open.
 Doing so will cause water to spurt out.
(Refer to Page 29 for instructions on cleaning the water filter drain valve.)
Do not fold or crush the water supply hose; do not damage by cutting with a
sharp object.
 Doing so may cause water leaks.
Do not install the base plate, which is not attached.
 Doing so could cause a fire or damage.
If a water leak should occur, always close the shutoff valve.
When the ambient temperature is likely to drop to 0°C (32°F) or lower,
prevent damage to the pipes and hoses due to freezing.
 Frozen water pipes could cause the main unit and the pipes to break, resulting in a water leak.

Regulate the room temperature to prevent the pipes and hoses from freezing during cold months.

Drain the water.
When not using the Washlet over an extended period of time, drain the
water out of the main unit and the water supply hose after closing the water
shutoff valve, and pull the electrical plug from the outlet.
When using the product again, allow the product to refill with water first.
 Otherwise, the water in the tank might become contaminated and cause skin inflammation or
other problems. (Refer to Page 35 for instructions on replenishing the water.)
 Leaving the power on may cause fire or heat.
When installing the water filter drain valve, make sure that it is securely
tightened in its proper position.
 Failure to securely tighten it may cause a water leaks.
Push the main unit securely on to the base plate.
After pushing the main unit until a click sound is heard, pull it slightly toward you to make sure that
the product does not detach.
 Failure to do so could cause the main unit to come loose and fall resulting in injury.

9
DANGER To reduce the risk of electrocution:
1. Do not use while bathing.
2. Do not place or store the product where it can fall or be pulled into a tub or sink.
3. Do not place in or drop into water or other liquid.
4. Do not reach for the product when it has fallen into water. Unplug it immediately.
WARNING To reduce the risk of burns, electrocution, fire or injury to persons:
1. Close supervision is necessary when this product is used by, on, or near children or
invalids.
2. Use this product only for its intended use as described in this manual. Do not use
attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug, is not working properly, has
been dropped or damaged, or has been dropped in water. Return the product to a service
center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never block the air openings on the product or place it on a soft surface, such as a bed
or couch, where the air openings may be blocked. Keep the air openings free of lint, hair,
and other similar items.
6. Never use while sleepy or drowsy.
7. Never drop or insert any object into any opening or hose.
8. Do not use outdoors. Do not operate where aerosol (spray) products are being used or
where oxygen is being administered.
9. Connect this product to a properly grounded outlet only.
See "Grounding Instructions" in Page 10.
10. The tank should be filled with water only.
Introduction

10
Grounding Instructions
This product should be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electrical current.
The plug must be plugged into an outlet that is properly installed and grounded.
DANGER - Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire
to either flat-head terminal.
Check with a qualified electrician or serviceman if the grounding wire instructions are not
completely understood, or if in doubt as to whether the product is properly grounded.
This product is factory equipped with a specific electric cord and plug to permit connection
to a proper electric circuit. Make sure that the product is connected to an outlet having the
same configuration as the plug.
No adapter should be used with this product. Do not modify the plug provided - if it will not fit
in the outlet, have the proper outlet installed by a qualified electrician.
If the product must be reconnected for use on a different type of electric circuit, the
reconnection should be made by qualified service personnel.
If it is necessary to use an extension cord, use only a three wire extension cord that has a
three blade grounding plug, and a three-slot receptacle outlet that will accept the plug on the
product.
Replace or repair a damaged cord.

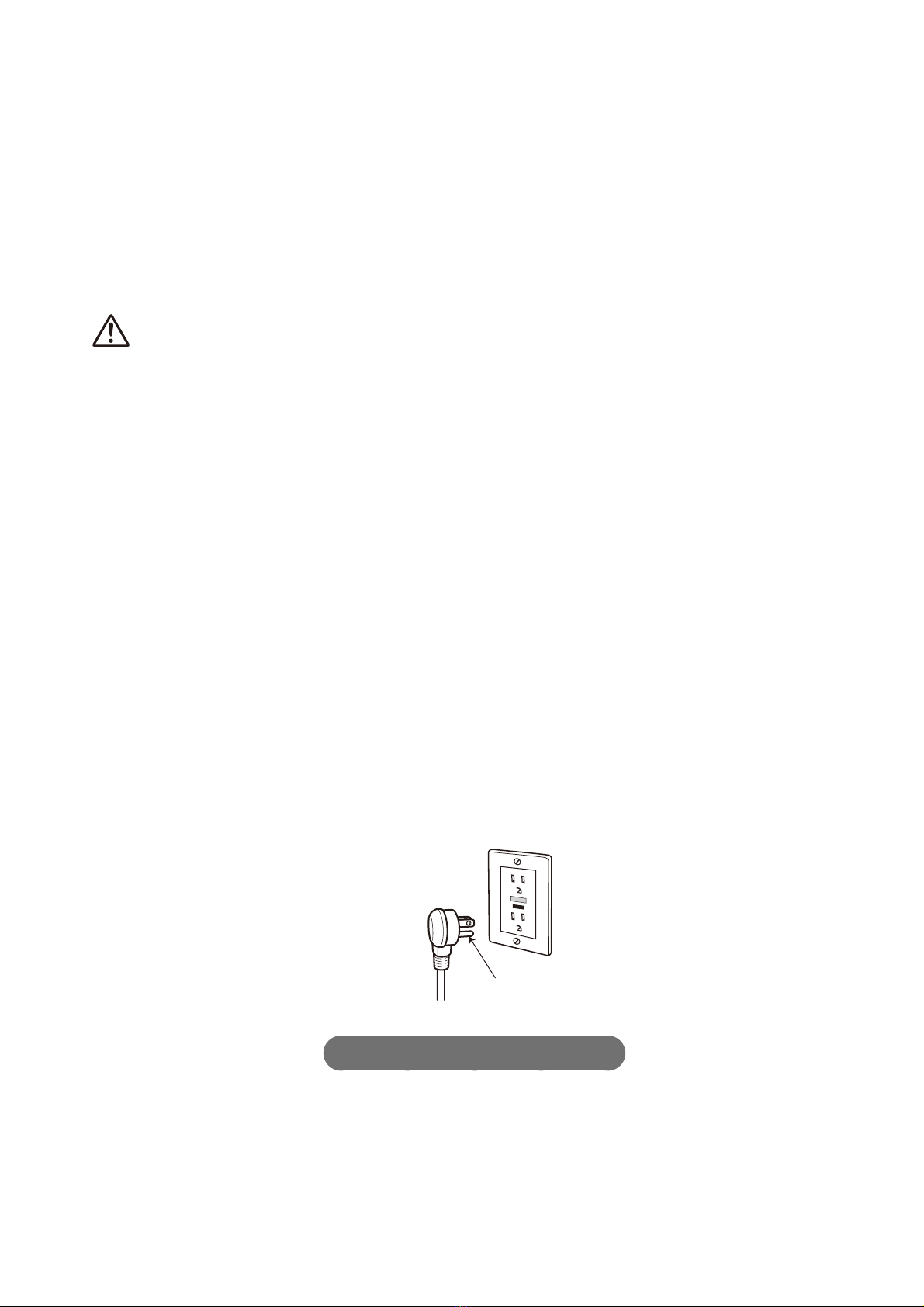

Grounding pin
Save these instructions.
Safety Precautions (Continued)

11
Operational Precautions
■ For prevention of damage
● Wipe plastic areas such
as the main unit and
control panel with a soft,
wet cloth. Dry cloth or tissue
● Do not lean against the
toilet lid.
■ Problem Prevention
● Disconnect the power plug if there is a risk of lightning.
● A toilet seat cover or a toilet lid cover cannot be used.
(The seat switch may not function properly.)
Covers
● Do not urinate on the main unit, toilet seat or wand.
(Doing so may cause pink or brown stains or a
malfunction.)
● Do not apply strong forces to the control panel.
● When using a toilet cleaner to clean the toilet, wash it off
within 3 minutes and leave the toilet seat and toilet lid open.
Wipe off any cleaner that remains on the toilet bowl.
(If vapor from a toilet bowl cleaner enters the main unit, it
may cause a malfunction.)
● Do not expose to direct sunlight.
(Doing so may cause changes in color, irregular heated
seat temperature, the control panel malfunction or
Washlet malfunction due to the change in temperature.)
● Use radios, etc. away from the Washlet.
(The Washlet could cause interference with the radio signal.)
● If you use a booster seat for infants or a soft highchair,
remove it after use.
(Keeping it installed may prevent some of the functions
from being used.)
● Do not place anything on the toilet seat and lid, and do
not press them with hands.
Failure to do so may turn on the seat switch, causing the
floor to get wet if buttons on the control panel are touched
and warm water comes out from the wand. (The seat switch
may turn on if force is applied to the toilet seat or lid.)
■ For prevention of malfunctions
< About the seat switch >
● When you sit on the toilet seat, the seat switch turns
ON, enabling you to use various features.
(A click sound is heard when the seat switch is ACTIVATED.)
Gap
The toilet seat lowers.
Switch
ON
Seat switch
(Built-in)
● Sit back on the toilet seat.
 The seat switch will not turn on unless you sit
on the seat properly.
Note

When a child uses the Washlet, the seat switch
may not be ACTIVATED by their light body weight.
 Since the toilet seat is designed to move up
and down, a clearance is provided between the
toilet seat cushion and the toilet bowl.
Introduction

12

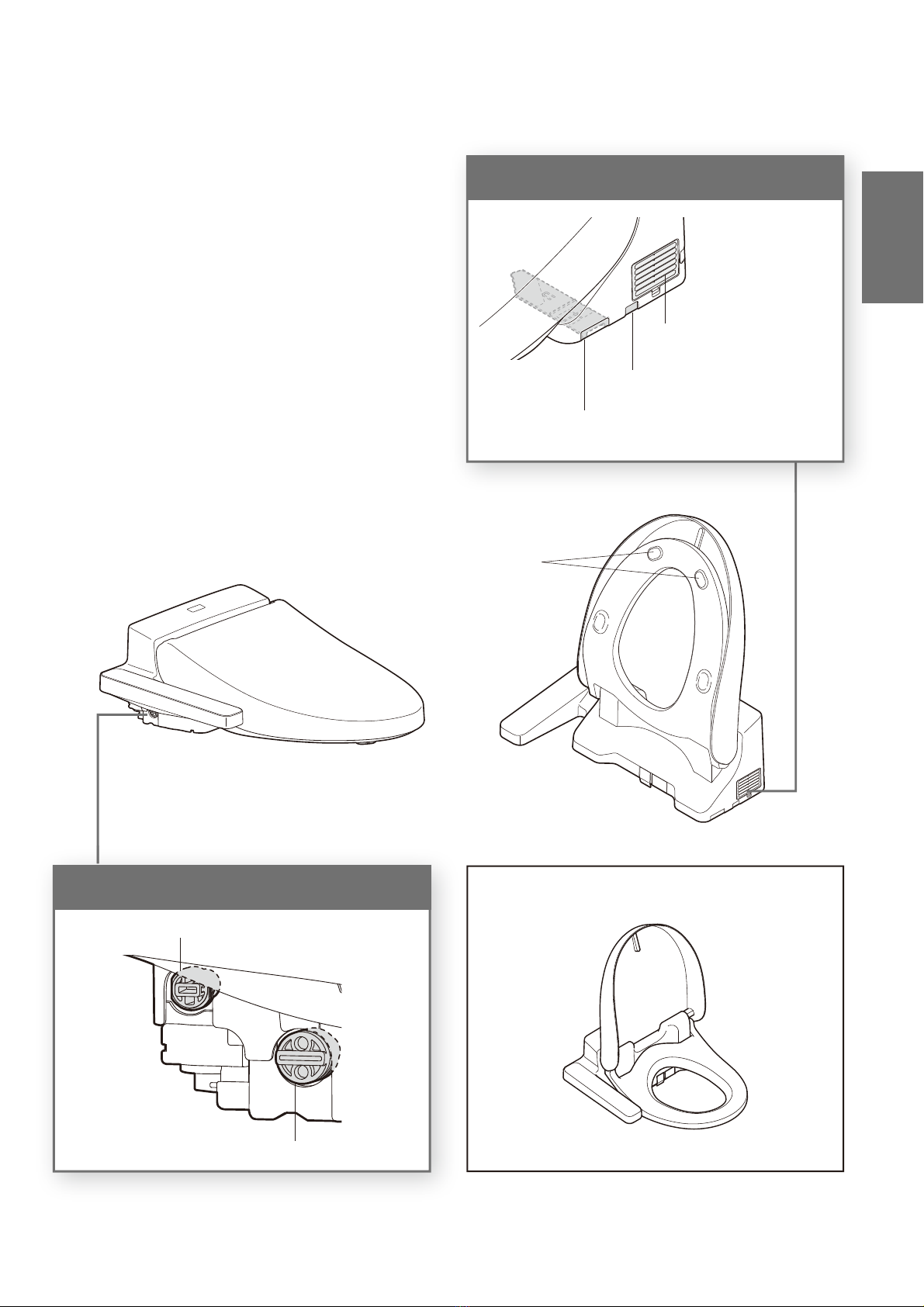

Parts Names
Control panel (Page.15)
Power plug
(Page.14)
Heated seat
Wand
Wand cover
Warm air outlet cover *
Seat switch (Built-in)
Toilet lid
Toilet lid cushion
Product name,
part no., etc.
Shutoff valve
(Page.14)
Power cord
Water supply hose

13
Left side of main unit
Toilet seat
cushions
Water filter drain valve (Page 29)
Water drain plug (Page 35)
SW2033
The toilet seat and lid shape varies by model.
Descriptions in this manual are based on the illustrations of SW2034.* Except SW2014
Right side of main unit
Deodorizer outlet *
Deodorizing filter * (Page.25)
Main unit removal button (Page.26)
Introduction

14

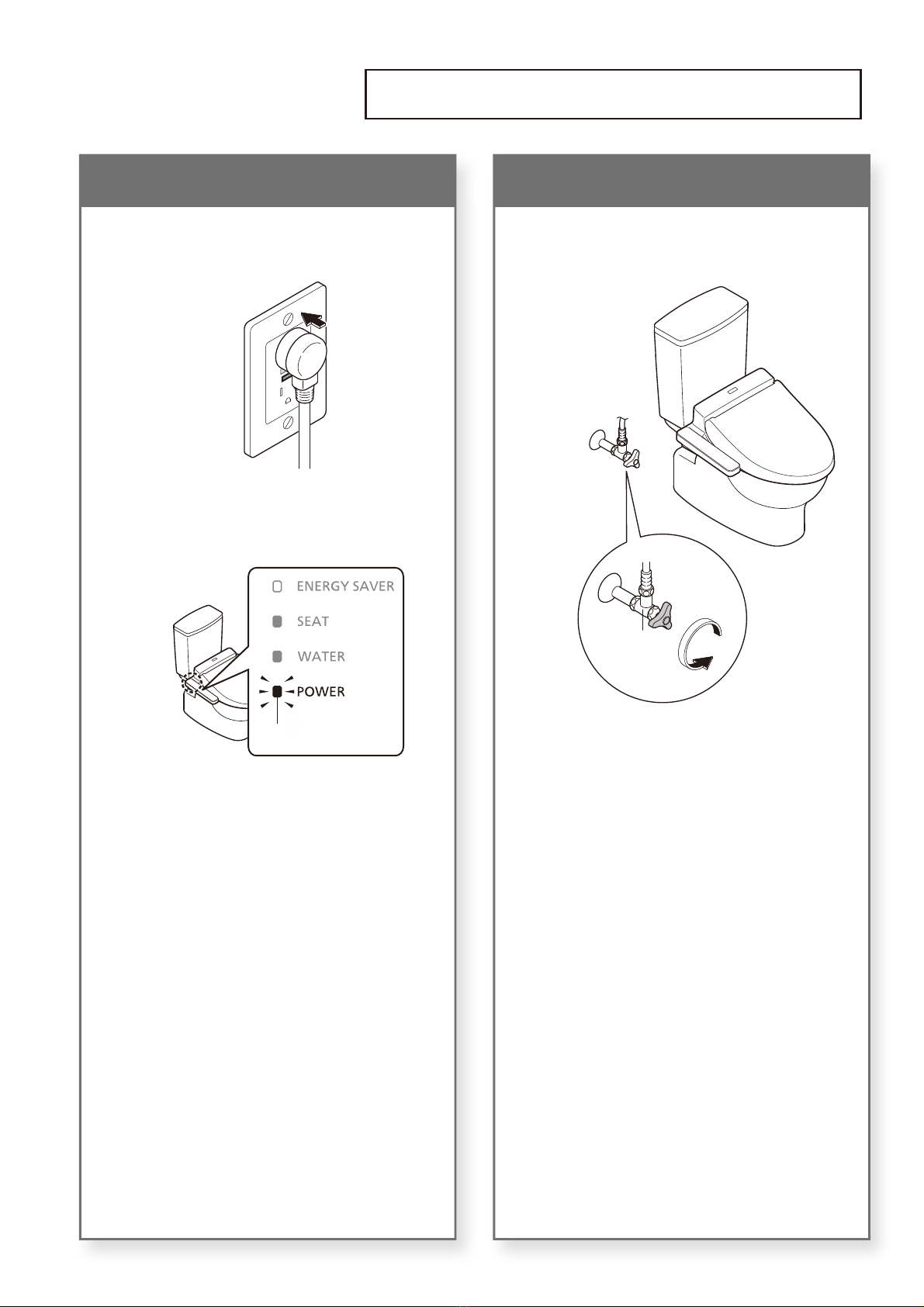

Preparation
Using the Product for the First Time
2.Open the shutoff valve
1Fully open the shutoff valve.
Shutoff
valve
1.Turn on the power
1Insert the power plug.
The wand extends and then retracts.
2Check that the POWER LED
on the main display is lit up.
Lit

15
Basic Operations
Stopping
[STOP]
Drying [DRYER]*
Cleansing
[REAR]
[OSCILLATING]
When you press this button
again during use, the wand
moves back and forth to
wash your rear thoroughly.
[SOFT REAR]
Washes your rear with mild water
pressure.
[FRONT]
Serves as a bidet for ladies.
For your information
●Water may sometimes come out from around the wand when it expands in the warm water tank, but this is normal.
●
As the warm water tank of hot-water system is used, the temperature of warm water may become lower if it is continuously consumed.
Temperature adjustment button
(Page 18)
• Adjust temperatures
[PRESSURE]
●You can adjust the water pressure
as desired to 5 different levels.
●The PRESSURE LEDs lights up
when you sit on the toilet seat.
[POSITION]
●You can adjust the washing position as desired to 5
different points.
●The washing position returns to the standard
position (3rd point) when you stand up from the
toilet seat.
Note
• Sitting back on the toilet seat makes it easier to adjust the wand position and to reduce splashing.
●
Functions that
operate when a button
is pressed during
"REAR", "SOFT REAR"
or "FRONT" cleansing.
Indication
LED
Cleanses your rear.
Dries your rear.
* Except SW2014
Introduction
Operation

16
As you approach As you sit As you stand up*
DEODORIZER
(SW2034, SW2033 only)
Deodorizer stops
➝
It stops after about 2 minutes
Starts the deodorizer
A mist is sprayed inside the
toilet bowl to make it more
difficult for dirt to adhere
PRE-MIST
(SW2034, SW2033 only)
A mist is sprayed inside
the toilet bowl
* To sanitize the toilet bowl every time it is used, water remaining in the wand is drained after you stand up from the toilet seat.
Automatic Functions Cleaning Features

17
Changing
settings
Note
 DEODORIZER ON/OFF
(Page 32)
 PRE-MIST ON/OFF
(Page 32)
• The pre-mist will not spray for about
90 seconds after you stand up from
the toilet seat.
If dirt adheres...
■ If dirt adheres to the wand
during use, you can extend
the wand to clean it.
● Cleaning the wand (Page 28)
Operation

18 *Except SW2014
Lit
Three different temperature levels (high / medium / low) and "OFF" setting can be made.
When temperature is set
Displaying the temperature level of
the pressed button
Warm water temperature
(When you want to adjust the warm water temperature)
Toilet seat temperature
(When you want to adjust the toilet seat temperature)
Drying air temperature*
(When you want to adjust the drying air temperature)
Adjusting the temperature
1Select a temperature button you want to set from
· · *and press it.
• The current temperature level appears.
2
Press the button selected in step 1repeatedly
until a desired temperature level lights up.
The setting changes each time the button is pressed
HIGH
Lit
MEDIUM
Lit
LOW
Lit
OFF
OFF
The "DRYER"* cannot be turned "OFF".
<Setting complete>
Note
• If the button is not pressed for about 10 seconds, the temperature adjustment LED will go off, but the setting
will be retained.
If the temperature adjustment LED goes out before the setting is completed, start all over again at step 1.
• When the toilet seat does not get warm, or when the warm water is not warm enough, even after temperature adjustment.
➞Is the energy saver set to "ON"? (Page 20)
Temperature Adjustment
Warm Water / Toilet Seat / Drying *

19
OFF
When "OFF"
To turn the warm water temperature and toilet seat temperature "OFF" *The "DRYER" cannot be turned "OFF".
1Select a temperature button you want to turn "OFF" from
· and press it.
• The current temperature level appears.
2Press the button selected in step 1repeatedly
until the temperature level is set to "OFF".
The setting changes each time the button is pressed
HIGH
Lit
MEDIUM
Lit
LOW
Lit
OFF
OFF
<Setting complete>
Operation

20

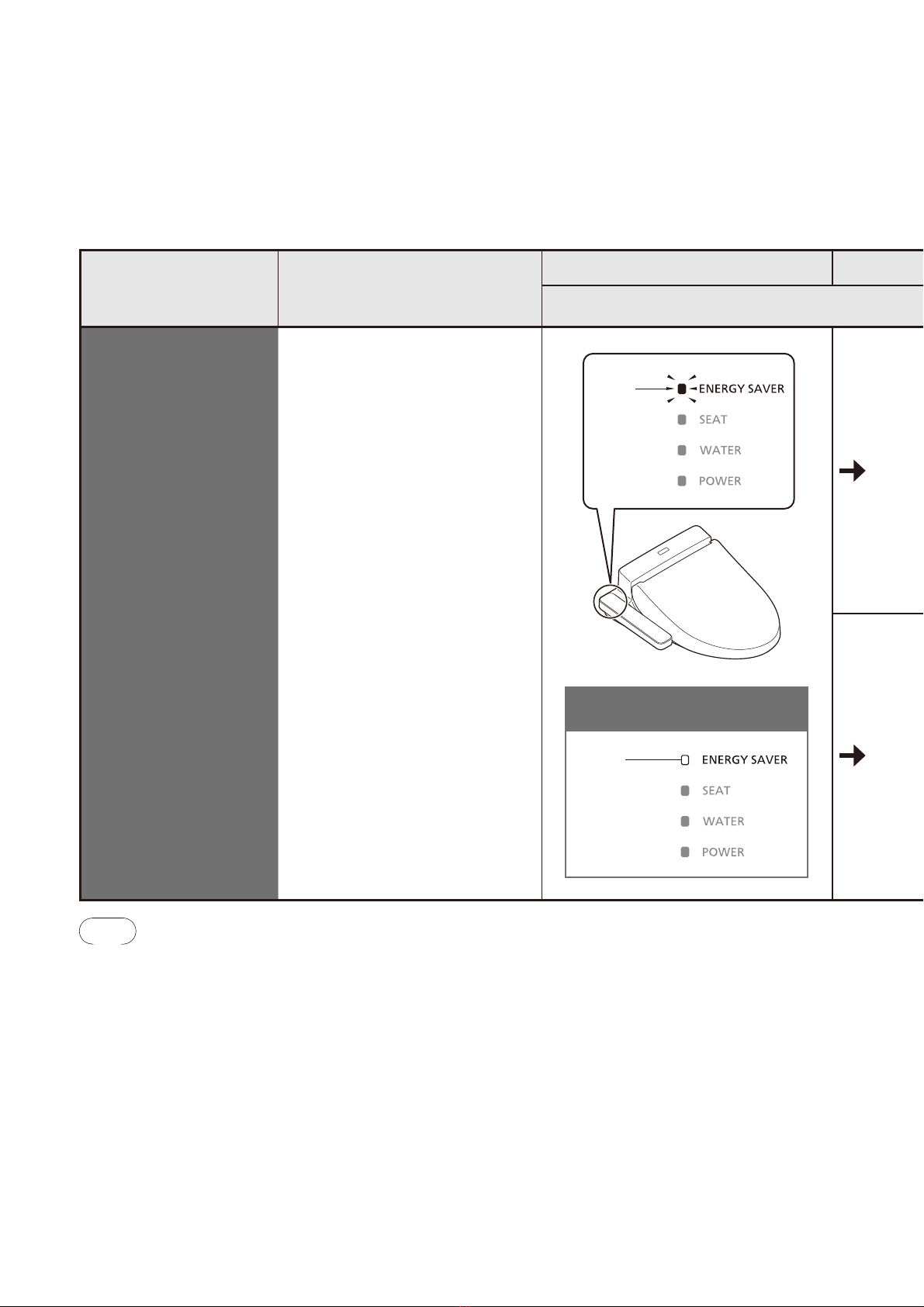

Energy Saver Feature
You can save energy by turning the toilet seat heater to a low temperature (or turning
the heater "OFF") during periods when the toilet will be used infrequently.
 It takes about 10 days for the product to determine the periods when it is used relatively less frequently.
Type Situation
When energy saver is set
Main Display
ENERGY
SAVER
You want the Washlet
to save energy
automatically
The Washlet detects time
periods with infrequent use
and lowers the toilet seat
temperature automatically.
Furthermore, it automatically
turns off the toilet seat and warm
water heater during time periods
when the toilet is never used.
Lit
(Green)
OFF
When energy saver is not set
Note
● Even if the toilet seat heater is being activated (with the toilet seat heater set to "Low" or "OFF," or with the warm water heater
set to "OFF"), the toilet seat will be temporarily heated when you sit on it.
(To reach the setting temperature, the toilet seat and warm water take about 15 minutes and 10 minutes, respectively.)
