Auto Flush Urinal
Instruction Manual
with Warranty
Maintenance
What to Do?
Reference
Introduction
Operation
• Safety Precautions ......................2
• Part Names .................................7
• Operation System .......................8
• Pre-flush Setting..........................9
• Routine Maintenance ................10
• Periodic Inspection....................15
• Troubleshooting ........................18
• Replacing the battery
(DC Dry Battery type)................16
• Urinal FAQ ................................26
• After Sales Service....................28
•Thank you for your recent purchase of the TOTO Auto
Flush Urinal.
Please read this Instruction Manual carefully to ensure
the safe use of your product.
•Be sure to check that details such as the name of the
installer and installation date are entered on the
warranty.
•Keep this Instruction Manual in a safe place for future
reference.

2

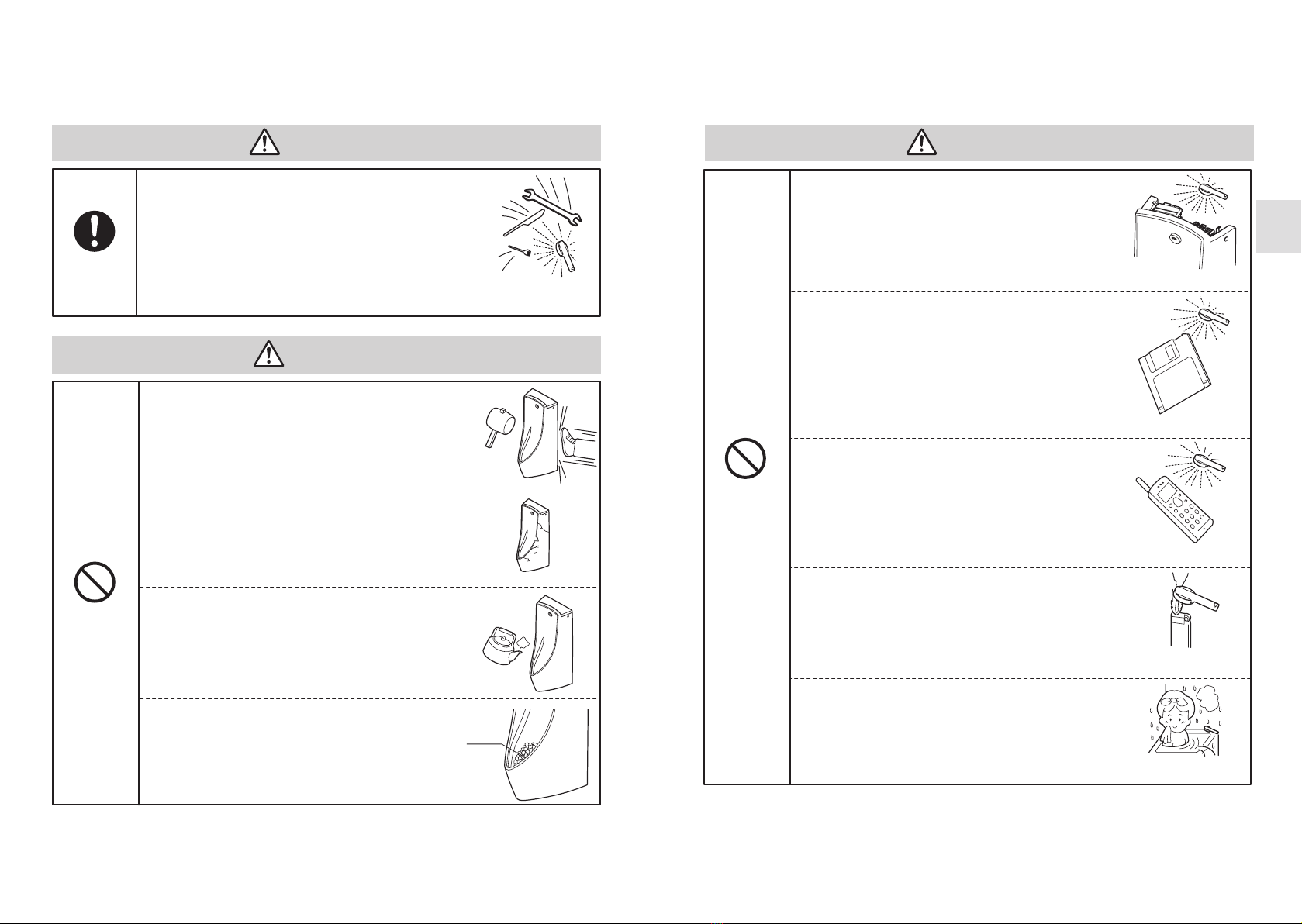

Safety Precautions
For safety, be sure to follow these
CAUTION
• After readingthese precautions, be sure to keep them in a place where they can be referenced at any
time by users ofthe product.
• This manual usesvarious symbols to indicate information for the safe and correct use of the product,
andpreventharmto you or other people or damage to property.
Thesymbolsand their meanings are as follows.
The types of information that must be followed are classified and describedwith the following symbols.
WARNING
indicates a prohibited use of the product.
The symbol on the left means “Do not disassemble”.
is used to indicate a required step in the use of this product.
The symbol on the left means “Required”.
Read these "Safety Precautions" carefully before usingyour product to ensure safe use.
Incorrect product handling that ignores the information in
this section may resultin injury or property damage.
Incorrect product handling that ignores the information in
this section mayresult in death or serious injury.
* “Property damage”means damage to houses, household belongings, livestock or pets.
WARNING
Figures and partshapes may differ slightly from the actual product depending on the product partnumber.
Never use in a wet place, such as abathroom,
where condensation may form on the surface
Do not use in
awet place
Do not
touch
Do not plug or unplug the connector with
wet hands
Never touch the power terminal with your hands
while poweris being supplied
Wet hands
prohibited
Do not touch the controller during thunderstorms
(For AC type)
(For AC type)
Doing so may cause malfunctions or
electrical current leaks.
Doing so may cause electrical shock.
Doing so may cause electrical shock.
Doing so may cause electrical shock.
3
Introduction
Pacemaker
The magnet is a separately sold part.
WARNING
Do not use a power supply other than
AC220-240 V
Keep the cleaning magnet away from people
with implanted electronic medical devices
such as pacemakers, and other electronic
medical devices
Do not wash the entire product with water
Do not
disassemble
Prohibited
(For AC type)
Do not perform disassembly or alterations
other than as described in this manual
Otherwise, the medical device may not operate
correctly, resulting in a life-threatening accident.
Doing so may cause fireor electrical shock.
Also, malfunctions such as water shutoff orspray
defects may occur or the apparatus maybe
damaged, causing injuries or damage to property
due to waterleaking onto household belongings, etc.
Using an power supply other than AC220-240 V
may cause fire or malfunctions.
Doing so may cause malfunctions or electrical
current leaks.
Other then
220-240V
<For DC Dry Battery type>
<For DC Dry Battery type>
Use only alkaline batteries.
Using an oxyride dry-cell battery or the like
may cause fire or malfunctions.
Do not pull the battery box electric wires
Doing so may disconnect the wires or terminals,
or cause fire or electrical shock.
Oxyride dry-cell battery

4
The magnet is a
separately sold part.
Be very careful when handling the cleaning
magnet, because it has a strong attraction force
Otherwise, yourhands or fingers may be trapped and
injured between the magnet and another magnet, or
between the magnet and a magnetic object such as
metalpieces, a knife or scissors. Also, the magnet
may crack and scatter fragments into your eyes.
Required
WARNING
CAUTION
Do not place objects inside the bowl
Do not pour hot water into the urinal
Air
freshener,
ice, etc.
Doing so may damage the urinal and cause
an injury, or cause damage to property due to
water leaking onto household belongings, etc.
Doing so may block the drainage channels
and causeflushed waterto overflow from the
urinal, resulting in damage to property due to
water leaking onto household belongings, etc.
Do not apply strong force or impacts tothe urinal
Prohibited
Doing so may damage the urinal and cause an
injury, or cause damage to property due to
water leaking onto household belongings, etc.
If the urinal is cracked or broken, never
touch the damaged parts or use the urinal
Doingsomay cause aninjury from thedamaged parts.
Replace at an early opportunity.
5
Introduction
CAUTION
Keep the cleaning magnet away fromobjects
such as floppy disks, magnetic cards, magnetic
tape, prepaid cards, tickets and cathode ray
tubes
If magnetic storage media are placed near the
magnet, the recorded data may be damaged.
Keep the cleaning magnet away from
precision devices such as wristwatches
and cellular phones
Otherwise, the device may malfunction.
Prohibited
The magnet is a
separately sold part.
The magnet is a
separately sold part.
Do not use or store the magnet in a wet
or humid location
Do not heat the cleaning magnet, or use
or store the magnet in a hot location
The magnet is a
separately sold part.
The magnet is a
separately sold part.
Doing so may impair the function of the
cleaning magnet.
Doing so may impair the function of the
cleaning magnet.
The magnet is a
separately sold part.
Keep the cleaning magnet away from
electronic devices
Otherwise, instruments or control circuits
may be affected, resulting in accidents or
malfunctions.

6
Vinyl
sheet,
etc.
CAUTION
Wipe off any condensation from the surface
of the urinal or other parts with a dry cloth
Required
Wipe any urine, condensation, detergent,
water, etc. that has gotten on the floor with
a well-wrung mop or cloth
Leaving such substances on the floor may
cause staining or corrosion.
If the urinal isclogged, be sure to close the shutoff
valve before unclogging the urinal with a commercially
available tool that ismade for unclogging toilets (such
as Rubber Cup (product name))
If water is flushed while the urinal is clogged, waste
water may overflow and cause damage to property
due to water leaking onto household belongings, etc.
Failure to do so may cause staining or corrosion
of the floor.
* Ventilating the toilet with a fan or by opening a
window, etc. makes it difficult for condensation
to form.
7
Introduction

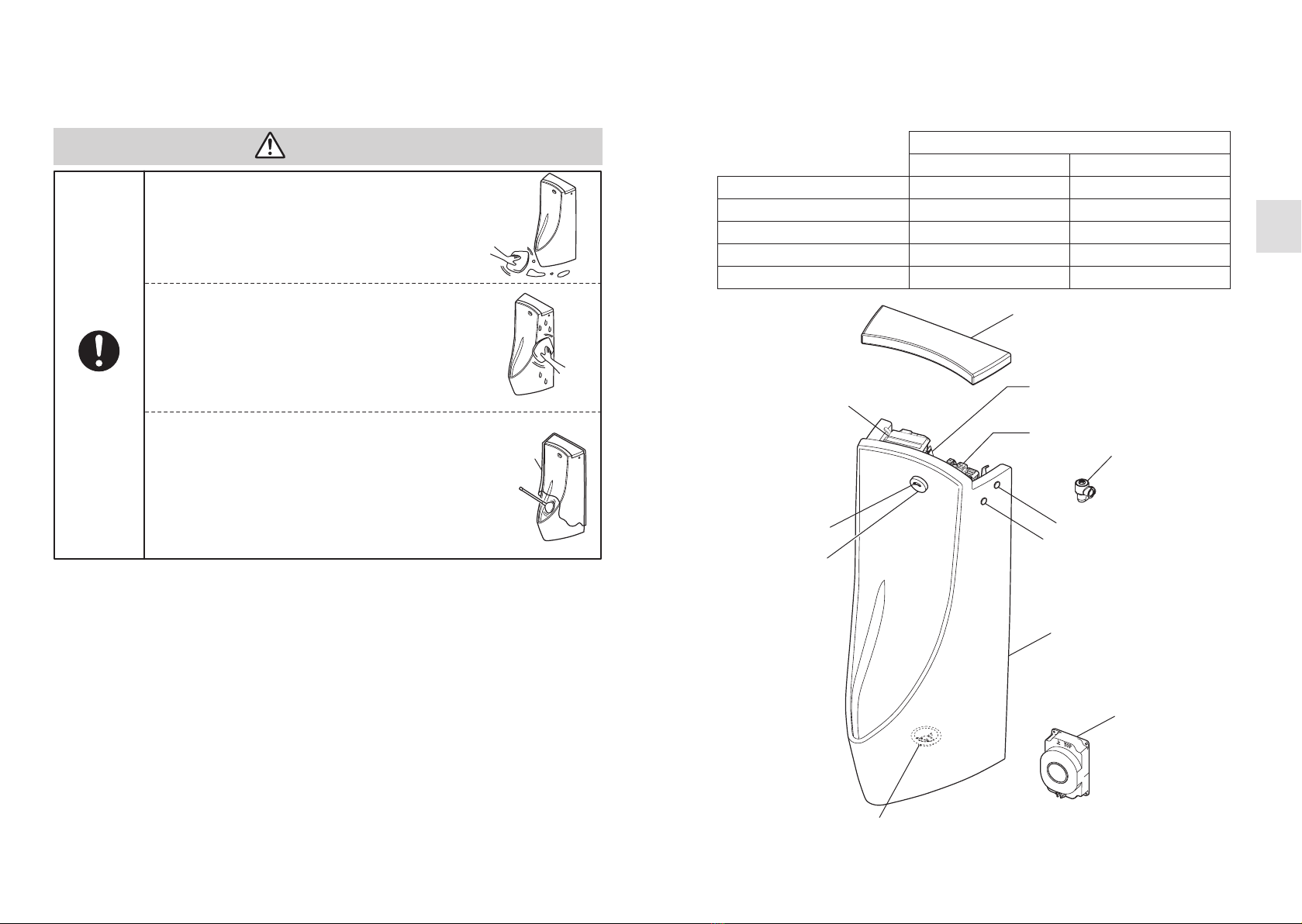

Part Names
Shutoff valve
Decorative bolt
Button switch
Valve unit
Main unit
Drain trap
Drainage flange
* The product may be slightly different in shape than the
product shown in the figure depending on the model.
Photoelectric
sensor
Spreader
Controller Battery box
(DC Dry Battery type only)
(Button type only)
Wall Mounted Urinals
AC type
USWN900 Series USWN902 Series
USWN900AE USWN902AE
USWN900AS USWN902AS
USWN900A USWN902A
USWN900AEP USWN902PPE
USWN900ASP USWN902PPS
e water+ type
DC Dry Battery type
AC Button type
e water+ Button type
Top lid

8
Main flush
After use, the urinal is
flushed when the person
moves away from the
urinal.
Urinals with manual flush
buttons can alsobe
flushed by pressing the
button on the right side
of the unit.
Manual flush
button
* Super water saving
type only
“e water+” cleaning
Operation System
Detection Interval discharge pipe flush
A person approaching
the urinal isdetected
by the sensor.
Pre-flush
The urinal is flushed
before use.
The setting described
on Page 9 must be
configured to activate
the pre-flush.
CAUTION
The urinal is flushed
automatically every 2 hours
to reduce urolith adhesion
on the urinal trap and
discharge pipe. Discharges water six times
a day at times of infrequent
use.
This reduces urolith
adhesion on the trap of the
urinal.
every 2 hours
This product has the following automatic flushing functions.
<Interval discharge pipe flush>
In addition to flushing after every use,discharge pipe flushingis performed every 2hours.
Discharge pipe flushing is performedefficiently using 2 flushes, reducing urine accumulation
and urolith adhesion insidethe discharge pipe.
<“e water+” cleaning> * e water+ type only
* “e water+” is water created by electrolyzing chloride ions contained in tapwater, and
includes sanitizing components (hypochlorous acid).
The above effects cannot be obtained while the power supply is off.
CAUTION
9
Operation
Controller
Open the setting
switch
cover
Controller
ON
1 2 3 4
Controller
Waterproof
cover
Switch
ON
1 2 3 4
Switch

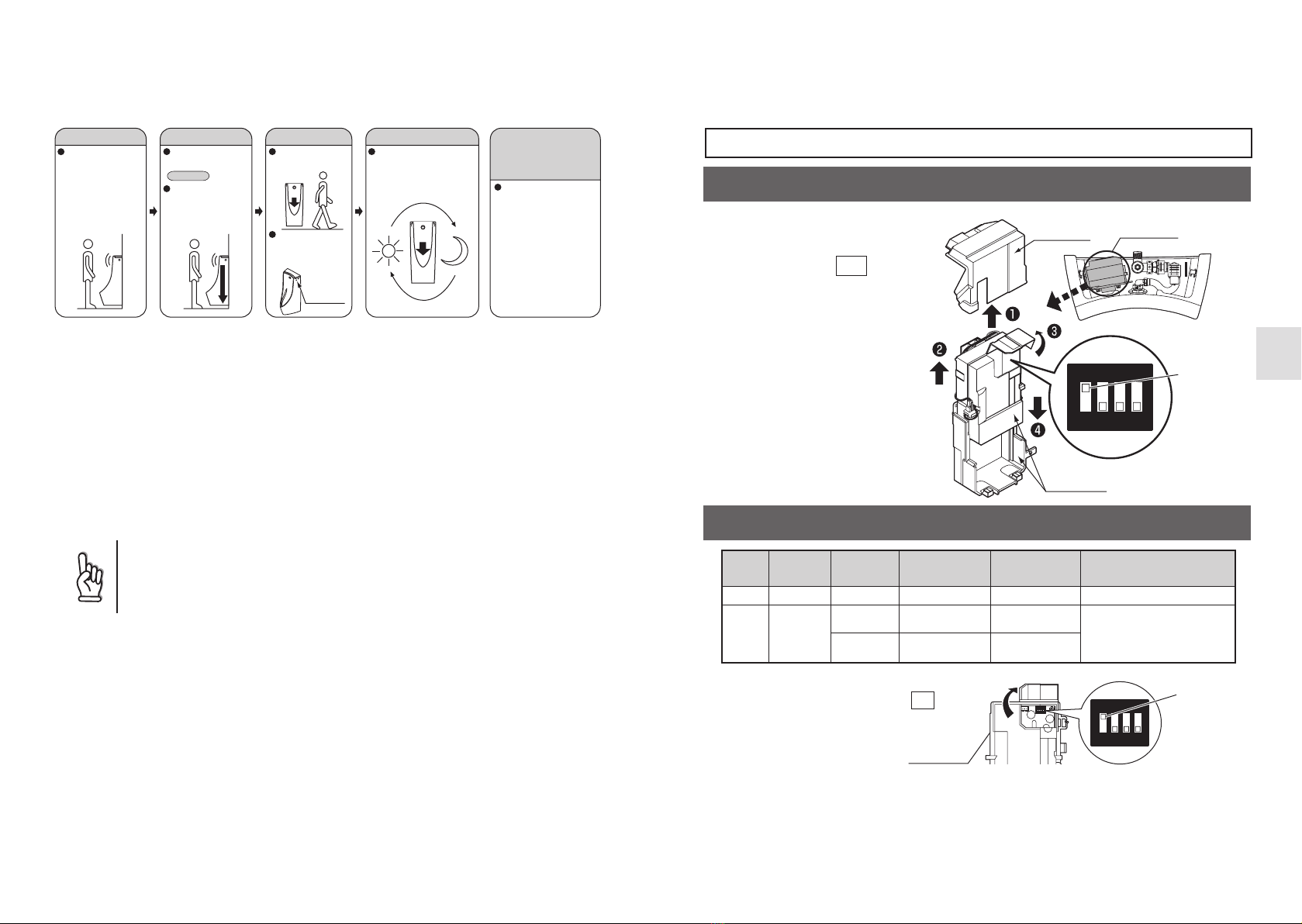

Pre-flush Setting
Pre-flush setting method
Switches and settings
Open the setting switch cover
on the controller and set
switch No. 1 to “ ON ”.
Fordetails, check the caution
label attached to the product.
Do not apply excessive force
to the switch.
After setting, return the
waterproof cover, controller
andsetting switch cover to their
original installation condition.
* When the product is shipped, pre-flush is set to “OFF”. Change the setting as required.
Although the Auto Flush Urinal is effective inreducing urolith adhesion,
it does not remove urolith that has already adhered. (The discharge pipe
maintenance is necessary, however the frequency could be lessened or
the interval could be extended.)
Intervaldischarge pipe flushing is performed automatically every 2hours.
Keep the power supplied 24-hours a day.
Switch
No. Setting
Pre-flush
Interval
discharge
pipe flush
1
2
No: Initial setting
Yes: Initial setting
Yes
-
USWN900A *
USWN902A *
USWN900A * P
USWN902P
*
Yes
No: Initial setting
No
+0.3 L/flush
-24 L/day
ON
Approx. change inwater
volume used when OFF→ON
OFF
* When interval discharge pipe flush
is set to off(switch No.2 set to “ ON ”),
the effect of reducing urolith adhesion
is no longer obtained.

10

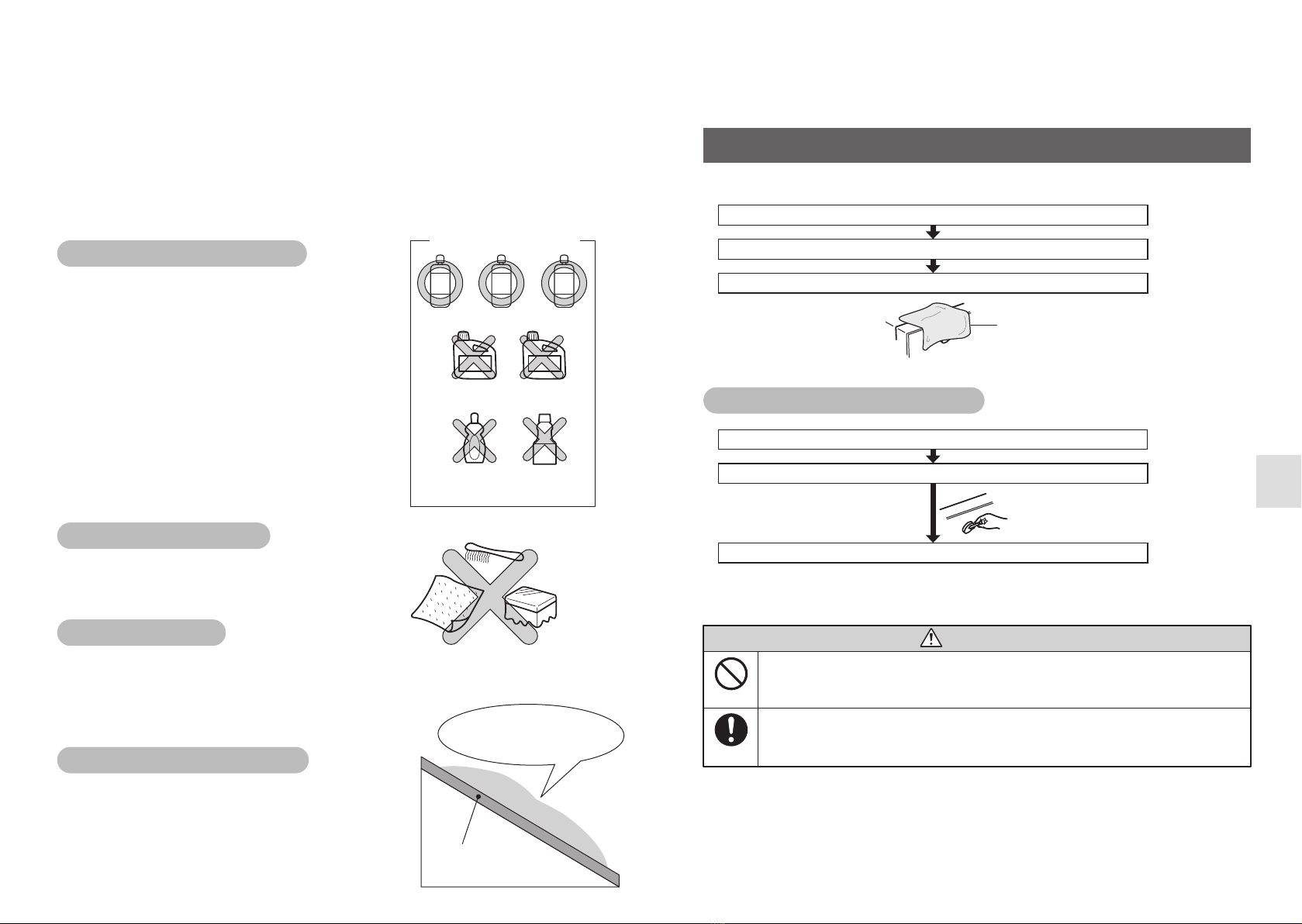

Wire brush
Sandpaper Abrasive nylon
scrubbing pad
Acidic
detergent
Detergent
containing
abrasive
compounds
Strongly acidic
or strongly
alkaline detergent
Fluorine-based
detergent*1
Neutral
detergent
Alkaline
detergent
Usable detergents for
porcelain unit cleaning
Components of detergent or
coating agent cover the
CeFiONtect surface.
Acidic
detergent
Neutral
detergent
Alkaline
detergent
For busihess
use
For busihess
use
[Cleaning the porcelain unit]
Any commercially available household
detergents can be used, regardless of
whether they are acidic, neutral or alkaline.
However, do not use detergents containing
abrasive compounds, industrial strongly acidic
or strongly alkaline detergents, or fluorine-based
detergents*1, because they may damage or
permeate the porcelain surface.
*1 Including hydrogen fluoride and ammonium fluoride
Routine Maintenance
Maintenance keeps the toilet clean and extends its service life.
Please perform thorough and routine maintenance. Note that although
CeFiONtect parts have dirt prevention properties, routine maintenance is
still important to keep their surfaces clean.
About the cleaning tools
Do not use tools such as wire brushes, abrasive
nylon scrubbing pads or sandpaper, because
they will damage the surface.
Do not use any water repellant, stain-proofing
detergent or surface coating agent.
These products do not damage the porcelain
surface, but their components may cover the
porcelain surface and reduce the effect of the
built-in stain prevention technology.
About surface coating agents
About the cleaning detergent
CeFiONtect is TOTO independently developed
technology where bumps on the porcelain
surface are smoothed atthe nano level of 1
million of 1 mm, making dirt difficult toadhere
and easy to remove.
About CeFiONtect
self-cleaning glaze
*Please make a complete rinse and avoid the residual
of detergent.
However, do not use water-repellent lotion.Once
you use it,it would cover the surface of thepottery
which makes some parts can’t be washedclean.
water-
repellent
lotion
Water-pepellent
lotion
11
Maintenance
Towel, etc.
Advice for cleaning the inside bowl surface
The magnetis aseparately sold part.
When cleaning the inside bowl surface, use a towel, etc.
When using the cleaning magnet
Hold the cleaning magnet near the photoelectric sensor for about 3 seconds
Photoelectric sensor stops detecting (cleaning mode)
Place a towel, etc. over the photoelectric sensor
Photoelectric sensor stops detecting
Remove the towel, etc. (recovers automatically)
Returns to normal mode (recovers automatically)
(Cleaning mode duration: 5 minutes)
* When the cleaning magnet is held near during cleaning mode, about
4 L of water is sprayed.
Do not wash the entire product with water
Doing so may cause malfunctions or electrical current leaks.
Handle with care, because this is an electric appliance
Failure to do so may cause an electrical shock.
Required
Prohibited
WARNING

12
1 3
42

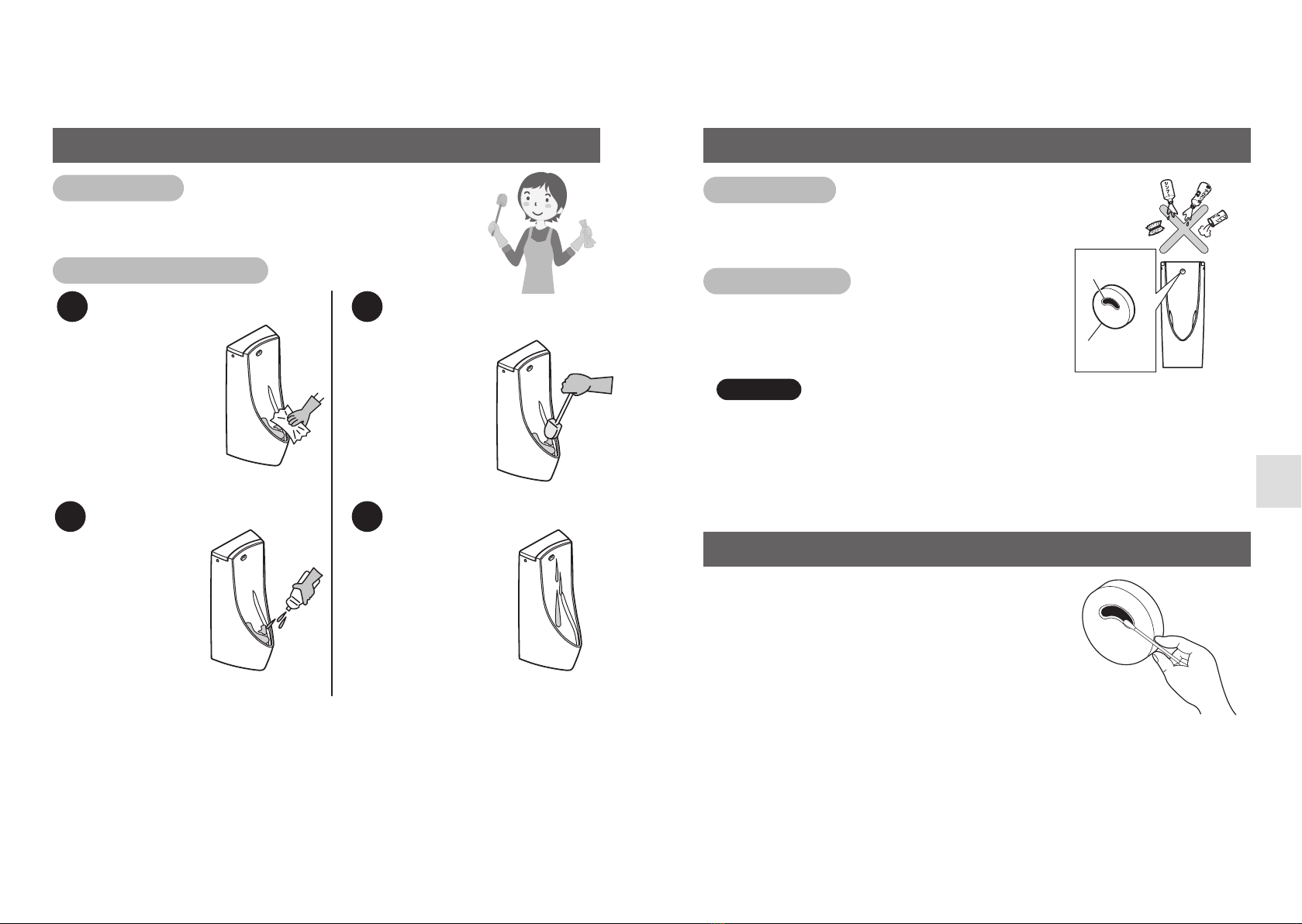

Cleaning the urinal
Wipe offmoisture
from the dirty
part.
Scrub using acleaning
brush or sponge.
If the dirt is difficult
to remove, use
a tool such as a
small stick.
Apply toilet cleaner
directlyonthe
dirt.
As the final step,
wash with water.
Wash with water using a cleaning brush or sponge.
For light dirt
For scale or heavy dirt
13
Maintenance
Spreader
(main unit)
Spreader
(sensor)
Cleaning the spreader (main unit)
Cleaning the spreader (sensor)
・Acidicdetergents, chlorine bleach, alkaline detergents
・Solvents such as thinners or benzene
・Detergents containing coarse particles such as cleansers orscouring powders
・Nylonpads, scouring pads, brushes, etc.
Do notuse items that may damage the surface.
Attention!
Wipe off the dirt with a soft cloth that has
been soaked in cold or lukewarm water
and wrung-out thoroughly.
For light dirt
Wipe off the dirt with a soft cloth soaked
in appropriately diluted neutral dishwashing
detergent, then wipe with a wet cloth and
then a dry cloth.
For heavy dirt
If the dirt is heavy, wipe off the dirt with acotton
bud soaked in appropriately diluted neutral
detergent, then wipe with a wet cloth.
Wipe off the dirtwith a cotton bud that has
been soaked in cold or lukewarm water.
* When cleaning, be careful not to damage
the sensor surface.

14
Cleaning the floor
●Wipe any urine that splashes out from theurinal
or condensation that drops from the apparatus
ontothe floor with awell-wrung mopor cloth.
●Wipe any detergent or water that has gotten on the
floor during cleaning with a well-wrung mop or cloth.
Wipe any urine, condensation, detergent,
water, etc. that has gotten on the floor
witha well-wrung mop or cloth
Leaving such substances on the floor
may cause staining or corrosion.
Required
CAUTION
15
Maintenance
Top lid
・Are there cracks or defects?
・Is there rattling or looseness?
Shutoff valve
・Is water leaking?
・Are there cracks or defects?
Drain trap
・Is water leaking?
Between urinal and wall
Urinal
・Are there cracks or defects?
・Is there rattling or looseness?
・Is water leaking?
Valve unit
・Is there crushing or
bending?
・Is water leaking?
(When flushing)
Hose
Periodic Inspection
As the product deteriorates with use overa long time (deterioration
with time), safety issues may occur.To prevent serious accidents due
to deterioration with time, and to enable you to use the product safely
and comfortably for a longerperiod of time, please perform the following
inspections yourself at least once a year.
Inspection location Inspection date (year/month/day)
Urinal / / / / / /
Top lid / / / / / /
Drain trap / / / / / /
Hose / / / / / /
Inspection location Inspection date (year/month/day)
Shutoff valve / / / / / /
Between urinal and wall / / / / / /
Valve unit / / / / / /

16
Prohibited
WARNING
Preliminary notes on replacing the battery
Battery replacement method
If the battery inside the battery box is drained, the unit will
flash in 2-second cycles.
When it switches to 4-second cycles, the flushing function
will stop.
Because the flushing function stops as soon as the photoelectricsensor
startsflashing in4-second cycles, refer tothe following instructions and
replace the batteryimmediately.
Replacing the battery(DC Dry Battery Type)
Use only alkaline batteries.
Using an oxyride dry-cell battery or the like may
cause fire or malfunctions.
Do not pull the battery box electric wires
Doing so may disconnect the wires or terminals,
or cause fire or electrical shock.
Oxyride dry-cell battery
17
What to Do?
Controller
Urinal main unit top
Waterproof cover
Controller
When the photoelectric sensor starts flashing in 2-second cycles,
replace the battery quickly with the following procedure.
1
Remove the waterproof cover from the controller.
2Lift the whole bag up, then open the drip-proof zipper.
3Replace the alkaline battery, then close the drip-proof zipper.
4Hang the bag in its original position.
5Install the waterproof cover onto the controller.
・For 10 minutes after replacing the battery, the LED
flashes during photoelectric sensor detection to enable
the detection status to be confirmed. After this, the LED
does not flash even during detection.

18
Troubleshooting
Before requesting repair (check Page 7 for the part names)
(AC type)
Check thatpower is being
supplied.
The detection LED
does not light up
during use.
Close the shutoff valve and
contact your installer or seller.
Flushed
water does
not stop
P.14
P.14
P.24
P.24
P.21~P.22
Symptom Condition Solution Ref. Page
Wipe the splashedurine thoroughly
with a mop or cloth.
Urine splashed from
the urinalhas dripped
onto the floor.
Condensation formed
on the urinal has
dripped onto the floor.
Wipe the condensationwitha
dry cloth and ventilate the toilet.
Clean the water filter.
Dirt is clogging the
water filter.
Water is
not flushed
Floor is wet

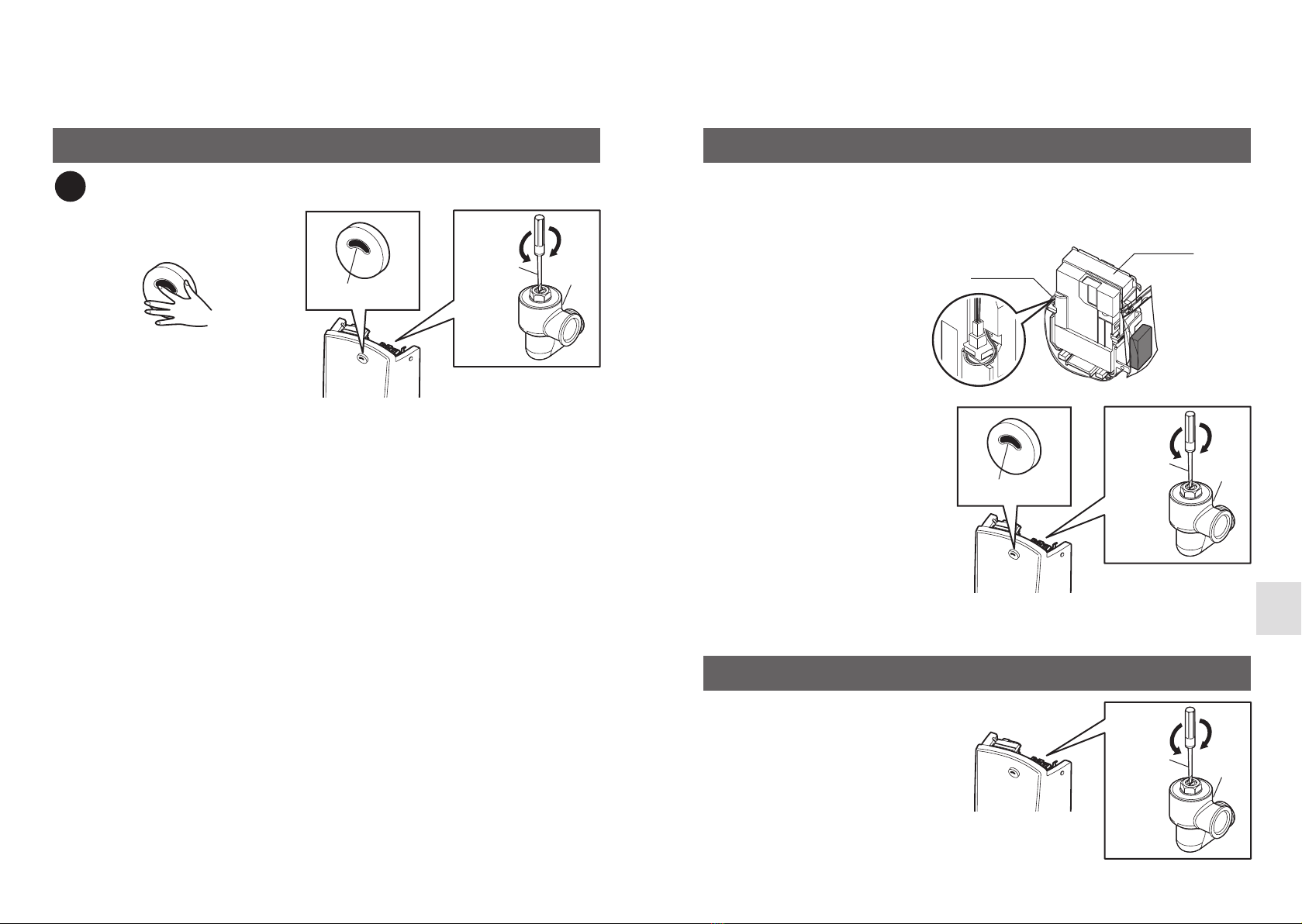

P.21~P.23Open the shutoff valve.
The shutoff valve is not
open.
If you think there may be a malfunction, first check that there is no power
outage or water failure. If these are normal, remove the top lid and then
perform an inspection according to the followinginspectionitems.Check
“Part Names” (Page 7) for the part locations.If the malfunction persists
even after performing the inspection according to the inspection items or
you suspectsomething abnormal, closethe open/close screw of the shutoff
valve and then contactthe installer or seller.
19
(DC Dry Battery Type)
Designed to not light up or flash.
The detection LED flashes
during use.
(AC type, DC Dry Battery Type)
Designed to flash while interval
discharge pipe flushing is being
performed.
(DC Dry Battery Type)
Replace the battery.
(Flashes in 4-second cycles)
P.24
P.21~P.23
P.25
P.16~P.17
P.25
P.25
Symptom Condition Solution Ref. Page
Open the shutoff valve.
The shutoff valve is only
slightly open.
Dirt is clogging the water
filter. Clean the water filter.
Interval discharge pipe flushing is
being performed, or intermittent
spray flushing for freezing damage
prevention is being performed.
Flushes even though the
urinal is not being used.
Water
flushes on
its own
Detection
LED lights
up or
flashes
Flush
volume is
low
P.25
(AC type)
Designed to light up.
The detection LED lights
up during use.
What to Do?
There is
tesidual
after
flushing
in the toilet
If there are repellent
phenomena,the toilet
will be difficult to be wet.
Please clean the toilet according
to normal maintenance. P.10
