TOWER Cat Condo
read first REVIEW BEFORE
ASSEMBLY
• Designed for hand assembly.
No tools required.
•Check regularly to ensure all
components are connected.
• Place finished unit in an area
with room for cats to play and
interact with all features.
connectors & parts
3 C
(7pcs)
4 C
(18 pcs)
5 C
(9pcs)
6 C
(2pcs)
3 S
(16 pcs)
2 S
(2pcs)
A1
Sisal Post
(3pcs)
L2
Hideaway
Penthouse
(1 pcs)
D2
Hideaway Corner (1pcs)
M1
Square Plush Mat
(1pcs)
M2
Corner Plush Mat
(1pcs)
M3
Rectangle Plush Mat
(2pcs)
H
Hammock Floor (1pcs) 1
Ramp (1pcs)
G2
Escape Floor
(1pcs)
A35
Long Tu e
(56pcs)
L3
Hideaway Den
(2pcs)
A16
Short Tu e
(18pcs)
B28
Short Curve
(8pcs)
B31
Long Curve
(16pcs)
G1
Play Floor
(1pcs)
1a1
b
PARTS NAME QTY
3C 3-Way Corner ( 3 )
4 C 4-Way Corner ( 3 )
5C 5-Way Corner ( 2 )
A35 Long Tube ( 10 )
Foam Pads ( 8 )

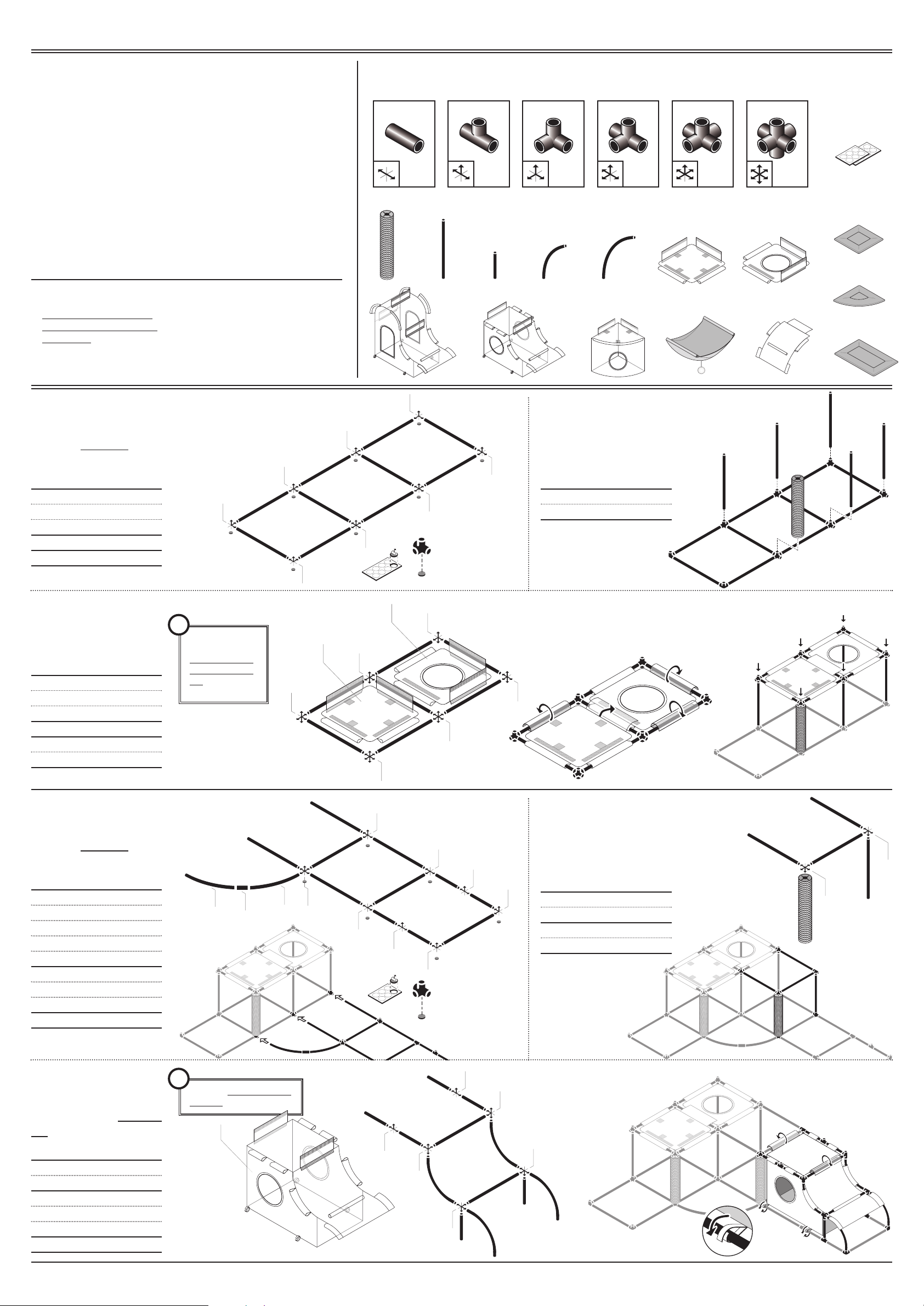

To form the BASE (pt.1),
you will need these pieces:
2a
PARTS NAME QTY
2 S 2-Way traight ( 1 )
3 S 3-Way traight ( 4 )
3 C 3-Way Corner ( 2 )
4 C 4-Way Corner ( 1 )
5C 5-Way Corner ( 1 )
A35 Long Tube ( 7 )
A16 hort Tube ( 4 )
B28 hort Curve ( 2 )
Foam Pads ( 6 )
To form the BASE (pt.2),
you will need these pieces:
PARTS NAME QTY
A35 Long Tube ( 5 )
A1 isal Post ( 1 )
To be in the 1st floor, you will
need these pieces:
Lay the components out on the floor,
then insert tu es into connectors to
assem le the ase (pt.1).
Assem le the ase (pt.2), and
add it to ase (pt.1) to form the
complete ase unit.
Assem le the unit, then
add it to the ase.
1
c
PARTS NAME QTY
4 C 4-Way Corner ( 1 )
5 C 5-Way Corner ( 3 )
6C 6-Way Corner ( 2 )
A35 Long Tube ( 7 )
G1 Play Floor ( 1 )
G2 Escape Floor ( 1 )
Then you will need these pieces:
2b
2c
PARTS NAME QTY
4 C 4-Way Corner ( 1 )
5 C 5-Way Corner ( 1 )
A35 Long Tube ( 4 )
A1 isal Post ( 1 )
To continue the 1st floor,
you will need these pieces:
PARTS NAME QTY
3 S 3-Way traight ( 2 )
4 C 4-Way Corner ( 4 )
A35 Long Tube ( 2 )
A16 hort Tube ( 6 )
B31 Long Curve ( 4 )
L3 Hideaway Den ( 1 )
To form the 1st floor HIDEAWAY
DEN, you will need these pieces:
When uilding sections
with fa ric pieces,
insert tubes into the
sleeves of the fabric
first, then add the
connectors.




After the hideaway den is assem led, add it
to the ase, and secure the velcro sleeves
around the horizontal tu es at top
and ottom as shown.
⁕
REMINDER: Insert tubes into the
fabric first, then add connectors.
⁕
L 3
Self-adhesive foam pads
(if used) should e placed
on the underside of all
eight connectors.
Self-adhesive foam pads
(if used) should e placed
on the underside of six
connectors, as illustrated.
Foam footer pads
(14pcs)
CARE INSTRUCTIONS
• Do not immerse in water
or place near high heat or
open flame.
• Regularly check the stability of
all connections of components.
• pot clean fabric and frame with
a moist towel. Allow to air dry
thoroughly.
• upervise pet interaction with
the product. Inspect for wear.
Replace when worn.

3 S
3 S
3S
3S
L 2
D 2
B28 B28
2S
3S
3 S
S 1
3 S
4 C
4 C
3 S
3C
3 C
5 C
4 C
5C
4C
H
3 S
4 C
4 C
3 S
4 C
4 C
L 3
3a
PARTS NAME QTY
A35 Long Tube ( 5 )
A1 isal Post ( 1 )
To be in the 2nd floor, you will
need these pieces:
4
PARTS NAME QTY
3 S 3-Way traight ( 6 )
4 C 4-Way Corner ( 2 )
A35 Long Tube ( 6 )
A16 hort Tube ( 2 )
B31 Long Curve ( 8 )
L2 Hideaway Penthouse ( 1 )
To form the HIDEAWAY
PENTHOUSE, you will need
these pieces:
5
PARTS NAME QTY
3 S 3-Way traight ( 2 )
A35 Long Tube ( 1 )
B28 hort Curve ( 4 )
1 Ramp ( 1 )
To form the RAMP, you will need:
PARTS NAME QTY
2S 2-Way traight ( 1 )
B28 hort Curve ( 2 )
D 2 Hideaway Corner ( 1 )
To form the HIDEAWAY CORNER,
you will need:
PARTS NAME QTY
MG1 quare Plush Mat ( 1 )
MG2 Corner Plush Mat ( 1 )
MG3 Rectangle Plush Mat ( 2 )
To finish, add mats as shown:
3c
PARTS NAME QTY
3 S 3-Way traight ( 2 )
4 C 4-Way Corner ( 4 )
A35 Long Tube ( 2 )
A16 hort Tube ( 6 )
B31 Long Curve ( 4 )
L3 Hideaway Den ( 1 )
To form the2nd floor HIDEAWAY
DEN, you will need these pieces:
Add these vertical posts to
the first floor as shown.
3b
PARTS NAME QTY
3 C 3-Way Corner ( 2 )
4 C 4-Way Corner ( 2 )
5 C 5-Way Corner ( 2 )
A35 Long Tube ( 7 )
HHammock Floor ( 1 )
Then you will need these pieces:


Assem le the unit,
then add it to 3a.
After the hideaway den is assem led, add it
to the 1st floor, and secure the velcro
sleeves around the horizontal tu es at top
and ottom as shown.
Add the hideaway penthouse to the
2nd floor and secure the velcro
sleeves around the horizontal tu es
at top, sides and ottom as shown.
Secure the
velcro strip
at the top.
Secure the
velcro strips
at the top.
REMINDER: Insert tubes into the
fabric first, then add connectors.
⁕
