Tower Hobbies T113003BLG User manual

T113003BLG
RF1PRO 29.6V
Cordless 3-in-1
Vacuum Cleaner
SAFETY AND INSTRUCTION MANUAL
PLEASE READ CAREFULLY
*Subject to registering your Extended Guarantee online at www.towerhousewares.co.uk.

2
GREAT BRITISH DESIGN, INNOVATION
AND EXCELLENCE SINCE 1912
Since the turn of the 20th century, Tower has been
designing, developing and manufacturing housewares and
small appliances used by millions of households throughout
the UK and beyond. During the 1960s, the rise in popularity
of pressure cooking saw Tower become the UK’s largest
producer of pressure cookers, right through into the late
1980s. In recent years the Tower brand has been reborn with
an exciting and varied range of housewares and electrical
appliances that have quickly reinstated the brand’s richly
deserved status as a household name.
Visit
www.towerhousewares.co.uk
for more fantastic products.

3
Contents:
Thank you for purchasing this appliance from the
Tower range.
Please read this manual carefully BEFORE using the
appliance for your own safety.
It has been designed to provide many years of
trouble-free use.
There are many benets to using a Tower Cordless
3-in-1 Vacuum Cleaner:
• 140W motor.
• Up to 55 minutes run time.
• Boost mode for more powerful cleaning.
• 800ml dust tank minimises the need for
emptying.
• Lightweight design.
• 3-in-1 tool allows for more versatile cleaning.
1. Specications
Components and
structure
2. Technical Data
3. Important Safety
Information
4. Before First Use
5. Using your Appliance
6. Troubleshooting
7. Recycling
8. Cleaning & Care
9. Wiring Safety
10. Warranty Information
See back page for Customer
Service Information.

4
This box contains:
Instruction Manual
3 in 1 Vacuum Cleaner
2 in 1 Brush
Charging Base
Wall Mount
1. Speed control
2. Handle / Power On/Off
3. Dust tank release button
4. Pole release button
5. Pivot release button
6. Accessory release button
7. Floor head
1 - Specications:
Structure of
your appliance:
2
3
4
5
1
7
6

5
Description: RF1PRO 29.6V Cordless 3-in-1 Vacuum Cleaner
Model: T113003BLG
Adaptor Rating
Input: 100-240VAC, 50/60Hz
Output: 35V 500mA
Product rating: DC 29.6V, 140W
Documentation
We declare that this product conforms to the following product legislation in
accordance with the following directive(s):
2014/30/EU Electromagnetic Compatibility Directive.
2014/35/EU Low Voltage Directive.
2011/65/EU Restriction of Hazardous Substances Directive.
2009/125/EC Eco-Design of Energy Related Products.
RK Wholesale LTD Quality Assurance, United Kingdom.
2 - Technical Data:
Should you encounter problems or require a replacement part, contact the Tower
Customer Support Team: [phone].
Some spare parts may be ordered from the Tower website.
Your warranty becomes void should you decide to use non Tower spare parts.
Spare parts can be purchased from www.towerhousewares.co.uk
Guarantee for spare parts:
The spares and accessories are guaranteed for 1 year from date of purchase.
The main body and housing are guaranteed for the extended free warranty subject
to registration.
If any defect arises due to faulty materials of workmanship, the faulty products must
be returned to the place of purchase within 12 months from the date of purchase.
Refund or replacement is at the discretion of the retailer.

6
Please read these notes carefully BEFORE using your
Tower appliance
3 - Important Safety Information:
• Check that the voltage
of the main circuit
corresponds with the
rating of the appliance
before operating.
• If the supply cord or
appliance is damaged,
stop using the appliance
immediately and
seek advice from the
manufacturer, its service
agent or a similarly
qualied person.
• DO NOT let the cord
hang over the edge of a
table or counter or let it
come into contact with
any hot surfaces.
• DO NOT carry the
appliance by the power
cord.
• The use of accessory
attachments is not
recommended by the
appliance manufacturer
apart from those
supplied with this
product. DO NOT use
extension cords with the
appliance.
• DO NOT pull the plug
out by the cord as this
may damage the plug
and/or the cable.
• Switch off at the wall
socket then remove the
plug from the socket
when not in use or
before cleaning.
• Switch off and
unplug before tting
or removing tools/
attachments, after use
and before cleaning.
• Close supervision is
necessary when any
appliance is used by or
near children.
• Children should not play
with the appliance.
• This appliance can
be used by children
aged from 8 years and
above and persons
with reduced physical,
sensory or mental
capabilities or lack
of experience and
knowledge if they have
been given supervision
or instruction
concerning use of the
appliance in a safe way
and understand the
hazards involved.
• Cleaning and user
maintenance should
not be undertaken
by children without
supervision.

7
• Take care when any
appliance is used near
pets.
• Not suitable for carpets
with long bres as the
bristles will damage the
bres.
• Keep the vacuum
cleaner moving over
the carpet surface
at all times to avoid
damaging the carpet
bres.
• DO NOT use this
product for anything
other than its intended
use.
• DO NOT immerse cords,
plugs or any part of the
appliance in water or
any other liquid.
• This appliance is for
household use only.
• DO NOT use the
appliance outdoors.
• Keep hair, loose
clothing, ngers and all
body parts away from
moving parts.
• DO NOT use to pick up
ammable liquids such
as gasoline or use in an
area where they might
be present.
• DO NOT use the
appliance without the
dust container lter in
place.
• DO NOT pick up
anything that is burning
or smoking such as
cigarettes, matches or
hot ashes.
• Use extra care when
cleaning on stairs.
• Use only manufacturer’s
recommended
accessories.
• DO NOT pull cord, use
cord as a handle, close
a door on cord, or pull
cord around sharp
edges or corners.
• DO NOT run vacuum
cleaner over the cord.
Keep cord away from
heated surfaces.
• This product is tted
with a thermal cut-out,
which will activate if the
motor overheats due
to blocked air inlets. If
the appliance cuts out,
allow it to cool for 1 hour,
then empty the dust
container and clean all
of the lters.
• In the unlikely event
the appliance develops
a fault, stop using
it immediately and
seek advice from the
Customer Support
Team:
[phone]

8
Read all instructions and safety information carefully before rst use. Please retain
this information for future reference.
1. Remove the product from the box.
2. Remove any packaging from the product.
3. Please retain all packaging until you have checked and counted all the parts
and the contents against the parts list.
4. Charge the rechargeable battery.
5. Dispose of the packaging in a responsible manner.
4 - Before First Use
Installing the Charging Base:
1. To install the charging base, begin by inserting the pin end of the DC adaptor
into the slot of the charging base, as shown in Fig. 1.
2. Once this pin has been inserted, place the base against a wall and use two
screws to x it into place, as shown in Fig. 2.
3. Your charging base is now ready for use.
Charging the Unit:
1. The vacuum will not be charged when unpacked and so must be charged
before rst use. Before charging, ensure that the appliance is switched off.
2. While in use, the unit’s battery level is represented by three LED indicators
located on the main body. These indicators will light up when the vacuum is
charged, and will progressively go out one by one as the vacuum loses charge.
When the battery power is fully drained, the last of these indicators will ash
for about 30 seconds to a minute, and the unit will stop working. When this
occurs, it is recommended that you charge your vacuum cleaner immediately.
3. To charge the vacuum cleaner, place the unit on the charging base, ensuring it
is rmly secured into place. Then, connect the charger mains plug to a suitable
mains outlet, as shown in Fig. 3. A blue LED indicator will light up and ash to
indicate the unit is charging.
4. The vacuum is fully charged when all three of the LED indicators on the main
body of the unit are illuminated. This usually takes between 4 and 5 hours.
5. Once the vacuum is fully charged, release it from the base by pushing the
release button on the base and pulling the unit loose, as shown in Fig. 4.
5 - Using Your Appliance
Fig. 1 Fig. 2

9
Assembly:
1. Carefully unpack the vacuum cleaner. Ensure that all parts are included before
discarding the packaging.
2. Insert the vacuum cleaner handle into the vacuum pole, ensuring the two
locking pins are correctly aligned. Push the two parts together until you hear
them click into place.
3. Connect the vacuum pole to the power brush, ensuring the two locking pins
are correctly aligned. Push the two parts together until you hear them click
into place.
4. To detach the handle, push the button at the top of the pole and pull the
upper part rmly away from the lower portion of the vacuum cleaner.
Note: Keep the brushes free of bres, hairs, and other objects that could impede
proper functioning. Always remove these types of objects when the brush picks
them up.
Using the Stick Vacuum Cleaner:
Use the vacuum in stick mode to clean oors and carpets.
When using the stick, always make sure the dust compartment is attached to the
handheld vacuum cleaner.
1. Connect the handheld vacuum cleaner to the stick, ensuring it clicks into
place.
2. Press and hold the On/Off button on the stick for at least 3 seconds to switch
on the appliance. The LED indicators on the body of the unit will light up to
indicate it is turned on.
3. Press the speed control button (labelled ‘MAX’) at the top of the unit to
alternate between high and low speed, as required.
4. After use, short-press the On/Off button to switch off the appliance.

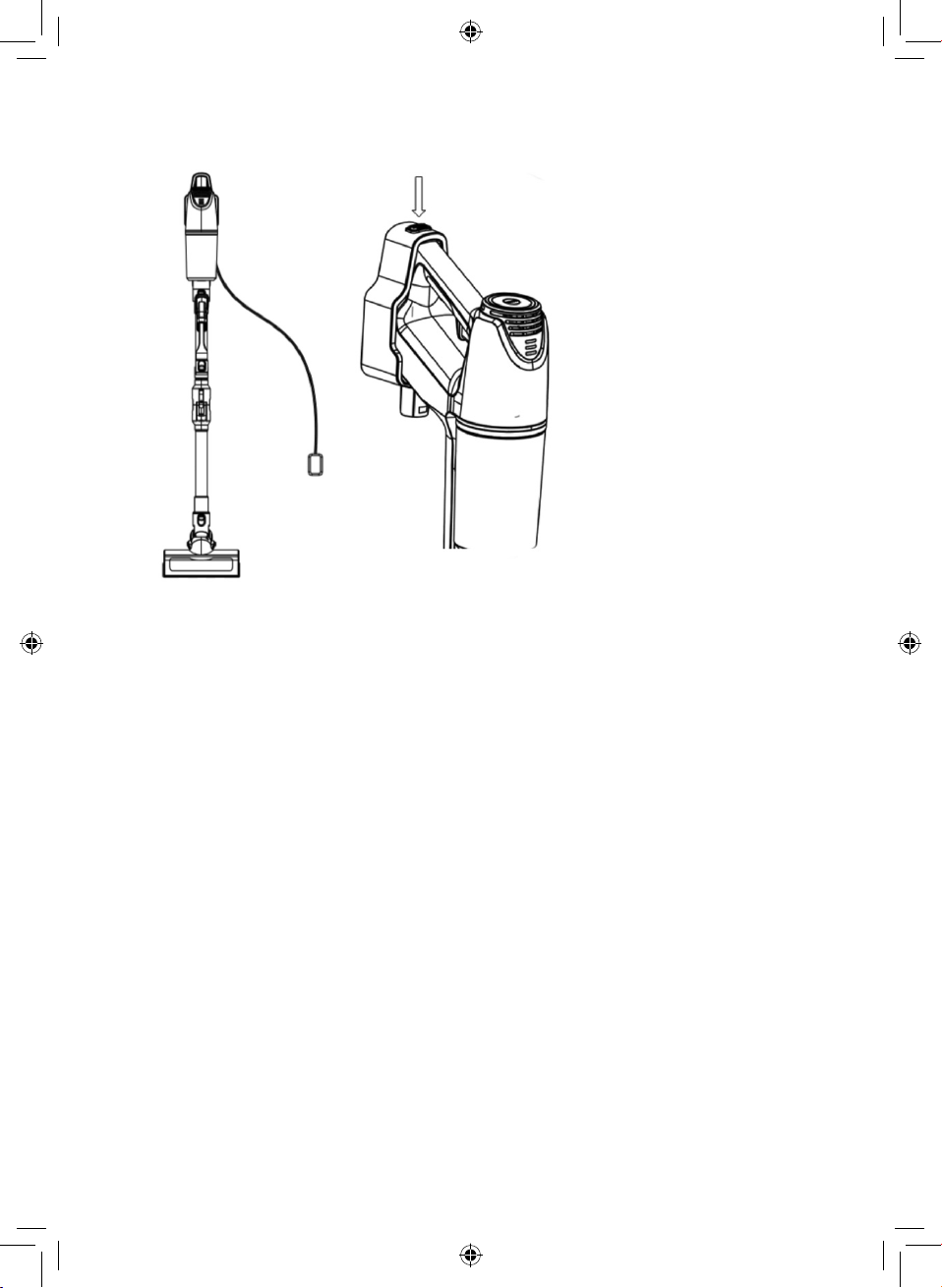

Fig. 3 Fig. 4

10
Note: Use the handheld vacuum cleaner without the stick to vacuum small and
hard-to-reach areas, such as tables, furniture or car seats.
1. If the handheld vacuum cleaner is placed in the stick, press the On/Off button
on the stick to switch off the appliance before you remove the handheld
vacuum cleaner.
2. Press the handheld stick release button, located at the top of the vacuum pole,
and remove the handheld vacuum cleaner from the stick.
3. Press and hold the On/Off button on the stick for at least 3 seconds to switch
on the appliance. The LED indicators on the body of the unit will light up to
indicate it is turned on.
4. Press the speed control button (labelled ‘MAX’) at the top of the unit to
alternate between high and low speed, as required.
5. After use, short-press the on/off button to switch off the appliance.
Connecting the Accessories:
1. The handheld vacuum cleaner comes complete with a 3-in-1 bristle brush,
upholstery brush and crevice tool, ideal for vacuuming corners, narrow gaps,
upholstery and delicate surfaces.
2. To attach this accessory to the vacuum cleaner, push it into the main body of
the unit until it clicks into place.
3. To remove this accessory, push the accessory release button, located at the
bottom of the vacuum pole, and pull the accessory rmly away from it until it
detaches.
Note: Keep the brushes free of bres, hairs, and other objects that could impede
proper functioning. Always remove them when it occurs.
Note: This vacuum cleaner works best on smooth surfaces such as wood, ceramic,
tiles and marble. It will also perform well on hard, short-haired carpet. It should NOT
be used on long-haired carpets as the bres will damage the system.
Using the Foldable Hose:
1. This vacuum cleaner features a foldable hose inside the pole, for easy storage.
To release the pole and fold the vacuum cleaner, press the ‘T’-shaped button
on the handle of the unit.
2. Before next use, push the pole back to an upright position until it clicks into
place. Your vacuum cleaner is now ready for normal use.

11
Problem Possible Solution
The vacuum will not
work
The vacuum may have run out of charge. Charge fully.
This vacuum cleaner is equipped with a motor protective thermo-
stat. If for some reason your vacuum overheats, the thermostat will
automatically turn the suction motor off. Should this occur, allow it
to cool for 1 hour, then empty the dust container and clean all of the
lters.
Vacuum will not
pick-up or suction
power is weak
The dust container may be full, or the lters may require cleaning.
Empty the dust container and clean the lters.
Check to make sure the Brush roller is clear of bres.
Dust is escaping
from the vacuum
The lter may not be installed correctly, or the dust container may
be full. Empty the dust container and reassemble the lter system.
6 - Troubleshooting
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here may not be disposed of in domestic
rubbish. You are required to dispose of old electrical and electronic appliances like
this separately.
Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to
information about the recycling of electrical items.
Please visit www.weeeireland.ie for access to information about the recycling of
electrical items purchased in Ireland.
The WEEE directive, introduced in August 2006, states that all electrical items must
be recycled, rather than taken to landll.
Please arrange to take this appliance to your local Civic Amenity site
for recycling, once it has reached the end of its life.
7 - Recycling

12
Emptying the Dust Tank:
1. To empty the dust tank, begin by pulling the release button on the bottom of
the tank to separate it from the main unit.
2. Pull the inlet lter out of the dust tank and shake the tank’s contents into a
dustbin
3. Once you have emptied the dust tank, t the lter back into place and afx
the dust tank back onto the body of the unit until it clicks into place. Use the
recessed area at the edge of the tank as a guide for how to position the tank
when re-tting it into place.
Cleaning the Unit Body:
1. Before cleaning the unit body, ensure the unit is disconnected from the mains
supply and not in operation.
2. Use a damp cloth to clean the unit body. Never use any abrasive cleaning
materials or solvents, as these could cause damage to the surface of the unit.
WARNING! DO NOT allow any liquids into the unit, as this could cause damage to
the electrical components and cause it to malfunction.
Cleaning the roller brush :
1. To clean the roller brush, rst insert a coin or another small object into the
brush lock slot located on the underside of the brush, then turn it counter-
clockwise to loosen the roller brush within.
2. Lift the lock slot cover and pull out the roller brush.
3. Remove uff, hairs and other dirt from the brush, then t it back into place.
4. Close the lock slot cover and rotate it clockwise to tighten and secure the roller
brush in place.
Storing the Appliance:
1. When not using the vacuum for extended periods of time, store the unit in a
cool, dry place, preferably inside its original packaging.
8 - Cleaning & Care

13
9 - Wiring Safety for UK Use Only
WARNING:
Do not attempt to open any part of the power adaptor or plug.
(Power adapters only)
Never open the power adapter, you risk getting an electric shock.
Only use the power adapter that is supplied with your product.
You must always connect the power adapter to the product before connecting to
the mains power supply.
The power adapter must be used indoors only, and must not be subjected to damp
conditions.
The power adapter does not have any user serviceable parts.
If in doubt, consult a qualied electrician who will be pleased to do this for you.
If you need to remove the plug – disconnect it from the mains – and then cut it off
of the mains lead and immediately dispose of it in a safe manner. Never attempt
to reuse the plug or insert it into a socket outlet as there is a danger of an electric
shock.

14
This product is guaranteed for 12 months
from the date of original purchase.
If any defect arises due to faulty materials
of workmanship, the faulty products must
be returned to the place of purchase.
Refund or replacement is at the discretion
of the retailer.
The Following Conditions Apply:
• The product must be returned to the
retailer with proof of purchase or a
receipt.
• The product must be installed and
used in accordance with the
instructions contained in this
instruction guide.
• It must be used only for domestic
purposes.
• It does not cover wear and tear,
damage, misuse or consumable parts.
• Tower has limited liability for incidental
or consequential loss or damage.
This guarantee is valid in the UK and Eire
only.
The standard one year guarantee is only
extended to the maximum available for
each particular product upon registration
of the product within 28 days of purchase.
If you do not register the product with us
within the 28 day period, your product is
guaranteed for 1 year only.
To validate your extended warranty, please
visit www.towerhousewares.co.uk and
register with us online.
Please note that length of extended
warranty offered is dependent on product
type and that each qualifying product
needs to be registered individually in order
to extend its warranty past the standard
1 year.
Extended warranty is only valid with proof
of purchase or receipt.
As a thank you for purchasing
one of our fantastic products,
we are offering you an extra
2 years peace of mind in
addition to your 1 year
guarantee.
To receive your extra 2 year
guarantee, register your
appliance online within 28
days of purchase by visiting
www.towerhousewares.co.uk
10 - Warranty

15
Notes:

thank you!
We hope you enjoy your appliance for many years. As a thank you for
purchasing one of our fantastic products, we are offering you an extra
2 years peace of mind.
*To receive your extra 2 years guarantee, register your appliance online
within 28 days of purchase by visiting:
www.towerhousewares.co.uk
Should you have a problem with your appliance, or need any spare parts,
please call our Customer Support Team on:
[phone]
0120.V2
Your warranty becomes void should you
decide to use non Tower spare parts.
Spare parts can be purchased from
www.towerhousewares.co.uk
