Town & Country Fireplaces TC30.CE3 User manual

SERIAL #
TC30
INSTALLATION
AND OPERATING
INSTRUCTIONS
250313-44 TC30_CE3 5056.429
MODEL
TC30.CE3
SERIES C
MODULAR DIRECT VENT
FIREPLACE
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury or death.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certied kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room
FOR YOUR SAFETY
Do not store or use gasoline or other
ammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Donottrytolightanyappliance.
• Donottouchanyelectricalswitch;
•Donotuseanyphoneinyourbuilding.
• Immediatelycallyourgassupplierfrom
a neighbour’s phone. Follow the gas
supplier’s instructions.
• Ifyoucannotreachyourgassuppliercall
the re department.
Installation and service must be performed by
a qualied installer, service agency or the gas
supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.

Table of Contents
Caution ........................................................................................... 3
Safety ............................................................................................. 3
Fireplace Dimensions .....................................................................5
Minimum Clearances to Combustible Material ............................... 5
Installation Requirements ...............................................................6
Manufactured (Mobile) Home .........................................................6
Window Frame Removal.................................................................6
Locating The Fireplace ...................................................................7
Top Standoffs.................................................................................. 7
Framing and Finishing ....................................................................8
TC30 Steel Stud Framing Kit ........................................................ 10
Hearth Extension.......................................................................... 12
Maestro Control ........................................................................... 13
– Plumbing and Electrical............................................................. 13
Gas Supply ................................................................................... 16
Gas Pressure Check..................................................................... 16
Venting.......................................................................................... 17
Wall Termination Venting .............................................................. 17
Wall Termination Venting Chart.....................................................20

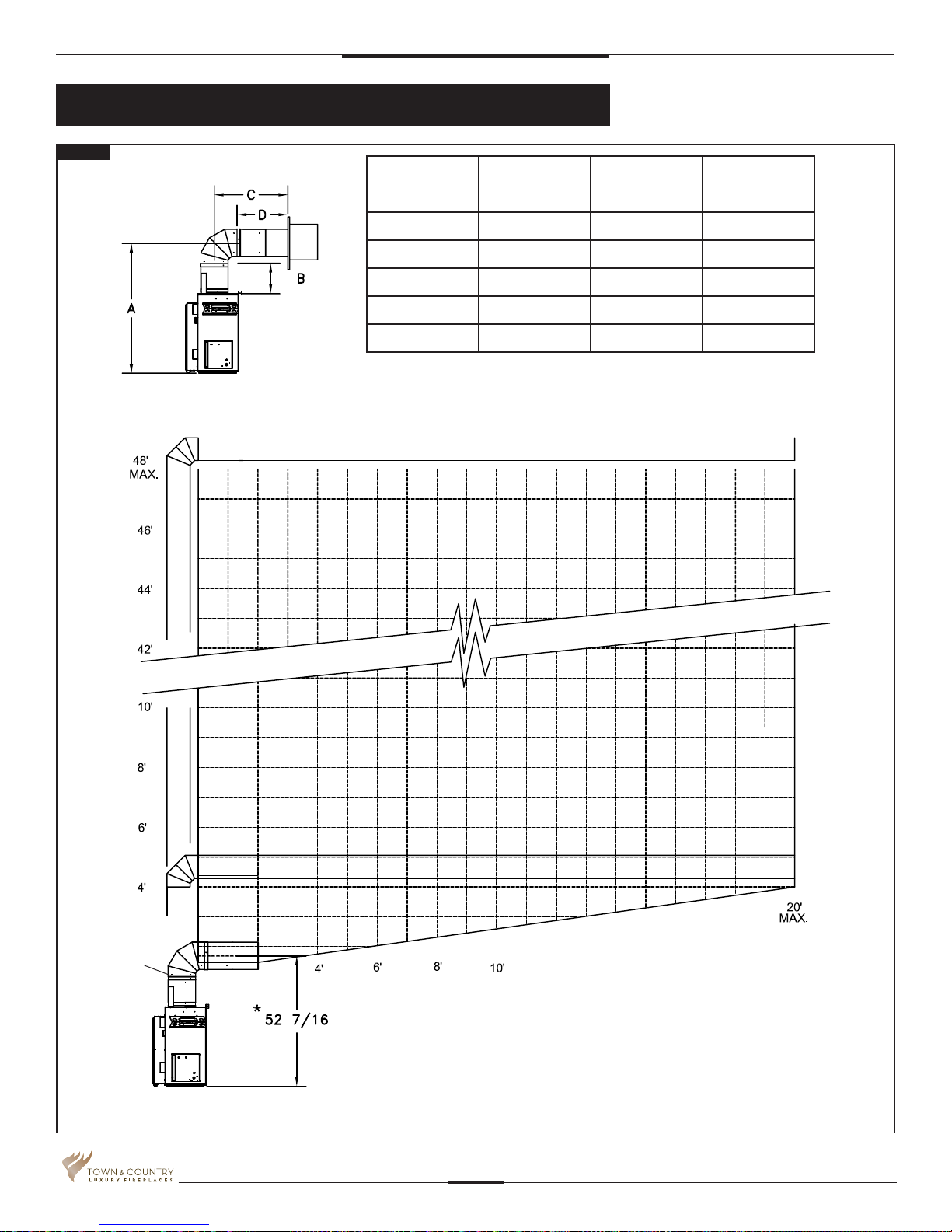

Roof Termination Venting Chart.................................................... 21
Roof Termination Venting .............................................................22
Vent Terminal Clearance............................................................... 24
Vent Terminal Minimum Clearances ............................................. 24
Vent Pipe Sealant ......................................................................... 25
Vent Restrictor Adjustment ........................................................... 26
Firebox Panels Installation............................................................ 27
Finishing Touch Trim Kit Instructions............................................. 28
Lighting Instructions .....................................................................29
First Fire........................................................................................29
Maestro Control System ............................................................... 30
Remote Control Initial Setup.........................................................30
Maestro Control System - Operation ............................................ 31
Maintenance .................................................................................34
TC30_C Replacement Parts.........................................................35
Replacement Parts – Maestro Control System............................. 36
Wiring Diagram............................................................................. 37
Wall Termination Kit ....................................................................38
Roof Termination Kit ...................................................................38
Wall Shield/................................................................................... 38
Ceiling Firestop Thimble ...............................................................38
Vent Pipe Dimensions .................................................................39
Vent Offset Chart ..........................................................................40
Light Replacement........................................................................41
Notes ............................................................................................42
Safety Label Location ...................................................................43
2
TC30_CE3 250313-44

FOR YOUR SAFETY - Do not install or operate your Town & Country replace without
rst reading and understanding this manual. Any installation or operational deviation from
the following instructions voids the Town & Country FireplacesTM Warranty and may prove
hazardous.
This appliance and its individual shut off valve must be disconnected from gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psig
(3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual
manual shut off valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Note: When lit for the rst time, the appliance will emit a slight odour for a couple of hours.
This is due to the curing of paints, sealants and lubricants used in the manufacturing process.
This condition is temporary. Open doors and windows to ventilate area. Smoke and fumes
caused by the curing process may cause discomfort to some individuals.
Do not use the replace if any part has been under water. Immediately call a qualied service
technician to inspect the replace and to replace any part of the control system and any gas
control which has been under water.
Due to high temperatures, this gas appliance should be located out of traffic and
away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures
and should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as
the appliance.
Clothing or other ammable material should not be placed on or near the appli-
ance.
Any grill, panel or door removed for servicing the unit must be replaced prior to
operating. Failure to do so may create a hazardous condition.
Installation and repair should be done by a qualied service person. The appliance
should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding
material, etc. It is imperative that control compartments, burners and circulating air
passageways of the appliance be kept clean.
It is our policy that no responsibility is assumed by the Company or by any of its
employees or representatives for any damages caused by an inoperable, inadequate,
or unsafe condition which is the result, either directly or indirectly, of any improper
operation or installation procedures.
This appliance must not be connected to a chimney ue serving a separate solid fuel
burning appliance.
We recommend that our gas hearth
products be installed and serviced
by professionals who are certied
in the United States by the National
Fireplace Institute®(NFI) as NFI Gas
Specialists
3
TC30_CE3 250313-
Caution
Safety

From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for residential
purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above
nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satised.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fuelled equipment, the
installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor level
where the gas equipment is to be installed, in addition, the installing plumber or gas tter shall observe that a battery operated or hard-wired carbon
monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas
fuelled equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the installation of
hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fuelled equipment is installed in a crawl space or an attic, the hard-wired carbon monoxide
detector with alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have a period of thirty
(30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detec-
tor with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet
above grade directly in line with the exhaust vent terminal for the horizontally vented gas fuelled heating appliance or equipment. The sign shall read, in
print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fuelled equipment shall not approve the installation unless,
upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.089(2)(a) 1
through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontal vented gas fuelled equipment installed in a room or structure separate from the dwelling, building or struc-
ture used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side
wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by
the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved
side wall horizontally vented gas fuelled equipment does not provide the parts for venting the fuel gases, but identies “special venting systems”, the fol-
lowing requirements shall be satised by the manufacturer.
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed
installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting instructions, all parts
lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.
Important Note for the Commonwealth of Massachusetts:
4
TC30_CE3 250313-44

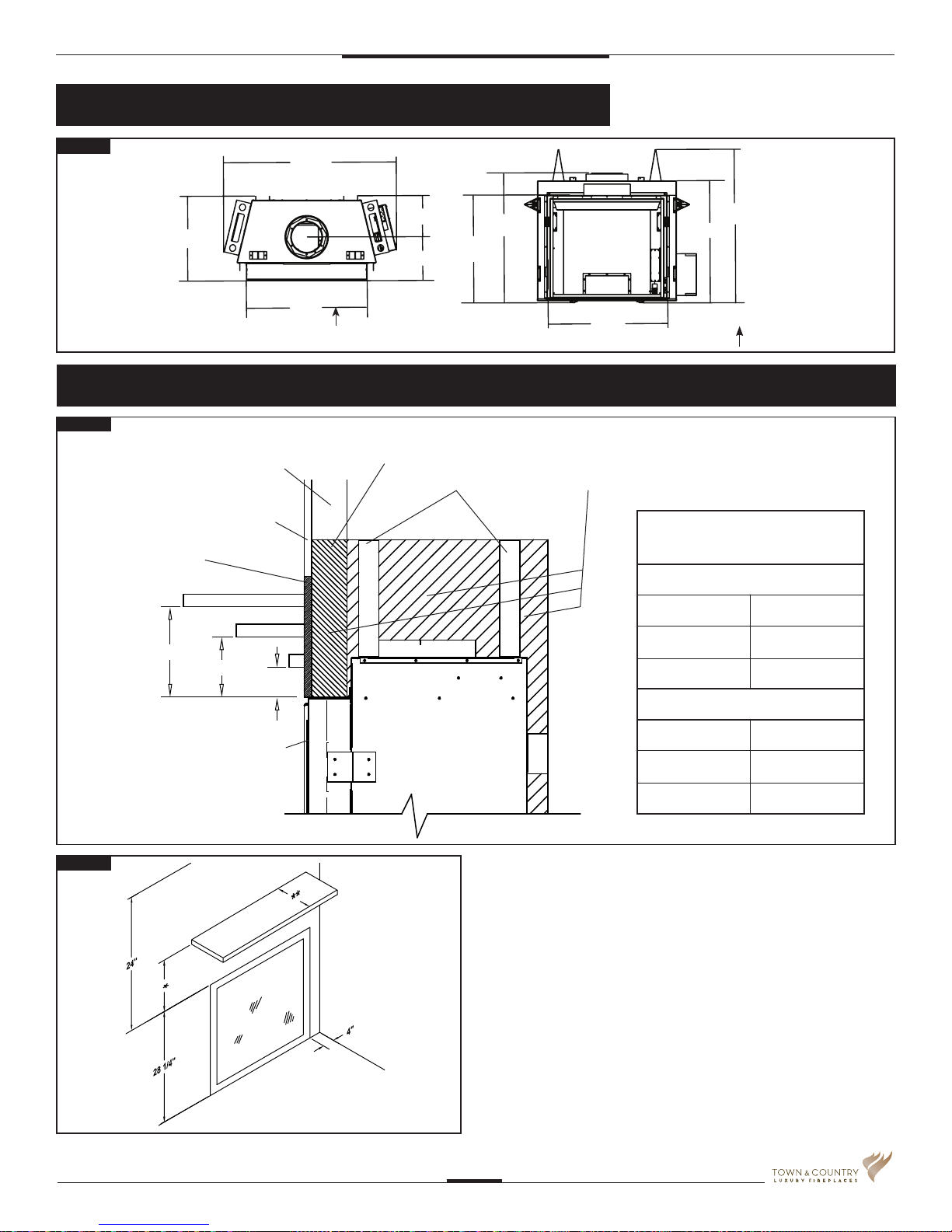

* MANTEL CLEARANCE
A 12”
B 9”
C 6”
** MANTEL DEPTH
D 12”
E 6 3/4”
F 1 1/2”
MANTEL CLEARANCE
CHART
Minimum Clearances:
Side standoffs.......................................................0 in. (0 mm)
Back standoffs ......................................................0 in. (0 mm)
Top standoffs ........................................................0 in. (0 mm)
Bottom of appliance..............................................0 in. (0 mm)
Adjacent side wall.................................................4 in. (102 mm)
Ceiling to appliance ............................................24 in. (610 mm)
*Mantel to appliance .................. ..........See Figure #2
**Maximum Mantel extension .. ..........See Figure #2
Mantel support...................................................... 4 in. (102 mm)
Vertical vent pipe ..........................................1 3/4" in. (45 mm)
Horizontal Vent pipe (Top, sides and bottom) 1 3/4" in. (45 mm)
Fig. #1
Fig. #2

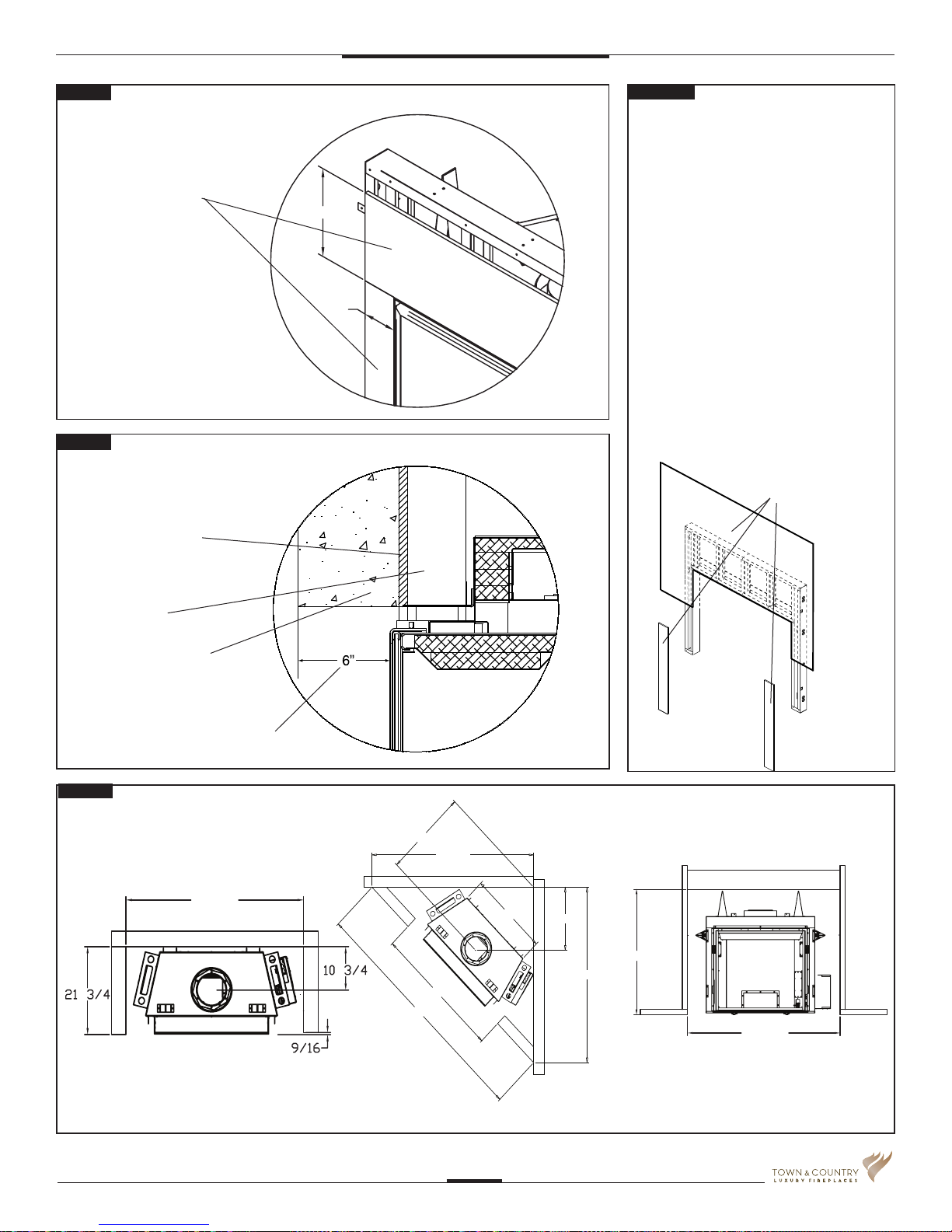

Fig. #3
MAY USE COMBUSTIBLE
FACING MATERIAL IN THIS AREA
NON-COMBUSTIBLE
FINISH MATERIAL
SEE FIG #7
NON-COMBUSTIBLE ZONE.
DO NOT INSTALL ANY COMBUSTIBLE MATERIAL,
ELECTRICAL WIRING OR GAS PLUMBING IN THIS
AREA.
COMBUSTIBLE FRAMING AND
FINISH WALL ABOVE STANDOFFS
STANDOFFS
STEEL FRAMING
FIREPLACE FRONT
TOP OF LINTEL BAR
A
B
C
D
E
F
MANTEL
ADJACENT WALL
OR MANTEL SUPPORT
CEILING
UNIT MAY BE RECESSED UP TO 6” WITH
NON-CUMBUSTIBLE MASONRY TYPE MATERIAL
*
45 1/4
21 3/4
31 1/2
10 3/4
11
34 1/16
31 1/2
28 3/16
32
40 1/4
LINTEL WIDTH
LINTEL HEIGHT
5
TC30_CE3 250313-
Fireplace Dimensions
Minimum Clearances to Combustible Material
STEEL STUD
FRAMING KIT IS
WIDER THAN UNIT

LATCH HANDLE
Fig. #4
Fig. #5
The Town & Country Fireplace installation and venting must conform to the current
CAN/CGA-B149 installation code (in Canada) or the current National Fuel Gas Code,
ANSI Z223.1 (in the USA), and approved per local codes. Only qualied (licensed or
trained) personnel should install this product.
In the state of Massachusetts, only a licensed Plumber and Gas Fitter may install
this product.
In some jurisdictions, the Town & Country Fireplace may be installed in Manufactured Homes
after the "rst sale". Consult local codes for approval. The replace must be fastened
in place.
Install in accordance with the current standard Mobile Homes, CAN/CSA Z240 MH (in
CANADA), and the Manufacturer's Home Construction and Safety Standard, Title 24 CFR,
Part 3280 or the current Standard for Fire Safety Criteria for Manufactured Home Installa-
tions, Sites and Communities ANSI/NFPA 501A (in the USA).
Warning: Turn off the replace, and allow ample time for the unit to cool before
proceeding.
Caution: The ceramic glass is very fragile, and should be handled with care.

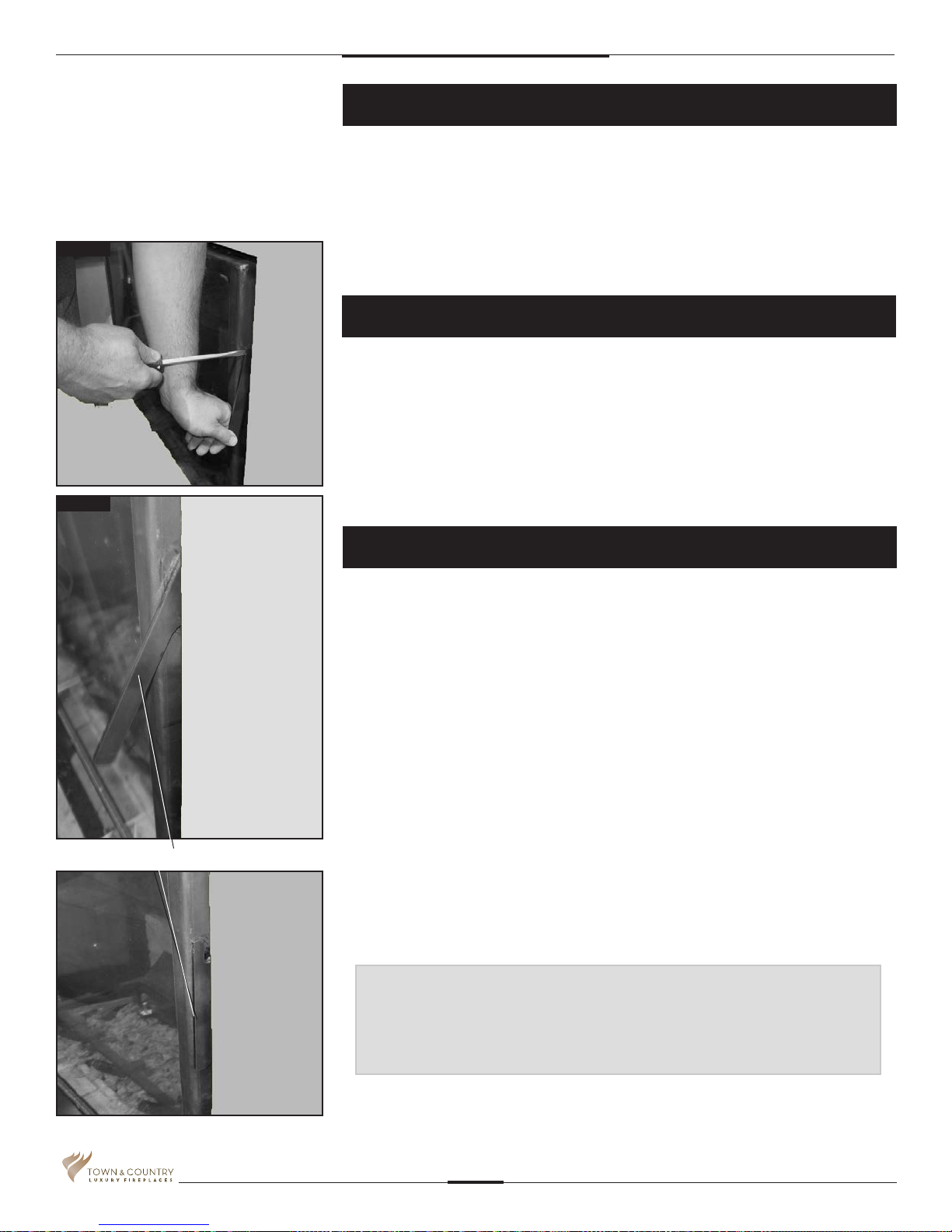

The window frame is held in place by two spring-loaded latches that are operated by a
one-piece latch handle.
1. Remove the TC Finishing Touch Trim Kit from the window frame. (If installed)
2. Using a screwdriver or other similar object, push against the notch in the top of the
latch and grab the bottom of the latch handle as it protrudes. Lift handle until latch hook
disengages. Repeat for other side while holding glass so it does not tip out.
3. Tilt the top of the window frame out to clear the top edge of the unit. Grasp the sides of
the frame and lift up and out to disengage from its bottom track.
4. Place the window frame in a safe place to avoid damage.
5. Re-assemble in reverse order. Latch handle should snap into place and be ush with
window frame when engaged correctly.
6. Reinstall Trim Kit if required.
TIP:
To ensure glass is properly latched, grasp the top left and
right sides of the glass frame, under moderate pressure it
should pull forward and return to original position evenly on
both sides.
6
TC30_CE3 250313-44
Installation Requirements
Manufactured (Mobile) Home
Window Frame Removal

The top standoffs are shipped loose inside
the replace and must be installed on top
of the replace as shown in Fig #6. Do this
once the replace is on site and in position.
In planning the installation for the replace, it is necessary to determine where the unit is to
be installed, location of vent system and where gas supply piping may be plumbed.Various
installations are possible, such as, into an existing wall, a corner, a built-in wall or a wall
projection (Fig #7). Due to high temperatures, do not locate this replace in areas of high
traffic or near furniture or draperies.
The minimum clearances from the replace to combustible surfaces must be adhered
to and are shown in Fig #2 and Fig #3.
Fig. #6
TOP STANDOFFS
EXAMPLES OF COMMON LOCATIONS
SEE FIG #11 FOR DIMENSIONS
Fig. #7
7
TC30_CE3 250313-
Locating The Fireplace
Top Standoffs

40 5/16 “
47 5/16 “
Note: The replace should be in place
and venting installed before framing in or
building an enclosure around the unit.
The Town & Country replace must be
framed in as described below or totally en-
closed with non-combustible material, such
as facing brick.
Determine the total thickness of facing
material to be used. A thickness of 3/4" will
allow the nishing surface to be ush with
the front of the unit. If preferred, additional
masonry type non-combustible material can
be installed above and to the sides up to 6
inches proud of the appliance.
The nishing material must not interfere
with glass frame access.

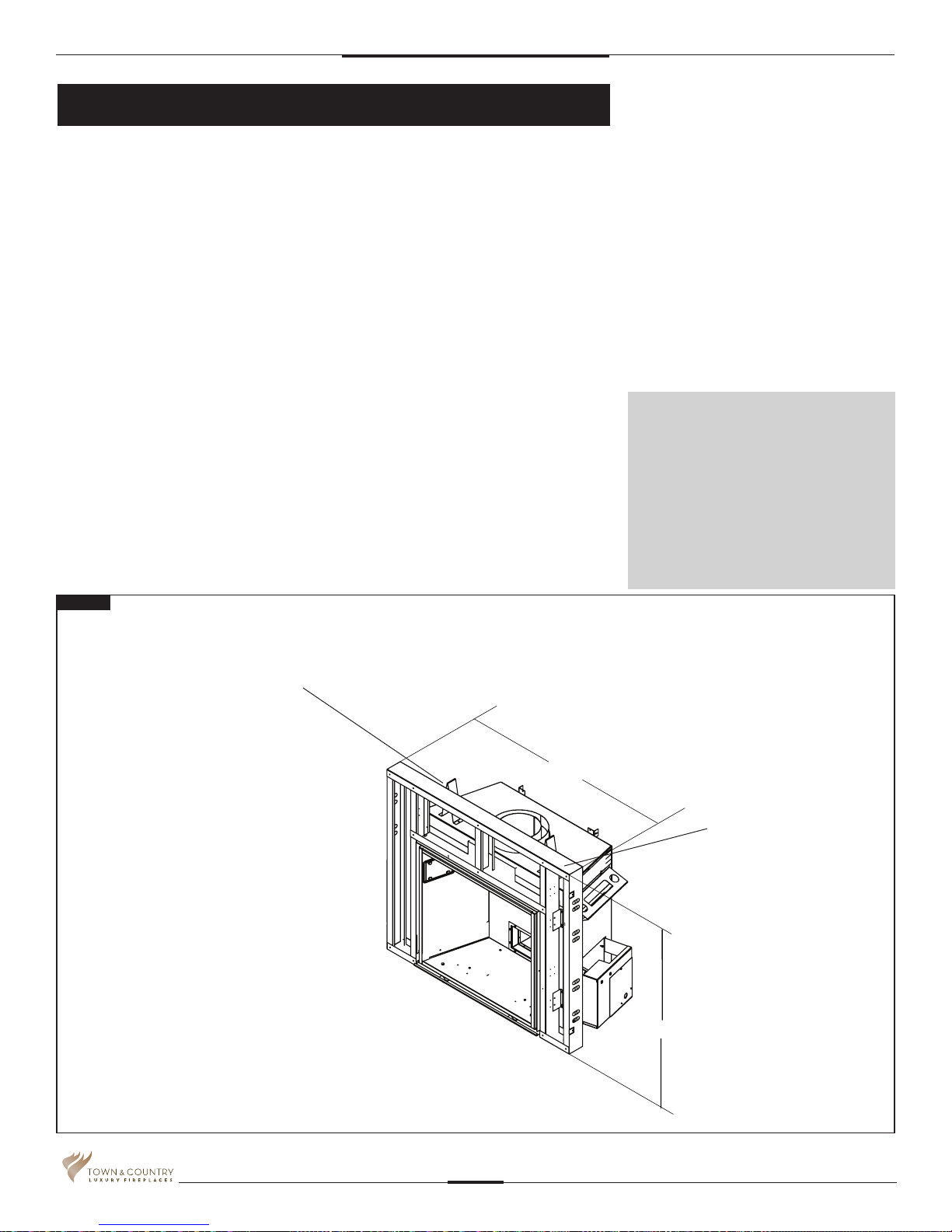

A Steel Stud Framing Kit is supplied with the
replace and must be used unless the
replace is totally enclosed with
non-combustible material. Assemble the
framing kit as per the instructions on pages 10
& 11 of this manual.Attach the steel frame to
the replace once the replace is in its nal
position.Secure the steel frame to the framing
brackets on each side of the unit.Ensure that
the studs are set back far enough to allow
for thickness of nishing surface.
The sides, back and top of the replace can
be framed in up to the steel studs and the
replace standoffs using conventional
lumber. Consult local building codes for
specic requirements.
Due to high temperatures, non-combustible
backer board, such as cement board or its
equivalent, must be used to sheet in the front
of the replace, extending 11 1/4" above and
7" to the side of the framing edge bars. (Fig
#9) Standard sheet rock (dry wall) may be
used beyond this.
If the backer board is not to be nished with
other non-combustible material such as tiles,
it is recommended that the instructions in
Fig.#9a be followed closely.
Chase Insulation: When installing this
replace against a non-insulated exterior wall
or chase, it is recommended that the outer
walls be insulated to same degree as other
exterior walls. Do not place replace directly
against the insulation. Cover the insulation
and plastic vapour barrier with a solid surface,
such as dry wall (sheet rock). Consult local
codes. Do not insulate or use plastic vapour
barrier within the framing kit.
CAUTION: SEE FIGURE #9a BEFORE
PROCEEDING.
Fig. #8
NON-COMBUSTIBLE ZONE. DO NOT INSTALL ANY
COMBUSTIBLE MATERIAL, ELECTRICAL WIRING, INSU-
LATION, PLASTIC VAPOR BARRIER OR GAS PLUMBING
WITHIN THE STEEL STUD FRAMING ALL OTHER FRAMING CAN
BE DONE WITH
CONVENTIONAL LUMBER
STEEL STUD FRAMING KIT DIMENSIONS
(Supplied with replace)
IT IS HIGHLY RECOMEND-
ED THAT A FULL HEADER
BE INSTALLED ABOVE THE
METAL FRAMING KIT
8
TC30_CE3 250313-44
Framing and Finishing
NOTE:
The chase must be properly
sealed at the ceiling level or
between oors in a multilevel
installation.

11 1/4”
7”
47 5/16
47 5/16
40 9/16
29 3/8
56 1/2
56 1/2
20 3/4
79 7/8
47 5/16
28 13/16
MAXIMUM FACING DEPTH
Fig. #9a
IT IS RECOMMENDEDTO USE FULL
SHEETS OF CALCIUM SILICATE
BOARD OR ITS EQUIVALENT AND
FULL LENGTH METAL STUDS TO
FINISH AND FRAME AROUND THE
UNIT.
FOLLOW THE MANUFACTURERS
MOUNTING AND FINISHING IN-
STRUCTIONS CLOSELY.
NON-COMBUSTIBLE
BOARD
NON-COMBUSTIBLE BOARD
Fig. #9
Fig. #10
Fig. #11
NON-COMBUSTIBLE MATERIALS
MUST EXTEND 11 1/4" ABOVE AND
7" TO THE SIDES OF THE
FRAMING EDGES.
NON-COMBUSTIBLE
BOARD
MINIMUM COMBUSTIBLE
FRAMING DIMENSIONS
NOTE: FIREPLACE SHOULD BE IN ITS FINAL LOCATION BEFORE FRAMING.
NON-COMBUSTIBLE RECESSED
INSTALLATION DETAIL
STEEL STUDS
NON-COMBUSTIBLE
MASONRY TYPE MATERIAL
NON-COMBUSTIBLE
BOARD
9
TC30_CE3 250313-
INCLUDING SHEETROCK

CAUTION
Edges are sharp, always wear gloves
when working with sheet metal.
2
4
5
6
Each Kit Contains: Item Part # Description Qty.
1 5049.9912 SCREW, TEKS Pkg
#8 x 1/2” 40
2 9094 STUD, SIDES,
40 1/4”L 2
3 9094.501 STUD, OUTER
SIDES, 40 1/4”L 2
4 9096 STUD, CENTER,
12”L 1
5 9295 STUD, HEADER,
47 5/16”L 1
6 9295.5 STUD, PLATE,
35 1/16”L 1
7 9294.5 BASE PLATE ,
7 1/2”L 2
1. Top Frame Assembly
• Lay out side studs (2) and center stud
(4) on a large at surface. (Fig #12)
• Using the screws provided (1), attach the
header stud (5) and the plate stud (6) to
the center stud (4).
TC30.BFRKITB
Fig. #12
1
2
3
4
5
6
7
10
TC30_CE3 250313-44
TC30 Steel Stud Framing Kit

3
7
5
Framing
Brackets
5
7Access holes to
mounting screws
2. Attach Side Studs (Legs)
• Attachtheoutersidestuds(3)tothetop
of the header stud (5). (Fig #13)
• Fasten the outer side studs (3) at the
bottom using the base plates (7).
3. Attach the Assembled Frame to
the Unit
• Aligntheassembledframetotheunit
framing brackets. (Fig #14) Attach at
the fastening points through the
access holes in the outer side studs
(3).
4. Secure to Existing Framing
• Secure the frame assembly to existing
framing through the stud header (5) and
the stud plates (7).
5. Install non-combustible Board
• Use drywall screws (8) to install the
non-combustible board (Fig #15).
Fig. #13
Fig. #14
Fig. #15
11
TC30_CE3 250313-

1/4"
1"
MAX
WINDOW
FRAME
HEARTH
EXTENSION WINDOW
TRACK
SUB-
FLOOR
While a hearth extension is not required for this replace, one is recommended for aesthetic
reasons. The hearth extension should be noncombustible and must not be any more than 1"
above the bottom of the replace. If thicker, replace must be raised up accordingly.
Caution: Hearth extensions thicker than 1" will interfere with the window frame.
Fig. #20
12
TC30_CE3 250313-44
Hearth Extension
NON COMBUSTIBLE
FINISH MATERIAL
Fig. #20b
FRAMING
EDGES
GLASS
FRAME
This replace may be recessed up to a
maximum depth of 6”, this recess must
be constructed from non combustible
material. The space between the
outside framing edge and the rebox
must be completely free of any
obstructions or debris and the window,
with trim tted, must be able to move
freely. No building material is permitted
to protrude past the framing edges
attached to the replace under ANY
circumstance.

The gas control system is located on the right hand side of the rebox behind an access
panel and the decorative rebox panel (if installed). The replace is operated via a wall
control and a hand held remote control unit.
The wall control is connected to the replace by a 25 ft.communication cable supplied with the
replace. The communication cable can be extended with an optional 25 ft. extension kit.
Installation
1. Place the replace in the desired location.
2. Remove the window and log pack from the replace.
3. Remove access panel from right hand side of the rebox (Fig #21)
4. Connect a 110 V. AC electrical supply to the outlet installed inside the control box
(Fig #22)
The electrical wires can be accessed from both inside and
outside the control box by removing one of the two small
access panels (fFig #23)
The wires from inside the outlet box are connected to
the 110 V.AC supply (Fig.#24)
5. Connect the gas supply to the valve (Fig #22)
6. Plug the A/C adaptor into the outlet (Fig #22)
7. Attach the electrical box for the supplied wall control to the framing in the desired
location (up to 50 ft. away). (25 ft is supplied with replace. An additional 25 ft can
be achieved by using the optional kit (Part # 5005.064) available from your
distributor).
ACCESS PANEL
OUTLET
ADAPTER
Fig. #21
Fig. #24
Fig. #23
Fig. #22
GAS CONNECTION
13
TC30_CE3 250313-
Maestro Control
– Plumbing and Electrical

8. Route the control cable as required to the wall control electrical box.

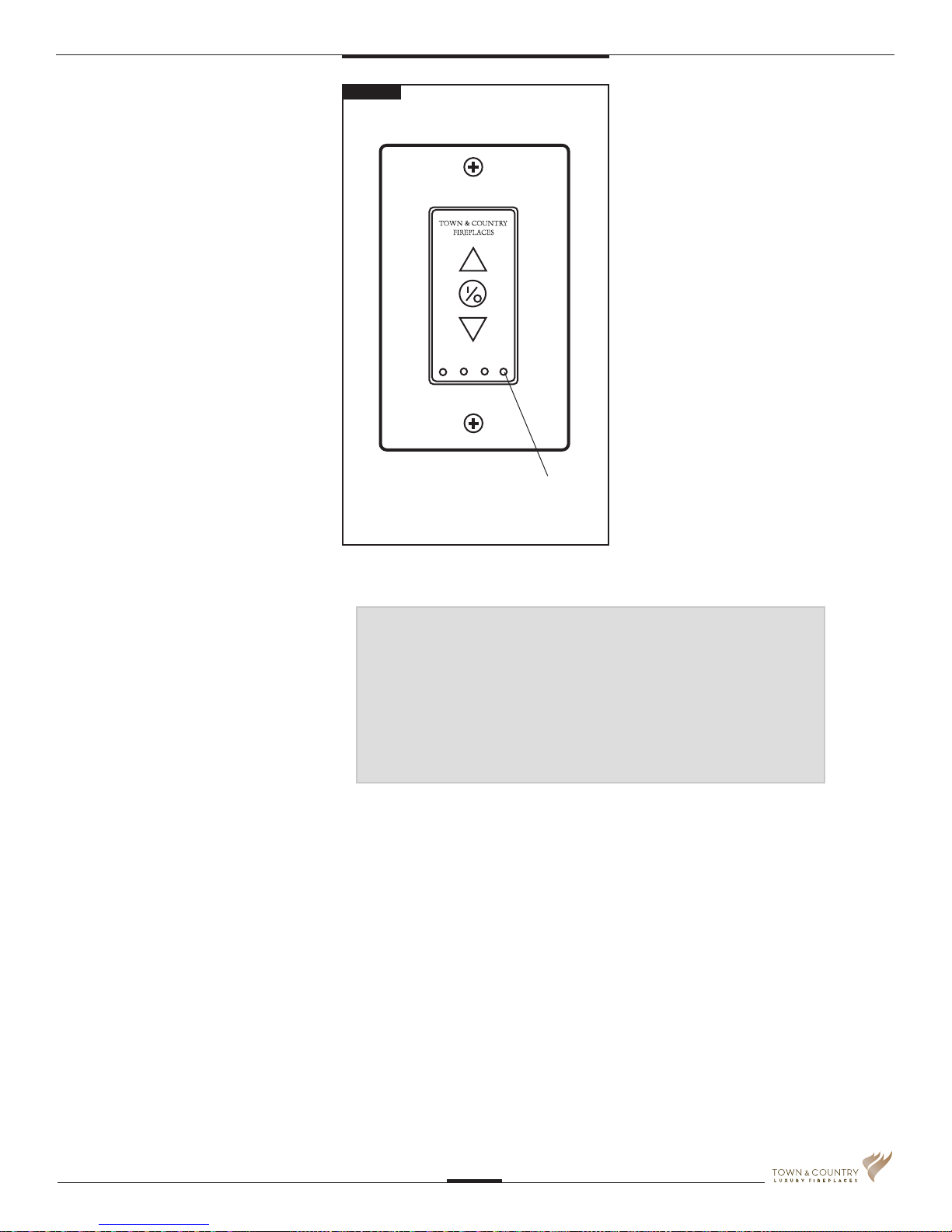

9. Attach the control cable to the wall control. (Fig #25)
10. Insert the 4 supplied “AA” batteries into the battery pack and connect to wall control.
(Fig #26)
11. Fasten the wall switch to the electrical box.
12. Fasten the faceplate to switch
13. If not already installed, install the burner using the instructions supplied
with the burner kit.
14. Turn on the gas supply and check that all connections are tight and leak free.
15. Turn on gas and electrical supplies.
17. Press the up button on the wall control
and hold it for 5 seconds or until a clicking
sound is heard from the gas control. Re-
lease the button, check manifold pressure
and ensure that it’s correct. (Fig #28)
Refer to burner installation manual.
18. Press the center button of the wall control.
The replace will shut off.
19. Install the remaining screws in the access
panel and tighten.
20. Remove the pressure gauge and the
extension test tting and thread the
pressure test port plug into the pressure
test port. Thread sealant is required on
the threads. Refer to burner installation
manual.
21. Turn the replace on and verify that
the connections are tight.
Standing Pilot Function
(Only for use where permitted)
The control system on this replace is set to operate as electronic ignition. If required the
system can be converted to a standing pilot by depressing a recessed button located on
the lower right hand side of the wall control. (Fig #29) This should be depressed with a
paperclip, pencil or other thin object. Once activated the pilot will run continuously. Please
check with your local inspector to ensure that this is permitted in your area.
16. Press the center button on the wall control (Fig #27). The igniter will start to spark.
After a short delay the pilot will light, followed by the main burner.
Fig. #25
Fig. #26
LEARN BUTTON
STANDING PILOT BUTTON
Fig. #27 Fig. #28
Fig. #29
14
TC30_CE3 250313-44

Pre-Purge Mode
For use with a power vent only.
Follow these instructions to activate the
power vent pre-purge feature. This feature
must be activated for the safe operation of
an appliance equipped with a power vent.
Switching to the power vent pre-purge
mode:
1. To turn feature ON and OFF, press and
hold the STANDING PILOT button on the
wall switch for 10 seconds (Fig.#29a).
2. When the feature is activated, the green
LED should ash (0.5 seconds ON, 0.5
seconds OFF) 5 times.
3. When the feature is deactivated, the red
LED should ash (0.5 seconds ON, 0.5
seconds OFF) 5 times.
4. When the pre-purge feature is ON:
• The low battery backup warning feature
will be disabled and the LED will not
ash to indicate low battery (The battery
backup must be removed when using a
power vent).
• The Standing Pilot feature will be de-
activated (feature not available when
Power Vent Pre-Purge Mode is active).
• Upon receiving any ON command, the
power vent output will close immediately,
but the ignition cycle will NOT begin for 10
seconds (pre-purge). This means that
the moduleWILL NOT emit a spark and
WILL NOT energize the pilot operator
and the 60 second ignition trial period
WILL NOT begin until the 10 second
pre-purge delay is complete.
• Upon receiving any ON command, the
green LED will ash (0.5 seconds ON,
0.5 seconds OFF) for 10 seconds so
the user will know that the replace is
operating.
STANDING
PILOT BUTTON
Fig. #29a
NOTE:
The pre-purge feature must be
activated for the safe operation
of an appliance equipped with a
power vent.
15
TC30_CE3 250313-

SUPPLY
PRESSURE
MANIFOLD
PRESSURE
Caution: The gas line should be installed by a qualied service person in accordance with
all building codes. This section is intended as a guide for qualied technicians installing this
appliance. Consult local and / or national building codes before proceeding.
• Gas supply line access holes are located at the top and left sides of the Control Box.
Gas valve inlet accepts a 3/8" N.P.T. tting. Correct gas line diameter must be used to
assure proper operation and pressure.
• The replace has an input rate of 35,000 BTU/HR on both Natural Gas and Propane.
• NOTE: A sediment trap, as per national fuel gas code, must be installed in the
gas supply line no more than 6 feet from the gas control valve to minimize the
possibility of any loose scale or dirt within the gas supply line from entering the
control valve.
• DO NOT HARD PIPE GAS LINE TO VALVE. A method of disconnecting the valve
from the gas line such as a union or are tting must be provided to allow for repair or
replacement of the gas valve.
Check local codes for additional requirements.
1. Connect the gas supply to the valve (Fig. #23)
2. Turn on the gas supply and check that all connections are tight and leak free.
WARNING: Use EXTREME CAUTION when using soap and water to do
a leak test on the valve/ttings. There are electronics around and
below the valve, that can/will be damaged if they come in contact
with water.
WARNING: The access panel including gasket must be
reinstalled after conversion/installation or servicing
has been completed. Failure to do so will cause
overheating and premature failure of the control system.
Correct gas pressure requirement:
Natural Gas Propane
Min. Pressure 5.0" WC 12.5" WC
(For purpose of input adjustment)
Max. Pressure 13.9" WC 13.9" WC
Manifold Pressure
Maximum 3.8" WC 11" WC
Minimum 2.1" WC 5.5" WC
Note:To test the gas pressure, turn off the gas supply before removing the plug from
the supply pressure test port or manifold pressure test port.
Verify gas pressures with the replace lit and on the highest setting.
Please refer to the Burner Installation Manual for gas pressure testing procedure.

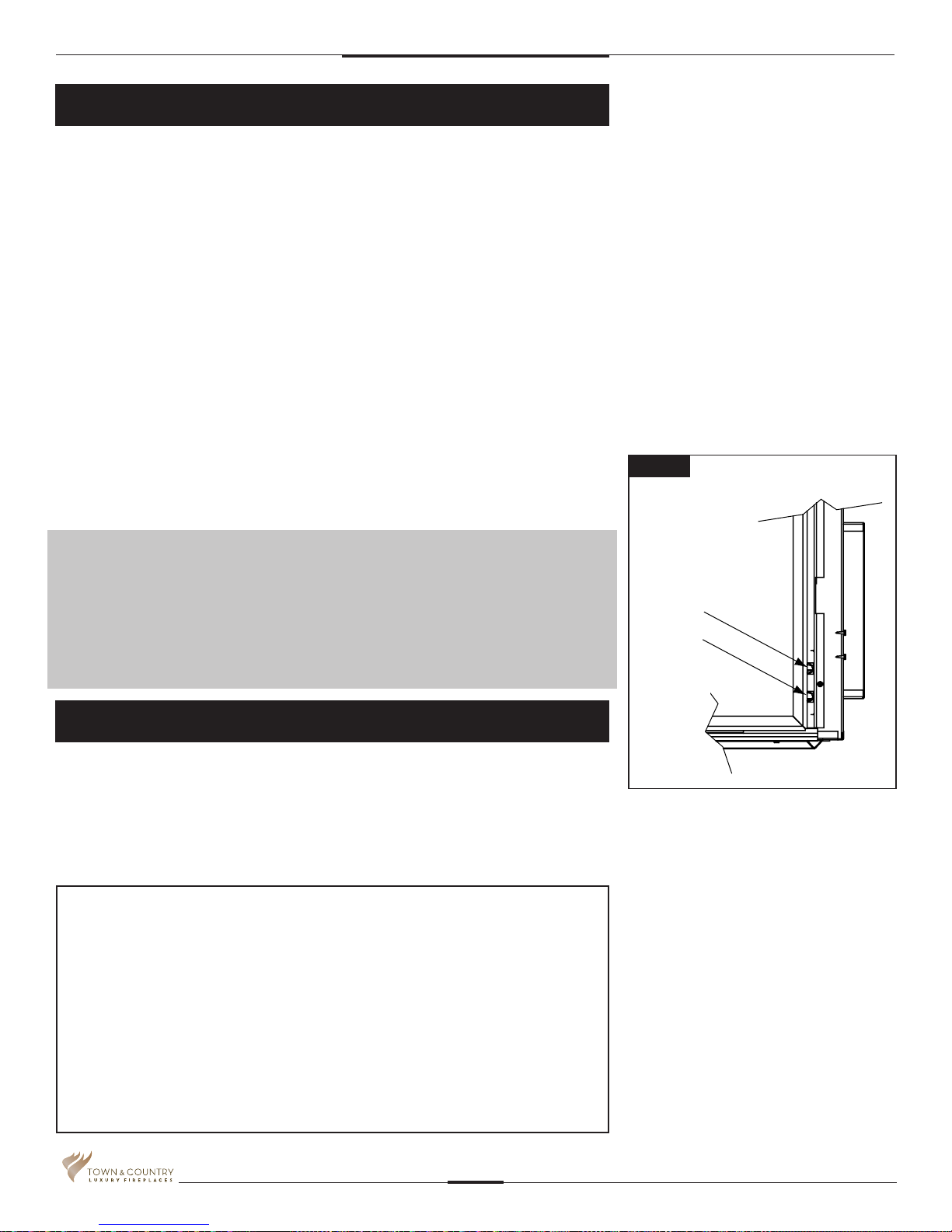

Fig. #30
16
TC30_CE3 250313-44
Gas Supply
Gas Pressure Check

Exterior wall opening:
Determine the exact position of the replace so that the vent pipe is centred (if possible)
between two building framing members. Consult your local building codes prior to proceed-
ing. The vent kit will accommodate up to a maximum wall thickness of 12 inches.
1. Having determined the position of the replace, cut and frame a 14 1/2 inch opening
centred at a minimum height of 52 7/16 inches above the oor. The opening may be
round or square. Height of the opening will vary with each installation. As the horizontal
vent run increases, so does the minimum vertical rise (see Fig. #35).
IMPORTANT: When locating the opening, it should be noted that vent terminal
clearances must be maintained. See "Vent Terminal Clearances" section for proper
clearances.
A minimum 1 foot length of pipe is required off the top of the replace for any wall termination.
With this minimum vertical rise in combination with a 90° elbow, a maximum horizontal run
of 24 inches past the elbow is permitted (see Fig. #35). For longer horizontal runs increase
vertical rise appropriately.
The rise and run must be constrained to the boundaries of the chart shown in Fig. #35. The
horizontal run of vent must have a 1/4" rise for every 1 ft. of run towards the termination.
Before installing venting for this unit, the installer should read these instructions to insure
that the proper vent conguration has been selected.
Use only Town and Country Termination kits #:
TCVT.WTA - Wall Termination Kit
TCVT.RTA - Roof Termination Kit
Vent system components approved for use with the Town and Country Fireplace are shown
in Fig. #33.
NOTE: Optional Power Vent (TCVT.PVB1) requires different venting. Please refer to
Power Vent manual.
Various combinations of vertical and horizontal runs may be used. Refer to Fig. #35 and
36 for details. For optimum performance and ame appearance, keep the vent length to a
minimum and limit the number of elbows.Connections between each vent system component
must be tightly joined, secured with sheet metal screws and sealed with high temperature
self adhesive tape. A horizontal run of vent should have a 1/4" rise for every 1 ft. of run
towards the termination.
CAUTION: UNDER NO CONDITION SHOULD COMBUSTIBLE MATERIAL BE CLOSER
THAN 1 3/4 INCHES FROM THE TOP AND 1 3/4 INCHES FROM THE SIDES OF A
HORIZONTAL SECTION AND 1 3/4 INCHES FROM THE VERTICAL SECTIONS OF THE
VENT PIPE.
17
TC30_CE3 250313-
Venting
Wall Termination Venting

WALL THIMBLE AND VENT MUST NOT PROTRUDE BEYOND SIDING
Fig. #31
Wall thimble:
Where a vent pipe passes through a combustible wall, a wall thimble/shield must be used
to retain insulation and maintain proper clearances. The wall thimble may be cut to length
for various wall thicknesses up to 12" thick.
Measure the wall thickness including the siding.Trim the shield to match the wall thickness.
Position the wall thimble from inside through the 14-1/2" opening. Properly adjusted, the
thimble should be ush with the outer wall surface.
TRIM TO LENGTH
Fig. #32
Vent System Components Town & Country
12" Pipe Length .................................................... TCVT.811X12
18" Pipe Length .................................................... TCVT.811X18
24" Pipe Length .................................................... TCVT.811X24
48" Pipe Length .................................................... TCVT.811X48
12" Adjustable Pipe Length................................... TCVT.811X12ADJ
45° Elbow ............................................................. TCVT.811XLB45
90° Elbow ............................................................. TCVT.811XLB90
Wall/Offset Support .............................................. TCVT.811XOS
Wall Termination Kit .............................................. TCVT.WTA
Roof Termination Kit ............................................. TCVT.RTA
Wall Shield/Ceiling Firestop.................................. TCVT.THIMA
Roof Flashing, Adjustable ..................................... TCVT.811FLADJ
Roof Flashing, Flat ............................................... TCVT.811FLFLT
Roof Flashing, Steep ............................................ TCVT.811FLSTP
or any ashing that ts 11" pipe
Fig. #33
18
TC30_CE3 250313-44

52 7/16”
Vent pipe:
Install vent pipe through the wall thimble and attach to ue outlet collar on top of the replace.
Secure all joints with screws and seal with approved "High Temp." self-adhesive aluminum
tape provided.
Adjust the replace position so that the vent pipe does not protrude beyond the outer
wall.The vent connector on the termination will accomodate walls up to 12" thick.
Wall vent terminal:
1) Engage the terminal with the vent pipe and slide terminal into place. Ensure that both
inner and outer pipes are fully engaged and then attach the terminal to the outside wall.
The vent terminal must not be recessed into the exterior wall or siding.
2) Caulk in place to prevent any moisture entering the building.
NOTE: MINIMUM CLEARANCES TO THE VENT TERMINAL MUST BE MAINTAINED
(see Fig. #40 & 41).

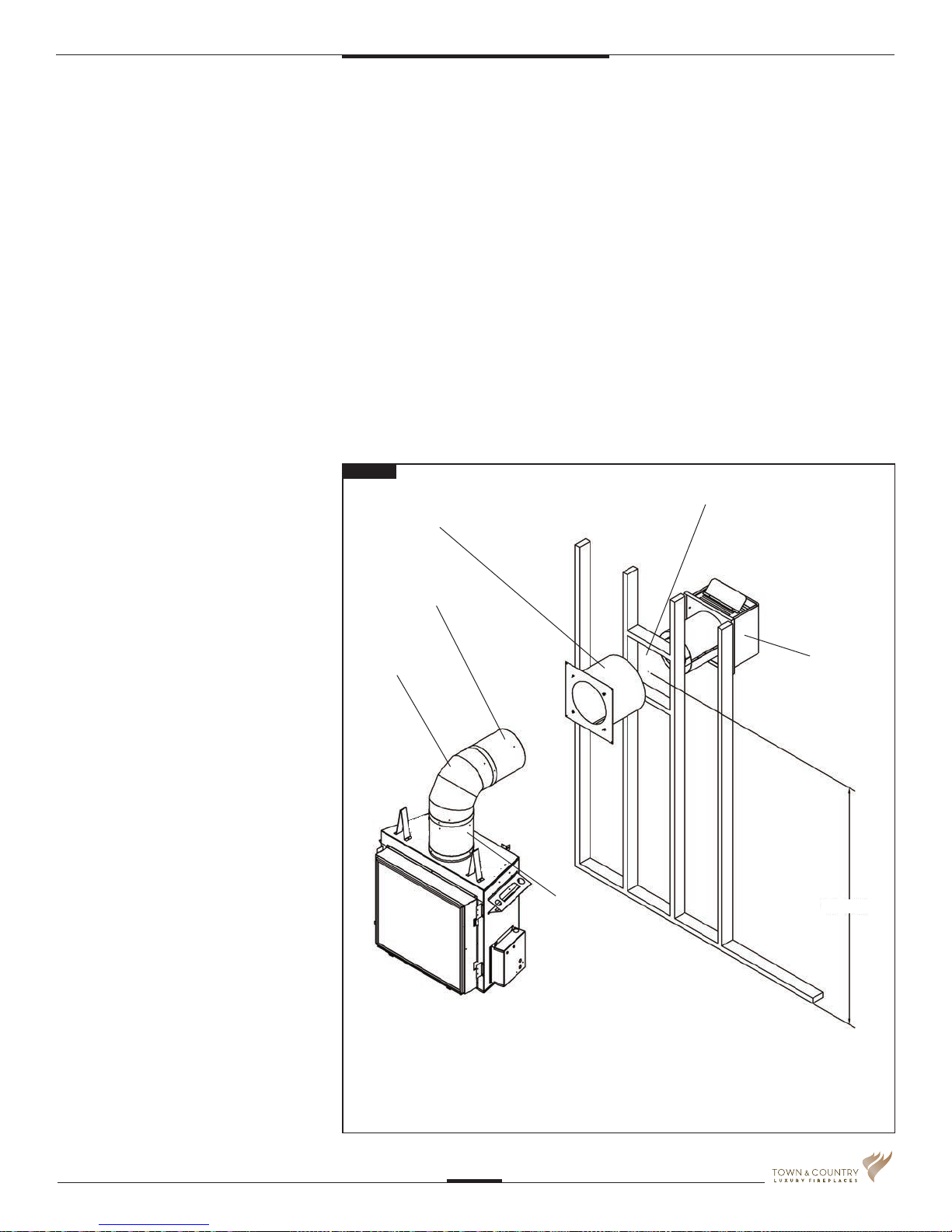

Fig. #34
HORIZONTAL
TERMINAL
TCVT.9360
14 1/2" FRAMED
OPENING
WALL SHIELD THIMBLE
TCVT.THIMA
ELBOW
TCVT.811XLB90
12" VENT PIPE
TCVT.811X12
UP TO 24"
VENT PIPE
TCVT.811X24
* Minimum height from the oor to center of the
opening with a maximum horizontal run of 34 5/16"
using a 24" pipe. The height will need to be increased
with a longer horizontal run.
*
19
TC30_CE3 250313-

Fig. #35
NOTE: The vent must not exceed a total length of 68 feet. Any
combination of rise and run may be used but must be constrained
to the boundaries of this chart. A total of 4 90° elbows or combina-
tion of other elbows equalling 90° can be used without reducing
horizontal run. For each additional 90° elbow, or an equal com-
bination of elbows, reduce horizontal vent run by 2 feet. Ensure
vent pipe is properly supported.
** All dimensions are approximate. Both rise and run may vary with different
combinations of pipe.
12" Pipe
length
minimum
A
Minimum rise
B
Pipe length
C
Maximum run
D
Pipe length
Max.
52 7/16” 1 x 12” 34 5/16" 1 x 24"
64 7/16” 1 x 24” 46 5/16" 1 x 24" + 1 x12"
74 11/16” 1 x 24"+ 1 x 12” 166 5/16" 3 x 48" + 1 x12"
80 11/16” 1 x 24"+ 1 x 18” 226 5/16" 4 x 48" + 1 x24"
87 11/16” 1 x 48” 250 5/16” 5 x 48"
For other rise/run combinations see chart below
**
20
TC30_CE3 250313-44
Wall Termination Venting Chart
