Town & Country Fireplaces TC42 User manual

TC42 OUTDOOR GAS
FIREPLACE INSTALLATION
AND OPERATING
INSTRUCTIONS
090816-40 TC42.CODE 5056.426OD
MODEL TC42.OD
SERIES C
MODULAR DIRECT VENT
OUTDOOR FIREPLACE
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or death.
WARNING: Solid fuels should not be burned in
this appliance.
This appliance is only for use with the type of
gas indicated on the rating plate. This appli-
ance is not convertible for use with other
gases, unless a certified kit is used.
WARNING: Improper installation, adjusment,
alteration, service or maintenance can cause
injury or property damage. Read the installa-
tion, operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from
a neighbour’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier call
the fire department.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
SERIAL #
WARNING: FOR OUTDOOR USE ONLY
Visit www.townandcountryfireplaces.net for the most recent version of this manual

Table of Contents
Caution ............................................................................ 3
Safety .............................................................................. 3
Important Note for the
Commonwealth of Massachusetts .................................. 4
This Fireplace Is Intended For Outdoor Use Only! .......... 5
Fireplace Dimensions ...................................................... 6
Minimum Clearances To Combustible Material ............... 6
Installation Requirements ................................................ 7
Window Frame Removal ................................................. 7
Top Standoffs .................................................................. 8
Locating The Fireplace .................................................... 8
Framing and Finishing ..................................................... 9
TC42 Steel Stud Framing Kit ......................................... 11
Assembly Instructions............................................. 11
Adjustable Lintel ............................................................ 13
Hearth Extension ........................................................... 14
Honeywell Control Valve Plumbing and Electrical ......... 15
Installation............................................................... 15
Gas Supply .................................................................... 16
Gas Pressure Check ...................................................... 16
Correct gas pressure requirement: ......................... 16
Propane Conversion ...................................................... 17
Venting ........................................................................... 18
Wall Termination Venting ............................................... 18
Wall opening:........................................................... 18
Wall thimble:............................................................ 19
Vent System Components ...................................... 19
Vent pipe: ................................................................ 20
Wall vent terminal:................................................... 20
Wall Termination Venting Chart ..................................... 21
Roof Termination Venting Chart ..................................... 22
Ceiling Opening:...................................................... 23
Ceiling Firestop: ...................................................... 23
Vent Pipe: ................................................................ 23
Roof Support Bracket: ............................................ 23
Roof Vent Terminal: ................................................. 24
Vent Terminal Clearance ................................................ 25
Roof Pitch Table ...................................................... 25
Vent Terminal Minimum Clearances .............................. 25
Vent Pipe Sealant .......................................................... 26
Vent Restrictor Adjustment ........................................... 27
Firebox Panels Installation ............................................ 28
Lighting Instructions ...................................................... 30
First Fire ......................................................................... 30
Maintenance .................................................................. 31
Glass Panel: ............................................................ 31
Annual Inspection: .................................................. 31
Periodically:............................................................. 31
Replacement Parts ........................................................ 32
Replacement Parts – Honeywell Control System .......... 33
Wiring Diagram .............................................................. 34
Wall Shield Ceiling Firestop Thimble.............................. 35
Wall Termination Kit ....................................................... 35
Roof Termination Kit ....................................................... 35
Vent Pipe Dimensions ................................................... 36
Vent Offset Chart ........................................................... 37
Rating Label Location ................................................... 38
2
TC42.CODE_090816-40
5056.426OD

FOR YOUR SAFETY - Do not install or operate your Town & Country fireplace without first reading and under-
standing this manual. Any installation or operational deviation from the following instructions voids the Town &
Country FireplacesTM Warranty and may prove hazardous.
This appliance and its individual shut off valve must be disconnected from gas supply piping system during any pressure
testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual manual shut off valve during
any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
Note: When lit for the rst time, the appliance will emit a slight odour for a couple of hours. This is due to the curing of
paints, sealants and lubricants used in the manufacturing process. This condition is temporary. Open doors and win-
dows to ventilate area. Smoke and fumes caused by the curing process may cause discomfort to some individuals.
Do not use the replace if any part has been under water. Immediately call a qualied service technician to inspect the
replace and to replace any part of the control system and any gas control which has been under water.
Due to high temperatures, this gas appliance should be located out of trafc and away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns
or clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance.
Clothing or other ammable material should not be placed on or near the appliance.
Any grill, panel or door removed for servicing the unit must be replaced prior to operating. Failure to do so may create a
hazardous condition.
Installation and repair should be done by a qualied service person. The appliance should be inspected before use and
at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from
carpeting, bedding material, etc.. It is imperative that control compartments, burners and circulating air passageways of
the appliance be kept clean.
It is our policy that no responsibility is assumed by the Company or by any of its employees or representatives for any
damages caused by an inoperable, inadequate, or unsafe condition which is the result, either directly or indirectly, of any
improper operation or installation procedures.
This appliance must not be connected to a chimney ue serving a separate solid fuel burning appliance.
3
TC42.CODE_090816-40 5056.426OD
Caution
Safety
We recommend that our gas
hearth products be installed and
serviced by professionals who are
certied in the United States by
the National Fireplace Institute®
(NFI) as NFI Gas Specialists
DANGER: If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open ame.
3. If odor continues, keep away
from the appliance and imme-
diately call your gas supplier
or re department.
WARNING: Do not store or use gasoline
or other ammable vapors and liquids
in the vicinity of this or any other
appliance.
DANGER: CARBON
MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill
you. Never use this appliance in an
enclosed space such as a camper, tent,
car or home.

Important Note for the Commonwealth of Massachusetts
From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for residential
purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet
above nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satised.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fuelled equipment, the
installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor
level where the gas equipment is to be installed, in addition, the installing plumber or gas tter shall observe that a battery operated or hard-wired
carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal
vented gas fuelled equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the
installation of hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fuelled equipment is installed in a crawl space or an attic, the hard-wired carbon monoxide
detector with alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have a period of thirty
(30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide
detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet
above grade directly in line with the exhaust vent terminal for the horizontally vented gas fuelled heating appliance or equipment. The sign shall
read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fuelled equipment shall not approve the installation unless,
upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.089(2)
(a) 1 through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontal vented gas fuelled equipment installed in a room or structure separate from the dwelling, building or structure
used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided
by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved
side wall horizontally vented gas fuelled equipment does not provide the parts for venting the fuel gases, but identies “special venting systems”, the
following requirements shall be satised by the manufacturer.
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed
installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting instructions, all parts
lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.
4
TC42.CODE_090816-40
5056.426OD

• The fireplace must be located inside of a weatherproof enclosure.
• Flashing must be installed around the fireplace opening in accordance with local building
codes in order to prevent moisture from entering the enclosure.
• A drip pan (not supplied with the unit) must be installed under the fireplace and be provided
with a means of draining.
• Care must be taken to select materials and building practices which will protect the enclo-
sure and fireplace from exposure to moisture.
This Fireplace Is Intended For Outdoor Use Only!
5
TC42.CODE_090816-40 5056.426OD

52 3/8
29 7/16
43 13/16
27 3/16
53 15/16
38 3/16
11 11/16
43 13/16
Variable
42 1/4
Variable
Figure 1: TC42C outdoor dimensions.
* MANTEL CLEARANCE
A 9”
B 6”
C 3”
** MANTEL DEPTH
D 12”
E 6 3/4”
F 1 1/2”
MANTEL CLEARANCE
CHART
MAY USE COMBUSTIBLE
FACING MATERIAL IN THIS AREA
NON-COMBUSTIBLE
FINISH MATERIAL
SEE FIG #8
NON-COMBUSTIBLE ZONE.
DO NOT INSTALL ANY COMBUSTIBLE MATERIAL,
-
ELECTRICAL WIRING OR GAS PLUMBING IN
THIS AREA.
COMBUSTIBLE FRAMING AND
FINISH WALL ABOVE STANDOFFS
STANDOFFS
STEEL FRAMING
FIREPLACE FRONT
TOP OF LINTEL BAR
A
B
C
D
E
F
Figure 2: Mantel clearances.
**
*
Minimum Clearances:
Side standoffs ....................................................... 0 in. (0 mm)
Back standoffs
...................................................... 0 in. (0 mm)
Top standoffs
........................................................ 0 in. (0 mm)
Bottom of appliance
.............................................. 0 in. (0 mm)
Adjacent side wall
................................................. 4 in. (102 mm)
Ceiling to appliance
............................................ 24 in. (610 mm)
*Mantel to appliance.............................See Figure #2
**Maximum Mantel extension ..............See Figure #2
Mantel support
...................................................... 4 in. (102 mm)
Vertical vent pipe ..........................................1 3/4" in. (45 mm)
Horizontal Vent pipe (Top, sides and bottom)1 3/4" in. (45 mm)
24”
38 3/16”
4”
MANTEL
ADJACENT WALL
OR MANTEL
SUPPORT
CEILING
UNIT MAY BE RECESSED UP TO 6” WITH
NON-COMBUSTIBLE MASONRY TYPE MATERIAL
Figure 3: Clearances.
6
TC42.CODE_090816-40
5056.426OD
Fireplace Dimensions
Minimum Clearances To Combustible Material

Figure 4: Accessing door handle. Figure 5: Door handle exposed.
The Town & Country Fireplace installation and venting must conform to the current CAN/CGA-B149 installation
code (in Canada) or the current National Fuel Gas Code, ANSI Z223.1 (in the USA), and approved per local codes.
Only qualified (licensed or trained) personnel should install this product.
In the state of Massachusetts, only a licensed Plumber and Gas Fitter may install this product.
Warning: Turn off the fireplace, and allow ample time for the unit to cool before proceeding.
Caution: The ceramic glass is very fragile, and should be handled with care.
The window frame is held in place by two spring-loaded latches that are operated by a one-piece latch handle.
1. Remove the stainless steel trim (one piece).
2. Using a screwdriver or other similar object, push against the notch in the top of the latch and grab the bottom of the
latch handle as it protrudes. Lift handle until latch hook disengages. Repeat for other side while holding glass so it
does not tip out.
3. Tilt the top of the window frame out to clear the top edge of the unit. Grasp the sides of the frame and lift up and out
to disengage from its bottom track.
4. Place the window frame in a safe place to avoid damage.
5. Re-assemble in reverse order. Latch handle should snap into place and be ush with window frame when engaged
correctly.
TIP:
To ensure glass is properly latched, grasp the top left and right sides of the glass frame, under
moderate pressure it should pull forward and return to original position evenly on both sides.
7
TC42.CODE_090816-40 5056.426OD
Installation Requirements
Window Frame Removal

EXAMPLES OF COMMON LOCATIONS
SEE FIG 1 FOR DIMENSIONS
Figure 7: Common locations.
The top standoffs are shipped loose inside the replace and must be installed on top of the replace (Figure 6). Do this
once the replace is on site and in position.
In planning the installation for the replace, it is necessary to determine where the unit is to be installed, location of vent
system and where gas supply piping may be plumbed. Various installations are possible, such as, into an existing wall, a
corner, a built-in wall or a wall projection (Figure 7). Due to high temperatures, do not locate this replace in areas of high
trafc or near furniture or draperies.
The minimum clearances from the fireplace to combustible surfaces must be adhered to and are shown in Figure
2 and Figure 3.
TOP STANDOFFS
Figure 6: Stand-offs.
8
TC42.CODE_090816-40
5056.426OD
Locating The Fireplace
Top Standoffs

Note: The fireplace should be in
place and venting installed before
framing in or building an enclosure
around the unit.
The Town & Country replace must
be framed in as described below or
totally enclosed with non-combustible
material, such as facing brick.
Determine the total thickness of fac-
ing material to be used. A thickness
of 3/4" will allow the nishing surface
to be ush with the front of the unit.
If preferred, additional masonry type
non-combustible material can be
installed above and to the sides up to
6 inches proud of the appliance.
The nishing material must not inter-
fere with glass frame access.
A Steel Stud Framing Kit is supplied
with the replace and must be used
unless the replace is totally enclosed
with non-combustible material.
Assemble the framing kit as per the
instructions on page 11 & page
12 of this manual. Attach the steel
frame to the replace once the re-
place is in its nal position. Secure the
steel frame to the framing brackets on
each side of the unit. Ensure that the
studs are set back far enough to allow
for thickness of nishing surface.
The sides, back and top of the re-
place can be framed in up to the steel
studs and the replace standoffs
using conventional lumber. Consult
local building codes for specic
requirements.
Due to high temperatures, non-
combustible backer board, such as
cement board, calcium silicate board
(Figure 10) or its equivalent, must be
used to sheet in the front of the re-
place, extending 12" above and 5 1/2"
to the side of the framing edge bars
(Figure 9). Standard sheet rock (dry
wall) may be used beyond this. Taped
and mudded joints may crack due
to the elevated temperatures.
Fabricate and install appropriate ash-
ing to local building code.
Note: Installing unit without ashing
installed will void the warranty
Note: Provide proper drainage to
divert water underneath the unit
Chase Insulation: When installing this
replace against a non-insulated exte-
rior wall or chase, it is recommended
that the outer walls be insulated to
same degree as other exterior walls.
Do not place replace directly against
the insulation. Cover the insulation
and plastic vapour barrier with a solid
surface, such as dry wall (sheet rock).
Consult local codes. Do not insulate
or use plastic vapour barrier within the
framing kit.
CAUTION: See Figure 10 before
proceeding
IT IS HIGHLY RECOMENDED
THAT A FULL HEADER
BE INSTALLED ABOVE THE
METAL FRAMING KIT
ALL OTHER FRAMING CAN
BE DONE WITH CONVENTIONAL
LUMBER
NON-COMBUSTIBLE ZONE. DO NOT INSTALL ANY
COMBUSTIBLE MATERIAL, ELECTRICAL WIRING,
INSULATION, PLASTIC VAPOR BARRIER OR GAS
PLUMBING WITHIN THE STEEL STUD FRAMING
STEEL STUD FRAMING KIT DIMENSIONS
(Supplied with fireplace)
56 1/4”
53 3/4”
Figure 8: Framing kit dimensions.
9
TC42.CODE_090816-40 5056.426OD
Framing and Finishing

12”
5 1/2”
Non-combustible board detail
NON-COMBUSTIBLE
BOARD
Non-combustible materials
must extend 12” above and
5 1/2” to the sides of the
framing edges.
Figure 9: Non-combustible board allowances.
CALCIUM SILICATE
BOARD
If finishing the wall above the unit
with paint, the framing kit
shipped with the unit should be
discarded and full length metal
studs should be used instead to
finish and frame around the unit.
It is recommended to use full
sheets of calcium silicate board or
its equivalent.
Follow the manufacturers mount-
ing and finishing instructions
Figure 10: Calcium silicate board.
MAXIMUM FACING DEPTH
STEEL STUDS
NON-COMBUSTIBLE
MATERIAL
NON-COMBUSTIBLE
BOARD
Non-combustible recessed
installation detail
Figure 11: Non-combustible recessed installation.
54"
56 1/4”
62"
21 1/4”
30"
3/4"
56 1/4”
62"
26 1/8"
56 1/4”
12 5/8”
3/4"
Including Sheetrock
Minimum combustible
framing dimensions
87 11/16”
Note: Fireplace should be in its final location before framing.
Figure 12: Minimum combustible framing dimensions.
10
TC42.CODE_090816-40
5056.426OD

1. Top Frame Assembly
Lay out side studs (2) and center studs (4)
on a large at surface.
Using the screws provided (1), attach the
header stud (5) and the plate stud (6) to the
center studs (4).
Assembly Instructions
Framing kit contents: Item Part # Description Qty.
1 5049.9912 SCREW, TEKS Pkg
#8 x 1/2” 40
2 9093.03 STUD, SIDES,
53 3/4”L 2
3 9093.1 STUD, OUTER
SIDES, 53 3/4”L 2
4 9935.000 STUD, CENTER,
14 15/16”L 2
5 9094 STUD, HEADER,
56 1/8”L 1
6 9934.000 STUD, PLATE,
47 15/16”L 1
7 9945.000 BASE PLATE ,
6 1/2”L 2
1
2
3
4
5
6
7
Figure 13: Framing kit contents.
2
4
5
6
Figure 14: Top frame assembly.
11
TC42.CODE_090816-40 5056.426OD
TC42 Steel Stud Framing Kit

3
7
5
Figure 15: Side stud placement.
Framing
brackets
5
7
Access holes to
mounting screws
Figure 16: Assembled frame.
Figure 17: Installing non-combustible board over frame.
2. Attach Side Studs (Legs)
Attach the outer side studs (3)
to the top of the header stud (5)
(Figure 15).
Fasten the outer side studs (3) at
the bottom using the base plates
(7).
3. Attach the Assembled Frame to
the Unit
Align the assembled frame to the
replace framing brackets (Figure
16). Attach at the fastening points
through the access holes in the
outer side studs (3).
4. Secure to Existing Framing
Secure the metal frame assem-
bly to existing framing through
the stud header (5) and the stud
plates (7).
5. Install Non-combustible Board
on top and sides
12
TC42.CODE_090816-40
5056.426OD

Adjustable Lintel
Hemmed
edge
Flanged
edge
Figure 18: Adjustable lintel.
Decorative
trim
Figure 19: Decorative trim.
Securing
bolt
Figure 20: Lintel securing bolt.
1. The adjustable lintel assembly has
two orientations for desired nish-
ing. A anged edge and a hemmed
edge. The lintel comes factory
installed with the ange edge out
(Figure 18). If the desired edge is
different from the factory setting, use
the following steps to change it.
2. Remove the decorative window trim
by lifting and pulling it to disengage
from the window frame (Figure 19).
3. Loosen the securing bolts in the
upper and lower corners on each
side of the lintel and remove the lin-
tel. Rotate the assembly to have the
desired edge away from the replace
(Figure 20).
4. The lintel assembly has a maxi-
mum range of adjustability of 1”
to accommodate varying facing
material thicknesses. The maximum
depth is 6” (Figure 22).
5. The lintel assembly can then be
adjusted to align ush with your
facing material by sliding in or out
approximately 1”.
6. Tighten the securing bolts (Figure
20).
7. Re-attach the decorative window
trim.
13
TC42.CODE_090816-40 5056.426OD

1/4"
1"
MAX
WINDOW
FRAME
HEARTH
EXTENSION
WINDOW
TRACK
SUB-
FLOOR
Figure 21: Hearth details.
Caution: While a hearth extension is not required and combustible ooring materials may be brought directly up to
the replace, many materials (such as wood ooring) may not tolerate the radiant heat from this replace, resulting in
discoloration, shrinking and cracking. For this reason, we suggest a non-combustible hearth that is no more than 1”
above the bottom of the replace. If thicker, replaced must be raised accordingly.
Caution: Hearth extensions thicker than 1” will interfere with the window frame.
This replace may be recessed up
to a maximum depth of 6”. This
recess must be constructed from
non combustible material. The space
between the outside lintels and the
rebox must be completely free of
any debris and the window with
trim tted must be able to move
freely. No building material is permit-
ted to protrude past the lintel bars
attached to the replace under ANY
circumstance.
SIDE FACING
CLEARANCES
ROCK FACE
AREA
MINIMUM
6”
43 7/8” 37 3/4”
MINIMUM
Figure 22: Non-combustible recess allowances.
14
TC42.CODE_090816-40
5056.426OD
Hearth Extension

Access panel
Figure 23: Access panel location.
The gas control system is located on the right hand side of the rebox behind
an access panel and the decorative rebox panel (if installed). The replace is
operated via a wall switch.
The wall control is connected to the replace by a 14-2 AWG wire, not supplied
with the replace.
Installation
1. Place the replace in the desired location.
2. Remove the window from the replace.
3. Remove access panel from right hand side of the rebox (Figure 23).
4. Remove the cover from the electrical box (Figure 24).
5. Run one 110 V. AC switched electrical supply to the control box and connect to
the transformer installed inside the control box (Figure 25). The replace oper-
ates on 24V AC supplied by a transformer rated at 110 volts, 60Hz. See wiring
diagram on page 34 for correct connections to the transformer.
6. Connect the gas supply to the gas inlet (Figure 26).
Electrical
box cover
Figure 24: Electrical box cover.
Transformer,
electrical
connections
Figure 25: TC42 outdoor control with
transformer.
Gas
Inlet
Figure 26: Gas inlet on gas valve.
15
TC42.CODE_090816-40 5056.426OD
Honeywell Control Valve Plumbing and Electrical

SUPPLY
PRESSURE
MANIFOLD
PRESSURE
Figure 27: Gas pressure test
points.
Caution: The gas line should be installed by a qualied service person in accordance with all building codes. This sec-
tion is intended as a guide for qualied technicians installing this appliance. Consult local and / or national building
codes before proceeding.
• Gas supply line access holes are located at the top and left sides of the Control Box. Gas valve inlet accepts a 1/2"
N.P.T. tting. Correct gas line diameter must be used to assure proper operation and pressure.
• The replace has an input rate of 61,000 BTU/HR on both Natural Gas and Propane.
• NOTE: A sediment trap, as per national fuel gas code, must be installed in the gas supply line no more than 6
feet from the gas control valve to minimize the possibility of any loose scale or dirt within the gas supply line
from entering the control valve.
• DO NOT HARD PIPE GAS LINE TO VALVE. A method of disconnecting the valve from the gas line such as a union
or are tting must be provided to allow for repair or replacement of the gas valve.
• It is essential that a union or anged connection be installed just upstream of the valve and inside the control com-
partment to allow for repair or replacement of the gas valve.
Check local codes for additional requirements.
1. Connect the gas supply to the gas valve (Figure 26).
2. Turn on the gas supply and check that all connections are tight and leak free.
Correct gas pressure requirement:
Natural Gas Propane
Min. Pressure 5.0" WC 12.5" WC
(For purpose of input adjustment)
Max. Pressure 13.9" WC 13.9" WC
Manifold Pressure
Maximum 3.8" WC 11" WC
Minimum 2.1" WC 5.5" WC
Note: To test the gas pressure, turn off the gas supply before removing the plug from the supply pressure test
port or manifold pressure test port.
Verify gas pressures with the fireplace lit and on the highest setting.
Please refer to the Burner Installation Manual for gas pressure testing procedure.
WARNING: The access panel including gasket must be reinstalled after conversion / installation or servicing
has been completed. Failure to do so will cause overheating and premature failure of the control system.
16
TC42.CODE_090816-40
5056.426OD
Gas Supply
Gas Pressure Check

Propane Conversion
Compression
tting
Orice
Housing
Figure 31: Completed pilot assembly.
Note: This fireplace comes with a pre installed Honeywell pilot. When installing the burner assembly, remove the
pilot that came attached to the burner and discard.
DO NOT USE ANY OTHER PILOT WITH YOUR OUTDOOR UNIT OTHER THAN THE HONEYWELL PILOT THAT CAME
INSTALLED IN THE FIREPLACE.
1. Using the valve conversion kit that came in the instruction pack, convert the valve to propane following the instruc-
tions provided with the kit (Figure 28).
2. Remove the compression tting from the bottom of the orice housing and gently tap the pilot in your hand. The
natural gas orice should fall out (Figure 29).
3. Insert the propane orice (Figure 30) that came in your instruction pack as shown into the orice housing and reat-
tach the pilot to the compression tting and pilot tube.
Figure 28: Propane valve conversion kit.
Orice
Orice
Housing
Compression
tting
Figure 29: Orice inserted into housing.
Figure 30: Orice for propane
conversion.
17
TC42.CODE_090816-40 5056.426OD

Wall opening:
Determine the exact position of the replace so that the vent pipe is centered (if possible) between two building framing
members. Consult your local building codes prior to proceeding. The vent kit will accommodate up to a maximum wall
thickness of 12 inches.
1. Having determined the position of the replace, cut and frame a 14 1/2 inch opening centred at a minimum height of
74 1/4 inches above the oor (Figure 34). The opening may be round or square. Height of the opening will vary with
each installation. As the horizontal vent run increases, so does the minimum vertical rise. See Figure 35.
IMPORTANT: When locating the opening, it should be noted that vent terminal clearances must be maintained.
See “Vent Terminal Minimum Clearances” on page 25 for proper clearances.
A minimum 2 foot length of pipe is required off the top of the replace for any wall termination. With this minimum verti-
cal rise in combination with a 90° elbow, a maximum horizontal run of 18 inches is permitted (See Figure 35). For longer
horizontal runs greater than 18 inches, increase vertical rise appropriately.
The rise and run must be constrained to the boundaries of the chart shown in Figure 35. The horizontal run of vent must
have a 1/4" rise for every 1 ft. of run towards the termination.
Before installing venting for this unit, the installer should read these instructions to ensure that the proper vent congura-
tion has been selected.
Use only Town and Country Termination kits:
TCVT.WTA - Wall Termination Kit
TCVT.RTA - Roof Termination Kit
Vent system components approved for use with the Town and Country Fireplace are shown in Fig. #33.
Various combinations of vertical and horizontal runs may be used. See Figure 35 and See Figure 36 for details. For
optimum performance and ame appearance, keep the vent length to a minimum and limit the number of elbows.
Connections between each vent system component must be tightly joined, secured with sheet metal screws and sealed
with high temperature self adhesive tape. A horizontal run of vent should have a 1/4" rise for every 1 ft. of run towards
the termination.
CAUTION: UNDER NO CONDITION SHOULD COMBUSTIBLE MATERIAL BE CLOSER THAN 1 3/4 INCHES FROM
THE TOP AND 1 3/4 INCHES FROM THE SIDES OF A HORIZONTAL SECTION AND 1 3/4 INCHES FROM THE
VERTICAL SECTIONS OF THE VENT PIPE.
18
TC42.CODE_090816-40
5056.426OD
Venting
Wall Termination Venting

Wall thimble:
Where a vent pipe passes through a combustible wall, a wall thimble/shield must be used to retain insulation and main-
tain proper clearances. The wall thimble may be cut to length for various wall thicknesses up to 12" thick.
Measure the wall thickness including the siding. Trim the shield to match the wall thickness. Position the wall thimble
from inside through the 14-1/2" opening. Properly adjusted, the thimble should be ush with the outer wall surface.
Town & Country part #
12" Pipe Length..................................................... TCVT.811X12
18" Pipe Length..................................................... TCVT.811X18
24" Pipe Length..................................................... TCVT.811X24
48" Pipe Length..................................................... TCVT.811X48
12" Adjustable Pipe Length.............................TCVT.811X12ADJ
45° Elbow ..........................................................TCVT.811XLB45
90° Elbow ..........................................................TCVT.811XLB90
Wall/Offset Support.............................................. TCVT.811XOS
Wall Termination Kit.................................................... TCVT.WTA
Roof Termination Kit .................................................... TCVT.RTA
Wall Shield/Ceiling Firestop.................................... TCVT.THIMA
Roof Flashing, Adjustable .................................TCVT.811FLADJ
Roof Flashing, Flat .............................................TCVT.811FLFLT
Roof Flashing, Steep .........................................TCVT.811FLSTP
or any ashing that ts 11" pipe
WALL THIMBLE AND VENT
MUST NOT PROTRUDE
BEYOND SIDING
Figure 32: Wall thimble and vent position limits.
TRIM TO LENGTH
Figure 33: Trimming thimble.
Vent System Components
19
TC42.CODE_090816-40 5056.426OD

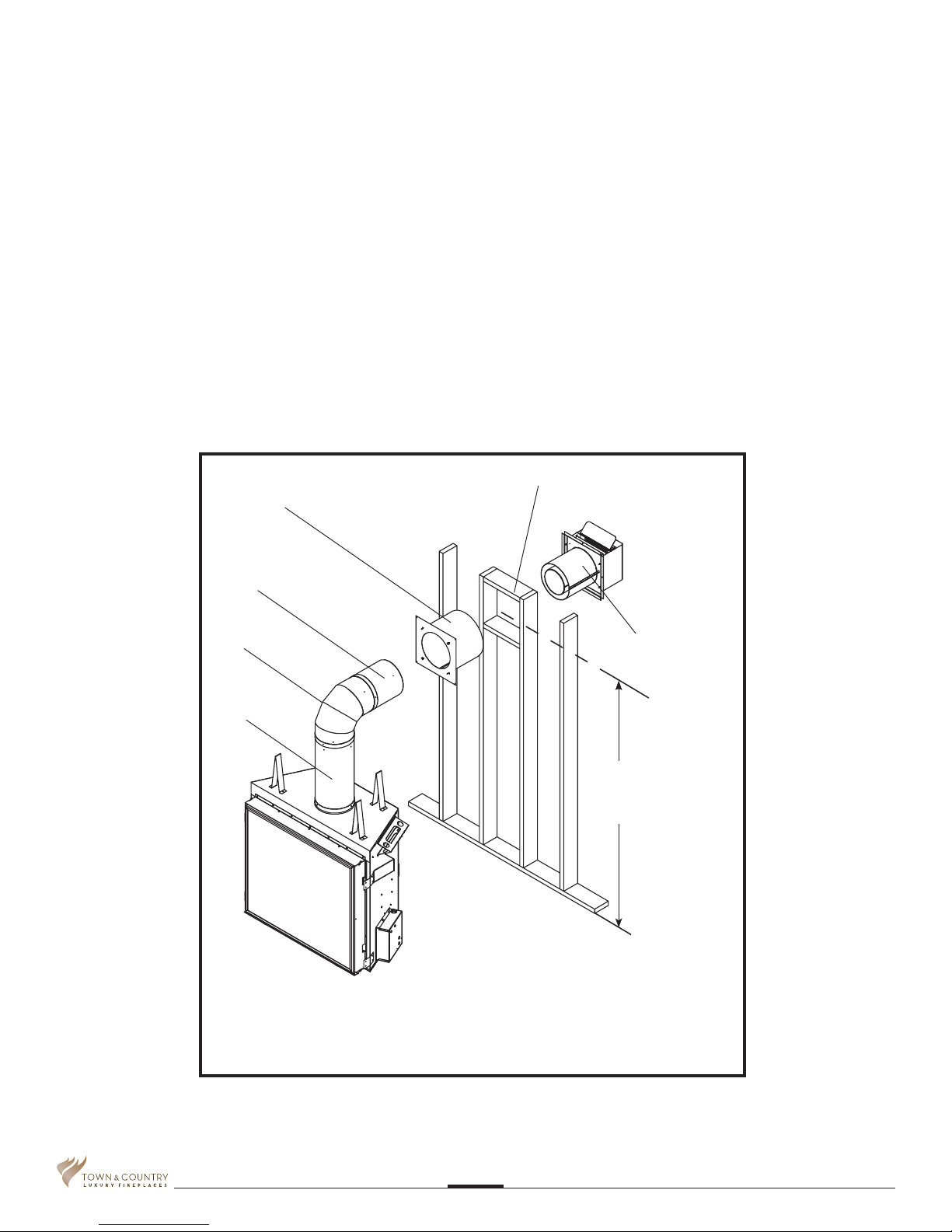

HORIZONTAL
TERMINAL
TCVT.WTA
14 1/2" FRAMED
OPENING
WALL SHIELD THIMBLE
TCVT.THIMA
ELBOW
TCVT.811XLB90
24"
VENT PIPE
TCVT.811X24
12" VENT PIPE
TCVT.811X12
*74 1/4"
* Minimum height from the oor to center of the
opening with a maximum horizontal run of 18” from
the center of the ue outlet to the outside face of
the outer wall. The height will need to be increased if
a longer horizontal pipe is required.
Figure 34: Wall vent terminal framing.
Vent pipe:
Install vent pipe through the wall thimble and attach to ue outlet collar on top of the replace. Secure all joints with
screws and seal with approved "High Temp." self-adhesive aluminum tape provided.
Adjust the fireplace position so that the vent pipe does not protrude beyond the outer wall. The vent connector
on the termination will accomodate walls up to 12" thick.
Wall vent terminal:
1. Engage the terminal with the vent pipe and slide terminal into place. Ensure that both inner and outer pipes are fully
engaged and then attach the terminal to the outside wall.
The vent terminal must not be recessed into the exterior wall or siding.
2. Caulk in place to prevent any moisture entering the building.
NOTE: MINIMUM CLEARANCES TO THE VENT TERMINAL MUST BE MAINTAINED See Figure 40 and Figure 41
on page 25.
20
TC42.CODE_090816-40
5056.426OD
