Town & Country Fireplaces TC36.CE3 User manual

SERIAL #
TC36.CE3 & TC36.CARE3
INSTALLATION AND
OPERATING INSTRUCTIONS
250313-48 TC36.CE3 &TC36.CARE2 5056.427CE
MODEL:
TC36 & TC36AR
SERIES C
MODULAR DIRECT VENT
FIREPLACE
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury or death.
Thisappliancemaybeinstalledin anaftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certied kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
FOR YOUR SAFETY
Do not store or use gasoline or other
ammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
r %POPUUSZUPMJHIUBOZBQQMJBODF
r %POPUUPVDIBOZFMFDUSJDBMTXJUDI
r%POPUVTFBOZQIPOFJOZPVSCVJMEJOH
r *NNFEJBUFMZDBMMZPVSHBTTVQQMJFSGSPN
a neighbour’s phone. Follow the gas
supplier’s instructions.
r *GZPVDBOOPUSFBDIZPVSHBTTVQQMJFSDBMM
the re department.
Installation and service must be performed by
a qualied installer, service agency or the gas
supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.

Table of Contents
Caution ........................................................................................... 3
Safety ............................................................................................. 3
Fireplace Dimensions .....................................................................5
Minimum Clearances to Combustible Material ............................... 5
Installation Requirements ............................................................... 6
Manufactured (Mobile) Home .........................................................6

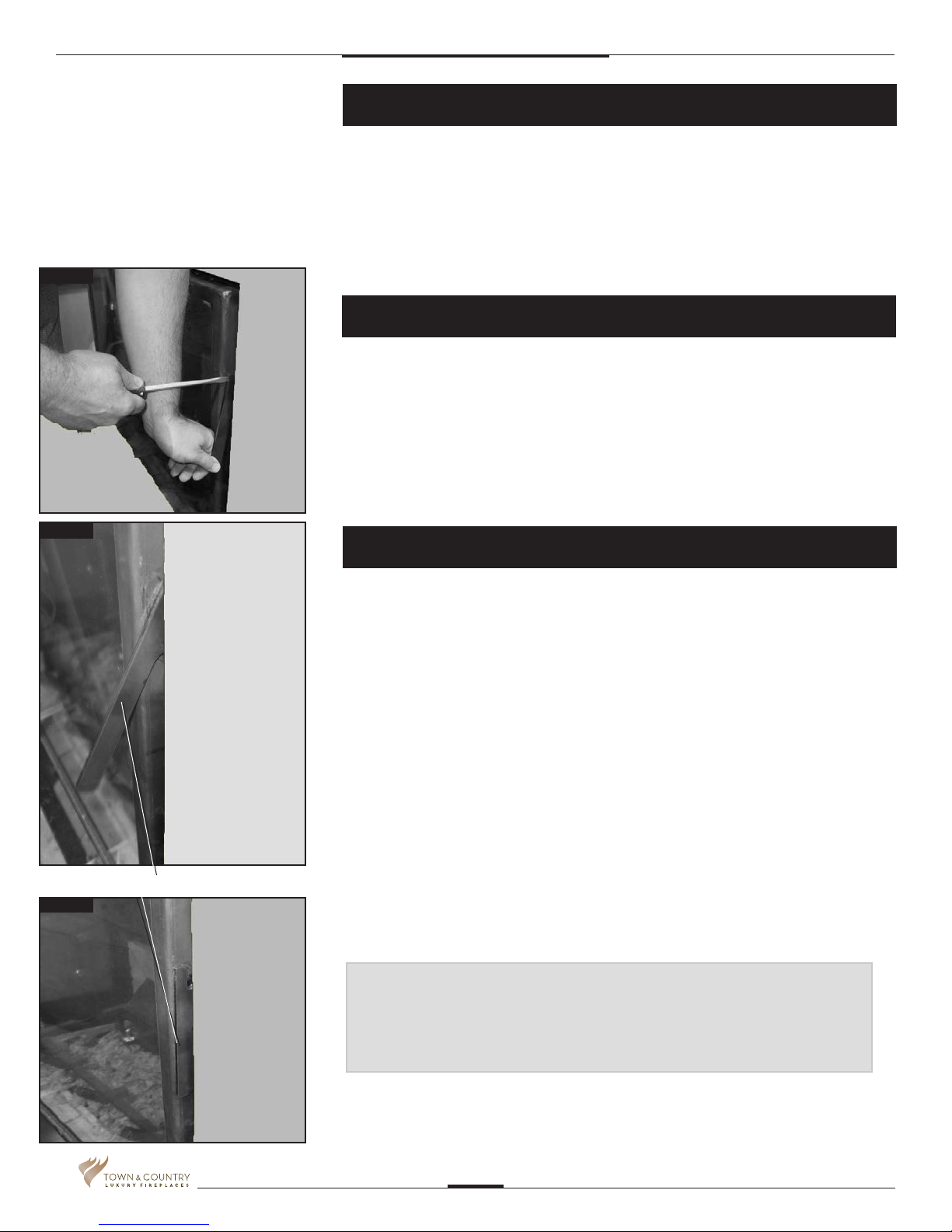

Window Frame Removal................................................................. 6

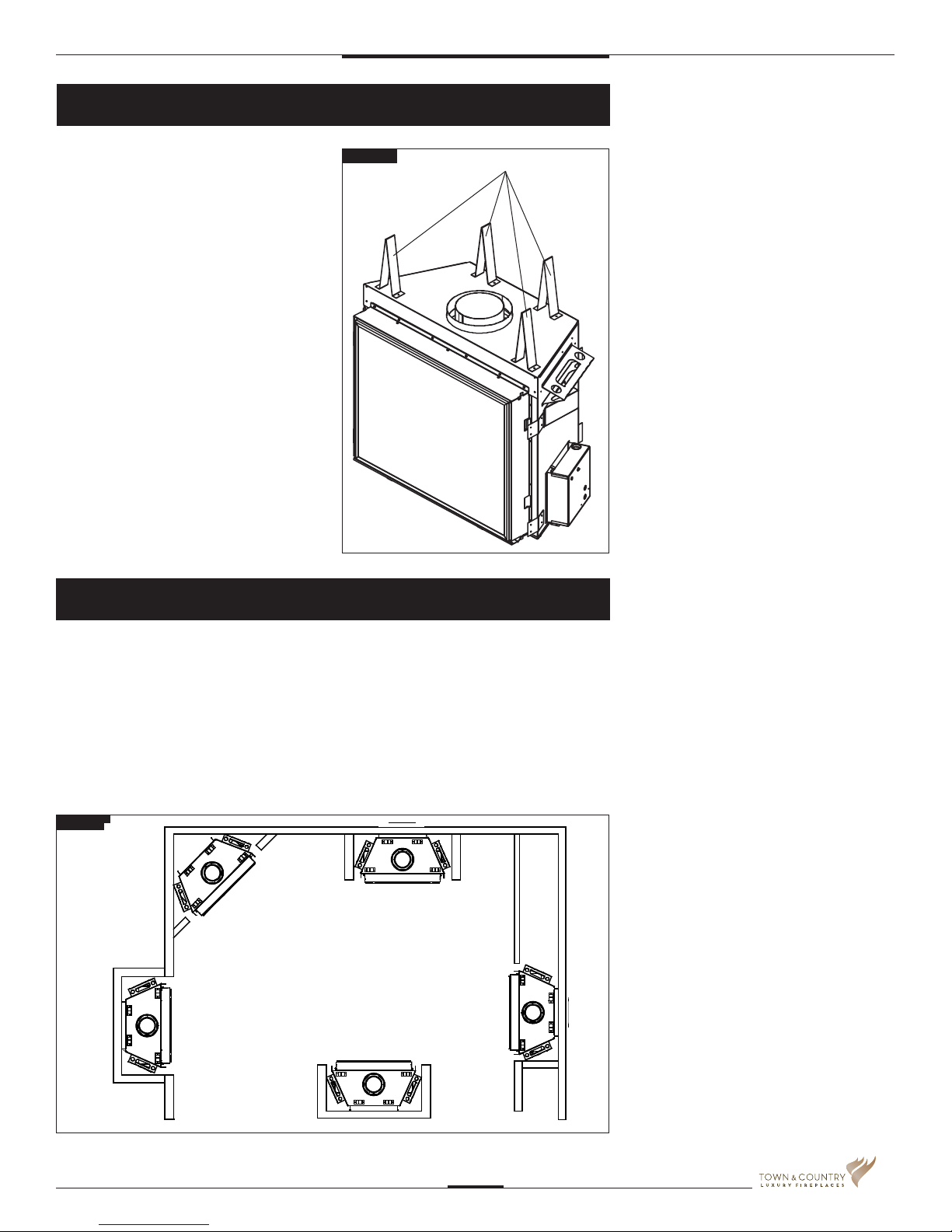

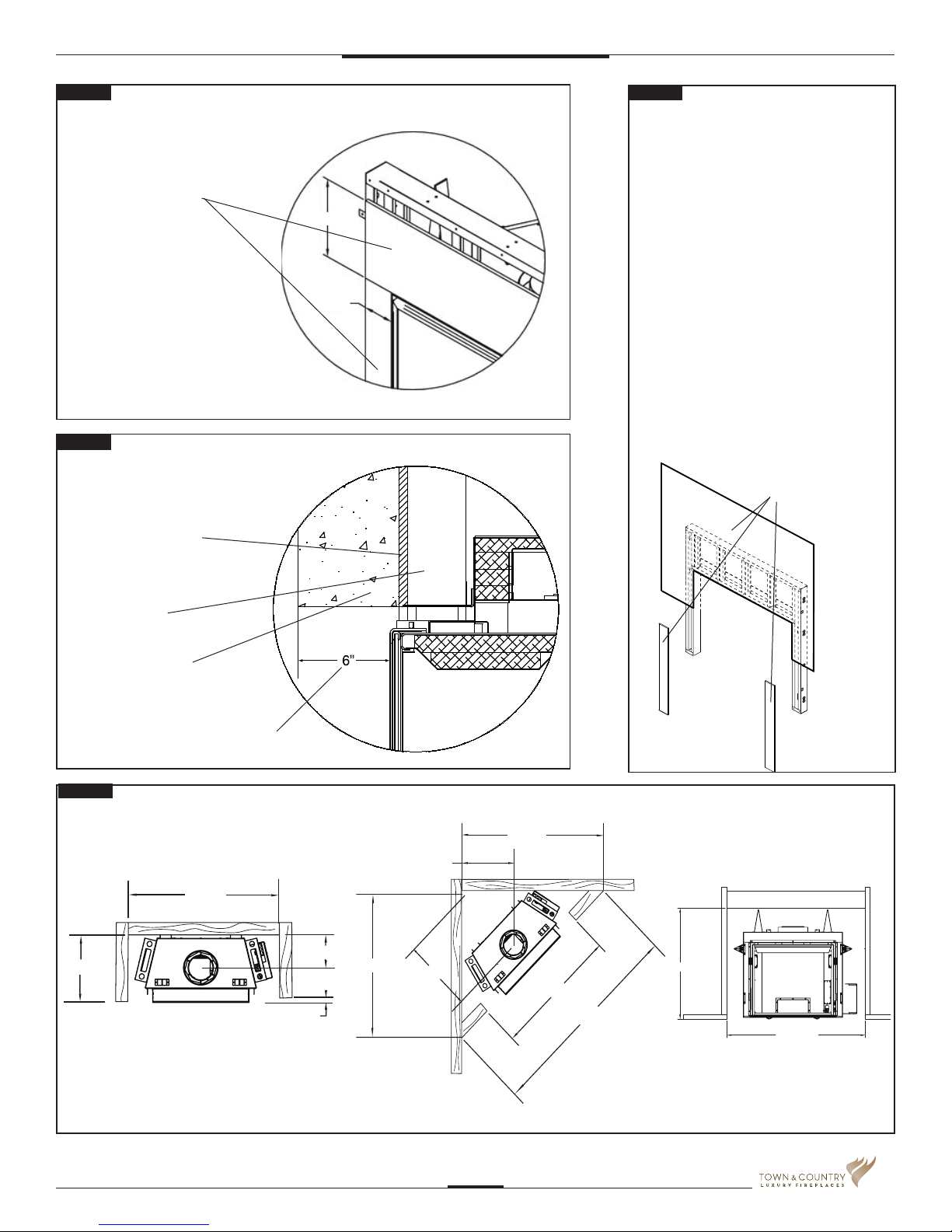

Locating The Fireplace ...................................................................7
Top Standoffs..................................................................................7
Framing and Finishing ....................................................................8

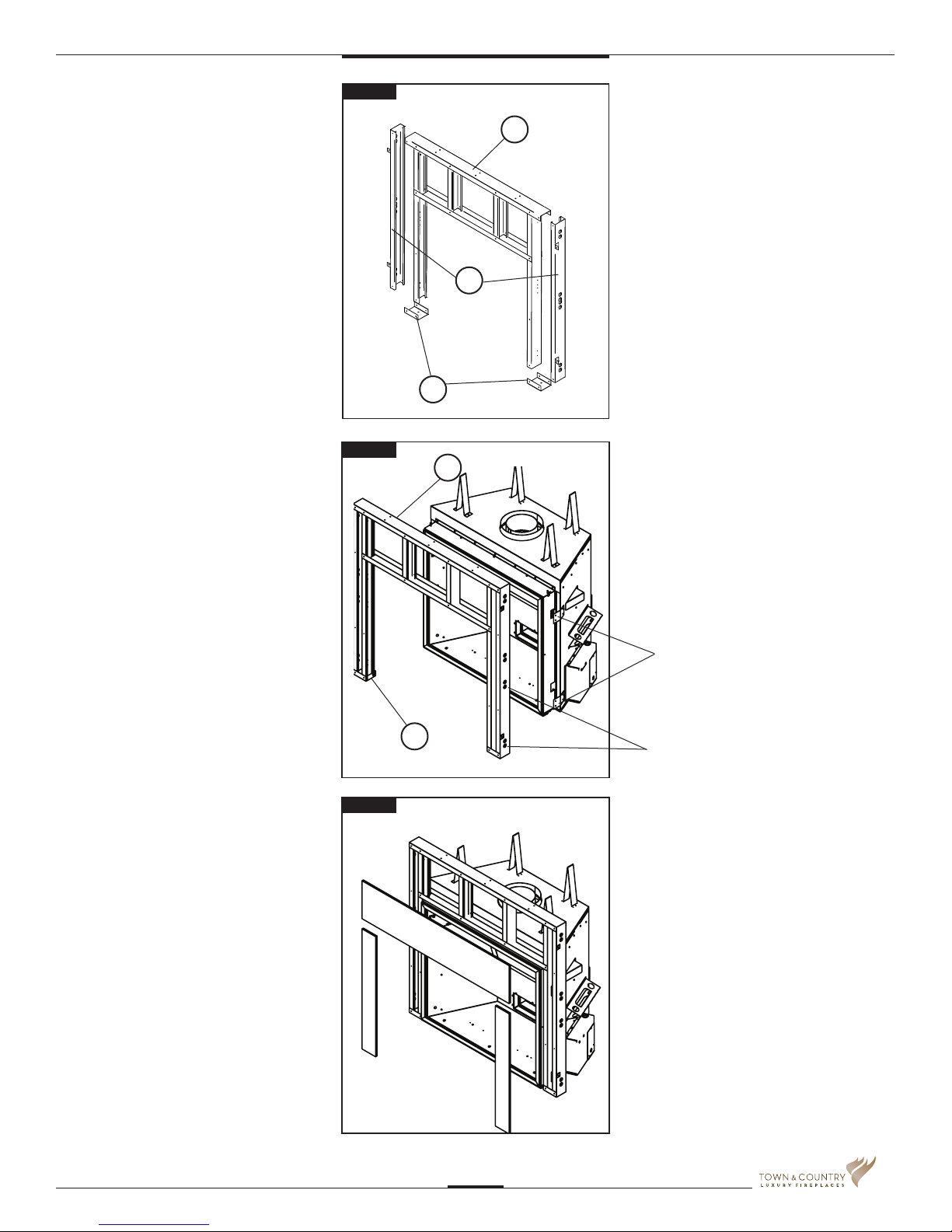

TC36 Steel Stud Framing Kit ........................................................ 10
TC36 Arched Steel Stud Framing Kit............................................ 12
Adjustable Lintel ........................................................................... 14

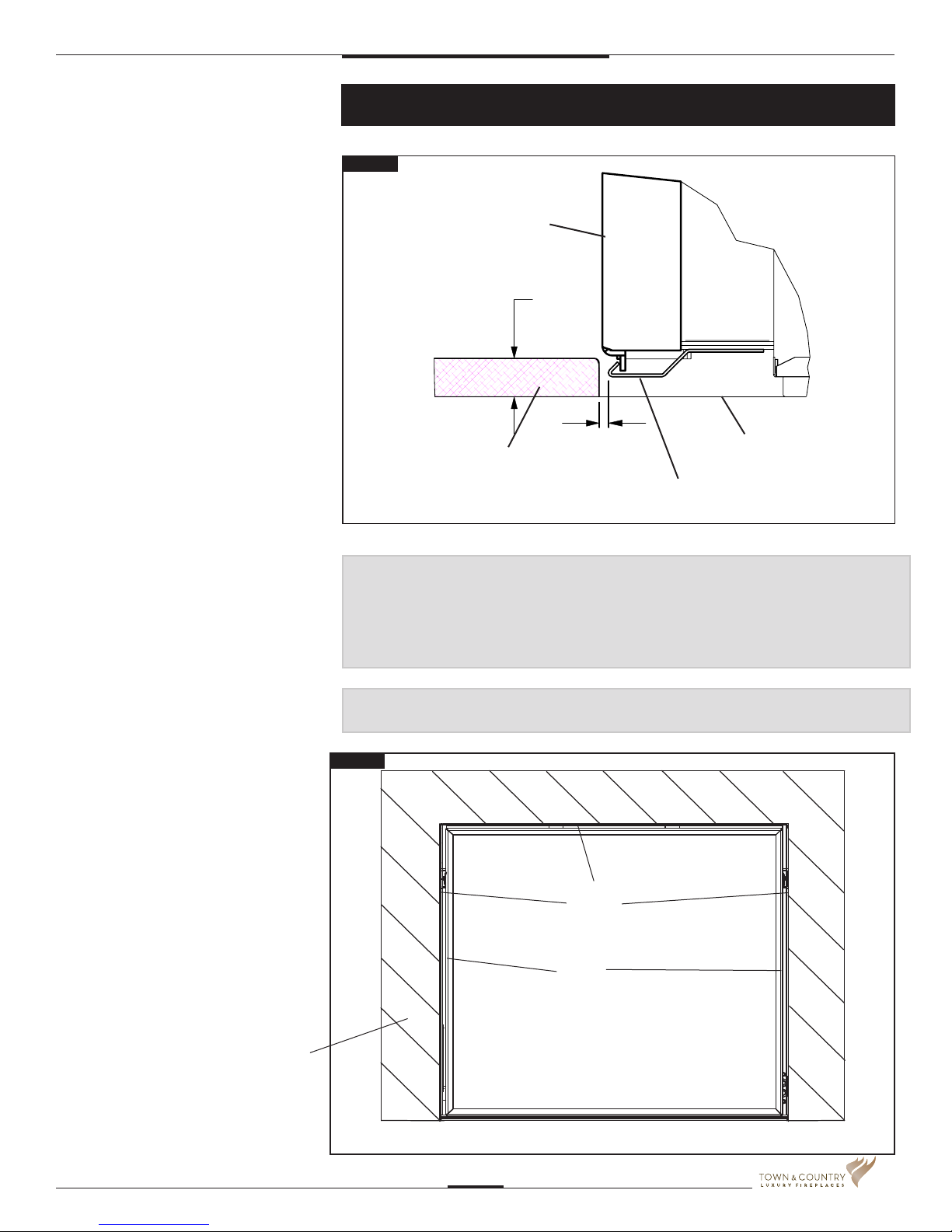

Hearth Extension.......................................................................... 15

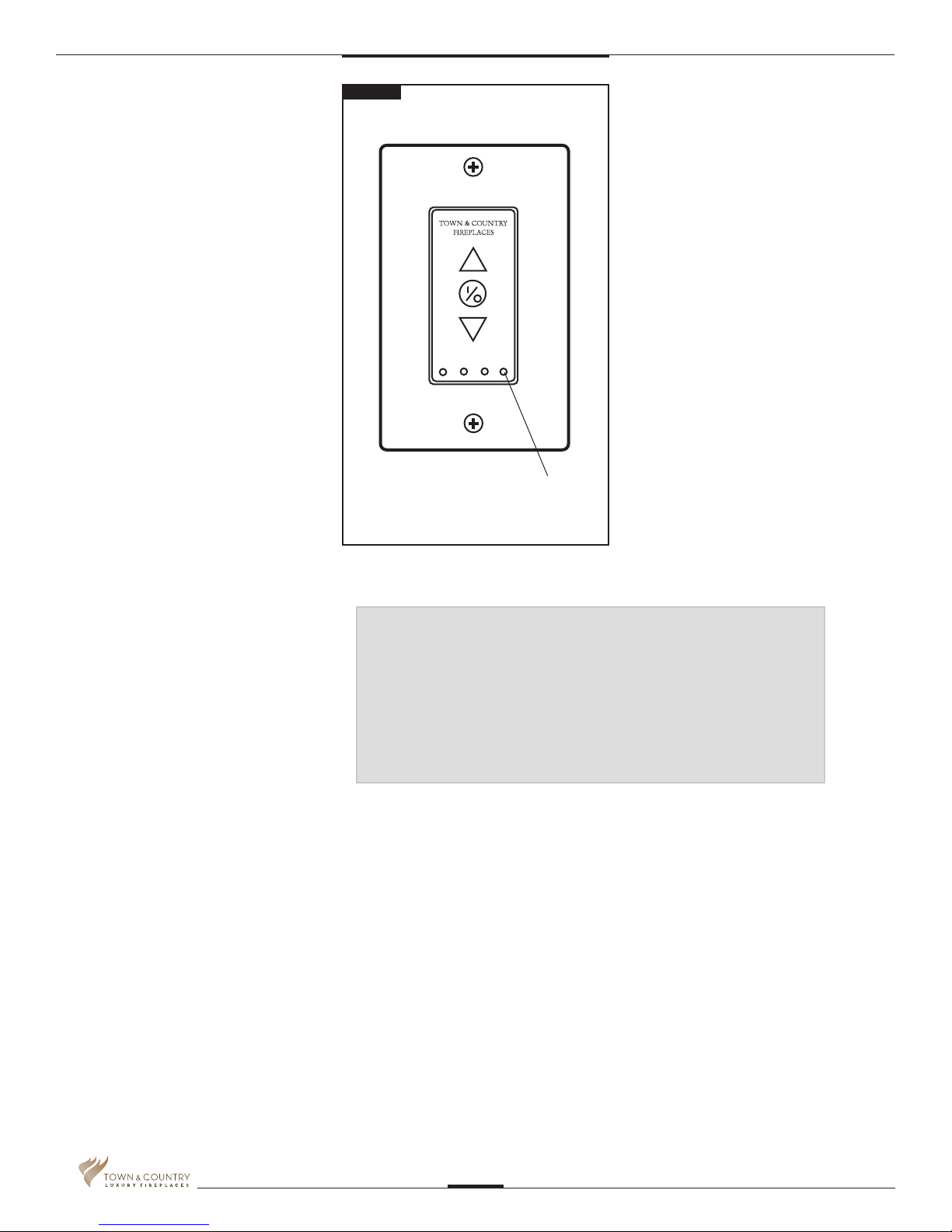

Maestro Control ........................................................................... 16

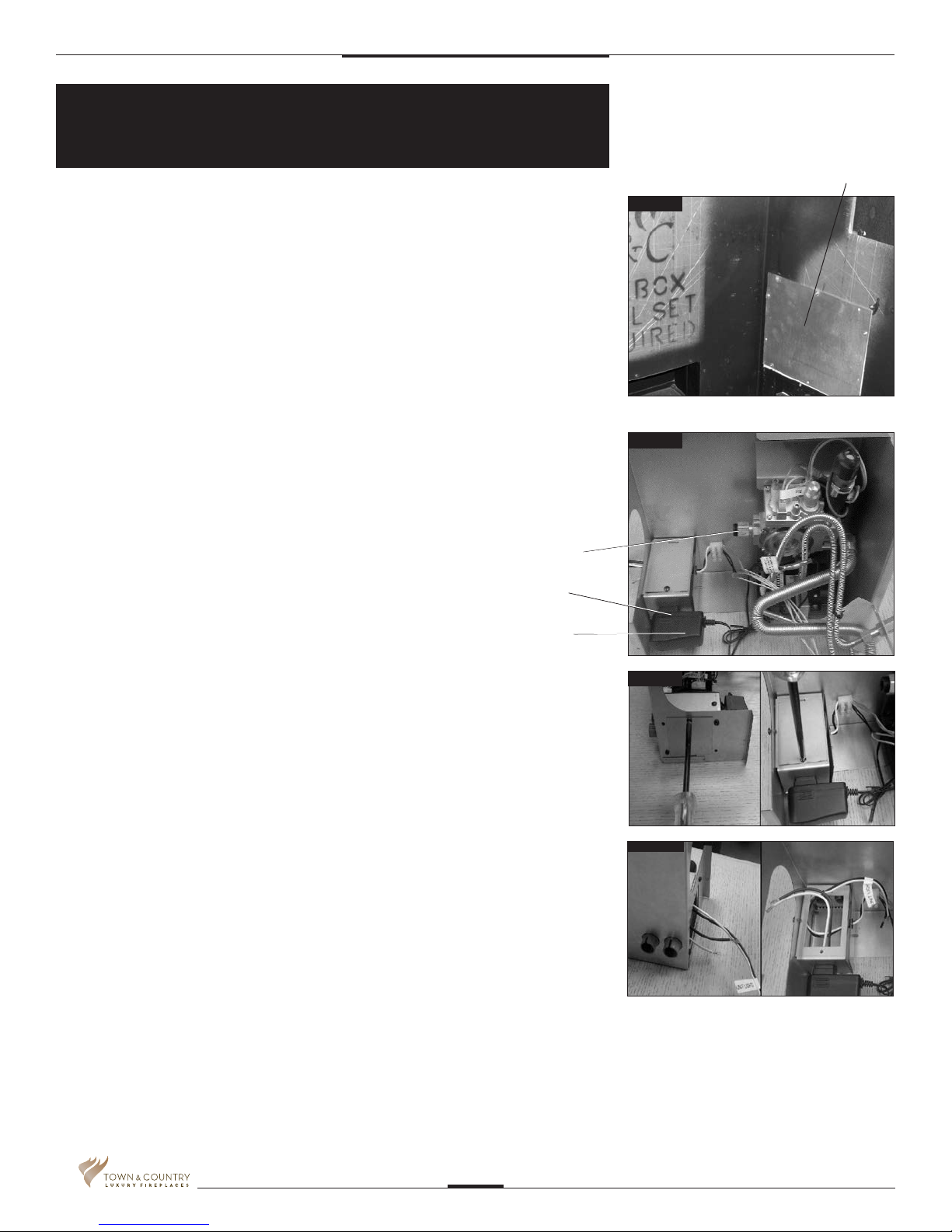

Plumbing and Electrical................................................................ 16
Gas Supply ................................................................................... 19
Gas Pressure Check..................................................................... 19
Venting..........................................................................................20
Wall Termination Venting ..............................................................20
Wall Termination Venting Chart..................................................... 23
Roof Termination Venting Chart....................................................24
Vent Terminal Clearance............................................................... 27
Vent Terminal Minimum Clearances .............................................27
Vent Pipe Sealant ......................................................................... 28
Insulated Collar Shield (Included)................................................. 28
Vent Restrictor Adjustment ...........................................................29
Firebox Panels Installation............................................................30
Finishing Touch Trim Kit Instructions............................................. 31
Lighting Instructions .....................................................................32
First Fire........................................................................................ 32

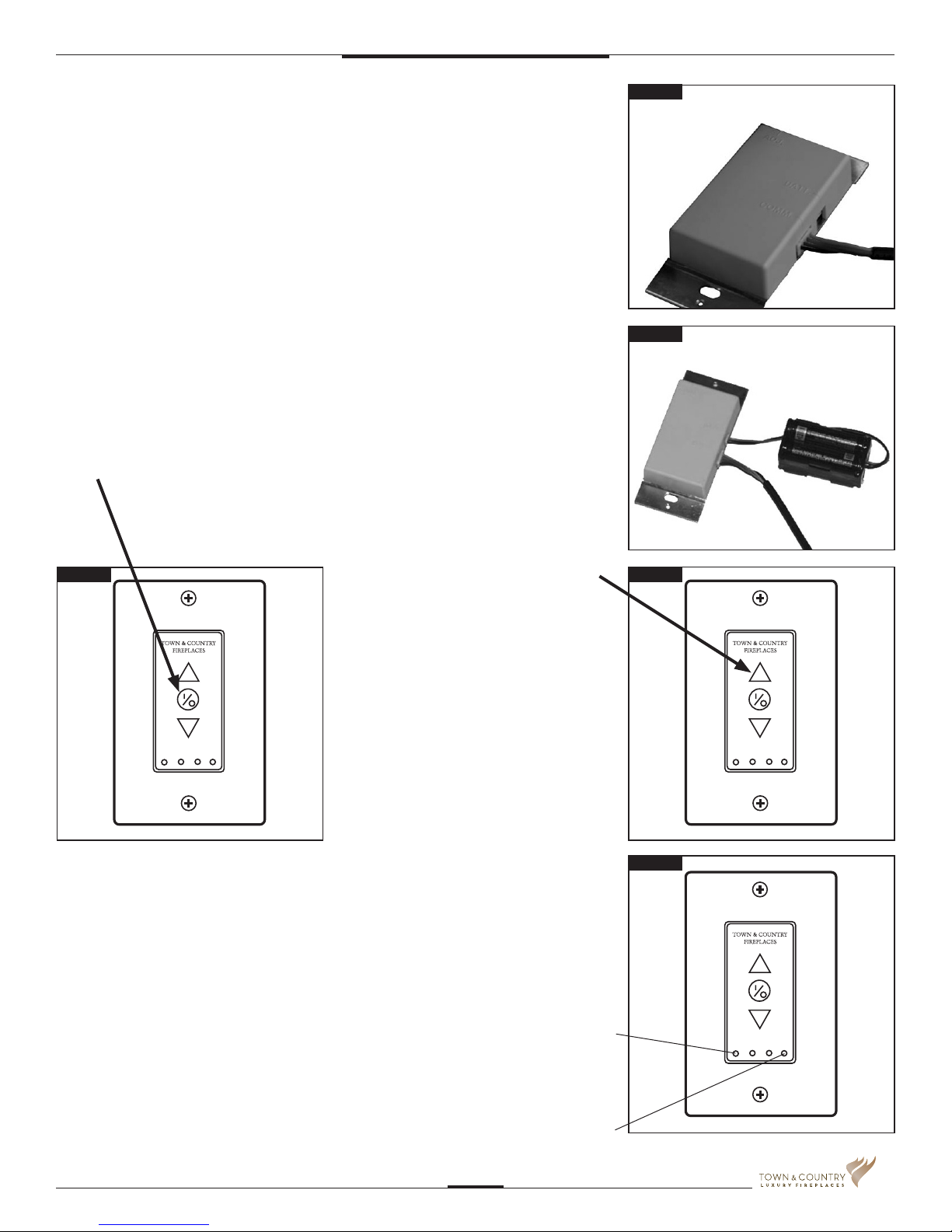

Maestro Control System ...............................................................33
Remote Control Initial Setup.........................................................33
Maestro Control System - Operation ............................................34
Maintenance .................................................................................37
TC36.CE3 Replacement Parts ..................................................... 38
TC36.CARE3 Replacement Parts ................................................ 39
Replacement Parts – Maestro Control System.............................40
Wiring Diagram............................................................................. 41
Wall Termination Kit ....................................................................42
Roof Termination Kit ...................................................................42
Wall Shield/...................................................................................42
Ceiling Firestop Thimble ............................................................... 42
Vent Pipe Dimensions ................................................................. 43
Vent Offset Chart .......................................................................... 44
Light Replacement ........................................................................45
Safety Label Location ................................................................... 47
2
TC36.CE3 250313-48

FOR YOUR SAFETY - Do not install or operate your Town & Country replace without
rst reading and understanding this manual. Any installation or operational deviation from
the following instructions voids the Town & Country FireplacesTM Warranty and may prove
hazardous.
This appliance and its individual shut off valve must be disconnected from gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 psig
(3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual
manual shut off valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa).
Note: When lit for the rst time, the appliance will emit a slight odour for a couple of hours.
This is due to the curing of paints, sealants and lubricants used in the manufacturing process.
This condition is temporary. Open doors and windows to ventilate area. Smoke and fumes
caused by the curing process may cause discomfort to some individuals.
Do not use the replace if any part has been under water. Immediately call a qualied service
technician to inspect the replace and to replace any part of the control system and any gas
control which has been under water.
Due to high temperatures, this gas appliance should be located out of traffic and away from
furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance.
Clothing or other ammable material should not be placed on or near the appliance.
Any grill, panel or door removed for servicing the unit must be replaced prior to operating.
Failure to do so may create a hazardous condition.
Installation and repair should be done by a qualied service person. The appliance should
be inspected before use and at least annually by a professional service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc.. It is imperative that control compartments, burners and circulating air passageways
of the appliance be kept clean.
It is our policy that no responsibility is assumed by the Company or by any of its employees
or representatives for any damages caused by an inoperable, inadequate, or unsafe
condition which is the result, either directly or indirectly, of any improper operation or
installation procedures.
This appliance must not be connected to a chimney ue serving a separate solid fuel
burning appliance.
3
TC36.CE3 250313-48
Caution
Safety

From Massachusetts Rules and Regulations 248 CMR 5.08:
(a) For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for residential
purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above
nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satised.
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fuelled equipment, the
installing plumber or gas tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the oor level
where the gas equipment is to be installed, in addition, the installing plumber or gas tter shall observe that a battery operated or hard-wired carbon
monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas
fuelled equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed professionals for the installation of
hard-wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas fuelled equipment is installed in a crawl space or an attic, the hard-wired carbon monoxide
detector with alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of installation, the owner shall have a period of thirty
(30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detec-
tor with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall
comply with NFPA 720 and be ANSI/UL 2034 listed as IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet
above grade directly in line with the exhaust vent terminal for the horizontally vented gas fuelled heating appliance or equipment. The sign shall read, in
print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fuelled equipment shall not approve the installation unless,
upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.089(2)(a) 1
through 4.
(b) EXEMPTIONS. The following equipment is exempt from 248 CMR 5.089(2)(a) 1 through 4.
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the
Board; and
2. Product Approved side wall horizontal vented gas fuelled equipment installed in a room or structure separate from the dwelling, building or struc-
ture used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side
wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by
the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS – GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved
side wall horizontally vented gas fuelled equipment does not provide the parts for venting the fuel gases, but identies “special venting systems”, the fol-
lowing requirements shall be satised by the manufacturer.
1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and
2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed
installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fuelled equipment, all venting instructions, all parts
lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.
Important Note for the Commonwealth of Massachusetts:
4
TC36.CE3 250313-48

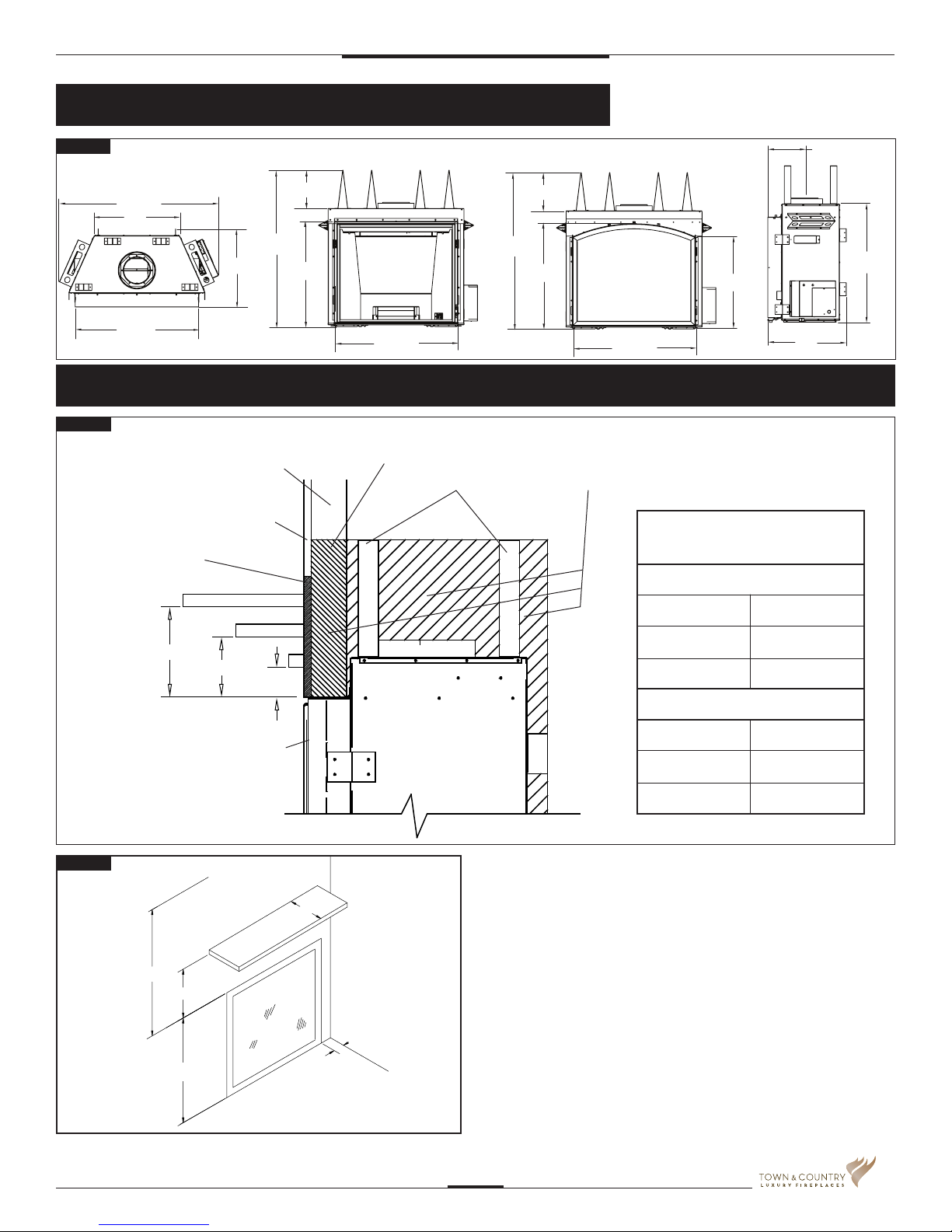

48 9/16
26
24
38 1/2
47 7/8
32 1/2
11 11/16
38 1/2
11 11/16
47 7/8
32 1/2
38 1/2
28 1/8
11 1/8
36 1/8
24
**
24"
*
38 1/8"
4"
STEEL STUD FRAMING KIT IS WIDER THAN UNIT
* MANTEL CLEARANCE
A 9”
B 6”
C 3”
** MANTEL DEPTH
D 12”
E 6 3/4”
F 1 1/2”
MANTEL CLEARANCE
CHART
Minimum Clearances:
Side standoffs.......................................................0 in. (0 mm)
Back standoffs ...................................................... 0 in. (0 mm)
Top standoffs ........................................................ 0 in. (0 mm)
Bottom of appliance..............................................0 in. (0 mm)
Adjacent side wall.................................................4 in. (102 mm)
Ceiling to appliance ............................................ 24 in. (610 mm)
*Mantel to appliance .................. ..........See Figure #2
**Maximum Mantel extension .. ..........See Figure #2
Mantel support...................................................... 4 in. (102 mm)
Vertical vent pipe ..........................................1 3/4" in. (45 mm)
Horizontal Vent pipe (Top, sides and bottom) 1 3/4" in. (45 mm)
Fig. #1
Fig. #2
Fig. #3
MAY USE COMBUSTIBLE
FACING MATERIAL IN THIS AREA
NON-COMBUSTIBLE
FINISH MATERIAL
SEE FIG #7
NON-COMBUSTIBLE ZONE.
DO NOT INSTALL ANY COMBUSTIBLE MATERI-
AL, ELECTRICAL WIRING OR GAS PLUMBING IN
THIS AREA.
COMBUSTIBLE FRAMING AND
FINISH WALL ABOVE STANDOFFS
STANDOFFS
STEEL FRAMING
FIREPLACE FRONT
TOP OF LINTEL BAR
A
BC
D
E
F
24”
32 1/8”
4”
MANTEL
ADJACENT WALL
OR MANTEL
SUPPORT
CEILING
UNIT MAY BE RECESSED UP TO 6” WITH
NON-CUMBUSTIBLE MASONRY TYPE MATERIAL
5
TC36.CE3 250313-48
Fireplace Dimensions
Minimum Clearances to Combustible Material

LATCH HANDLE
Fig. #4
Fig. #5
Fig. #5a
The Town & Country Fireplace installation and venting must conform to the current
CAN/CGA-B149 installation code (in Canada) or the current National Fuel Gas Code,
ANSI Z223.1 (in the USA), and approved per local codes. Only qualied (licensed or
trained) personnel should install this product.
In the state of Massachusetts, only a licensed Plumber and Gas Fitter may install
this product.
In some jurisdictions, the Town & Country Fireplace may be installed in Manufactured Homes
after the "rst sale". Consult local codes for approval. The replace must be fastened
in place.
Install in accordance with the current standard Mobile Homes, CAN/CSA Z240 MH (in
CANADA), and the Manufacturer's Home Construction and Safety Standard, Title 24 CFR,
Part 3280 or the current Standard for Fire Safety Criteria for Manufactured Home Installa-
tions, Sites and Communities ANSI/NFPA 501A (in the USA).
Warning: Turn off the replace, and allow ample time for the unit to cool before
proceeding.
Caution: The ceramic glass is very fragile, and should be handled with care.
The window frame is held in place by two spring-loaded latches that are operated by a
one-piece latch handle.
1. Remove the TC Finishing Touch Trim Kit from the window frame. (If installed)
2. Using a screwdriver or other similar object, push against the notch in the top of the
latch and grab the bottom of the latch handle as it protrudes. Lift handle until latch hook
disengages. Repeat for other side while holding glass so it does not tip out.
3. Tilt the top of the window frame out to clear the top edge of the unit. Grasp the sides of
the frame and lift up and out to disengage from its bottom track.
4. Place the window frame in a safe place to avoid damage.
5. Re-assemble in reverse order. Latch handle should snap into place and be ush with
window frame when engaged correctly.
6. Reinstall Trim Kit if required.
TIP:
To ensure glass is properly latched, grasp the top left and
right sides of the glass frame, under moderate pressure it
should pull forward and return to original position evenly on
both sides.
6
TC36.CE3 250313-48
Installation Requirements
Manufactured (Mobile) Home
Window Frame Removal

The top standoffs are shipped loose inside
the replace and must be installed on top
of the replace as shown in Fig #6. Do this
once the replace is on site and in position.
In planning the installation for the replace, it is necessary to determine where the unit is to
be installed, location of vent system and where gas supply piping may be plumbed.Various
installations are possible, such as, into an existing wall, a corner, a built-in wall or a wall
projection (Fig #7). Due to high temperatures, do not locate this replace in areas of high
traffic or near furniture or draperies.
The minimum clearances from the replace to combustible surfaces must be adhered
to and are shown in Fig #2 and Fig #3.
Fig. #6 TOP STANDOFFS
EXAMPLES OF COMMON LOCATIONS
SEE FIG #11 FOR DIMENSIONS
Fig. #7
7
TC36.CE3 250313-48
Locating The Fireplace
Top Standoffs

50 1/4 ”
48 1/8”
IT IS HIGHLY RECOMEND-
ED THAT A FULL HEADER
BE INSTALLED ABOVE THE
METAL FRAMING KIT
Note: The replace should be in place
and venting installed before framing in or
building an enclosure around the unit.
The Town & Country replace must be
framed in as described below or totally en-
closed with non-combustible material, such
as facing brick.
Determine the total thickness of facing
material to be used. A thickness of 3/4" will
allow the nishing surface to be ush with
the front of the unit. If preferred, additional
masonry type non-combustible material can
be installed above and to the sides up to 6
inches proud of the appliance.
The nishing material must not interfere
with glass frame access.
A Steel Stud Framing Kit is supplied with the
replace and must be used unless the
replace is totally enclosed with
non-combustible material. Assemble the
framing kit as per the instructions on pages 10
& 11 of this manual.Attach the steel frame to
the replace once the replace is in its nal
position.Secure the steel frame to the framing
brackets on each side of the unit.Ensure that
the studs are set back far enough to allow
for thickness of nishing surface.
The sides, back and top of the replace can
be framed in up to the steel studs and the
replace standoffs using conventional
lumber. Consult local building codes for
specic requirements.
Due to high temperatures, non-combustible
backer board, such as cement board or its
equivalent, must be used to sheet in the front
of the replace, extending 12" above and 5
9/16" to the side of the framing edge bars.
(Fig #9) Standard sheet rock (dry wall) may
be used beyond this.
If the backer board is not to be nished with
othernon-combustiblematerialsuchastiles, it
isrecommendedthat topsectionsof the board
be a single sheet of calcium silicate board
or its equivalent. Taped and mudded joints
may crack due to the elevated temperatures.
Chase Insulation: When installing this
replace against a non-insulated exterior wall
or chase, it is recommended that the outer
walls be insulated to same degree as other
exterior walls. Do not place replace directly
against the insulation. Cover the insulation
and plastic vapour barrier with a solid surface,
such as dry wall (sheet rock). Consult local
codes. Do not insulate or use plastic vapour
barrier within the framing kit.
CAUTION: SEE FIGURE #9a BEFORE
PROCEEDING.
Fig. #8
NON-COMBUSTIBLE ZONE. DO NOT INSTALL ANY
COMBUSTIBLE MATERIAL, ELECTRICAL WIRING, INSU-
LATION, PLASTIC VAPOR BARRIER OR GAS PLUMBING
WITHIN THE STEEL STUD FRAMING ALL OTHER FRAMING CAN
BE DONE WITH
CONVENTIONAL LUMBER
STEEL STUD FRAMING KIT DIMENSIONS
(Supplied with replace)
NOTE:
The chase must be properly
sealed at the ceiling level or
between oors in a multilevel
installation.
8
TC36.CE3 250313-48
Framing and Finishing

Fig. #9a
5 9/16”
12”
50 1/4”
48 1/4”
20 13/16”
56 9/16”
29 3/8”
50 1/4”
79 15/16”
56 9/16”
USE FULL SHEETS OF CALCIUM SILICATE
BOARD AND FULL LENGTH METAL STUDS
TO FINISH AND FRAME AROUND THE UNIT.
CALCIUMSILICATEBOARDISA HIGHGRADE
MATERIAL WITH CEMENT, QUARTZ AND
NATURAL MINERALS AS THE MAIN RAW
MATERIALS. (NOTE: CALCIUM SILICATE IS
1/2” THICK)
CAUTION: CALCIUM SILICATE BOARD CAN
BE DAMAGED IF DROPPED OR STRUCK.
HANDLE WITH CARE. INSPECT BOARD
PRIOR TO INSTALLATION AND DO NOT USE
IF CRACKED.
NOTE: IT IS RECOMMENDED TO PRE-DRILL
MOUNTING HOLES IN THE BOARD PRIOR
TO SECURING TOTHE FRAMING.THIS WILL
PREVENT THE BOARD FROM CRACKING.
CALCIUM SILICATE
BOARD
NON-COMBUSTIBLE BOARD DETAIL
Fig. #9
Fig. #10
Fig. #11
NON-COMBUSTIBLE MATERIALS
MUST EXTEND 12" ABOVE AND
5 9/16" TO THE SIDES OF THE
FRAMING EDGES.
MINIMUM COMBUSTIBLE
FRAMING DIMENSIONS
NOTE: FIREPLACE SHOULD BE IN ITS FINAL LOCATION BEFORE FRAMING.
NON-COMBUSTIBLE RECESSED
INSTALLATION DETAIL
STEEL STUDS
NON-COMBUSTIBLE
MATERIAL
50 1/4”
23 3/8”
3/4”
12 11/16”
Including Sheetrock
NON-COMBUSTIBLE
BOARD
NON-COMBUSTIBLE
BOARD
9
TC36.CE3 250313-48
MAXIMUM FACING DEPTH

2
4
5
6
Each Kit Contains: Item Part # Description Qty.
1 5049.9912 SCREW, TEKS Pkg
#8 x 1/2” 40
2 9794.2 STUD, SIDES,
48”L 2
3 9794.5 STUD, OUTER
SIDES, 48”L 2
4 9093.22 STUD, CENTER,
15 7/16”L 2
5 9193.501 STUD, HEADER,
49 7/8”L 1
6 9393.001 STUD, PLATE,
41 1/4”L 1
7 9194.5 BASE PLATE ,
5 15/16”L 2
1. Top Frame Assembly
r Lay out side studs (2) and center studs
(4) on a large at surface. (Fig #12)
r Using the screws provided (1), attach the
header stud (5) and the plate stud (6) to
the center studs (4).
TC36.B2FRKITA
Fig. #12
1
2
3
4
5
6
7
10
TC36.CE3 250313-48
TC36 Steel Stud Framing Kit

3
7
5
Framing
Brackets
5
7Access holes to
mounting screws
2. Attach Side Studs (Legs)
r "UUBDIUIFPVUFSTJEFTUVETUPUIFUPQ
of the header stud (5). (Fig #13)
r Fasten the outer side studs (3) at the
bottom using the base plates (7).
3. Attach the Assembled Frame to
the Unit
r "MJHOUIFBTTFNCMFEGSBNFUPUIFVOJU
framing brackets. (Fig #14) Attach
at the fastening points through the
access holes in the outer side studs
(3).
4. Secure to Existing Framing
r Secure the frame assembly to existing
framing through the stud header (5) and
the stud plates (7).
5. Install Non-combustible Board
r Use drywall screws to install the
non-combustible board (Fig #15).
Fig. #13
Fig. #14
Fig. #15
11
TC36.CE3 250313-48

Each Kit Contains:
Item Part # Description Qty.
1 5049.9912 SCREW, TEKS Pkg
#8 x 1/2” 40
2 9794.2 STUD, SIDES,
48”L 2
3 9794.5 STUD, OUTER
SIDES, 48”L 2
4 9093.22 STUD, CENTER,
15 7/16”L 2
5 9193.501 STUD, HEADER,
49 7/8”L 1
6 9393.001 STUD, PLATE,
41 1/4”L 1
7 9194.5 BASE PLATE ,
5 15/16”L 2
8 9596 ARCH SUPPORT
2
1. Top Frame Assembly
r Lay out side studs (2) and center studs
(4) on a large at surface. (Fig #19)
r Using the screws provided (1), attach the
header stud (5) and the plate stud (6) to
the center studs (4).
TC36.BRFRKITA
Fig. #19
1
2
3
4
5
6
7
8
TC36 Arched Steel Stud Framing Kit
2
2
4
5
6
8
8
Attach
together
Attachment
point
Attachment
point
Attachment
point
12
TC36.CE3 250313-48

3
7
5
Framing
Brackets
5
7Access holes to
mounting screws
2. Attach Side Studs (Legs)
r "UUBDIUIFPVUFSTJEFTUVETUPUIFUPQ
of the header stud (5). (Fig #20)
r Fasten the outer side studs (3) at the
bottom using the base plates (7).
3. Attach the Assembled Frame to
the Unit
r "MJHOUIFBTTFNCMFEGSBNFUPUIFVOJU
framing brackets. (Fig #21) Attach
at the fastening points through the
access holes in the outer side studs
(3).
4. Secure to Existing Framing
r Secure the frame assembly to existing
framing through the stud header (5) and
the stud plates (7).
5. Install Non-combustible Board
r Use drywall screws to install the
non-combustible board (Fig #22).
Fig. #20
Fig. #21
Fig. #22
13
TC36.CE3 250313-48

Adjustable Lintel
Fig. #16
Fig. #17
Fig. #18
1. The adjustable lintel assembly has two
orientations for desired nishing. A anged
edge and a hemmed edge.The lintel comes
factory installed with the ange edge out. If
the desired edge is different from the factory
setting, use the following steps to change
it(Fig.#21).
2. Remove the window trim (Fig.#22).
3. Loosen the securing bolts in the upper and
lower corners on each side of the lintel
and remove the lintel. Rotate the assembly
to have the desired edge away from the
replace(Fig .#23).
4. The lintel assembly has a maximum range
of adjustability of 1”to accommodate varying
facing material thicknesses. The maximum
depth is 6” (Fig.#25).
5. The lintel assembly can then be adjusted
to align ush with your facing material by
sliding in or out approximately 1”.

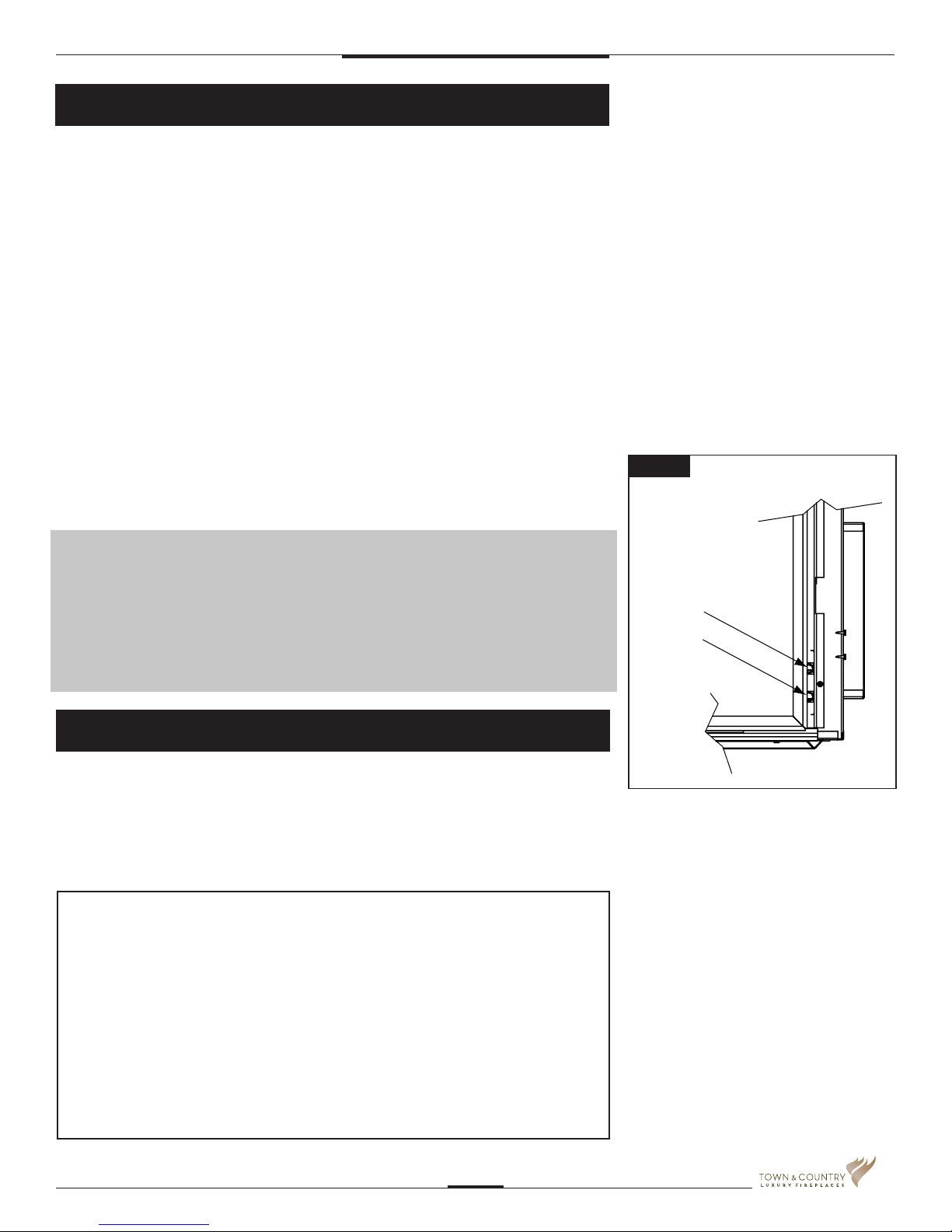

6. Tighten the securing bolts. (Fig.#23).
7. Re-attach the window trim.
HEMMED EDGE
FLANGED EDGE
TRIM
SECURING
BOLT
14
TC36.CE3 250313-48

1/4"
1"
MAX
WINDOW
FRAME
HEARTH
EXTENSION WINDOW
TRACK
SUB-
FLOOR
Caution: While a hearth extension is not required and combustible ooring materials
may be brought directly up to the replace, many materials (such as wood ooring)
may not tolerate the radiant heat from this replace, resulting in discoloration,
shrinking and cracking. For this reason, we suggest a non-combustible hearth that
is no more than 1” above the bottom of the replace. If thicker, replaced must be
raised accordingly.
Caution: Hearth extensions thicker than 1”will interfere with the window frame when
opening.
Fig. #23
15
TC36.CE3 250313-48
Hearth Extension
NON COMBUSTIBLE
FINISH MATERIAL
Fig. #24
FRAMING
EDGES
GLASS
FRAME
This replace may be recessed up to a
maximum depth of 6”, this recess must
be constructed from non combustible
material. The space between the
outside framing edge and the rebox
must be completely free of any
obstructions or debris and the window,
with trim tted, must be able to move
freely. No building material is permitted
to protrude past the framing edges
attached to the replace under ANY
circumstance.

The gas control system is located on the right hand side of the rebox behind an access
panel and the decorative rebox panel (if installed). The replace is operated via a wall
control and a hand held remote control unit.
The wall control is connected to the replace by a 25 ft.communication cable supplied with the
replace. The communication cable can be extended with an optional 25 ft. extension kit.
Installation
1. Place the replace in the desired location.
2. Remove the window from the replace.
3. Remove access panel from right hand side of the rebox (Fig #25)
4. Connect a 110 V. AC electrical supply to the outlet installed inside the control box
(Fig #26). The replace operates on a low voltage supplied by an AC adaptor rated at
110 volts, 60Hz, 0.25A. The optional power vent kit is rated at 115 volts, 60Hz, 1.8A.
The electrical wires can be accessed from both inside and
outside the control box by removing one of the two small
access panels (Fig #27)
The wires from inside the outlet box are connected to
the 110 V.AC supply (Fig.#28)
5. Connect the gas supply to the valve (Fig #26)
6. Plug the A/C adaptor into the outlet (Fig #26)
7. Attach the electrical box for the supplied wall control to the framing in the desired
location (up to 50 ft. away). (25 ft is supplied with replace. An additional 25 ft can
be achieved by using the optional kit (Part # 5005.064) available from your
distributor).
OUTLET
ADAPTOR
Fig. #28
Fig. #27
Fig. #26
GAS CONNECTION
ACCESS PANEL
Fig. #25
16
TC36.CE3 250313-48
Maestro Control
Plumbing and Electrical

8. Route the control cable as required to the wall control electrical box.
9. Attach the control cable to the wall control. (Fig #29)
10. Insert the 4 supplied “AA” batteries into the battery pack and connect to wall control.
(Fig #30)
11. Fasten the wall switch to the electrical box.
12. Fasten the faceplate to switch
13. If not already installed, install the burner using the instructions supplied with
the burner kit.
14. Turn on the gas supply and check that all connections are tight and leak free.
15. Turn on gas and electrical supplies.
17. Press the up button on the wall control
and hold it for 5 seconds or until a clicking
sound is heard from the gas control. Re-
lease the button, check manifold pressure
and ensure that it’s correct. (Fig #32)
Refer to burner installation manual.
18. Press the center button of the wall control.
The replace will shut off.
19. Install the remaining screws in the access
panel and tighten.
20. Remove the pressure gauge and the
extension test tting and thread the
pressure test port plug into the pressure
test port. Thread sealant is required on
the threads. Refer to burner installation
manual.
21. Turn the replace on and verify that
the connections are tight.
Standing Pilot Function
(Only for use where permitted)
The control system on this replace is set to operate as electronic ignition. If required the
system can be converted to a standing pilot by depressing a recessed button located on the
lower right hand side of the wall control. (Fig #33) This should be depressed with a paperclip,
pencil or other thin object. Once activated the pilot will run continuously. Please check with
your local inspector to ensure that this is permitted in your area.
16. Press the center button on the wall control (Fig #31). The igniter will start to spark.
After a short delay the pilot will light, followed by the main burner.
Fig. #29
Fig. #30
LEARN BUTTON
STANDING PILOT BUTTON
Fig. #31 Fig. #32
Fig. #33
17
TC36.CE3 250313-48

Pre-Purge Mode
For use with a power vent only.
Follow these instructions to activate the
power vent pre-purge feature. This feature
must be activated for the safe operation of
an appliance equipped with a power vent.
Switching to the power vent pre-purge
mode:
1. To turn feature ON and OFF, press and
hold the STANDING PILOT button on the
wall switch for 10 seconds (Fig.#33a).
2. When the feature is activated, the green
LED should ash (0.5 seconds ON, 0.5
seconds OFF) 5 times.
3. When the feature is deactivated, the red
LED should ash (0.5 seconds ON, 0.5
seconds OFF) 5 times.
4. When the pre-purge feature is ON:
r The low battery backup warning feature
will be disabled and the LED will not
ash to indicate low battery (The battery
backup must be removed when using a
power vent).
r The Standing Pilot feature will be de-
activated (feature not available when
Power Vent Pre-Purge Mode is active).
r Upon receiving any ON command, the
power vent output will close immediately,
but the ignition cycle will NOT begin for 10
seconds (pre-purge). This means that
themoduleWILLNOTemitasparkand
WILL NOT energize the pilot operator
andthe60secondignitiontrialperiod
WILL NOT begin until the 10 second
pre-purge delay is complete.
r Upon receiving any ON command, the
green LED will ash (0.5 seconds ON,
0.5 seconds OFF) for 10 seconds so
the user will know that the replace is
operating.
STANDING
PILOT BUTTON
Fig. #33a
NOTE:
The pre-purge feature must be
activated for the safe operation
of an appliance equipped with a
power vent.
18
TC36.CE3 250313-48

SUPPLY
PRESSURE
MANIFOLD
PRESSURE
Caution: The gas line should be installed by a qualied service person in accordance with
all building codes. This section is intended as a guide for qualied technicians installing this
appliance. Consult local and / or national building codes before proceeding.
r Gas supply line access holes are located at the top and left sides of the Control Box.
Gas valve inlet accepts a 3/8" N.P.T. tting. Correct gas line diameter must be used to
assure proper operation and pressure.
r The replace has an input rate of 47,000 BTU/HR on both Natural Gas and Propane.
r NOTE: A sediment trap, as per national fuel gas code, must be installed in the
gas supply line no more than 6 feet from the gas control valve to minimize the
possibility of any loose scale or dirt within the gas supply line from entering the
control valve.
r DO NOT HARD PIPE GAS LINE TO VALVE. A method of disconnecting the valve
from the gas line such as a union or are tting must be provided to allow for repair or
replacement of the gas valve.
r
Check local codes for additional requirements.
1. Connect the gas supply to the valve (Fig. #27)
2. Turn on the gas supply and check that all connections are tight and leak free.
WARNING: Use EXTREME CAUTION when using soap and water to do
a leak test on the valve/ttings. There are electronics around and
below the valve, that can/will be damaged if they come in contact
with water.
WARNING:The access panel including gasket must be
reinstalled after conversion/installation or servicing
has been completed. Failure to do so will cause
overheating and premature failure of the control system.
Correct gas pressure requirement:
Natural Gas Propane
Min. Pressure 5.0" WC 12.5" WC
(For purpose of input adjustment)
Max. Pressure 13.9" WC 13.9" WC
Manifold Pressure
Maximum 3.8" WC 11" WC
Minimum 2.1" WC 5.5" WC
Note:To test the gas pressure, turn off the gas supply before removing the plug from
the supply pressure test port or manifold pressure test port.
Verify gas pressures with the replace lit and on the highest setting.
Please refer to the Burner Installation Manual for gas pressure testing procedure.
Fig. #34
19
TC36.CE3 250313-48
Gas Supply
Gas Pressure Check

Exterior wall opening:
Determine the exact position of the replace so that the vent pipe is centred (if possible)
between two building framing members.Consult your local building codes prior to proceeding.
The vent kit will accommodate up to a maximum wall thickness of 12 inches.
1. Having determined the position of the replace, cut and frame a 14 1/2 inch opening
centred at a minimum height of 68 1/2 inches above the oor.The opening may be round
or square. Height of the opening will vary with each installation. As the horizontal vent
run increases, so does the minimum vertical rise (see Fig. #35).
IMPORTANT: When locating the opening, it should be noted that vent terminal
clearances must be maintained. See "Vent Terminal Clearances" section for proper
clearances.
A minimum 2 foot length of pipe is required off the top of the replace for any wall termination.
With this minimum vertical rise in combination with a 90° elbow, a maximum horizontal run
of 18 inches is permitted (see Fig. #35 and 36). For longer horizontal runs greater than 18
inches, increase vertical rise appropriately.
The rise and run must be constrained to the boundaries of the chart shown in Fig. #35. The
horizontal run of vent must have a 1/4" rise for every 1 ft. of run towards the termination.
Before installing venting for this unit, the installer should read these instructions to insure
that the proper vent conguration has been selected.
Use only Town and Country Termination kits #:
TCVT.WTA - Wall Termination Kit
TCVT.RTA - Roof Termination Kit
Vent system components approved for use with the Town and Country Fireplace are shown
in Fig. #33.
NOTE: Optional Power Vents (TCVT.PVB2,TVCT.PVC1,TCVTPVC2, and TCVT.PVC3)
require different venting. Please refer to Power Vent manuals.
Various combinations of vertical and horizontal runs may be used. Refer to Fig. #35 and
36 for details. For optimum performance and ame appearance, keep the vent length to a
minimum and limit the number of elbows.Connections between each vent system component
must be tightly joined, secured with sheet metal screws and sealed with high temperature
self adhesive tape. A horizontal run of vent should have a 1/4" rise for every 1 ft. of run
towards the termination.
CAUTION: UNDER NO CONDITION SHOULD COMBUSTIBLE MATERIAL BE CLOSER
THAN 1 3/4 INCHES FROM THE TOP AND 1 3/4 INCHES FROM THE SIDES OF A
HORIZONTAL SECTION AND 1 3/4 INCHES FROMTHE VERTICAL SECTIONS OF THE
VENT PIPE.
20
TC36.CE3 250313-48
Venting
Wall Termination Venting
