Town & Country Fireplaces TCVT.WSPVB1 User manual

OPTIONAL
VERTICAL OR
HORIZONTAL
POWER VENT KIT
TCVT.WSPVB1
INSTALLATION AND
OPERATING
INSTRUCTIONS
091009-12 TCVT.WSPVB1 5056.425213
5 x 8 Pipe
(Simpson Duravent)
(Secure Vent)
(Selkirk Direct-temp)
NOT SUPPLIED
IMPORTANT:
THESE INSTRUCTIONS ARE TO REMAIN
WITH THE APPLIANCE INSTRUCTIONS
These instructions are supplementary to the Installation and
Operating Instructions supplied with the replace and should
be kept together. Refer to the Installation and Operating
Instructions for proper gas supply, safety requirements and
operating instructions
Power Vent Terminal
(TCVT.502461)
Vent Adaptor
(5096.814)
Simpson
Duravent #1247
wall thimble
NOT SUPPLIED

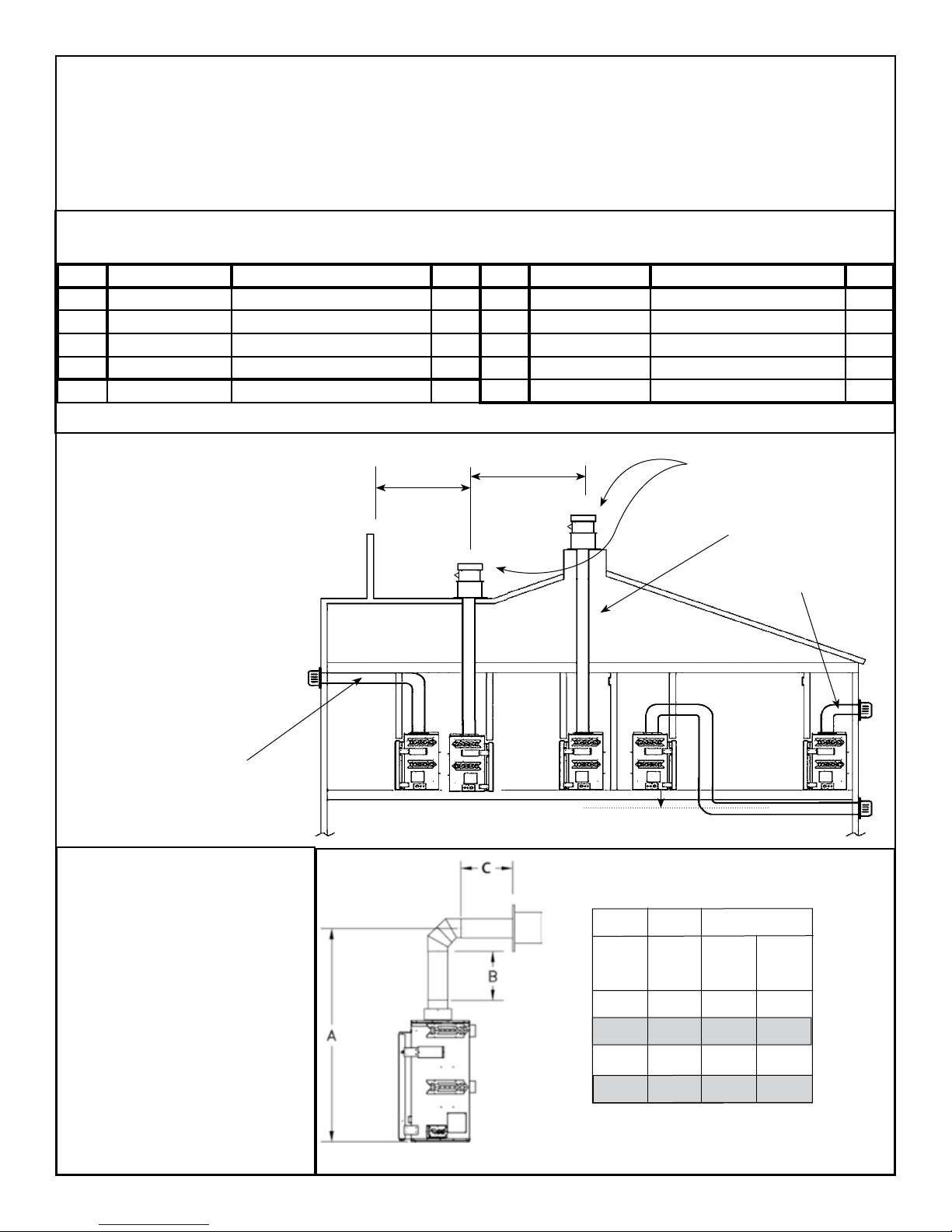

VENTING CONFIGURATIONS
Maximum vent length is 110 ft
plus six 90-degree elbows or
combination of other elbows
equaling 90-degrees, with a
maximum 66 foot vertical rise.
Minimum vent length is 4 ft
plus one 90-degree elbow.
The vent can be installed
with any combination of rise
and run between the gures
including up to 3 ft below
the unit. Ensure vent pipe is
properly supported.
Maximum combined
vertical & horizontal
venting -
110 ft plus six
90-degree elbows.
Vertical Application must use TCVT.PVVCA Box in
conjunction with this kit
4 ft min. 6 ft min.
Maximum
vertical of 66 ft
Min. venting - 4 ft plus
one 90-degree elbow
3 ft below unit (Max) to
centerline of vent pipe
Fig. #1
Max Pipe
Length
2 TCVT.WSPVB1 091009-12
Contents of Power Vent Kit
Power Vent Installation
Locate the replace as per the main instructions supplied.
Make the following modications to add the components used with the Power Vent Kits. This Kit can only be used in
conjunction with the Town and Country WS replaces. This installation must conform with local codes or, in the absence
of local codes, with the Natural Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code,
CSA B149.1. This appliance must be electrically grounded in accordance with local codes or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical code, CSA C22.1.
MINIMUM CLEARANCES TO
COMBUSTIBLE
Vertical vent pipe:
1.5 in. (38mm)
Horizontal vent pipe:
Top 1.5 in. (38mm)
Sides 1.5 in. (38mm)
Bottom 1.5 in. (38mm)
All other clearances are as
per the replace installation
instructions. Fig. #1a
WALL TERMINATION VENTING CHART
49” 0” 110 feet 4 feet
57” 12” 109 feet 3 feet
65” 24” 108 feet 2 foot
Min Pipe
Length
A B C
Pipe
Length
Min.
Rise

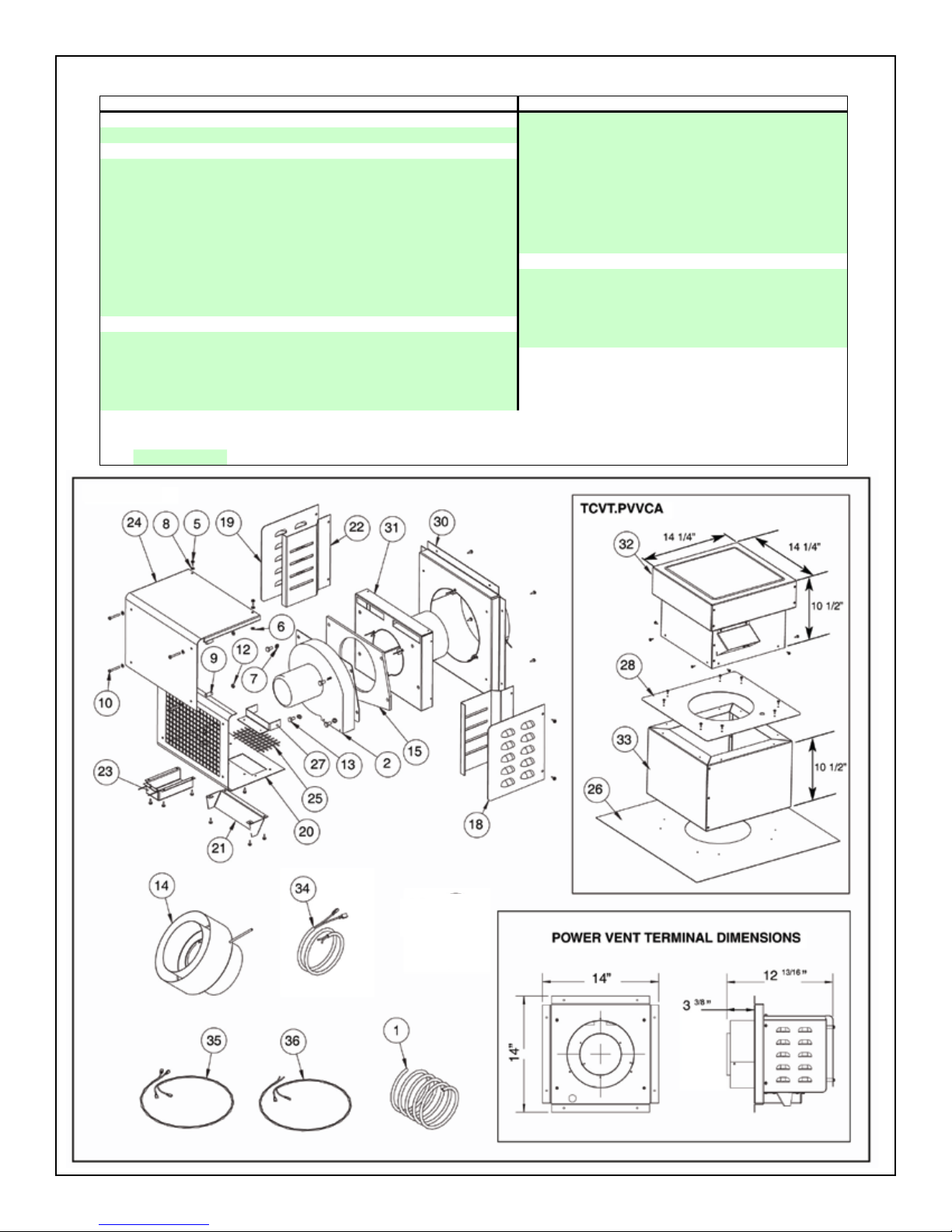

ITEM PART No. DESCRIPTION QTY. ITEM PART No. DESCRIPTION QTY.
1 TCVT.502461 Power Vent Terminal 1 5 5027.15 Pressure Switch 1
2 5096.814 Venting Adaptor 1 6 8240 Tubing, TYSC-516316-100 1
3 TCVT.50271C2 Pressure Switch Wiring 1 7 Hose Clamp 1
4 8271 Pressure Switch Bracket 1 8 5093.02 Hose Clamp 1
9 TCVT.507156C PV Module Switch Wire 1

M
K
I
A
V
G
G
H
A
J
V
G
A
B
C
A
V
V
A
V
B
F
B
L
V
E
V
V
V
D
B
B
091009-12 TCVT.WSPVB1 3

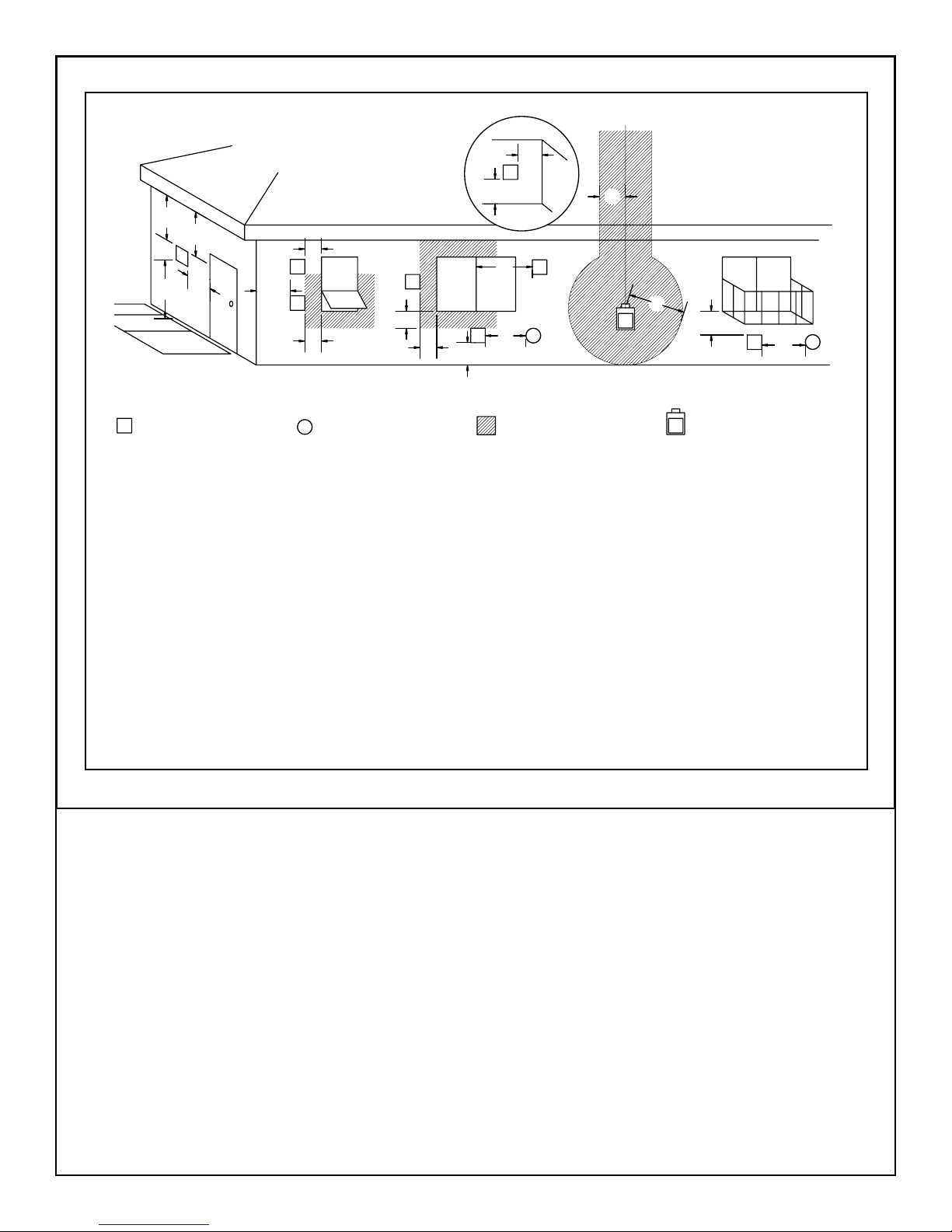

Fig. # 2 VENT TERMINAL MINIMUM
CLEARANCES
A= clearances above grade, veranda, porch, deck, or balcony [*
12 inches (30 cm) minimum]
B= clearance to window or door that may be opened [* 12
inches (30 cm) minimum]
C= clearance to permanently closed window [minimum 12
inches (30 cm) recommended to prevent condensation on
window]
D= vertical clearance to ventilated soffit located above the ter-
minal within a horizontal distance of 2 feet (60 cm) from the
edge of the terminal [12 inches (30 cm) minimum]
E= clearance to unventilated soffit [12 inches (30 cm) minimum]
F= clearance to outside corner [6 inches (15 cm) minimum]
G= clearance to inside corner [6 inches (15 cm) minimum]
H= * not to be installed above a meter/regulator assembly within
3 feet (90 cm) horizontally from the center-line of the regula-
tor
I= clearance to service regulator vent outlet [* 6 feet (1.8 m)
minimum]
J= clearance to nonmechanical air supply inlet to building or
the combustion air inlet to any other appliance [* 12 inches
(30 cm) minimum]
K= clearance to a mechanical air supply inlet [* 6 feet (1.8 m)
minimum]
L= ^ clearance above paved side-walk or a paved driveway
located on public property [* 7 feet (2.1 m) minimum]
M= clearance under veranda, porch, deck, or balcony
[12 inches (30 cm) minimum**]
^ a vent shall not terminate directly above a side-walk or paved driveway which is located between two single family dwellings and
serves both dwellings*
** only permitted if veranda, porch, deck, or balcony is fully open on a minimum of 2 sides beneath the oor*
* as specied in CGA B149 Installation Codes, Note: local Codes or Regulation may require different clearances
* for U.S.A. Installations follow the current National Fuel Gas Code, ANSI Z223.1
AIR SUPPLY INLET
VENT TERMINAL GAS METER
FIXED
CLOSED
FIXED
CLOSED
OPEN-
ABLE
OPEN-
ABLE
INSIDE
CORNER
DETAIL
AREA WHERE TERMINAL
IS NOT PERMITTED

4 TCVT.WSPVB1 091009-12
1. Locate the power vent termination following the clearance
to combustible table, venting conguration diagram (Fig. #1 &
1a), and terminal location diagram (Fig. #2).

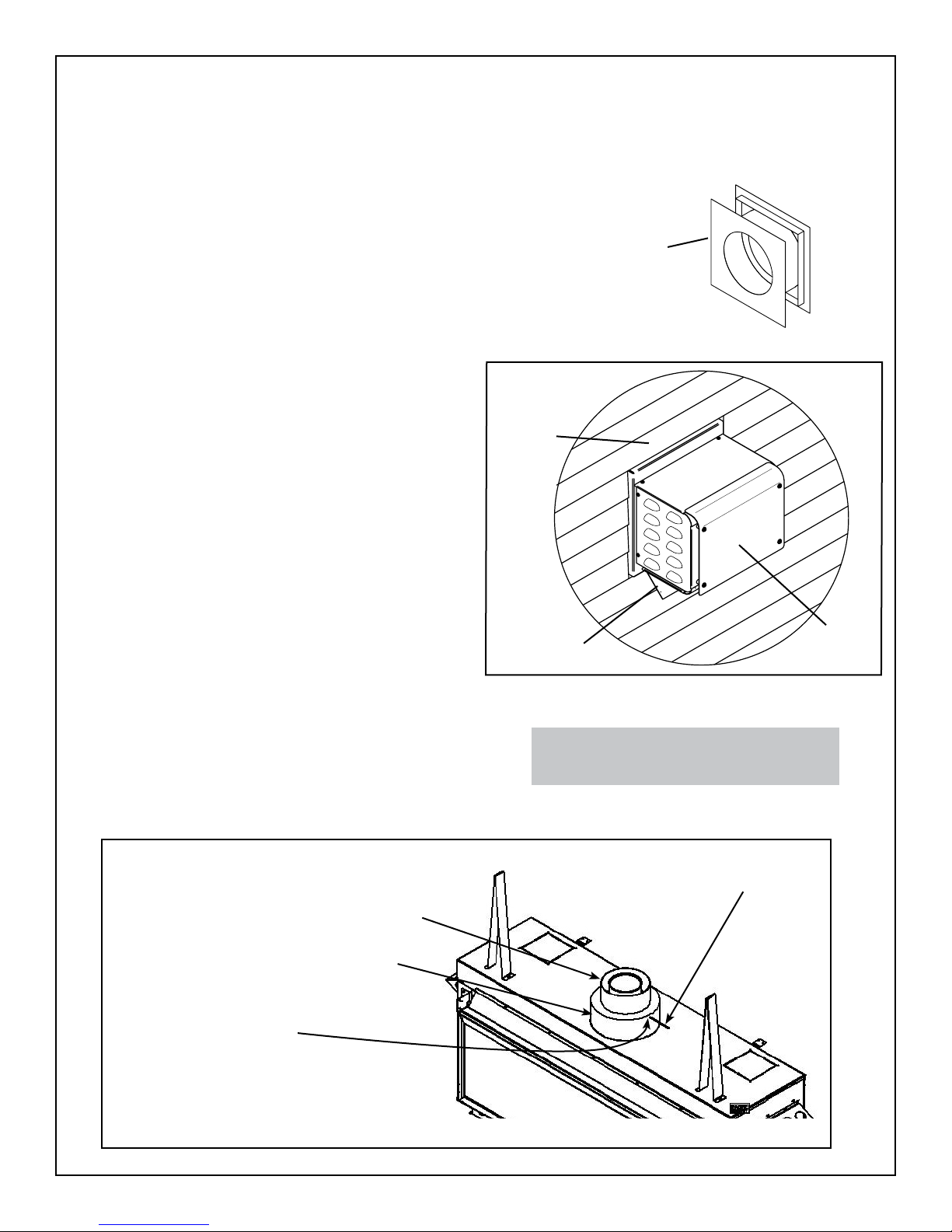

2. Cut and frame an 11” x 11” opening. The centre of
the square hole should line up with the centre line of the
horizontal pipe.
3. Install the Simpson Duravent (or equivalent) Wall thimble,
part number 1247 (not supplied with kit) in the opening
to retain any insulation in the wall and maintain proper
clearances. If the wall being penetrated is constructed of
noncombustible material only (i.e.. Masonry block or concrete)
the wall thimble is not required and a hole with zero clearance
is acceptable. (8” hole)
4. Attach the terminal to the outside wall. Ensure that the
terminal is the right way up and that only the outer anges that
are used to secure the terminal to the building are covered by
the exterior wall or siding. (Fig.#3) Note: No other part of the
terminal can be recessed into the exterior wall or siding.
5. Attach the vent adaptor directly to the appliance with three
screws. Note: The inner pipe does not need to be sealed.
(Fig. #4)

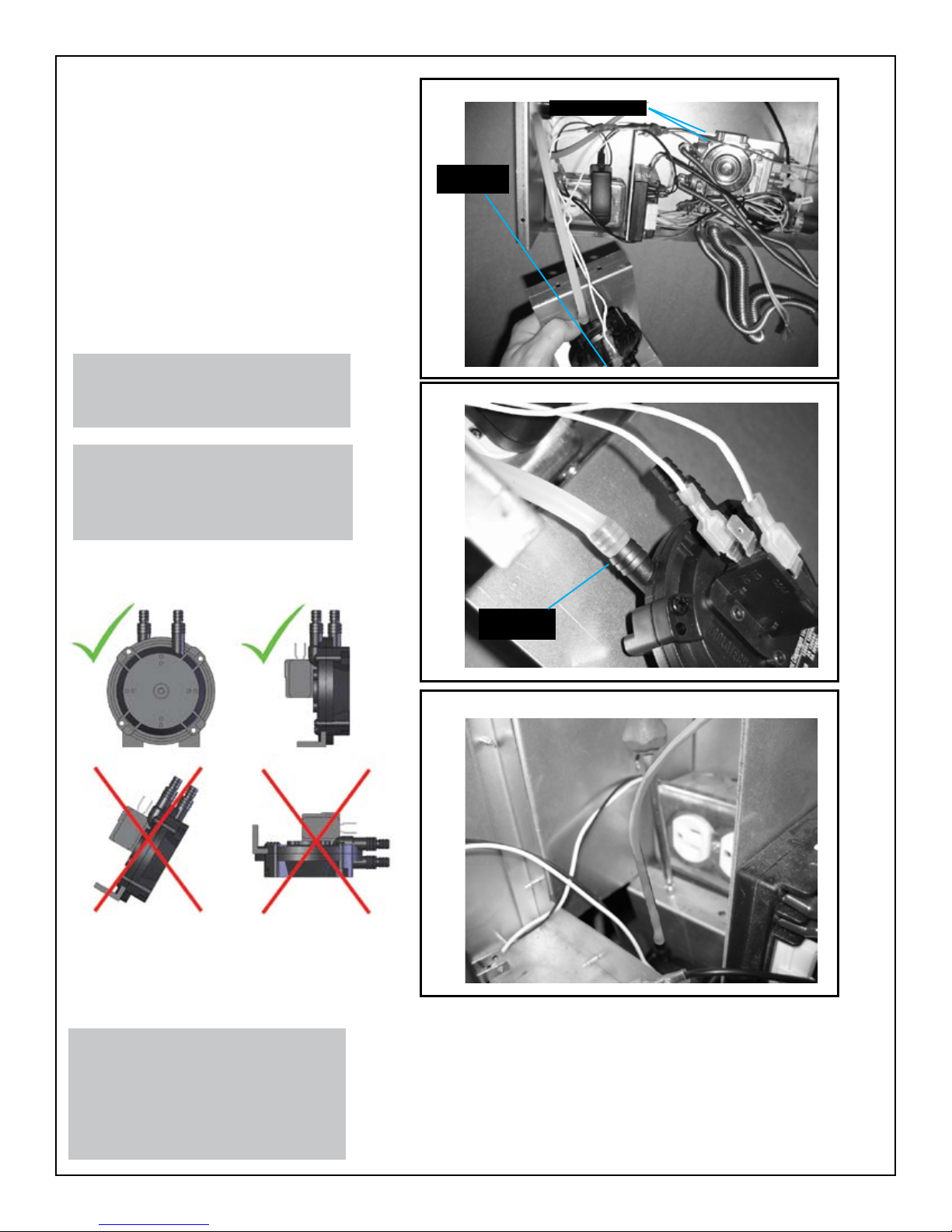

6. Connect the high temperature silicone tube to the pressure
tap on the adaptor, secure with the hose clamp provided and
route the tube through any hole back to control box. (Fig.
#4) Tube may touch unit and be trimmed if required. Note:
Ensure that there are no blockages in this tube, as this
will cause the control to malfunction.
7. Run the required Simpson Duravent GS / Secure Vent
/ Selkirk Direct-temp pipe from the adaptor to the terminal
assembly. Assemble as per the vent pipe manufacturer’s
instructions.
Horizontal (Side wall) Venting
This kit uses either Simpson Duravent GS direct vent pipe, Secure Vent direct vent pipe or Selkirk Direct-temp
vent pipe with a 5” inner pipe and an 8” outer pipe. For part numbers see the table of venting components on
page 11 of this manual.
Fig.#4
Fig.#3
Blower
Outlet
Finished
Wall
Power Vent
Terminal
PRESSURE
TAP
Power Vent Adaptor. Part # 5096.814
MUST BE INSTALLED AT THE UNIT
Secure with three screws
Seal not required
Wall Thimble
(Not Supplied)
CAUTION: The vent restrictor must be fully
open for proper operation.

091009-12 TCVT.WSPVB1 5
Vertical (Through Roof) Venting
This kit uses either Simpson Duravent GS direct vent pipe, Secure Vent direct vent pipe or Selkirk Direct-
temp vent pipe with a 5” inner pipe and an 8” outer pipe. For part numbers see the table of venting
components on page 11 of this manual.
Vertical installations must use the optional TCVT.PVVCA vertical adaptor box in conjunction with this kit. The vertical
adaptor box can only be installed on a at surface. Sloped surfaces require the construction of a chase which provides the
minimum interior, square opening of 11” x 11” for the venting and wiring to pass through. Flat roofs may require a chase
depending on local codes and roof construction. (If in doubt check with local inspector)
The terminal must be located in accordance with the clearances outlined in Fig. #1 and 2.
All part numbers in the following section are shown in Fig.
#5.
1. Place the ashing (Part A) onto the chase and seal
using silicone.
2. Put a bead of silicone on the underside of the vertical
standoff (Part B) and place it on top of the ashing. Align
the eight holes and secure both parts to the chase using
eight #8 x 1 1/2” screws provided.
3. Install the drip shield (Part C) onto the top of the vertical
standoff using a bead of silicone between the two. Do not
screw this part in place.
4. Bring the 14-2 electrical wire (not supplied) up through
the holes in both the ashing and the drip shield leaving at
least 12” of excess wire above the drip shield.
5. IMPORTANT: Attach an appropriate length(s) of the
vent to the power vent terminal, sufficient to pass through
the chase.
NOTE: DO NOT CONNECT AN ADJUSTABLE LENGTH
VENT PIPE TO THE TERMINAL.
6. Seal the connection of the rst length of pipe at the
terminal and any other pipe to pipe joint by both screwing
and taping the outside joint using high temperature foil
tape.
7. Remove the junction box cover. (Part D)
8. Remove and discard the exhaust shield. (Part E)
9. Apply a bead of silicone on the bottom ange of the
power vent terminal (TCVT.WSPVB1)
10. Slide the vent through the drip shield and at the same
time thread the electrical lead through the hole in the
bottom of the terminal.
11. With the power vent terminal resting on the drip shield,
align the eight holes in each of the vertical standoff, the
drip shield and the power vent terminal and then screw
them together using the eight #8 x 1/2” stainless screws
provided.

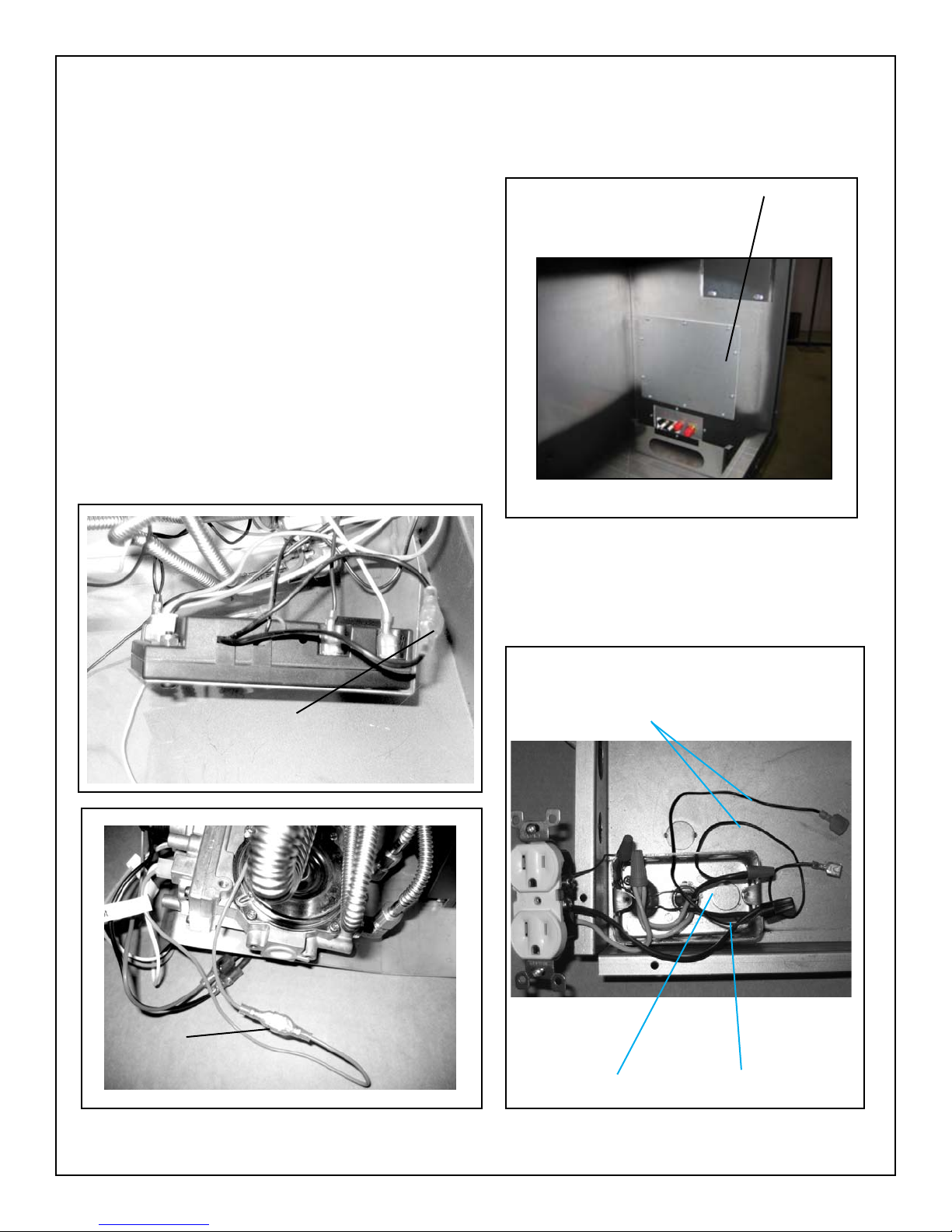

12. Join the 14-2 wire lead to the blower wires using
the appropriate connectors and attach the ground wire.
Reinstall the junction box cover.
13. Install the vertical rain cap (Part F) over the power vent
blower. ALIGN THE EXHAUST OUTLET ON THE POWER
VENT TERMINAL WITH THE EXHAUST PORT ON THE
VERTICAL RAIN CAP.
14. Secure the vertical rain cap to the power vent blower
with the remaining eight #8 x 1/2” stainless screws.
NOTE:
THERE ARE NO PILOT HOES IN THE BASE OF THE
POWER VENT TERMINAL. 1/8” DIAMETER PILOT
HOLES SHOULD BE DRILLED USING THE HOLES IN
THE VERTICAL RAIN CAP AS A GUIDE.
DO NOT SILICONE THE VERTICAL RAIN CAP TO
THE POWER VENT TERMINAL AS IT NEEDS TO BE
REMOVABLE FOR SERVICING.
15. Attach the vent adaptor directly to the appliance with
three screws provided. (Fig. #4)
16. Connect the high temperature silicone tube to the
pressure tap on the adaptor, secure with the hose clamp
provided and route the tube through any hole back to
control box. (Fig. #4) Tube may touch unit and be trimmed
if required. Note: Ensure that there are no blockages in
this tube, as this will cause the control to malfunction.
17. Run the required Simpson Duravent GS / Secure Vent
/ Selkirk Direct-temp pipe from the adaptor to the terminal
assembly. Assemble as per the vent pipe manufacturer’s
instructions.
Installation:
CAUTION: The vent restrictor must be fully
open for proper operation.

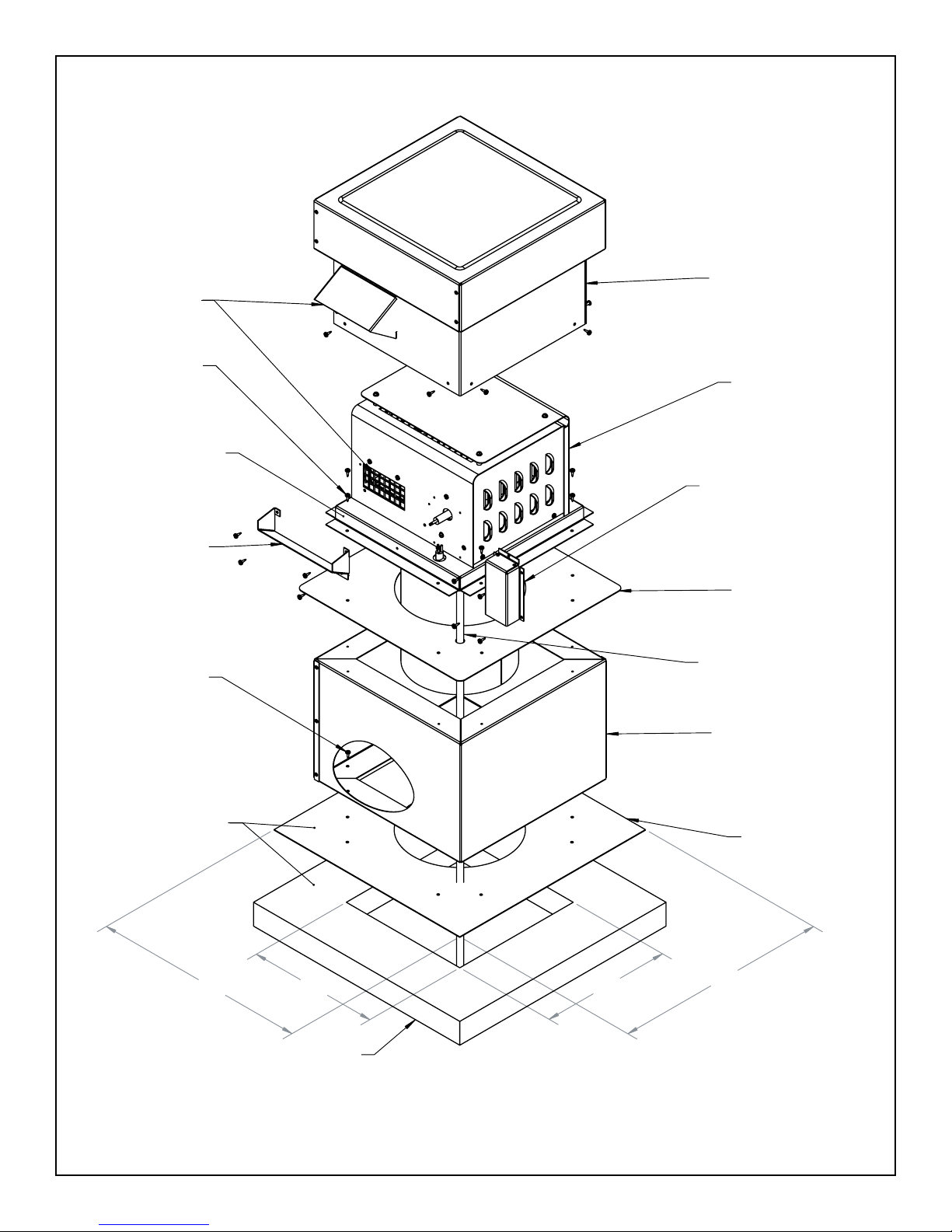

18.000 11.000 11.000 18.000
Part E
Exhaust Shield
- DISCARD -
Part D
Junction Box Cover
Power Vent
TCVT.PVB
Part F
Vertical Rain Cap
TCVT.8074
Part C
Drip Shield
Part B
Vertical Standoff
Part A
Flashing
Site Fabricated Chase
MUST ALIGN
#8 x 1/2" S.S.
(16 Required)
#8 x 1-1/2" S.S.
(8 REQUIRED)
NOTE: Holes to
secure rain cap are
not predrilled
SILICONE ALL
CONNECTING FACES
14-2 Wire w/ Ground
Final Installation Height: 21"
6 TCVT.WSPVB1 091009-12
Fig. #5
Vertical (Through Roof) Venting

091009-12 TCVT.WSPVB1 7
ACCESS PANEL
Fig. #10
SPADE CONNECTORS IN BLACK
WIRE LOOP
Fig. #13
Fig. #11
SUPPLIED WIRES TO
CONNECT TO BLACK
WIRE ON MODULE
HOT WIRE
FROM BLOWER
HOT WIRE FROM
120V SUPPLY
ORANGE WIRE
FROM MODULE
TO VALVE
Fig. #12
Control System Connections
The gas control system is located on the right hand side of
the rebox behind an access panel and the decorative brick
panel.
1) Remove right side rebox panel if already installed.
2) Remove access panel using care not to damage gasket.
(Fig. #10)
3) Locate and disconnect the spade connectors in the black
wire loop on the right side of the module and in the orange wire
running from the module to the socket on the valve labelled
“pilot”. (Fig. # 11 and 12)
4) Using the wires provided, connect the 120V “hot” supply
wire to one of the black wires from the control module. Then
connect the “hot” wire from the power vent blower to the other
black wire on the control module. The module acts as a switch
to turn on the power vent blower. (Fig. #13) (Also see wiring
diagram on Pg. 9)

This power vent system can only run on
115 V AC. Before operating the unit, the
battery backup located behind the wall
switch receiver must be removed.
8 TCVT.WSPVB1 091009-12
5) Connect the pressure switch pig tails to
the orange wire. (Fig. # 14 & 15)
6) Attach the silicone tube from the vent
adapter pressure tapping to the low side
of the switch. (Fig. # 14 & 15)
Caution: Connect the switch prior to
securing. In the case of accidentally
dropping the switch between the control
box and rebox it can still be easily
retrieved with the wires.
7) Secure the pressure switch to the control
box using the 2 screws provided with this
kit. (Fig. # 15A)
WARNING:This switch must be installed
in a vertical position and will not function
if installed otherwise. (Fig. 15B)
Fig. # 14
PRESSURE
SWITCH
ORANGE WIRE
Fig. #15
Fig. #15A
LOW SIDE
OF SWITCH
Fig. #15B
8) Continue with installation and reassemble
all of the parts previously removed.
WARNING: Both the control box shield
and access panel must be reinstalled
after conversion\installationor servicing
has been completed.Failure to do so will
overheat and cause premature failure of
the control system.

115 Volt 60 Hz 1.8A
Power Vent Fan
Pressure Switch
AC Adaptor
Electrical box inside Control Compartment
Gas Valve
Module
Wall Switch Receiver
Pull connectors apart to connect to power vent
White Green White Orange Black
Black Black
Black Red
120 Volt Hot wire (Black) 120 Volt Common wire (White)
1/4” Male Connector
1/4” Male Connector
1/4” Male Connector
1/4” Male Connector 1/4” Female Connector
1/4” Female Connector
1/4” Female Connector
1/4” Female Connector
Wiring the Power Vent Kit provided by Town & Country
Communication wires
Main
Pilot
Low pressure side
egnarO
egnarO
Pressure switch wire (Supplied)
Power Vent switch wire (Supplied)
kcalB
kcalB
STANDARD AWG 14-2 WIRE OR EQUIVALENT (NOT SUPPLIED)
091009-12 TCVT.WSPVB1 9
Wiring Diagram

10 TCVT.WSPVB1 091009-12
REPLACEMENT PARTS
ITEM PART NUMBER DESCRIPTION QTY ITEM PART NUMBER DESCRIPTION QTY
1 8240 TUBE, 5/16” OD, 1/16” THICK 1 20 INSIDE COVER 1
2 BLOWER POWER VENT 1 21 EXHAUST SHIELD 1
*3 5027.15 PRESSURE SWITCH 1 22 SECONDARY RAIN SHIELD 2
*4 3/8” STRAIN RELIEF 2 23 JUNCTION BOX 1
5 #8 x 1/2” PAN HD SKT 18.8 STAINLESS STEEL 46 24 TOP COVER 1
6 ID x .379 OD x .062 THK 2 25 EXHAUST SCREEN 1
7 1/4 MED LOCKWASHER 18.8 SS 5 26 FLASHING 1
8 STANDARD 18-8 SS, #8 FLAT WASHER 6 27 OUTLET AIR CHANNEL 1
9 SP100 .25 x .75 AK 4 28 DRIP SHIELD 1
10 SCREW, #8-32 x1 1/4 RND HD 4
*11 #8-32 x5/16 PAN QUADREX 1 30 VENT COLLAR 1
12 HEX NUT, STAINLESS 18-8 PLAIN 4 31 VENT EXHAUST ASSEMBLY 1
13 1/4-20 x1/2 NC GR 5 HEX C/S PLTD 5 32 VERTICAL RAIN CAP, TCVT 1
14 5096.814 VENTING ADAPTER 1 33 VERTICAL STANDOFF 1
15 1/4” LDF PAPER 1 34 BLOWER WIRING 1
16 35 TCVT.50271C2 PRESSURE SWITCH WIRING 1
*17 BUSHING, SHORTY B625 500 2 36 TCVT.507156C PV MODULE SWITCH WIRE 1
18 SIDE COVER, RIGHT 1
19 SIDE COVER, LEFT 1
* NOT SHOWN
ITEM 35 AND 36 ARE USED WITH SERIES “C” FIREPLACES ONLY
ITEMS NOT SOLD SEPARATELY ITEMS 37 AMD 38 ARE UED ON SERIES “B” FIREPLACES ONLY

ICC MODEL EXCELDIRECT
Number Description
TC-5DL6 6” Pipe Length
TC-5DL1 12” Pipe Length
TC-5DL2 24” Pipe Length
TC-5DL4 48” Pipe Length
TC-5DLF 36” Flexible Length
TC-5DLT 12” Pipe, Adjustable, Galvalume
TE-5DE45 Swivel 45° Elbow, Galvalume
TE-5DE90 Swivel 90° Elbow, Galvalume
TM-5SS Square Support / Radiation Shield
TM-5RDS Round Support / Radiation Shield
TM-5CS Cieling Support / Firestop
TM-OS Offset Support
TM-SR Roof Support
TM-WS Adjustable Wall Support
TM-5WT Insulated Wall Thimble
TM-5TR Trim Ring, Black
TM-5AS Attic Radiation Shield / Firestop
091009-12 TCVT.WSPVB1 11
VENTING COMPONENTS
SELKIRK DIRECT-TEMP
Number Description
1605006 6” Pipe Length
1605009 9” Pipe Length
1605012 12” Pipe Length
1605018 18” Pipe Length
1605024 24” Pipe Length
1605036 36” Pipe Length
1605048 48” Pipe Length
1605082 4-10” Pipe, Adjustable
1605215 45° Elbow
1605230 90° Elbow
1605424B Cathedral ceiling support box (blk)
1605500 Firestop spacer
1605460B Wall thimble (blk)
1605430 Wall support band
SIMPSON DURAVENT COMPONENTS
Number Description
1208 6” Pipe Length
1207 9” Pipe Length
1206 12” Pipe Length
1204 24” Pipe Length
1203 36” Pipe Length
1202 48” Pipe Length
1211 11” to 14-5/8” Pipe, Adjustable
1217 4-10” Pipe, Adjustable
1245 45° Elbow
1290 90° Elbow
1240 Round Ceiling Support /Wall Thimble Cover
1241 Cathedral Ceiling Support Box
1242 Wall Firestop
1247 Wall Thimble
1263 Ceiling Firestop
1288 Wall Strap
SECURE VENT COMPONENTS
Number Description
SV5L6 6” Pipe Length
SV5L12 12” Pipe Length
SV5L24 24” Pipe Length
SV5L36 36” Pipe Length
SV5L48 48” Pipe Length
SV5LA 6” Pipe, Adjustable
SV5LA12 12” Pipe, Adjustable
SV5LA24 24” Pipe, Adjustable
SV5E45 Swivel 45° Elbow
SV5E90 Swivel 90° Elbow
SV5CSB Adjustable decorative sq. cathedral support
SV5AC Collar for decorative sq. cathedral support
SV5SU Universal support
SV5SD Floor support
SV5BM Wall band
SV5RSA Attic radiation shield
SV5RSM Wall radiation shield
SV5BF Firestop

TECHNICAL SUPPORT: 1-250-748-1184
www.townandcountryreplaces.net
2975 Allenby Rd., Duncan, BC V9L 6V8
Printed in Canada
