TP-Link TD-8610 User manual

TD-8610
ADSL2+ Modem
Rev: 1.0.4
1910010250

COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark
of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from
TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2009 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com

FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.

CONTENTS
Package Contents.................................................................................................... 1
Chapter 1. Introduction ........................................................................................ 2
1.1 Product Overview...................................................................................................... 2
1.2 Main features ............................................................................................................ 2
1.3 Supporting protocols ................................................................................................. 2
1.4 Transmit data-rate..................................................................................................... 3
1.5 ATM property ............................................................................................................ 3
1.6 System support ......................................................................................................... 3
1.7 Working environment ................................................................................................ 3
1.8 Conventions .............................................................................................................. 3
Chapter 2. Hardware Installation Guide.............................................................. 4
2.1 System requirement.................................................................................................. 4
2.2 LED explanation........................................................................................................4
2.3 Rear-panel ................................................................................................................4
2.4 Hardware installation procedures.............................................................................. 5
Chapter 3. How to use.......................................................................................... 6
3.1 Computer Configuration............................................................................................ 6
3.2 Login .........................................................................................................................9
3.3 Setup.......................................................................................................................10
3.4 Software Dial........................................................................................................... 11
Appendix A: Default Configuration....................................................................... 14

TD-8610 ADSL2+ MODEM
1
Package Contents
The following items should be found in your package:
¾One TD-8610 External ADSL2+ MODEM
¾One AC power Adapter for TD-8610 External ADSL2+ MODEM
¾One RJ45 cable
¾Two RJ11 cables
¾One ADSL splitter
¾One Resource CD for TD-8610 External ADSL2+ MODEM, including:
•This User Guide
•Other Helpful Information
)Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.

TD-8610 ADSL2+ MODEM
2
Chapter 1. Introduction
Thank you for choosing the TD-8610 External ADSL2+ Modem.
1.1 Product Overview
With the excellent design of circuit and high quality production, we guarantee ADSL2+ MODEM
a high performance, very good stability and easy to use.
TD-8610 is a complete plug-and-play solution. With standard Ethernet interface, it can be
directly connected to any 10M/100M Ethernet devices, supporting Auto-MDIX.
TD-8610 not only uses html (web mode through Ethernet port) to configure the MODEM but
also use external utility software too. You can download it from our website
(http://www.tp-link.com).
1.2 Main features
¾High speed and asymmetry data transmit mode, adapt to wide-band internet access
¾Point to point connection, provide safe and exclusive bandwidth
¾Support All ADSL industrial standards
¾Advanced DMT modulation and demodulation
¾Firmware upgradeable
¾Compatible with all mainstream DSLAM (CO)
¾Real-time Configuration and device monitoring
¾Quick response semi-conductive surge protect circuit, provides reliable ESD and
surge-protect function
¾Supports ADSL dual latency (fast path and interleaved path)
1.3 Supporting protocols
- ANSI T1.413
- G.992.1 (G.dmt) - Annex A
- G.992.2 (G.lite) - Annex A
- G.992.3 (ADSL2) - Annex A compliant
- G.992.5 (ADSL2+) - Annex A compliant
- I.432 ATM physical layer compliant
- Supports RFC2516 (PPPoE) *
- Supports RFC1483 (EoA) (Bridged)
)Note:
“*”Need third-party software.

TD-8610 ADSL2+ MODEM
3
1.4 Transmit data-rate
¾Max download data-rate: 24Mbps
¾Max upload data-rate: 1Mbps
¾Max line length: 6Km
1.5 ATM property
¾AAL0, AAL5, OAM, RM, and raw cell types supported
¾Direct hardware support for 4 Receive VCs, with additional RX VCs and TX VCs supported
in software
¾Full 24-bit Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI)
1.6 System support
¾Support PVC
¾Support IEEE 802.3、IEEE 802.3u
¾Support 10Base-T/100BASE-TX full-duplex or half duplex Ethernet
¾Support Auto-MDIX
1.7 Working environment
¾Operating temperature: 0 ~40℃℃
¾Storage temperature: -40 ~70℃℃
¾Humidity: 10%～90%
1.8 Conventions
The Modem or TD-8610 mentioned in this User Guide stands for TD-8610 External ADSL2+
Modem without any explanations.
Parameters provided in the pictures are just references for setting up the product, which may
differ from the actual situation. You can set the parameters according to your demand.

TD-8610 ADSL2+ MODEM
4
Chapter 2. Hardware Installation Guide
2.1 System requirement
Confirm your computer has been installed with networking interface card (NIC) before
connecting ADSL MODEM to your computer, with operating system supporting the TCP/IP
protocol.
2.2 LED explanation
The panel of ADSL MODEM includes one power button, one power indicator and four function
indicators, and these five indicators are explained as chart 1-1:
Name Status Indication
On Power is on.
Power Off Power is off.
On There is a successful connection on the LAN port but no activity.
Flash Data is being transferred over the LAN port
LAN
Off There is no connection on the LAN port or the connection is abnormal.
On The LINE port is linked up.
Flash The ADSL negotiation is in progress.
ADSL
Off The LINE port is linked down.
Flash There is data transmitting or receiving through the Internet.
Internet Off No data transmitting or receiving through the Internet.
Chart 1-1
2.3 Rear-panel
¾LINE (WAN): Connect to the MODEM port of Splitter or connect to the telephone line.

TD-8610 ADSL2+ MODEM
5
¾LAN: Connect with your computer’s NIC.
¾RESET (reset default): When the device is working, please press the RESET button and
keep on for five seconds, then release it for the modem to reboot to its factory default
settings.
¾POWER: please do not use any unknown power adaptor, otherwise that may cause
damage to your ADSL MODEM.
¾ON/OFF: Turn on/off the ADSL modem’s power.
2.4 Hardware installation procedures
First Step: Connect the MODEM of Splitter with the LINE port of the TD-8610 ADSL2+
MODEM by telephone line. While you need to use a telephone, please attach telephone line
into the phone of Splitter.
Second Step: Connect category 5 cable with RJ45 jacks to ADSL MODEM’s LAN port and your
computer’s NIC.
Third Step: Link power adapter into the power jack of ADSL MODEM.
Last Step: Check the line connection to see if everything is ready. Then power up.
Figure 2-1

TD-8610 ADSL2+ MODEM
6

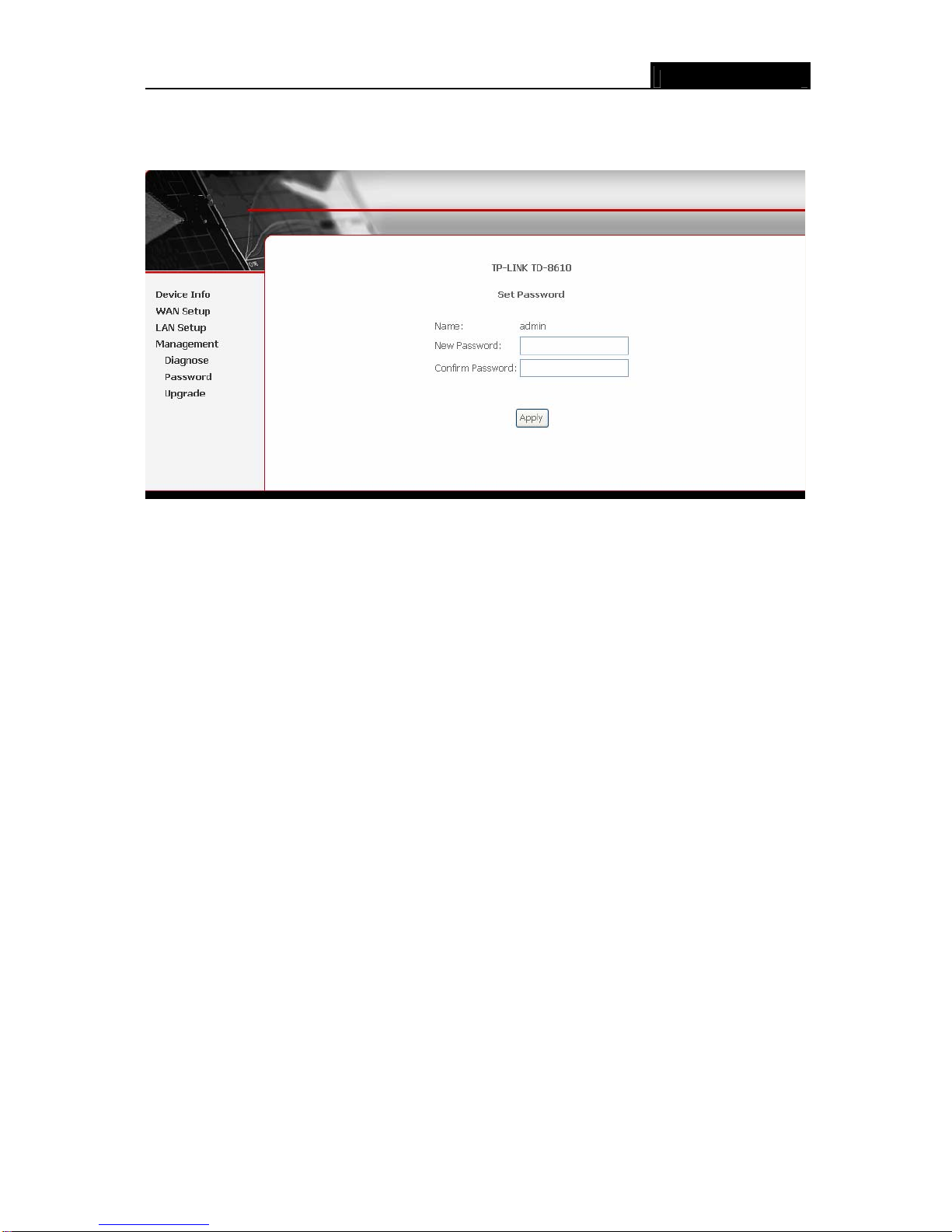

Chapter 3. How to use
3.1 Computer Configuration
1. Configure TCP/IP component
1) On the Windows taskbar, click the Start button, and then click Control Panel.
2) Click the Network and Internet Connections icon, and then click on the Network
Connections tab in the appearing window.
3) Right click the icon that showed below, select Properties on the prompt page.
Figure 3-1
4) In the prompt page that showed below, double click on the Internet Protocol
(TCP/IP).
