TP-Link JetStream T1500G-10MPS User manual

Business Networking Solution
Installation Guide
JetStream 8-Port Gigabit Smart PoE+Switch
with 2 SFP Slots
T1500G-10MPS

FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
Safety Information
• When product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
• Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and
voiding the limited warranty. If you need service, please contact us.
• Avoid water and wet locations.

BSMI Notice
安全諮詢及注意事項
• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
• 注意防潮，請勿將水或其他液體潑灑到本產品上。
• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
• 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。
• 此為甲類資訊技術設備，于居住環境中使用時，可能會造成射頻擾動，在此種情況下，使用者會被要求採
取某些適當的對策。
Industry Canada Statement
CAN ICES-3 (A)/NMB-3(A)
Explanation of the symbols on the product label
Symbol Explanation
AC voltage
RECYCLING
This product bears the selective sorting symbol for Waste electrical
and electronic equipment (WEEE). This means that this product must
be handled pursuant to European directive 2012/19/EU in order to be
recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling
organization or to the retailer when he buys a new electrical or electronic
equipment.

Related Document
This Installation Guide is also available in PDF on our website. To obtain the
latest documentation and product information, please visit the official website:
http://www.tp-link.com
About this Installation Guide
This Installation Guide describes the hardware characteristics, installation
methods and the points that should be attended to during the installation. This
Installation Guide is structured as follows:
Chapter 1 Introduction. This chapter describes the external components of
the switch.
Chapter 2 Installation. This chapter illustrates how to install the switch.
Chapter 3 Lightning Protection. This chapter illustrates how to prevent
lightning damage.
Chapter 4 Connection. This chapter illustrates how to do the physical
connection of the switch.
Appendix A Troubleshooting.
Appendix B Specifications.
Audience
This Installation Guide is for:
Network Engineer Network Administrator
Conventions
■The figures in Chapter 2 to Chapter 4 are for demonstration purposes only.
Your switch may differ in appearance from that depicted.
■This guide uses the specific formats to highlight special messages. The
following table lists the notice icons that are used throughout this guide.
Remind to be careful. A caution indicates a potential which may result
in device damage.
Remind to take notice. The note contains the helpful information for a
better use of the product.

Contents
Chapter 1 Introduction ——————————— 01
1.1 Product Overview ...........................................................01
1.2 Appearance.......................................................................01
Chapter 2 Installation ——————————— 05
2.1 Package Contents ..........................................................05
2.2 Safety Precautions.........................................................05
2.3 Installation Tools..............................................................07
2.4 Product Installation ........................................................08
Chapter 3 Lightning Protection ——————— 10
3.1 Cabling Reasonably........................................................10
3.2 Connect to Ground.........................................................12
3.3 Equipotential Bonding...................................................13
3.4 Use Lightning Arrester..................................................14
Chapter 4 Connection ——————————— 16
4.1 Ethernet Port ....................................................................16
4.2 Verify Installation.............................................................16
4.3 Power On............................................................................16
4.4 Initialization........................................................................17
Appendix A Troubleshooting ———————— 18
Appendix B Specications ————————— 19

01
Smart PoE+ Switch
Introduction
Chapter 1 Introduction
1.1 Product Overview
T1500G-10MPS is compliant with the IEEE802.3 Ethernet protocols.
The switch is equipped with powerful management interface, via which system, port,
network, VLAN and priority can be configured. They provide a variety of service
features and multiple powerful functions with high security. The EIA-standardized
framework and smart configuration capacity can provide flexible solutions for a
variable scale of networks. QoS and IGMP snooping/filtering optimize voice and
video application. SNMP, RMON, WEB Log-in bring abundant management policies.
T1500G-10MPS integrates multiple functions with excellent performance, and are
friendly to manage, which can fully meet the need of the users demanding higher
networking performance.
T1500G-10MPS Smart PoE+ Switch is also a Power Sourcing Equipment (PSE*).
All the fast Ethernet RJ45 ports on the switch support Power over Ethernet (PoE*)
function, which can automatically detect and supply power with those powered
devices (PDs*) complying with IEEE 802.3af and IEEE 802.3at.
*PSE: a device (switch or hub for instance) that provides power through an Ethernet
cable.
*PoE: This technology describes a system to transmit electrical power, along with
data, to remote devices over standard twisted-pair cable in an Ethernet.
*PD: a device powered by a PSE and thus consumes energy. Examples include
powering network cameras, wireless LAN access points, IP telephones, network
hubs, embedded computers etc.
1.2 Appearance
■Front Panel
The front panel of T1500G-10MPS is shown as the following figure.
Reset
LEDs
10/100/1000Mbps RJ45 Port and PoE Port
LED Mode Switch Button
SFP Port
Figure 1-1 Front Panel of T1500G-10MPS

02
Smart PoE+ Switch
Introduction
LEDs
T150 0 G-10 MPS has an LED mode switch button which is for switching the LED
status indication. When the Speed LED is on, the port LED is indicating the data
transmission status. When the PoE LED is on, the port LED is indicating the power
supply status. By default, the Speed LED is on. Pressing the mode switch button,
the Speed LED will turn o and the PoE LED will light up. Then the PoE LED will turn
o after being on for 60 seconds and the Speed LED will light up again.
When the Speed LED is on, the port LED is indicating the data transmission status.
LED Status Indication
PWR
On The switch is powered on
Off The switch is powered off or power supply is
abnormal
Flashing Power supply is abnormal
SYS Flashing The switch works properly
On/Off The switch works improperly
FAN Green All the fans work properly
Yellow Not all the fans work properly
PoE MAX
On The remaining PoE power≤7W
Flashing The remaining PoE power keeps ≤7W after
this LED is on for 2 minutes
Off The remaining PoE power>7W
Speed or PoE
Green On A 1000Mbps device is connected to the cor-
responding port, but no activity
Flashing Data is being transmitted or received
Yellow On A 10/100Mbps device is connected to the cor-
responding port, but no activity
Flashing Data is being transmitted or received
Off No device is connected to the correspond-
ing port
SFP1, SFP2
Green On A 1000Mbps device is connected to the
corresponding port, but no activity
Flashing Data is being transmitted or received
Yellow On A 10/100Mbps device is connected to the
corresponding port, but no activity
Flashing Data is being transmitted or received
Off No device is connected to the correspond-
ing port

03
Smart PoE+ Switch
Introduction
When the PoE LED is on, the port LED is indicating the power supply status.
LED Status Indication
PWR
On The switch is powered on
Off The switch is powered off or power supply is
abnormal
Flashing Power supply is abnormal
SYS Flashing The switch works properly
On/Off The switch works improperly
FAN Green All the fans work properly
Yellow Not all the fans work properly
PoE MAX
On The remaining PoE power≤7W
Flashing The remaining PoE power keeps ≤7W after
this LED is on for 2 minutes
Off The remaining PoE power>7W
Speed or PoE
Green
On The port is supplying power normally
Flashing The supply power exceeds the corresponding
port's maximum power
Yellow On Overload or short circuit is detected
Flashing Power-on self-test has failed
Off No PoE power supply is provided on the port
SFP1, SFP2
Green On A 1000Mbps device is connected to the
corresponding port, but no activity
Flashing Data is being transmitted or received
Yellow On A 10/100Mbps device is connected to the
corresponding port, but no activity
Flashing Data is being transmitted or received
Off No device is connected to the correspond-
ing port
Reset
With the switch powered on, press Reset button for 5 seconds to reset the software
setting to its factory default settings.
10/100/1000Mbps RJ45 Port and PoE Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding Speed or PoE LED.
SFP Port
Designed to install the SFP module. T1500 G -10 MPS features 2 SFP transceiver
ports.

04
Smart PoE+ Switch
Introduction
■Rear Panel
The rear panel of T1500G-10MPS is shown as the following figure.
Kensington Security Slot
Power Socket
Grounding Terminal
Figure 1-2 Rear Panel of T1500G-10MPS
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from
being stolen.
Power Socket
Connect the female connector of the power cord here, and the male connector
to the AC (Alternating Current) power outlet. Please make sure the voltage of the
power supply meets the requirement of the input voltage.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also
ground the switch through the PE (Protecting Earth) cable of AC cord or with
Ground Cable. For detailed information, please refer to Chapter 3 Lightning
Protection.
Caution: Please use the provided power cord.

05
Smart PoE+ Switch
Installation
Chapter 2 Installation

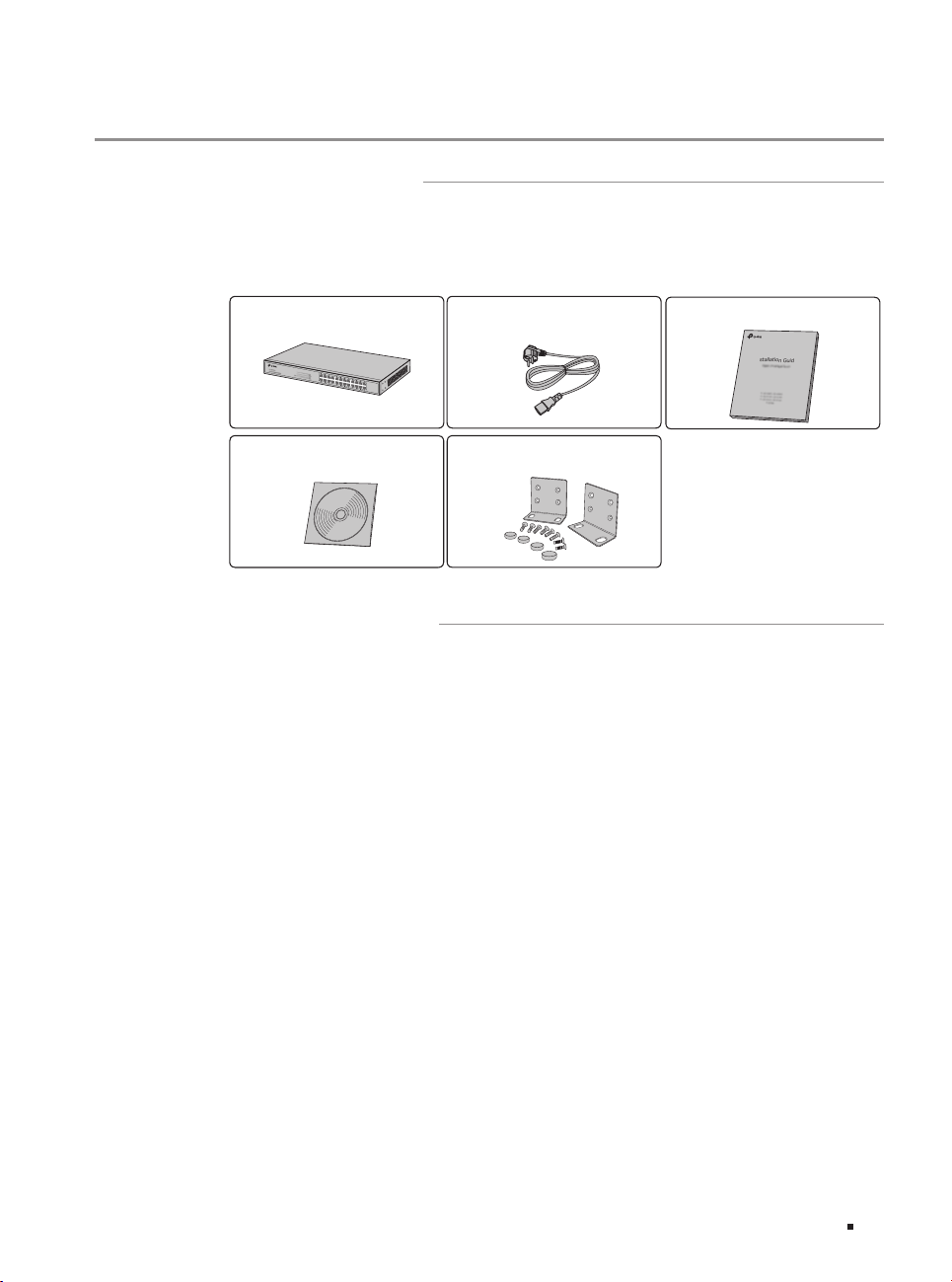

2.1 Package Contents
Make sure that the package contains the following items. If any of the listed items is
damaged or missing, please contact your distributor.
One Power Cord
One Switch This Installation Guide
Installation Guide
BusinessNetworking Solution
Two mounting brackets and
the ttings
2.2 Safety Precautions
To avoid any device damage and bodily injury caused by improper use, please ob-
serve the following rules.
■Safety Precautions
■Keep the power off during the installation.
■Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a
good skin contact and is well grounded.
■Use only the power cord provided with the switch.
■Make sure that the supply voltage matches the specifications indicated on the
rear panel of the switch.
■Ensure the vent hole is well ventilated and unblocked.
■Do not open or remove the cover of the switch.
■Before cleaning the device, cut off the power supply. Do not clean it by the water-
ish cloth, and never use any other liquid cleaning method.
One Resource CD

06
Smart PoE+ Switch
Installation
■Site Requirements
To ensure normal operation and long service life of the device, please install it in an
environment that meets the requirements described in the following subsection.
Temperature/Humidity
40℃
0℃
Please keep a proper temperature and humidity in the equipment room. Too high/
low humidity may lead to bad insulation, electricity leakage, mechanical property
changes and corrosions. Too high temperature may accelerate aging of the insula-
tion materials and can thus significantly shorten the service life of the device. For
normal temperature and humidity of the device, please check the following table.
Environment Temperature Humidity
Operating 0℃~ 40℃10% ~ 90%RH Non-condensing
Storage -40℃~ 70℃5% ~ 90%RH Non-condensing
Clearness
The dust accumulated on the switch can be absorbed by static electricity and re-
sult in poor contact of metal contact points. Some measures have been taken for
the device to prevent static electricity, but too strong static electricity can cause
deadly damage to the electronic elements on the internal circuit board. To avoid the
effect of static electricity on the operation of the Switch, please attach much im-
portance to the following items:
■Dust the device regularly, and keep the indoor air clean.
■Keep the device well grounded and ensure static electricity has been trans-
ferred.
Electromagnetic Interference
Electronic elements including capacitance and inductance on the device can be
affected by external interferences, such as conducted emission by capacitance
coupling, inductance coupling, and impedance coupling. To decrease the interfer-
ences, please make sure to take the following measures:
■Use the power supply that can effectively filter interference from the power grid.

07
Smart PoE+ Switch
Installation
■Keep the device far from high-frequency, strong-current devices, such as radio
transmitting station.
■Use electromagnetic shielding when necessary.
Lightening Protection
Extremely high voltage currents can be produced instantly when lightning occurs and the
air in the electric discharge path can be instantly heated up to 20,000℃. As this instant cur-
rent is strong enough to damage electronic devices, more effective lightning protection
measures should be taken.
■Ensure the rack and device are well earthed.
■Make sure the power socket has a good contact with the ground.
■Keep a reasonable cabling system and avoid induced lightning.
■Use the signal SPD (Surge Protective Device) when wiring outdoor.
Note: For detailed lightning protection measures, please refer to Chapter 3
Lightning Protection.
Installation Site
When installing the device on a rack or a flat workbench, please note the following
items:
■The rack or workbench is flat and stable, and sturdy enough to support the
weight of 5.5kg at least.
■The rack or workbench has a good ventilation system. The equipment room is
well ventilated.
■The rack is well grounded. Keep the power socket less than 1.5 meters away from
the device.
2.3 Installation Tools
■Phillips screwdriver
■ESD-preventive wrist wrap
■Cables

08
Smart PoE+ Switch
Installation
Note: These tools are not provided with our product. If needed, please self
purchase them.
2.4 Product Installation
■Desktop Installation
To install the device on the desktop, please follow the steps:
1. Set the device on a flat surface strong enough to support the entire weight of the
device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on
the bottom at each corner of the device.
Feet
Bottom of the Device
Notch
Figure 2-1 Desktop Installation
■Rack Installation
To install the device in an EIA standard-sized, 19-inch rack, follow the instructions
described below:
1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with
supplied screws, as illustrated in the following figure.
Rack-mounting Bracket
Screw
Figure 2-2 Bracket Installation

09
Smart PoE+ Switch
Installation
3. After the brackets are attached to the device, use suitable screws (not provided)
to secure the brackets to the rack, as illustrated in the following figure.
Rack
Figure 2-3 Rack Installation
Caution:
■Please set 5~10cm gaps around the device for air circulation.
■Please avoid any heavy thing placed on the device.
■Please mount devices in sequence from the bottom to top of the rack and ensure
a certain clearance between devices for the purpose of heat dissipation.

10
Smart PoE+ Switch
Lightning Protection
Chapter 3 Lightning Protection
3.1 Cabling Reasonably
In the actual network environment, you may need cable outdoors and indoors, and
the requirements for cabling outdoors and indoors are different. A reasonable ca-
bling system can decrease the damage of induced lightning to devices.
Note: It's not recommended using Ethernet cables outdoors. When cabling
outdoors, please use a signal lightning arrester.
■Requirements for Cabling Outdoors
■Aerial cabling without safeguard is not allowed.
■It’s not allowed cabling down the building to connect network devices in different
floors.
■Outdoor cables should be buried and paved to the indoor through basement. A
piece of steel wire should be paved underground along the pipe and connected
to the lightning protection terminal of the building for shielding. Before connect-
ing the cable to the device, install a signal lightning arrester on the correspond-
ing port.
■When an aerial cable is set up, the cable should be through a metal pipe (15m
long at least) before coming into the building. The two ends of this metal pipe
should be grounded. Before connecting the cable to the device, install a signal
lightning arrester on the corresponding port.
■It’s not necessary to pave STP cables through pipes. The shielded layer of STP
cable should be well grounded. Before connecting the cable to the device, install
a signal lightning arrester on the corresponding port.

11
Smart PoE+ Switch
Lightning Protection
■Requirements for Cabling Indoors
When cabling indoors, keep a certain distance away from the devices that may
cause high-frequency interferences, such as down-conductor cable, powerline,
power transformer and electromotor.
■The main cable should be paved in the metal raceway of the access shaft. When
cabling, keep the loop area formed by the cable itself as small as possible.
■Requirements for the distance between Ethernet cable and other pipelines are
shown in the table.
Other Pipelines
Ethernet Cable
Min Parallel Net Length
L (mm)
Min Parallel-overlapping
Net Height H (mm)
Down-conductor 1000 300
PE 50 20
Service pipe 150 20
Compressed air pipe 150 20
Thermal pipe (not wrapped) 500 500
Thermal pipe (wrapped) 300 300
Gas pipe 300 20
The two diagrams below demonstrate parallel net length and parallel-overlapping
net height.
Note: The above minimum net length/height is required when metal raceway is not
used. If any requirements cannot be met, you can add a steel tube or metal raceway
for shielding.
■Requirements for the distance between Ethernet cable and high-power electric
devices are in following tables.
Cable Pave Way Min Parallel
Length (mm)
<2kVA
power-
line
Parallel cabling 130
One is in the grounded metal raceway or metal pipe 70
The both are in the grounded metal raceway or metal
pipe 10

12
Smart PoE+ Switch
Lightning Protection
Cable Pave Way Min Parallel
Length (mm)
2~5kVA
power-
line
Parallel cabling 300
One is in the grounded metal raceway or metal pipe 150
The both are in the grounded metal raceway or metal
pipe 80
>5kVA
power-
line
Parallel cabling 600
One is in the grounded metal raceway or metal pipe 300
The both are in the grounded metal raceway or metal
pipe 150
Device Min Distance (m)
Switch case 1.00
Transformer room 2.00
Elevator tower 2.00
Air-conditioner room 2.00
3.2 Connect to Ground
Connecting the device to ground is to quickly release the lightning over-voltage and
over-current of the device, which is also a necessary measure to protect the body
from electric shock.
In different environments, the device may be grounded differently. The following
will instruct you to connect the device to the ground in two ways, connecting to the
grounding bar or connecting to the ground via the power cord. Please connect the
device to ground in the optimum way according to your specific operation environ-
ment.
■Connecting to the Grounding Bar
If the device is installed in the Equipment Room, where a grounding bar is available,
you are recommended to connect the device to the grounding bar as shown in the
following figure.
Switch (Rear Panel)
Ground Cable
Grounding Terminal
Grounding Bar
Figure 3-1 Connecting to the Grounding Bar

13
Smart PoE+ Switch
Lightning Protection
Note: The grounding bar and the ground cable are not provided with our product. If
needed, please self purchase them.

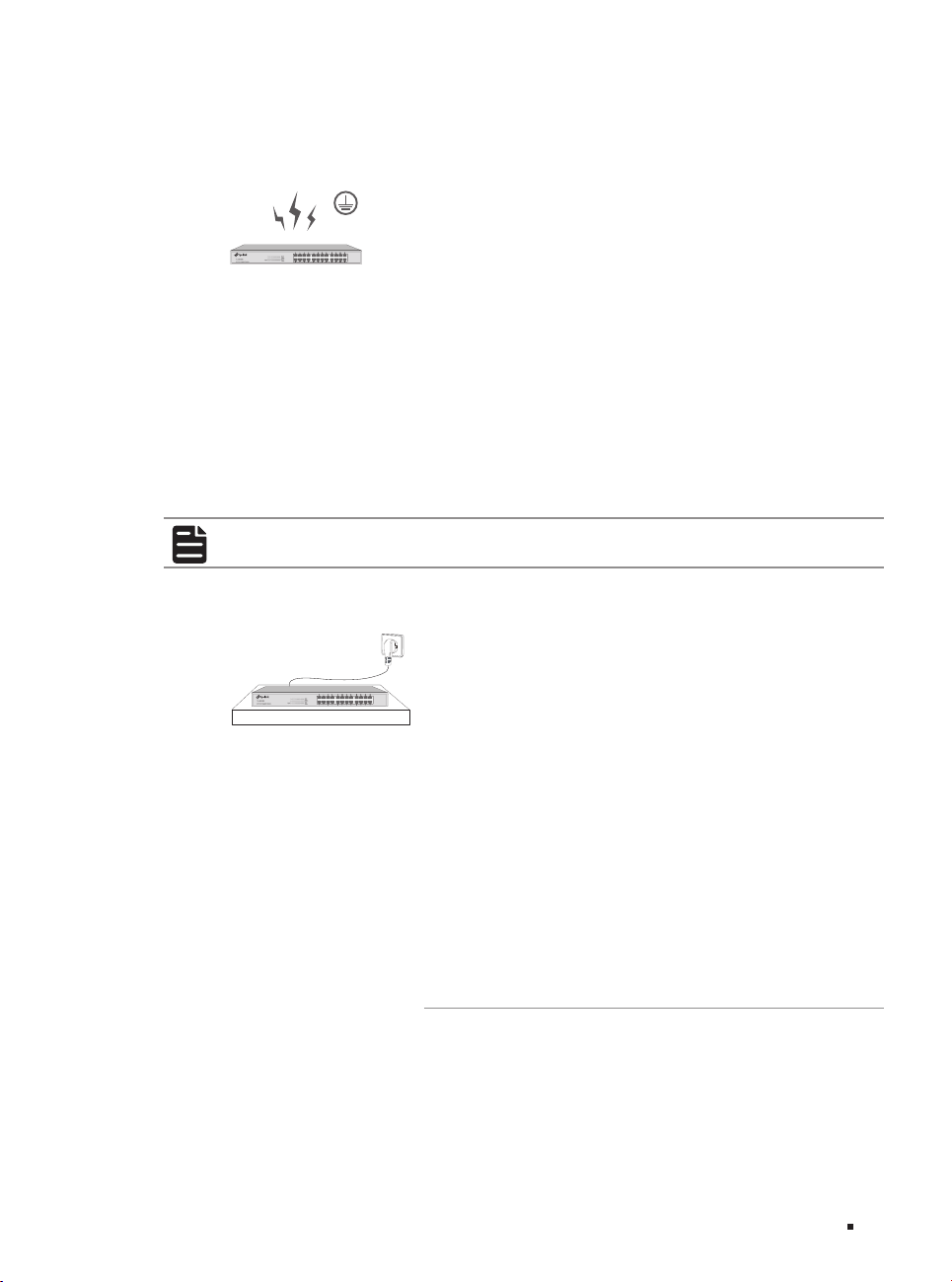

■Connecting to the Ground via the Power Supply
If the device is installed in the normal environment, the device can be grounded via
the PE (Protecting Earth) cable of the AC power supply as shown in the following fig-
ure.
Figure 3-2 Connecting to the Ground
Note:
■The figure is to illustrate the application and principle. The power plug you get
from the package and the socket in your situation will comply with the regulation
in your country, so they may differ from the figure above.
■If you intend to connect the device to the ground via the PE (Protecting Earth)
cable of AC power cord, please make sure the PE (Protecting Earth) cable in the
electrical outlet is well grounded in advance.

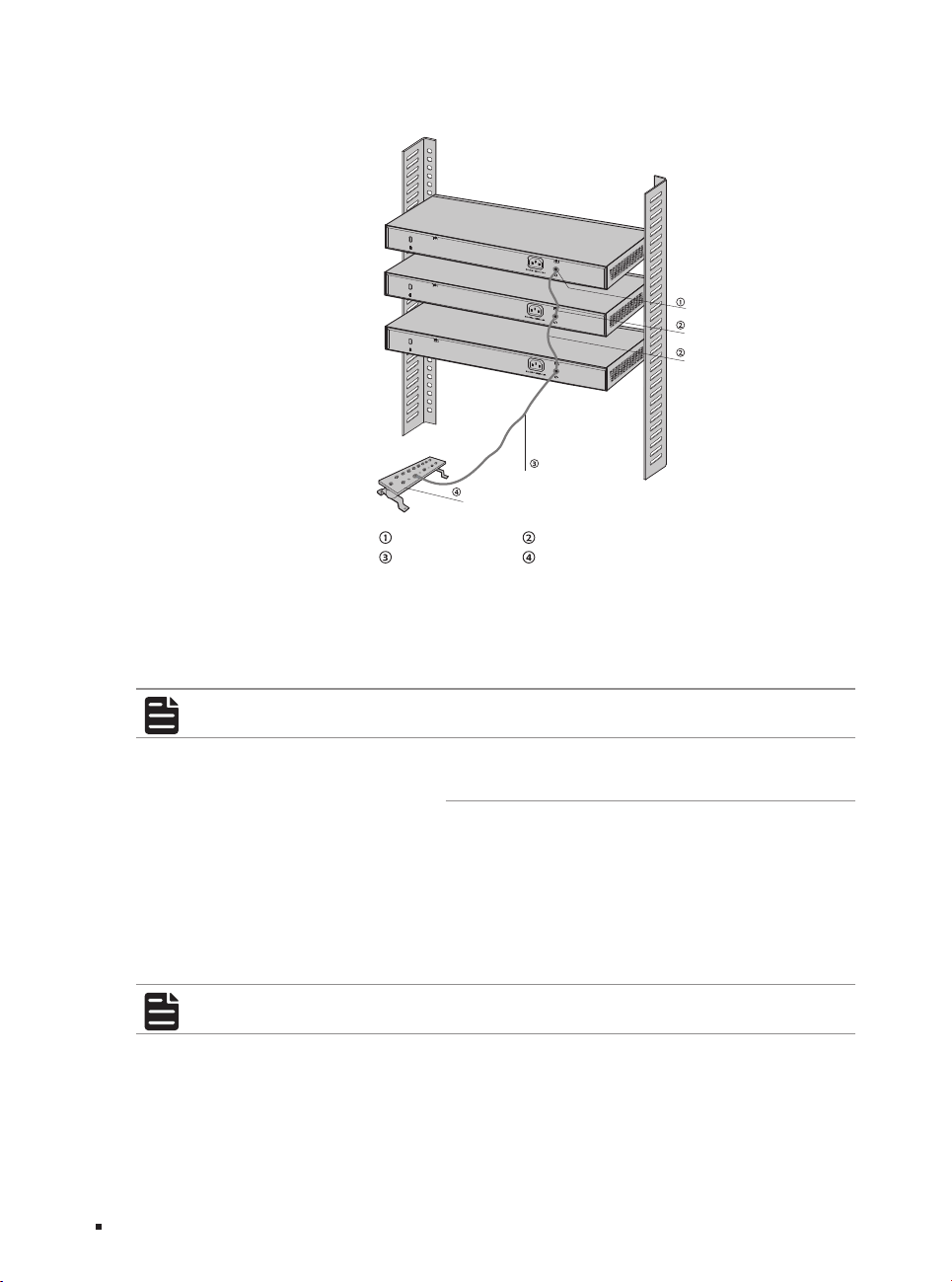

3.3 Equipotential Bonding
Equipotential Bonding is the practice of intentionally electrically connecting all
earthed systems to the same grounding grid or connecting the grounding grids of
all the earthed systems together through the ground or overground metal so as to
create an earthed equipotential zone. When lightning occurs, the high voltage pro-
duced by lightning current in all systems will meanwhile exist in their ground cables,
and thus all ground cables have the same electrical potential and basically eliminate
the electric strikes between the systems.

14
Smart PoE+ Switch
Lightning Protection
The figure below illustrates how to practice equipotential bonding in a network.
Grounding Terminal Equipotential Bonding Cable
Grounding Bar
Ground Cable
Figure 3-3 Equipotential Bonding
When equipotential bonding, please note that the cable should be copper wrapped
Kelly with its area being 6mm2at least. The shorter cable the better, and use a
grounding bar to establish an equipotential bonding point.
Note: The equipotential bonding cable and ground cable are not provided with our
product. If needed, please self purchase it.
3.4 Use Lightning Arrester
Power lightning arrester and signal lightning arrester are used for lighting protec-
tion.
Power lightning arrester is used for limiting the voltage surge due to a lightning. If
an outdoor AC power cord should be directly connected to the device, please use a
power lightning arrester.
Note: Power lightning arrester is not provided with our product. If needed, please
self purchase it.
Signal lightning arrester is used to protect RJ45 ports of the device from lightning.
When cabling outdoors, please install a signal lightning arrester before connecting
the cable to the device.
