TP-Link TL-SG2424P User manual


Installation Guide
Gigabit Smart Switch
TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452
Enterprise Networking Solution

I

Specifications are subject to change without notice. is a registered trademark
of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their
respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
http://www.tp-link.com

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference.1)
This device must accept any interference received, including interference that may cause2)
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.

This is a Class A product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
Copyright & Trademarks

II

The User Guide and CLI Reference Guide (CLI Reference Guide is not available for
TL-SG2452) of the product are provided on the resource CD. To obtain the latest
product information, please visit the official website: http://www.tp-link.com

This Installation Guide describes the hardware characteristics, installation methods
and the points that should be attended to during installation. This Installation
Guide is structured as follows:
Chapter 1 Introduction. This chapter describes the external components of
the Switch.
Chapter 2 Installation. This chapter illustrates how to install the Switch.
Chapter 3 Lightning Protection. This chapter illustrates how to prevent
lightning damage.
Chapter 4 Connection. This chapter illustrates how to do the physical connec-
tion of the Switch.
Chapter 5 Configuration. This chapter instructs you to configure the Switch via
Web Interface and CLI commands.
Appendix A Troubleshooting.
Appendix B Hardware Specifications.
Appendix C Technical Support.

This Installation Guide is for:
Network Engineer Network Administrator

Due to the similarity in structure of the Gigabit Smart Switch series, in this
Installation Guide we take TL-SG2216 as an example to illustrate Chapter 2
Installation, Chapter 3 Lightning Protection, Chapter 4 Connection and Chapter 5
Configuration.
This Guide uses the specific formats to highlight special messages. The following
table lists the notice icons that are used throughout this guide.
Remind to be careful. A caution indicates a potential which may result in device
damage.
Remind to take notice. The note contains the helpful information for a better
use of the product.
Related Document

III Contents

Chapter 1 Introduction ———————————— 01
1.1 Product Overview.....................................01
1.2 Appearance................................................... 01
Chapter 2 Installation ———————————— 07
2.1 Package Contents.....................................07
2.2 Safety Precautions....................................07
2.3 Installation Tools......................................09
2.4 Product Installation ..................................10
Chapter 3 Lightning Protection ———————— 12
3.1 Cabling Reasonably ..................................12
3.2 Connect to Ground ...................................14
3.3 Equipotential Bonding...............................15
3.4 Use Lightning Arrester ..............................16
Chapter 4 Connection ———————————— 18
4.1 Ethernet Port ...........................................18
4.2 SFP Port ..................................................18
4.3 Verify Installation .....................................19
4.4 Power On ................................................19
4.5 Initialization.............................................19
Chapter 5 Conguration ——————————— 20
5.1 Congure the Switch via GUI ....................20
5.2 Congure the Switch Using CLI .................21
Appendix A Troubleshooting—————————— 23
Appendix B Hardware Specications —————— 24
Appendix C Technical Support ————————— 25

01
Gigabit Smart Switch
Introduction


TP-LINK Gigabit Smart Switch, designed for workgroups and departments, provides
wire-speed performance and abundant layer 2 management features. It provides a
variety of service features and multiple powerful functions with high security.
The EIA-standardized framework and smart configuration capacity can provide flexible
solutions for a variable scale of networks. QoS and IGMP snooping/filtering optimize
voice and video application. Link aggregation increases aggregated bandwidth,
optimizing the transport of business critical data. SNMP, RMON, WEB/Telnet Log-in
bring abundant management policies (TL-SG2452 doesn't support the Telnet function).
TP-LINK Gigabit Smart Switch integrates multiple functions with excellent performance,
and is friendly to manage, which can fully meet the need of the users demanding
higher networking performance.
TL-SG2424P Smart PoE Switch is also a Power Sourcing Equipment (PSE*). All the Auto-
Negotiation RJ45 ports on the switch support Power over Ethernet (PoE*) function,
which can automatically detect and supply power with those powered devices (PDs*)
complying with IEEE 802.3af and IEEE 802.3at.
*PSE: a device (switch or hub for instance) that will provide power in a PoE setup.
*PoE: This technology describes a system to transmit electrical power, along with data,
to remote devices over standard twisted-pair cable in an Ethernet.
*PD: a device powered by a PSE and thus consumes energy. Examples include
powering IP telephones, wireless LAN access points, network cameras, network hubs,
embedded computers etc.


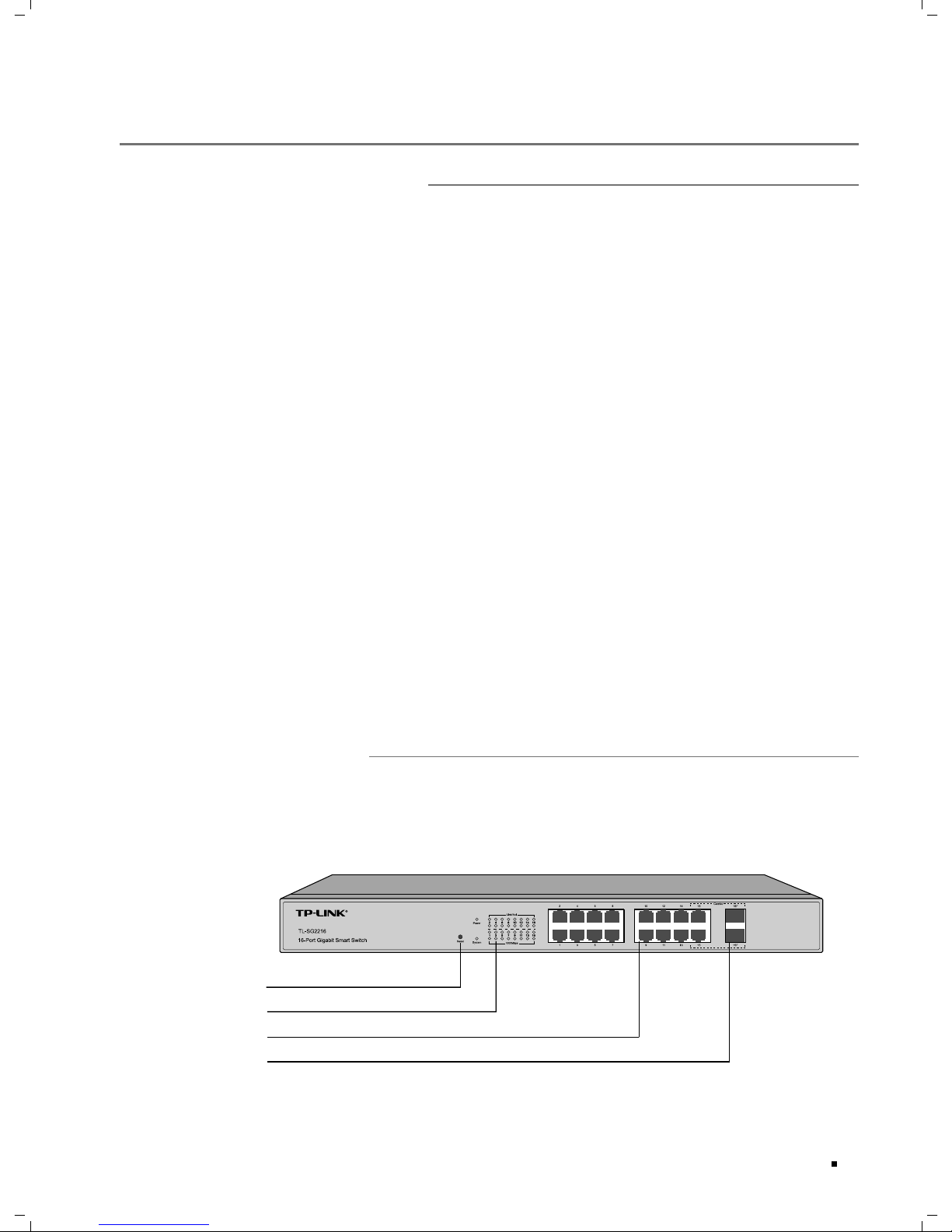

Front Panel

The front panel of TL-SG2216 is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
SFP Port
Reset
Front Panel of TL-SG2216Figure 1-1

02
Gigabit Smart Switch
The front panel of TL-SG2424 is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
SFP Port
Reset
Front Panel of TL-SG2424Figure 1-2
Reset
Press this button for five seconds or above to reset the software setting back to
factory default settings.
LEDs
LED Status Indication
Power On The Switch is powered on
Off The Switch is powered off or power supply is abnormal
System
On The Switch is working abnormally
Flashing The Switch is working normally
Off The Switch is working abnormally
Link/Act
On There is a device linked to the corresponding port but no
activity
Flashing The corresponding port is transmitting or receiving data
Off There is no device linked to the corresponding port
1000Mbps
On A 1000Mbps device is connected to the corresponding port
Off A 10/100Mbps device or no device is connected to the
corresponding port
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding Link/Act LED and a 1000Mbps LED.
SFP Port
Designed to install the SFP module. TL-SG2216/TL-SG2424 Switch features 2/4 SFP
transceiver slots that are shared with the associated RJ45 ports. The associated
two ports are referred as a “Combo”port, which means they cannot be used
simultaneously, otherwise only SFP port works.
Introduction

03
Gigabit Smart Switch
Introduction

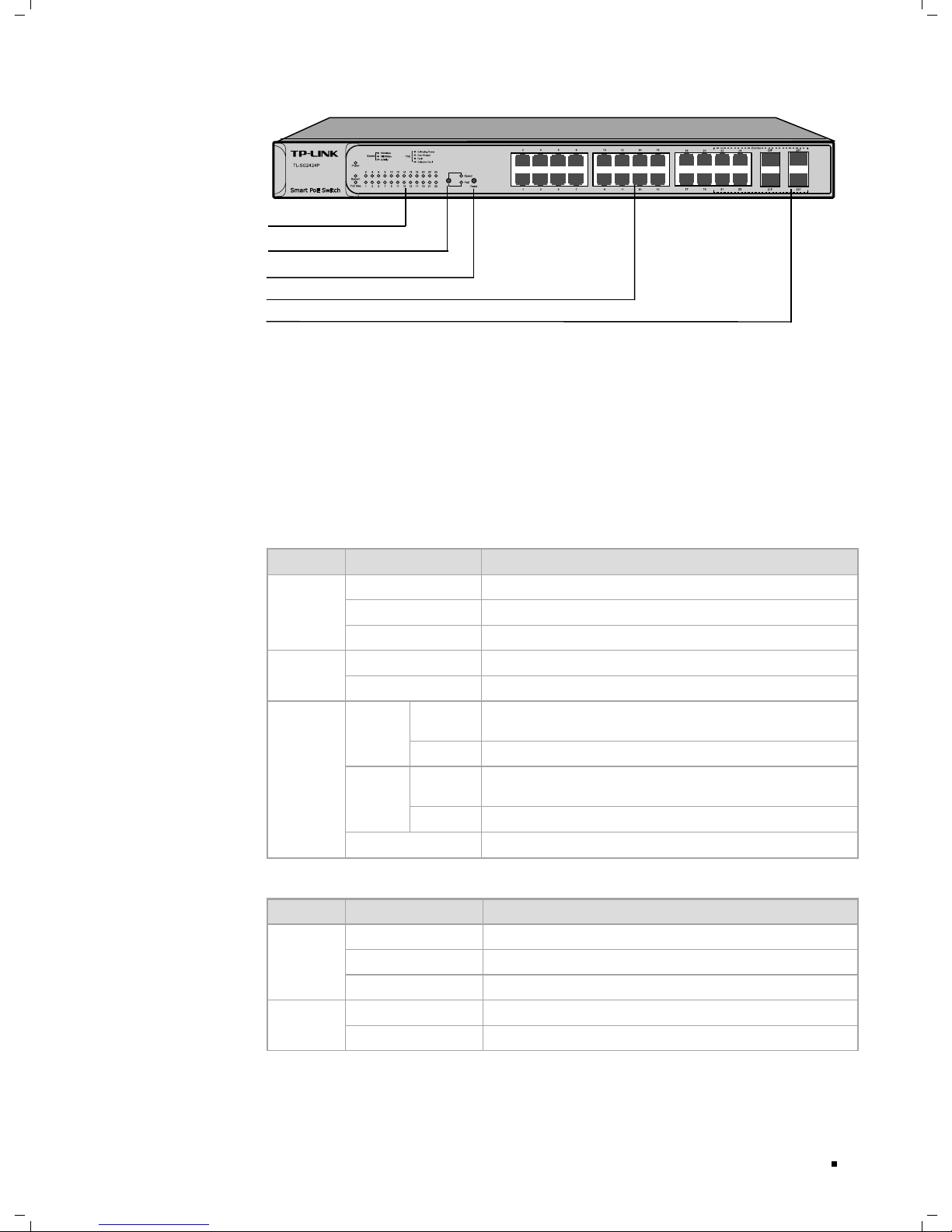

The front panel of TL-SG2424P is shown as the following figure.
Reset
LEDs
10/100/1000Mbps RJ45 Port
SFP Port
LED Mode Switch Button
Front Panel of TL-SG2424PFigure 1-3
LEDs
TL-SG2424P has an LED mode switch button which is for switching the LED
status indication. When the Speed LED is on, the port LED is indicating the data
transmission rate. When the PoE LED is on, the port LED is indicating the power
supply status. By default the Speed LED is on. Pressing the mode switch button, the
Speed LED will turn off and the PoE LED will light up. Then the PoE LED will turn off
after being on for 60 seconds and the Speed LED will light up again.
When the Speed LED is on, the port LED is indicating the data transmission rate.
LED Status Indication
Power
On The Switch is powered on
Off The Switch is powered off or power supply is abnormal
Flashing Power supply is abnormal
System Flashing The Switch works properly
On/Off The Switch works improperly
10/100/
1000Mbps
Green On A 1000Mbps device is connected to the corresponding
port, but no activity
Flashing Data is being transmitted or received
Yellow On A 10/100Mbps device is connected to the corresponding
port, but no activity
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port
When the PoE LED is on, the port LED is indicating the power supply status.
LED Status Indication
Power
On The Switch is powered on
Off The Switch is powered off or power supply is abnormal
Flashing Power supply is abnormal
System Flashing The Switch works properly
On/Off The Switch works improperly

04
Gigabit Smart Switch
Introduction
LED Status Indication
PoE Max
On The remaining PoE power≤7W
Flashing The remaining PoE power keeps ≤7W after this LED is
on for 2 minutes
Off The remaining PoE power≥
7W
10/100/
1000Mbps
Green
On The port is supplying power normally
Flashing The supply power exceeds the correponding port's
maximum power
Yellow On Overload or short circuit is detected
Flashing Power-on self-test has failed
Off No PoE power supply is provided on the port
LED Mode Switch Button
Press this button to switch the LED status indication between Speed and PoE.
Reset
Press this button for five seconds or above to reset the software setting back to
factory default settings.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding 1000Mbps LED.
SFP Port
Designed to install the SFP module. TL-SG2424P Switch features 4 SFP transceiver
slots that are shared with the associated RJ45 ports. The associated two ports are
referred as a “Combo”port, which means they cannot be used simultaneously,
otherwise only SFP port works.
The front panel of TL-SG2452 is shown as the following figure.
SFP Port
Reset
10/100/1000Mbps RJ45 Port
49
30 32 34 36 38 40 42 44 46 48
246810 12 14 16 18 20 22 24 26 28 29 31 33 35 37 39 41 43 45 47
25 271 3579
11 13 15 17 19 21 23 50
4
9
5
0
5
5
2
51 52
100Mbps
10Mbps
1000Mbps
10/100Mbps 1000Base-X
49
30 32 34 36 38 40 42 44 46 48
246810 12 14 16 18 20 22 24 26 28 29 31 33 35 37 39 41 43 45 47
25 271 3579
11 13 15 17 19 21 23 50 51 52
1000Mbps
10/100Mbps
1000Mbps
10/100Mbps
1000Base-X
1000Base-X
LEDs
Front Panel of TL-SG2452Figure 1-4
LEDs
LED Status Indication
PWR
On The Switch is powered on
Off The Switch is powered off or power supply is abnormal
Flashing Power supply is abnormal
SYS Flashing The Switch works properly
On/Off The Switch works improperly

05
Gigabit Smart Switch
LED Status Indication
10/100/
1000Mbps
Green On A 1000Mbps device is connected to the corresponding
port, but no activity
Flashing Data is being transmitted or received
Yellow On A 10/100Mbps device is connected to the corresponding
port, but no activity
Flashing Data is being transmitted or received
Off No device is connected to the corresponding port
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding 1000Mbps LED.
SFP Port
Designed to install the SFP module. TL-SG2452 features 4 individual SFP ports.
Reset
Press this button for five seconds or above to reset the software setting back to
factory default settings.
Port Feature
Model 10/100/1000Mbps RJ45 Port SFP Port
TL-SG2216 16 2
TL-SG2424 24 4
TL-SG2424P 24 4
TL-SG2452 48 4
Note:For TL-SG2216/TL-SG2424/TL-SG2424P, when using the SFP port with a
100M module or a gigabit module, you need to log on to the GUI (Graphical User
Interface) of the Switch and congure its corresponding Speed and Duplex mode on
Switching→Port→Port Config page. For 100M module, please select 100MFD
while select 1000MFD for gigabit module. By default, the Speed and Duplex mode of
SFP port is 1000MFD. TL-SG2452 supports 1000M SFP module connection only.
Rear Panel
The rear panel of TL-SG2216 is shown as the following figure.
Grounding Terminal
Power Socket
Rear PanelFigure 1-5 of TL-SG2216
Introduction

06
Gigabit Smart Switch

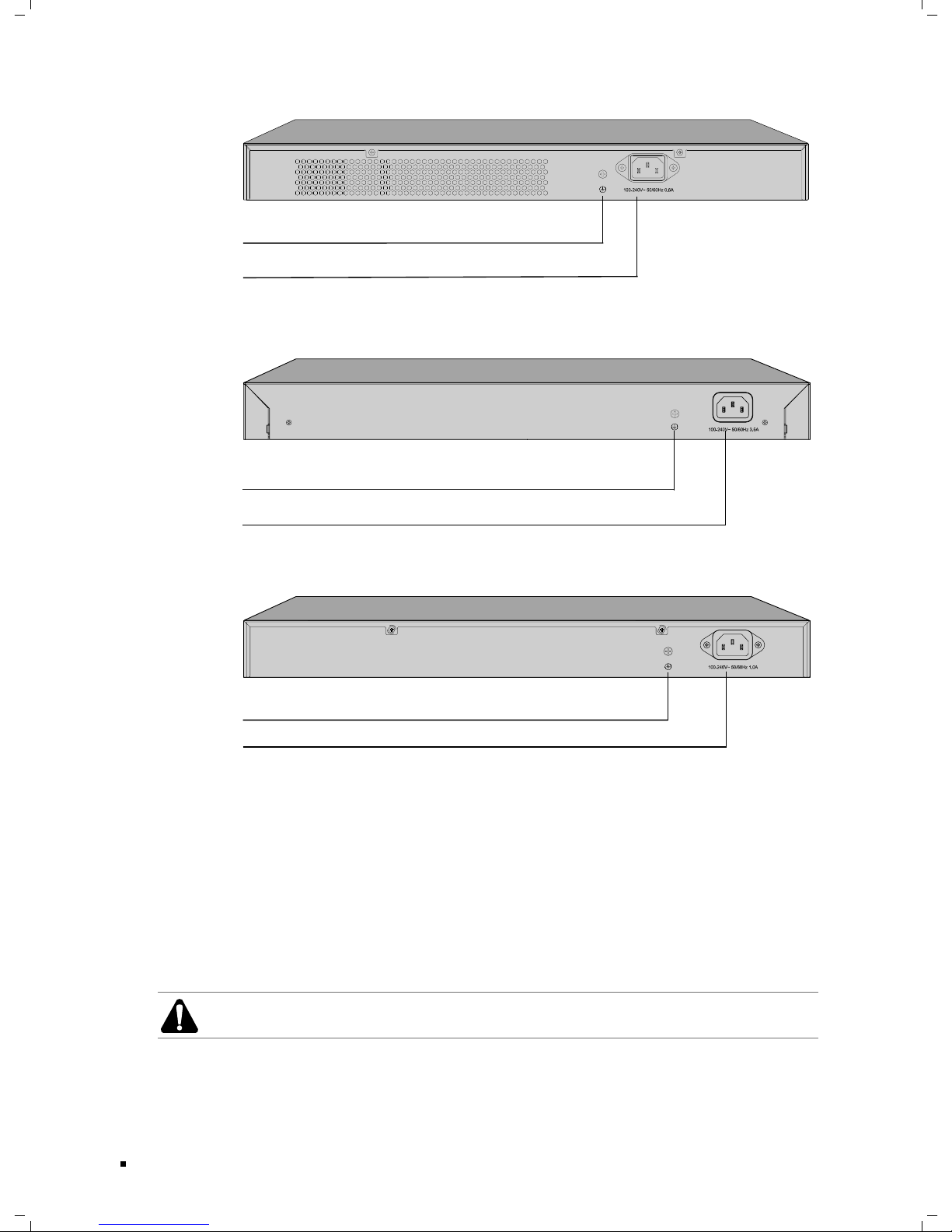

The rear panel of TL-SG2424 is shown as the following figure.
Grounding Terminal
Power Socket
Rear PanelFigure 1-6 of TL-SG2424
The rear panel of TL-SG2424P is shown as the following figure.
Grounding Terminal
Power Socket
Rear PanelFigure 1-7 of TL-SG2424P
The rear panel of TL-SG2452 is shown as the following figure.
Grounding Terminal
Power Socket
Rear Panel of TL-SG2452Figure 1-8
Grounding Terminal
The Switch already comes with lightning protection mechanism. You can also ground
the Switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
For detailed information, please refer to Chapter 3 Lightning Protection.
Power Socket
Connect the female connector of the power cord here, and the male connector to
the AC (Alternating Current) power outlet. Please make sure the voltage of the
power supply meets the requirement of the input voltage.
Caution: Please use the provided power cord.
Introduction

07
Gigabit Smart Switch


Make sure that the package contains the following items. If any of the listed items is
damaged or missing, please contact your distributor.
One Resource CD
One Switch One Power Cord This Installation Guide
Two mounting brackets and the
ttings

To avoid any device damage and bodily injury caused by improper use, please observe
the following rules.
Safety Precautions

Keep the power off during the installation.

Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good

skin contact and is well grounded.
Use only the power cord provided with the Switch.

Make sure that the supply voltage matches the specifications indicated on the rear

panel of the Switch.
Ensure the vent hole is well ventilated and unblocked.

Do not open or remove the cover of the Switch.

Before cleaning the device, cut off the power supply. Do not clean it by the waterish

cloth, and never use any other liquid cleaning method.
Installation

08
Gigabit Smart Switch
Site Requirements

Temperature/Humidity
ȭ
ȭ
Please keep a proper temperature and humidity in the equipment room. Too high/low
humidity may lead to bad insulation, electricity leakage, mechanical property changes
and corrosions. Too high temperature may accelerate aging of the insulation materials
and can thus significantly shorten the service life of the device. For normal temperature
and humidity of the device, please check the following table.
Environment Temperature Humidity
Operating 0℃~ 40℃10% ~ 90%RH Non-condensing
Storage -40℃~ 70℃5% ~ 90%RH Non-condensing
Clearness
The dust accumulated on the Switch can be absorbed by static electricity and result
in poor contact of metal contact points. Some measures have been taken for the
device to prevent static electricity, but too strong static electricity can cause deadly
damage to the electronic elements on the internal circuit board. To avoid the effect of
static electricity on the operation of the Switch, please attach much importance to the
following items:
Dust the device regularly, and keep the indoor air clean.

Keep the device well grounded and ensure static electricity has been transferred.

Electromagnetic Interference
Electronic elements including capacitance and inductance on the device can be affected
by external interferences, such as conducted emission by capacitance coupling,
inductance coupling, and impedance coupling. To decrease the interferences, please
make sure to take the following measures:
Use the power supply that can effectively filter interference from the power grid.

Keep the device far from high-frequency, strong-current devices, such as radio

transmitting station.
Use electromagnetic shielding when necessary.

Installation

09
Gigabit Smart Switch
Lightning Protection
Extremely high voltage currents can be produced instantly when lightning occurs and the air
in the electric discharge path can be instantly heated up to 20,000℃. As this instant current
is strong enough to damage electronic devices, more effective lightning protection measures
should be taken.
Ensure the rack and device are well earthed.

Make sure the power socket has a good contact with the ground.

Keep a reasonable cabling system and avoid induced lightning.

Use the signal SPD (Surge Protective Device) when wiring outdoor.

Note: For detailed lightning protection measures, please refer to Chapter 3
Lightning Protection.
Installation Site
S
When installing the device on a rack or a flat workbench, please note the following
items:
The rack or workbench is flat and stable, and sturdy enough to support the weight

of 5.5kg at least.
The rack or workbench has a good ventilation system. The equipment room is well

ventilated.
The rack is well grounded. Keep the power socket less than 1.5 meters away from

the device.

Phillips screwdriver

ESD-preventive wrist wrap

Cables

Note: These tools are not provided with our product. If needed, please self purchase
them.
Installation

10
Gigabit Smart Switch

Desktop Installation

To install the device on the desktop, please follow the steps:
Set the device on a flat surface strong enough to support the entire weight of the1.
device with all fittings.
Remove the adhesive backing papers from the rubber feet.2.
Turnover the device and attach the supplied rubber feet to the recessed areas on3.
the bottom at each corner of the device.
Feet
Bottom of the Device
Notch
Desktop InstallationFigure 2-1
Rack Installation


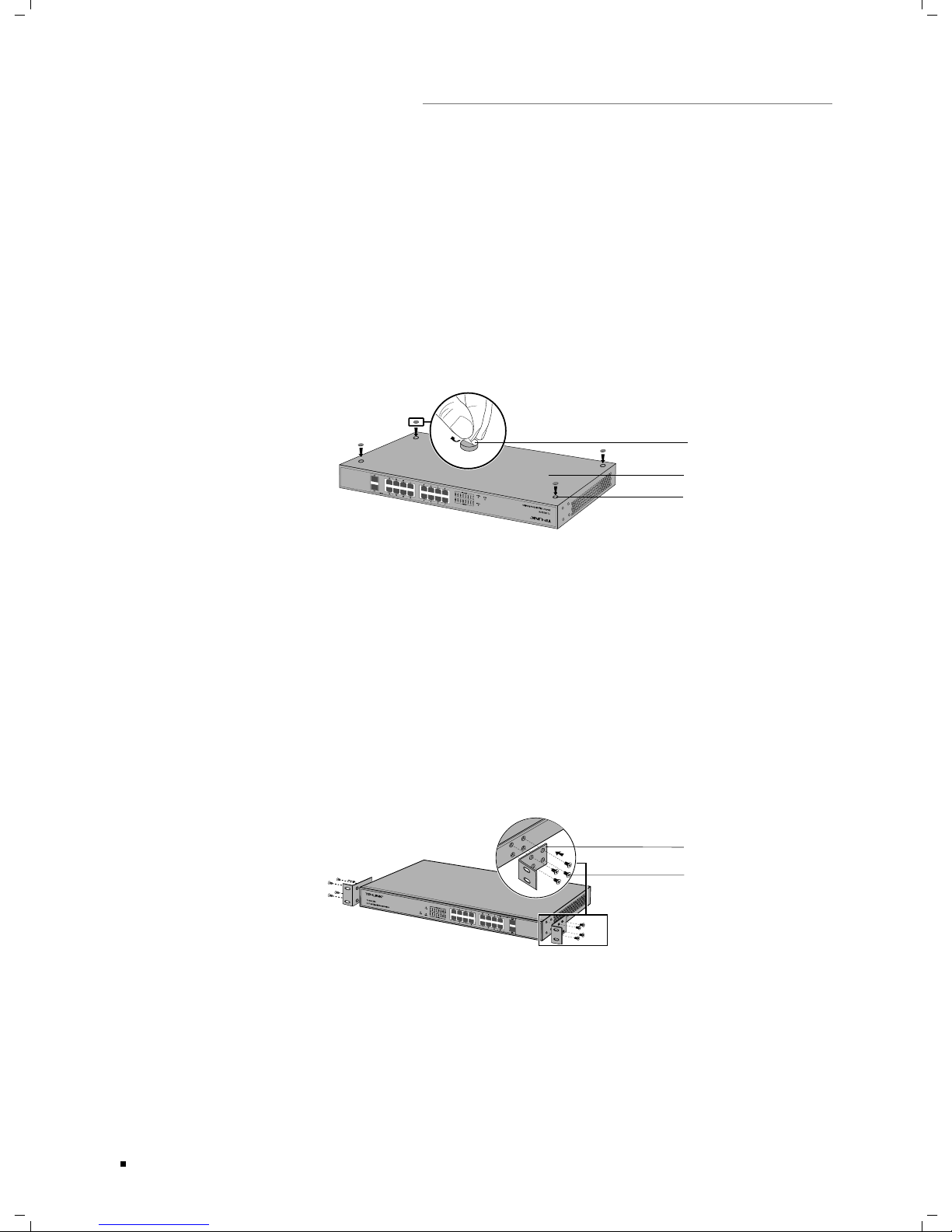

To install the device in an EIA standard-sized, 19-inch rack, follow the instructions
described below:
Check the grounding and stability of the rack.1.
Secure the supplied rack-mounting brackets to each side of the device with supplied2.
screws, as illustrated in the following figure.
Rack-mounting Bracket
Screw
Bracket InstallationFigure 2-2
After the brackets are attached to the device, use suitable screws (not provided) to3.
secure the brackets to the rack, as illustrated in the following figure.
Installation

11
Gigabit Smart Switch
Rack
Rack InstallationFigure 2-3
Caution:
Please set 5~10cm gaps around the device for air circulation.

Please avoid any heavy thing placed on the device.

Please mount devices in sequence from the bottom to top of the rack and ensure a

certain clearance between devices for the purpose of heat dissipation.
Installation

12
Gigabit Smart Switch


In the actual network environment, you may need cable outdoors and indoors, and
the requirements for cabling outdoors and indoors are different. A reasonable cabling
system can decrease the damage of induced lightning to devices.
Note: It's not recommended using Ethernet cables outdoors. When cabling outdoors,
please use a signal lightning arrester.
Requirements for Cabling Outdoors

Aerial cabling without safeguard is not allowed.

It’s not allowed cabling down the building to connect network devices in different

floors.
Outdoor cables should be buried and paved to the indoor through basement. A

piece of steel wire should be paved underground along the pipe and connected to
the lightning protection terminal of the building for shielding. Before connecting the
cable to the device, install a signal lightning arrester on the corresponding port.
When an aerial cable is set up, the cable should be through a metal pipe (15m long

at least) before coming into the building. The two ends of this metal pipe should
be grounded. Before connecting the cable to the device, install a signal lightning
arrester on the corresponding port.
It’s not necessary to pave STP cables through pipes. The shielded layer of STP cable

should be well grounded. Before connecting the cable to the device, install a signal
lightning arrester on the corresponding port.
Lightning Protection

13
Gigabit Smart Switch
Requirements for Cabling Indoors

When cabling indoors, keep a certain distance away from the devices that may cause
high-frequency interferences, such as down-conductor cable, powerline, power
transformer and electromotor.
The main cable should be paved in the metal raceway of the access shaft. When

cabling, keep the loop area formed by the cable itself as small as possible.
Requirements for the distance between Ethernet cable and other pipelines are

shown in the table.
Other Pipelines
Ethernet Cable
Min Parallel Net Length L
(mm)
Min Parallel-overlapping
Net Height H (mm)
Down-conductor 1000 300
PE 50 20
Service pipe 150 20
Compressed air pipe 150 20
Thermal pipe (not wrapped) 500 500
Thermal pipe (wrapped) 300 300
Gas pipe 300 20
The two diagrams below demonstrate parallel net length and parallel-overlapping net
height.
Note: The above minimum net length/height is required when metal raceway is not
used. If any requirements cannot be met, you can add a steel tube or metal raceway
for shielding.
Requirements for the distance between Ethernet cable and high-power electric

devices are in following tables.
Cable Pave Way Min Parallel
Length (mm)
<2kVA
powerline
Parallel cabling 130
One is in the grounded metal raceway or metal pipe 70
The both are in the grounded metal raceway or metal
pipe 10
Lightning Protection

14
Gigabit Smart Switch
Cable Pave Way Min Parallel
Length (mm)
2~5kVA
powerline
Parallel cabling 300
One is in the grounded metal raceway or metal pipe 150
The both are in the grounded metal raceway or metal
pipe 80
>5kVA
powerline
Parallel cabling 600
One is in the grounded metal raceway or metal pipe 300
The both are in the grounded metal raceway or metal
pipe 150
Device Min Distance (m)
Switch case 1.00
Transformer room 2.00
Elevator tower 2.00
Air-conditioner room 2.00

Connecting the device to ground is to quickly release the lightning over-voltage and
over-current of the device, which is also a necessary measure to protect the body from
electric shock.
In different environments, the device may be grounded differently. The following
will instruct you to connect the device to the ground in two ways, connecting to the
grounding bar or connecting to the ground via the power cord. Please connect the
device to ground in the optimum way according to your specific operation environment.

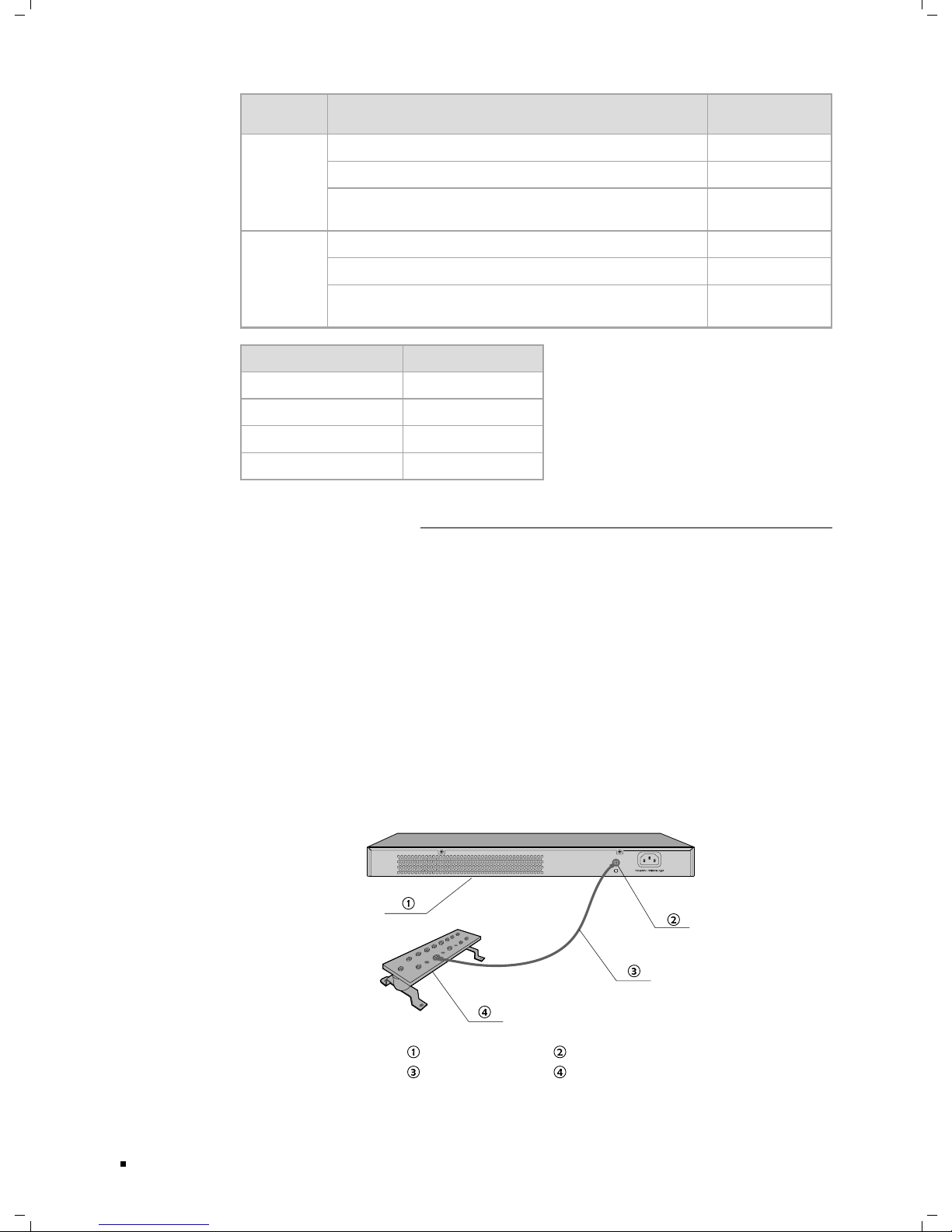

Connecting to the Grounding Bar

If the device is installed in the Equipment Room, where a grounding bar is available,
you are recommended to connect the device to the grounding bar as shown in the
following figure.
Switch (Rear Panel)
Ground Cable
Grounding T e rminal
Grounding Bar
Connecting to the Grounding BarFigure 3-1
Lightning Protection

15
Gigabit Smart Switch
Note: The grounding bar and the ground cable are not provided with our product. If
needed, please self purchase them.

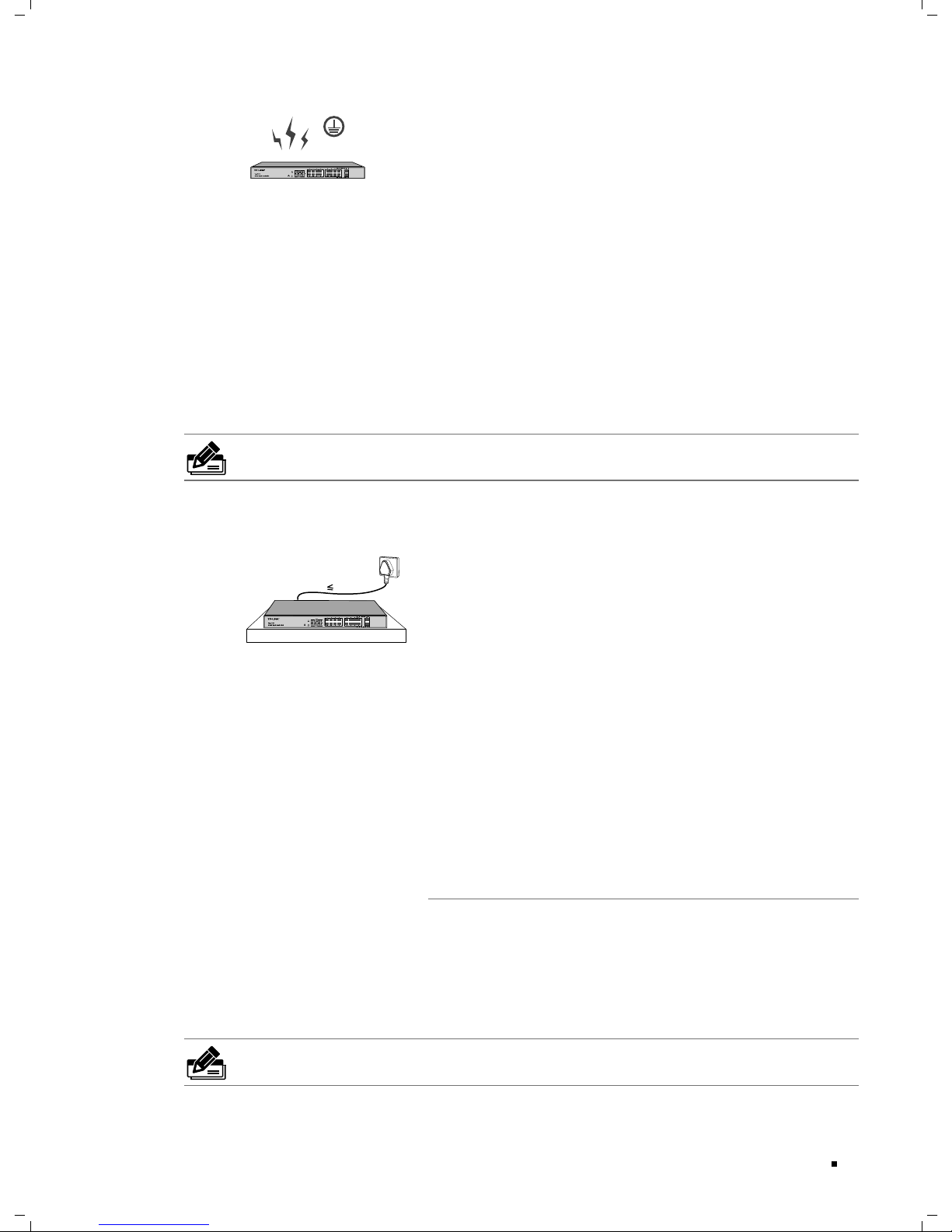

Connecting to the Ground via the Power Supply

If the device is installed in the normal environment, the device can be grounded via the
PE (Protecting Earth) cable of the AC power supply as shown in the following figure.
Connecting to the GroundFigure 3-2
Note:
The figure is to illustrate the application and principle. The power plug you get from

the package and the socket in your situation will comply with the regulation in your
country, so they may differ from the figure above.
If you intend to connect the device to the ground via the PE (Protecting Earth) cable

of AC power cord, please make sure the PE (Protecting Earth) cable in the electrical
outlet is well grounded in advance.

Equipotential Bonding is the practice of intentionally electrically connecting all earthed
systems to the same grounding grid or connecting the grounding grids of all the
earthed systems together through the ground or overground metal so as to create
an earthed equipotential zone. When lightning occurs, the high voltage produced by
lightning current in all systems will meanwhile exist in their ground cables, and thus
all ground cables have the same electrical potential and basically eliminate the electric
strikes between the systems.
The figure below illustrates how to practice equipotential bonding in a network.
Lightning Protection

16
Gigabit Smart Switch
Grounding T e rminal Equipotential Bonding Cable
Grounding BarGround Cable
Equipotential BondingFigure 3-3
When equipotential bonding, please note that the cable should be copper wrapped
Kelly with its area being 6mm2at least. The shorter cable the better, and use a
grounding bar to establish an equipotential bonding point.
Note: The equipotential bonding cable and ground cable are not provided with our
product. If needed, please self purchase it.

Power lightning arrester and signal lightning arrester are used for lighting protection.
Power lightning arrester is used for limiting the voltage surge due to a lightning. If an
outdoor AC power cord should be directly connected to the device, please use a power
lightning arrester.
Note: Power lightning arrester is not provided with our product. If needed, please self
purchase it.
Signal lightning arrester is used to protect RJ45 ports of the device from lightning.
When cabling outdoors, please install a signal lightning arrester before connecting the
cable to the device.
When purchasing or using a signal lightning arrester, please observe the following
rules:
Lightning Protection
