Tp-link Tapo s505 User manual

User Guide

Smart Wi-Fi Light Switch

Contents

About This Guide ·············································································································································1

Introduction ························································································································································2

Appearance ························································································································································3

Wire Your Switch···············································································································································5

Set Up Your Switch ·········································································································································8

Set Up Your Smart Switch via Matter····································································································9

Authentication················································································································································12

About This Guide

This guide provides a brief introduction to the Smart Wi-Fi Light Switch, Matter and regulatory information.

Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and

descriptions in this guide are only examples and may not reect your actual Tapo experience.

Conventions

In this guide, the following convention is used:

Convention Description

Blue Key information appears in blue, including management page text such as menus, items, buttons and so on.

Underline Hyperlinks are in blue and underlined. You can click to redirect to a website.

Note: Ignoring this type of note might result in a malfunction or damage to the device.

More Info

• Specications can be found on the product page at https://www.tapo.com.

• Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.

Introduction

With the Tapo Smart Wi-Fi Light Switch, Matter, smarten up your traditional lights.

• Matter Certied – Integrate Matter-certied Tapo devices with other Matter end products into your preferred ecosystem.

• Voice Control – Manage your smart switch with voice commands via Amazon Alexa, Apple Siri®, or Google Assistant.

• Remote Control – Instantly turn connected devices on/o from wherever you are through the Tapo app.

• Schedule – Preset a schedule to automatically manage devices.

• Auto-O – Automatically turns o a connected device after the device is left on for a set time.

• Away Mode – Randomly turns devices on and o at dierent times to give the appearance that someone is home.

• Smarter with Sensors – Create Smart Actions triggered by Tapo smart sensors for greater automation (Tapo Smart Sensors are sold separately.

When working with a Tapo Smart Sensor, the Tapo Hub is required.).

Appearance

On/O

Button

Restart

LED

Reset

Button Explanations

Restart

Reset

Press and hold for about 5s to reset

Wi-Fi while keeping other settings.

Press to restart your switch.

Press and hold for about 10s to restore

your switch to factory default settings.

LED Status

Starting up; disconnected

from cloud.

Solid amber

Blinking amber

Blinking green

White

Solid red

Stay green for 30s

Blinking amber & green

Connecting to Wi-Fi.

Ready for setup.

Device resetting.

Light fixture is off.

Disconnected from Wi-Fi.

Connected to Wi-Fi.

Blinking green slowly Firmware upgrading.

Matter Numeric Code

• For Matter initial setup.

Detach the Wallplate

Carefully insert a at-bladed screw driver the opening at the bottom of the wallplate and pull forward to remove the wallplate.

Note: Your can nd another Matter setup code label in the package and stick it anywhere you like as needed for initial matter setup.

*Images may dier from your actual product.

Wire Your Switch

Follow the steps below to wire your Smart Wi-Fi Light Switch. If you are not familiar with basic electronical wiring, please consult an electrician.

Before You Start

1. Prepare Baisc knowledge of Wiring

• Ground: Usually green or copper.

• Neutral: Usually white, not connected to the dumb switch.

• Line: Usually black and coming from the circuit breaker.

• Load: Usually black. One end is connected to the light.

Note: If you are unsure, consult a qualied electrician.

2. Prepare Your Tools

Prepare a philips and slotted screwdriver, pliers, wire strippers and a voltage detector.

3. Check Wi-Fi Strength

Make sure your switch is in a area with strong Wi-Fi signal.

Step 1. Turn O Power and Remove the Wallplate

Turn o the circuit breaker. Then remove the old wallplate of the wall

switch and label the wires.

Step 3. Label and Connect the Wires

Use the labels and wire nuts to Connect the wires to the smart switch as

shown below.

Note: No need to distinguish between Line and Load wires.

Wire Your Switch

Step 2. Expose Your Switch Wiring

Remove the screws securing your old switch to the wall box. Gently

pull the switch out and disconnect wires from the old switch.

Note: No need to distinguish between Line and Load wires.

MISE EN GARDE

Risque d'électrocution - Haute tension. Débrancher l'alimentation électrique avant d'utiliser.

CAUTION

Risk of Electric Shocks - High Voltage - Disconnect power supply before servicing.

Step 4. Install Your Smart Switch

Gently fold all of the wires back into the wall box. Line up the switch

with the mounting holes. Secure it with screws.

Step 5. Attach the Wallplate and Turn on Power

Attach the wallplate and turn on the circuit breaker. Then the wiring is

nished.

Set Up Your Switch

Follow the steps below to set up your switch.

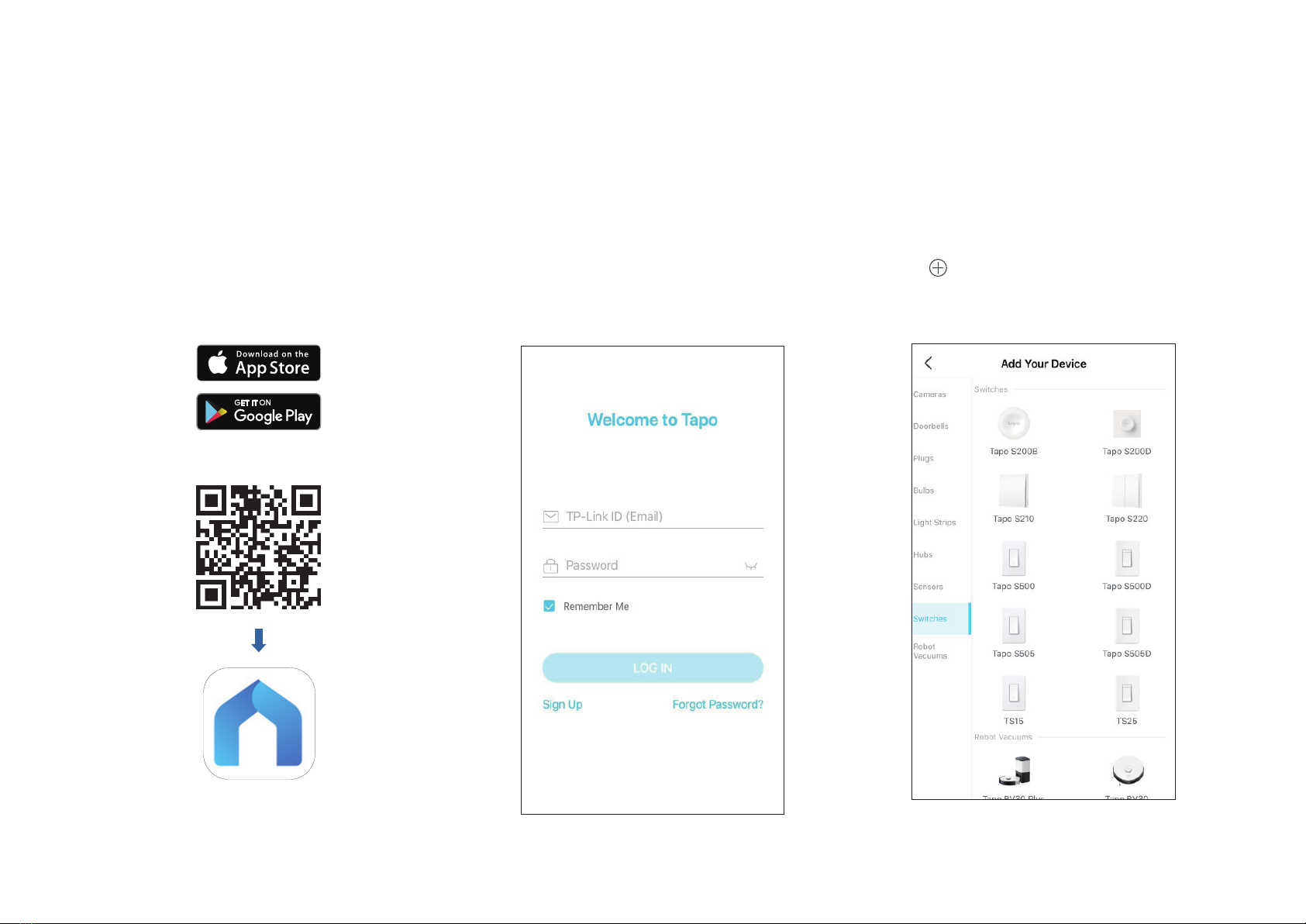

Step 1. Download Tapo App

Get the Tapo app from the App Store or

Google Play, or by scanning the QR code

below.

Step 2. Log In

Open the app, and log in with your TP-Link ID.

If you don't have an account, create one rst.

Step 3. Add Your Switch

Tap the button in the app and select your

switch. Then follow app instructions to set up

your switch.

Set Up Your Smart Switch via Matter

Scan QR Code

Visit

https://www.tp-link.com/support/faq/3520/

• Matter setup in dierent ecosystems

• Multi-admin setup and videos

• Features supported in dierent ecosystems

• Troubleshooting & Help

Set Up via Matter

This is a Matter-certied device. You can integrate it into any Matter ecosystem you prefer for easy control.

Before You Start

• Factory reset your device before setup.

• A Matter-supported controller and smart home app of the same ecosystem are required. For optimal performance, please update them

to the latest version.

• The Matter setup code on the device is only applicable for the initial ecosystem. To add it to a new ecosystem, you will need to generate a

new setup code from a smart home app of an already-established ecosystem in your home.

• Take a photo of the Matter setup code for backup.

• Bluetooth will be turned o 15 minutes after the device is powered up. Restart your device to re-enter setup mode.

How to Set Up

*Setup processes may vary between ecosystems.

1. Turn on Bluetooth on your phone.

2. Open the smart home app, then scan the Matter QR code or enter the provided numeric setup code (usually can be found on your

device).

3. Follow the instructions in the app to complete setup.

Failed to Set Up?

• Try to connect your phone to a stable 2.4 GHz Wi-Fi network with internet access instead of a 5 GHz network.

• Restart your device, controller or phone.

• Make sure IPv6 is enabled on your router.

Matter is still developing and the progress of each platform may dier from one another. There may also be dierent device performances

and bugs that have no relation to the device itself. TP-Link is working hard to optimize user experience with other CSA members to provide

better services.

We have professional Technical Support and R&D team. If you have any questions, feel free to contact us. Your feedback matters!

www.tp-link.com/support

for Technical Support, FAQs & more

Authentication

FCC compliance information statement

Product Name: Tapo Smart Wi-Fi Light Switch, Matter

Model Number: Tapo S505, TS15

Responsible party:

TP-Link USA Corporation

Address: 10 Mauchly, Irvine, CA 92618

Website: http://www.tp-link.com/us/

Tel: +1 626 333 0234

Fax: +1 909 527 6804

E-mail: [email protected]om

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the

equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications

could void the user’s authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be

co-located or operating in conjunction with any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this

transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction

with any other antenna or transmitter.”

We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards,

FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2021.03.25

Canadian Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-

exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement

économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

1) L’appareil ne doit pas produire de brouillage;

2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated

with minimum distance 20cm between the radiator & your body.

Déclaration d’exposition aux radiations:

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être

installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

NCC Notice

注意！

取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。

低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。

前述合法通信，指依電信管理法規定作業之無線電通信。

低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

BSMI Notice

安全諮詢及注意事項

• 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。

• 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。

• 注意防潮，請勿將水或其他液體潑灑到本產品上。

• 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。

• 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。

• 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。

限用物質含有情況標示聲明書

設備名稱：

Equipment name

Tapo Smart Wi-Fi Light Switch, Matter

型號（型式）：Tapo S505, TS15

Type designation (Type)

單元

Unit

限用物質及其化學符號

Restricted substances and its chemical symbols

鉛

Lead

(Pb)

汞

Mercury

(Hg)

鎘

Cadmium

(Cd)

六價鉻

Hexavalent

chromium

(Cr+6)

多溴聯苯

Polybrominated

biphenyls

(PBB)

多溴二苯醚

Polybrominated

diphenyl ethers

(PBDE)

PCB○○○○○○

外殼○○○○○○

電源供應板 — ○ ○ ○ ○ ○

其他及其配件 − ○ ○ ○ ○ ○

備考 1.〝超出 0.1 wt %〞及〝超出 0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準值

Note 1：“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance

exceeds the reference percentage value of presence condition.

備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。

Note 2：“ ○ ” indicates that the percentage content of the restricted substance does not exceed the percentage of reference

value of presence.

備考 3.〝−〞係指該項限用物質為排除項目。

Note 3：The “−” indicates that the restricted substance corresponds to the exemption.

Safety Information

Before installing, servicing or removing the switch, read and follow all safety precautions including the following:

• Follow all national and local safety regulations and practices. If you are uncertain or uncomfortable when performing the installation, consult a

qualified electrician.

• CAUTION – Risk of Electric Shock – More than one disconnect switch may be required to de-energize the equipment and luminaire before servicing.

A circuit breaker which disconnects the Line and Neutral conductor simultaneously is suitable. Ensure power is off at the circuit breaker before

removing or installing any switch. Use a non-contact voltage tester to ensure the power is off.

• Do not install the Smart Switch with wet hands or when standing on wet or damp surfaces.

• Keep the device away from water, fire, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

• Do not use the device where wireless devices are not allowed.

• Rating: 100-120 V~ 50/60 Hz

• Supported Load: 15 A General Use, 600 W Incandescent, 120 W Max Ceiling Fan, 1/6 HP Motor.

• Operation temperature: 0~40°C

• Install only in a suitable UL Listed outlet box (suitable dimensions: H > 2.95 in./75 mm, W > 1.81 in./46 mm, D > 2 in./51 mm).

Explanation of the symbols on the product label

Symbol Explanation

Alternating current

Indoor use only

RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to

European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.

CAUTION
