TP-Link TL-SG1008PE User manual

Installation Guide
Gigabit Unmanaged Switch
TL-SG1048
TL-SG1024/TL-SG1024D
TL-SG1016/TL-SG1016D
TL-SG1008/TL-SG1008PE
Business Networking Solution
7106504924_TL-SG1048多机型_IG_V2.pdf 1 2014/8/27 19:49:09

7106504924_TL-SG1048多机型_IG_V2.pdf 2 2014/8/27 19:49:09

I
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark
of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their
respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2014 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
Copyright & Trademarks
7106504924_TL-SG1048多机型_IG_V2.pdf 3 2014/8/27 19:49:09

II Related Document
Related Document
This Installation Guide is also available in PDF on our website. To obtain the latest
documentation and product information, please visit the official website:
http://www.tp-link.com
About this Installation Guide
This Installation Guide describes the hardware characteristics, installation methods
and the points that should be attended to during the installation. This Installation
Guide is structured as follows:
Chapter 1 Introduction. This chapter describes the external components of
the switch.
Chapter 2 Installation. This chapter illustrates how to install the switch.
Chapter 3 Lightning Protection. This chapter illustrates how to prevent
lightning damage.
Chapter 4 Connection. This chapter illustrates how to do the physical
connection of the switch.
Appendix A Troubleshooting.
Appendix B Specifications.
Appendix C Technical Support.
Audience
This Installation Guide is for:
Network Engineer Network Administrator
Conventions
Due to the similarity in structure of the Gigabit Unmanaged Switch series, in
this Installation Guide we take TL-SG1024 as an example to illustrate Chapter 2
Installation, Chapter 3 Lightning Protection and Chapter 4 Connection.
This Guide uses the specific formats to highlight special messages. The following
table lists the notice icons that are used throughout this guide.
Remind to be careful. A caution indicates a potential which may result in
device damage.
Remind to take notice. The note contains the helpful information for a
better use of the product.
7106504924_TL-SG1048多机型_IG_V2.pdf 4 2014/8/27 19:49:09

III
Contents
Contents
Chapter 1 Introduction ——————————— 01
1.1 Product Overview...................................................................01
1.2 Features......................................................................................01
1.3 Appearance...............................................................................02
Chapter 2 Installation ———————————— 08
2.1 Package Contents ...................................................................08
2.2 Safety Precautions ..................................................................08
2.3 Installation Tools......................................................................10
2.4 Product Installation................................................................11
Chapter 3 Lightning Protection ———————— 13
3.1 Cabling Reasonably................................................................13
3.2 Connect to Ground.................................................................15
3.3 Equipotential Bonding..........................................................16
3.4 Use Lightning Arrester..........................................................17
Chapter 4 Connection ——————————— 19
4.1 Ethernet Port ............................................................................19
4.2 Verify Installation ....................................................................19
4.3 Power On....................................................................................19
4.4 Initialization ..............................................................................20
Appendix A Troubleshooting ————————— 21
Appendix B Specications —————————— 22
Appendix C Technical Support ————————— 23
7106504924_TL-SG1048多机型_IG_V2.pdf 5 2014/8/27 19:49:09

01
Gigabit Unmanaged Switch
Introduction
Chapter 1 Introduction
1.1 Product Overview
The Gigabit Unmanaged Switch provides you with a high-performance, low-cost, easy-
to-use, seamless and standard upgrade to boost your old network to 1000Mbps.
By increasing the speed of your network server and backbone connections, the
Gigabit Unmanaged Switch makes Gigabit a reality. Power users in the home, office,
workgroup, or creative production environment can now move large, bandwidth-
intensive files faster. Graphics, CGI, CAD, multimedia files and other large files moved
by some applications can be transferred across the network almost instantly.
The Gigabit Unmanaged Switch features a non-blocking switching architecture that
forwards and filters packets at full wire-speed for maximum throughput. The switch
supports MAC address auto-learning and auto-aging. It is compatible with all 10Mbps,
100Mbps and 1000Mbps Ethernet devices because it is standard-based. It protects
your existing network investments while providing you with a straightforward migration
path to faster Gigabit speed.
The Gigabit Unmanaged Switch is plug-and-play and no configuration is required.
Auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cable
or Uplink port. Each port can be used as general port or Uplink port, and any port can
be simply plugged into a server, a hub, a router or a switch, using the straight cable
or crossover cable. Diagnostic LEDs which display link status and activity, allow you to
quickly detect and correct problems on the network.
TL-SG1008PE is a Power Sourcing Equipment (PSE*). The 8 Auto-Negotiation RJ45
ports support Power over Ethernet (PoE*) function, which can automatically detect and
supply power with those IEEE802.3af/IEEE802.3at-compliant powered devices (PDs*).
Note:
■*PSE is a device (switch or hub for instance) that will provide power in a PoE setup.
■*PoE is a technology that describes a system to transmit electrical power, along with
data, to remote devices over standard twisted-pair cable in an Ethernet network.
■*PD is a device powered by a PSE and thus consumes energy. Examples include
powering IP telephones, wireless LAN access points, network cameras, network hubs,
embedded computers etc.
1.2 Features
For TL-SG1048/TL-SG1024/TL-SG1024D/TL-SG1016/TL-SG1016D/TL-SG1008:
•Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab standards
• 8/16/24/48 10/100/1000Mbps Auto-Sense RJ45 ports supporting Auto-MDI/MDIX
•All ports support Full/Half Duplex transfer mode for 10/100Mbps and Full Duplex
transfer mode for 1000Mbps
7106504924_TL-SG1048多机型_IG_V2.pdf 6 2014/8/27 19:49:09

02
Gigabit Unmanaged Switch
•TL-SG1024/TL-SG1024D/TL-SG1016/TL-SG1016D/TL-SG1008
supports IEEE802.3x
flow control for full-duplex mode and backpressure for half-duplex transfer mode
•Non-blocking switching architecture that forwards and filters packets at full wire-
speed for maximum throughput
• Supports MAC address auto-learning and auto-aging
•Desktop and rack-mountable steel case
• Internal power supply
For TL-SG1008PE:
•Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af and
IEEE802.3at standards
•8 10/100/1000Mbps Auto-Negotiation RJ45 ports all supporting PoE function and
Auto-MDI/MDIX
• Supports PoE power up to 124W for all PoE ports
•Supports PoE IEEE802.3af/IEEE802.3at-compliant PDs
•Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-
duplex Mode
• 8K entry MAC address table of the TL-SG1008PE with auto-learning and auto-aging
• Internal power supply
1.3 Appearance
■Front Panel
The front panel of TL-SG1048 is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
Figure 1-1 Front Panel of TL-SG1048
LEDs
LED Status Indication
Power On The switch is powered on.
Off The switch is powered off or power supply is abnormal.
Link/Act
On Green
A 1000Mbps device is connected to the corresponding port.
Yellow A 10/100Mbps device is connected to the corresponding port.
Flashing The corresponding port is transmitting or receiving data.
Off There is no device linked to the corresponding port.
Introduction
7106504924_TL-SG1048多机型_IG_V2.pdf 7 2014/8/27 19:49:09

03
Gigabit Unmanaged Switch
Introduction
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding Link/Act LED.
The front panel of TL-SG1024 is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
Figure 1-2 Front Panel of TL-SG1024
The front panel of TL-SG1016 is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
Figure 1-3 Front Panel of TL-SG1016
The front panel of TL-SG1024D is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
Figure 1-4 Front Panel of TL-SG1024D
The front panel of TL-SG1016D is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
Figure 1-5 Front Panel of TL-SG1016D
7106504924_TL-SG1048多机型_IG_V2.pdf 8 2014/8/27 19:49:10

04
Gigabit Unmanaged Switch
The front panel of TL-SG1008 is shown as the following figure.
Power
123456 7 8
123456 7 8
Link
Act
1000Mbps
TL-SG1008 8-Port Gigabit Switch
LEDs
10/100/1000Mbps RJ45 Port
Figure 1-6 Front Panel of TL-SG1008
LEDs
LED Status Indication
Power On The switch is powered on.
Off The switch is powered off or power supply is abnormal.
Link/Act
On There is a device linked to the corresponding port but no
activity.
Flashing The corresponding port is transmitting or receiving data.
Off There is no device linked to the corresponding port.
1000Mbps
On A 1000Mbps device is connected to the corresponding port.
Off A 10/100Mbps device or no device is connected to the
corresponding port.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding Link/Act LED and a 1000Mbps LED.
The front panel of TL-SG1008PE is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port and PoE Port
Figure 1-7 Front Panel of TL-SG1008PE
LEDs
LED Status Indication
Power
On (green) The switch is powered on.
Flashing (green) Power supply is abnormal.
Off The switch is powered off.
Link/Act
On (green) A valid link is established on the port.
Flashing (green) The corresponding port is transmitting or receiving
data.
Off There is no device linked to the corresponding port.
Introduction
7106504924_TL-SG1048多机型_IG_V2.pdf 9 2014/8/27 19:49:10

05
Gigabit Unmanaged Switch
Introduction
LED Status Indication
PoE MAX
On (red)
The power of all the connected PoE ports is between
118W and 124W. No power may be supplied if
additional PDs are connected.
Flashing (red) The power of all the connected PoE ports is >=124W.
Off The power of all the connected PoE ports is <118W, or
there is no PD connected to the corresponding port.
1000Mbps
On (green) There is a 1000Mbps device connected to the
corresponding port.
Off
There is a 10/100Mbps device connected to the
corresponding port, or there is no device connected to
the corresponding port.
PoE Status
On (green) There is a PoE PD connected to the port, which
supplies power successfully.
Flashing (green) The PoE power circuit may be in short or the power
current may be overloaded.
Off
No PD is connected to the corresponding port, or no
power is supplied according to the power limits of the
port.
10/100/1000Mbps RJ45 Port and PoE Port
TL-SG1008PE switch is equipped with 8 10/100/1000Mbps Auto-Negotiation RJ45
ports and all of them support PoE function.
The 8 10/100/1000Mbps RJ45 ports are designed to connect to the device with
a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Once the network devices are
connected to these 8 ports through the network cable, the switch will make them
plug and play according to the Auto-MDI/MDIX detection. The working status can be
indicated by the Link/Act LEDs and 1000Mbps LEDs on the front panel.
The 8 ports also support PoE function which integrates power and data onto
one Ethernet cable. Once the device you connect to the switch is identified, the
switch will supply power through the PoE port, and then you can use it as a
10/100/1000Mbps Auto-Negotiation RJ45 Ethernet port. The working status can be
indicated by the PoE MAX LED and PoE Status LEDs on the front panel.
Note:
■If all PoE PDs power consumption is >=124W, a priority* will be arranged among the
PoE ports like port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8,
then the system will cut off the power of the lowest-priority port.
■*Priority is to protect the system when the system power is overloaded. For example,
Port 1, 2, 4 and 7 is using 30; the system power is 120W in total. If there is an
additional PD inserted to Port 3 with 25W, and then the system will cut off the power
of Port 7 because of the overloaded power, this means Port 1, 2 and 4 will use 30W,
and Port 3 will use 25W, no power will be supplied to Port 7.
■Make sure the PDs you connected to the switch are compliant with IEEE802.3af/
IEEE802.3at standard.
7106504924_TL-SG1048多机型_IG_V2.pdf 10 2014/8/27 19:49:10

06
Gigabit Unmanaged Switch
Rear Panel
The rear panel of TL-SG1048 is shown as the following figure.
Grounding Terminal
Power Socket
Figure 1-8 Rear Panel of TL-SG1048
The rear panel of TL-SG1024 is shown as the following figure.
Power Socket
Grounding Terminal
Figure 1-9 Rear Panel of TL-SG1024
The rear panel of TL-SG1016 is shown as the following figure.
Power Socket
Grounding Terminal
Figure 1-10 Rear Panel of TL-SG1016
The rear panel of TL-SG1024D is shown as the following figure.
Grounding Terminal
Power Socket
Figure 1-11 Rear Panel of TL-SG1024D
Introduction
7106504924_TL-SG1048多机型_IG_V2.pdf 11 2014/8/27 19:49:10

07
Gigabit Unmanaged Switch
Introduction
The rear panel of TL-SG1016D is shown as the following figure.
Power Socket
Grounding Terminal
Figure 1-12 Rear Panel of TL-SG1016D
The rear panel of TL-SG1008 is shown as the following figure.
Grounding Terminal
Power Socket
Figure 1-13 Rear Panel of TL-SG1008
The rear panel of TL-SG1008PE is shown as the following figure.
Grounding Terminal
Power Socket
Figure 1-14 Rear Panel of TL-SG1008PE
Power Socket
Connect the female connector of the power cord here, and the male connector to
the AC (Alternating Current) power outlet. Please make sure the voltage of the
power supply meets the requirement of the input voltage.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground
the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
For detailed information, please refer to Chapter 3 Lightning Protection.
Caution: Please use the provided power cord.
7106504924_TL-SG1048多机型_IG_V2.pdf 12 2014/8/27 19:49:10

08
Gigabit Unmanaged Switch
Chapter 2 Installation
2.1 Package Contents
Make sure that the package contains the following items. If any of the listed items is
damaged or missing, please contact your distributor.
One Power Cord
One Switch This Installation Guide
Two mounting brackets and the
fittings
2.2 Safety Precautions
To avoid any device damage and bodily injury caused by improper use, please observe
the following rules.
■Safety Precautions
■Keep the power off during the installation.
■Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good
skin contact and is well grounded.
■Use only the power cord provided with the switch.
■Make sure that the supply voltage matches the specifications indicated on the rear
panel of the switch.
■Ensure the vent hole is well ventilated and unblocked.
■Do not open or remove the cover of the switch.
■Before cleaning the device, cut off the power supply. Do not clean it by the waterish
cloth, and never use any other liquid cleaning method.
Installation
7106504924_TL-SG1048多机型_IG_V2.pdf 13 2014/8/27 19:49:10

09
Gigabit Unmanaged Switch
Installation

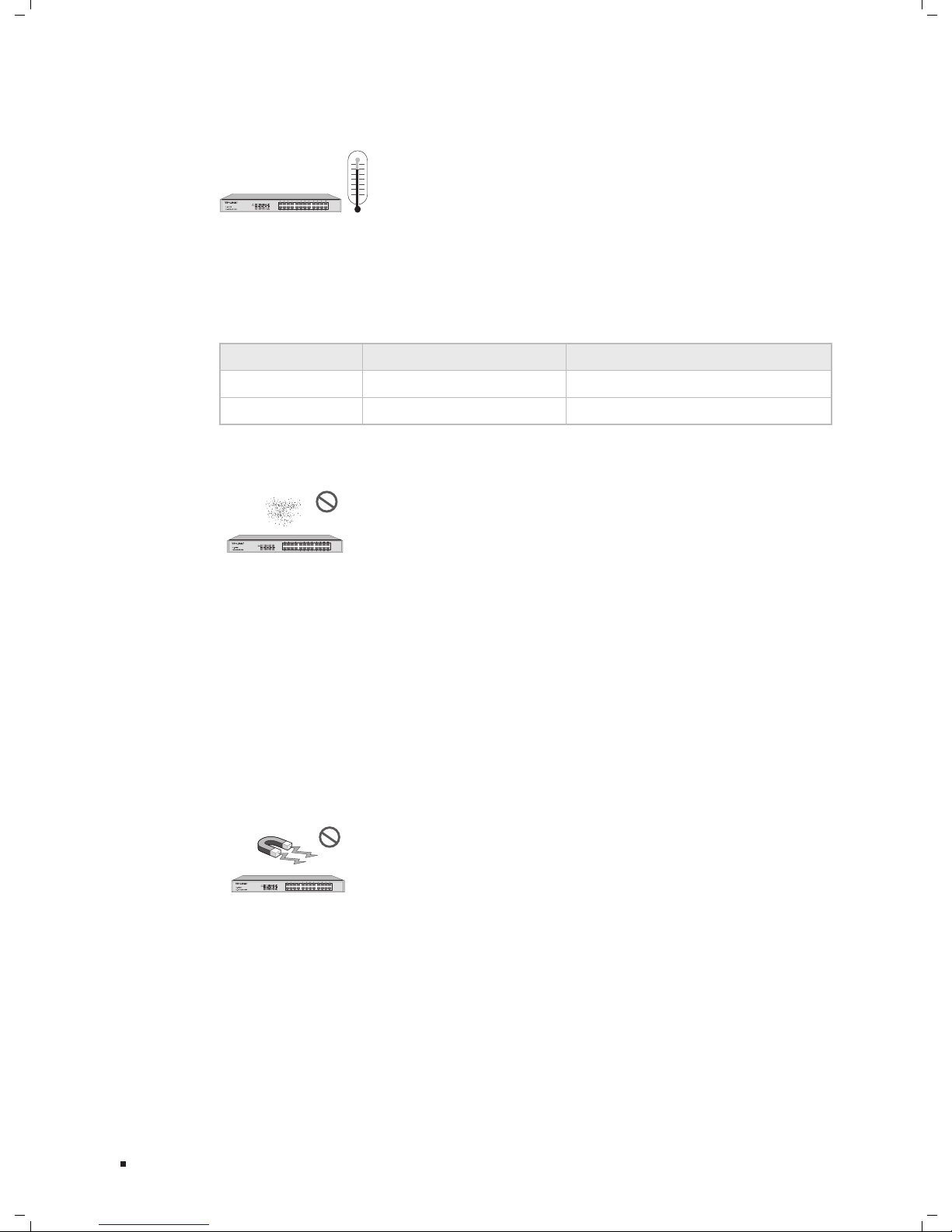

■Site Requirements
Temperature/Humidity
40℃
0℃
Please keep a proper temperature and humidity in the equipment room. Too high/low
humidity may lead to bad insulation, electricity leakage, mechanical property changes
and corrosions. Too high temperature may accelerate aging of the insulation materials
and can thus significantly shorten the service life of the device. For normal temperature
and humidity of the device, please check the following table.
Environment Temperature Humidity
Operating 0℃~ 40℃10% ~ 90%RH Non-condensing
Storage -40℃~ 70℃5% ~ 90%RH Non-condensing
Clearness
The dust accumulated on the switch can be absorbed by static electricity and result
in poor contact of metal contact points. Some measures have been taken for the
device to prevent static electricity, but too strong static electricity can cause deadly
damage to the electronic elements on the internal circuit board. To avoid the effect of
static electricity on the operation of the Switch, please attach much importance to the
following items:
■Dust the device regularly, and keep the indoor air clean.
■Keep the device well grounded and ensure static electricity has been transferred.
Electromagnetic Interference
Electronic elements including capacitance and inductance on the device can be affected
by external interferences, such as conducted emission by capacitance coupling,
inductance coupling, and impedance coupling. To decrease the interferences, please
make sure to take the following measures:
■Use the power supply that can effectively filter interference from the power grid.
■Keep the device far from high-frequency, strong-current devices, such as radio
transmitting station.
■Use electromagnetic shielding when necessary.
7106504924_TL-SG1048多机型_IG_V2.pdf 14 2014/8/27 19:49:11

10
Gigabit Unmanaged Switch
Lightening Protection
Extremely high voltage currents can be produced instantly when lightning occurs and the air
in the electric discharge path can be instantly heated up to 20,000℃. As this instant current
is strong enough to damage electronic devices, more effective lightning protection measures
should be taken.
■Ensure the rack and device are well earthed.
■Make sure the power socket has a good contact with the ground.
■Keep a reasonable cabling system and avoid induced lightning.
■Use the signal SPD (Surge Protective Device) when wiring outdoor.
Note: For detailed lightning protection measures, please refer to Chapter 3
Lightning Protection.
Installation Site
When installing the device on a rack or a flat workbench, please note the following
items:
■The rack or workbench is flat and stable, and sturdy enough to support the weight
of 5.5kg at least.
■The rack or workbench has a good ventilation system. The equipment room is well
ventilated.
■The rack is well grounded. Keep the power socket less than 1.5 meters away from
the device.
2.3 Installation Tools
■Phillips screwdriver
■ESD-preventive wrist wrap
■Cables
Note: These tools are not provided with our product. If needed, please self purchase
them.
Installation
7106504924_TL-SG1048多机型_IG_V2.pdf 15 2014/8/27 19:49:11

11
Gigabit Unmanaged Switch
Installation
2.4 Product Installation
■Desktop Installation
To install the device on the desktop, please follow the steps:
1. Set the device on a flat surface strong enough to support the entire weight of the
device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on
the bottom at each corner of the device.
Feet
Bottom of the Device
Notch
Figure 2-1 Desktop Installation
■Rack Installation
To install the device in an EIA standard-sized, 19-inch rack, follow the instructions
described below:
1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied
screws, as illustrated in the following figure.
Rack-mounting Bracket
Screw
Figure 2-2 Bracket Installation
3. After the brackets are attached to the device, use suitable screws (not provided) to
secure the brackets to the rack, as illustrated in the following figure.
7106504924_TL-SG1048多机型_IG_V2.pdf 16 2014/8/27 19:49:11

12
Gigabit Unmanaged Switch
Rack
Figure 2-3 Rack Installation
Caution:
■Please set 5~10cm gaps around the device for air circulation.
■Please avoid any heavy thing placed on the device.
■Please mount devices in sequence from the bottom to top of the rack and ensure a
certain clearance between devices for the purpose of heat dissipation.
Installation
7106504924_TL-SG1048多机型_IG_V2.pdf 17 2014/8/27 19:49:11

13
Gigabit Unmanaged Switch
Lightning Protection
Chapter 3 Lightning Protection
3.1 Cabling Reasonably
In the actual network environment, you may need cable outdoors and indoors, and
the requirements for cabling outdoors and indoors are different. A reasonable cabling
system can decrease the damage of induced lightning to devices.
Note: It's not recommended using Ethernet cables outdoors. When cabling outdoors,
please use a signal lightning arrester.
■Requirements for Cabling Outdoors
■Aerial cabling without safeguard is not allowed.
■It’s not allowed cabling down the building to connect network devices in different
floors.
■Outdoor cables should be buried and paved to the indoor through basement. A
piece of steel wire should be paved underground along the pipe and connected to
the lightning protection terminal of the building for shielding. Before connecting the
cable to the device, install a signal lightning arrester on the corresponding port.
■When an aerial cable is set up, the cable should be through a metal pipe (15m long
at least) before coming into the building. The two ends of this metal pipe should
be grounded. Before connecting the cable to the device, install a signal lightning
arrester on the corresponding port.
■It’s not necessary to pave STP cables through pipes. The shielded layer of STP cable
should be well grounded. Before connecting the cable to the device, install a signal
lightning arrester on the corresponding port.
7106504924_TL-SG1048多机型_IG_V2.pdf 18 2014/8/27 19:49:11

14
Gigabit Unmanaged Switch
■Requirements for Cabling Indoors
When cabling indoors, keep a certain distance away from the devices that may cause
high-frequency interferences, such as down-conductor cable, powerline, power
transformer and electromotor.
■The main cable should be paved in the metal raceway of the access shaft. When
cabling, keep the loop area formed by the cable itself as small as possible.
■Requirements for the distance between Ethernet cable and other pipelines are
shown in the table.
Other Pipelines
Ethernet Cable
Min Parallel Net Length L
(mm)
Min Parallel-overlapping
Net Height H (mm)
Down-conductor 1000 300
PE 50 20
Service pipe 150 20
Compressed air pipe 150 20
Thermal pipe (not wrapped) 500 500
Thermal pipe (wrapped) 300 300
Gas pipe 300 20
The two diagrams below demonstrate parallel net length and parallel-overlapping net
height.
Note: The above minimum net length/height is required when metal raceway is not
used. If any requirements cannot be met, you can add a steel tube or metal raceway
for shielding.
■Requirements for the distance between Ethernet cable and high-power electric
devices are in following tables.
Cable Pave Way Min Parallel
Length (mm)
<2kVA
powerline
Parallel cabling 130
One is in the grounded metal raceway or metal pipe 70
The both are in the grounded metal raceway or metal
pipe 10
Lightning Protection
7106504924_TL-SG1048多机型_IG_V2.pdf 19 2014/8/27 19:49:11

15
Gigabit Unmanaged Switch
Lightning Protection
Cable Pave Way Min Parallel
Length (mm)
2~5kVA
powerline
Parallel cabling 300
One is in the grounded metal raceway or metal pipe 150
The both are in the grounded metal raceway or metal
pipe 80
>5kVA
powerline
Parallel cabling 600
One is in the grounded metal raceway or metal pipe 300
The both are in the grounded metal raceway or metal
pipe 150
Device Min Distance (m)
Switch case 1.00
Transformer room 2.00
Elevator tower 2.00
Air-conditioner room 2.00
3.2 Connect to Ground
Connecting the device to ground is to quickly release the lightning over-voltage and
over-current of the device, which is also a necessary measure to protect the body from
electric shock.
In different environments, the device may be grounded differently. The following
will instruct you to connect the device to the ground in two ways, connecting to the
grounding bar or connecting to the ground via the power cord. Please connect the
device to ground in the optimum way according to your specific operation environment.
■Connecting to the Grounding Bar
If the device is installed in the Equipment Room, where a grounding bar is available,
you are recommended to connect the device to the grounding bar as shown in the
following figure.
Switch (Rear Panel)
Ground Cable
Grounding Terminal
Grounding Bar
Figure 3-1 Connecting to the Grounding Bar
7106504924_TL-SG1048多机型_IG_V2.pdf 20 2014/8/27 19:49:11
