TP-Link TL-SG1024 User manual

Installation Guide
Gigabit Unmanaged Switch
TL-SG1048/TL-SG1024
TL-SG1024D/TL-SG1016
TL-SG1016D/TL-SG1008
Enterprise Networking Solution

I

Specifications are subject to change without notice. is a registered trademark
of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their
respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2011 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
http://www.tp-link.com

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference.1)
This device must accept any interference received, including interference that may cause2)
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.

This is a Class A product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
Copyright & Trademarks

II

This Installation Guide is also available in PDF on our web site. To obtain the
latest documentation and product information, please visit the official website:
http://www.tp-link.com

This Installation Guide describes the hardware characteristics, installation methods
and the points that should be attended to during installation. This Installation
Guide is structured as follows:
Chapter 1 Introduction. This chapter describes the external components of
the Switch.
Chapter 2 Installation. This chapter illustrates how to install the Switch.
Chapter 3 Lightning Protection. This chapter illustrates how to prevent
lightning damage.
Chapter 4 Connection. This chapter illustrates how to do the physical connec-
tion of the Switch.
Appendix A Troubleshooting.
Appendix B Specifications.
Appendix C Technical Support.

This Installation Guide is for:
Network Engineer
Network Administrator

Due to the similarity in structure of the Gigabit Unmanaged Switch series, in
this Installation Guide we take TL-SG1024 as an example to illustrate Chapter 2
Installation, Chapter 3 Lighting Protection and Chapter 4 Connection.
This Guide uses the specific formats to highlight special messages. The following
table lists the notice icons that are used throughout this guide.
Remind to be careful. A caution indicates a potential which may result in
device damage.
Remind to take notice. The note contains the helpful information for a
better use of the product.
Related Document

III

Contents
Chapter 1 Introduction ——————————— 01
1.1 Product Overview...................................................................01
1.2 Features......................................................................................01
1.3 Appearance...............................................................................02
Chapter 2 Installation ———————————— 05
2.1 Package Contents ...................................................................05
2.2 Safety Precautions ..................................................................05
2.3 Installation Tools......................................................................07
2.4 Product Installation................................................................08
Chapter 3 Lightning Protection ———————— 10
3.1 Cabling Reasonably................................................................10
3.2 Connect to Ground.................................................................12
3.3 Equipotential Bonding..........................................................13
3.4 Use Lightning Arrester..........................................................14
Chapter 4 Connection ——————————— 16
4.1 Ethernet Port ............................................................................16
4.2 Verify Installation ....................................................................16
4.3 Power On....................................................................................16
4.4 Initialization ..............................................................................17
Appendix A Troubleshooting ————————— 18
Appendix B Specications——————————— 19
Appendix C Technical Support ————————— 20

01
Gigabit Unmanaged Switch


The Gigabit Switch provides you with a high-performance, low-cost, easy-to-use,
seamless and standard upgrade to boost your old network to 1000Mbps. Increase the
speed of your network server and backbone connections, making Gigabit a reality.
Power users in the home, office, workgroup, or creative production environment can
now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or
multimedia files and other applications that have to move large files across the network
almost instantly.
The Gigabit Switch features a non-blocking switching architecture that forwards and
filters packets at full wire-speed for maximum throughput, MAC address auto-learning
and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for
half-duplex mode. It is compatible with all 10, 100 and 1000Mbps Ethernet devices
because it is standard-based. It protects your existing network investments while
providing you with a straightforward migration path to faster Gigabit speeds.
The Gigabit Switch is plug-and-play and no configuration is required. Auto MDI/MDI-X
cable detection on all ports eliminates the need for crossover cable or Uplink port. Each
port can be used as general port or Uplink port, and any port can be simply plugged
into a server, a hub, a router or a switch, using the straight cable or crossover cable.
Diagnostic LEDs which display link status and activity, allow you to quickly detect and
correct problems on the network.

Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab standards•
8/16/24/48 10/100/1000Mbps Auto-Sense RJ45 ports supporting Auto-MDI/MDIX•
All ports Support Full/Half Duplex transfer mode for 10/100Mbps and Full Duplex•
transfer mode for 1000Mbps
Supports IEEE802.3x flow control for full-duplex mode and backpressure for half-•
duplex transfer mode
Non-blocking switching architecture that forwards and filters packets at full wire-•
speed for maximum throughput
Supports MAC address auto-learning and auto-aging•
LED indicators for monitoring power, link, speed and activity•
Desktop and rack-mountable steel case•
Internal power supply•
Introduction

02
Gigabit Unmanaged Switch

Front Panel

The front panel of TL-SG1048 is shown as the following figure.
Front Panel ofFigure 1-1 TL-S G10 4 8
The front panel of TL-SG1024 is shown as the following figure.
Front Panel ofFigure 1-2 TL-SG1024
The front panel of TL-SG1024D is shown as the following figure.
Front Panel ofFigure 1-3 TL-SG1024D
The front panel of TL-SG1016 is shown as the following figure.
Front Panel ofFigure 1-4 TL-S G1016
Introduction
LEDs
10/100/1000Mbps RJ45 Port
LEDs
10/100/1000Mbps RJ45 Port
LEDs
10/100/1000Mbps RJ45 Port
LEDs
10/100/1000Mbps RJ45 Port

03
Gigabit Unmanaged Switch
The front panel of TL-SG1016D is shown as the following figure.
Front Panel ofFigure 1-5 TL-S G1016D
The front panel of TL-SG1008 is shown as the following figure.
Front Panel ofFigure 1-6 TL-SG1008
LEDs
LED Status Indication
Power On The Switch is powered on
Off The Switch is powered off or power supply is abnormal
Link/Act
On There is a device linked to the corresponding port but
not active
Flashing The corresponding port is transmitting or receiving data
Off There is no device linked to the corresponding port
1000Mbps
On A 1000Mbps device is connected to the corresponding
port
Off A 10/100Mbps device or no device is connected to the
corresponding port
Note: TL-SG1048 has no 1000Mbps LEDs.
10/100/1000Mbps Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding Link/Act LED and a 1000Mbps LED. TL-SG1048
has no 1000Mbps LEDs.
Introduction
LEDs
10/100/1000Mbps RJ45 Port
LEDs
10/100/1000Mbps RJ45 Port

04
Gigabit Unmanaged Switch

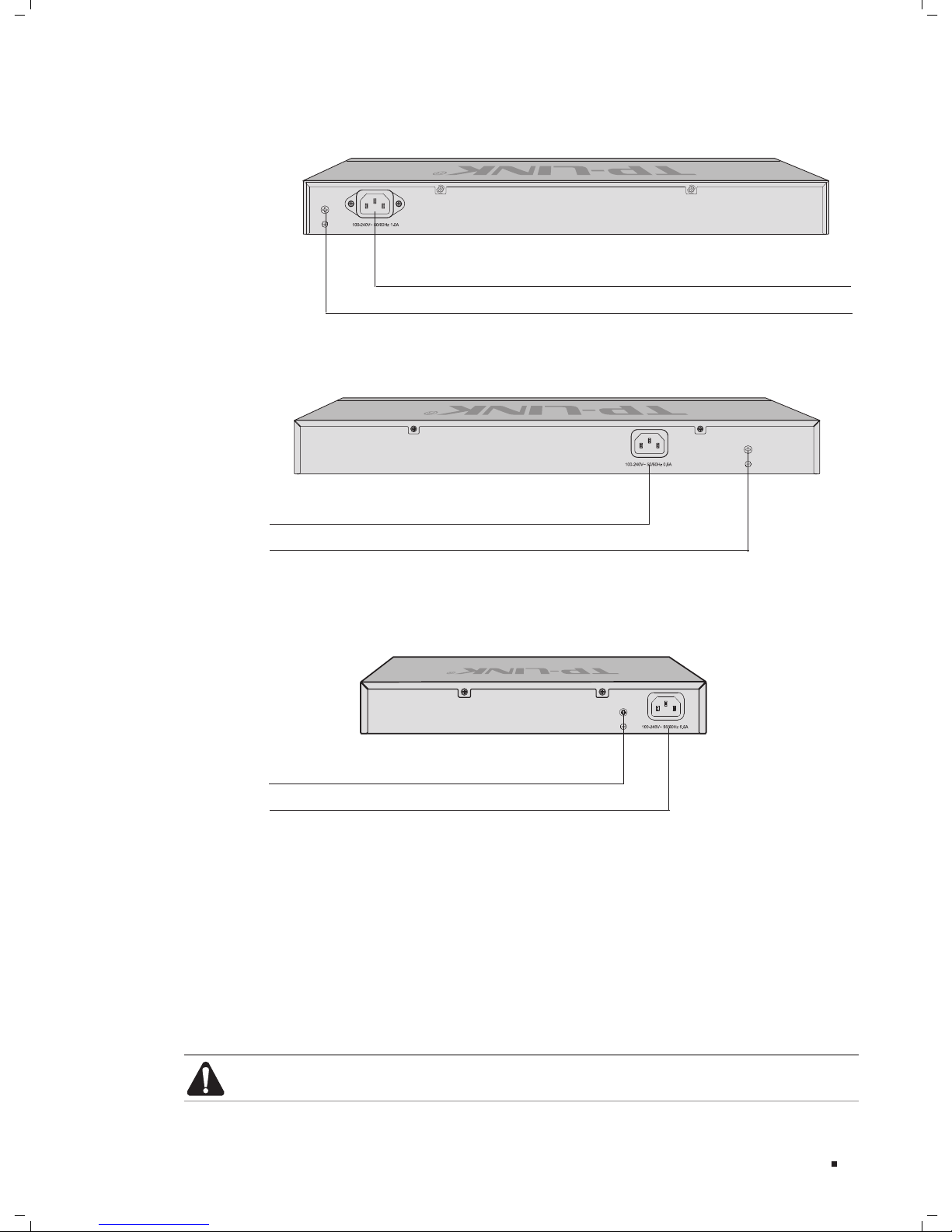

Rear Panel
The rear panel of TL-SG1048 is shown as the following figure.
Rear PanelFigure 1-7 of TL-SG1048
The rear panel of TL-SG1024/TL-SG1016 is shown as the following figure.
Rear PanelFigure 1-8 of TL-SG1024/TL-SG1016
The rear panel of TL-SG1024D/TL-SG1016D/TL-SG1008 is shown as the following figure.
Rear PanelFigure 1-9 of TL-SG1024D/TL-SG1016D/TL-SG1008
Power Socket
Connect the female connector of the power cord here, and the male connector to
the AC power outlet. Please make sure the voltage of the power supply meets the
requirement of the input voltage.
Grounding Terminal
The Switch already comes with lightning protection mechanism. You can also ground
the Switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
For detailed information, please refer to Chapter 3 Lightning Protection.
Caution: Please use the provided power cord.
Introduction
Grounding Terminal
Power Socket
Grounding Terminal
Power Socket
Grounding Terminal
Power Socket

05
Gigabit Unmanaged Switch



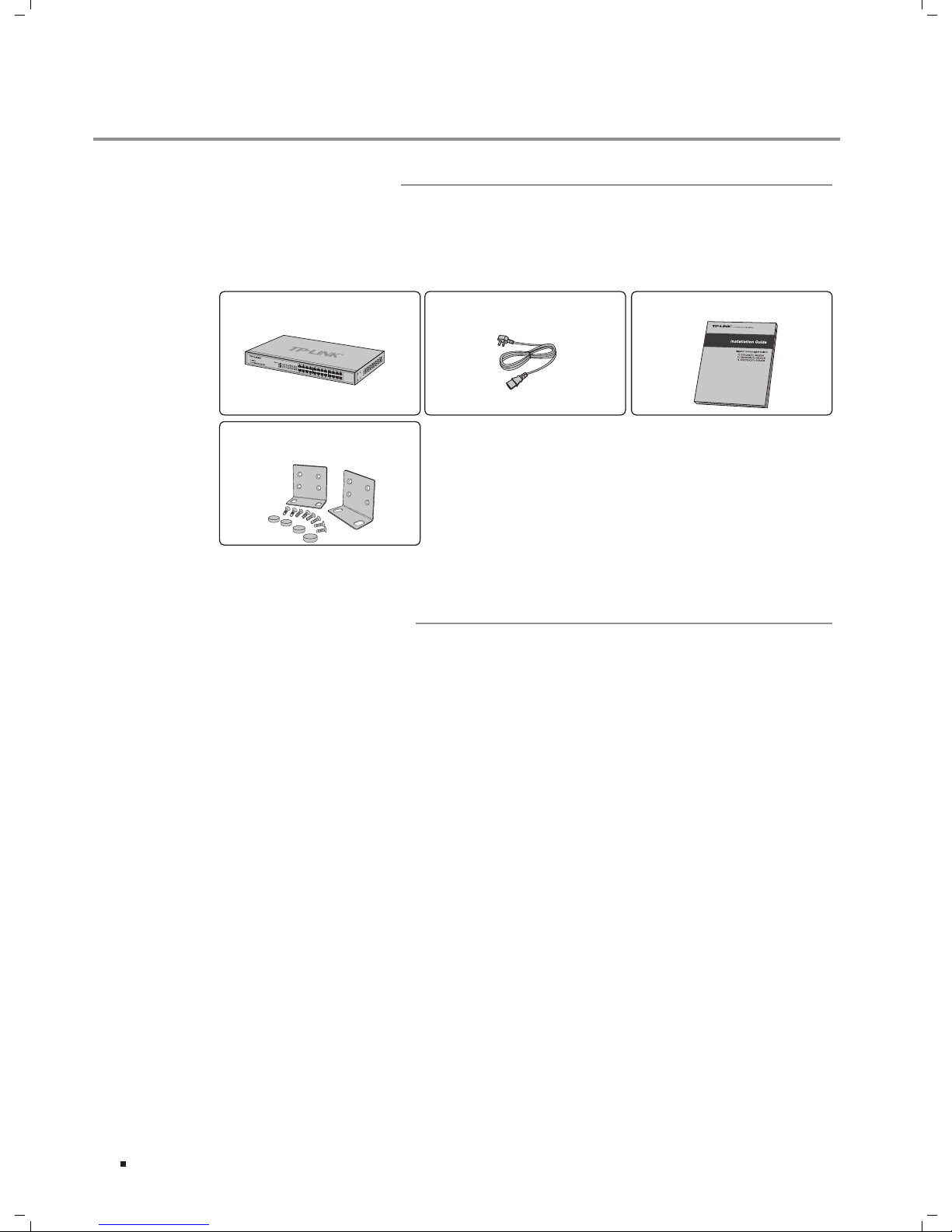

Make sure that the package contains the following items. If any of the listed items is
damaged or missing, please contact your distributor.
One Switch One Power Cord This Installation Guide
Two mounting brackets and the
fittings

To avoid any device damage and bodily injury caused by improper use, please observe
the following rules.
Safety Precautions

Keep the power off during the installation.

Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good

skin contact and is well grounded.
Use only the power cord provided with the Switch.

Make sure that the supply voltage matches the specifications indicated on the rear

panel of the Switch.
Ensure the vent hole is well ventilated and unblocked.

Do not open or remove the cover of the Switch.

Before cleaning the device, cut off the power supply. Do not clean it by the waterish

cloth, and never use any other liquid cleaning method.
Installation

06
Gigabit Unmanaged Switch

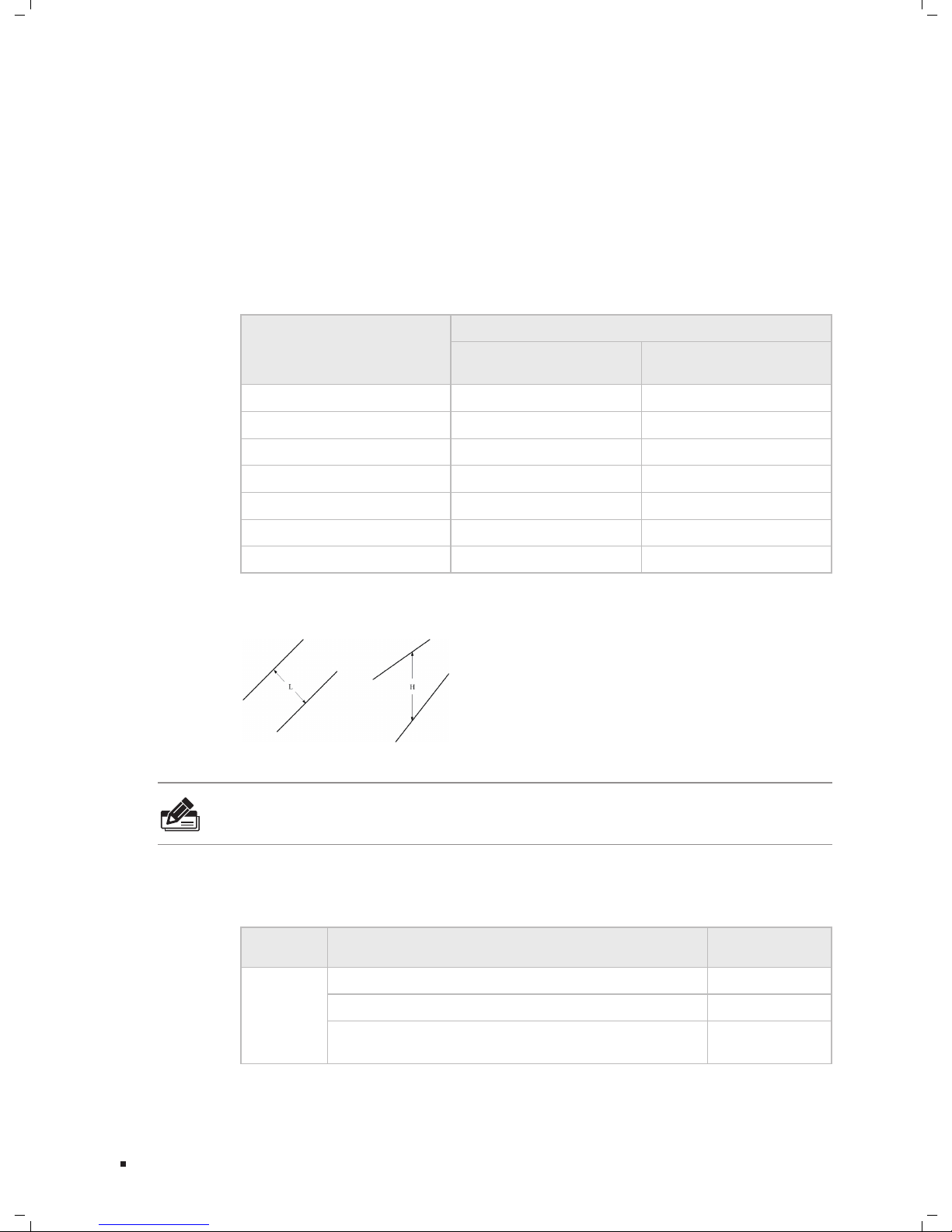

Site Requirements

Temperature/Humidity
ȭ
ȭ
L2Lite Managed Switch
TL-SL3428
Please keep a proper temperature and humidity in the equipment room. Too high/low
humidity may lead to bad insulation, electricity leakage, mechanical property changes
and corrosions. Too high temperature may accelerate aging of the insulation materials
and can thus significantly shorten the service life of the device. For normal temperature
and humidity of the device, please check the following table.
Environment Temperature Humidity
Operating 0℃~ 40℃10% ~ 90%RH Non-condensing
Storage -40℃~ 70℃5% ~ 90%RH Non-condensing
Clearness
The dust accumulated on the Switch can be absorbed by static electricity and result
in poor contact of metal contact points. Some measures have been taken for the
device to prevent static electricity, but too strong static electricity can cause deadly
damage to the electronic elements on the internal circuit board. To avoid the effect of
static electricity on the operation of the Switch, please attach much importance to the
following items:
Dust the device regularly, and keep the indoor air clean.

Keep the device well grounded and ensure static electricity has been transferred.

Electromagnetic Interference
Electronic elements including capacitance and inductance on the device can be affected
by external interferences, such as conducted emission by capacitance coupling,
inductance coupling, and impedance coupling. To decrease the interferences, please
make sure to take the following measures:
Use the power supply that can effectively filter interference from the power grid.

Keep the device far from high-frequency, strong-current devices, such as radio

transmitting station.
Use electromagnetic shielding when necessary.

Installation

07
Gigabit Unmanaged Switch
Lightening Protection
Extremely high voltage currents can be produced instantly when lightning occurs and the air
in the electric discharge path can be instantly heated up to 20,000℃. As this instant current
is strong enough to damage electronic devices, more effective lightning protection measures
should be taken.
Ensure the rack and device are well earthed.

Make sure the power socket has a good contact with the ground.

Keep a reasonable cabling system and avoid induced lightning.

Use the signal SPD (Surge Protective Device) when wiring outdoor.

Note: For detailed lightning protection measures, please refer to Chapter 3
Lightning Protection.
Installation Site
S
When installing the device on a rack or a flat workbench, please note the following
items:
The rack or workbench is flat and stable, and sturdy enough to support the weight

of 5.5kg at least.
The rack or workbench has a good ventilation system. The equipment room is well

ventilated.
The rack is well grounded. Keep the power socket less than 1.5 meters away from

the device.

Phillips screwdriver

ESD-preventive wrist wrap

Cables

Installation

08
Gigabit Unmanaged Switch
Note: These tools are not provided with our product. If needed, please self purchase
them.

Desktop Installation

To install the device on the desktop, please follow the steps:
Set the device on a flat surface strong enough to support the entire weight of the1.
device with all fittings.
Remove the adhesive backing papers from the rubber feet.2.
Turnover the device and attach the supplied rubber feet to the recessed areas on3.
the bottom at each corner of the device.
Feet
Bottom of the Device
Notch
Desktop InstallationFigure 2-1
Rack Installation

To install the device in an EIA standard-sized, 19-inch rack, follow the instructions
described below:
Check the grounding and stability of the rack.1.
Secure the supplied rack-mounting brackets to each side of the device with supplied2.
screws, as illustrated in the following figure.
Rack-mounting Bracket
Screw
Bracket InstallationFigure 2-2
Installation

09
Gigabit Unmanaged Switch

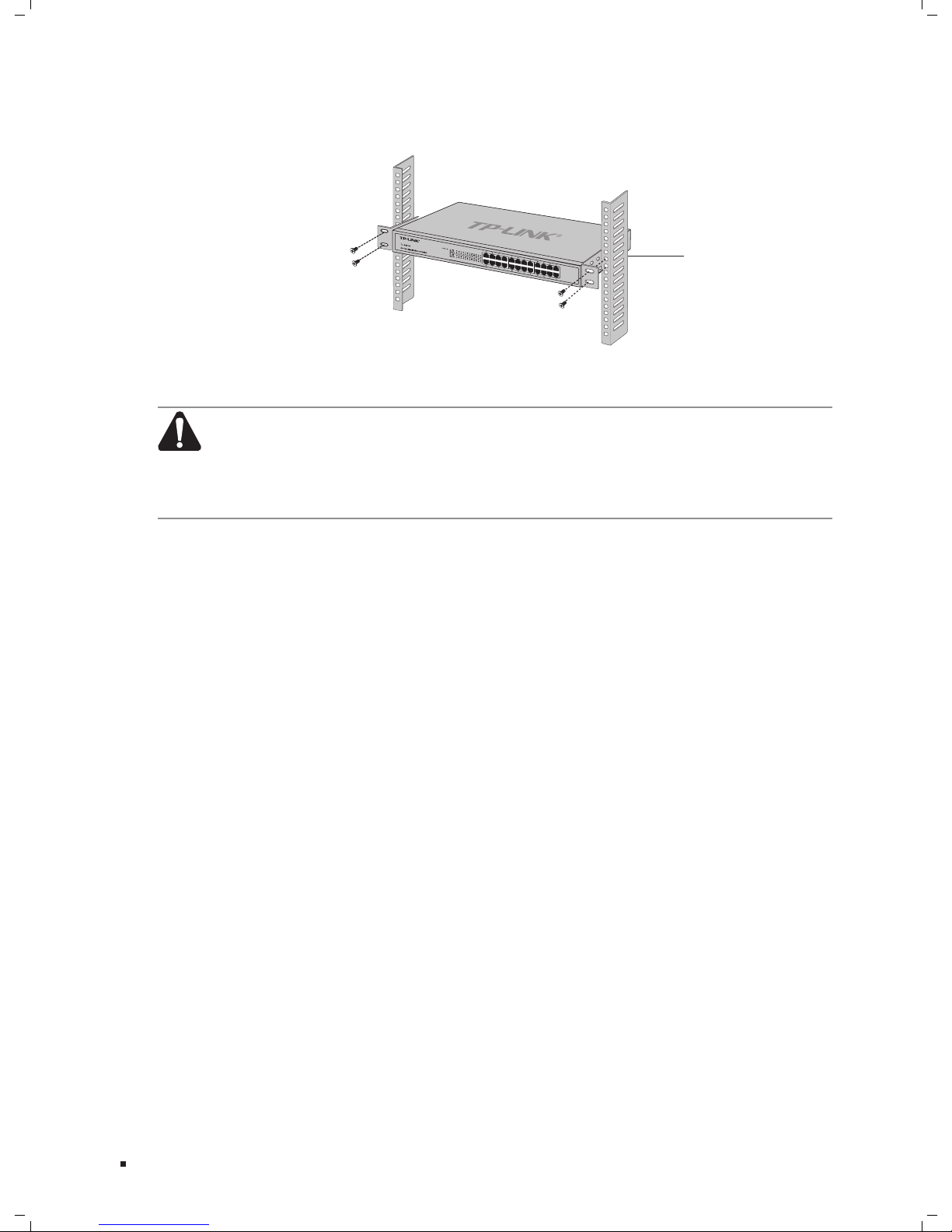

After the brackets are attached to the device, use suitable screws (not provided) to3.
secure the brackets to the rack, as illustrated in the following figure.
Rack
Rack InstallationFigure 2-3
Caution:
Please set 5~10cm gaps around the device for air circulation.

Please avoid any heavy thing placed on the device.

Please mount devices in sequence from the bottom to top of the rack and ensure a

certain clearance between devices for the purpose of heat dissipation.
Installation

10
Gigabit Unmanaged Switch


In the actual network environment, you may need cable outdoors and indoors, and
the requirements for cabling outdoors and indoors are different. A reasonable cabling
system can decrease the damage of induced lightning to devices.
Note: It's not recommended using Ethernet cables outdoors. When cabling outdoors,
please use a signal lightning arrester.
Requirements for Cabling Outdoors

Aerial cabling without safeguard is not allowed.

It’s not allowed cabling down the building to connect network devices in different

floors.
Outdoor cables should be buried and paved to the indoor through basement. A

piece of steel wire should be paved underground along the pipe and connected to
the lightning protection terminal of the building for shielding. Before connecting the
cable to the device, install a signal lightning arrester on the corresponding port.
When an aerial cable is set up, the cable should be through a metal pipe (15m long

at least) before coming into the building. The two ends of this metal pipe should
be grounded. Before connecting the cable to the device, install a signal lightning
arrester on the corresponding port.
It’s not necessary to pave STP cables through pipes. The shielded layer of STP cable

should be well grounded. Before connecting the cable to the device, install a signal
lightning arrester on the corresponding port.
Lightning Protection

11
Gigabit Unmanaged Switch
Requirements for Cabling Indoors

When cabling indoors, keep a certain distance away from the devices that may cause
high-frequency interferences, such as down-conductor cable, powerline, power
transformer and electromotor.
The main cable should be paved in the metal raceway of the access shaft. When

cabling, keep the loop area formed by the cable itself as small as possible.
Requirements for the distance between Ethernet cable and other pipelines are

shown in the table.
Other Pipelines
Ethernet Cable
Min Parallel Net Length L
(mm)
Min Parallel-overlapping
Net Height H (mm)
Down-conductor 1000 300
PE 50 20
Service pipe 150 20
Compressed air pipe 150 20
Thermal pipe (not wrapped) 500 500
Thermal pipe (wrapped) 300 300
Gas pipe 300 20

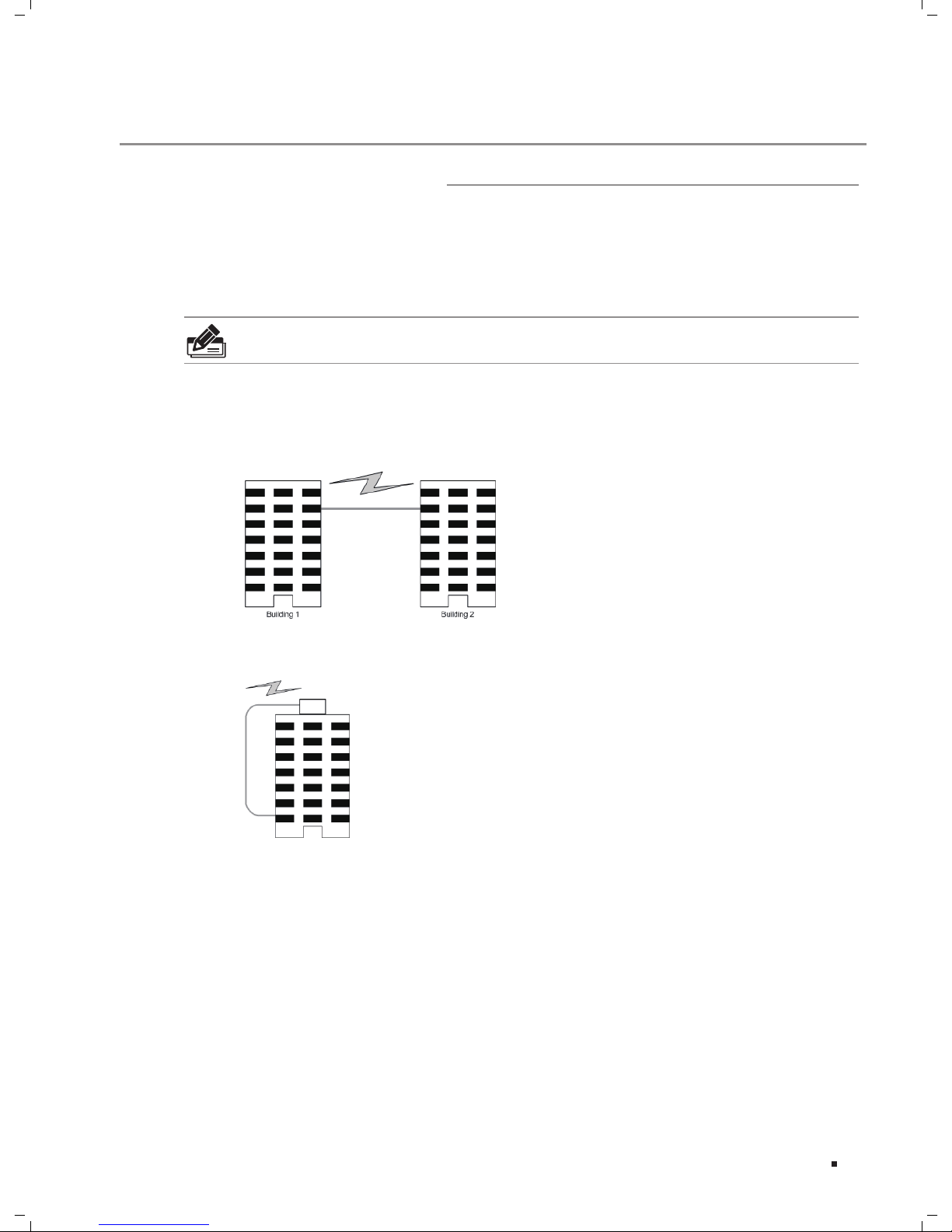

The two diagrams below demonstrate parallel net length and parallel-overlapping net
height.
Note: The above minimum net length/height is required when metal raceway is not
used. If any requirements cannot be met, you can add a steel tube or metal raceway
for shielding.
Requirements for the distance between Ethernet cable and high-power electric

devices are in following tables.
Cable Pave Way Min Parallel
Length (mm)
<2kVA
powerline
Parallel cabling 130
One is in the grounded metal raceway or metal pipe 70
The both are in the grounded metal raceway or metal
pipe 10
Lightning Protection

12
Gigabit Unmanaged Switch
Cable Pave Way Min Parallel
Length (mm)
2~5kVA
powerline
Parallel cabling 300
One is in the grounded metal raceway or metal pipe 150
The both are in the grounded metal raceway or metal
pipe 80
>5kVA
powerline
Parallel cabling 600
One is in the grounded metal raceway or metal pipe 300
The both are in the grounded metal raceway or metal
pipe 150
Device Min Distance (m)
Switch case 1.00
Transformer room 2.00
Elevator tower 2.00
Air-conditioner room 2.00

Connecting the device to ground is to quickly release the lightning over-voltage and
over-current of the device, which is also a necessary measure to protect the body from
electric shock.
In different environments, the device may be grounded differently. The following
will instruct you to connect the device to the ground in two ways, connecting to the
grounding bar or connecting to the ground via the power cord. Please connect the
device to ground in the optimum way according to your specific operation environment.
Connecting to the Grounding Bar

If the device is installed in the Equipment Room, where a grounding bar is available,
you are recommended to connect the device to the grounding bar as shown in the
following figure.
Switch (Rear Panel)
Ground Cable
Grounding T e rminal
Grounding Bar
Connecting to the Grounding BarFigure 3-1
Lightning Protection

13
Gigabit Unmanaged Switch
Note: The grounding bar and the ground cable are not provided with our product. If
needed, please self purchase them.
Connecting to the Ground via the Power Supply

If the device is installed in the normal environment, the device can be grounded via the
PE (Protecting Earth) cable of the AC power supply as shown in the following figure.
Connecting to the GroundFigure 3-2
Note:
The figure is to illustrate the application and principle. The power plug you get from

the package and the socket in your situation will comply with the regulation in your
country, so they may differ from the figure above.
If you intend to connect the device to the ground via the PE (Protecting Earth) cable

of AC power cord, please make sure the PE (Protecting Earth) cable in the electrical
outlet is well grounded in advance.

Equipotential Bonding is the practice of intentionally electrically connecting all earthed
systems to the same grounding grid or connecting the grounding grids of all the
earthed systems together through the ground or overground metal so as to create
an earthed equipotential zone. When lightning occurs, the high voltage produced by
lightning current in all systems will meanwhile exist in their ground cables, and thus
all ground cables have the same electrical potential and basically eliminate the electric
strikes between the systems.

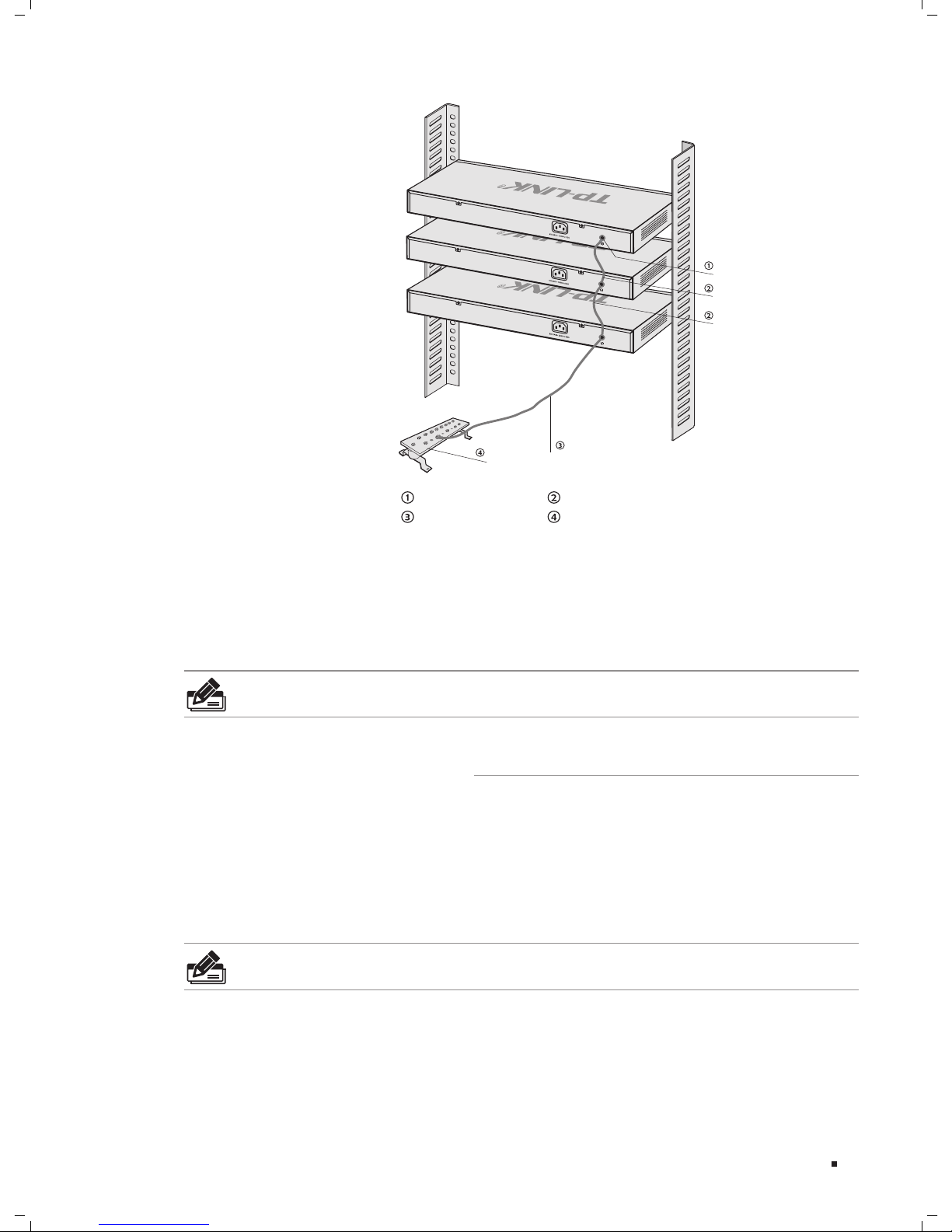

The figure below illustrates how to practice equipotential bonding in a network.
Lightning Protection

14
Gigabit Unmanaged Switch
Grounding T e rminal Equipotential Bonding Cable
Grounding BarGround Cable
Equipotential BondingFigure 3-3
When equipotential bonding, please note that the cable should be copper wrapped
Kelly with its area being 6mm2at least. The shorter cable the better, and use a
grounding bar to establish an equipotential bonding point.
Note: The equipotential bonding cable is not provided with our product. If needed,
please self purchase it.

Power lightning arrester and signal lightning arrester are used for lighting protection.
Power lightning arrester is used for limiting the voltage surge due to a lightning. If an
outdoor AC power cord should be directly connected to the device, please use a power
lightning arrester.
Note: Power lightning arrester is not provided with our product. If needed, please self
purchase it.
Lightning Protection

15
Gigabit Unmanaged Switch
Signal lightning arrester is used to protect RJ45 ports of the device from lightning.
When cabling outdoors, please install a signal lightning arrester before connecting the
cable to the device.
When purchasing or using a signal lightning arrester, please observe the following
rules:
The port rate of the signal lightning arrester should match the rate of the desired

port on the device. If it is not matched, this signal lighting arrester will not work.
Purchase a standard lightning arrester.
Install signal lightning arrester near the protected device and connect it to the

ground via a shorter ground cable.
Ethernet CableEquipotential Bonding CableGrounding T e rminal
Signal Lightning Arrester Device
L2 Lite Managed Switch
TL-SL3428
Equipotential BondingFigure 3-4
Note: Signal lightning arrester is not provided with our product. If needed, please self
purchase it.
Lightning Protection
