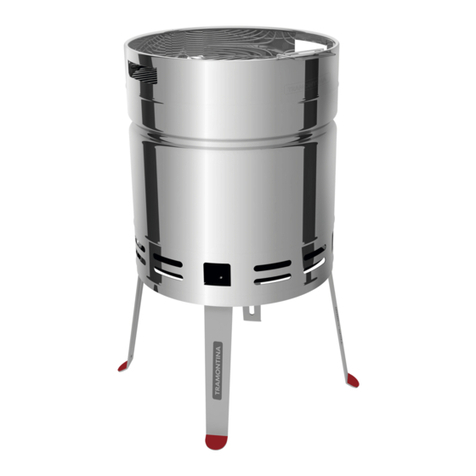

Tramontina TCP-400 Quick guide

MANUAL FOR SAFE AND APPROPRIATE USE
26500/006 - TCP 400
Charcoal grill

ENGLISH
CONTENTS
1. INTRODUCTION......................................................................................................................................................................4
2. ASSEMBLED PRODUCT DIMENSIONS .................................................................................................................................4
2.1. TCP-400:.......................................................................................................................................................................4
3. PREPARING YOUR GRILL FOR USE:.......................................................................................................................................5
3.1. ASSEMBLY PROCEDURE ..............................................................................................................................................5
4. GENERAL SAFETY INFORMATION .........................................................................................................................................6
4.1. SAFETY SYMBOLS........................................................................................................................................................6
4.2. RECOMMENDATIONS FOR USE: DANGER....................................................................................................................6
4.3. RECOMMENDATIONS FOR USE: ATTENTION AND CAUTION.......................................................................................6
5. USEFUL GUIDELINES.............................................................................................................................................................6
5.1. FIRST STEPS WITH A CHARCOAL GRILL ....................................................................................................................6
6. CLEANING INSTRUCTIONS ...................................................................................................................................................6
7. DISCARDING ..........................................................................................................................................................................7
8. WARRANTY.............................................................................................................................................................................7
3

1. INTRODUCTION
This safety and instruction manual must be read and followed prior to operating the
grill for the first time and whenever questions arise.
Do not discard this manual as it contains important information about the product
(installation, use, maintenance and cleaning), as well as warnings and instructions
for safe and correct use.
Before assembling your grill, please make sure there are no missing parts.
Non-compliance with these warnings and instructions will invalidate the warranty and
may also result in serious bodily injury or death, as well as in a fire or an explosion,
which may cause damage to property. The images in this manual are for illustration
only. The manufacturer reserves the right to make changes to the products when
considered necessary for the purpose of making improvements without modifying
essential characteristics of operation and safety.
This grill is recommended for outdoor use only. It must not be used indoors.
2. ASSEMBLED PRODUCT DIMENSIONS
2.1. TCP-400:
* The dimensions below are for reference only.
Identification Measurements (cm)
A 40,8
B 74,9
C 68,5
D 26,9
E 28,7
A
BC
D
E
4

ENGLISH
Part Description Quantity
1 Stainless steel cooking grate 1
2 Enameled Carbon Steel Tray 1
3 Stainless steel bowl 1
4 M5 Screw 4
5 M5 Nut 4
6 Painted steel support 1
3. PREPARING YOUR GRILL FOR USE:
To quickly and successfully assemble your grill, please follow the instructions below:
• Check if all listed parts are in the packaging. In order to do so, please refer to the
part list on item 3 of this manual.
• Wash the cooking grate with mild detergent and running water.
Image 3
Image 2
Image 1
Image 4
1
2
3
4
6
5
3.1. Assembly procedure:
Step 1:
Attach the steel support (item 6) to the grill bowl (item 3) using the M5 screws
(item 4) and M5 nut (item 5), as shown in image 1.
Step 2:
Place the charcoal tray (item 2) inside the grill, in accordance with image 2.
Step 3:
Place the cooking grate (item 1) in the correct position, in accordance with images 3 and 4.
03
04
05
02
06
5

• Make a pyramid with the charcoal and light in accordance with this instruction
manual.
• After approximately 15 to 20 minutes of fire, spread the embers with the long
handled tongs. We recommend using Tramontina tongs.
• Make sure the charcoal is not too close to the cooking grate.
6. CLEANING INSTRUCTIONS
To maintain your grill’s good performance and make it last longer, follow the cleaning
guidelines below:
DANGER
Do not touch or carry out any cleaning/maintenance tasks on your grill until it has
completely cooled down and the embers have been extinguished.
• Remove cooking grates (please refer to instructions about handling these).
• Remove ashes.
• Wash the grates using a brush with metal bristles, mild detergent and warm water.
Rinse well with running water and keep the grill dry. We recommend using a Tramontina
brush with metal bristles. It is necessary to clean the cooking grates and spits after
each use.
• The other parts of your grill must be washed after each use with a soft sponge,
mild detergent and warm water. Rinse well with running water and keep the grill dry.
Always keep your grill dry.
Grill Amount of Charcoal
TCP-400 Approximately 1.5 Kg
4. GENERAL SAFETY INFORMATION
4.1. SAFETY SYMBOLS
They will draw your attention to important safety information.
• Words such as DANGER, ATTENTION, or WARNING will be used with the
SAFETY symbol .
• DANGER identifies more serious situations.
4.2. RECOMMENDATIONS FOR USE: DANGER
• Failure to comply with the “DANGER, ATTENTION, and WARNING” messages
contained in this Safe and Correct Use Manual may result in serious bodily injury, as
well as in a fire or an explosion which may cause damange to property.
• Only use the grill outdoors. Never use it in closed spaces such as garages,
balconies or hallways. If it is used in closed spaces, toxic fumes will accumulate,
causing serious bodily injury or death.
• Keep the grill away from combustible materials, vapors, gases and flammable
liquids such as gasoline, alcohol, etc.
• Incorrect assembly might be dangerous. Follow the manual assembly instructions
and only use the grill when all parts are properly assembled in accordance with the
manual.
• Do not add charcoal lighter fluids, charcoal soaked in lighter fluid or any other
flammable fluid (petrol, alcohol, etc...) or highly volatile fluids.
• Always be careful when using the grill as surfaces will become very hot during
operation.
• Never leave children, pets or people with reduced physical, sensory or mental
capabilities unsupervised near a hot grill.
• Keep small parts and plastic bags away from the reach of children.
• The grill should never be used by children or people with reduced capabilities.
• Only move the grill when it is not in use, after all parts have cooled down.
• Only remove ashes after they have cooled down and the charcoal has finished
burning. Make sure the grill has cooled down.
• The charcoal must always be placed in the specified container, never directly at the
bottom of the grill.
• Be careful when handling and storing hot electric lighters.
• Keep wires and electric cables away from the grill’s hot surfaces and away from
areas with foot traffic.
• Do not use the grill in strong winds as this can hinder its performance, increase
charcoal consumption, as well as present risks caused by hot ashes.
• Do not use the grill on surfaces that might catch fire or melt due to the proximity of
the heat, for example, high or very dry grass, plastic surfaces and wood, among others.
4.3. RECOMMENDATIONS FOR USE: ATTENTION AND CAUTION
• During use, always keep the grill on a flat and stable surface away from combustible
or flammable materials.
• Before handling cooking grates, ashes, charcoal or the grill itself, make sure they
are not hot.
• Do not leave the grill unattended while the fire/embers are lit or the ashes and grill
are hot.
• Never use water to control flames or to extinguish the fire as this can damage the
finish of the grill.
• We recommend using Tramontina protective mitts against the heat during use
and when handling the grill (preparing food, adding charcoal or while it’s still hot).
• We recommend using Tramontina utensils with long handles as they provide a
safe distance from the appliance.
• Never discard embers in places where they can be stepped on or cause a fire. Never
discard ashes or charcoal before they have cooled down completely.
•Due to variations in temperature, your grill screws might come loose. Tighten them
regularly.
• Before you store your grill, remove the charcoal and ashes and clean the cooking
grates (see cleaning instructions).
• Never assemble or handle the grill while under the influence or drugs, prescribed
or not, such as alcohol, medication, etc.
• This grill should not be used in or on vehicles and/or boats.
• This grill must never be used as a heater.
• Do not wear loose clothing while igniting or using the grill.
• Never use the grill to support yourself and never let children climb on the appliance.
• Never lean over the grill when it is in use or still hot.
Take care not to knock utensils on the edge of the grill as they may damage it and
form sharp edges.
Attention when handling the cooking grates:
The grill should only be moved when cold, but should it be necessary to move it
when it is still hot, please use the required utensils for protection.
5. USEFUL GUIDELINES
5.1. FIRST STEPS WITH A CHARCOAL GRILL
• For adequate air flow, the ashes accumulated in the lower part of the grate/tray
must be removed. However, verify that the embers have been extinguished before
doing so.
• Follow the supplier instructions on the charcoal package. Observe the charcoal
capacity indicated below:
6

ENGLISH
ATTENTION
• In coastal areas where there is high humidity or retention of certain residues (salt,
fat, food ...), corrosion (rust) might act more quickly on the structure of the grill due
to sea spray. Take extra care with cleaning.
• Before reusing your grill, verify its attachment systems. If necessary, retighten
them.
• The cooking grates can be cleaned with metal brushes, which must be used care-
fully and exclusively for this purpose.
• Always rinse the grates well after using the metal brushes as they can lose bristles
during use. Brushes should be replaced when bristles start to come loose.
• Never use sharp objects to clean any part of the grill or remove ashes as they can
damage the finish.
• Never use abrasive cleaning products on your grill as this might damage the finish.
• Any damage to the finish will compromise the corrosion resistance of the grill
components.
• The grill must be thoroughly cleaned after use and kept in a sheltered and dry place.
• Never wash the product parts in a dishwasher.
• Never use products such as ethanol, acid or solvent
7. DISCARDING
Please refer to current legislation in your country regarding the safe disposal of the
packaging, the residue generated by the cooking process, the parts and of the grill itself.
Never discard/burn domestic waste or any other type of waste in your grill.
8. WARRANTY
A Tramontina S/A Cutelaria provides warranty for this product regarding
manufacturing defects for a total period of 12 (twelve) months or 9 (nine) months
under contractual warranty and 90 (ninety) days legal warranty.
The warranty period starts on the date stated on the receipt of purchase, which should
be attached to this policy. The warranty will only be valid with a proof of purchase.
This warranty is limited to repairing or replacing defective parts under normal
conditions of use after analysis and confirmation that these are indeed defective.
Please contact your nearest Tramontina Authorized Service (contact information is
available on our website). If the defect and the complaint are verified, the manufacturer
will replace parts free of charge. When returning defective parts, costs of shipping
must be pre-paid by the consumer. When the manufacturer returns parts to the
consumer, shipping must also be pre-paid by the consumer.
There are no other implied warranties except those expressly established in this
document, and any warranties are limited to the period stated above.
The warranty (legal and/or contractual) does not cover:
• Defects resulting from non-compliance with use and care recommendations in
this manual;
• Any faults or operational difficulties resulting from accidents, abuse, inadequate
use, alterations, vandalizing, inadequate assembly, failure to comply with routine
maintenance work or incorrect operation performed by the user;
• When the product is used for purposes other than those recommended in this
manual;
• Normal/natural wear;
•Color alterations and stains do not hinder the normal operation of the grill, therefore
they will not be considered for any claims;
• Deterioration or damage caused by severe weather conditions, such as hailstorms,
hurricanes, earthquakes, tornadoes, or faded coloring caused by heat and/or
exposure to chemicals, directly or in the atmosphere;
• Occurrence of corrosion (rust) due to exposure to high humidity or retention of
certain residues (salt, fat, food ...) in coastal areas;
• In the case of discontinued parts, the manufacturer reserves the right to offer
similar parts of equal functionability;
• Damaged parts (crushed or scratched) due to transportation accidents or
inadequate handling, falls, acts or effects of nature, such as lightning, rain, etc.
• Expenses for service when no defect can be found, related to guidelines for use,
which can be found in this instruction manual or on the product itself, might be
charged to the consumer.
Other information about technical support:
• TRAMONTINA S/A CUTELARIA, due to the ongoing development of its products,
reserves the right to alter general, technical and aesthetic features without prior
warning.
• Any defect that is verified in this product must be immediately communicated to
the nearest Tramontina Authorized Service. Please contact technical support teams
(Brazil only - http://www.tramontina.com.br/assistencia-tecnica) For services
abroad, please contact authorized representatives (http://www.tramontina.com.
br/units/index/language/en#officeFilter_country_id- under the Where to Buy
section).
• If you need a replacement part or you have doubts about assembling, use or
maintenance of your grill, please contact customer service (Brazil only - http://
www.tramontina.com.br/assistencia-tecnica- For services abroad, please contact
authorized representatives (http://www.tramontina.com.br/units/index/language/
en#officeFilter_country_id- under the Where to Buy section).
• Any other necessary maintenance or adjustment work not covered in this manual
must be performed by qualified personnel. This is why we always recommend
contacting the Tramontina Authorized Service Network, specifying your grill’s
brand and model.
• The manufacturer is not responsible for people or companies that assume
any other duties or liabilities regarding the sales, installation, use, removal and
returning or replacing of their equipment.
7

tramontina.com
194413
