Trane AquaStream 2 CGWN Series Owner's manual

CG-SVX06F-GB
Original instructions
Indoor liquid chiller with integrated hydraulic module
Water-cooled model CGWN and Condenserless model CCUN :
205 - 206 - 207 - 208 - 209 - 210 - 211 - 212 - 213 - 214 - 215
R410A
Installation
Operation
Maintenance

General information 3
Model Number Description 5
General data 7
Installation 10
Location Requirements 10

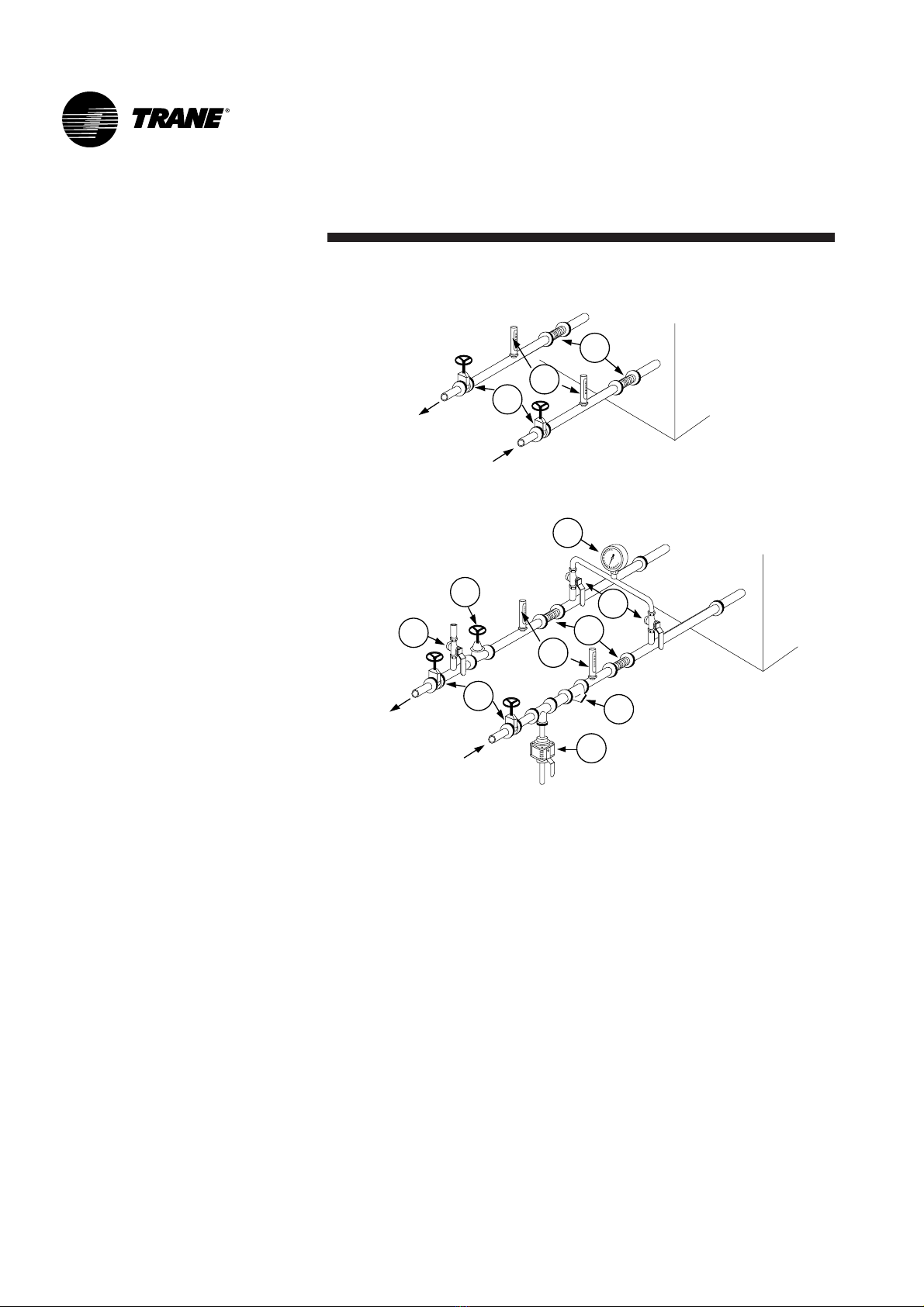

Evaporator piping 11
Minimal installation water content 13
Parameters which influence the water temperature stability 13
Minimum water volume for a comfort application 13
Water connections 14
Refrigerant line connections 15
Winter freeze protection 20
Electrical connections 21
Interconnection between CCUN and Remote Condenser 25
Preparation for start-up 27
General Start-up 28
Start-up 28
Operation 37
Installation checklist 37
Control and unit operation 38
Weekly start up 38
Weekend shutdown 38
Seasonal shutdown 38
Seasonal start-up 39
Maintenance 40
Maintenance Instructions 40
Troubleshooting guide 42
Contents
CG-SVX06F-GB
© Trane 2016

3CG-SVX06B-GB
General information
Safety recommendations
To avoid death, injury, equipment
or property damage, the following
recommendations should be
observed during maintenance and
service visits:
1. The maximum allowable
pressures for system leak testing on
low and high pressure side are given
in the chapter “Installation”. Always
provide a pressure regulator.
2. Disconnect the main power
supply before any servicing on the
unit.
3. Service work on the refrigeration
system and the electrical system
should be carried out only by
qualified and experienced personnel.
Reception
On arrival, inspect the unit before
signing the delivery note. Specify
any visible damage on the delivery
note, and send a registered letter
of protest to the last carrier of the
goods within 7 days of delivery.
Notify the local TRANE sales office
at the same time. The delivery
note must be clearly signed and
countersigned by the driver.
Any concealed damage shall be
notified by a registered letter of
protest to the last carrier of the
goods within 7 days of delivery.
Notify the local TRANE sales office
at the same time.
Important notice: No shipping claims
will be accepted by TRANE if the
above mentioned procedure is not
respected.
For more information, refer to the
general sales conditions of your local
TRANE sales office.
Note: Unit inspection in France.
Delay to send registered letter
in case of visible and concealed
damage is only 72 hours.
Foreword
These instructions are given as
a guide to good practice in the
installation, start-up, operation,
and maintenance by the user,
of Trane CGWN/CCUN chillers.
They do not contain full service
procedures necessary for the
continued successful operation
of this equipment. The services
of a qualified technician should
be employed through the medium
of a maintenance contract with a
reputable service company. Read
this manual thoroughly before unit
start-up.
Units are assembled, pressure
tested, dehydrated, charged and run
tested before shipment.
Warnings and cautions
Warnings and Cautions appear at
appropriate sections throughout
this manual. Your personal safety
and the proper operation of this
machine require that you follow
them carefully. The constructor
assumes no liability for installations
or servicing performed by unqualified
personnel.
WARNING! : Indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION! : Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury. It may also be used
to alert against unsafe practices or
for equipment or property-damage-
only accidents.

CG-SVX06B-GB4
General information
Warranty
Warranty is based on the general
terms and conditions of the
manufacturer. The warranty is
void if the equipment is repaired
or modified without the written
approval of the manufacturer, if the
operating limits are exceeded or if
the control system or the electrical
wiring is modified. Damage due
to misuse, lack of maintenance
or failure to comply with the
manufacturer’s instructions or
recommendations is not covered by
the warranty obligation. If the user
does not conform to the rules of this
manual, it may entail cancellation
of warranty and liabilities by the
manufacturer.
Maintenance contract
It is strongly recommended that
you sign a maintenance contract
with your local Service Agency.
This contract provides regular
maintenance of your installation
by a specialist in our equipment.
Regular maintenance ensures
that any malfunction is detected
and corrected in good time and
minimizes the possibility that serious
damage will occur. Finally, regular
maintenance ensures the maximum
operating life of your equipment.
We would remind you that failure
to respect these installation and
maintenance instructions may result
in immediate cancellation of the
warranty.
Training
To assist you in obtaining the best
use of it and maintaining it in perfect
operating condition over a long
period of time, the manufacturer
has at your disposal a refrigeration
and air conditioning service school.
The principal aim of this is to give
operators and technicians a better
knowledge of the equipment they
are using, or that is under their
charge. Emphasis is particularly
given to the importance of periodic
checks on the unit operating
parameters as well as on preventive
maintenance, which reduces the
cost of owning the unit by avoiding
serious and costly breakdown.

5CG-SVX06B-GB
Model Number Description
Digit 1 – Manufacturing location
E = Europe
Digit 2, 3, 4, 5 – Unit model
CGWN = Water-cooled chiller
CCUN = Condenserless water-
cooled
Digit 6, 7, 8 - Unit size
205
206
207
208
209
210
211
212
213
214
215
Digit 9 – Major Design Sequence
A
B
Digit 10 – Refrigerant
A = R410A
Digit 11 – Pressure level standard
2 = PED
H = STEK
Digit 12 – Language
C = Spanish
D = German
E = English
F = French
H = Dutch
I = Italian
M = Swedish
P = Polish
R = Russian
T = Czech
U = Greek
V = Portuguese
2 = Romanian
6 = Hungarian
Digit 13 – Unit type
1 = Standard
2 = Low Noise
Digit 14 – Efficiency
1 = Standard
2 = High Efficiency
Digit 15 – Unit voltage
D = 400/50Hz/3ph
Digit 16 – Minor Design Sequence
Factory assigned
Digit 17-18 – Factory assigned
Digit 19 – Fan control
3 = With fan control: 3 stages
single speed
4 = With fan control: 1 stage dual
speed and 2 stages single speed
electronic chart
X = Without fan control electronic
charts
Digit 20-21-22 – Factory assigned
Digit 23 – Evaporator leaving water
temperature
A = 15°C to 10°C Expansion valve
selection for hot water
B = 10°C to 0°C Expansion valve
selection for hot water
C = 4°C to -12°C Expansion valve
selection for Ethylene glycol
D = 4°C to -10°C Expansion valve
selection for Propylene glycol
Digit 24 – 25 – 26 – 27 – 28- 29 –
30 – Factory assigned
Digit 31 – condenser Hydraulic
Module/ Pump Control
X = Without
A = With: Single pump contactor
Option 10 on wiring diag.
B = With: Dual pump contactors
Option 11 on wiring diag.
C = With: Double pump package
Option 12 on wiring diag. - High
static pressure
D = With: Double pump package
Option 12 on wiring diag. - Low
static pressure
E = With: Two variable speed pump
package - High static pressure
F = With: Two variable speed pump
package - Low static pressure
Digit 32 – 33 – Factory assigned

CG-SVX06B-GB6
Digit 34 - Factory test
X = No final performances test
B = Test A + Visual Inspection
E = Performance test without
customer
Digit 35 – Evaporator Hydraulic
module/Pump control
X = Without
A = With: Single pump contactor
Option 5 on wiring diag.
B = With: Dual pump contactor
Option 6 on wiring diag.
C = With: Single pump package
Option 7 on wiring diag. - High
static pressure
D = With: Single pump package
Option 7 on wiring diag. - Low static
pressure
E = With: Dual pump package
Option 8 on wiring diag. - High
static pressure
F = With: Dual pump package
Option 8 on wiring diag. - Low static
pressure Grooved pipe connection
Digit 36 – Factory assigned
Digit 37 – Special Control
(Ice making/kW demand limit)
X = Without
1 = With
Digit 38 – Hot water control
X = Without
1 = With
Digit 39 – 40 Factory assigned
Digit 41 – Relay card
X= Without
1 = With
Digit 42 – 43 – Factory assigned
Digit 44 – Phase reversal protection
X = Without
1 = With
Digit 45 – 46 – 47 – 48 – Factory
assigned
Digit 49 – Communication card
X = Without
1 = LCI-C
2 = PIC
4 = BCI-C
Digit 50 – 51 – 52 – Factory
assigned
Digit 53 – Pressure gauges
X = Without
1 = With
Digit 54 – 55 – 56 – 57 – 58 –
59 – Factory assigned
Digit 60 – Soft starter
X = Without
1 = With
Digit 61 – 62 – 63 – 64 -65 – 66 –
Factory assigned
Digit 67 – Hydraulic connections
X = Without
1 = With
Digit 68 – 69 – 70 – Factory
assigned
Digit 71 – Set point and temperature
display
X = Without
1 = With
Digit 72 – 73 – 74 – Factory
assigned
Digit 75 – Special order
X = Without
S = With
Model Number Description

7CG-SVX06F-GB
General Data
Table 1 - General data - CGWN/CCUN R410A
Unit size 205 206 207 208 209 210 211 212 213 214 215
Standard Efficiency
Cooling mode
Net Capacity (kW) 182.0 216.0 251.0 283.1 282.0 311.0 341.0 411 444 477 506
Evaporator water pressure drop (kPa) 57.6 59.0 55.6 42 42.4 41.8 49.8 44 43 43 42
Evaporator head pressure
available (6) (kPa) 161 141 142 149 143 188 176 224 212 214 204
Condenser water pressure drop (kPa) 59 65 61 47 47.9 52.8 63.4 64 74 73 82
Condenseur head pressure
available (6) (kPa) 151 134 138 162 150 132 117 173 161 157 143
Heating mode
Net Capacity (kW) 214 254.8 296.2 329.1 362.0 400.8 441.8 478.9 518.1 557.3 591.2
Evaporator water pressure drop (kPa) 46 47 45 34 30 40 48 50 50 50 49
Evaporator head pressure
available (6) (kPa) 182 167 156 163 160 204 193 250 229 217 205
Condenser water pressure drop (kPa) 54 60 56 44 48 51 62 57 65 65 73
Condenseur head pressure
available (6) (kPa) 157 141 159 167 158 140 124 193 182 169 156
High Efficiency
Cooling mode
Net Capacity (kW) 193.0 227.0 262.0 --------
Evaporator water pressure drop (kPa) 26.1 35.7 36.6 --------
Evaporator head pressure
available (6) (kPa) 188 156 160 --------
Condenser water pressure drop (kPa) 31 43 41 --------
Condenseur head pressure
available (6) (kPa) 177 154 173 --------
Heating mode
Net Capacity (kW) 221 262 303 --------
Evaporator water pressure drop (kPa) 21 28 29 --------
Evaporator head pressure
available (6) (kPa) 203 180 170 --------
Condenser water pressure drop (kPa) 28 39 38 --------
Condenseur head pressure
available (6) (kPa) 180 159 177 --------
System Data
Refrigerant circuit 22222222222
Capacity steps 44444446666
Minimum capacity % 25 21 25 22 25 23 25 17 17 17 17
Units Amps (2) (4)
Nominal (3) (A) 131 146 161 182 203 219 235 262 282 303 319
Start-up Amps
Standard unit (A) 259 321 336 392 413 481 497 472 492 513 581
With soft starter option (A) 195 235 250 288 309 353 369 368 388 409 453
Short circuit unit capacity (kA) 15 15 15 15 15 15 15 15 15 15 15
Max supply cable size (mm2) 150 150 150 150 240 240 240 240 240 240 240
Compressor
Number 44444446666
Type Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Model (15T+15T) (15T+20T) (20T+20T) (20T+25T) (25T+25T) (25T+30T) (30T+30T) (20T+
20T+25T)
(25T+
20T+25T)
(25T+
25T+25T)
(25T+
25T+30T)
Number of speeds 11111111111
Number of motors 11111111111
Rated Amps (comp A/B/C) (5) (A) 32/32 32/40 40/40 40/50 50/50 50/58 58/58 40/40/50 50/40/50 50/50/50 50/50/58
Locked rotor Amps (comp A/B/C) (A) 160/160 160/215 215/215 215/260 260/260 260/320 320/320 215/
215/260
260/
215/260
260/
260/260
260/
260/320
Motor RPM (rpm) 2900 2900 2900 2900 2900 2900 2900 2900 2900 2900 2900
Power factor (comp A/B/C) 0,81/0,81 0,81/0,87 0,87/0,87 0,87/0,86 0,86/0,86 0,86/0,89 0,89/0,89 0,87/
0,87/0,86
0,86/
0,87/0,86
0,86/
0,86/0,86
0,86/
0,86/0,89
Sump Heater (comp A/B/C) (W) 160/160 160/160 160/161 160/162 160/163 160/164 160/165 160/
160/160
160/
160/160
160/
160/161
160/
160/162

CG-SVX06F-GB8
Unit size 205 206 207 208 209 210 211 212 213 214 215
Evaporator
Number 11111111111
Type Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Standard Efficiency Model DP400-
74
DP400-
90
DP400-
114
DP400-
162
DP400-
186
DP400-
186
DP400-
206
ACH502DQ-
138
ACH502DQ-
150
ACH502DQ-
162
ACH502DQ-
174
Water volume (total) (L) 15.6 18.9 24.0 34.1 39.2 39.2 43.4 35.9 39.0 42.1 45.2
High Efficiency Model DP400-
154
DP400-
154
DP400-
162 --------
Water volume (total) (L) 32.4 32.4 34.1 --------
Antifreeze Heater (W) no no no no no no no no no no no
Condenser (CGWN)
Number 1 1 111112222
Type Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Brazed
plate
Standard Efficiency Model DP400-
90
DP400-
114
DP400-
134
DP400-
186
DP400-
206
DP400-
206
DP400-
222
B400T-
114
B400T-
114
B400T-
130
B400T-
130
Water volume (total) (L) 19 24 28 39 43 43 47 23 23 26 26
High Efficiency Model DP400-
162
DP400-
162
DP400-
186 --------
Water volume (total) (L) 34.1 34.1 39.2 - - - -----
Antifreeze Heater (W) no no no no no no no no no no no
Condenserless Unit (CCUN)
Discharge line diameter circuit 1 & 2 1”3/8 1”3/8 1”3/8 1”5/8 1”5/8 1”5/8 1”5/8 1”5/8 1”5/8 1”5/8 1”5/8
Liquid line diameter circuit 1 & 2 7/8 7/8 7/8 7/8 7/8 1”1/8 1”1/8 1”3/8 1”3/8 1”3/8 1”3/8
Hydraulic Module / Evaporator Side (Option high head)
Pump Type (Single) LRL LRL LRN LRN LRN LRN LRN SIL SIL SIL SIL
Model 205 -
15 / 4
205 -
15 / 4
206 -
13 / 5.5
206 -
13 / 5.5
206 -
13 / 5.5
206 -
14 / 7.5
206 -
14 / 7.5
208 -
16 / 11
208 -
16 / 11
208 -
16 / 11
208 -
16 / 11
Pump Type (Dual) JRL JRL JRN JRN JRN JRN JRN DIL DIL DIL DIL
Model 205 -
15 / 4
205 -
15 / 4
206 -
13 / 5.5
206 -
13 / 5.5
206 -
13 / 5.5
206 -
14 / 7.5
206 -
14 / 7.5
208 -
16 / 11
208 -
16 / 11
208 -
16 / 11
208 -
16 / 11
Number of Pump sets 11111111111
Motor (6) (kW) 4.0 4.0 5.5 5.5 5.5 7.5 7.5 11.0 11.0 11.0 11.0
Rated Amps (6) (A) 7.5 7.5 10.5 10.5 10.5 14.3 14.3 20.0 20.0 20.0 20.0
Motor RPM (rpm) 2900 2900 2900 2900 2900 2900 2900 2900 2900 2900 2900
Water strainer Ø 3” 3” 4” 4” 4” 4” 4” 4” 4” 4” 4”
Expansion tank volume (L) 25 25 25 25 25 25 25 35 35 35 35
User volume expansion capacity (6) (L) 3600 3600 3600 3600 3600 3600 3600 5100 5100 5100 5100
Max. water-side operating pressure,
without hydraulic module (kPa) 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
with hydraulic module (kPa) 400 400 400 400 400 400 400 400 400 400 400
Antifreeze heater (W) no no no no no no no no no no no
Piping Steel Steel Steel Steel Steel Steel Steel Steel Steel Steel Steel
Hydraulic Module / Evaporator Side (Option low head)
Pump Type (Single) LRL LRL SIL SIL SIL LRN LRN LRN LRN LRN LRN
Model 205 -
13 / 2.2
205 -
13 / 2.2
206 -
12 / 4.0
206 -
12 / 4.0
206 -
12 / 4.0
206 -
13 / 5.5
206 -
13 / 5.5
206 -
13 / 5.5
206 -
13 / 5.5
206 -
14 / 7.5
206 -
14 / 7.5
Pump Type (Dual) JRL JRL DIL DIL DIL JRN JRN JRN JRN JRN JRN
Model 205 -
13 / 2.2
205 -
13 / 2.2
206 -
12 / 4.0
206 -
12 / 4.0
206 -
12 / 4.0
206 -
13 / 5.5
206 -
13 / 5.5
206 -
13 / 5.5
206 -
13 / 5.5
206 -
14 / 7.5
206 -
14 / 7.5
Number of Pump sets 11111111111
Motor (6) (kW) 2.2 2.2 4.0 4.0 4.0 5.5 5.5 4.0 4.0 5.5 5.5
Rated Amps (6) (A) 4.9 4.9 7.8 7.8 7.8 10.5 10.5 7.8 7.8 10.3 10.3
Motor RPM (rpm) 2900 2900 2900 2900 2900 2900 2900 2900 2900 2900 2900
Hydraulic Module / Conderser Side (Option high head)
Pump Type SHC SHC SHC SHC SHC SHC SHC JRN JRN JRN JRN
Model high head 35 -
135 / 3
35 -
135 / 3
50 -
135 / 4
50 -
135 / 4
50 -
135 / 4
50 -
135 / 4
50 -
135 / 4
206 -
14 / 7.5
206 -
14 / 7.5
206 -
14 / 7.5
206 -
14 / 7.5
Number of Pump sets 2 (in
parallel)
2 (in
parallel)
3 (in
parallel)
4 (in
parallel)
5 (in
parallel)
6 (in
parallel)
7 (in
parallel)
2 (in
parallel)
2 (in
parallel)
2 (in
parallel)
2 (in
parallel)
Motor (6) (kW) 3.0 3.0 4.0 4.0 4.0 4.0 4.0 7.5 (x2) 7.5 (x2) 7.5 (x2) 7.5 (x2)
Rated Amps (6) (A) 6.2 6.2 7.4 7.4 7.4 7.4 7.4 13.8 13.8 13.8 13.8
Motor RPM (rpm) 2900 2900 2900 2900 2900 2900 2900 2900 2900 2900 2900
Water strainer Ø 4” 4” 4” 4” 4” 4” 4” 4” 4” 4” 4”
Expansion tank volume (L) No No No No No No No No No No No
Max. water-side operating pressure,
without hydraulic module (kPa) 1000 1000 1001 1002 1003 1004 1005 1000 1000 1000 1000
with hydraulic module
suction/discharge (kPa) 400/640 400/640 400/641 400/642 400/643 400/644 400/645 1000 1000 1000 1000
Antifreeze heater (W) no no no no no no no no no no no
Piping Steel Steel Steel Steel Steel Steel Steel Steel Steel Steel Steel
General Data

9CG-SVX06F-GB
Unit size 205 206 207 208 209 210 211 212 213 214 215
Hydraulic Module / Conderser Side (Option low head)
Pump Type SHC SHC SHC SHC SHC SHC SHC DIL DIL JRN JRN
Model high head 20
-134 / 2.2
20
-134 / 2.2
35 -
135 / 3
35 -
135 / 3
35 -
135 / 3
35 -
135 / 3
35 -
135 / 3
206 -
12 / 4.0
206 -
12 / 4.0
206 -
13 / 5.5
206 -
13 / 5.5
Number of Pump sets 2 (in
parallel)
2 (in
parallel)
3 (in
parallel)
4 (in
parallel)
5 (in
parallel)
6 (in
parallel)
7 (in
parallel)
8 (in
parallel)
9 (in
parallel)
10 (in
parallel)
11 (in
parallel)
Motor (6) (kW) 2.2 2.2 3.0 3.0 3.0 3.0 3.0 4.0 4.0 5.5 5.5
Rated Amps (6) (A) 5.0 5.0 6.2 6.2 6.2 6.2 6.2 7.8 7.8 10.3 10.3
Motor RPM (rpm) 2900 2900 2900 2900 2900 2900 2900 2900 2900 2900 2900
Unit water connection
Chilled water (Inch/
mm) 3” (80) 3” (80) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100)
Type Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic
Hot water High Head (Inch/
mm) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 5” (125) 5” (125) 5” (125) 5” (125)
Type Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic
Hot water Low Head (Inch/
mm) 3” (80) 3” (80) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 5” (125) 5” (125) 5” (125) 5” (125)
Type Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic
Unit water connection without pumps
Chilled water (Inch/
mm) 3” (80) 3” (80) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100)
Type Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic
Hot water (Inch/
mm) 3” (80) 3” (80) 4” (100) 4” (100) 4” (100) 4” (100) 4” (100) 5” (125) 5” (125) 5” (125) 5” (125)
Type Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic Victaulic
Dimensions
Height (mm) 1842 1842 1842 1842 1842 1842 1842 1950 1950 1950 1950
Length (without pumps) (mm) 2545 2545 2545 2545 2545 2545 2545 2808 2808 2808 2808
Length (with pumps) (mm) 2545 2545 2545 2545 2545 2545 2545 3498 3498 3498 3498
Width (mm) 880 880 880 880 880 880 880 878 878 878 878
Standard Efficiency Operating Weight (CGWN/CCUN)
Base Unit (without pumps) (kg) 1360 /
1260
1300 /
1170
1420 /
1270
1500 /
1280
1650 /
1420
1710 /
1480
1790 /
1550
2232 /
1879
2442 /
2070
2525 /
2120
2640 /
2180
Base Unit (with pumps) (kg) 1360 /
1260
1300 /
1170
1420 /
1270
1500 /
1280
1650 /
1420
1710 /
1480
1790 /
1550
2128 /
1880
2337 /
2071
2420 /
2122
2500 /
2182
Evap Hyd Kit (kg) 1450 /
1350
1390 /
1260
1590 /
1440
1670 /
1450
1820 /
1590
1880 /
1650
1960 /
1720
2618 /
2370
2827 /
2561
2910 /
2612
2990 /
2672
Evap + Cds Hyd Kit (kg) 1520 / NA 1460 / NA 1690 / NA 1770 / NA 1920 / NA 1980 / NA 2060 / NA 2992 / NA 3201 / NA 3284 / NA 3364 / NA
Shipping Weight (CGWN/CCUN)
Base Unit (without pumps) (kg) 1290 /
1210
1220 /
1120
1320 /
1200
1370 /
1190
1510 /
1320
1570 /
1380
1650 /
1450
2109 /
1832
2315 /
2023
2387 /
2070
2492 /
2130
Evap Hyd Kit (kg) 1380 /
1300
1310 /
1210
1490 /
1370
1540 /
1360
1680 /
1490
1740 /
1550
1820 /
1620
2480 /
2274
2685 /
2465
2758 /
2512
2840 /
2568
Evap + Cds Hyd Kit (kg) 1450 / NA 1380 / NA 1590 / NA 1640 / NA 1780 / NA 1840 / NA 1920 / NA 2797 / NA 3002 / NA 3075 / NA 3157 / NA
High Efficiency Operating Weight (CGWN/CCUN)
Base Unit (without pumps) (kg) 1460/13301450/12401470/1250 --------
Evap Hyd Kit (kg) 1550/14201540/13301640/1420 --------
Evap + Cds Hyd Kit (kg) 1620/NA 1610/NA 1740/NA --------
Shipping Weight (CGWN/CCUN)
Base Unit (without pumps) (kg) 1360/12701350/11701340/1160 --------
Evap Hyd Kit (kg) 1450/13601440/12601510/1330 --------
Evap + Cds Hyd Kit (kg) 1520/NA 1510/NA 1610/NA --------
Refrigerant Charge (4) (5)
CGWN Standard Efficiency Circuit 1 & 2 (kg) 10 11 13 17 18 18 19 22 23 24 25
CGWN High Efficiency Circuit 1 & 2 (kg) 15 15 17 --------
CCUN Nitrogen Charge
Oil Charge per circuit
Circuit 1 & 2 (l) 13.4 13.4 13.4 13.4 13.4 13.9 14.4 21.2 21.7 22.2 22.7
(1) Indicative performance at Evaporator water temperature: 12°C / 7°C - Condenser 30°C/35°C or 40°C/45°C (heating) - for detailed performances consult Order Write Up.
(2) Under 400V/3/50Hz.
(3) Max Rated Condition without Pump Package.
(4) Electrical & system data are indicative and subject to change without notice. Please refer to unit nameplate data.
(5) per circuit
(6) Dual Pump Option
General Data

CG-SVX06F-GB10
Installation - Mechanical
Location Requirements
Sound Considerations
The most effective form of
acoustical isolation is to locate the
unit away from any sound sensitive
area. Structurally transmitted sound
can be reduced by elastomeric
vibration eliminators. Spring isolators
are not recommended. Consult an
acoustical engineer in critical sound
applications.
Foundation
For maximum isolation effect, water
lines and electrical conduit should
also be isolated. Wall sleeves and
rubber isolated piping hangers can be
used to reduce the sound transmitted
through water piping. To reduce the
sound transmitted through electrical
conduit, use flexible electrical
conduit.
EU and Local codes on sound
emissions should always be
considered. Since the environment
in which a sound source is
located affects sound pressure,
unit placement must be carefully
evaluated. Consult an acoustical
engineer for critical applications.
Provide rigid, non-warping mounting
pads or a concrete foundation of
sufficient strength and mass to
support the applicable operating
weight (i.e. including completed
piping, and full operating charges
of refrigerant, oil and water). Refer
to the chapter on Unit Dimensions/
Weights for unit operating weights.
Once in place, the unit must be
level with 3 mm over its length and
width. Trane is not responsible for
equipment problems resulting from an
improperly designed or constructed
foundation.
Clearances
Provide enough space around the
unit to allow the installation and
maintenance personnel unrestricted
access to all service points. Refer
to submittal drawings for the unit
dimensions, to provide sufficient
clearance for the opening of control
panel doors and unit service.
Refer to the chapter on Unit
Dimensions/Weights for minimum
clearances. In all cases, local codes
which require additional clearances
will take precedence over these
recommendations.
Rigging
Refer to weights tables for typical
unit lifting weights. Refer to the
rigging label attached to the unit for
further details.
Lifting Procedure
Refer to the lifting label affixed to the
unit. Lifting beam crossbars MUST
be positioned so lifting cables do not
contact the sides of the unit. Adjust
as necessary for even level lift.
1. Use the four rigging points which
are built into the unit.
2. Slings and a spreader bar are to
be provided by the rigger.
3. The minimum lifting capacity of
each sling as well as the spreader
bar must be equal or higher than
the tabulated unit shipping weight.
4. Caution: this unit must be lifted
and handled with care. Avoid
shocks while handling.

11CG-SVX06F-GB
Evaporator piping
Evaporator water connections are
grooved. Thoroughly flush all water
piping to the CGWN or CCUN
units before making the final piping
connections to the unit. Components
and layout will vary slightly,
depending on the location of
connections and the water source.
CAUTION Equipment Damage!
If using an acidic commercial
flushing solution, construct a
temporary bypass around the unit
to prevent damage to internal
components of the evaporator.
CAUTION Proper Water Treatment!
The use of untreated or improperly
treated water in a chiller may result
in scaling, erosion, corrosion, algae
or slime. It is recommended that
the services of a qualified water
treatment specialist be engaged to
determine what water treatment, if
any, is required. Trane assumes no
responsibility for equipment failures
which result from untreated or
improperly treated water, or saline
or brackish water.
Drainage
Locate the unit near a large capacity
drain for water vessel draindown
during shutdown or repair. Water
piping is provided with drain
connections. Refer to “Water
Piping.” All local and national codes
apply.
Piping
A vent is provided on the top of
the evaporator at the return end.
Be sure to provide additional vents
at high points in the piping to bleed
air from the chilled water system.
Install necessary pressure gauges
to monitor the entering and leaving
chilled water pressures.
Installation

CG-SVX06F-GB12
Figure 1 - Connection of units with hydraulic module - Evaporator and condenser sides
6
5
4
Figure 2 - Connection of units without hydraulic module - Evaporator and condenser
sides
1
7
6
5
4
2
3
8
9
1 = Pressure gauges: show entering and leaving water pressure
2 = Balancing valve: adjusts water flow.
3 = Air purge allows to remove the air from the water circuit during fill up.
4 = Stop valves: isolate chillers and water circuiting pump during maintenance
operations.
5 = Thermometers: indicate chilled water entering and leaving temperatures.
6 = Expansion compensators: avoid mechanical stress between chiller and piping
installation.
7 = Stop valve located on the outlet connection: used to measure the water pressure
inlet or outlet of evaporator.
8 = Strainer: avoid to get heat exchangers dirty. All installation must be equipped
with efficient strainer in order that only clean water enters into exchanger.
If there is no strainer, reserve will be formulated by the Trane technician at the start-
up of the unit. The strainer used must be able to stop all particles with a diameter
greater than 1 mm.
9 = Draining: used as the draining the plate heat exchanger.
10 = Do not start the unit with low water volume or not enough pressurized circuit.
Note: A pressure switch device to detect lack of water is not included in the
pump package. Installation of this type of device is highly recommended to
avoid sealing damage due to operation of pump without enough water.
Installation

13CG-SVX06F-GB
Minimal installation water
content
The water volume is an important
parameter because it allows a
stable chilled water temperature and
avoids short cycle operation of the
compressors.
Parameters which influence
the water temperature
stability
• Water loop volume
• Load fluctuation
• Number of capacity steps
• Compressors rotation
• Dead band (adjusted on chiller
controller)
• Minimum time between 2 starts of
a compressor
Minimum water volume for
a comfort application
For comfort application we can
allow water temperature fluctuation
at part load. The parameter to
take into account is the minimum
operating time of the compressor.
In order to avoid lubrication problem
on a scroll compressor it must run
at least 2 minutes (120 seconds)
before it stops.
The following table gives the
minimal installation water content
recommended according to all these
parameters.
Installation
Table 2 - Minimal water content
Notes
(1) Minimum water loop volume in order to obtain maximum +/- 1°C chilled water temperature fluctuation vs. Chilled
water set-point
(2) Minimum water loop volume in order to obtain maximum +/- 1.5°C chilled water temperature fluctuation vs.
Chilled water set-point
(3) Minimum water loop volume in order to obtain maximum +/- 2°C chilled water temperature fluctuation vs. Chilled
water set-point
This table is estimated with
- Condenser : Water 30°/35°C
- Evaporator : Water 12°/7°C
Confort Application Process cooling Application
2°C Dead
band (1)
3°C Dead
band (2)
4°C Dead
band (3)
2°C Dead
band (1)
3°C Dead
band (2)
4°C Dead
band (3)
CGWN - CCUN 205 660 l 440 l 330 l 1160 l 730 l 530 l
CGWN - CCUN 206 670 l 450 l 340 l 1160 l 740 l 540 l
CGWN - CCUN 207 650 l 440 l 330 l 1100 l 710 l 520 l
CGWN - CCUN 208 880 l 580 l 440 l 1520 l 960 l 710 l
CGWN - CCUN 209 1060 l 700 l 530 l 1860 l 1170 l 860 l
CGWN - CCUN 210 1080 l 720 l 540 l 1870 l 1190 l 870 l
CGWN - CCUN 211 1260 l 840 l 630 l 2220 l 1400 l 1020 l
CGWN - CCUN 212 1260 l 840 l 630 l 2170 l 1380 l 1010 l
CGWN - CCUN 213 1050 l 700 l 530 l 1760 l 1130 l 830 l
CGWN - CCUN 214 1270 l 850 l 640 l 2150 l 1370 l 1010 l
CGWN - CCUN 215 1240 l 820 l 620 l 2060 l 1330 l 980 l

CG-SVX06F-GB14
Water connections
Before making any connections,
make sure the labeling for entering
and leaving water corresponds to
the submittals. CGWN water-cooled
chillers and CCUN condenserless
units are available in several versions:
1) Evaporator side options
• No hydraulic control
• With pump contactors to control a
remote pump (single or dual)
• With pump integrated hydraulic
module, single or dual pump, low
or high pressure head
2) Condenser side options
• No hydraulic control
• With pump contactors to control a
remote pump (single or dual)
• With pump integrated hydraulic
module, consisting of two single
pumps in parallel to adjust
condenser waterflow as a function
of unit capacity, low or high
pressure head
Typical water circuits are provided in
the documentation package shipped
with the unit.
CAUTION! To prevent damage to the
pump’s mechanical seal, it is highly
recommended to install a differential
pressure switch on the water loop to
detect any lack of water flow.
Installation

15CG-SVX06F-GB
Installation
Refrigerant line connections
Piping
Maximum distances and refrigerant
line diameters between units
must be checked according to the
configuration and system operating
conditions (Chilled water temperature
and subcooling).
Tables 3-6 provide the maximum
acceptable height according
to subcooling available and
recommended diameters for discharge
liquid lines when CCUN condenserless
chillers are connected to remote
condensers.
The model CCUN is part of the
installation which is protected
at 44.5 bar for R410A.
The party in charge of the supply of
the condenser and of its refrigerant
piping is responsible of implementing
all the required protections to comply
with the PED requirements for the
design pressure of the condenser
installed. Please refer to the
document PROD-SVX01_-xx delivered
with this chiller to check all the
mandatory conformity requirements
of the Pressure Equipment and
Machinery directives for this
installation.
Figure 3 - Installation configuration - CCUN and remote condenser at the same level
50 m
1: Discharge line
2: Liquid line

CG-SVX06F-GB16
Installation
Table 3 - Recommended discharge line diameters for horizontal risers (Circuit 1)
Table 4 - Recommended discharge line diameters for horizontal risers (Circuit 2)
Leaving chilled water temperature (°C)
Unit size -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14
CCUN 205 7/8” 1”1/8 1”3/8
CCUN 206 7/8” 1”1/8 1”3/8
CCUN 207 7/8” 1”1/8 1”3/8
CCUN 208 1”1/8 1”3/8 1”5/8
CCUN 209 1”1/8 1”3/8 1”5/8
CCUN 210 1”1/8 1”3/8 1”5/8
CCUN 211 1”1/8 1”3/8 1”5/8
CCUN 212 1”5/8 2”1/8
CCUN 213 1”5/8 2”1/8
CCUN 214 1”5/8 2”1/8 2”5/8
CCUN 215 1”5/8 2”1/8 2”5/8
Leaving chilled water temperature (°C)
Unit size -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14
CCUN 205 7/8” 1”1/8 1”3/8
CCUN 206 7/8” 1”1/8 1”3/8
CCUN 207 7/8” 1”1/8 1”3/8
CCUN 208 1”1/8 1”3/8 1”5/8
CCUN 209 1”1/8 1”3/8 1”5/8
CCUN 210 1”1/8 1”3/8 1”5/8
CCUN 211 1”1/8 1”3/8 1”5/8
CCUN 212 1”3/8 1”5/8 2”1/8
CCUN 213 1”5/8 2”1/8
CCUN 214 1”5/8 2”1/8
CCUN 215 1”5/8 2”1/8 2”5/8

17CG-SVX06F-GB
Installation
Table 5 - Recommended liquid line diameters for vertical or horizontal risers (Circuit 1)
Table 6 - Recommended liquid line diameters for vertical or horizontal risers (Circuit 2)
Leaving chilled water temperature (°C)
Unit size -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14
CCUN 205 5/8” 7/8” 1”1/8
CCUN 206 5/8” 7/8” 1”1/8
CCUN 207 5/8” 7/8” 1”1/8
CCUN 208 7/8” 1”1/8 1”3/8
CCUN 209 7/8” 1”1/8 1”3/8
CCUN 210 7/8” 1”1/8 1”3/8
CCUN 211 7/8” 1”1/8 1”3/8
CCUN 212 1”1/8 1”3/8 1”5/8
CCUN 213 1”1/8 1”3/8 1”5/8
CCUN 214 1”1/8 1”3/8 1”5/8
CCUN 215 1”1/8 1”3/8 1”5/8
Leaving chilled water temperature (°C)
Unit size -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12 14
CCUN 205 5/8” 7/8” 1”1/8
CCUN 206 5/8” 7/8” 1”1/8
CCUN 207 5/8” 7/8” 1”1/8
CCUN 208 7/8” 1”1/8 1”3/8
CCUN 209 7/8” 1”1/8 1”3/8
CCUN 210 7/8” 1”1/8 1”3/8
CCUN 211 7/8” 1”1/8 1”3/8
CCUN 212 1”1/8 1”3/8
CCUN 213 1”1/8 1”3/8 1”5/8
CCUN 214 1”1/8 1”3/8 1”5/8
CCUN 215 1”1/8 1”3/8 1”5/8

CG-SVX06F-GB18
Installation
Insulation
Insulate refrigerant lines from
building itself to avoid transmission
to building structure of vibrations
normally caused by pipework. Also
avoid bypassing the unit’s damping
system by fixing the refrigerant
lines or the electrical ducts very
rigidly. Vibrations may propagate
into building structure through rigidly
fixed refrigerant lines.
Pressure tests and leak detection
WARNING! During operations, take
the following precaution:
1. Neither oxygen nor acethylene
should be used instead of
refrigerant and nitrogen to
detect leaks, otherwise a violent
explosion may occur.
2. Always use valves and
manometers to check the test
pressure in system. Excessive
pressure may either cause pipes
to rupture, damage unit, or cause
an explosion, causing possible
physical injury. Carry out liquid
line and hot gas pressure tests
in accordance with current
standards.
CAUTION: Do not go more than
0.7 bar above the high pressure
switch setpoint. Introduce enough
refrigerant into circuit for 85 to
100 kPa pressure, pump-injecting
dry nitrogen, and raise pressure
to 100 kPa. Search possible leaks
using detector. This operation
should be carried out great care
throughout the system. If leaks are
detected, reduce system pressure,
and repair defective component.
Repeat test process, to check that
the repair can withstand rated
pressure.
Refrigerant charge
CCUN units are delivered with a
nitrogen holding charge and isolating
valves. After system pressure and
vacuum testing, fill up unit with
refrigerant according to the diameter
and the length of the refrigerant
piping work up to obtain the correct
subcooling temperature:
t subcooling = 5°C for a liquid
temperature of 40°C.
Warning: When connecting CCUN
liquid and discharge lines , ensure
that the copper end pipes between
the stop valve and the end end of
the piping are not under pressure
using a 1/4 SAE.
Oil charge - CCUN
Above 60 kg of refrigerant charge
per circuit, special care to the oil
level on compressor is required.
The operating oil level shall remain
above half of the oil sight glass. See
the unit nameplate for oil charges.
The oil level can only be evaluated
after 10 minutes OFF time of both
compressors of the circuit. See
sticker for the oil level located on
the compressor next to the oil sight
glass. See Compressor oil level at oil
equalization line figures at the end
of “General startup” chapter.
Note: The oil quantity necessary
for the split system has also to be
adjusted according to the diameter
and the length of the refrigerant
piping work.
CAUTION: Use exclusively POE oil
recommended by TRANE
Important note:
These operations have to be
performed by a specialist. The
results have to be written on a start
up record by the Trane engineer
or the client’s specialist who has
performed this start up. The quantity
of refrigerant and oil added are at
the client’s charges.

19CG-SVX06F-GB
Installation
High pressure
The remote condenser must have a
service pressure equal to or higher
than the high service pressure.
Note: CCUN is only one component
of a complete installation. It includes
its own high pressure protection set
at 44.5 bar for R410A units.
Table 7 - Recommended liquid line diameters with pressure relief valve - CCUN
Unit size Unit efficiency model Circuit
Maximum system refrigerant
charge without pressure relief
valve (kg)
Liquid line
diameter
Maximum length without
pressure relief valve (m)
Liquid line
diameter
Maximum length
without pressure relief
valve (m)
205 Standard 1 & 2 62 1”1/8 76 7/8” 120
High 1 & 2 69 1”1/8 90 7/8” 142
206 Standard 1 & 2 63 1”1/8 71 7/8” 113
High 1 & 2 69 1”1/8 83 7/8” 131
207 Standard 1 & 2 65 1”1/8 69 7/8” 108
High 1 & 2 70 1”1/8 79 7/8” 125
208 Standard 1 & 2 71 1”1/8 73 7/8” 115
209 Standard 1 & 2 74 1”1/8 74 7/8” 116
210 Standard 1 & 2 76 1”3/8 45 1”1/8 70
211 Standard 1 & 2 79 1”3/8 44 1”1/8 69
212 Standard 1 93 1”3/8 43 1”1/8 66
Standard 2 93 1”3/8 43 1”1/8 66
213 Standard 1 94 1”5/8 28 1”1/8 60
Standard 2 94 1”5/8 28 1”1/8 60
214 Standard 1 95 1”5/8 25 1”1/8 55
Standard 2 95 1”5/8 25 1”1/8 55
215 Standard 1 98 1”5/8 24 1”1/8 52
Standard 2 98 1”5/8 24 1”1/8 52
Figure 5 - Installing pressure relief valve (205-211)
1
2
1 = Connection for pressure relief valve circuit 1
2 = Connection for pressure relief valve circuit 2
Figure 6 - Installing pressure relief valve (212-215)
1
2
1 = Connection for pressure relief valve circuit 1
2 = Connection for pressure relief valve circuit 2
Pressure relief valve - CCUN
Above the maximum system
refrigerant charge, it is recommended
to install a pressure relief valve.
See figures below for installation.
Depending upon the liquid
line diameter selected in the
“Recommended liquid line diameters”
table, find the predicted maximum
liquid line length of installation
without pressure relief valve installed.
The recommended pressure relief
valve setting is 29 bar and shall be
installed on the low pressure side of
the refrigerant circuit.
The party in charge of the supply of
the condenser and of its refrigerant
piping is responsible of implementing
all the required protections to
comply with the PED requirements
for the design pressure of the
condenser installed.
Please refer to the document PROD-
SVX01_-xx delivered with this
chiller to check all the mandatory
conformity requirements of the
Pressure Equipment and Machinery
directives for this installation.

CG-SVX06F-GB20
Installation
Winter freeze protection
During negative ambient air
temperature chilled water piping
must be fully insulated. Ensure that
all safeties are taken to prevent frost
damage during negative ambient air
temperature. The following systems
can be used:
1. Electrical heater mounted on all
water piping exposed to negative
temperatures.
2. Start chilled water pump during
negative ambient air temperature.
3. Add ethylene glycol in the chilled
water.
4. Drain water-circuit, however be
aware of corrosion process when
drained.
Note
If machinery room can be exposed to
temperature below 0°C, systems 2,
3 and 4 must be used.
CAUTION:
- There is a risk of freeze-up of
the evaporator circuit due to
internal refrigerant migration if the
condenser circuit is maintained at a
low temperature (below 0°C) for a
long period during the cold season.
If necessary, provide isolation valves
on the condenser water circuit
(CGWN). CCUN is protected against
refrigeration migration by a liquid
solenoid valve.
- When using the freeze protection
by pump activation during the cold
season, water must be able to
circulate freely.
Check that no closure valve on
other device might block waterflow.
Loading concentrated glycol in the
water loop at the suction side of the
pump is prohibited. It can severely
damage the mechanical seal of the
pump and consequently generate
potential water leaks.
Figure 7 - Freezing point versus ethylene glycol percentage
0
-1 0
-2 0
-3 0
-4 0
-5 0
010 20 30 40 506
0
3
2
1
1. Liquid
2. Freezing without burst effect
3. Freezing with burst effect
Brine temperature (°C)
% Ethylene glycol
