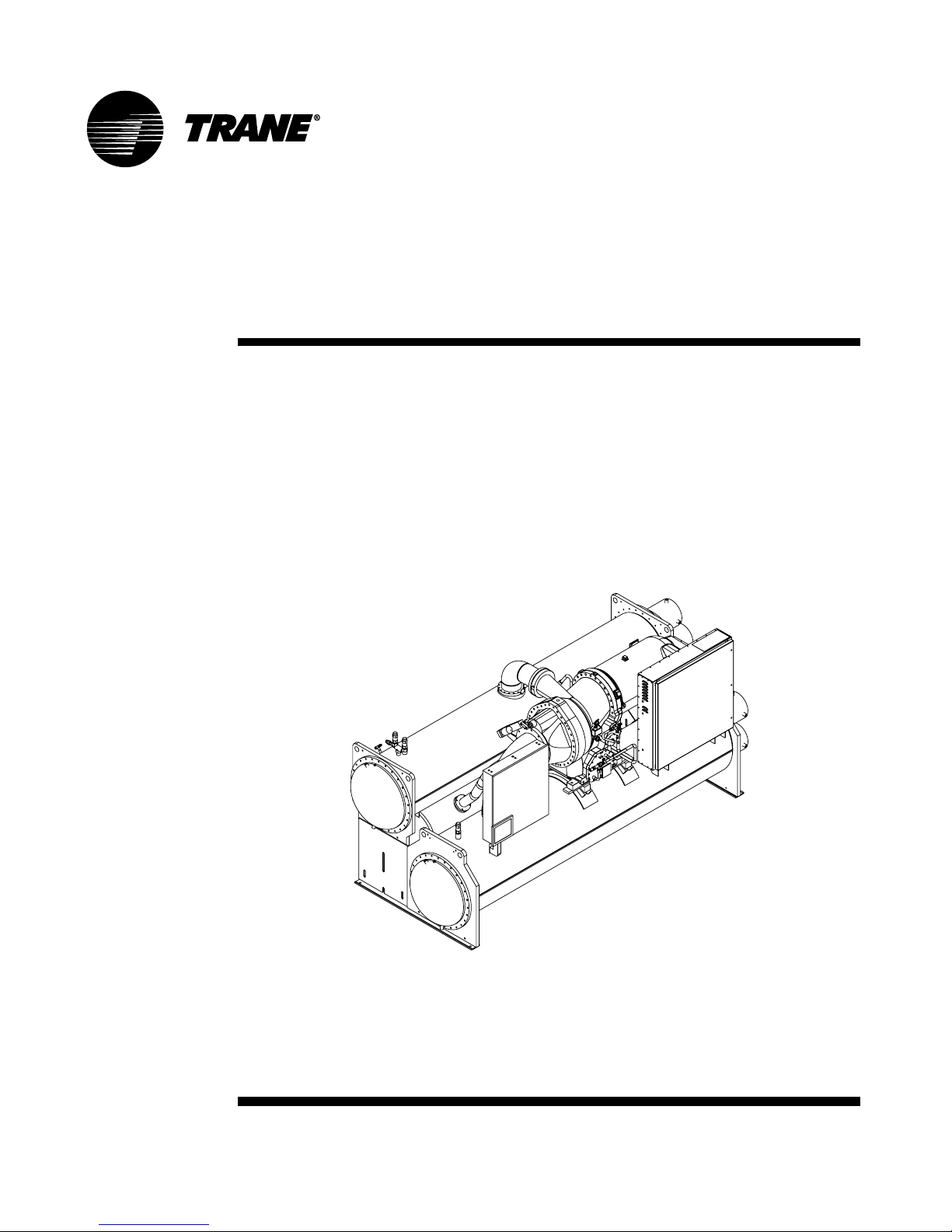

Trane CVGF500 Instruction manual

Gear-Driven Centrifugal
Water-Cooled Liquid
Chillers with
AdaptiView Controls
X39641150010 CVGF-SVX03B-EN
Unit Model
CVGF 400-1000 Ton Units
(50 and 60 Hz)
Installation
Operation
Maintenance Manual

Copyright
© 2008 Trane All rights reserved
This document and the information in it are the property of Trane and may not be used
or reproduced in whole or in part, without the written permission of Trane. Trane reserves
the right to revise this publication at any time and to make changes to its content without
obligation to notify any person of such revision or change.
Trademarks
Trane, the Trane logo, are trademarks of Trane in the United States and other countries.
All other brands and products referenced in this document are acknowledged to be the
trademarks or registered trademarks of their respective holders.
Warnings and Cautions
Warnings and cautions are provided in appropriate places throughout this document:
Environmental Concerns!
Scientific research has shown that certain man-made chemicals can affect the earth’s
naturally occurring stratospheric ozone layer when released to the atmosphere. In
particular, several of the identified chemicals that may affect the ozone layer are
refrigerants that contain Chlorine, Fluorine and Carbon (CFCs) and those containing
Hydrogen, Chlorine, Fluorine and Carbon (HCFCs). Not all refrigerants containing these
compounds have the same potential impact to the environment. Trane advocates the
responsible handling of all refrigerants—including industry replacements for CFCs
such as and HCFCs and HFCs.
Responsible Refrigerant Practices!
Trane believes that responsible refrigerant practices are important to the environment,
our customers, and the air conditioning industry. All technicians who handle
refrigerants must be certified. The Federal Clean Air Act (Section 608) sets forth the
requirements for handling, reclaiming, recovering and recycling of certain refrigerants
and the equipment that is used in these service procedures. In addition, some states
or municipalities may have additional requirements that must also be adhered to for
responsible management of refrigerants. Know the applicable laws and follow them.
NOTICE: Warnings and Cautions appear at appropriate sections through-
out this literature. Read these carefully.
�WARNING: Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
� CAUTION: Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It may also be used to
alert against unsafe practices.
CAUTION: Indicates a situation that may result in equipment or property-
damage only accidents.
© 2016 Trane All rights reserved

Contents
General Information 4
Installation: Mechanical 46
Installation: Electrical 76
Base Loading Control Algorithm 87
Control System Components 90
Machine Protection and Adaptive Control 102
Unit Startup 112
Periodic Maintenance 116
CVGF-SVX03B-EN 3

Literature History
CVGF-SVX03B-EN
(March 2016)
This is a new manual.
About this manual
This manual describes proper installation
of Model CVGF, 50 Hz and 60 Hz chillers
with the AdaptiView Controls platform.
See Figures 2 and 3 for an illustration of
a CVGF Centrifugal Chiller with the Adap-
tiView Unit Control Panel. These chillers
are equipped with microcomputer-based
control systems. A careful review of this
information along with the submittal
package provided for the unit will assure
that the chiller is correctly installed.
Operation and maintenance information
for models CVGF are covered in this man-
ual.This includes both 50 and 60 Hz. CVGF
centrifugal chillers equipped with theTrac-
er AdaptiVew Chiller Controller system.
A typical product description block is
shown in the Manual.
Carefully review this information and fol-
low the instructions given to successfully
install operate and maintain a CVGF unit.
If mechanical problems do occur, contact
a qualified service organization to ensure
proper diagnosis and repair of the unit.
Unit Nameplate
When the unit arrives, compare all name-
plate data with order, submittal and ship-
ping information. A typical unit nameplate
is shown in Figure 1.
The unit nameplate is located on the left
side of the unit control panel.
Note: Trane starters are identified by a
separate model number found on the
starter.
Figure 1.Typical unit nameplate
MODEL: CVGF500
MODEL NO:
CVGF0500RA0U33809405C1B5C1C23A1A201E3AA0
SERIAL NO: S.O. NO:
ELECTRICAL CHARACTERISTICS:
RATED VOLTAGE: 380 VOLTS50HZ 3PH
NAMEPLATE NMKW:338 kW
VOLTAGE UTILIZATION RANGE: 345- 422 VAC
MINIMUM CIRCUIT AMPACITY: 726 AMPS
MAXIMUM FUSE:1200 AMPS
MAXIMUM CIRCUIT BREAKER 1200 AMPS
MAXIMUM OVERLOAD TRIP:617 AMPS
MAX MAX
VOLTS-AC HZ PH RLA LRAY LRAD
COMPRESSOR MOTOR 380 50 3 577 1048 3286
OIL PUMP MOTOR 380 50 31.43 FLA
OIL TANK HEATER 115 50 1000 WATTS TOTAL
CONTROL CIRCUIT 115 50 1500 VA MAX
WHEN MOTOR CONTROLLER PROVIDED BY OTHERS
TRANE ENGINEERING SPEC. S6516-0360 APPLIES
GENERAL CHARACTERISTICS:
REFRIGERANT SYSTEM
TO BE FIELD CHARGED ACTUALLY CHARGED
WITH 340 KG OF R-134A WITH KG OF R-134A
MAXIMUM REFRIGERANT WORKING PRESSURE
HI SIDE 15.2 BAR LOW SIDE 15.2 BAR
FACTORY TEST PRESSURE
HI SIDE 16.7 BAR LOW SIDE 16.7 BAR
FIELD LEAK TEST PRESSURE5.17 BAR MAX.
TESTED AT BAR
LEAK TEST AND CHARGING SPECIFICATION ARE SUPPLIED
IN CONTROL PANEL (SERVICE LITERATURE MANUAL)
MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING
U.S. PATENTS: 4686834 4689967 4715190 5056032
5058031 5434738 5563489 5836382
SERVICE LITERATURE
INSTALLATION, OPERATION AND MAINTENANCE MANUAL:
CVGF-SVN02C-EN AND CVGF-SVU02B-EN
“FOR INSTALLATION REQUIREMENTS, USE ELECTRICAL
CHARACTERISTICS NOT PRODUCT DESCRIPTION”
PRODUCT DESCRIPTION:
MODL CVGF DSEQ A0 NTON 500 VOLT 380
HRTZ 50 CPKW 338 CPIM 940EVSZ 500
EVBS C EVTB TE25 EFLD WATE EVWB NM15
EVWP 2EVCO FLGE EVWA RERE CDSZ 500
CDBS C CDTB TE28 CFLD WATE CDWB NM15
CDCO FLGE CDWA RERE ORSZ 23 AGLT UL
SPKGEXPSINSL YESOPTM YES WVUO YES
TRMM TRMS LCLD CLDC LANG ENGL SRTY USTR
SRRL 952PNCO DISC TEST PTR3
General Information
CVGF-SVX03B-EN
4

Commonly Used Abbreviations
For convenience, a number of abbreviations are used throughout this manual. These
are listed alphabetically below, along with a translation of each:
ASME = American Society of Mechanical Engineers
ASHRAE = American Society of Heating, Refrigerating and Air Conditioning Engineers
BAS = Building Automation System
CDBS = Condenser Bundle Size
CDSZ = Condenser Shell Size
AdaptiView=Tracer AdaptiView Controller
CWR = Chilled Water Reset
CWR’ = Chilled Water Reset Prime
DTFL = Design Delta-T at FullLoad (for example, the difference between entering and
leaving chilled water temperatures)
ADPV = AdaptiView™
ELWT = Evaporator Leaving WaterTemperature
ENT = Entering Chilled WaterTemperature
EXOP = Extended Operation
GBAS = Generic Building Automation Interface
GPM = Gallons-per-minute
HLUV = High Lift UnloadingValve.
Hp = Horsepower
HVAC = Heating, Ventilating, and Air Conditioning
IE = Internally-EnhancedTubes
IPC = Interprocessor Communication
LCD = Liquid Crystal Display
LED = Light Emitting Diode
LLID = Low Level Intelligent Device (Sensor, Pressure Transducer, or Input/output UCP
module)
MAR = Machine Shutdown Auto Restart (Non-Latching where chiller will restart when
condition corrects itself.)
MMR = Machine Shutdown Manual Restart (Latching where chiller must be manually
reset.)
UC800 = Main Processor
PFCC = Power Factor Correction Capacitor
PID = Proportional Integral Derivative
PSID = Pounds-per-Square-Inch (differential pressure)
PSIG = Pounds-per-Square-Inch (gauge pressure)
ODT = OutdoorTemperature
OPST = Operating Status Control
RLA = Rated Load Amps
RTD = ResistiveTemperature DeviceTracer
AdaptiView= Controls Platform used on this Chiller
CVGF-SVX03B-EN 5
General Information

TRMM =Tracer
Communications
UCP = Unit Control Panel
CVGF-SVX03B-EN
6
General Information

Condenser
Two-Stage Compressor
Unit-Mounted Starter (Optional)
Relief V
alves
Unit Nameplate
Control Panel AdaptiView
Oil Pump
Evaporator
Figure 2. General CVGF unit component
Figure 3. Component location for typical CVGF unit (back view)
Motor
Unit nameplate
Relief valve
s
Oil cooler
Economizer
CVGF-SVX03B-EN 7
General Information

Unit Nameplates
The CVGF unit nameplate (Figure 2 shows the nameplate location) is applied to the
exterior surface of the control panel.The starter nameplate is located inside the starter
panel.
The unit nameplate provides the following information:
unit electrical requirements - Lists correct operating charges of HFC-134a and lubrica-
tion oil - Lists unit test pressures and maximum working pressures The starter name-
plate provides the following information:
Unit Inspection
When the unit is delivered, verify that it is the correct unit and that it is properly
equipped.
Inspect all exterior components for visible damage. Report any apparent damage or
material shortage to the carrier and make a "unit damage" notation on the carrier’s de-
livery receipt. Specify the extent and type of damage found and notify the appropriate
Trane Sales Office.
Do not proceed with installation of a damaged unit without sales office approval.
Inspection Checklist
To protect against loss due to damage incurred in transit, complete the pre-commis-
sioning checklist, which can be obtained from yourTrane representative.
-
vious damage to the unit
it is stored. Concealed damage must be reported within 10 days after receipt.
damaged material from the receiving location.Take photos of the damage, if possible.
The owner must provide reasonable evidence that the damage did not occur after de-
livery.
however, until damage is inspected by the damage is inspected by the transportation
Loose Parts Inventory
The loose parts items ship in the motor junction box for units without a unit-mount-
ed starter, or in the starter panel for units equipped with a unit-mounted starter. This
includes the isolation pads, extra oil filter, and any optional optional factory-shipped items.
CVGF-SVX03B-EN
8
General Information

Unit Description
The CVGF units are singlecompressor, gear-type, watercooled liquid chillers designed
for installation indoors. Each unit is a completely assembled, hermetic package that is
factorypiped, wired, leak-tested, dehydrated, oil-charged, and tested for proper control
operation before shipment.
Note: high-voltage starters are not unit-mounted before shipment.
Figure 2 and Figure 3 show a typical CVGF unit and its components. Water inlet and
outlet openings are covered before shipment. The oil tank is factory-charged with 15
gallons (56.8L) ofTrane Oil 37 and a holding charge of 5 psig (34 kPa) of dry nitrogen at
70°F (21°C).
CVGF-SVX03B-EN 9
General Information

Model number digits are selected and assigned in accordance with the following definitions using the
typical model number example shown below:
CVGF0500HA0C31609005B1B5B1C2306G4A1E2CC0A0CL
C = (1st digit)
V = (2nd digit) Hermetic Centrifugal Compressor
G = (3rd digit) Gear Drive
F = (4th digit) Development sequence
0500 = (5th, 6th, 7th, and 8th digit) Nominal compressor tonnage
0400 = 400 tons
0500 = 500 tons
0650 = 650 tons
0800 = 800 tons
1000 = 1000 tons
SSSS = Special
H = (9th digit) Unit Voltage
D = 380V-60 Hz
F = 460V-60 Hz
H = 575V-60 Hz
N = 4160V-60 Hz
P = 3300V-60 Hz
R = 380V-50 Hz
T = 400V-50 Hz
U = 415V-50 Hz
V = 3300V-50 Hz
X = 6600V-60 Hz
Z = 6600V-50 Hz
S = Special
A0 = (10th and 11th digit) Design Sequence
C = (12th digit) Control Enclosure
C = Standard Control Enclosure
S = Special
316 = (13th, 14th, and 15th digit) Compressor Motor Power (kw)
221 = 221 CPKW
254 = 254 CPKW
285 = 285 CPKW
316 = 316 CPKW
357 = 357 CPKW
401 = 401 CPKW
240 = 240 CPKW
266 = 266 CPKW
301 = 301 CPKW
338 = 338 CPKW
374 = 374 CPKW
430 = 430 CPKW
444 = 444 CPKW
484 = 484 CPKW
511 = 511 CPKW
532 = 532 CPKW
574 = 574 CPKW
594 = 594 CPKW
641 = 641 CPKW
CVGF-SVX03B-EN
10
General Information

674 = 674 CPKW
719 = 719 CPKW
751 = 751 CPKW
808 = 808 CPKW
SSS = Special
0900 = (16th, 17th, 18th, and 19th digit) Compressor Impeller Cutback
0880 CPIM
0890 CPIM
0900 CPIM
0910 CPIM
0920 CPIM
0930 CPIM
0940 CPIM
0950 CPIM
0960 CPIM
0970 CPIM
0980 CPIM
0990 CPIM
1000 through 1510 = Cutback is the same as the FCOD for impeller cutback
SSSS = Special
5 = (20th digit) Evaporator Shell Size
1 = 1000 ton evaporator
5 = 500 ton evaporator
7 = 700 ton evaporator
S = Special
B = (21st digit) EvaporatorTube Bundle
A = Small bundle
B = Medium bundle
C = Large bundle
D = Extra large bundle
S = Special
1 = (22nd digit) EvaporatorTubes
1 = .75 diameter .025 wall internally enhanced cu tube
2 = 1.00 diameter .025 wall internally enhanced cu tube
S = Special
B = (23rd digit) Evaporator Waterbox
B = 150 PSI Non-Marine - 2 pass
C = 150 PSI Non-Marine - 3 pass
D = 150 PSI Marine - 2 pass
E = 150 PSI Marine - 3 pass
H = 300 PSI Marine - 2 pass
J = 300 PSI Marine - 3 pass
L = 300 PSI Non-Marine - 2 pass
M = 300 PSI Non-Marine - 3 pass
S = Special
5 = (24th digit) Condenser Shell Size
1 = 1000 ton condenser
5 = 500 ton condenser
7 = 700 ton condenser
S = Special
CVGF-SVX03B-EN 11
General Information

B = (25th digit) Condenser Tube Bundle
A = Small bundle
B = Medium bundle
C = Large bundle
D = Extra large bundle
S = Special
1 = (26th digit) Condenser Tubes
1 = .75 diameter .028 wall internally enhanced cu tube
2 = 1.00 diameter .028 wall internally enhanced cu tube
3 = .75 diameter .035 wall 90/10 cu/ni tube
4 = .75 diameter .028 wall titanium tube
5 = .75 diameter .025 wall internally enhanced cu tube
6 = 1.00 diameter .025 wall internally enhanced cu tube
S = Special
C = (27th digit) Condenser Waterbox
A = 150 PSI Marine - 2 pass
C = 150 PSI Non-Marine - 2 pass
E = 300 PSI Marine - 2 pass
G = 300 PSI Non-Marine - 2 pass
S = Special
23 = (28th and 29th digit) Orifice Series
13 Orifice series
14 Orifice series
15 Orifice series
16 Orifice series
17 Orifice series
18 Orifice series
19 Orifice series
20 Orifice series
22 Orifice series
23 Orifice series
25 Orifice series
27 Orifice series
28 Orifice series
30 Orifice series
31 Orifice series
33 Orifice series
35 Orifice series
38 Orifice series
40 Orifice series
42 Orifice series
44 Orifice series
47 Orifice series
49 Orifice series
51 Orifice series
56 Orifice series
SS = Special
0 = (30th digit) Factory Installed Insulation
0 = None
A = Standard thickness
B = Extra thickness
CVGF-SVX03B-EN
12
General Information

1 = (31st digit) Control: Operating Status
0 = None
1 = Operating Status
G = (32nd digit) Control: Generic BAS
0 = None
G = Generic BAS
4 = (33rd digit)Tracer Communication Interface
0 = None
4 = COMM 4
5 = COMM 5
6 = MODBUS (AdaptiView Only)
7 = BACnet (AdaptiView Only)
A = (34th digit) Chilled Water Reset - Outdoor Air Temperature Sensor
0 = None
A = Chilled Water Reset – With Outdoor AirTemp Sensor
1 = (35th digit) Control: Extended Operation
0 = None
1 = Extended Operation
E = (36th digit) Language
E = English
F = French
G = German
T = Italian
P = Spanish
S = Special
2 = (37th digit) Motor Frame Size
2 = 400 Frame
3 = 440E Frame
4 = 5000 Frame
S = Special
C = (38th digit) Impeller Rim Diameter 1st Stage
A = 9.5 Rim diameter
B = 10.0 Rim diameter
C = 10.6 Rim diameter
D = 11.1 Rim diameter
E = 11.6 Rim diameter
F = 9.8 Rim diameter
G = 10.4 Rim diameter
H = 11.0 Rim diameter
J = 11.7 Rim diameter
K = 12.7 Rim diameter
L = 13.5 Rim diameter
M = 14.3 Rim diameter
N = 15.1 Rim diameter
S = Special
C = (39th digit) Impeller Rim Diameter 2nd Stage
A = 9.5 Rim diameter
B = 10.0 Rim diameter
C = 10.6 Rim diameter
D = 11.1 Rim diameter
E = 11.6 Rim diameter
CVGF-SVX03B-EN 13
General Information

F = 9.8 Rim diameter
G = 10.4 Rim diameter
H = 11.0 Rim diameter
J = 11.7 Rim diameter
K = 12.7 Rim diameter
L = 13.5 Rim diameter
M = 14.3 Rim diameter
N = 15.1 Rim diameter
S = Special
0 = (40th digit) Special Options
0 = None
S = Special option
A = (41st digit) Starter Type
A = Star-Delta - unit mounted
B = Solid State - unit mounted
C = Star-Delta - remote mounted
E = X-line full volt - remote mounted
F = Autotransformer - remote mounted
G = Primary reactor - remote mounted
M= Solid State Floor Mounted
N= Solid State Wall Mounted
R = Customer supplied
0 = (42nd digit) Additional Pressure Vessel Compliance
0 = None
N = Non-destructive Examination for China
K = KHK Japanese pressure vessel code
C = (43rd digit) Control: Condenser Refrigerant Pressure
0 = None
C = Condenser Refrigerant Pressure
L = (44th digit) Manufacturing Location
L = La Crosse, Wisconsin
T =Tai Cang, China
0 = (45th digit) Agency
0 = UL
1 = CE
2 = GB
CVGF-SVX03B-EN
14
General Information

Service Model Numbers –Solid State Motor Starter
An example of a typical Solid State ” IT ” starter model number is:
CVSR0035FAA01EA0E1
Model Number Digit Identification - Model number digits are selected and assigned
in accordance with the following definitions using the model number example shown
above.
C = (1st digit)
V = 2nd digit)
S = (3rd digit)
R = (4th digit) Development Sequence
R = Cutler Hammer Solid State ” IT ” starter for gear drive centrifugal chillers with
AdaptiView controls
0035 = (5th, 6th, 7th, and 8th digit) Starter Size
Use Rated Load Amps (RLA) value
F = (9th digit) Unit Voltage
D = 380V-60Hz-3Ph
F = 460V-60Hz-3Ph
H = 575V-60Hz-3Ph
R = 380V-50Hz-3Ph
T = 400V-50Hz-3Ph
U = 415V-50Hz-3Ph
S = Special
A = (10th digit) Design Sequence
A = Original Design
A = (11th digit) StarterType
B = Unit Mounted
M = Remote Floor Mounted
N = Remote Wall Mounted
S = Special
0 = (12th digit) Connection Type
0 =Terminal Block
1 = Disconnect Switch - Non-Fused
2 = Circuit Breaker
3 = Circuit Breaker Current Limiting
4 = Circuit Breaker High Interrupt Cap
5 = Circuit Breaker Higher Interrupt Cap
S = Special
1 = (13th digit) Agency Listing
1 = UL & cUL Listed (Standard on all units)
2 = CE
E = (14th Digit) Power Factor Correction Capacitor
0 = None
D = 25 KVAR
E = 30 KVAR
F = 35 KVAR
G = 40 KVAR
H = 45 KVAR
J = 50 KVAR
K = 60 KVAR
L = 70 KVAR
M = 75 KVAR
CVGF-SVX03B-EN 15
General Information

N = 80 KVAR
P = 90 KVAR
R = 100 KVAR
T = 120 KVAR
U = 125 KVAR
V = 150 KVAR
S = Special
A = (15th Digit) Ground Fault Protection
0 = None
A = Ground Fault Protection
S = Special
0 = (16th digit) Special Options
0 = None
S = Special Options ( See Sales Order)
E = (17th digit) Literature Language
E = English
F = French
G = German
P = Spanish
T = Italian
S = Special
1 = (18th digit) Oil Pump Starter Circuit
1 = 1 HP Oil Pump Motor
2 = 1.5 HP Oil Pump
Service Model Numbers - Wye-delta Motor Starter
An example of a typical chiller starter model number is:
CVSN0035FAA01EA0E1
Model Number Digit Identification - Model number digits are selected and assigned
in accordance with the following definitions using the model number example shown
above.
C = (1st digit)
V = 2nd digit)
S = (3rd digit)
N = (4th digit) Development Sequence
N = Cutler-Hammer electrical-mechanical starter for gear drive centrifugal chillers with
AdaptiView controls
0035 = (5th, 6th, 7th, and 8th digit) Starter Size
F = (9th digit) Unit Voltage
D = 380V-60Hz-3Ph
F = 460V-60Hz-3Ph
H = 575V-60Hz-3Ph
R = 380V-50Hz-3Ph
T = 400V-50Hz-3Ph
U = 415V-50Hz-3Ph
S = Special
A = (10th digit) Design Sequence
A = Original Design
A = (11th digit) StarterType
A = Star-Delta - Unit Mounted
C = Star-Delta - Remote Mounted
CVGF-SVX03B-EN
16
General Information

S = Special
0 = (12th digit) Connection Type
0 =Terminal Block
1 = Disconnect Switch - Non-Fused
2 = Circuit Breaker
3 = Circuit Breaker Current Limiting
4 = Circuit Breaker High Interrupt Cap
5 = Circuit Breaker Higher Interrupt Cap
S = Special
1 = (13th digit) Agency Listing
1 = UL & cUL Listed (Standard on all units)
2 = CE.
E = (14th Digit) Power Factor Correction Capacitor
0 = None
D = 25 KVAR
E = 30 KVAR
F = 35 KVAR
G = 40 KVAR
H = 45 KVAR
J = 50 KVAR
K = 60 KVAR
L = 70 KVAR
M = 75 KVAR
N = 80 KVAR
P = 90 KVAR
R = 100 KVAR
T = 120 KVAR
U = 125 KVAR
V = 150 KVAR
S = Special
A = (15th Digit) Ground Fault Protection
0 = None
A = Ground Fault Protection
S = Special
0 = (16th digit) Special Options
0 = None
S = Special Options (See Sales Order)
E = (17th digit) Literature Language
E = English
F = French
G = German
P = Spanish
T = Italian
S = Special
1 = (18th digit) Oil Pump Starter Circuit
1 = 1 HP Oil Pump Motor
2 = 1.5 HP Oil Pump Motor
CVGF-SVX03B-EN 17
General Information

Installation Overview
For convenience, T
able 1 summarizes responsibilities that are typically associated with the CVGF chiller
installation process.
T
able 1. Installation responsibility chart for CVGF units
Requiremen
tTrane-supplied, Trane-supplied, Field-supplied,
Trane-installed Field-installed Field-installed
Riggin
g Safety chains
Clevis connectors
Isolation
Isolation pads Spring isolators
Spring isolators
Electrical
Terminal lugs
Ground connection(s)
Jumper bars
BAS wiring (optional)
IPC wiring
Control voltage wiring
Optional relays and wiring
Wa
ter piping Thermometers
Pressure Relief
Relief valves
Insulation Insulation (optional)Insulation
Lifting beam equipment, skates,
rollers, and other lifting
operations
Circuit breakers or non-fused
disconnects (optional)
Circuit breakers or fusible
disconnects (optional)
Temperature sensor
(optional outdoor air)
Remote-mounted starter
(optional)
Chilled-water-pump contactor and
wiring
Condenser-water-pump contactor
and wiring
Flow switches (may be
field-supplied) Water flow pressure gauges
Isolation and balancing valves
water piping
Pressure relief valves (for water
boxes as
required)
Vent line and flexible connector
Unit-mounted starter
(optional)
Vent and drain valves
CVGF-SVX03B-EN
18
General Information

Refer to the Mechanical and Electrical sections of this manual for detailed instruc-
tions.
-
sors, flow sensors or other factoryordered field-installed options, as required. Loose
parts are located in the starter panel if equipped with a unit-mounted starter. If not
equipped with a unit-mounted starter, loose parts are shipped in the motor junction
box.
and of sufficient strength and mass to support the chiller operating weight. Place the
manufacturersupplied isolation-pad assemblies under the unit.
Note: Field piping must be arranged and supported to avoid stress on the equipment.
It is strongly recommended that the piping contractor provide at least 3 feet (914 mm)
of clearance between the preinstallation piping and the planned location of the unit.
This will allow for the proper fit upon arrival of the unit at the installation site. All nec-
essary piping adjustments can be made at that time.
-
stream of the evaporator and condenser water boxes, in order to isolate the shells for
maintenance and to balance and trim the system.
-
ing and the condenser-water piping. Interlock each switch with the proper pump start-
er, to ensure that the unit can only operate when water flow is established.
Note: reference graphs 1-16 in the Installation Mechanical section for proper water
flow.
-
ter piping, adjacent to the inlet and outlet connections of both the evaporator and the
condenser.
-
ulating valves.
the atmosphere.
(75 psig = 517 kPa maximum) for leak testing.
completed.
CVGF-SVX03B-EN 19
General Information

Table 2. General data: 400 and 500 ton units
Nominal T
onnage 400 400 400 400 500 500 500 500
1.0 1.0 0.75 0.75 1.01.0 0.75 0.75
Two Three Two ThreeTwo ThreeTwo Three
Refrigerant T
ype R134aR134a R134a R134a R134a R134a R134a R134a
Refrigerant Charge
-650 650 650 650 750 750 75
07
50
pounds (kg)
(295) (295)(295) (295) (295) (295) (295) (295)
Oil Charge
15 15 15 15 15 15 15 15
(gallon (l)
)(56.8) (56.8) (56.8)(56.8) (56.8) (56.8) (56.8) (56.8)
Overall Dimensions - Feet-Inch (mm)
Length
15'- 10 13/16" 15'- 10 13/16" 15'- 10 13/16" 15'- 10 13/16" 15'- 10 13/16"15'- 10 13/16" 15'- 10 13/16"15'- 10 13/16"
(4800) (4800) (4800) (4800) (4800) (4800) (4800) (4800)
Width
6' - 6 19/64" 6' - 6 19/64" 6' - 6 19/64" 6' - 6 19/64" 6' - 6 19/64" 6' - 6 19/64" 6' - 6 19/64" 6' - 6 19/64"
(1989) (1989) (1989) (1989) (1989) (1989) (1989) (1989)
Height
6' - 10 1/2" 6' - 10 1/2" 6' - 10 1/2" 6' - 10 1/2" 6' - 10 1/2" 6' - 10 1/2" 6' - 10 1/2" 6' - 10 1/2"
(2096) (2096) (2096) (2096) (2096) (2096) (2096) (2096)
2' - 7 1/8" 2' - 7 1/8" 2' - 7 1/8" 2' - 7 1/8" 2' - 7 1/8" 2' - 7 1/8" 2' - 7 1/8" 2' - 7 1/8"
(791)(791) (791) (791) (791) (791) (791) (791)
8" 8" 8" 8" 8" 8" 8" 8"
(203) (203) (203) (203) (203) (203) (203) (203)
2' - 1 1/2" 2' - 1 1/2" 2' - 1 1/2" 2' - 1 1/2" 2' - 1 1/2" 2' - 1 1/2" 2' - 1 1/2" 2' - 1 1/2"
(3060) (3060) (3060) (3060) (3060) (3060) (3060) (3060)
10" 10" 10" 10" 10"10" 10" 10"
(254)(254) (254) (254) (254) (254) (254) (254)
W
eight - pounds (kg)) except Waterboxes
Compressor/Motor
6220 6220 6220 6220 62206220 622
06
220
(2821) (2821) (2821) (2821) (2821) (2821) (2821) (2821)
Evaporator
3948 3948 4228 4228 4193 4193 4568 4568
(1791) (1791) (1918) (1918) (1902) (1902) (2072) (2072)
Condenser
2857 2857 3472 3472 31523152 3877 3877
(1296) (1296) (1575) (1575) (1430) (1430) (1759) (1759)
Economizer
535 535535 535 535 535535 535
(243) (243) (243) (243) (243) (243) (243) (243)
Starter Panel
500 500 500 500 500 500 500 500
(227) (227) (227) (227) (227) (227) (227) (227)
Control Pane
l7070707070707
07
0
(318) (318) (318) (318) (318) (318) (318) (318)
2127 2127 2127 2127 21272127 2127 2127
(965) (965) (965) (965) (965) (965) (965) (965)
17867 17867 17867 17867 17867 17867 17867 17867
(8104) (8104) (8104) (8104) (8104) (8104) (8104) (8104)
21460 21460 21460 21460 22564 22564 22564 22564
(9734) (9734) (9734) (9734) (10235) (10235) (10235) (10235)
Operational Data
447 298407 271 550 367 511 340
(28) (20) (25.6) (17) (34)(23) (32
)(
21)
1638 1092 1493 995 20181346 1873 124895
(103) (69) (94) (63) (127)(85) (118) (79)
499 499487 487 606 606 586 586
(31) (31) (31) (31) (38) (38) (37) (37)
1831 1831 1786 1786 22212221 2148 2148
(115) (115) (113) (113) (140) (140) (135) (135)
Evaporator Water Pass
Evaporator Water
Connection (NPS)
Condenser Nominal
Connector Size (NPS)
Miscellaneous Item
Minimum Evaporator
Flow in gpm (l/sec)
Maximum Evaporator
Flow in gpm (l/sec)
Minimum Condenser
Flow in gpm (l/sec)
Maximum Condenser
Flow in gpm (l/sec)
Tube Outside Diameter
(inch)
Evaporator Inside
Diameter
Condenser Inside
Diameter
Shipping Weight
Operating Weight
CVGF-SVX03B-EN
20
General Information
