Trane TR200 Series User manual

Operating Instructions
TR200 Embedded BACnet
June 2023 BAS-SVX35C-EN
SAFETY WARNING
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating,
ventilating, and air-conditioning equipment can be hazardous and requires specific knowledge and training. Improperly
installed, adjusted or altered equipment by an unqualified person could result in death or serious injury. When working on the
equipment, observe all precautions in the literature and on the tags, stickers, and labels that are attached to the equipment.

Table of Contents
Safety
2
2
4
Copyright, Limitation of Liability and Revision Rights
Before Commencing Repair Work
Special Conditions 5
6
Introduction
How to Install
8
The BACnet Interface 8
Switches S201, S202, and S801 10
Bus Cabling 12
How to Configure the System
13
13
Configuring BACnet
Example of a simple setup of BACnet 14
How to Control the Frequency Converter
15
16
21
Network Frequency Converter Control Inputs and Outputs
Drive Feedback to Network
BIBBs 21
Parameters
23
23
Parameter Overview
Parameter Description 24
Troubleshooting
31
Alarm, Warning and Extended Status Word 31
32
Alarm Words
Warning Words 33
Index
34
TR200 Embedded BACnet Operating Instructions 1

Safety
Copyright, Limitation of Liability and Revision Rights
This publication contains information proprietary to Trane. By accepting and using this manual the user agrees that the
information contained herein will be used solely for operating equipment from Trane or equipment from other vendors
provided that such equipment is intended for communication with Trane equipment over a serial communication link. This
publication is protected under the Copyright laws of most countries.
Trane does not warrant that a software program produced according to the guidelines provided in this manual will function
properly in every physical, hardware or software environment.
Although Trane has tested and reviewed the documentation within this manual, Trane makes no warranty or representation,
neither expressed nor implied, with respect to this documentation, including its quality, performance, or fitness for a
particular purpose.
In no event shall Trane be liable for direct, indirect, special, incidental, or consequential damages arising out of the use, or the
inability to use information contained in this manual, even if advised of the possibility of such damages. In particular, Trane is
not responsible for any costs, including but not limited to those incurred as a result of lost profits or revenue, loss or damage of
equipment, loss of computer programs, loss of data, the costs to substitute these, or any claims by third parties.
Trane reserves the right to revise this publication at any time and to make changes to its contents without prior notice or any
obligation to notify former or present users of such revisions or changes.
2 TR200 Embedded BACnet Operating Instructions

Warnings, Cautions and Notices
Note that warnings, cautions and notices appear at appropriate intervals throughout this manual. Warnings are provide to
alert installing contractors to potential hazards that could result in personal injury or death. Cautions are designed to alert
personnel to hazardous situations that could result in personal injury, while notices indicate a situation that could result in
equipment or property-damage-only accidents.
Your personal safety and the proper operation of this machine depend upon the strict observance of these precautions.
Warnings, Cautions and Notices appear at appropriate sections throughout this literature. Read these carefully.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. It could also be
used to alert against unsafe practices.
NOTICE
Indicates a situation that could result in equipment or property-damage only accidents.
Note
Indicates something important to be noted by the reader.
✮Indicates default setting
Safety
TR200 Embedded BACnet Operating Instructions 3

Safety Note
WARNING
Failure to follow instructions below could result in death or serious injury.
Safety Regulations
1. The frequency converter must be disconnected from mains if repair work is to be carried out. Check that the mains
supply has been disconnected and that the necessary time has passed before removing motor and mains plugs.
2. The [STOP/RESET] key on the keypad of the frequency converter does not disconnect the equipment from mains and is
thus not to be used as a safety switch.
3. Correct protective earthing of the equipment must be established, the user must be protected against supply voltage, and
the motor must be protected against overload in accordance with applicable national and local regulations.
4. The earth leakage currents are higher than 3.5 mA.
5. Protection against motor overload is set by par. 1-90 Motor Thermal Protection. If this function is desired, set par. 1-90
Motor Thermal Protection to data value [ETR trip] (default value) or data value [ETR warning]. Note: The function is
initialized at 1.16 x rated motor current and rated motor frequency. For the North American market: The ETR
functions provide class 20 motor overload protection in accordance with NEC.
6. Do not remove the plugs for the motor and mains supply while the frequency converter is connected to mains. Check
that the mains supply has been disconnected and that the necessary time has passed before removing motor and mains
plugs.
7. Please note that the frequency converter has more voltage inputs than L1, L2 and L3, when load sharing (linking of DC
intermediate circuit) and external 24 Vdc have been installed. Check that all voltage inputs have been disconnected
and that the necessary time has passed before commencing repair work. WARNING
Warning against Unintended Start
1. The motor can be brought to a stop by means of digital commands, bus commands, references or a local stop, while the
frequency converter is connected to mains. If personal safety considerations make it necessary to ensure that no
unintended start occurs, these stop functions are not sufficient.
2. While parameters are being changed, the motor may start. Consequently, the stop key [STOP/RESET] must always be
activated; following which data can be modified.
3. A motor that has been stopped may start if faults occur in the electronics of the frequency converter, or if a temporary
overload or a fault in the supply mains or the motor connection ceases.
Consequently, disconnect all electric power, including remote disconnects before servicing. Follow proper lockout/tagout
procedures to ensure the power can not be inadvertently energized. Failure to follow recommendations could result in death
or serious injury.
Before Commencing Repair Work
WARNING
Hazardous Voltage!
1. Disconnect the frequency converter from mains
2. Disconnect DC bus terminals 88 and 89
3. Wait at least the time mentioned in section General Warning above
4. Remove motor cable
Failure to follow recommendations could result in death or serious injury.
Safety
4 TR200 Embedded BACnet Operating Instructions

Special Conditions
Electrical ratings:
The rating indicated on the nameplate of the frequency converter is based on a typical 3-phase mains power supply,
within the specified voltage, current and temperature range, which is expected to be used in most applications.
The frequency converters also support other special applications, which affect the electrical ratings of the frequency
converter.
Special conditions which affect the electrical ratings might be:
•Single phase applications
•High temperature applications which require de-rating of the electrical ratings
•Marine applications with more severe environmental conditions.
Other applications might also affect the electrical ratings.
Consult the relevant sections in this manual and in the TR200 Design Guide for information about the electrical ratings.
Installation requirements:
The overall electrical safety of the frequency converter requires special installation considerations regarding:
•Fuses and circuit breakers for over-current and short-circuit protection
•Selection of power cables (mains, motor, brake, loadsharing and relay)
•Grid configuration (grounded delta transformer leg, IT, TN, etc.)
•Safety of low-voltage ports (PELV conditions).
Consult the relevant clauses in these instructions and in the TR200 Design Guide for information about the installation
requirements.
Safety
TR200 Embedded BACnet Operating Instructions 5

Introduction
About this Manual
First time users can obtain the most essential information for quick installation and set-up in these chapters:
Introduction
How to Install
How to Configure the System
For more detailed information including the full range of set-up options and diagnosis tools please refer to the chapters:
How to Control the Frequency Converter
Parameters
Troubleshooting
Technical Overview
BACnet (Building Automation and Control Network) is an open data communications protocol, American National Standard
(ANSI/ASHRAE 135-2004). BACnet provides a means by which computer-based control equipment from different
manufacturers can work together. BACnet is designed to handle many types of building controls, including HVAC, lighting,
security, fire, access control, maintenance and waste management. BACnet permits flexibility for expansion and different
equipment combinations.
Background information
Protocol name:
Technology developer:
Year introduced:
Governing standards:
Openness:
BACnet
ASHRAE
1995
ANSI/ASHRAE Standard 135-2004 version 4, ISO
16484-5
Open specification
Physical characteristics
Network topology: Physical
media:
Max. Distance at low speed:
Bus
Shielded twisted pair
1200 meters (4000 feet)
Transport mechanism
Communication methods:
Baud Rates Supported:
Termination:
Assumptions
This manual assumes you are using the BACnet Protocol with a TR200 series frequency converter. It is also assumed that your
system is equipped with a firmware supporting the BACnet communication services required by your application and that all
requirements stipulated in the BACnet standard, as well as those pertaining to the Variable Frequency Drive are strictly
observed as well as all limitations therein fully respected.
6 TR200 Embedded BACnet Operating Instructions
MS/TP
9600, 19200 38400, 76800
120 ohm

Requestor Background Knowledge
The Trane implementation of the BACnet Protocol is designed to communicate with any system complying with the BACnet
MS/TP standard. Familiarity with the PC, BMS or PLC used as a manager in the system is assumed. Issues regarding
hardware or software produced by other manufacturers are beyond the scope of this manual and are not the responsibility
of Trane.
If you have questions regarding set-up of MS/TP communication to a non-Trane device, please consult the appropriate
manuals.
Available Literature for TR200
-Operating Instructions BAS-SVX19 provide the necessary information for getting the drive up and running.
-Operating Instructions TR200 High Power BAS-SVX21
-Design Guide BAS-SVX23 entails all technical information about the drive and customer design and applications.
-Programming Guide BAS-SVP04 provides information on how to program and includes complete parameter
descriptions.
x = Revision number
yy = Language code
Trane technical literature is available in print from your local Trane Sales Office or online at: www.trane.com/vfd
Abbreviations
ACI Acyclical Control Interval
AOC Application Orientated Controller
AV Analog Variable
BMS Building Management System
BV Binary Variable
CAN Controller Area Network
CTW Control Word
EEPROM Electrical Erasable Programmable Read Only Memory
EIA Electronic Industries Association: Specifies of the EIA Standard RS 485-A
EMC Electromagnetic Compatibility
IND Sub index
I/O Input/Output
ISO International Standards Organization
LCD Liquid Crystal Display
LCP Local Control Panel
LED Light Emitting Diode
MAV Main Actual Value
MRV Main Reference Value
PC Personal Computer
PCD Process Data
PDU Protocol Data Unit
PELV Protected Extra Low Voltage
PLC Programmable Logic Control
PNU Parameter Number
PVA Parameter Value
RC Request/Response Characteristics
STW Status Word
Introduction
TR200 Embedded BACnet Operating Instructions 7

How to Install
The BACnet Interface
Cabling
Cable lengths and number of nodes
The maximum cable length allowable in one segment is dependent on the transmission speed. The total cable length
includes drop cables if any. A drop cable is the connection from the main bus cable to each node.
Drop cable connection (i.e. T-connection) is not recommended, due to the increased risk of reflection occurring. Instead,
Trane recommends direct connection of the frequency converter.

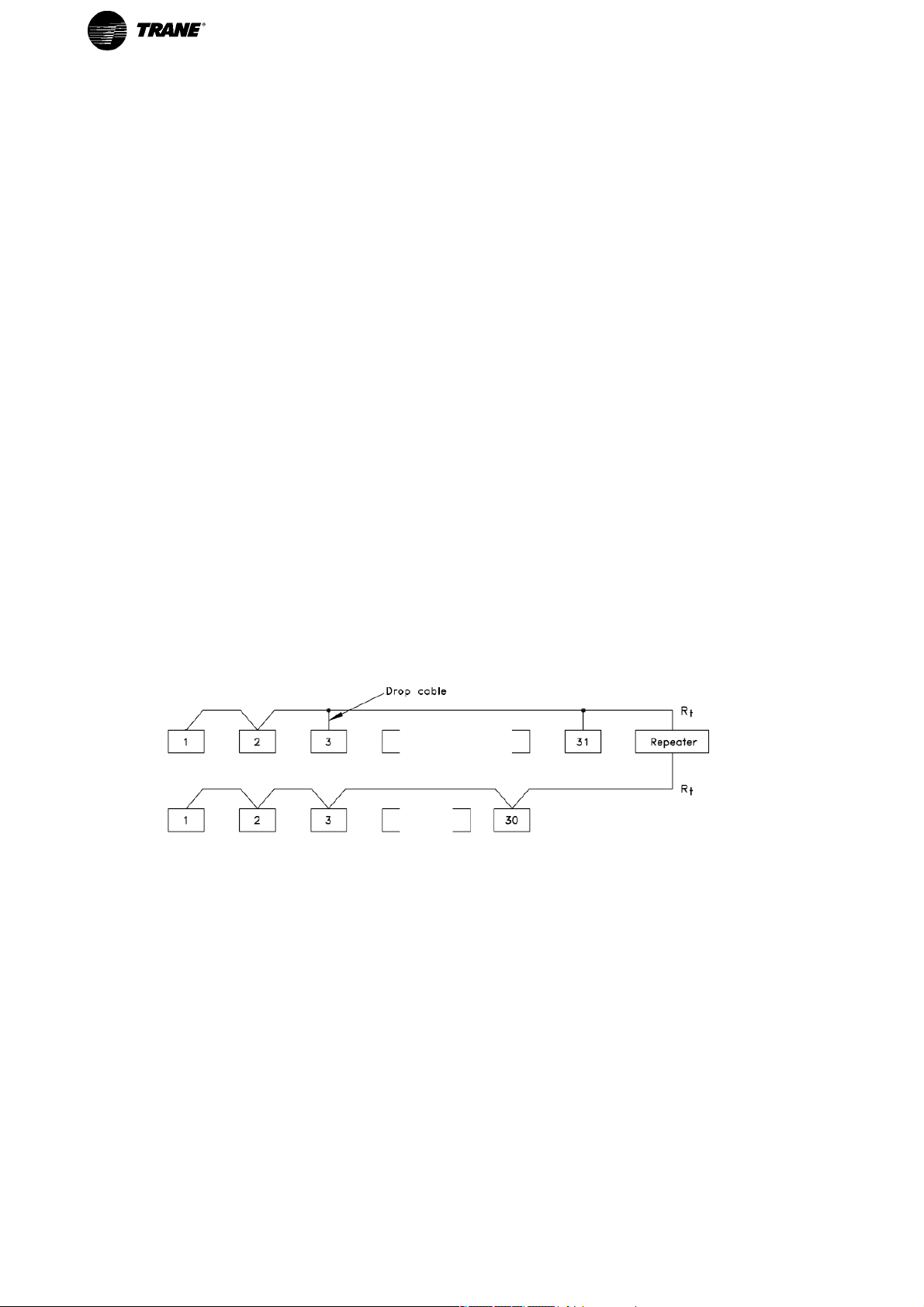

Note that a repeater is a node in both of the two segments it connects. The number of frequency converters is based on a
single #.4 system. If there are two or more devices (e.g. PC tools, Routers), the number of frequency converters must be
reduced correspondingly.
-Maximum length of an .4TP segment: 1200 meters (4000 feet)
-Impedance: 100 to 130 Ohm
-Resistance: <110 Ohm/km
-Capacitance: <100 pF/m
Distributed capacitance between conductors and shield shall be less that 200 pF per meter
-Cross section: 0.82 mm
2
conductor area, corresponding to AWG 18
-Cable type: twisted in pairs, 1 x 2, or 2 x 2 wires
-Screening: Copper-braided screen or braided screen and foil screen
Use of the same cable type throughout the entire segment is recommended to avoid impedance mismatch.
1757ZA145.11
Network Connection
Connect the frequency converter to the RS-485 network as follows (see also diagram):
1. Connect signal wires to terminal 68 (P+) and terminal 69 (N-) on the main control board of the frequency converter.
2. Connect the cable screen as described under chapter Bus Cabling.
Note
Screened, twisted-pair cables are recommended in order to reduce noise between conductors.
8 TR200 Embedded BACnet Operating Instructions

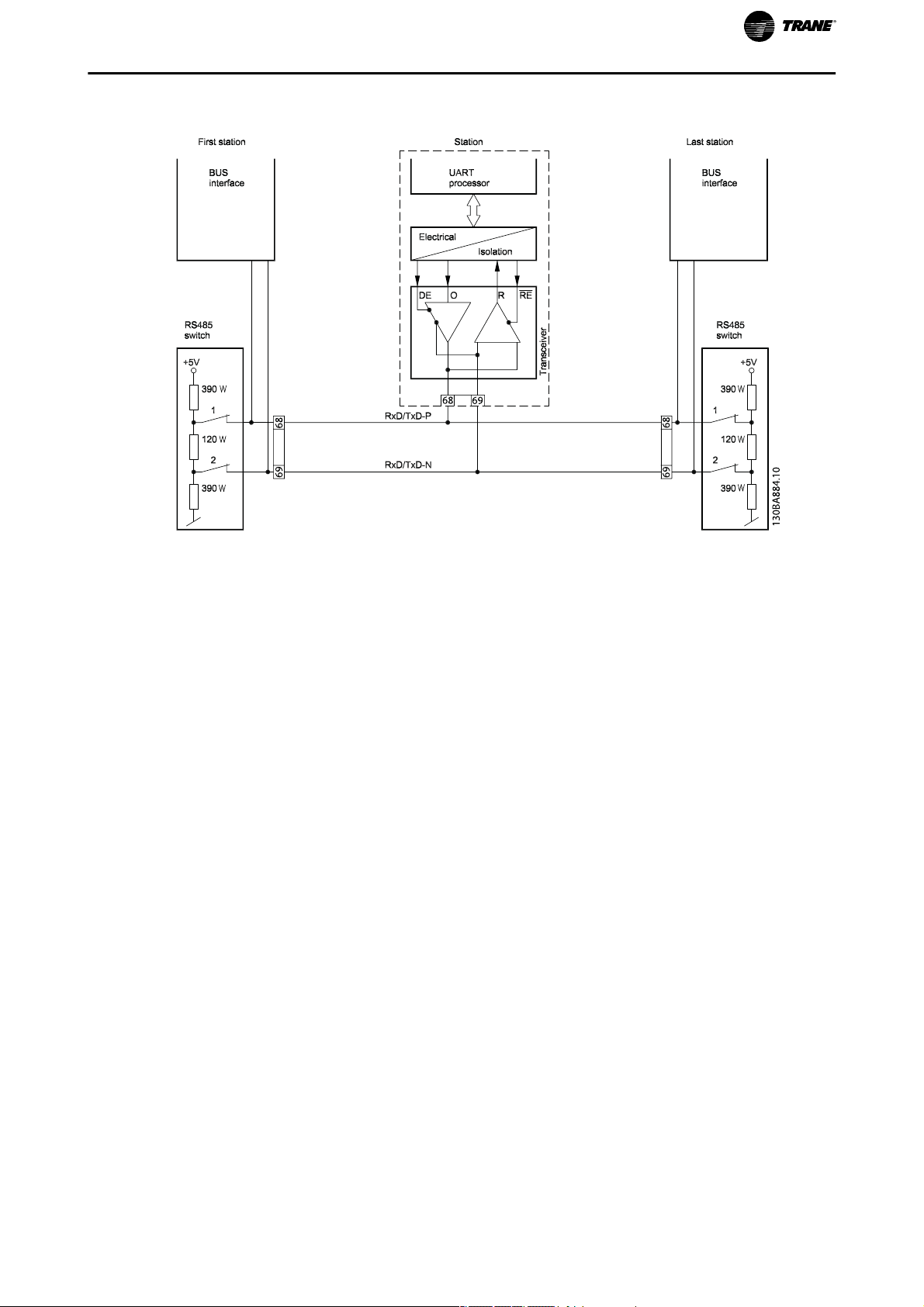

Network Termination
Maximum Cable Lengths
Maximum total bus cable length: 4000Feet ~ 1200Meter
How to Install
TR200 Embedded BACnet Operating Instructions 9

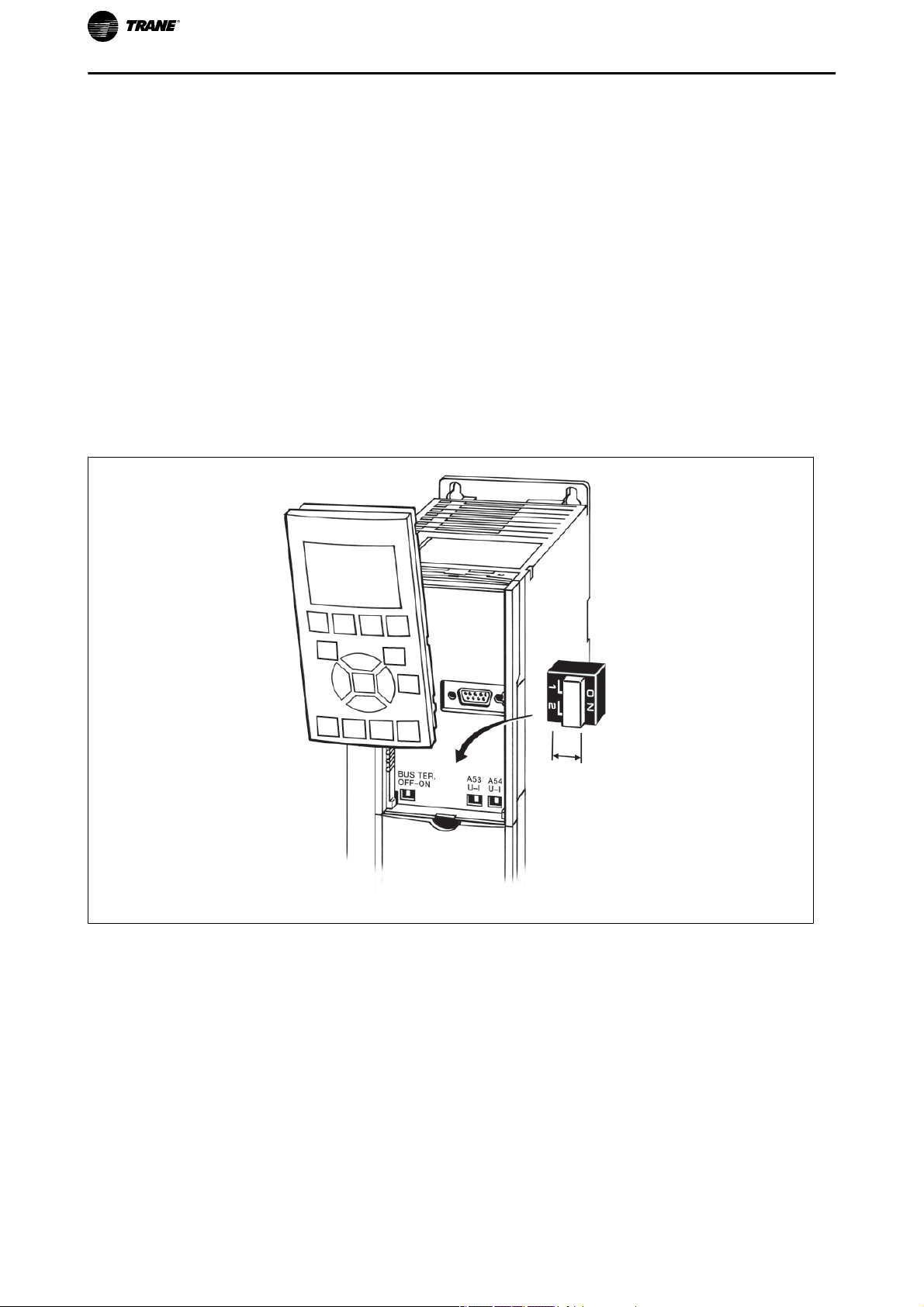

Switches S201, S202, and S801
Switches S201 (A53) and S202 (A54) are used to select a current (0-20 mA) or a voltage (-10 to 10 V) configuration of the analog
input terminals 53 and 54 respectively.
Switch S801 (BUS TER.) can be used to enable termination on the RS-485 port (terminals 68 and 69).
See drawing Diagram showing all electrical terminals in section Electrical Installation.
Default setting:
S201 (A53) = OFF (voltage input)
S202 (A54) = OFF (voltage input)
S801 (Bus termination) = OFF
Note
When changing the function of S201, S202 or S801 be careful not to use force for the switch over. It is recommended to
remove the keypad fixture (cradle) when operating the switches. The switches must not be operated with power on the
frequency converter.
130BT310.10
How to Install
10 TR200 Embedded BACnet Operating Instructions

Cable Routing
The BACnet communication cable must be kept away from motor and brake resistor cables to avoid coupling of high
frequency noise from one cable to the other. Normally a distance of 200 mm (7.9 in.) is sufficient, but maintaining the
greatest possible distance between cables is generally recommended, especially where cables run in parallel over long
distances.
When crossing is unavoidable, the BACnet cable must cross motor and brake resistor cables at an angle of 90 degrees.
How to Install
TR200 Embedded BACnet Operating Instructions 11

Bus Cabling
EMC Precautions
The following EMC precautions are recommended to achieve interference-free operation of the BACnet network. Additional
EMC information is available in the TR200 Design Guide, MG.12.IX.YY . Please also consult the BACnet MS/TP manual for further
installation guidelines.
Note
Ensure compliance with relevant national and local regulations, for example in protective earth connection.
Single Ground Shielding
For installing the bus cable on TP, two different strategies can be followed, Single ground of shield and multiple ground of
shield. Each strategy has both advantages and disadvantages. The following chapter explains the different between the two
strategies. The single ground shield is specified in the ANSI/ASRAHE 135-2004 standard. The solution benefits by having only
one ground connection of the shield, by doing so the possibility for ground loop of equalizing current is heavily reduced. In
these systems the shield of the TP cables has to be isolated from ground at all stations, except one. At each station the shield
from the two cables has to be connected with each other, and isolated from ground. The best solution for this has been
proven to be the use of shrink tubes. The single ground shielding is a good approach where the system uses long bus cables.
If two buildings have to be connected over the same P bus cable, the use of fiber optic has to be considered. This will prevent
that a lightning stroke will be carried from one building to another, and problem with difference in earth potential can be
neglected.
Multiple Ground Shielding
If the distance between the individual drives is limited (e.g. inside a cabinet or in one control room) Trane recommends
connecting the screen to ground at both ends of the bus cable. This ensures the maximum protection from EMC noise.
Connecting the screen at each end will require that each BACnet device has the same earth potential or an equalizing current
will flow in the screen of the cable and cause disturbance and poor performance of the system. Low impedance to ground
connection of the screen can be achieved by connecting the surface of the screen to ground, by means of a cable clamp or a
conductive cable gland. The TR200 Series supplies various clamps and brackets to enable a proper ground connection of the
BACnet cable screen.
Trane recommends to connect the screen to ground at both ends of the bus cable. This ensures the maximum protection
from EMC noise. Connecting the screen at each end will require that each BACnet device has the same earth potential or else
an equalizing current will flow in the screen of the cable and cause disturbance and poor performance of the system. Where
this is not possible, the screen can be isolated from the chassis of the drive by use of shrink-tubing. It must be pointed out
that the routing of the BACnet cable must be established with a maximum distance to other cables such as mains, motor
cable, etc.
How to Install
12 TR200 Embedded BACnet Operating Instructions

How to Configure the System
Configuring BACnet
Initialization Procedure
General Settings
Name Par. Number Default Value Setting for BACnet
Control Site 8-01 Digital and control word Digital and control word
Control word source 8-02 Drive RS485 FC RS485
ControlWord Timeout time 8-03 60 sec 60 sec
ControlWord Timeout Function 8-04 Off Off
End of Timeout Function 8-05 Resume setup Resume setup
Reset ControlWord Timeout 8-06 Do not reset Do not reset
Diagnosis 8-07 Disable n.a.
Communication Charset 8-09 1025
ControlWord Profile 8-10 Drive Profile Drive Profile
Drive Port Settings
Name Par. Number Default Value Setting for BACnet
Protocol 8-30 Drive BACnet
Address 8-31 100 1
1
Baud Rate 8-32 9600 9600 baud
Minimum Response Delay 8-35 10 ms 10 ms
Max Response Delay 8-36 5000 ms 5000 ms
1
) The address setting is depending on the system, and each device connected to the BACnet MS/TP must have
a unique address on this TP network.
Please also see section: Parameter Overview >Parameter List.
Digital/Bus settings
Name Par. Number Default Value Setting for BACnet
Coasting Select 8-50 Logic-or Logic-or
DC Brake Select 8-52 Logic-or Logic-or
Start Select 8-53 Logic-or Logic-or
Reversing Select 8-54 Logic-or Logic-or
Set-up Select 8-55 Logic-or Logic-or
Preset reference Select 8-56 Logic-or Logic-or
BACnet settings
Name Par. Number Default Value Setting for BACnet
BACnet device Instance 8-71 11
1
MS/TP Max Requestors 8-72 127 Dependant on the number of
requestors in the system
“I am” Service 8-74 At power up At power up
Initialisation Password 8-75 “admin” “admin”
1
) The device instance setting is depending on the system, and each device connected to the BACnet MS/TP
must have a unique device instance in the complete system.
TR200 Embedded BACnet Operating Instructions 13

Control Word Time-out Function
Par. 8-03 Control Timeout Time and par. 8-04 Control Timeout Function are not enabled in this version of the BACnet
option.
Example of a simple setup of BACnet
This example shows the necessary steps to set up the TR200 BACnet interface with the following system requirements:
•TP running at 38,400 Baud
•MAC address 20 for the TR200 on the MS/TP network
•Device Instance number 1025 for the TR200
•Highest number of a Manager device is 35
•Start/stop of Drive from BACnet only
•Reference from BACnet
•Read status of Drive (Actual speed)
Set the following parameters:
Name Par. number Value
Protocol 8-30 BACnet [5]
Address 8-31 20
Drive Port Baud Rate 8-32 38,400 Baud [4]
Coasting Select 8-50 Bus [1]
BACnet device Instance 8-70 1025
MS/TP Max Managers 8-72 35
After the parameters have been set according the table above, the drive has to be unpowered and repowered before the
changes take effect. When the frequency converter is detected by the BMS, the drive can be controlled by BV:1, which will start
the motor if set to [1]. Setting AV:1 will set the speed reference of the drive. The actual speed can be monitored via AV:3. See
also Analog Input and Output Objects section.
How to Configure the System
14 TR200 Embedded BACnet Operating Instructions

How to Control the Frequency Converter
Reference Handling
Select the frequency converter configuration mode in par. 1-00 Configuration Mode.
[0] Open Loop
[3] Closed Loop
Open loop
For open loop operation, the reference represents the desired output speed of the frequency converter. The speed
reference value:
Closed loop
For closed loop operation, the reference represents the setpoint.
Note
In closed loop operation, par. 3-02 Minimum Reference and par. 4-12 Motor Speed Low Limit [Hz] must be set to 0 Hz. Set the
par. 4-14 Motor Speed High Limit [Hz] to a value greater than the setting in par. 3-03 Maximum Reference.
TR200 Embedded BACnet Operating Instructions 15

Network Frequency Converter Control Inputs and Outputs
Analog Input and Output Objects
Control the frequency converter from the BACnet network using 'objects'. The various types of 'objects' and their descriptions
are shown in the following tables. In the following tables all available objects are shown. The availability of objects depends
on the mounting of the B and/or C options.
Table 5. 1: Analog inputs
Table 5. 2: Analog outputs
How to Control the Frequency Converter
16 TR200 Embedded BACnet Operating Instructions
ID Object_Name Present_Value
Default name Parameter Unit Option
AI:0 Analog Input 53 1662 % –
AI:1 Analog Input 54 1664 % –
AI:2 Analog In X30/11 1675 % MCB 101
AI:3 Analog In X30/12 1676 % MCB 101
AI:4 Analog In X42/1 1830 V MCB 109
AI:5 Analog In X42/3 1831 V MCB 109
AI:6 Analog In X42/5 1832 V MCB 109
ID Object_Name Present_Value
Default name Parameter Unit Writeable Cmd.able Timeout Option
AO:0 Terminal 42 Output Bus Control 653 % X X X –
AO:1 Pulse out #27 Bus Control 593 % X X X –
AO:2 Pulse out #29 Bus Control 595 % X X X –
AO:3 Terminal X30/8 Output Bus Control 663 % X X X MCB 101
AO:4 Analog Output X42/7 2643 V X X X MCB 109
AO:5 Analog Output X42/9 2653 V X X X MCB 109
AO:6 Analog Output X42/11 2663 V X X X MCB 109
ID Object_Name Present_Value
Default
name
Writeable EEPROM Parameter Unit Writeable Cmd.able Timeout Option
AV:0 Reserved for VFD profile
AV:1 Input Reference 1 X X See (1) % X X X –
AV:2 Input Reference 2 X X See (1) % X X X –
AV:3 Output Speed X X See(2)% – – – –
AV:4 PID Feedback – – See(3)% – – – –
AV:5 Motor Current X X 1614 Amps – – – –

ID Object_Name Present_Value
Default
name
Writeable EEPROM Parameter Unit Writeable Cmd.able Timeout Option
AV:6 Power X X 1610 kW – – – –
AV:7–14 Reserved for VFD profile
AV:15 Motor Thermal – – 1618 % – – – –
AV:16–20 Reserved for VFD profile
AV:21 Operating Hours – – 1500 Hours – – – –
AV:22 Running Hours – – 1501 Hours – – –
AV:23 kWh Counter – – 1502 kWh – – – ––
AV:24 Motor Voltage – – 1612 V – – – –
AV:25 Frequency – – 1613 Hz – – – –
AV:26 Torque – – 1622 % – – – –
AV:27 DC Link Voltage – – 1630 V – – – –
AV:28 Heatsink Temp. – – 1634 Deg – – – –
AV:29 Inverter Thermal – – 1635 % – – – –
AV:30 Setpoint 1 – – 2021 % X – – –
AV:31 Bus Feedback 1 – – 894 % X – – –
AV:32–34 Reserved for P, I, D
AV:35 Setpoint 2 – – 2022 % X – – –
AV:36 Bus Feedback 2 – – 895 % X – – –
AV:37–39 Reserved for P, I, D
AV:40 Setpoint 3 – – 2023 % X – – –
AV:41 Bus Feedback 3 – – 896 % X – – –
AV:42–44 Reserved for P, I, D
AV:45 Running Bypass – – 3111 Hours – – – MC 104
AV:50 Alarm Log: Error Code – – 1530 None – – – –
AV:51 Fault Code – – See(4) None – – – –
AV:52 PID Start Speed – – 2083 Hz X – – –
AV:53 On Reference Band-
width
– – 2084 % X – – –
AV:54 PID Proportional Gain – – 2093 None X – – –
AV:55 PID Integral Time – – 2094 Sec X – – –
AV:56 PID Differentiation
Time
– – 2095 Sec X – – –
AV:57 PID Diff. Gain Limit – – 2096 None X – – –
How to Control the Frequency Converter
TR200 Embedded BACnet Operating Instructions 17

How to Control the Frequency Converter
18 TR200 Embedded BACnet Operating Instructions
Fault codes Fault
Code
VLT® HVAC Drive
Alarms
Fault Descriptions
Communication Error 1 17, 34 Loss of communication with the network.
Over Current 2 13, 40, 41, 42, 59 Instantaneous output current has exceeded inverter rated or pro-
grammed value.
Over Temperature 3 11, 29, 65, 69, 74,
244, 245, 247
Heat sink temperature limit has been reached.
Over Speed Deviation 4 49, 62 Inverter has exceeded maximum or programmed limit.
Over Voltage 5 5, 7, 64 DC bus voltage has exceeded inverter limit.
Under Voltage 6 1, 6, 8 DC bus voltage is lower than required inverter limit.
Short Circuit 7 16 Inverter output has shorted phase to phase.
Ground Fault 8 14 Inverter output grounding current has exceeded manufacturer limit.
Motor Overload 9 10, 50-58, 222 Motor is overloaded.
Inverter Overload 10 9 Timed over current fault.
Over Torque Detection 11 12 Programmed limit for torque has been exceeded.
External Fault 12 142 External fault has been activated in the inverter. This is a hard fault
that must be reset.
Operator Interface Error 13 – Inverter programming or operational interface malfunction.
Load Loss 14 3, 95, 229 Load on the motor is less than programmed limit of system. An ex-
ample is a broken belt or coupling.
Configuration Error 15 70, 76, 79, 81, 82,
91
Errors exist in the programmed or operational configuration of the
inverter.
Feedback Failure 16 60, 90, 192 Required system operational feedback (signal or sensor) is not re-
sponding as expected for correct system operation.
Output Phase Loss 17 30, 31, 32 One or more of the output phases from the inverter to the motor are
open.
Motor Stall 18 99 Motor is operating in stall region and not able to accelerate.
Power Unit Error 19 4, 33, 36, 37, 46,
228, 246
Error sensed on the power section of the inverter.
Input Phase 20 – Input single phase or low line voltage condition.
Internal Drive Failure 21 23, 27, 38, 39, 47,
48, 73, 85, 86
FC102 specific fault.
Table 5. 4: Mapping of Fault Codes
1 Either AV:1 or AV:2 controls the drive reference. Only one of them can control the frequency converter at a time and BV:2 decides which one.
2 This value is not directly available in the frequency converter. The value must be calculated as follows: AV#3=(Par. 16 -17)/(Par. 4 -13) x 100%
3 This value is not directly available in the frequency converter. The value must be calculated as follows: AV#4=(Par. 16 -52)/(Par. 20 -14) x 100%
4 VLT® HVAC Drive fault codes are transmitted as an analog value in AV:51. The fault codes are mapped as shown in the following tables. The VLT®
HVAC Drive alarm codes are shown as well for comparison.

Binary Input- and Output Objects
Table 5. 5: Binary inputs
Table 5. 6: Binary outputs
How to Control the Frequency Converter
TR200 Embedded BACnet Operating Instructions 19
ID Object_Name Present_Value
Default name Parameter Bit number Option
BI:0 Digital input Term33 1660 –
BI:1 Digital input Term32 1660 1 –
BI:2 Digital input Term29 1660 2 –
BI:3 Digital input Term27 1660 3 –
BI:4 Digital input Term19 1660 4 –
BI:5 Digital input Term18 1660 5 –
BI:6 Digital input Term37 1660 6 –
BI:7 Digital input GPIO Term X30/2 1660 9 MCB 101
BI:8 Digital input GPIO Term X30/3 1660 8 MCB 101
BI:9 Digital input GPIO Term X30/4 1660 7 MCB 101
BI:10..BI:15 are reserved for P1660/x (MCB 115)
ID Object_Name Present_Value
Default name Parameter Unit Writeable Cmd.able Timeout Option
BO:0 Digital Output Term 27 590 0 X X X –
BO:1 Digital Output Term 29 590 1 X X X –
BO:2 GPIO Output Term X30/6 590 2 X X X MCB 101
BO:3 GPIO Output Term X30/7 590 3 X X X MCB 101
BO:4 Relay 1 590 4 X X X –
BO:5 Relay 2 590 5 X X X –
BO:6 Option B Relay 1 Output 590 6 X X X MCB 105
BO:7 Option B Relay 2 Output 590 7 X X X MCB 105
BO:8 Option B Relay 3 Output 590 8 X X X MCB 105
BO:9..BO:39 are reserved for Output P590/x (MCB 115)
