i
DigitalWeightIndicator
Setup/OperationManual
Revision 1.1
April 6 , 2009

ii
TABLE OF CONTENTS
Page
INTRODUCTION ........................................................................................................................................................... 1
FCC NOTE .................................................................................................................................................................... 1
INSTALLATION ............................................................................................................................................................. 2
PREPARATION ......................................................................................................................................................... 2
CONNECTI ONS ........................................................................................................................................................ 2
CONNECTING THE WEIGH PLATFORM ................................................................................................................. 3
CONNECTING THE SERIAL I/O DEVICE ................................................................................................................ 3
CONNECTING THE POWER SUPPLY ..................................................................................................................... 3
CONFIGURATION ........................................................................................................................................................ 4
OVERV IEW ............................................................................................................................................................... 4
ACCESSING THE MENUS ....................................................................................................................................... 4
SETUP MENU DESCRIPTIONS ............................................................................................................................... 5
USER MENU PROCEDURES ................................................................................................................................... 8
EXITING THE MENUS .............................................................................................................................................. 8
CALIBRATION .............................................................................................................................................................. 9
CALIBRATION OVERVIEW ...................................................................................................................................... 9
ZERO CALIBRATION (F16) ...................................................................................................................................... 9
SPAN CALIBRATI ON (F17) ...................................................................................................................................... 9
VIEW CALIBRATION VALUES (F18) ...................................................................................................................... 10
KEY - IN ZERO CALIBRATION VALUE (F19) .......................................................................................................... 10
KEY - IN SPAN CALIBRATI ON VALUE (F20) ........................................................................................................... 10
DISPLAY ................................................................................................................................................................ . 11
FUNCTION KEYS ............................................................................................................................................... 12
GENERAL SCALE OPERATION ............................................................................................................................. 12
WEIGHING AN ITEM .......................................................................................................................................... 12
LEGAL FOR TRADE SEALING ................................................................................................................................... 13
APPENDIX A: SPECIFICATIONS ............................................................................................................................... 13
APPENDIX B: SERIAL PORT INFORMAT ION ........................................................................................................... 14
SERIAL PORT MODES ........................................................................................................................................... 14
DEMAND DUPLEX MODE .................................................................................................................................. 14
CONTINUOUS DUP LEX MODE ......................................................................................................................... 14
OUTPUT STRINGS ................................................................................................................................................. 15
TEXT PRINT TICKET .......................................................................................................................................... 15
STRING FORMAT 1 (Condec Demand String) ................................................................................................... 15
STRING FORMAT 2 (Condec Continuous String) ............................................................................................... 15
APPENDIX C: DISPLAYED ERROR CODES ............................................................................................................. 16
©Transcell Technology, Inc. 200 9 . All rights reserved.
The information contained herein is the property of Transcell Technology and is supplied without liability for errors or omissions. No
part may be reproduced or used except as authorized by contract or other written permission. The cop y right and the foregoing
restriction on reproduction and use extend to all media in which the information may be embo d ied.
Contents subject to change without notice.
975 Deerfield Parkway Buffalo Grove, IL 60089
Tel [phone] Fax (847) 419 - 1515
http://www.transcell.com

1
INTRODUCTION

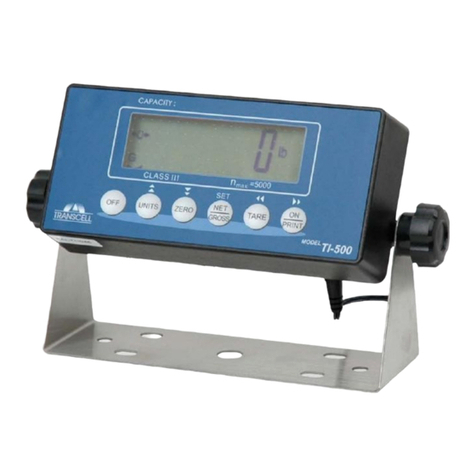

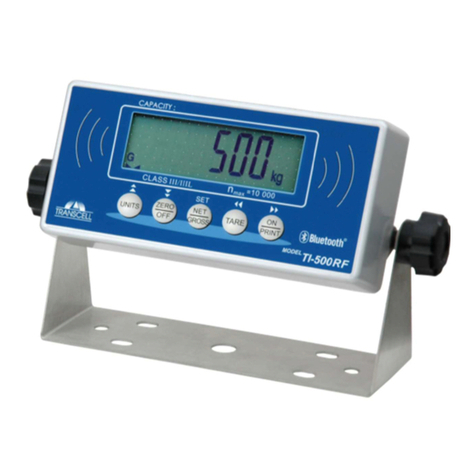

The TI -500 Digital Indicator is a general purpose, industrial grade weight indicator. One model is currently
available, characterized by display type, enclosure type and power supply. Table 1 shows the TI-500
product details .
This model can readout up to 50,000 display divisions and can supply enough current for up to 4- 350
load cells. All setup parameters may be entered via the front panel keys, including calibr a tion.
If your Model TI -500 Digital Indicator is part of a complete floor scale or has already been installed for
you, you may skip to the operating instructions. Prior to using the indicator, please read this chapter
carefully and completely. Store the manual in a safe and convenient place so it will be available if you
have questions concerning the oper a tion of the scale.
MODEL
DISPLAY
TYPE
ENCLOSURE
TYPE
PO WER SOURCE
TI - 500 LCD Mild Steel/
ABS
AC adapter - 6 VDC, 3 00 mA or
4- AA batteries
TABLE 1: TI -500 Product Matrix
FCC NOTE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Subpart J of Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equi pment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions manual, may cause harmful interference to radio com munications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to corre ct the interference at his/her own ex pense.

2
INSTALLATION
PREPARATION
Any precision instrument requires a suitable environment in which to operate as intended. Please review
each of the following prior to installation:
Electrical Power
The TI -500 indic ators have been designed to operate from 4- AA alkaline /rechargeable batteries and
ships with an AC adapter designed to operate from the local line voltage. The un it ship s with the
appropriate power plug for its area of intended use.
To avoid electrical noise interference and/or stray AC electrical transients , try to operate the indicator
from a circuit separate from any equipment containing inductive devices such as a contactor coil,
solenoid, relay coil, or motor . Be sure to use shielded cables for the load cell connections (ground shield
wire at indicator) and run these cables away from your AC/DC power cables if possible .
In extreme cases, it may be necessary to install surge suppressors, line conditioners or even UPS
( Uninterruptible Power Supplies ) systems (not included) .
Environment
- Avoid installing the indicator in areas of direct sunlight or high humidity
- Avoid sudden temperature change – if this is unavoidable allow equipment to ‘soak’ at a constant
temperature for at least three hours before use
- Ensure that steady, clean AC power is available to the unit
Remember that the installer is ultimately responsible to assure that a particular
installation will be and remain safe and operable under the specific conditions
encountered.
CONNECTI ONS
Fo r the TI -500 model, the rear panel contains all connectors necessary to make the appropriate
connections to the weigh platform, printer, remote display and power supply.

3
CONNECTING THE WEIGH PLATFORM
The TI -500 ships with a 15 ft shielded load cell cable for connection to weigh platform’s load cell(s) or
junction box.
1. Plug the cable’s 14- pin parallel interface connector into the load cell port on the rear
panel of the indicator.
2. Wire the bare wires and shield to the weigh platform’s load cell(s) o r junction box using
the color codes shown below .
4- wire cable Optional 6 - wire cable
Color Wire Name Color Wire Name
Red + Excitation Red +Excitation
Black - Excitation Black - Excitation
Green + Signal Green +Signal
White - Signal Yellow - Si gnal
Orange + Sense
Brown - Sense
CONNECTING THE SERIAL I/O DEVICE
The TI -500 model comes standard with one full duplex RS - 232 serial port, designed for connection to a
computer or a serial printer. The same port may be also used as a simplex, RS - 232 port designed for
connection to a remote display.
DSUB9 Connector
Pin No. Wire Name
2 RXD
3 TXD
5 Ground
CONNECTING THE POWER SUPPLY
The TI -500 indicator ships standard with an external AC adapter.
1. Simply plug the AC adapter into the indic ator’s DC Power Jack first, and then plug
into a standard wall outlet. Make sure that the AC voltage appearing at the wall
outlet matches the input voltage marked on the AC adapter.

4
CONFIGURATION
OVERVIEW
The indicator contains two main configuration m enus:
The Setup (“F”) menu, which configures the ind ic ator to your weigh platform
T he User (“A”) menu, which configures the serial communication port and enab les some user
options
The Setup and User menus consist of several menu sele c tions, each with its own sub - menu of selections
or programming procedures . To configure the indicator you must first enter the appropriate menu mode.
Once there, four of the front panel keys become directional navigators to move around in the menus, and
one key is used to sav e or SET the selections .
ACCESSING THE MENUS
To access the Setup (“F) menu:
1. Power off the indicator.
2. Press and hold the “SET” key for about three seconds while turning the unit back on.
The display shows ” F 1” to indicate that you are in Setup Menu mode.
3. Use the navigation keys shown in the below to move through the menu.
SETUP MODE KEY FUNCTIONS
ZERO
GROSS
NET
TARE PRINT
SET
UNITS
To access the User (“A) menu:
1. Enter the Setup (“F”) menu.
2. Use the right or left directional keys shown above to move right or left in the Setup (“ F”) menu
until the indicator shows ” A 1”.

5
MENU STRUCTURE
All menus consist of a top level (heading) and a secondary level. The top level contains the code (e.g. F1)
for the parameter to be configured. The secondary level contains the selection list o r allows access to a
programming sequence.
Use the directional keys to move around in the Menu Structure shown below .
F1
Grads
00.5
F3
Zero Track
Numeric Entry
Etc.
1. To move to a new heading, use the TARE (left) or PRINT (right) key to move right or
left in the Menu.
2. To move to the selection or programming level, press the ZERO (down) key once.
The current ly saved selection is shown.
3. To view the available selections for the current heading, use the TARE (left) or PRINT
(right) key to move through the selection field.
4. To save a new selection, press the NET/GROSS (Set) key .To exit without saving,
press the UNITS (up) key to return to the current heading.
5. Repeat Steps 2 through 5 until the Menu is programmed.
SETUP MENU DESCRIPTIONS
This section provides more detailed descriptions of the selections found in the Setup Menu Chart.
Factory - set defaults are shown in bold with a checkmark ; (v).
NOTE S : 1) Some selections are subject to local legal metrology regulations
2) Not shown is F25 which allows you to exit the Setup Menu without powering off the unit
CODE/NAME DESCRIPTION SELECTION LIST
F1
Graduations Specifies number of full-scale graduations, i.e. capacity / divi
sion.
Value should be consistent with legal regulations and environmental
li m its on the useful system resolution.
500 1,000
1,500 2,000
2,500 3,000
4,000 5,000
6,000 8,000
10,000 12,000
20,000 30,000
40,000 50,000
F3
Zero Track
Band
Selects the range within which the scale will automatically zero. Note
that the scale must be in standstill to automatically zero. Se lections
are in display divisions (d).
0d
0.5d
1d
3d
5d

6
CODE/NAME
DESCRIPTION
SELECTION LIST
F4
Zero Range Selects the range (expressed as a percentage of full scale capacity)
within which the scale may be ze roed. Note that the indi cator must be
in standstill to zero the scale.
100%
1.9%
F5
Motion Band Sets the level at which motion is detected. If motion is not detected,
the scale can process a Print or Zero command. Maximum value
varies depending on local regulations. Expressed as scale divisions
per second (d/s).
1d
3d
5d
10d
F6
Digital Filter Averages weight readings to produce higher stability. Choose the
speed that works best for your application.
“FAST” = Fast “nnEd” = Medium “SLo” = Slow
FAST
nnEd
SLo
F7
Overload Limit Selects the desired formula which determines the point at which the
indicator shows overload. All selections are based on the primary unit
selected in F8.
"FS" = Full scale capacity.
FS
FS + 2%
FS + 1d
FS + 9d
F8
Calib. Uni tSelects the primary base unit to be used in the calibration process.
Also the default unit for normal operation.
"1" = primary unit is lb. "2" = primary unit is in kg.
1
2
F9
Display
Divisions
Determines the desired weight increments. Value should be
consi s tent with legal requirements. 1
2
5
F10
Decimal Pt.
Determines location of the decimal point. 0
0.0
0.00 0.000
0.0000 00
F16
Zero
Calibr a tion
Places indicator into the zero calibration routine. Scrolling down with
the ZERO key one level begins the procedure.
Press ZERO key
to begin sequence
F17
Span
Calibr a tio n
Places indicator into the span calibration routine. Scrolling down with
the ZERO key one level begins the procedure.
Press ZERO key
to b egin sequence
F18
View
Calibr a tion
Actuates the function that allows you to view both the zero and span
calibration value. The values displayed in this function are valid only
after Calibration (F16 & F17) has been successfully completed.
Scrolling down with the ZERO key one level begins the pro cedure.
Multi - point cal
Press ZERO key
to begin sequence
F19
Key - in Zero Allows you to key-in known zero calibration value in case of memory
loss in the field. Scrolling down with the ZERO key one level begins
the procedure.
Press ZERO key
to begin sequence
F20
Key - in Span Allows you to key-in a known span calibration value in case of
mem ory loss in the field. Scrolling down with the ZERO key one level
be gins the procedure.
Press ZERO key
to begin sequence
F21
Fac tory Reset
This sub - menu will reset all parameters in the “F” and “A” menu to the
default settings. USE WITH CAUTION!
Press the ZERO
key twice to
ex e cute

7
USER MENU DESCRIPTIONS
This section provides more detailed descriptions of the selections found i n the User Menu Chart.
Factory - set defaults are shown in bold with a checkmark ( ).
CODE/NAME DESCRIPTION SELECTION LIST
A1
Baud Rate
Selects the baud rate for data transmission through the serial port. 1200 2400
4800 9600
19200
A2
Data Bi ts and
Parity
Selects the number of data bits and parity of serial transmission.
"8n" = 8 data bits with no parity bit and one stop bit
"7O" = 7 data bits with odd parity bit and one stop bit
"7E" = 7 data bits with even parity bit and one stop bit
"7n" = 7 data bits with no parity bit and two stop bits
8n
7O
7E
7n
A3
Serial Port
Mode
Selects when data will be sent out of the serial port to a printer or
computer:
"C" = Continuous mode; send data continuously
"d" = Demand mode; send data when a PRINT comma nd is issued
from the printer, computer, or indicator.
C
d
A4
Display Check Actuates the function that illuminates all digit segments, decimal
points, and LCD annunciators in a test sequence. Pressing the ZERO
key to scroll down one level begins the test sequence.
Press ZERO key
to begin sequence
A5
Disable the
lb/kg Key
Allows the lb/kg key to be disabled so that an operator cannot
acc i dentally press the key and change the displayed units.
"0" = Disable the lb/kg key "1" = Enable the lb/kg key
0
1
A6
Serial Port
Mode
Selects the mode of the RS-232 serial port: Refer to Appendix B for
more information.
"0" = Full Duplex Mode
"1" = Print Ticket Mode
0
1
A7
ID No. Enable Allows the ID number to be disabled in the Print Ticket mode. Valid
on ly when A6 is set to “1”.
"0" = Disable the ID No. "1" = Enable the ID No.
0
1
A8
ID No. Entry Actuates the function that allows entry of a new ID No. Valid only
when A6 is set to “1”. Pressing the ZERO key to scroll down one level
begins th e sequence.
0 – 199999
123456
A9
No. of Line
Feeds
Actuates the function that allows entry of the desired number of line
feeds to be printed in Print Ticket Mode. Valid only when A6 is set to
“1”. Pressing the ZERO key to scroll down one level begins the
se quence.
0 - 99
8
A10
Backlight
En able
Allows you to permanently disable the backlight feature for outdoor
use.
"0" = Always OFF “1" = Always ON “2” = automatic
0 1 2

8
CODE/NAME DESCRIPTION SELECTION L IST
A12
Print Header Tells MP-20 printer to print the header information. Valid only when
A6 is set to “1”.
"0" = Do NOT Print Header "1" = Print Header
0
1
A1 3
Auto Power Off
Period
Selects the auto off time period in minutes:
“Off” = Dis abled (Always ON)
Off
3 5
10 20
30
USER MENU PROCEDURES
This section provides instructions for all of the User Menu procedures.
I D Number Entry (A 8)
1. While in the User Menu mode, scroll to "A 8 ", then scroll down once using the ZERO key to enter
the ID Number menu.
2. The display will momentarily show " ID NO ", followed by a value with one flashing digit. This value
will be the current ID number value.
3. Use the four directional keys (shown below) to adjust the displayed value to the actual ID Number
value. Increase the flashing digit by pressing the UNITS key. Decrease the flashing digit by
pressing the ZERO key. Pressing the PRINT key or the TARE key will change the position of the
flashing digit.
4. After setting the exact value, press the NET/GROSS key to save the ID Number value. The
display will show " SET " momentarily, and then revert back up to A 8 .
L F (Line Feeds) Number Entry (A9)
1. While in the User Menu mode, scroll to "A 9 ", and then scroll down once using the ZERO key to
enter the Line Feeds menu.
2. The display will momentarily show " LF ", followed by the current line feeds value.
3. Use the four directional keys shown in Figure 11 to adjust the displayed value to the actual line
feeds value. Increase the flashing digit by pressing the UNITS key. Decrease the flashing digit by
pressing the ZERO key. Pressing the PRINT key or the TARE key will change the position of the
flashing digit.
4. After setting the exact value, press the NET/GROSS key to save the line feeds value. The
display will show " SET " momentarily, and then revert back up to A9.
EXITING THE MENUS
Exit any configuration menu by simply switching off the indicator or pressing the ZERO key while in F25.

9
CALIBRATION
CALIBRATION OVERVIEW
If your indicator was shipped as a co mplete scale, then calibration is not necessary. Please check
with your installer or supplier if you are unsure. Transcell recommends having your weighing
equipment checked by a qualified scale technician at least once a year depending on its intended
use and working environment.
The indicator requires two types of calibration: zero and span. Zero calibration (F16) requires the scale to
be empty ( nothing on scale) and the span calibration (F17) requires known test weights. After a
successful calibration, y ou should record all calibration values in Table 2 using the F18 View Calibration
proc e dure.
In the unlikely event that any calibration value is lost, the setup menu makes provisions for re- entering
these values via F19 and F20 ; thus eliminating the need for re -calibration with test weights.
NOTE: This section assumes that the indicator is in Setup (“F”) Menu mode. If the indicator is not in
Setup Menu mode, refer to previous section for instructions.
ZERO CALIBRATION (F16)
1. While in the Setup mode, scroll to "F 16", then scroll down once using the ZERO key to enter
zero calibration menu. The display will momentarily show "C 0" followed by a value. This value
is the internal A/D count and can prove useful when trying to troubleshoot setup problems.
2. After making sure that there are no test weights on the platform, press the ZERO key again to
zero out the displayed value.
3. Press the NET/GROSS key to save the zero point value. The display will show " EndC0 "
mome n tarily, and then revert back up to F16. At this time, proceed to the F17 span calibration
to complete ind i cator calibration.
SPAN CALIBRATION (F17)
1. While in the Setup mode, scroll to "F 17", then scroll down once using the ZERO key to enter
span calibration menu. The display will momentarily show "C 1" for the first span calibration
point, followed by a value with one flashing digit. This value will be zero with the Decimal Point
parameter selected in F10.
2. Place the first test weight on the weighing mechanism.
3. Use the four directional keys to adjust the displayed value to the actual test weight value.
Increase the flashing digit by pressing the UNITS key. Decrease the flashing digit by pressing
the ZERO key. Pressing the PRINT key or the TARE key will change the position of the
flashing digit.
4. After entering the exact value, press the NET/GROSS key to save the value. If the C1
calibration was successful, the display will show " EndC1 " momentarily, and then revert back up
to F17. .
5. At this time it is suggested that the calibration values be recorded for future use (see next
s ection).

10
If the calibration was not successful, one of the error messages below will appear. Take the
ind icated action to correct the problem, and then perform a new calibration.
" Err0 " - The calibration test weight or the keyed-in weight is larger than the full capacity of the
scale. Change the calibration test weight or check the input data.
" Err1 " - The calibration test weight or the keyed - in weight is smaller than 1% of the full capa c ity
of the scale. Change the calibration test weigh t or check the input data.
" Err2 " – There is not enough signal from the load cells to establish a proper calibration. Most
commons causes include incorrect load cell wiring, a mechanical obstruction or a faulty load
cell.
VIEW CALIBRATION VALUES (F18)
No te: The values displayed in this procedure are valid only after a successful calibration has been
performed using F16 and F17.
1. While in the Setup mode, scroll to "F 18", then scroll down once using the ZERO key to enter
View calibration menu.
2. The display will show the information listed in Table 2. The code will display briefly followed by
the value. It is recommended that you record each value in the table below. Press any key to
continue down the list. At the completion of the list, the indicator reverts back up to F18.
ZERO CALIBRATION VALUE (C0) SPAN CALIBRATION VALUE (C1)
Table 2 : Calibration Value Table
KEY - IN ZERO CALIBRATION VALUE (F19)
Note: This procedure is intended for emergency use only in the case of non-volatile memory loss.
A valid zero calibration value, obtained from a successful F16 calibration procedure, must
be used.
1. While in the Setup mode, scroll to "F 19 ", and then scroll down once using the ZERO key. The
display will momentarily show " CAL 0 ", fo l lowed by a value of zero
2. Use the four directional keys to enter in the actual zero calibration value.
3. After entering the exact value, press the NET/GROSS key to save the value. The display will
show " E CAL 0 " momentarily, and then revert back up to F19.
KEY - IN SPAN CALIBRATI ON VALUE (F20)
Note: This procedure is intended for emergency use only in the case of non-volatile memory loss.
Valid span calibration value s , obtained from a successful F17 calibration procedure, must be
used.
1. While in the Setup mode, scroll to "F 20" , and then scroll down once using the ZERO key. The
display will momentarily show " CAL 1 ", fo l lowed by a flashing zero .
2. U se the four directional keys to enter in the actual span calibration value
3. After setting the exact value, press the NET/GROSS ke y to save the value.
4. If the entered values are entered successfully, the display will show "E CAL 1" momentarily
before reverting back up to F20.

11
OPERATION
DISPLAY
This model utilize s a 6 - digit L C D ( Liquid Crystal Display ) . Table 3 summarizes the di s play a n nunciators.
oz
lb
pcs
%
kg
G N
O
P T
LCD
Annu n ciator
MEANING
0
Better known as the “Center of Zero” annunciator, this light is active
whe n ever the displayed weight is within ± 0.25 divisions of true zero.
N
Indicates that the indica tor is displaying net weight.
G
Indicates that the indicator is displaying gross weight.
T
Indicates that a tare weight has been established in the system.
lb, kg
Indicates th e unit of the displayed weight.
This light is on wheneve r the scale is stable.
Starts flashing when the battery voltage is too low for normal operation. S ee
Appendix C for more information .
TABLE 3 : TI -500 Annunciator Definitions

12
KEYBOARD
The keyboard is composed of five function keys shown below .
FUNCTION KEYS
Off – This key switches off the indicator.
Units – This key toggles the indicator among the available weight units if enabled in the User (“A”)
menu. Available weight units include lb and kg .
Zero - This key sets the indicator to display zero provided the following conditions are met:
1. The indicator is displaying Gross weight.
2. The displayed weight is within the zero reset range that is programmed in F4 of the Setup (“F”)
Menu.
3. The scale is not in motion.
4. The scale is not in over load (see Appendix D for error codes).
Net/Gross - This key toggles the indicator between Gross weight and Net weight only if a Tare has
been established.
Tare - This key is used to establish a Tare provided the following conditions are met:
1. The indicato r is not at or below Gross zero.
2. The scale is not in motion.
3. The scale is not in overload (see Appendix D for error codes).
On/ Print - This key is used switch the indicator on ; it can also s end weight information out to the
serial port provided the follo w ing conditions are met:
1. The scale is not in motion.
2. The scale is not in overload (see Appendix D for error codes).
GENERAL SCALE OPERATION
WEIGHING AN ITEM
1. Select the desired weighing unit by pressing the U NITS key until that unit is indicated on the
disp lay.
2. If necessary, press the ZERO key to obtain a weight reading of zero.
3. If weighing an item in a container, place the empty container on the scale’s platter and, after
allowing the weight indication to stab i lize, press the TARE key. The display shows ze ro weight
and turns the NET annunciator on
4. Place the object to be weighed on the scale’s platter and allow the weight indication to stabilize.
If the item weight exceeds the scale’s weight capacity, it displays “ oooooo ”.
5. Read the weight shown on the displa y. If you have established a tare, you may toggle between
the gross weight and the net weight by pressing the NET/GROSS key

13
LEGAL FOR TRADE SEALING
Indicators can be sealed for commercial (Legal for Trade) applications as follows.
Category I Audit Trai l: Configuration and calibration audit counters update each time a configuration or
calibration change occurs. These counters will return to zero after 1000 changes, individually. The
counters may be viewed by powering up the unit:
- The screen will displa y the configuration audit counter ("CF") and the calibration audit counter ("CA").
APPENDIX A: SPECIFICATIONS
ANALOG SPECIFICATIONS
Full Scale Input Signal ± 3.125 mV /V
Minimum Sensitivity - Non trade
0. 2 V / grad
Minimum Sensitivity - H- 44 /R76 0.4
V / grad
Input Impedance
30M , typical
Internal Resolution Approximately 260,000 counts @ 2mV/V input
Display Resolution 50,000 display division max
Measurement Rate 10 Hz
System Linearity Within 0.02% of FS
Calibrati on Method Software Calibration, with long term storage in EEPROM
Excitation Voltage +
3.3 VDC, 4 x 350 load cells
DIGITAL SPECIFICATIONS
Microcontroller
PIC
Program Memory
32 K x 8, in ternal to C
SRAM:
512 x 8, internal to C
EEPROM:
256 x 8 , external to C
Digital Filtering Software selectable
SERIAL COMMUNICATIONS
Se rial Port Full Duplex, selectable Baud rate
8 data bits, no parity, 1 stop bit
7 data bits, odd parity, 1 stop bit
7 data bits, even parity, 1 stop bit
7 data bits, no parity, 2 stop bits
OPERATOR INTERFACE
Display – LED Indicators 1 " ( 25 mm) 7 - segment, L C D, 6 Digit
Additional Symbols Net, Gross, Stable, Tare, lb, kg, Zero
Keyboard 6- key flat membrane panel
POWER
TI - 500 (Battery) 4- AA alkaline (1.5 V) or rechargeable (1.2 V)
TI - 500 (AC Adapter) Output: 6 VDC, 3 00mA Female
DC Power Consumption 1
0mA + 9 mA/350 Load Cell
ENVIRONMENTAL
Operating Temperature –
10° to +40 C
Storage Temperature -
25° to +70 C
MECHANICAL
Overall Dimensions (L x W x H) –
TI - 500 7.1
" x 2.8 " x 4. 4 " ( 180 mm x 7 1 mm x 11 0 mm)
APPROVALS
NTEP COC # 94 - 080A3

14
APPENDIX B: SERIAL PORT INFORMAT ION
SERIAL PORT MODES
DEMAND DUPLEX MODE
The Demand Duplex Mode (A3 = ‘d’, A6 = ‘0’) provides a two way serial transmission mode In this
mode, the output information is transmitted on demand ; ei ther by pressing the PRINT key on the
indicator’s front panel or upon receiving a recognized command from a host device (i.e. computer) .
NOTE : E nsure that your cabling contains the proper handshaking .
CONTINUOUS DUP LEX MODE
The Continuous Dup lex Mode (A3 = ‘C’, A6 = ‘0’) provides a two - way serial transmission mode . In
this mode, the output information is transmitted continuously making it a popular choice for remote
displays and other remote devices r e quiring a constant data stream . The transmission automatically
occurs at the end of each display update. The indicator will react upon receiving a recognized
command from a host device.
R ECOGNIZED HOST COMMANDS (applies to both demand and continuous duplex modes)
“P” - This command is sent to the indicator to print the indicated display. The indicator will not
respond if the scale is in motion, positive overload or negative overload.
“Z” - This command is sent to the indicator to zero the scale. The indicator will not respond if the
scale is in motion, positive overload or negative overload. The indicator will also not respond if
it is not in gross mode or within the zero range specified in F4 of the Setup Menu.
“T” - This command is sent to the indicator to tare the scale. The indicator will not respond if the
scale is in mo tion, positive overload or negative overload. The indicator will also not respond if
it displaying a negative gross value.
“G” - This command is sent to the indicator to switch to gross mode. The indicator will not respond if
the scale is in motion, positi ve overload or negative overload.
“N” - This command is sent to the indicator to revert to net. The indicator will not respond if the scale
is in motion, positive overload or negative overload. The indicator will also not respond if a tare
has yet to be e stablished.
“C” - This command is sent to the indicator to toggle among the configured units of measure.

15
OUTPUT STRINGS
TEXT PRINT TICKET
The Text Print Ticket is designed specifically for a serial printer.
NOTES:
1. The TA RE and NET fields are not printed unless a tare has been established in the
system.
2. The ID number field is not printed if it is disabled in A7 of the User Menu.
STRING FORMAT 1 (Condec Demand String)
String Format 1 is designed for two - way communication. Ensure that A3 is set to ‘d’ and A6 is set to
‘0’ .
<STX> <POL> xxxxx.xx <LB/KG> <GR/NT> <CR> <LF>
Polarity:
<SP> = Positive
"–" = Negative
Weight Data
Units:
LB = pound
KG = kilogram
Gross/Net:
GR = Gross
NT = Net
Start
Transmission
Carriage
Return
Line
Feed
<SP> <SP>
SpaceSpace
pc = pieces
cu = cusotm unit
pcs = pieces
STRING FORMAT 2 (Condec Continuous String)
String Format 2 is designed for one - way communication. Ensure that A3 is set to ‘C’ and A6 is
set to ‘0’ .
<STX> <POL> xxxxx.xx <L/K> <G/N> <STAT> <CR> <LF>
Polarity:
<SP> = Positive
"–" = Negative
Weight Data
Units:
L = pound
K = kilogram
Gross/Net:
G = Gross
N = Net
Start
Transmission
Carriage
Return
Line
Feed
Status:
<SP> = Valid
M = Motion
O = Over/under range
P = pieces
C = custom units
PCS = pieces
ID. NO.
GROSS
TARE
NET
123456
25.00 lb
1.48 lb
23.52 lb

16
APPENDIX C : DISPLAYED ERROR CODES
CODE MODE MEANING / POSSIBLE SOLUTION
No rmal Operating
Mode Gross Overload. A weight greater than the rated capacity has been applied to the scale. Remove the weight from the platter or try re-calibrating the
scale. Otherwise, check for a bad load cell connection or possible load cell
damage due to overloa d ing.
Err 0
Span Calibration
Mode (F17)
Keyed -in weight value is larger than full-scale capacity. Use a smaller test
weight or check keyed - in value.
Err 1
Span Calibration
Mode (F17)
Keyed -in weight value is less than 1% of full-scale capacity. Use a larger
test weight or check keyed - in value.
Err 2
Span Calibration
Mode (F17) There is not enough load cell signal to produce the internal counts necessary to properly calibrate the scale. First check all load connections.
Use F16 mode to view int ernal counts.
Err 3
All Modes Non -volatile memory read error. One or more setup parameters have been
lost.
Err 4
All Modes Non - volatile memory write error. Indicator needs service.
Err 9
Normal Operating
Mode
Span calibration value has been lost. Re - ca librate the scale.
Slow ly
Flashing
Normal Operating
Mode
Indicates that the battery voltage is becoming too low for normal operation.
Batteries should be replace d soon.
Quickly
Flashing
Normal Operating
Mode
Indicates that the battery voltage h as become too low for normal operation.
Batteries should be replaced now .
Flashes
“bAtt”
Normal Operating
Mode
Indicates that the battery voltage h as become too low for normal operation ;
indicator will shut off automatically after 20 seconds . Batteries should be
replace d now.
