864 HH
Fireplace
Featuring the
Burner
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 28-F-59b-5
ANSI Z21.88b-2 3
• Built-In Direct Vent Fireplace
• Natural Gas or Propane
• Residential or Mobile Home
ARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
HAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is
supplied with the appliance.
Installation Manual
INSTALLER:Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
 Copyright 2 8, T.I. $1 . 1 - 1182_ 3 4 8 214 48 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2 Introduction
© Travis Industries 4080214 1 - 1182_ 3
Overview
This manual details the installation
requirements for the 864 HH (Home Heater)
fireplace. For operating and maintenance
instructions, refer to the 864 HH Owner's Manual
(part # 1 - 1181).
Listing Details
This appliance was listed by OMNI-Test
Laboratories, Inc. to ANSI Z21.88 - report # 28-
F-59b-5. The listing label is attached to the
appliance near the gas control valve. A copy is
shown to the right.
IAS (ICBO) Approval
This appliance was listed by OMNI-Test
Laboratories, Inc. - IAS # TL13 (previously
ICBO).
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of State Examiners of
Plumbers and Gas Fitters
National Fireplace Institute

Table of Contents 3
© Travis Industries 4080214 1 - 1182_ 3
Introduction
Overview.................................................................2
Listing Details..........................................................2
Safety Precautions
Safety Precautions...................................................4
Features and Specifications
Features.................................................................6
Installation Options...................................................6
Heating Specifications .............................................. 6
Dimensions.............................................................6
Installation
Packing List.............................................................7
Additional Items Required..........................................7
Installation Overview.................................................7
Recommended Installation Procedure ......................... 7
.............................................................................8
Converting the Fireplace to Top Vent Configuration ....9
Fireplace Placement Requirements.............................11
Clearances...........................................................11

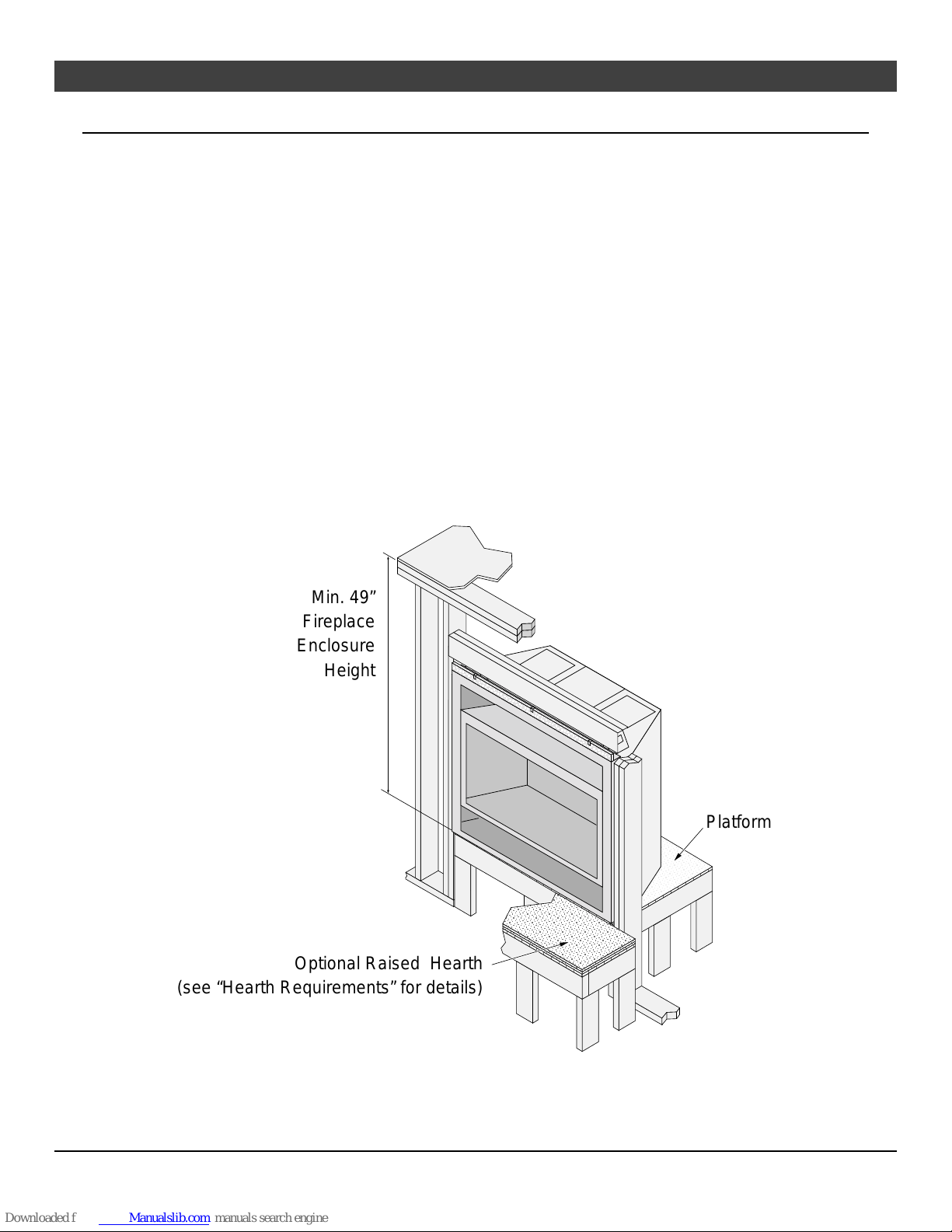

Raised Fireplaces .................................................11
Min. Framing Dims. - Rear Vent Configuration...........12
Min. Framing Dims. - Top Vent Configuration ............13
Nailing Brackets....................................................14
Corner Installations - Rear Vent Configuration...........15

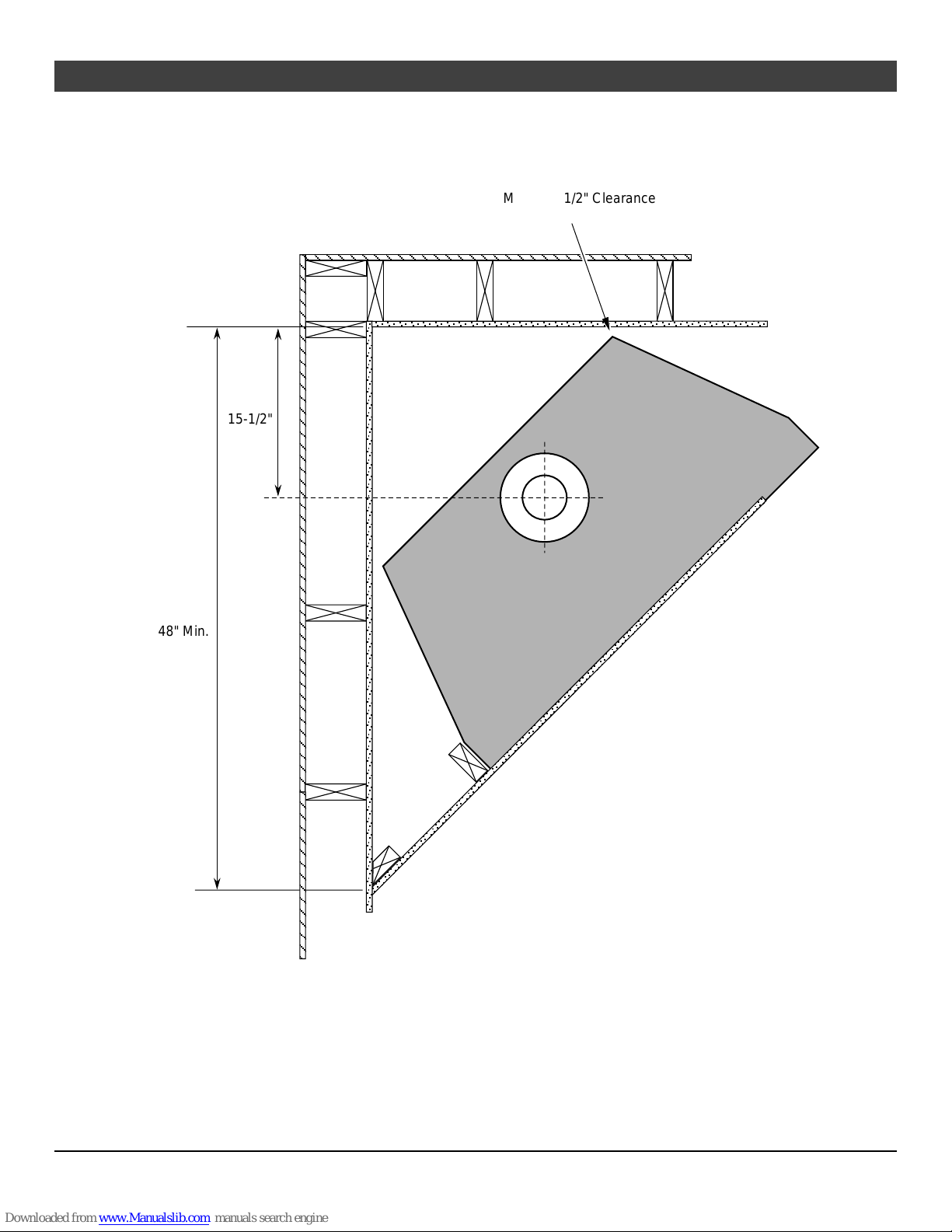

Corner Installations - Top Vent Configuration.............16
Gas Line Requirements............................................. 17
Fuel ....................................................................17
Gas Line Connection .............................................17
Gas Inlet Pressure ................................................17
Gas Line Location .................................................17
Electrical Connection (required)..................................19
Wall Switch or Thermostat Installation ......................... 2
Wiring Diagram (Millivolt System) ............................2
Wall Switch Installation...........................................2
Vent Requirements...................................................21
Vent Clearances ...................................................21
Altitude Considerations ..........................................21
Approved Vent......................................................22
Vent Installation....................................................22
Approved Vent Configurations....................................23
Restrictor Position.................................................23
Exhaust Restrictor Adjustment................................23
Intake Restrictor Adjustment...................................24
Diffuser Plate Adjustment.......................................25
Rear Vent Config. W Horizontal Term. (no vertical rise) . 26
Rear Vent Config. W Horizontal Term. (w vertical rise)... 27
Rear Vent Configuration with Vertical Termination.......... 28
Top Vent Configuration with Horizontal Termination........ 29
Top Vent Configuration with Vertical Termination ........... 3
Termination Requirements.........................................31
Installation (continued)
Hearth Requirements ............................................... 32
Facing Requirements ............................................... 33
Drywall Installation ................................................33
Facing Overview ...................................................34
Optional Faceplates – Sizing Chart..........................34
Thin Facing Installation..........................................35
Thick Facing Installation.........................................37
Thick Facing Installation with FPX Arched Faces........38
Mantel Requirements................................................ 4
Install Example - Build-Out (Dog-House) w Hor. Term.... 41
Install Example - Build-In w Hor. Term. ........................ 42
Finalizing the Installation
Steps for Finalizing the Installation ............................. 43
Starting the Pilot Flame ......................................... 43
Pilot Flame Inspection........................................... 43
Air Shutter Adjustment...........................................44
Glass Frame Removal and Installation........................ 45
Fireback and Grate Installation................................... 47
Log Set Installation .................................................. 48
LP Conversion Instructions ....................................... 52
Optional Equipment
Grill Installation........................................................ 55
Remote Control Receiver Installation (2 Options) ......... 56
Extra Room Power Heat Duct .................................... 57
Accent Light Installation (sku 944 1 )................... 64
Index
Index...................................................................... 68

4 Safety Precautions
© Travis Industries 4080214 1 - 1182_ 3
Safety Warnings:
• Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
• This unit must be installed by a qualified installer to prevent the possibility of an explosion.
• This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88).
• In Manufactured or Mobile Homes must confirm with: In USA, Manufactured Home Construction and
Safety Standard, Title 24 CFR, Part 3280, or, when such a standard is not applicable, the Standard for
Manufactured Home Installations, ANSI/NCSBCS A225.1. This appliance may be installed in
Manufactured Housing only after the home is site located.
• All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure.
• Notify your insurance company before hooking up this fireplace.
• The room heater should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
• The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
• This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer. Check the label and flame adjust knob on the gas control valve.
• Contact your local building officials to obtain a permit and information on any installation restrictions or
inspection requirements in your area.
• If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call your
dealer and arrange for proper servicing.
• It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
• Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call your
dealer for a full explanation of your heater and what to expect.
• Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
• Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
• Do not place clothing or other flammable items on or near the heater. Because this heater can be
controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed
on or near it.
• Light the heater using the built-in piezo igniter. Do not use matches or any other external device to
light your heater.
• Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
• The viewing glass should be opened only for lighting the pilot or conducting service.
• Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

Safety Precautions 5
© Travis Industries 4080214 1 - 1182_ 3
Safety Warnings (continued):
• Allow the heater to cool before carrying out any maintenance or cleaning.
• Operate the heater according to the instructions included in this manual.
• If the main burners do not start correctly turn the gas off at the gas control valve and call your dealer for
service.
• The pilot flame must contact the thermopile and thermocouple. If it does not, turn the gas control
valve to "OFF" and call your dealer.
• This unit is not for use with solid fuel.
• Do not place anything inside the firebox (except the included logs).
• If the fiber logs become damaged, replace with Travis Industries log set.
• Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
• Do not touch the hot surfaces of the heater. Educate all children of the danger of a high-temperature
heater. Young children should be supervised when they are in the same room as the heater.
• Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
• Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
• Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential
damage(s).

6 Features and Specifications
© Travis Industries 4080214 1 - 1182_ 3
Installation Options
• Residential or Mobile Home
• Straight or Corner Placement
• Flush or Recessed Face
• Raised or Floor Placement
• Internal or External Chase
• Horizontal or Vertical Vent
• Bedroom Approved
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square feet)* 1,2 to 2,25 1,2 to 2,25
Maximum BTU Input Per Hour 4 , 39,
Steady State Efficiency** (with blowers on) Up to 8 % Up to 81 %
* Heating capacity will vary with floor plan, insulation, and outside temperature.
** Efficiency rating is a product thermal efficiency rating determined under continuous
operation independent of installed system.
Dimensions
AAAA
AAAA
AAAA
AAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
* Includes the required 1/2" clearance.
Rear Vent Configuration
8" Diameter Vent
3 -3/4"
Back of Fireplace
38-1/4"
36-3/4"
41"
19-3/4"*
38-3/8"
29-1/4"*
Top Vent Configuration
8" Diameter Vent eight: 225 Lbs.
37"
1"
35-1/4"
7-1/4"
Optional "Extra Room
Power Heat Duct"
Connection 1-1/2"

Installation (for qualified installers only) 7
© Travis Industries 4080214 100-01182_003
Packing List
• Propane Conversion Kit
• Log Set (9 pie e)
• Grate
• Wall Swit h with Wire (see page 20 for details)
• Firestop (sku 93006094
Additional Items Required
• FIREBACK ARE REQUIRED – ee page 47. (sku 98500662, 98500663, 98500664, or 98500665)
• Dire t Vent
• Gas Line Equipment (shutoff valve, pipe, et .)
• Ele tri al Equipment (min. 14 gauge, grounded line)
• Grill or Fa e
Installation Overview
• All requirements below must be met.
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
See the section
"Approved Vent
Configurations"
See the section
"Electrical Connection"
See the section
"Mantel Requirements"
Insulation must not fill
the 1/2" clearance
around the back and
sides of the fireplace.
See the section
"Vent Requirements"
See the section "Minimum
Framing Dimensions"
Drywall
T
op Vent
C
onfiguration Rear Vent
Configuration
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
A
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
See the section
"Gas Line Installation"
1" Min.
Side
Wall
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
See "Facing
Requirements"
Drywall
See "Optional Non-
Combustible Hearth"
Nailing Brackets
Required Travis
Firestop (sku
93006094)
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
A
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
Recommended Installation Procedure
• Frame the opening for the firepla e. Make sure to allow for vent installation.
• This firepla e is designed to a ommodate 1/2" or 5/8" drywall (see "Nailing Bra kets" on
page 14 for details). Se ure the firepla e to the framing.
• Install the vent, gas line and ele tri al hook-up.
• Install the wall swit h (see page 20) or thermostat (if appli able).
• Install the drywall.
• Install the hearth (if appli able).
• Install the fa ing (if appli able).
• Install the mantel (if appli able).
• Finalize the installation (see page 43) and install the grill or fa e.

8 Installation (for qualified installers only)
© Travis Industries 4080214 100-01182_003
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massachusetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
I nstal l ati on of Car bon Monoxi de Detector s
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Appr oved Car bon Monoxi de Detector s
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
ignage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as
adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting ystem Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the
equipment and the venting system shall include:
• Detailed instructions for the installation of the venting system design or the venting system components; and
• A complete parts list for the venting system design or venting system.
Gas Equipment Venting ystem NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
• The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
• The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See Gas Connection section for additional Commonwealth of Massachusetts requirements.

Installation (for qualified installers only) 9
© Travis Industries 4080214 100-01182_003
Top Vent or Rear Vent Con iguration
This applian e is shipped in the rear vent onfiguration. To hange to the top vent onfiguration,
follow the dire tions below.
NOTE: the vent onfiguration affe ts several aspe ts of installation (framing, maximum vent rise,
maximum vent run). When reviewing the installation requirements make sure to pay attention to the
type of onfiguration being used.
Converting the
Fireplace to Top Vent
Configuration
Remove and discard all of
the insulation found near
the flue assembly (make
sure to remove every
piece).
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
AAAAAAAAAA
Remove the 4 screws
securing the intake cover
plate. Remove it and place it
aside.
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
AAAAAAAAA
Remove the 4 screws
securing the cover plate.
Remove it and place it
aside.
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
Remove the 4 screws
securing the cover plate (with
hole).
This part may be discarded.
Top of Fireplace
Back of Fireplace
AAAAA
AAAAA
AAAAA
AAAAA

10 Installation (for qualified installers only)
© Travis Industries 4080214 100-01182_003
Converting the
Fireplace to Top Vent
(continued)
Remove the 12 screws
securing the flue assembly.
Attach the intake cover
plate with the screws
removed earlier.
Attach the cover plate with
the screws removed earlier.
NOTE: flatten the four legs
before insaling the cover
plate.
Rotate the flue
assembly so the
flue points
upwards. Secure
using the twelve
screws removed
earlier.
NOTE: Use a magnetic-
tipped nutdriver on these
screws - take care to prevent
the screws from falling into
the fireplace.
DO NOT OVER-
TIGHTEN THE
SCREWS.

Installation (for qualified installers only) 11
© Travis Industries 4080214 100-01182_003
Fireplace Placement Requirements
• The firepla e requires a 1/2" learan e from the angled sides and ba k of the firepla e to the
framing members. No material (insulation, framing, et .) may be pla ed into this area.
• Firepla e must be installed on a level surfa e apable of supporting the firepla e and vent
• Firepla e must be pla ed dire tly on wood or non- ombustible surfa e (not on linoleum or
arpet)
• This heater may be pla ed in a bedroom. Please be aware of the large amount of heat this
applian e produ es when determining a lo ation.
Clearances
• When installed, walls in front of the firepla e must be a minimum 1" to the side of the firepla e.
• Due to the high temperature, the heater should be lo ated out of traffi and away from furniture
and draperies.
• Firepla e must be pla ed so the vents below and above the glass do not be ome blo ked.
Raised Fireplaces
• The firepla e (and hearth, if desired) may be pla ed on a platform designed to support the
firepla e (225 Lbs.) and vent.
AAAAA
AAAAA
AAAAA
AAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
Platform
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
Min. 49”
Fireplace
Enclosure
Height
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
A
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAAAAAAA
AAA
AAA
AAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAA
AAA
AAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAA
AAA
AAAAA
AAAAA
AAAAA
Optional Raised Hearth
(see “Hearth Requirements”for details)

12 Installation (for qualified installers only)
© Travis Industries 4080214 100-01182_003
Minimum Framing Dimensions - Rear Vent Configuration
AAAAA
AAAAA
AAAAA
A
A
AAAAA
AAAAA
AAAAA
AAAAA
A
A
AA
AA
A
Route the
electrical line to
a position to the
left rear of the
fireplace.
Vent Clearances (8" dia. Vent):
1" to the sides, 1" below, and 3" above
the vent to combustibles.
Included Firestop (required)
Part # 93006094
Center of Rear Vent
AA
A
A
A
A
A
AA
AA
A
A
30-3/4"
38"
41-1/4"
38-1/2"
20"
HINT: place the fireplace so the center
line is at least 5" from both vertical framing
members at the rear (this allows the vent
to pass through the framing without
modfications)
25-3/4"
The on/off switch/thermostat wire (if
used) should be routed to a location
near the right front of the fireplace.
Minimum 49” Fireplace
Enclosure Height

Installation (for qualified installers only) 13
© Travis Industries 4080214 100-01182_003
Minimum Framing Dimensions - Top Vent Configuration
20"
The on/off switch/thermostat wire (if
used) should be routed to a location
near the right front of the fireplace.
Route the
electrical line to
a position to the
left rear of the
fireplace.
41-1/4"
38-1/2"
Minimum 49”Fireplace
Enclosure Height

14 Installation (for qualified installers only)
© Travis Industries 4080214 100-01182_003
Nailing Brackets
NOTE: Additional nailing
brackets are provided along
the base of the fireplace.
Use these brackets if not
using the front brackets.
For installations using
5/8”drywall fold the
shorter tab out 90°(use
a screwdriver if
necessary).
For installations using
1/2”facing fold the larger
tab out 90°(use a
screwdriver if necessary).
AAAAAA
AAAAAA
Fireplace
Drywall
Framing
Nailing Bracket
TOP VIEW
1/2”Drywall
5/8”Drywall
There are four nailing brackets
on the front of the fireplace.
Follow the directions below to
prepare the nailing brackets.
Once in place, nail or screw the
nailing brackets to the framing.
AAAAAA
AAAAAA
Fireplace
Drywall
Framing
Nailing Bracket
TOP VIEW
Make sure the fireplace is
square and plumb when
placed in the framing.
Measured corner-to-
corner, the fireplace
should be square (approx.
54-7/8”for each
dimension). Use shims to
insure the fireplace is
square.

Installation (for qualified installers only) 15
© Travis Industries 4080214 100-01182_003
Corner Installations - Rear Vent Configuration
A typi al 45° installation uses the framing dimensions shown in the illustration below (NOTE: all
learan es still apply).
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
7-1/2" Approximate
(varies due to vent
installation)
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
A
A
A
A
A
A
A
A
A
A
A
A
A
AAAAAAAAAAAA
48" Min.
Minimum 1/2" Clearance
NOTE: Most
installations use:
6" Section for 2x6 Walls
4" Section for 2x4 Walls
(Travis # 98900166)
A
A
A
A
A
Minimum 1" Clearance
A
A
Travis Firestop
(sku 93006094)

16 Installation (for qualified installers only)
© Travis Industries 4080214 100-01182_003
Corner Installations - Top Vent Configuration
A typi al 45° installation uses the framing dimensions shown in the illustration below (NOTE: all
learan es still apply).
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
15-1/2"
AAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAAAAAAAAAAA
48" Min.
Minimum 1/2" Clearance
A
A
A
A
A
A

Installation (for qualified installers only) 17
© Travis Industries 4080214 100-01182_003
Gas Line Requirements
MA ACHU ETT IN TALLATION - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN
THE COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
• Flexible onne tor must not be longer than 36 in hes.
• Shutoff valve must be a “T” handle gas o k.
• Only dire t vent sealed ombustion produ ts are approved for bedrooms or bathrooms.
• Firepla e dampers must be removed or welded in the open position prior to the installation of a firepla e insert or gas
log.
• A arbon monoxide (CO) dete tor is required in the same room as the applian e.
• The gas line must be installed in a ordan e with all lo al odes, if any; if not, follow ANSI
223.1 and the requirements listed below.
• The firepla e and gas ontrol valve must be dis onne ted from the gas supply piping during
any pressure testing of that system at test pressures in ex ess of 1/2 psig. For pressures under 1/2
psig, isolate the gas supply piping by losing the manual shutoff valve.
• Leak test all gas line joints and the gas ontrol valve prior to and after starting the firepla e.
Fuel
• This fireplace is designed either for natural gas or for propane (but not for both). Check the sticker on the top of
the gas control valve to make sure the correct fuel is used.
Gas Line Connection
• Installation must be performed by a qualified installer, servi e agen y or the gas supplier (In Massa husetts
a li ensed plumber/gasfitter).
Gas Inlet Pressure Standard Input Pressure Minimum Input Pressure Maximum Input Pressure
Natural Gas 7" W.C. (1.74 kPA) 3.5" W.C. (0.87 kPA) 13.85" W.C. (3.45 kPA)
Propane 13" W.C. (2.73 kPA) 8" W.C. (1.99 kPA) 14" W.C. (3.48 kPA)
• If the pressure is not suffi ient, make sure the piping used is large enough, the supply regulator is
adequately adjusted, and the total gas load for the residen e does not ex eed the amount supplied.
• The supply regulator (the regulator that atta hes dire tly to the residen e inlet or to the propane tank) should
supply gas at the suggested input pressure listed above. Conta t the lo al gas supplier if the regulator is at
an improper pressure.

18 Installation (for qualified installers only)
© Travis Industries 4080214 100-01182_003
Gas Line Location
Right Side Gas Inlet A 2" high by 3" wide opening is located
behind the gas inlet cover plate (it is 1-3/8"
above the base of the fireplace).
6-1/4"
The Gas Inlet is
3/8" FPT
You may remove this cover plate to install the gas line. The
cover plate has a 7/8" diameter hole (covered with a push
plug) in line with the gas inlet on the gas control valve. By
rotating the plate 180°the hole may be re-located. You may
also secure the plate in a customized location using the self-
drilling screws.
Left Side Gas Inlet (preferred)
You may remove this cover plate to
install the gas line. The cover plate has
a 7/8" diameter hole (covered with a
push plug). By rotating the plate 180°
the hole may be re-located. You may
also secure the plate in a customized
location using the self-drilling screws.
6-3/4"
18"
The Gas Inlet is
3/8" FPT
A 2" high by 3" wide opening is located
behind the gas inlet cover plate (it is 2"
above the base of the fireplace).
A 12" flex tube and
shutoff valve is included
with the fireplace. The
shutoff valve accepts a
1/2"MPT.
A 12" flex tube and shutoff valve is
included with the fireplace. The shutoff
valve accepts a 1/2"MPT.

Installation (for qualified installers only) 19
© Travis Industries 4080214 100-01182_003
Electrical Connection (required)
• The ele tri al line to the grounded re epta le inside the firepla e must be installed by a
qualified installer and must meet all lo al odes.
• Make sure the household breaker is shut off prior to working on any ele tri al lines.
• The firepla e must be properly grounded in a ordan e with lo al odes (or ANSI/NFPA 70-1987)
• The ele tri al line must be a min. 14 gauge, and supply 120 Volts at 60 Hz (2 Amps)
Caution: Label all wires prior to dis onne tion when servi ing ontrols. Wiring errors an ause
improper and dangerous operation.
Left Side of Firepla e
Jun tion Box Assembly
Grounded 110V
Power Supply
Grounded Re epta le
Re epta le Cover Plate
Strain Relief

20 Installation (for qualified installers only)
© Travis Industries 4080214 100-01182_003
Wall Switch or Thermostat Installation
Wiring Diagram (Millivolt ystem)
Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace. The switch must
be installed by a qualified installer.
The in luded wall swit h may be installed following the dire tions below. An optional thermostat
may also be installed. It is atta hed to the gas ontrol valve in the same manner.
Caution: Label all wires prior to dis onne tion when servi ing ontrols. Wiring errors an ause
improper and dangerous operation.
Orange
White
Piezo Igniter
Thermopile
Red
A
Thermocouple
Copper Co-Axial
Wire
Red
Spark Electrode
Pilot Hood
On/Off Switch (on fireplace)
Optional Wall Switch,
Thermostat, or
Remote Control
Brown
Wall witch Installation
1. Atta h the in luded wire to the gas ontrol valve.
Attach the two wires to the top and
bottom posts on the gas control
valve (orientation does not matter).
2. Determine a lo ation for the wall swit h (the wire is a maximum 25' long). Route the wire through
the gas inlet hole (either side) to the jun tion box and atta h following the dire tions below. Set
the on/off swit h on the applian e to "OFF" to ontrol the applian e with the wall swit h.
a
Carefully pack the wires into the
junction box. Attach the switch
to the junction box. Attach the
switchplate to the switch.
b
Standard
Screwdriver
From
Appliance
Insert the wire
through the back of
the mounted
junction box (your
junction box may
look different).
Expose 1/2" of
each wire. Secure
the wires to the
posts on the side of
the on/off switch
(orientation does
not matter).
Standard
Screwdriver
