Travis Industries Revolution 36CF Instruction Manual

36 CF
Fireplace
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028- -57-5
AN I Z21.88b-2003
• Built-In Direct Vent Fireplace
• Natural Gas or Propane
• Residential or Mobile Home
• Bedroom pproved
W RNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WH T TO DO IF YOU SMELL G S
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This appliance may be installed as an OEM installation in a manufactured (mobile) home and must be
installed in accordance with the manufacturer’s instructions and the manufactured home construction
and safety standard, Title 24 CFR, Part 3280.
This appliance is only for use with the type(s) of gas indicated on the rating plate. conversion kit is
supplied with the appliance.
Installation Manual
Installer:fter installation give this manual to the home-
owner and explain operation of this heater.
 Copyright 2007, T.I. $10.00 100-01170 4060421 4800 Harbour Pointe Blvd. W
Mukilteo, WA 98275

2 Introduction
© Travis Industries 4060623 100-01170
Overview
This manual details the installation
requirements for the 36 CF fireplace. For
operating and maintenance instructions, refer to
the 36 CF Owner's Manual (part # 100-01176).
Listing Details
This appliance was listed by OMNI Test Labs to
AN I Z21.88 - report # 028- -57-5. The listing
label is attached to the appliance near the gas
control valve. A copy is shown to the right.
ICBO Approval
This appliance was listed by OMNI-Test
Laboratories - ICBO # TL130.
Massachusetts Approval
This manual has been submitted to the
Massachusetts Board of tate Examiners of
Plumbers and Gas Fitters
National Fireplace Institute
Figure 1

Table of Contents 3
© Travis Industries 4060623 100-01170
Introduction
Overview.................................................................2
Listing Details..........................................................2
Safety Precautions
afety Precautions...................................................4
Features and Specifications
Installation Options...................................................6
pecifications.......................................................... 6
Dimensions.............................................................6
Installation
Packing List.............................................................7
Additional Items Required..........................................7
Installation Overview.................................................7
Recommended Installation Procedure ......................... 8
Massachusetts Requirements.................................... 9
Preparing the Fireplace tand-offs.............................. 10
Fireplace Placement Requirements.............................12
Clearances...........................................................12
Raised Fireplaces .................................................12
Minimum Framing Dimensions ................................13
Framing Dimensions - Corner Installations................14
Nailing Brackets....................................................15
Gas Line Requirements............................................. 16
Fuel ....................................................................16
Gas Line Connection .............................................16
Gas Inlet Pressure ................................................16
Battery Pack – Wireless Wall witch Installation ........... 17
Battery Installation ................................................20
Remote ynchronization............................................21
Installation (continued)
Vent Requirements .................................................. 23
Approved Vent......................................................23
Altitude Considerations.......................................... 23
Vent Clearances................................................... 24
Vent Installation....................................................24
Approved Vent Configurations:
Horizontal Termination (1 90° Elbow) ........................26
Horizontal Termination (3 90° Elbows).......................27
Vertical Termination (0, 2, or 4 45° Elbows) ...............28
Vertical Termination (2 90° Elbows) .......................... 29
Termination Requirements......................................... 30
Hearth Requirements ............................................... 31
Flush Hearth........................................................31
Hearth Requirements – Recessed Hearth ................32
Facing Requirements ............................................... 33
Non-Combustible Facing........................................34
Mantel Requirements................................................ 36
Finalizing the Installation
Air hutter Adjustment.............................................. 38
Glass Frame Removal and Installation........................ 39
Fireback Installation ................................................. 40
Log et Installation .................................................. 41
LP Conversion Instructions ....................................... 47
Index
Index...................................................................... 52

4 Safety Precautions
Travis Industries 4060623 100-01170
Safety Warnings:
• Failure to follow all of the requirements may result in property damage, bodily injury, or even death.
• This unit must be installed by a qualified installer to prevent the possibility of an explosion.
• This appliance must be installed in accordance with all local codes, if any; if not, in U.S.A. follow ANSI
Z223.1 and NFPA 54(88).
• In Manufactured or Mobile Homes must confirm with: In USA, Manufactured Home Construction and
Safety Standard, Title 24 CFR, Part 3280. This appliance may be installed in Manufactured Housing
only after the home is site located.
• All exhaust gases must be vented outside the structure of the living-area. Combustion air is drawn
from outside the living-area structure.
• Notify your insurance company before hooking up this fireplace.
• The room heater should be inspected before use and at least annually by a qualified service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
• The instructions in this manual must be strictly adhered to. Do not use makeshift methods or
compromise in the installation. Improper installation will void the warranty and safety listing.
• This heater is approved for use with natural gas (NG) or propane (LP). Burning the incorrect fuel will
void the warranty and safety listing and may cause an extreme safety hazard. Direct questions about
the type of fuel used to your dealer or installer.
• Contact your local building officials to obtain a permit and information on any installation restrictions or
inspection requirements in your area.
• If the flame becomes sooty, dark orange in color, or extremely tall, do not operate the heater. Call your
dealer and arrange for proper servicing.
• It is imperative that control compartments, screens, or circulating air passageways of the heater be
kept clean and free of obstructions. These areas provide the air necessary for safe operation.
• Do not operate the heater if it is not operating properly in any fashion or if you are uncertain. Call your
dealer for a full explanation of your heater and what to expect.
• Do not store or use gasoline or other flammable liquids in the vicinity of this heater.
• Do not operate if any portion of the heater was submerged in water or if any corrosion occurs.
• Do not place clothing or other flammable items on or near the heater. Because this heater can be
controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed
on or near it.
• Light the heater using the built-in igniter. Do not use matches or any other external device to light
your heater.
• Before removing the glass on a fireplace that is connected to a gas line, remove the batteries from the
battery box. This disables the fireplace and prevents it from turning on with the glass removed, a
potential safety risk.
• Never remove, replace, modify or substitute any part of the heater unless instructions are given in this
manual. All other work must be done by a trained technician. Don't modify or replace orifices.
• The viewing glass should be opened only for lighting the pilot or conducting service.
• Any safety screen or guard removed for servicing must be replaced prior to operating the heater.

Safety Precautions 5
© Travis Industries 4060623 100-01170
Safety Warnings (continued):
• Allow the heater to cool before carrying out any maintenance or cleaning.
• Operate the heater according to the instructions included in this manual.
• If the main burners do not start correctly turn the gas off at the gas control valve and call your dealer for
service.
• This unit is not for use with solid fuel.
• Do not place anything inside the firebox (except the included fiber logs).
• If the fiber logs become damaged, replace with Travis Industries log set.
• Do not throw this manual away. This manual has important operating and maintenance instructions
that you will need at a later time. Always follow the instructions in this manual.
• Do not touch the hot surfaces of the heater. Educate all children of the danger of a high-temperature
heater. Young children should be supervised when they are in the same room as the heater.
• Due to the high temperature, the heater should be located out of traffic and away from furniture and
draperies.
• Instruct everyone in the house how to shut gas off to the appliance and at the gas main shutoff valve.
The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to
shut off.
• Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential
damage(s).

6 Features and Specifications
Travis Industries 4060623 100-01170
Installation Options
• Residential or Mobile Home
• traight or Corner Placement
• Flush or Recessed Face
• Raised or Floor Placement
• Internal or External Chase
• Horizontal or Vertical Vent
• Bedroom Approved
Specifications
Natural Gas Propane
Maximum BTU Input Per Hour 50,000 49,000
Minimum BTU Input on Low 28,500 26,900
Dimensions
Weight: 250 Lbs.
1" **
* Includes the required 2" clearance.
** Includes the 1" standoff below the baseplate.
*** Does not include the required 4" clearance to each side.
25"*
56" **
49.5"
12.25"*
37.5"
32.25" **
42.5" **
Base of Fireplace
(bottom of standoffs)
31.75" **
26.75" **
36 CF A
36 CF R
32.25" **
38.25"
Radius
27" ***
NOTE: 4" Clearance to
the ides of the Fireplace
NOTE: 2" Clearance to
the Back of the Fireplace
8.625" Outside Diameter
41"
5"
Figure 2

Installation (for qualified installers only) 7
© Travis Industries 4060623 100-01170
Packing List
• Propane Conversion Kit (2 orifices, rate screw)
• Lo Set
• Remote Control and Wireless Wall Switch
• Battery Box with 12’ Wire Lead
Additional Items Required
WARNING: Do not operate the fireplace without the firebacks in place. Failure to install the firebacks
will result in an extreme fire hazard and will void the listin and warranty of this fireplace.
• Fireba ks –Ar hed (96100166) - Re tangular (96100172) available from Travis Industries
• 36 CF Direct Vent (available only from Travis Industries – see pa e 23 for part numbers)
• Gas Line Equipment (shutoff valve, pipe, etc.)
• 6” Needle-Nose Pliers (for removin the lass)

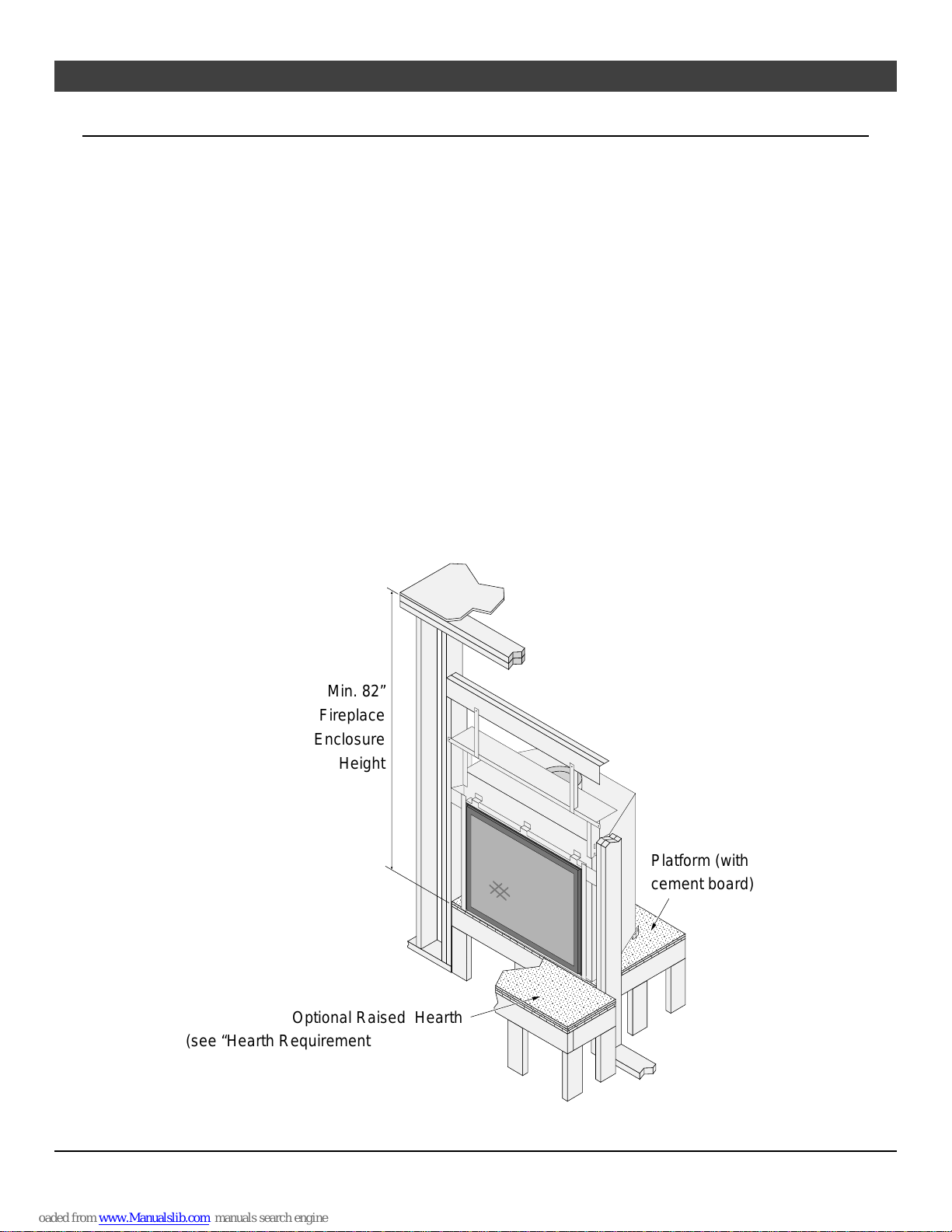

Installation Overview
• All requirements below must be met.
Non-combustible facing -
see the section "Facing
Requirements"
See the section
"Vent Requirements"
See the section
"Minimum Framing Dimensions"
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA

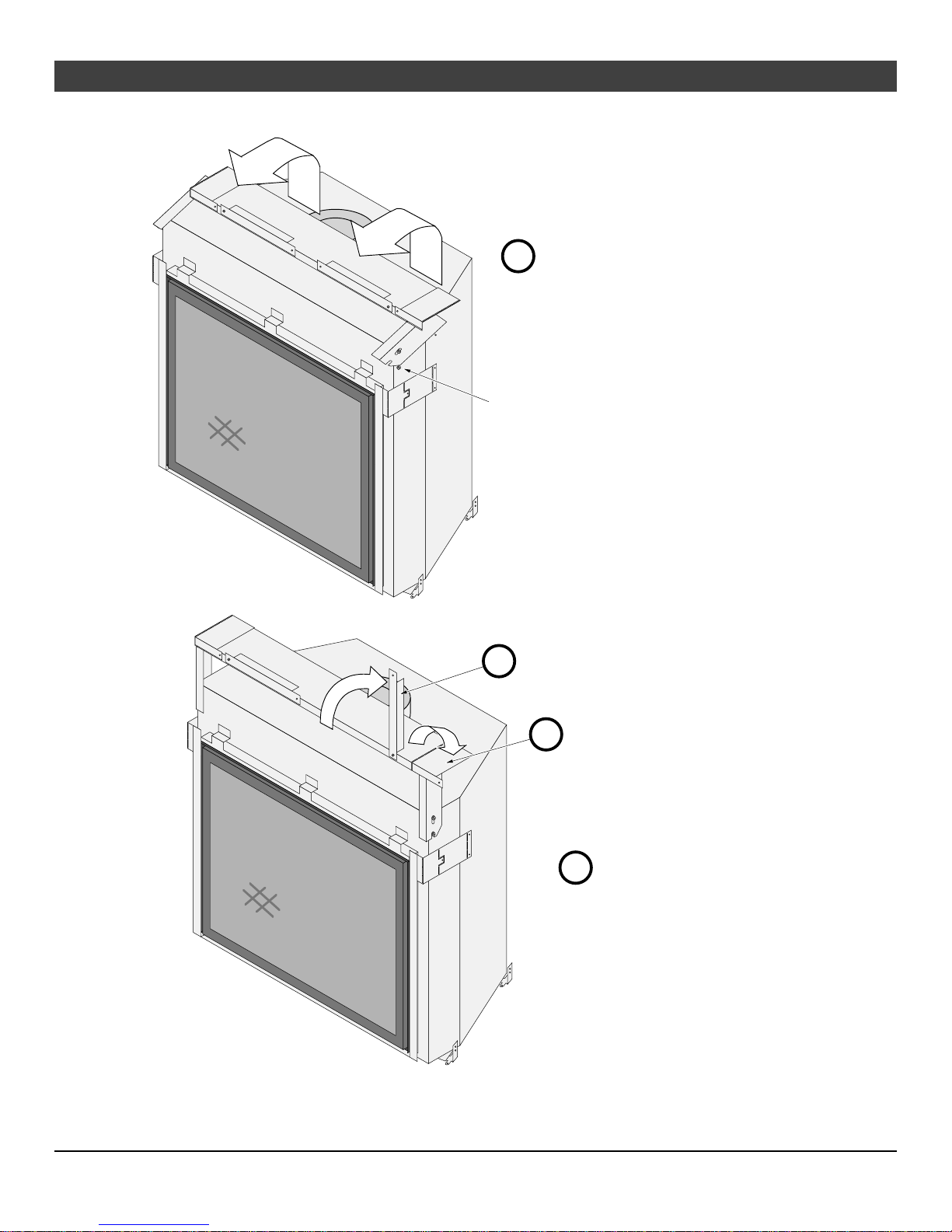

Nailing Brackets
The fireplace must be
placed on cement board -
see the section "Fireplace
Placement Requirements"
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
Drywall (or other
combustible)
10.25"
Min.
See the section
"Mantel Requirements"
See the section
"Hearth Requirements"
S
ee the section "Control Panel
I
nstallation"
N
OTE: Control wire is 12' long.
Side
Wall
Figure 3

8 Installation (for qualified installers only)
Travis Industries 4060623 100-01170
Recommended Installation Procedure
1. Frame the openin for the fireplace. We su est omittin the framin above the header to
allow for easier vent installation.
2. Place the cement board in place under the location where the fireplace is to be located.
3. Place the fireplace in place, makin sure it is level and plumb. Attach usin the nailin
brackets.
4. Install the vent, as line and control panel.
5. Install the framin above the header.
6. Install the non-combustible facin .
7. Install the hearth (if applicable).
8. Install the facin .
9. Install the mantel (if applicable).
10. Finalize the installation (see pa e 37).

Installation (for qualified installers only) 9
© Travis Industries 4060623 100-01170
Massachusetts Requirements
NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.
Requirements for the Commonwealth of Massa husetts
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in
part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent
termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and
porches, the following requirements shall be satisfied:
Installation of Carbon Monoxide Dete tors
At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall
observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the
gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard
wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served
by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the
services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired
carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall
have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day
period, a battery operated carbon monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Dete tors
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be
ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
Inspe tion
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as
adopted by the Board; and
• Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the
dwelling, building or structure used in whole or in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or
venting system components with the equipment, the instructions provided by the manufacturer for installation of the
equipment and the venting system shall include:
-- Detailed instructions for the installation of the venting system design or the venting system components; and
-- A complete parts list for the venting system design or venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts
for venting the flue gases, but identifies “special venting systems”, the following requirements shall be satisfied by the
manufacturer:
-- The referenced “special venting system” instructions shall be included with the appliance or equipment installation
instructions; and
-- The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a
parts list and detailed installation instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or
equipment at the completion of the installation.
See “Gas Line Requirements” on page16 for additional Massachusetts requirements.

10 Installation (for qualified installers only)
Travis Industries 4060623 100-01170

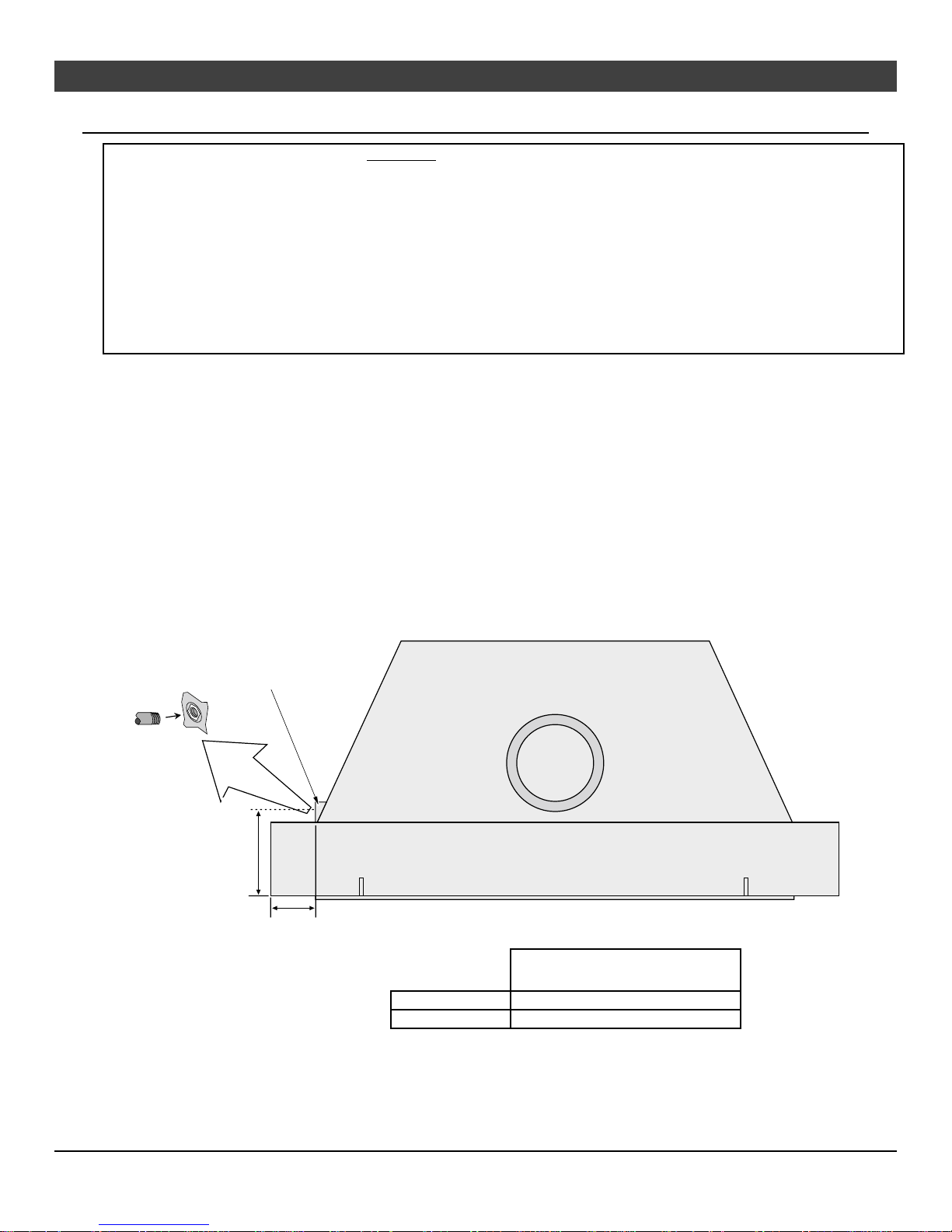

Preparing the Fireplace Stand-o s
This appliance is shipped with the header and side stand-offs in the retracted position. These stand-
offs must be placed in their upri ht position prior to installin the fireplace
WARNING: Failure to correctly erect the stand-offs may lead to a serious fire-hazard and will void
the listin and warranty of this fireplace.

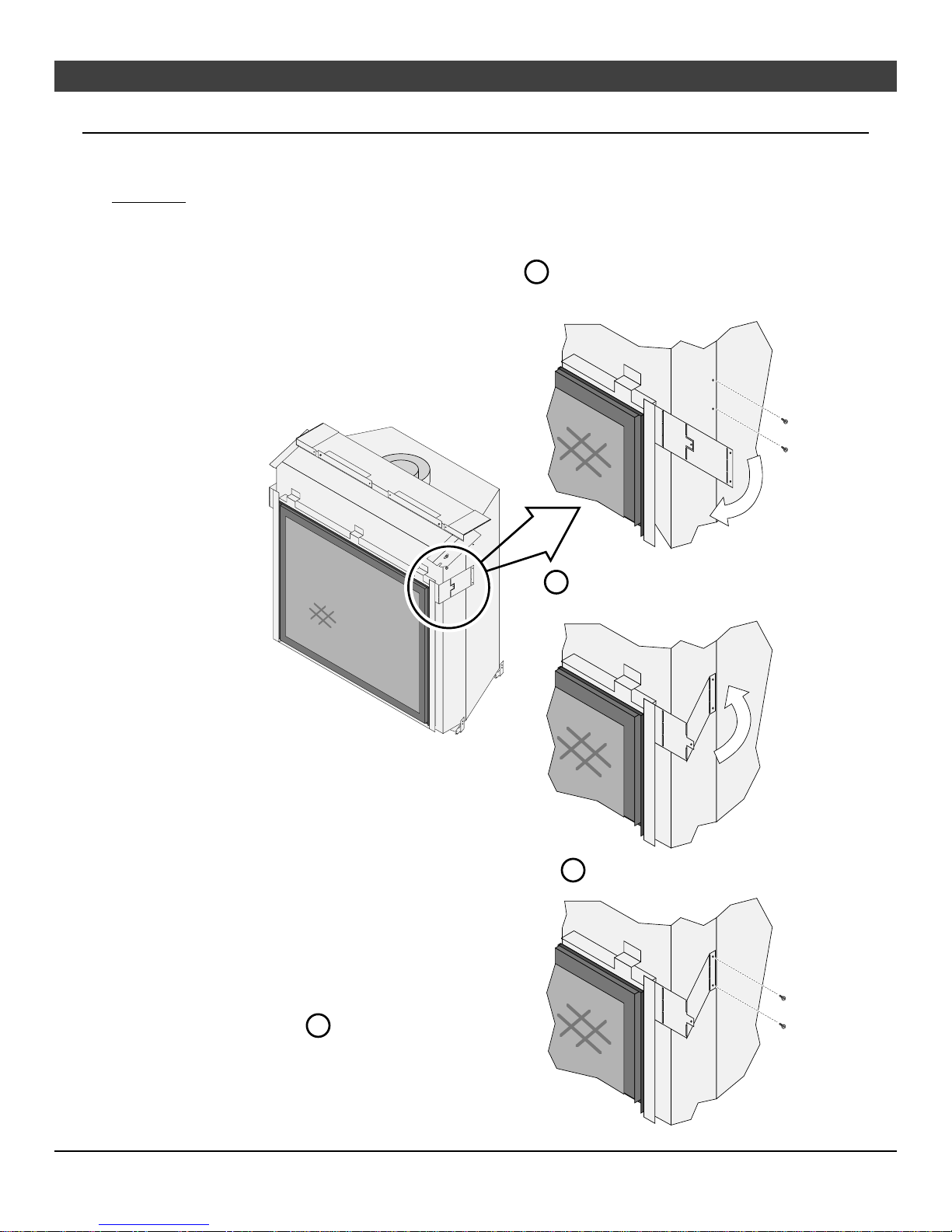

Side Stand-Offs
Bend the side stand-off until it is flat.
Remove the two screws behind the side
stand-off and place them aside.
Bend the stand-off return back until
the holes in the stand-off line up with
the holes on the side of the fireplace.
a
b
c
d
Secure the stand-off with two
screws removed earlier.
Repeat steps "a", "b", and "c"
for the opposite side.
Figure 4

Installation (for qualified installers only) 11
© Travis Industries 4060623 100-01170
Header Stand-Off
Rotate the header standoff until
the side braces lock into place.
Rotate the header bracket up
The notch in the side brace slides
over this screw.
a
b
c
d
Un-fold the side of the header
standoff until it is flat.
Repeat steps "b" and "c" for the
opposite side.
Figure 5

12 Installation (for qualified installers only)
Travis Industries 4060623 100-01170
Fireplace Placement Requirements
• The fireplace requires a 4" clearance from the sides and 2” from the back of the fireplace to the
framin members. No material (insulation, framin , etc.) may be placed into this area.
• Fireplace must be placed in a room with a minimum 96” ceilin .
• Fireplace must be placed directly on a 1/2” layer of non-combustible cement board (or
equivalent).
• Fireplace must be installed on a level surface capable of supportin the fireplace and vent.
• This heater may be placed in a bedroom. Please be aware of the lar e amount of heat this
appliance produces when determinin a location.
Clearan es
• When installed, walls in front of the fireplace must be a minimum 10-1/4” from the lass frame
(4-1/4" from the side stand-offs - see Fi ure 3).
• Due to the hi h temperature, the heater should be located out of traffic and away from furniture
and draperies.
• Fireplace must be placed so the vents below and above the lass do not become blocked.
Raised Firepla es
• The fireplace (and hearth, if desired) may be placed on a platform desi ned to support the
fireplace 250 Lbs.) and vent.
AAAAA
AAAAA
AAAAA
AAAAA
AAAA
AAAA
AAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
Platform (with
cement board)
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAAAAAA
AAA
AAA
AAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAA
AAA
AAAAAA
AAAAAA
AAAAAA
AAAAAA
AAA
AAA
AAA
AAAA
AAAA
AAAA
Min. 82”
Fireplace
Enclosure
Height
Optional Raised Hearth
(see “Hearth Requirements”for details)
Figure 6

Installation (for qualified installers only) 13
© Travis Industries 4060623 100-01170
Minimum Framing Dimensions
NOTE: Do not build into this area - it must be left clear to
provide adequate clearance for the vent. A maximum 3-1/2”
depth is allowed in this 14” wide area centered along the front
of the fireplace.
14” Min.
50”
3.5” Max.
56.75” *
25”
Minimum 82” Fireplace
Enclosure Height
NOTE: On LP
installations with
minimum vertical rise,
minimum enclosure
height is 96”.
* Includes the 1/2”cement board.
Figure 7

14 Installation (for qualified installers only)
Travis Industries 4060623 100-01170

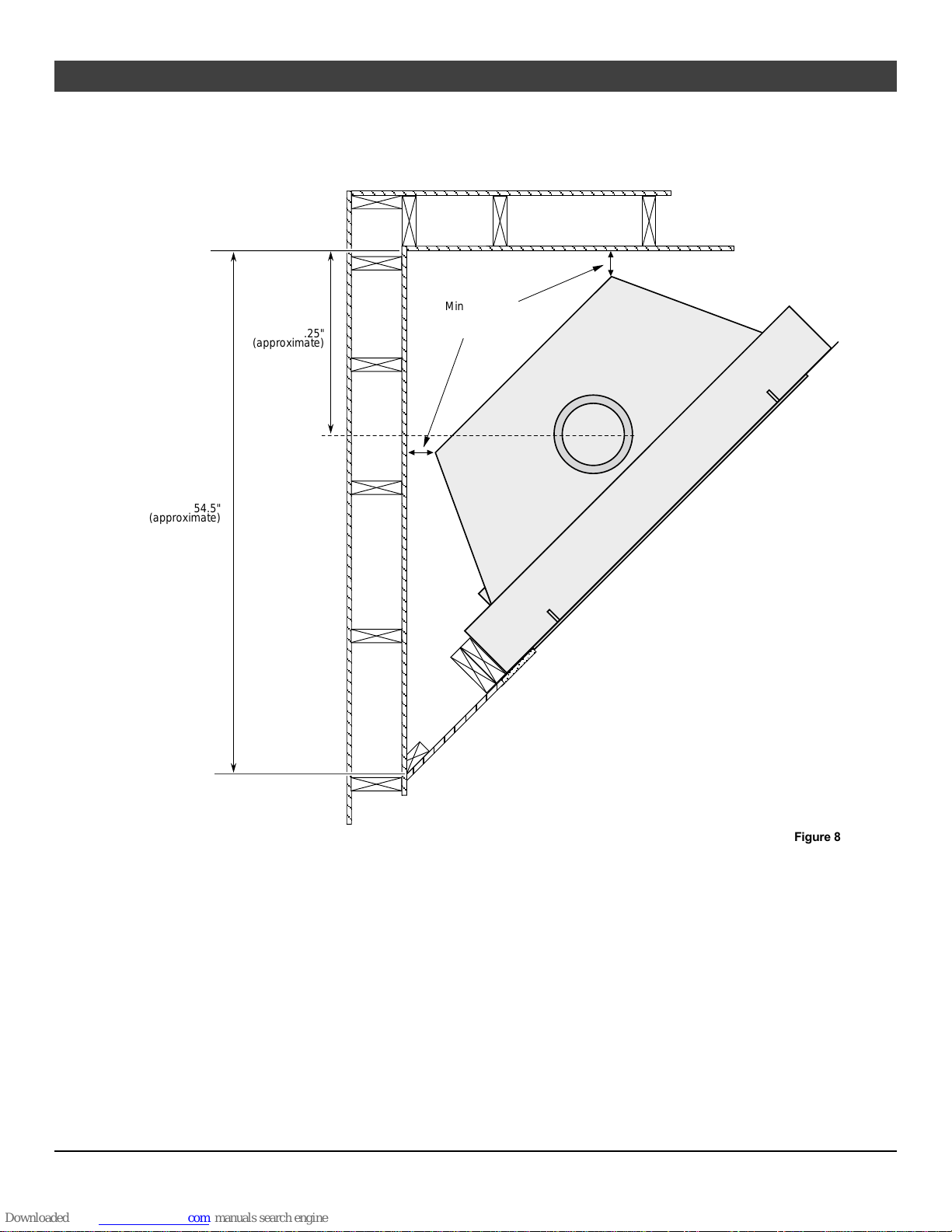

Framing Dimensions - Corner Installations
A typical 45° installation uses the framin dimensions shown in the illustration below (NOTE: all
clearances still apply).
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
54.5"
(approximate)
AAAAAAAAAAA
AAAAAAAAAAA
AA
AA
AAAAAAAAAAA
Minimum 2"
Clearance
AAAA
AAAA
AAAA
AAAA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
19.25"
(approximate)
Figure 8

Installation (for qualified installers only) 15
© Travis Industries 4060623 100-01170

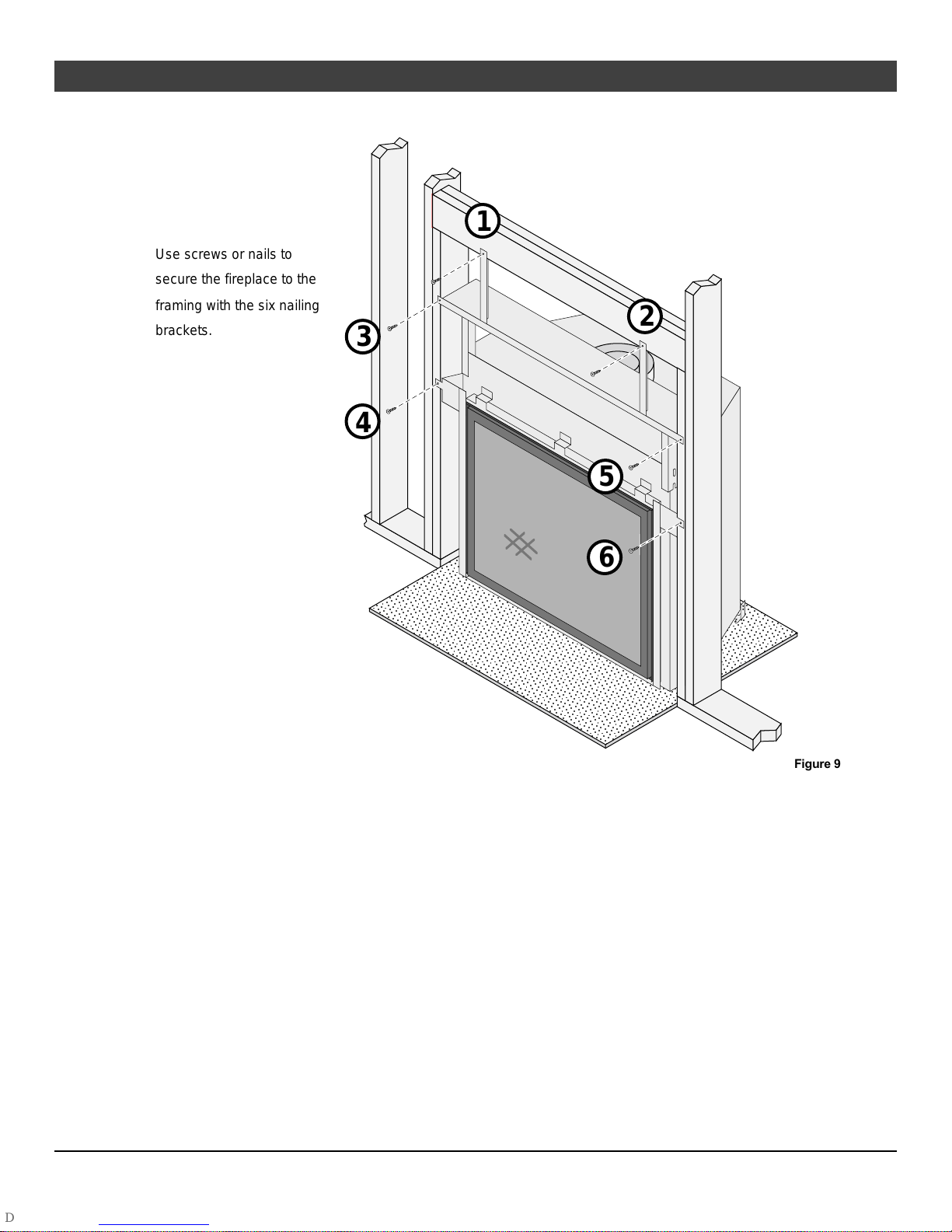

Nailing Bra kets
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
Use screws or nails to
secure the fireplace to the
framing with the six nailing
brackets.
1
2
3
4
5
6
Figure 9

16 Installation (for qualified installers only)
Travis Industries 4060623 100-01170
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN
THE COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
• Flexible connector must not be lon er than 36 inches.
• Shutoff valve must be a “T” handle as cock.
• Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
• Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or as
lo .
• A carbon monoxide (CO) detector is required in the same room as the appliance.
• The as line must be installed in accordance with all local codes, if any; if not, follow ANSI
223.1 and the requirements listed below.
• The fireplace and as control valve must be disconnected from the as supply pipin durin
any pressure testin of that system at test pressures in excess of 1/2 psi . For pressures under 1/2
psi , isolate the as supply pipin by closin the manual shutoff valve.
• Leak test all as line joints and the as control valve prior to and after startin the fireplace.
Fuel
• This fireplace is designed either for natural gas or for propane (but not for both). Check the sticker on the top of
the gas control valve to make sure the correct fuel is used (see illustration on page 4).
Gas Line Conne tion
• Installation must be performed by a qualified installer, service a ency or the as supplier (In Massachusetts
a licensed plumber/ asfitter).
The gas inlet is located
5.5" above the base of
the fireplace.
7"
4"
Built-In Shut-off Valve
Gas Line
(1/2" M.P.T.)
Figure 10
Gas Inlet Pressure Standard Input Pressure
Natural Gas 7" W.C. (1.74 kPA)
Propane 13" W.C. (2.73 kPA)
• If the pressure is not sufficient, make sure the pipin used is lar e enou h, the supply re ulator is
adequately adjusted, and the total as load for the residence does not exceed the amount supplied.
• The supply re ulator (the re ulator that attaches directly to the residence inlet or to the propane tank) should
supply as at the su ested input pressure listed above. Contact the local as supplier if the re ulator is at
an improper pressure.

Installation (for qualified installers only) 17
© Travis Industries 4060623 100-01170

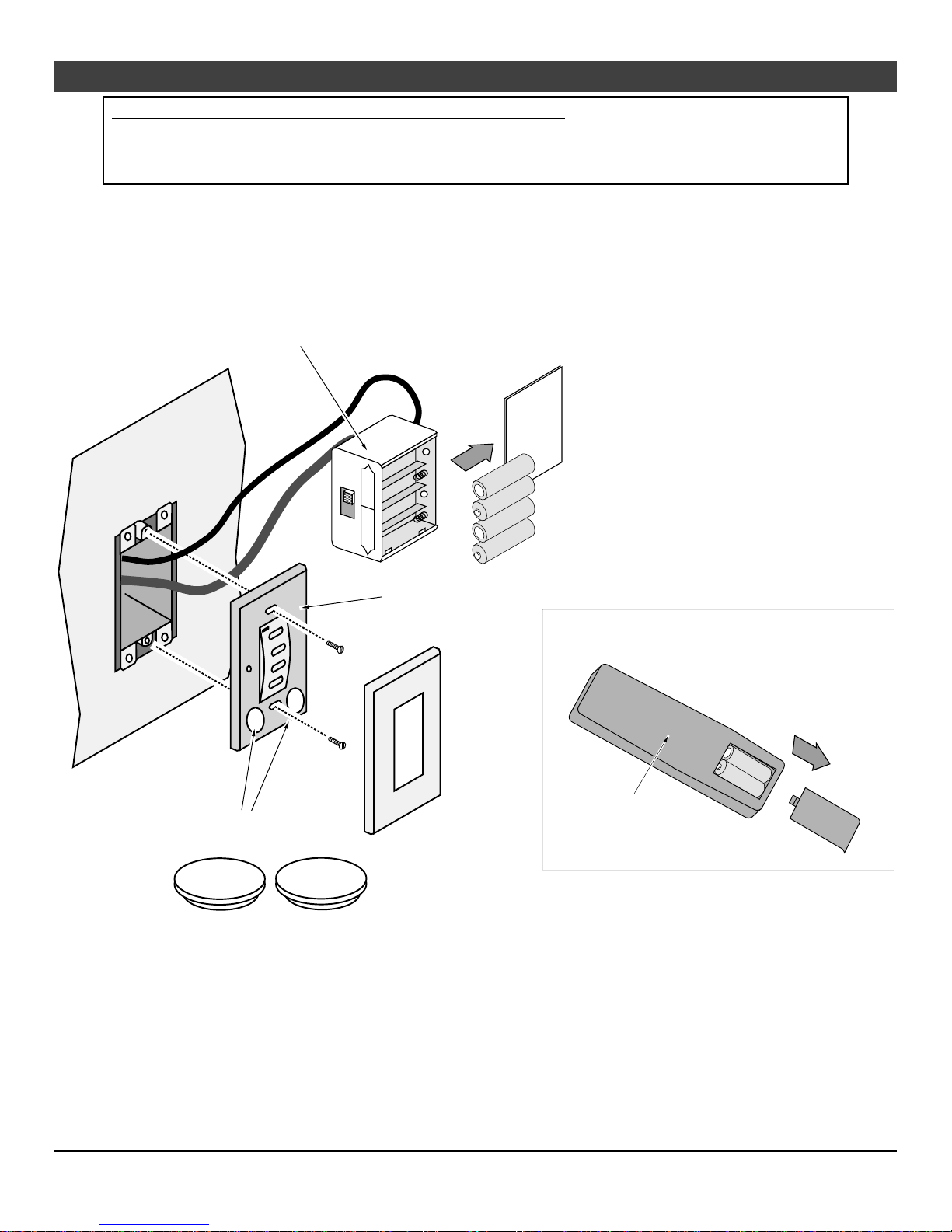

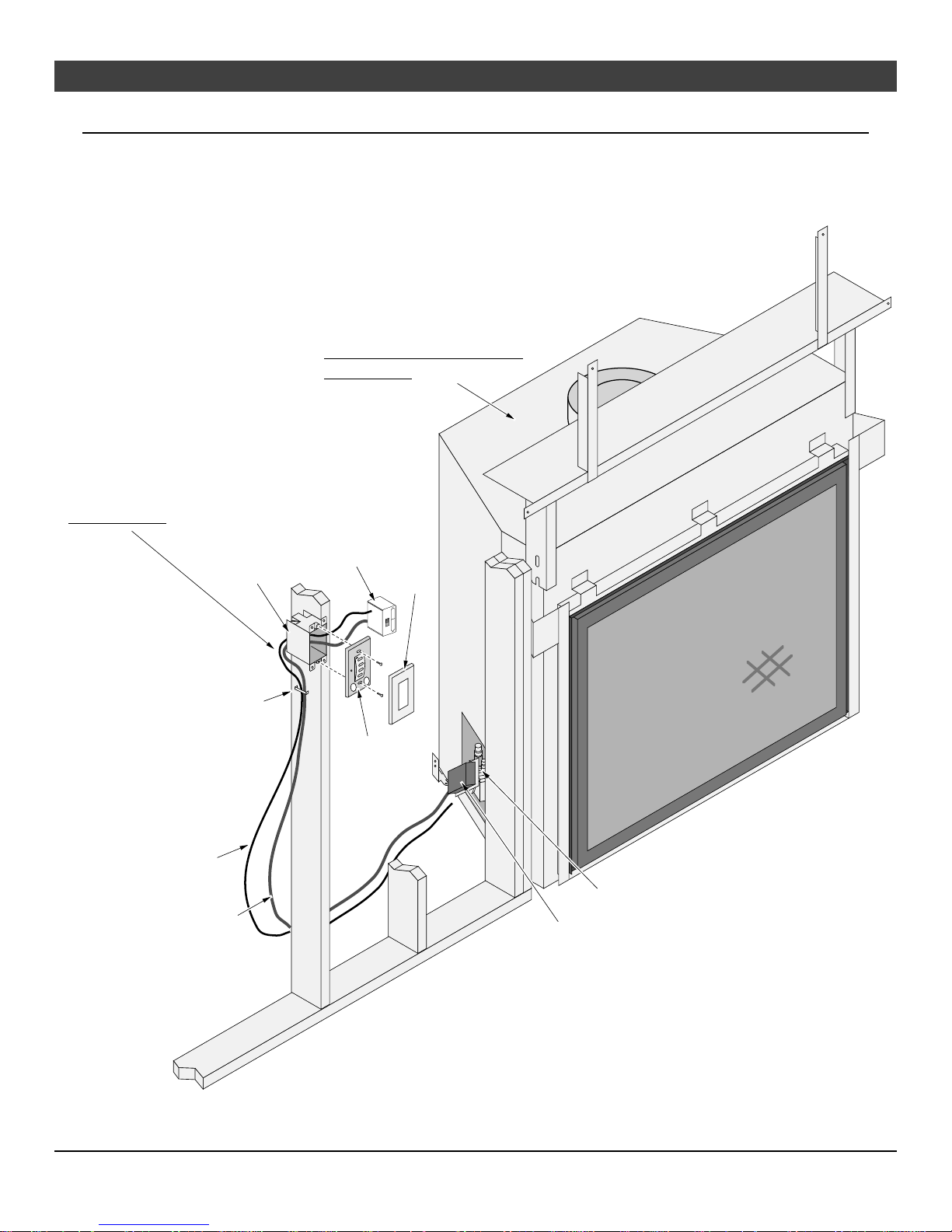

Battery Pack – Wireless Wall Switch Installation
• The control panel must be mounted inside a junction box in a location that may be reached by
the 12’ lon battery pack and DCMD wires (see Fi ure 11).
• The fireplace must be properly rounded in accordance with local codes (or ANSI/NFPA 70-1987).
We su est roundin the as line or usin a similar roundin method.
Staple the two wires near the junction
box. This prevents the wires from
slipping out of the junction box while
the batteries are replaced. Take care
to prevent damage to wires.
PRESSTO OPEN
LatchingSolenoid DCMotor Drive
Junction Box
(not supplied)
Battery
Pack
Wireless
Wall
Switch*
Cover
Plate
Battery Pack Wires (4)
DCMD Wires (2)
Receiver
Module
Gas Control
Valve
Wire Length = 12'
* The wireless wall switch may be located at a
separate location. An additional cover plate would be
required for the battery back junction box.
Do not route the wires over the top
of the fireplace.
Figure 11

18 Installation (for qualified installers only)
Travis Industries 4060623 100-01170
Steps for Installing the Battery Pa k and Wall Swit h
1. Connect the battery pack wire harness to the receiver module where it is marked “AUX” (see
Fi ure 12 – item “a”). At this time make sure the continuous pilot switch is set to “OFF” and the
remote switch is set to “REMOTE” on the receiver module (see Fi ure 12 – item “b”). You may
also wish to verify the wires leadin from the receiver are fully attached.
2. Connect the DCMD wires (red and red/black) to the two wires (red and black) exitin the motor
assembly on the as control valve (see Fi ure 12 – item “c”).
PRESS TO OPEN
POWER
AUX
Learn
Continuous
Pilot
Off/On Remote/Off ADJ
SI
Battery Box Wires (DC Motor Drive) - 12' Length
Black, Brown, Red, and Orange wires
DCMD Wires (DC Motor Drive) - 12' Length
Red and Black/Red wires (w quick connects)
White
Green
Orange
White
Main Burner Control Wires
Pilot Flame Control Wires
Sensor ("S")
Wire (White)
Not
Used
Battery Box
Gas Control Valve
Receiver
Module
Pilot Assembly
Make sure continuous pilot
is set to "OFF" and remote
is set to "REMOTE".
a
b
c
Igniter ("I") Wire
(Orange - with
fiberglass
insulation)
Figure 12

Installation (for qualified installers only) 19
© Travis Industries 4060623 100-01170
3. Determine a location for the sin le- an junction box that contains the battery pack and
wireless wall switch. It must be located within 12’ of the DCMD and battery pack wires that lead
to the as control valve and receiver module on the fireplace (see Fi ure 11). Mount the
junction box.
4. Insert the DCMD and battery pack wires throu h the junction box, leavin approximately 8” of
slack so the battery pack may be removed and the batteries replaced. Use a staple or other
means to secure the wirin to the framin – this prevents the wires from slippin out of the
junction box in the event the wires become disconnected from the battery pack (see Fi ure 11).
NOTE: The wirin is low-volta e (6V) and does not require a strain relief. Connect the DCMD
and battery pack wires to the battery pack (see Fi ure 13).
PRESS TO OPEN
The red wire goes to
the third slot, the
black wire to the
fourth (lowest) slot.
The DCMD wires are secured to the
terminal block with these screws.
Connect the battery box wiring
harness to this connector.
Back of Battery Box
Battery Box Wiring Harness
DCMD Wires
Figure 13
NOTE: You may wish to install the wireless wall switch (and cover plate) after the drywall has been
installed. Remember to mask off this area prior to drywall installation.
5. Make sure the battery box is switched to “DC Motor Drive”. Place the battery pack inside the
junction box. Attach the wireless wall switch to the junction box with the included screws.
Attach the cover plate to finalize the wall plate installation.
Battery Pack
Make sure this
switch is set to
"DC Motor Drive"
Cover Plate
(snaps into place)
PRESS TO OPEN
Latching Solenoid DC Motor Drive
Wireless Wall Switch
(includes two "CR2032" 3V batteries)
Secure to the junction box with the two
included screws.
Leave approximately 8" of slack in the wire
so the battery pack can be removed and the
batteries changed.
Junction Box (single gang)
Staple the two wires near the
junction box. This prevents the
wires from slipping out of the
junction box while the batteries
are replaced.
Figure 14

20 Installation (for qualified installers only)
Travis Industries 4060623 100-01170
INSTALLATION WARNING – Remote Syn hronization
At this time we hi hly recommend you verify the remote and wireless wall switch are synchronized.
This process requires access to the receiver module – a component that is easily accessed when
the side of the fireplace is exposed. See the instructions on pa e 21 for details.
Battery Installation
This fireplace requires batteries for the remote, wireless wall switch, and battery box. We
recommend the batteies be replaced every year to insure proper operation. Follow the directions
below to install.
CR2032
The Wall Switch requires two (2)
CR2032 3V batteries (included)
Battery Pack
(make sure this switch is
set to "DC Motor Drive")
Cover Plate
(snaps into place)
Wireless Wall Switch
Wall
CR2032
PRESS TO OPEN
Latching Solenoid DC Motor Drive
AA Battery
AA Battery
AA Battery
AA Battery
The battery pack requires
four (4) AA batteries.
AAA Battery
AAA Battery
The Remote requires two (2) AAA batteries (included)
Back of Remote
Figure 15
