Travis Industries 1080 CF User manual

1080 CF Fireplace
• Operation
• Maintenance
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028- -81-5
ANSI Z21.88a-2007
WARNING: If the information in these instructions is not followe exactly, a fire or
explosion may result causing property amage, personal injury or loss of
life.
- Do not store or use gasoline or other flammable vapors an liqui s in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; o not use any phone in your buil ing.
• Imme iately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire epartment.
- Installation an service must be performe by a qualifie installer, service agency or
the gas supplier.
This appliance may be installe as an OEM installation in a manufacture (mobile) home an must be
installe in accor ance with the manufacturer’s instructions an the manufacture home construction
an safety stan ar , Title 24 CFR, Part 3280.
This appliance is only for use with the type(s) of gas in icate on the rating plate. A conversion kit is
supplie with the appliance.
Owner's Manual
 Copyright 2009, T.I. $10.00 100-01194_003 4090810 4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2 Intro uction
© Travis Industries 4090810 100-01194_003
Introduction
We welcome you as a new owner of a 1080 C gas fireplace. This manual details operation and
maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before
operating your heater and save the manual for future reference.
Important Information
No other 1080 C gas fireplace has the same serial
number as yours. The serial number is on the listing
label that is chained to the gas control valve. This
serial number may be needed in case you require
service.
Model: 1080 C ireplace
Serial Number:
Purchase Date:
Purchased rom:
Register your warranty online at:
traviswarranty.com
Or, mail your warranty car to:
Travis Industries House of ire
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Save Your Bill of Sale.
To receive full warranty coverage, you will
need to show evidence of the date you
purchased your heater. Do not mail your
Bill of Sale to us.
We suggest that you attach your Bill of
Sale to this page so that you will have all
the information you need in one place
should the need for service or information
occur.
Installation Warnings
• Installation requirements are printe in the 1080 CF Installation Manual (part # 100-
01193). All requirements in the installation manual must be met.
• Failure to follow all of the requirements may result in property amage, bo ily injury, or
even eath.
• This heater must be installe by a qualifie installer who has gone through a training
program for the installation of irect vent gas appliances.
• This appliance must be installe in accor ance with all local co es, if any; if not, follow
ANSI Z223.1 an NFPA 54(88).
• In Manufacture or Mobile Homes must conform with Manufacture Home Construction
an Safety Stan ar , Title 24 CFR, Part 3280, or, when such a stan ar is not applicable,
the Stan ar for Manufacture Home Installations, ANSI/NCSBCS A225.1. This appliance
may be installe in Manufacture Housing only after the home is site locate .
• The fireplace is esigne to operate on natural gas, or propane (LP).
• All exhaust gases must be vente outsi e the structure of the living-area. Combustion
air is rawn from outsi e the living-area structure.
• Notify your insurance company before hooking up this fireplace.
• The ceramic firebacks must be installe in this fireplace prior to operation.

Intro uction 3
© Travis Industries 4090810 100-01194_003
Table of Contents
Intro uction an Important Information
Introduction.............................................................2
Important Information ...............................................2
Installation Warnings ................................................ 2
eatures.................................................................3
Gas Input Specifications ........................................... 3
Safety Precautions
Safety Precautions...................................................4
Operation
Before You Begin..................................................... 6
Controls..................................................................6
Starting the ireplace for the irst Time.......................8
Adjusting the lame Height........................................8
Continuous Pilot – or Very Cold Conditions................8
Normal Operating Odors............................................8
Power Outages.........................................................8
Maintenance
Yearly Service Procedure.......................................... 9
Glass rame Removal and Installation........................ 10
Log Set Installation .................................................. 11
Wiring Diagram........................................................ 20
Replacement Parts List ............................................ 20
Warranty
Warranty ................................................................ 24
Optional Equipment
Optional Equipment List............................................ 22
In ex
Index...................................................................... 24
Features
• Works During Power Outages
• Standard Remote Control with Thermostat
• Realistic "Wood ire" Look
• Convenient Operating Controls
• Variable-Rate Heat Output
• Low Maintenance
Gas Input Specifications
Natural Gas Propane
Maximum BTU Input Per Hour 36,000 36,000
Minimum BTU Input on Low 20,800 23,500

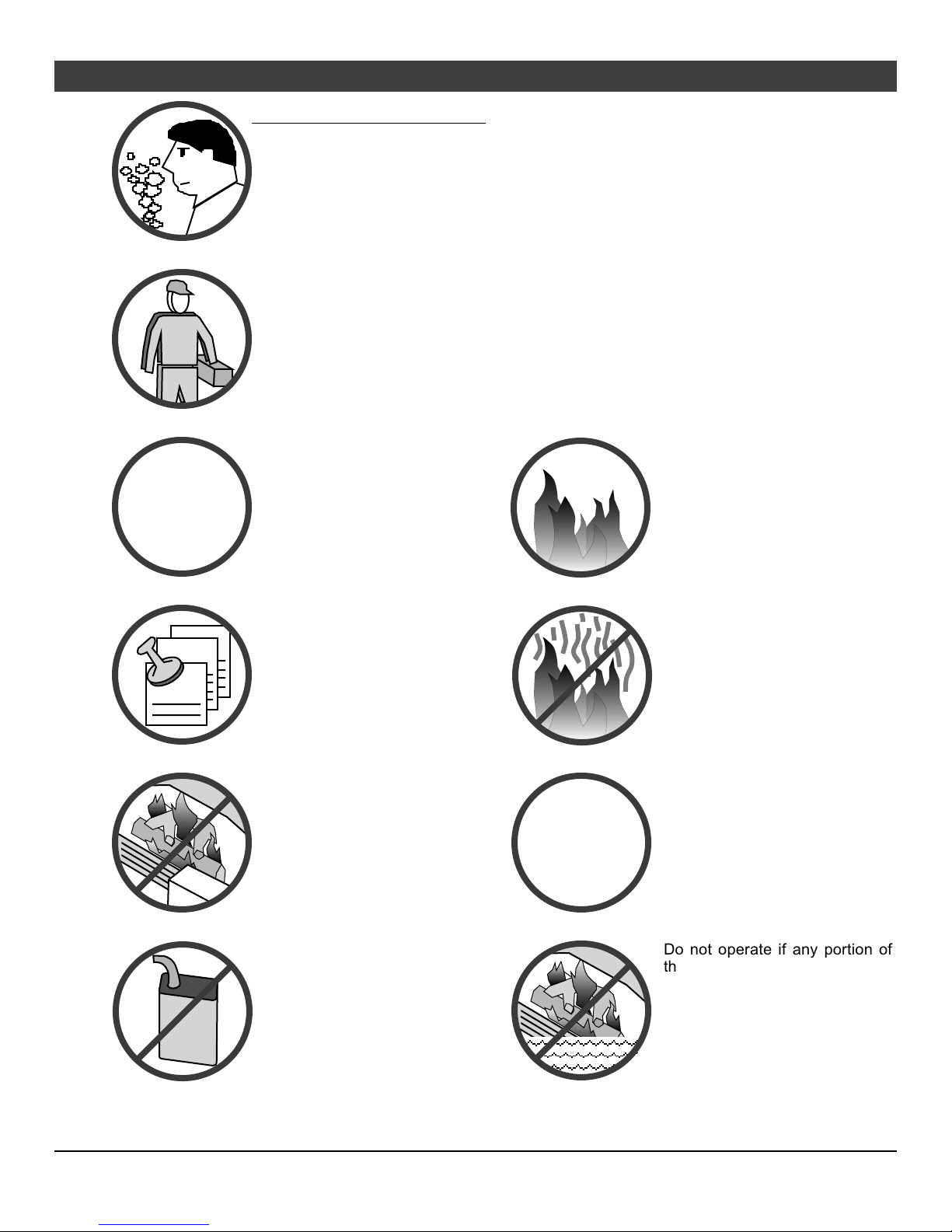

4 Safety Precautions
© Travis Industries 4090810 100-01194_003
IF YOU SMELL GAS:
* Do not light any appliance
* Extinguish any open flame
* Do not touch any electrical switch or plug or unplug anything
* Open win ows an vacate buil ing
* Call gas supplier from neighbor's house, if not reache , call fire epartment
This unit must be installed b
y
a qualified installer to prevent the possibilit
y
of an
explosion. Your dealer will know the requirements in your area and can inform you
of those people considered qualified. The room heater should be inspected and
cleaned before use and at least annually by a qualified service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding
material, etc.
The instructions in this manual must be strictl
y
adhered to. Do not use makeshift
methods or compromise in the installation. Improper installation will void the
warrant
y
and safet
y
listin
g
.
CH 4
- or -
83H
C
This heater is either approved
for natural gas (NG) or for
propane (LP). Burning the
incorrect fuel will void the
warranty and safety listing and
may cause an extreme safety
hazard. Direct questions
about the type of fuel used to
your dealer or installer
Operate the heater accordin
g
to the instructions included in
this manual.
If the main burners do not start
correctly turn the gas off to the
fireplace and call your dealer
for service.
Ok
Contact
y
our local buildin
g
officials to obtain a permit and
information on any installation
restrictions or inspection
requirements in your area.
Notify your insurance
company of this heater as
well.
If the flame becomes soot
y
,
dark orange in color, or
extremely tall, do not operate
the heater. Call your dealer
and arrange for proper
servicing.
It is imperative that control
compartments, screens, or
circulating air passageways of
the heater be kept clean and
free of obstructions. These
areas provide the air necessary
for safe operation. ?Do not operate the heater if it is
not operating properly in any
fashion or if you are uncertain.
Call your dealer for a full
explanation of your heater and
what to expect.
Gas
Do not store or use
g
asoline or
other flammable liquids in the
vicinity of this heater.
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AAAAA
AA
AA
Do not operate if an
y
portion of
the heater was submerged in
water or if an
y
corrosion occurs.
Immediately call a qualified
service technician to inspect
the appliance and to replace
any part of the control system
and any gas control that has
been under water.

Safety Precautions 5
© Travis Industries 4090810 100-01194_003
Do not place clothin
g
or other
flammable items on or near
the heater. Because this
heater can be controlled by a
thermostat there is a possibility
of the heater turning on and
igniting any items placed on
or near it.
AA
AA
AA
AA
A
Li
g
ht the heater usin
g
the built-
in electronic igniter. Do not
use matches or any other
external device to light your
heater.
Allow the heater to cool before
carrying out any maintenance
or cleaning.
The viewin
g
g
lass should be
opened only for conducting
service. Do not operate with
cracked, broken, or removed
glass.
An
y
safet
y
screen or
g
uard
removed for servicing must be
replaced prior to operating the
heater.
Never remove, replace, modify
or substitute any part of the
heater unless instructions are
given in this manual. All other
work must be done by a trained
technician. Don't modify or
replace orifices.
Prior to removing the glass,
shut off gas to the appliance
(or remove the batteries from
the battery box and shut off
electricity to the fireplace).
This prevents any chance of
accidental burner ignition
when accessing the firebox.
This
Manual
Do not throw this manual awa
y
.
This manual has important
operating and maintenance
instructions that you will need
at a later time. Always follow
the instructions in this manual.
AA
AA
AA
AA
This unit is not for use with
solid fuel
Do not place an
y
thin
g
inside
the firebox (except the
included fiber logs).
If the fiber lo
g
s become
damaged, replace with Travis
Industries log set.
Instruct ever
y
one in the house
how to shut gas off to the
appliance and at the gas main
shutoff valve. The gas main
shutoff valve is usually next to
the gas meter or propane tank
and requires a wrench to shut
off.
Children and adults should be
alerted to the hazards of high
surface temperature and
should stay away to avoid
burns or clothing ignition.
Young children should be
supervised when they are in
the same room as the heater.
Travis In ustries, Inc.
g
rants
no warranty, implie or state ,
for the installation or
maintenance of your heater,
an assumes no
responsibility of any
consequential amage(s).
Operate the heater accordin
g
to the instructions included in
this manual.
If the main burners do not start
correctly turn the gas off to the
fireplace and call your dealer
for service.

6 Operation
© Travis Industries 4090810 100-01194_003
Before You Begin
Read this entire manual before you use your new fireplace (especially the section "Safety
Precautions" on pages 4 & 5). ailure to follow the instructions may result in property damage,
bodily injury, or even death.
Controls
Remote Control
The remote control can turn the fireplace on and off or operate as a thermostat. In addition, it can
turn the flame height up or down.
ON H/L
OFF
Continuous Pilot
MODE
SET
TEMP
°F
Wall Switch
The wall switch can turn the fireplace on and off or turn the flame height up or down.
ON
OFF
HI
LO

Operation 7
© Travis Industries 4090810 100-01194_003
The Two Modes of Operation
This fireplace uses both a wall switch and thermostat to control the fireplace.
NOTE: Whichever
component is operated last
controls the fireplace. If
you are using the remote
and you press any button on
the wall switch, the remote
is no longer in control of the
fireplace until a button is
pressed on the remote.
ON
OFF
HI
LO
NOTE: Whichever control is
operated last controls the
fireplace.
ON H/L
OFF
Continuous Pilot
MODE
SET
TEMP
°F
Manual Mo e
In manual mode you can turn the fireplace on and off using either the thermostat or remote.
Simply press the “ON” and “O ” buttons on either the wall switch or remote.
Thermostat Mo e
While in thermostat mode, the remote will
monitor the temperature and turn the fireplace
on and off to meet the desired temperature.
To turn on Thermostat Mo e:
Press the “MODE” button on the remote until
“ROOM” appears on the LCD display.
To turn off Thermostat Mo e:
Press the “MODE” button on the remote until
“ROOM” no longer appears on the LCD
display.
ON H/L
OFF
Continuous Pilot
MODE
SET
TEMP
°F
ROOM
When the remote is in
thermostat mode the
word "ROOM" will
appear on the remote.
A justing the Target Temperature of the Thermostat:
Make sure the remote is in thermostat mode. Hold down the “SET” button until the desired
temperature is displayed ( “SET TEMP” will be displayed on the LCD, indicating that the
thermostat temperature is being set). The thermostat may be set at any temperature between 45°
and 99° . If the desired temperature is missed, simply hold down the button (the temperature
will scroll up to 99° then re-start at 45°).
NOTE: If the fireplace is in thermostat mode, and any button on the wall switch is pressed, the
remote will return to manual mode. Simply press any button on the remote to return control of
the fireplace to the remote.
WARNING: While in thermostat mode the fireplace will turn on and off to meet the temperature
demands of the remote. Do not place any items near the fireplace or conduct service without
removing the batteries and disabling the fireplace.
WARNING: If the remote is set to a high temperature the fireplace may remain on for an extended
period of time. This may be a concern to those using LP (propane).

8 Operation
© Travis Industries 4090810 100-01194_003
Starting the Fireplace for the First Time
• Burn the heater at a high setting for an extended period (up to 48 hours). This will cure the
painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is
normal. We recommend opening a window to vent the room.
• Con ensation may appear on the glass each time you start the fireplace - this is normal.
• Blue Flames will occur on the fireplace when it first comes on. After fifteen minutes the flames
will turn a more realistic yellow and orange color.
djusting the Flame Height
A justment with the Wall Switch (recommen e )
With the fireplace in manual mode and the fireplace on, click the “HI” or “LO” button until the
desired flame height is achieved.
A justment with the Remote
With the fireplace in manual mode and the fireplace on, click and hold the “ON” button until the
desired flame height is achieved. Each time the “ON” button is held down, the flame height will
toggle between getting taller (“HI” will be displayed on the LCD screen) or getting smaller (“LO”
will be displayed on the LCD screen).
Continuous Pilot – For Very Cold Conditions
This fireplace can be configured to run with an intermittent or continuous (standing) pilot. or
normal conditions we recommend using the intermittent pilot (pilot is on only when the main
burner is on). or extremely cold conditions we recommend using a continuous pilot (pilot is on all
the time). By having the pilot on continuously, a draft is established in the vent, allowing the main
burner to turn on with less air-flow disruption.
Setting the Fireplace to Continuous Pilot
Press and hold down the “O Continuous Pilot” button on the remote for 10 seconds. “PILOT” will
appear on the LCD screen, indicating that the fireplace is configured for a continuous pilot. To
configure the fireplace for an intermittent pilot, press and hold down the “O Continuous Pilot”
button on the remote for 10 seconds until the “PILOT” is no longer visible on the LCD screen.
Normal Operating Odors
This appliance has several areas that reach high temperatures. Dust or other particles on these
areas may burn and create an odor. This is normal during start-up. You may notice the smell is
more acute if the appliance was left idle for a long period.
Power Outages
This fireplace utilizes household power (110 VAC) to power the receiver module and intermittent
pilot system. A separate battery box is included to provide power for the adjustable flame height
and in case of power outages. If you experience a power outage and the unit does not operate,
make sure to replace the AA batteries in the battery box (see “Battery Installation” on page 19).
Child Protection Feature
The remote can be disabled to prevent children from operating the fireplace. This is done by
holding down the “ON H/L” and “MODE” button for 5 seconds until “CP” (Child Protection) appears
on the screen. If any button is pressed on the remote “CP” will appear on the screen indicating the
child protection feature is on. To turn this feature off, hold down the “ON H/L” and “MODE” button
for 5 seconds until “CP” disappears from the screen.

Maintenance 9
© Travis Industries 4090810 100-01194_003
Yearly Service Procedure
WARNING: Prior to removing the glass, shut off gas to the
appliance (or remove the batteries from the battery box and shut
off electricity to the fireplace). This prevents any chance of
accidental burner ignition when accessing the firebox.
• ailure to inspect and maintain the fireplace may lead to improper combustion and a potentially dangerous
situation. We recommend the following procedures be done by a qualified technician.
1. Remove the glass frame and log set (NOTE: the logs are very fragile - see page 11). If severely
deteriorated, replace. Check the logs for sooting. A small amount of soot along the bottom of the logs is
normal. If excessive sooting is found, the fireplace will require adjustment. Contact your dealer.
2. Inspect the burner and remove any debris.
• Make sure the burner is not warped, cracked, or damaged.
• Check the firebox and area around the pilot to make sure there is no warping or damage.
• If any problem is found, discontinue use and contact your dealer for service.
3. Replace the log set. Clean and replace the glasss. If the glass is damaged, replace. Make sure the
gasket along the perimeter of the glass contacts the face of the firebox and forms an air-tight seal. If it
does not, re-align or replace the gasket to insure an air-tight seal.
4. Start the burner. The flames should be orange/yellow and not touch the top of the firebox. If the pilot or
main burners do not burn correctly, contact your dealer for service.
5. Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or
deterioration is found near the vent termination.

10 Maintenance
© Travis Industries 4090810 100-01194_003
Glass Frame Removal and Installation
WARNING: Prior to removing the glass, shut off gas to the
appliance (or remove the batteries from the battery box and shut
off electricity to the fireplace). This prevents any chance of
accidental burner ignition when accessing the firebox.
Warning: The appliance must be completely cool before removing the glass.
Warning: Do not strike or slam the glass.
The glass frame is held in
place with four latches.
Use the door latch tool to pull the latch forward
and away from the glass frame.
These tabs insert over posts
on the fireplace and help
guide the glass into place.
REPLACING THE GLASS
Slide the glass into place and secure the four latches.
Lift and remove the glass frame
cover. Four hooks on the sides of
the coverhold it in place.

Maintenance 11
© Travis Industries 4090810 100-01194_003
Log Set Installation
Overview
Below is a picture detailing log placement for this fireplace. ollow the directions on the following
pages to place the logs correctly.
Left ront
Log
Ri
g
ht ront Lo
g
Right Ember
Left Ember
Center Ember
Left Twig Right
Twig
Rear Log

12 Maintenance
© Travis Industries 4090810 100-01194_003
Rear Log

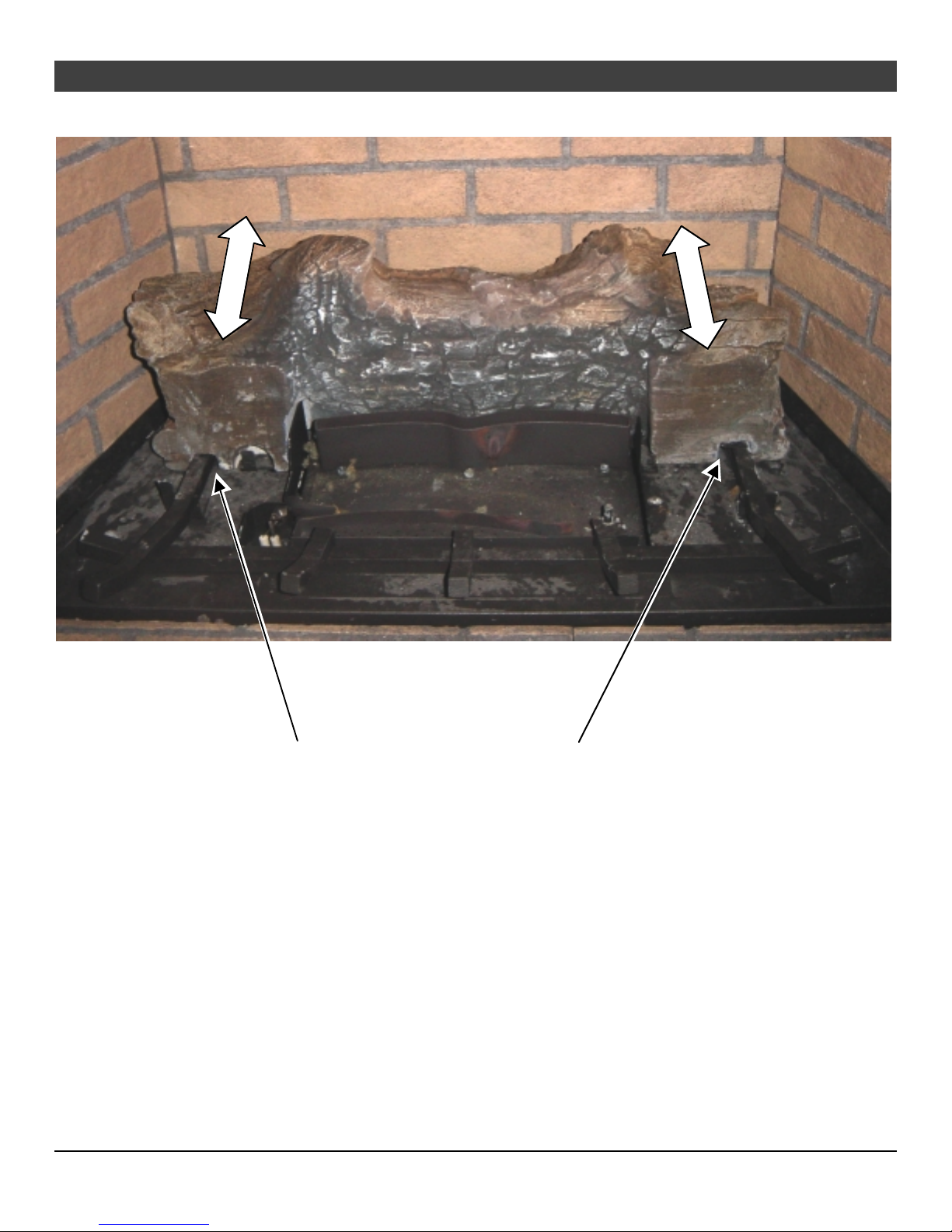

The rear log has two grooves that fit over the grate. These grooves allow for proper adjustment of
the rear log. After the logs are in place, and the fireplace has run for 15 minutes, you may wish to
verify the log is correctly positioned. You can move the log forward to obtain more glow from the
log. If sooting occurs, move the log back.
The

Maintenance 13
© Travis Industries 4090810 100-01194_003
Right Front Log
The right front log has a
pocket on the bottom of the
log.
This pin fits into the pocket.
When in place, the log rests
level as shown in the picture
to the right.

14 Maintenance
© Travis Industries 4090810 100-01194_003
Left Front Log
The left front log has a groove
on the bottom of the log.
This groove fits over the air
deflector on the burner.
When in place, the log rests
level as shown in the picture
to the right. Note how the right
portion of the log lines up with
the right front log, creating the
appearance of one log.

Maintenance 15
© Travis Industries 4090810 100-01194_003
Right Twig
The right twig is installed in
the direction shown in the
photo to the right.
You will notice a flat spot on
the front right log. The right
twig rests on this flat spot and
on top of the rear log.
When in place, the twig
should look as shown in the
picture to the right.

16 Maintenance
© Travis Industries 4090810 100-01194_003
Left Twig
The left twig is installed in the
direction shown in the photo
to the right.
You will notice a flat spot on
the front left log. The left twig
rests on this flat spot and on
the grate at the front of the
firebox.
When in place, the twig
should look as shown in the
picture to the right.

Maintenance 17
© Travis Industries 4090810 100-01194_003
Ember Chunks
The left ember chunk is
placed on the floor fireback
and burner (do not cover any
burner holes).
NOTE: If using the optional
andirons, you may need to
reposition this ember slightly.
The center ember chunk has
a notch in the center. This
notch fits over the center grate
as shown in the photo to the
right.
The right ember chunk is
placed on the floor fireback
and burner (do not cover any
burner holes).
NOTE: If using the optional
andirons, you may need to
reposition this ember slightly.

18 Maintenance
© Travis Industries 4090810 100-01194_003
Ember Placement

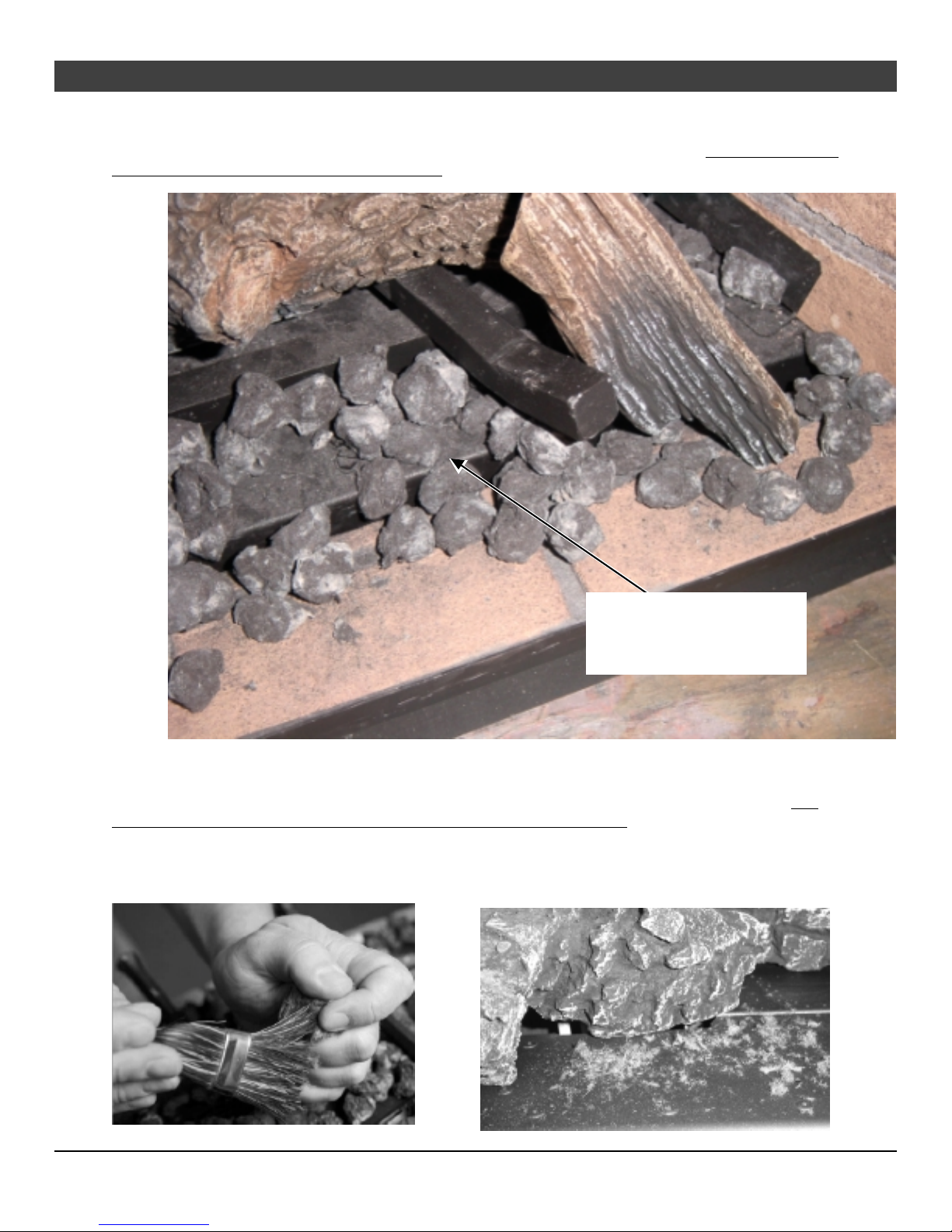

Place the embers along the firebox floor and burner to hel conceal the burner. Make sure none of
the embers are directly over the burner holes. See the hoto below.
Rock Wool Placement
The included rock wool is laced on to of the burner to enhance the glow from the burner. The
rock wool works best when it is applied in a very thin porous layer. The best method for
a lying the rock wool is to brush it on to the burner. Com ress a clum of rockwool between your
thumb and forefinger. Use a stiff brush to a ly a thin layer of rockwool fibers onto the burner. Do
not use the entire bag of rockwool. Use only a small amount and save the remainder. Over-use of
rockwool will diminish the glow and may cause sooting or other adverse conditions.
Note how the embers do not
cover any burner holes. Place
the embers around the burner
to create a realistic effect.

Maintenance 19
© Travis Industries 4090810 100-01194_003
Glass Cleaning
The glass may be cleaned with a non-abrasive cleaner. To clean the inside of the glass, simply
remove the glass frame, place it on a non-scratching surface, and clean the inside surface.
WARNING: do not operate the fireplace without the glass assembly in place.
Battery Installation
HINT: When the flame height adjustment no longer operates, this is an indication that the battery
box batteries are low and require replacement.
See the directions below for battery replacement.
CR2032
The Wall Switch requires two (2)
CR2032 3V batteries (included)
Battery Pack
(make sure this switch is
set to "DC Motor Drive")
Cover Plate
(snaps into place)
Wireless Wall Switch
Wall
CR2032
PRESS TO OPEN
Latching Solenoid DC Motor Drive
AA Battery
AA Battery
AA Battery
AA Battery
The battery pack requires
four (4) AA batteries.
AAA Battery
AAA Battery
The Remote requires two (2) AAA batteries (included)
Back of Remote

20 Maintenance
© Travis Industries 4090810 100-01194_003
Wiring Diagram
PRESS TO OPEN
POWER
AUX
Learn
Continuous
Pilot
Off/On Remote/Off ADJ
SI
Battery Box Wires (DC Motor Drive) - 12' Length
Black, Brown, Red, and Orange wires
DCMD Wires (DC Motor Drive) - 12' Length
Red and Black/Red wires (w quick connects)
White
Green
Orange
White
Main Burner Control Wires
Pilot Flame Control Wires
Sensor ("S")
Wire (White)
Not
Used
Battery Box
Gas Control Valve
Receiver
Module
Pilot Assembly
Make sure continuous pilot
is set to "OFF" and remote
is set to "REMOTE".
a
b
c
Igniter ("I") Wire
(Orange - with
fiberglass
insulation)
AC Adapter
(wire orientation does not matter)
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
Replacement Parts List
Caution: Use only Travis Industries replacement parts. Do not use substitute materials.
Warning: Do not operate appliance with the glass front removed, cracked, or broken.
Replacement of the glass should be done by a licensed or qualified service person.
