Traxon Allegro Tube Mono User manual

Allegro Tube Mono
INSTALLATION GUIDE
V2.0

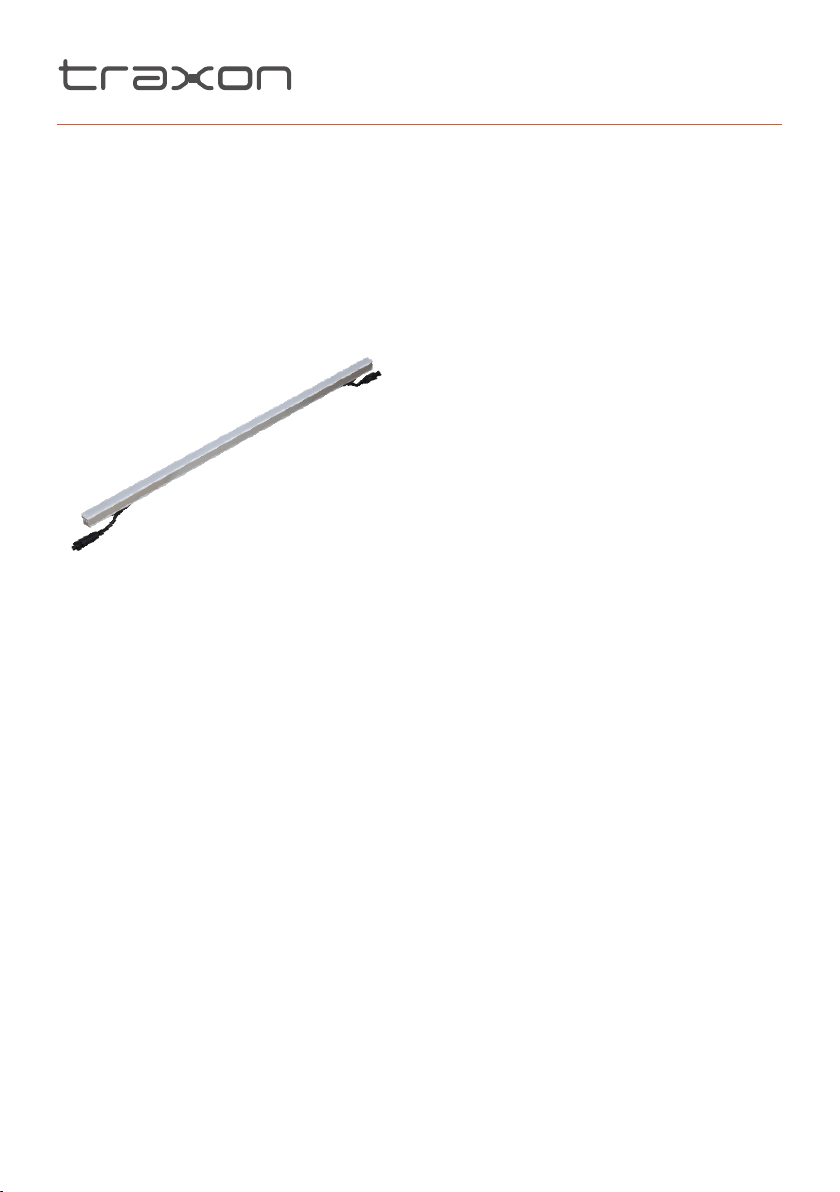

Cover:
Allegro Tube Mono Cold White
Allegro Tube Mono Warm White

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 2 of 19
CONTENT
For your own safety and that of the product, please read this installation guide
carefully before beginning setup and installation.
SAFETY AND OPERATION 3
1. INTRODUCTION 4
2. INSTALLATION 7
3. SYSTEM CONFIGURATION 12
4. CARE AND MAINTENANCE 16
5. TECHNICAL SPECIFICATION 17
6. TROUBLESHOOTING 18
7. WARRANTY STATEMENT 18

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 3 of 19
SAFETY AND OPERATION
1. CAUTION - Unplug the power supply from the mains power before connecting any
cables as this can damage the products.
2. CAUTION - Avoid looking directly into the LED light source at close range for your own
safety.
3. Persons installing this product should make sure:
a. The installation complies with all applicable codes, state and local laws,
ordinances, standards and safety regulations.
b. The installation environment is carefully studied and suitable surge protection
measure(s) is taken.
c. He or she is qualified for the handling of electrical equipment.
4. Do not attempt to install or use the product until installation instructions and safety labels
are fully understood. This product is designed for indoor and outdoor use.
5. Ensure product operates within the specified temperature range. (Refer to 5. TECHNICAL
SPECIFICATION for more details.)
6. Do not attempt to open the product. Not user serviceable.
7. Do not use the product if any part of it, or the power cables are damaged.
8. Only use product for specified voltage, do not exceed. (Refer to 5. TECHNICAL
SPECIFICATION for more details.)
9. Always maintain connection to ensure waterproofing.
10. If the product has been subjected to drastic temperature variances, for example,
following transportation, do not connect the fixture until it has reached room temperature,
as moisture condensation may cause electric shock and product damages.
11. When installing the products and system power supplies, please ensure they will not
be exposed to moisture and extreme heat (and direct sunlight for outdoor products).
Besides, keep a clean operating environment for the fixtures and system power supplies.
12. Please study this Installation Guide thoroughly and check the latest Technical
Specification Sheets available from the Traxon website www.traxontechnologies.com
before setup.
13. Any non-compliance of the Installation Guide will void the Traxon warranty.
Please read through Safety and Operation before start of the installation.

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 4 of 19
1. INTRODUCTION
1.1 General
The Traxon Allegro Tube Mono is an IP66-rated slim LED tube for any wall or facade
accent-lighting. The tube keeps the same slim profile while achieves better performance in
brightness, efficacy, and longer interconnection lengths.
Allegro Tube Mono distinguishes façades, walls, and borders with a concentrated, even
radiance due to its front diffuser. Its compact, low-profile design is available in different lengths
and combined with project-specific mounting options the Allegro Tube Mono is able to meet
rigorous application demands. For installations of varying size, the Allegro Tube Mono offers
flexibility and lends vitality to any project.
The Allegro Tube Mono has an aluminium extrusion housing with a PC front diffuser and is
suitable for outdoor environments.
Features:
• Available lengths: 500mm, 995mm and 1490mm; 260mm, 630mm and 1240mm mainly
for US market
• Simple plug’n’play connection system
• Daisy Chain System
• Sleek and slim profile
• Outdoor rating (IP66)
• Optional dimming via DMX512 through DMX2PWM dimmer

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 5 of 19
1.2 Dimensions
FIG.1: Allegro Tube Mono
86
See DETAIL A
Cable length
"From strain relief exit , excluding the connector"
Cable length
"From strain relief exit , excluding the connector"
2P Male (Input) Connector 2P Female (Output) Connector
φ15mm/0.6”
φ15mm/0.6”
B
AD
C
DETAIL A – with mounting bracket
50mm/1.97”
80mm/3.15”
80mm/3.15”
52mm/2.04”
B
A
D
C
Mounting bracket
260mm, 700mm, 1200mm/10.2”, 27.6”, 47.2”
φ6.5mm/0.3”
30mm/1.2”
26.5mm/1.04”
11.1mm/0.44”
17mm/0.67”
21mm/0.83”
25mm/0.98”
500mm, 995mm, 1490mm/19.7”, 39.2”, 58.7”
260mm, 630mm, 1240mm/10.2”, 24.8”, 48.8”
40mm, 400mm, 1000mm/1.6”, 15.7”, 39.4”

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 6 of 19
1.3 Packing Contents
FIG.2: Packing Contents
Allegro Tube Mono Mounting Bracket (2X)

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 7 of 19
2. INSTALLATION
2.1 Points To Consider
Plan your installation before mounting the Tube. The following should be considered
for a successful installation.
• Weather conditions and ambient temperature of installation site.
• Appropriate cable lengths. Please consult your local Traxon™ office or authorized
agent for necessary aid.
• The number of Allegro Tube Mono and appropriate LED Engines.
• Any optional DMX2PWM Dimmers or DMX512 controllers to be used with the
Allegro Tube Mono.
• Distance between each Tube for thermal expansion.
• It needs to plan mounting distances according to the mounting brackets.
2.1.1 Installation Checklist
1. Prepare cables and all necessary accessories.
2. Perform functional check of Allegro Tube Mono.
3. Ensure all pre-installation checks laid out below have been followed.
4. Mount the Allegro Tube Mono on-site. If the installation is to be left uncompleted
overnight, place all non-connected LED Engines and Allegro Tube Mono in an indoor
environment.
Ensure all the Interconnection Cables, Allegro Tube Mono and LED Engines
are initially stored in a dry area to guarantee the complete sealing of the
system from water before installation.

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 8 of 19
2.2 Pre-Installation Checks
2.2.1 Requirements of Cable Bending
To reduce stress induced on Allegro Tube Mono lead cables, please adhere to the Minimum
Bending Radius of 24mm & only allow for one time bending during installation.
Only allow for one time bending
FIG.3: Cable Bending

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 9 of 19
2.2.2 Mounting Bracket
It is recommended to fix the Mounting Bracket to the installation surface before the Allegro
Tube Mono is secured to the bracket.
26.50mm/1.04”
19.60mm/0.77”
25mm/0.98”
30mm/1.18”
4mm/0.16”
10mm/0.39”
6.50mm/0.26”
(M6 or T6 Screws not included)
2.2.3 Installation Sequence
1. Plan for any possible bending of cables (see above).
2. Measure the correct distances for Mounting Brackets.
3. Connect Allegro Tube Mono with LED Engines in the daisy-chain manner outlined in the

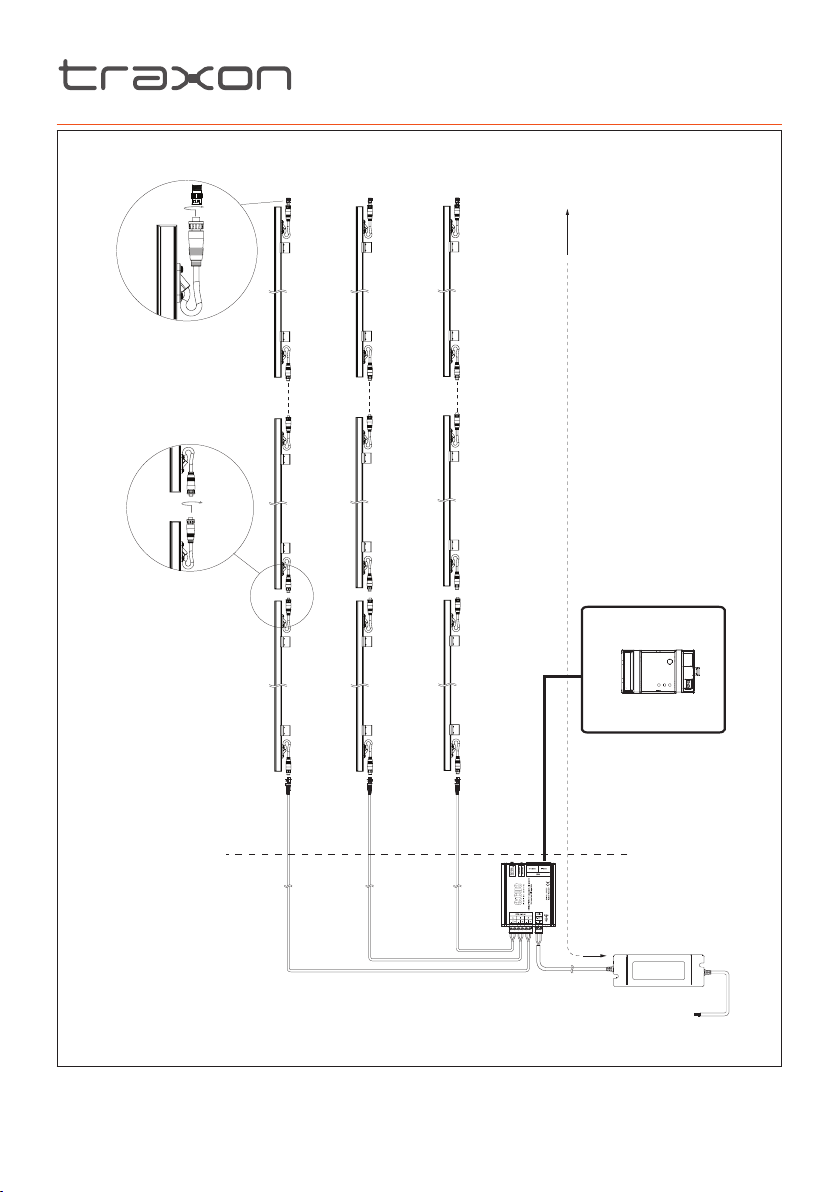

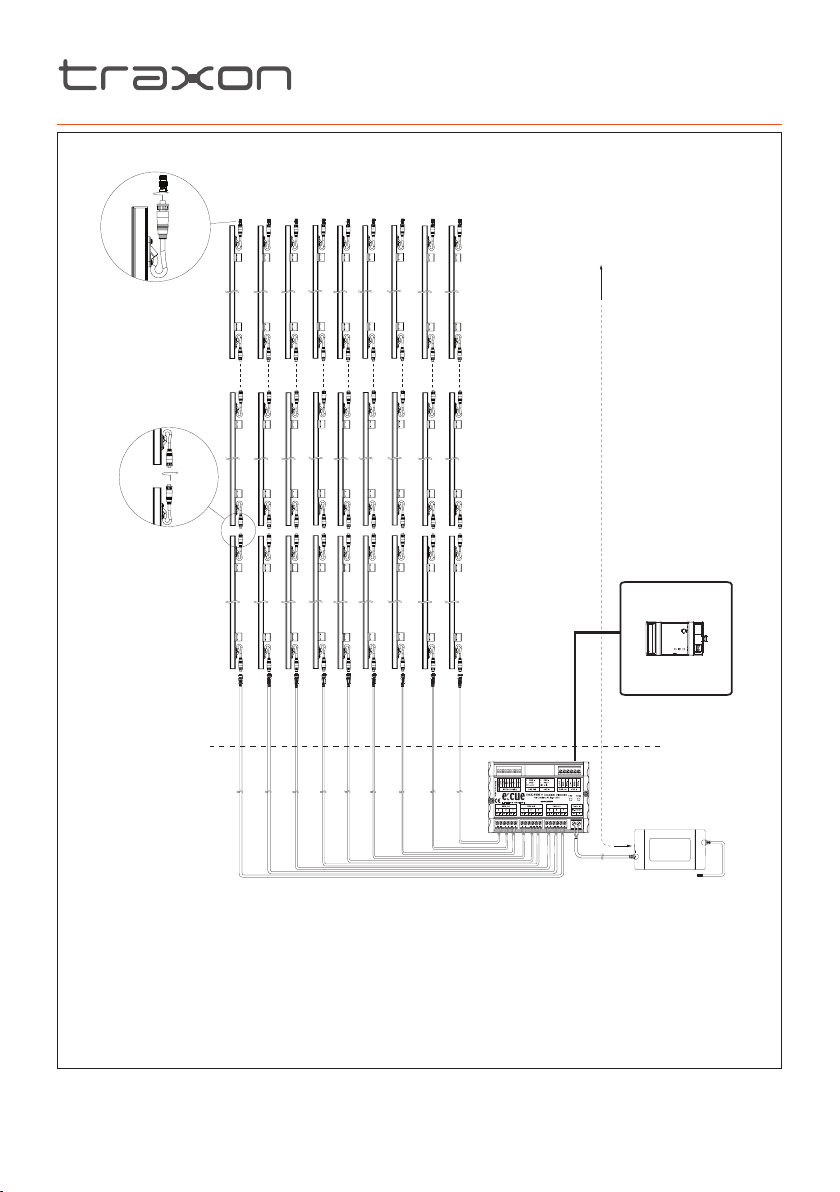

Wiring Diagram (P. 13) to form large installations.
4. Perform functional check on all Allegro Tube Mono and inspect cables and Mounting
Bracket for any damage. Check for any abnormalities with the control signal.
5. Report any functional defect found to your nearest Traxon Technologies office. DO NOT
attempt to install Allegro Tube Mono with functional defects on-site.

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 10 of 19
2.3 On-Site Installation
• DO NOT attempt installation in wet or severe weather conditions.
• DO NOT leave and expose any Allegro Tube Mono or LED Engines
unconnected under wet/raining or snowing environment.
• IP failure induced by stressed/damaged cables during or after installation
will not be under warranty by Traxon Technologies.
• ALWAYS keep the cables protected from sharp objects and ensure no
damage is generated on the cables.
• Failure to keep Allegro Tube Mono within the operating temperature range
of −30°C to 60°C (–22°F to 140°F) and storage temperature range of
−40°C to 70°C (–40°F to 158°F) will void the product’s warranty.
1. To mount using the Mounting Bracket, first affix Mounting Bracket to the installation surface
and secure Allegro Tube Mono by fixing the Mounting Plate to the bracket (FIG.4).
FIG.4: Fixing the Mounting Bracket to Installation Surface
2. The Mounting Brackets should be placed either end of the Allegro Tube Mono. Ensure
there is a minimum distance of 5mm between Allegro Tube Mono to allow for thermal
expansion (FIG.5).
FIG.5: Tube-to-Tube Clearance
5mm/0.2” Min.
CAUTION:
Max load of interconnected current is 5A.
Mounting Bracket

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 11 of 19

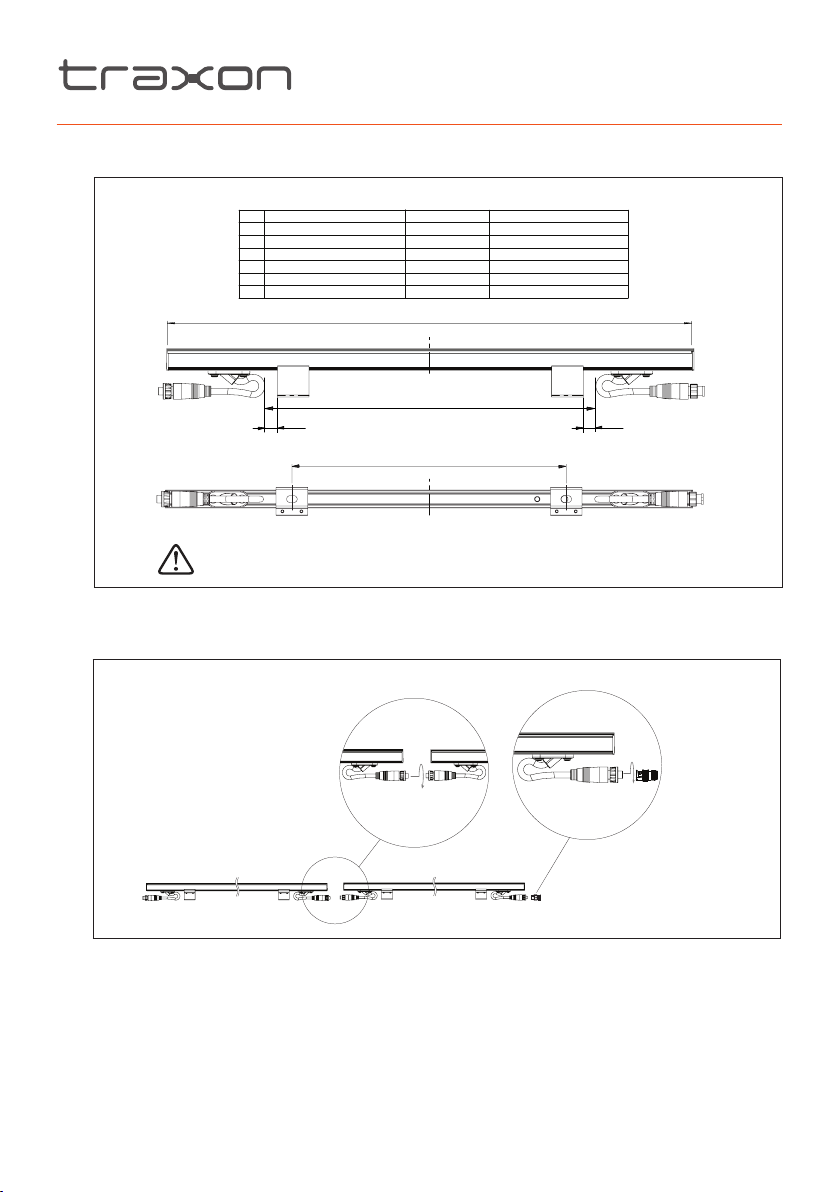

3. The Mounting Brackets position can refer FIG.6 for reference on different tube lengths.
Mounting Brackets must not touch the cable after installed in order to prevent cable damage.
FIG.6: Bracket position for different tube lengths
L1
Item Descriptions L1 L2 (for ref. only)
1 Allegro Tube Mono L=500 500mm/19.7” 260 mm/ 10.2”+10/-30mm
2 Allegro Tube Mono L=995 995mm/37.2” 700 mm/27.6” +10/-30mm
3 Allegro Tube Mono L=1490 1490mm/58.7 1200mm/47.2” +10/-30mm
4 Allegro Tube Mono L=260 260mm/10.2” 40 mm/1.6” +5/-5mm
5 Allegro Tube Mono L=630 630mm/24.8” 400 mm/15.7” +10/-30mm
6 Allegro Tube Mono L=1240 1240mm/48.8” 1000mm/39.4”+10/-30mm
L2
L3
The position of two mounting brackets must be located within L3 and please make sure that the space between
mounting bracket and cable loop end should be at least 5mm clearance.
5mm
5mm
4. Connect Tubes in the daisy-chained manner as detailed in the Wiring Diagram. Always
affix a Waterproof Connector End Cap (sold separately) for the OUT connector of the final
Tube in each daisy chain (see below figure).
FIG.7: Connecting the Allegro Tube Mono
IP66 CONNECTOR SEAL End Cap Seal on Last Tube
Connector End Cap
5. The first profile of the daisy-chain group has to be connected to the control system via
the starter cable.
6. Starter cables, Data and Power cables have to be installed through conduits/trunking.
7. Set up the control system indoors as detailed in the Wiring Diagram and connect to the
Allegro Tube Mono outside. Start up each unit and verify correct function.

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 12 of 19
3. SYSTEM CONFIGURATION
3.1 Allegro Tube Mono Connection Components

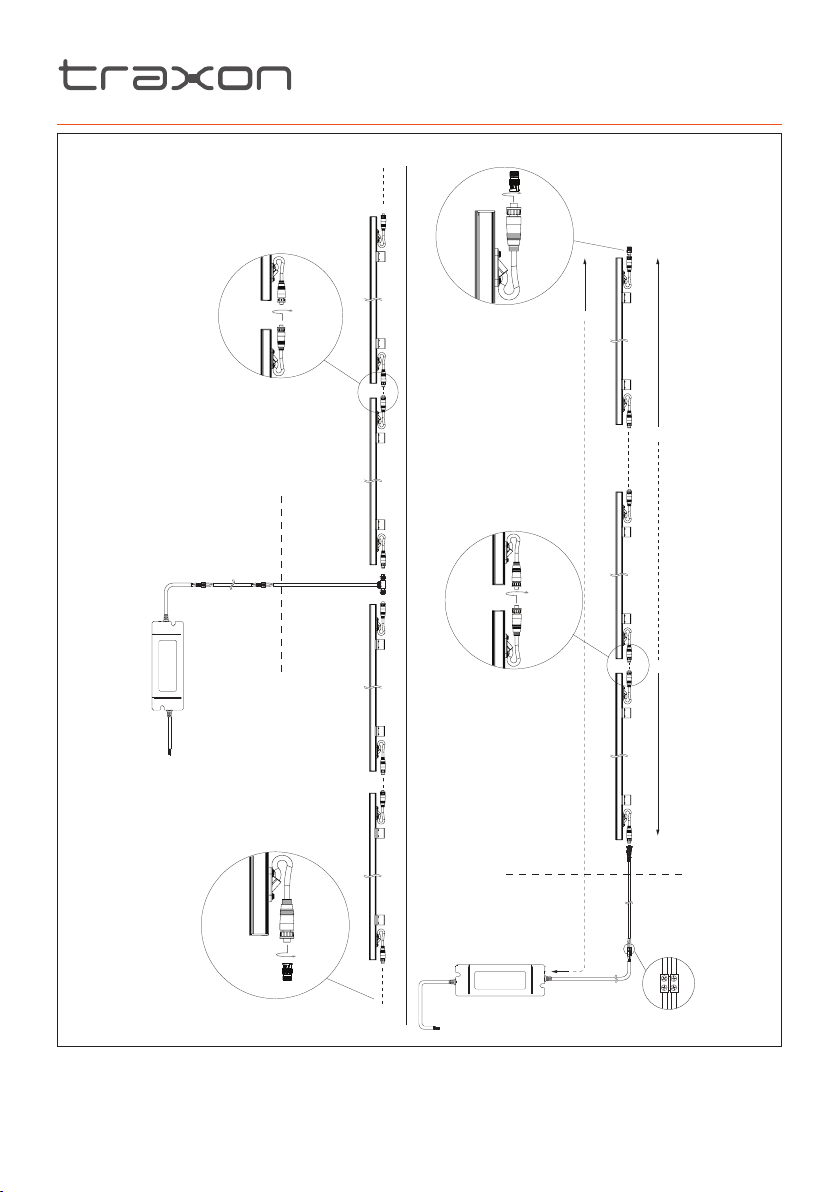

The Allegro Tube Mono is connected using a daisy chain system with power and data on the
same cable. FIG 8 shows some typical components for the Allegro Tube Mono System.
FIG.8: Connection Components for Allegro Tube Mono System
Optional
DMX2PWM 3CH Dimmer
Starter Cable
TU.AC.0800000-Allegro Tube Mono Starter Cable (Open Wire), 3m
TU.AC.0900000-Allegro Tube Mono Starter Cable (Open Wire), 10m
AWG 17x 2C
TU.AC.1000000-
Connector End Cap
HLG-100H-48-LED Engine 100W 48V Outdoor
HLG-240H-48-LED Engine 240W 48V Outdoor
HLG-480H-48-LED Engine 480W 48V Outdoor
T-Starter Cable
TU.AC.0700000-Allegro Tube Mono T-Starter Cable (Open Wire), 0.6m
AWG 14 x 2C
Optional
DMX2PWM 9CH Dimmer

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 13 of 19
FIG.9: Typical wiring with T-Starter cable and Single Starter cable
LED Engine 100W
AWG 17 x 2C, 300mm AWG 14 x 2C
T-Starter Cable Option
Single Starter Cable Option
T-STARTER CABLE AWG 14 x 2C, 0.6m
Terminal block (not included)
T-Starter Cable at center
50 meters max. LED Engine to last Tube
IP66 CONNECTOR SEAL
INDOOR OUTDOOR
LED Engine 100W
Starter Cable
AWG 17 x 2C
INDOOR OUTDOOR
Mains AC~
Mains AC~
End Cap Seal on Last Tube
Connector End Cap
Connector End Cap
End Cap Seal on Last Tube
IP66 CONNECTOR SEAL

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 14 of 19
FIG.10: Allegro Tube Mono with optional DMX2PWM 3CH Dimmer
Mains AC~ LED Engine 100W
DMX2PWM Dimmer
160125
35 meters max. LED Engine to last Tube
INDOOR OUTDOOR
Starter Cable
AWG 17 x 2C, 10m
Controllers
CONTROLLER 512 DMX Channels per output
SYMPL DMX Node
IP66 CONNECTOR SEAL End Cap Seal on Last Tube
Connector End Cap

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 15 of 19
FIG.11: Allegro Tube Mono with optional DMX2PWM 9CH Dimmer
DMX2PWM Dimmer
160126
Mains AC~ LED Engine 480W
35 meters max. LED Engine to last Tube
INDOOR OUTDOOR
Starter Cable
AWG 17 x 2C, 10m
Controllers
CONTROLLER 512 DMX Channels per output
SYMPL DMX Node
IP66 CONNECTOR SEAL
TU. AC. 1000000
End Cap Seal on Last Tube
Connector End Cap

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 16 of 19
4. CARE AND MAINTENANCE
Traxon™ products are of superior design and quality and should be treated with care. The
recommendations below will help fulfill any warranty obligations and gain good use and
longevity from the products.
• Do not attempt or use the product(s) until you read and understand the installation
instructions. Failure to adhere to these instructions could result in serious injury or property
damage.
• Do not use product(s) if cables are damaged.
• Do not connect cables and connectors when wet or in wet area. Moisture on bare
connectors can cause electric shock and damage to product(s).
• Do not use product(s) in extreme heat environment. Ensure there is sufficient airflow and
use cool air circulation if required.
• Do not drop, knock, or shake product(s). Rough handling can damage the electronics and
void the warranty.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean products.
Wipe with a damp cloth on housings and a dry cloth on electronics to remove dirt or dust.
• Do not attempt to service or repair the product(s) unless done by an authorized service
personnel. Contact your local Traxon office or distributor for details.
• If the product is not working as specified, please contact your nearest authorized service
center or Traxon Technologies office for assistance.

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 17 of 19
5. TECHNICAL SPECIFICATION
Allegro Tube Mono
260mm
(24 LEDs)
500mm
(48 LEDs)
630mm
(60 LEDs)
995mm
(96 LEDs)
1240mm
(120 LEDs)
1490mm
(144 LEDs)
Light Source: High intensity SMD white LEDs
Beam Angle: approx. 110°
Power Input*: 48V DC
Power
Consumption:
1.9W max. 3.7W max. 4.6W max. 7.5W max. 9.3W max. 11W max.
Weight: 0.14kg
(0.3lb)
0.25kg
(0.54lb)
0.30kg
(0.67lb)
0.46kg
(1.01lb)
0.58kg
(1.27lb)
0.68kg
(1.5lb)
Operating
Temperature:
–30°C to 60°C (–22°F to 140°F)
Storage
Temperature:
–40°C to 70°C (–40°F to 158°F)
As with all electronic devices, LED output degrades over time - a term called lumen
depreciation. This also explains why it is nearly impossible to expect photometric
performances of two LED products with different service life spans to be the same. The
rate of LED degradation is a complex function of many factors such as operating efficiency,
duration of continuous operation, and operating conditions (e.g. ambient temperature).
Because LEDs are semiconductor devices, their performances are subject to inherent
variability commonly found in semiconductor industry. To improve consistency in performance
across the same product, LED manufacturers “sort” LEDs into bins according to different
preset parameters, such as forward driving voltage, illumination, etc. Whereas binning is a
sorting function, it is not a correction process. Inherent variability in the manufacturing process
always results in different binning distributions according to different production lots. Traxon
uses automatically binned LEDs on its products, thereby minimizing output variations within
the model range.

www.traxontechnologies.com
©2020 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Installation Guide IG0105EN V2.0 03/20 P. 18 of 19
6. TROUBLESHOOTING
Caution: Ensure power supply is OFF when disconnecting / connecting
cables.
Problem Cause Possible Solutions
Product does
NOT light up
after installation
Incorrect power
connection
• Check Mains Power
• Check power supply leads and wire
connections
• Ensure output wires are connected with
proper polarity
Shadowing Light source covered • Check for cables, wires or unwanted
debris covering LED light source
Modules are
dim
Excess products
connected
• Ensure the power supplies are not
overloaded due to an excess of products
connected
Flickering Incorrect power input/
Excess products
connected
• Ensure the input voltage is correct
• Ensure the power supplies are not
overloaded due to an excess of products
connected
If problems persist or the product is not working as specified, please contact your nearest
authorized service center or Traxon Technologies office for assistance.
7. WARRANTY STATEMENT
Traxon Technologies warrants its Products against material or workmanship defects for a
period of five (5) years from date of purchase, provided that the purchased items are used
under the conditions stated in this user manual.
Please refer www.traxontechnologies.com for all warranty terms and conditions.

Please check for the latest updates and changes on the Traxon website.
© 2020 TRAXON TECHNOLOGIES ALL RIGHT RESERVED. Information is subject to change without prior notice.
www.traxontechnologies.com
