Treasure Garden BASE-13 User manual

Assembly Guide
www.treasuregarden.com
©2020 Treasure Garden, Inc. - All Rights Reserved.
v.07.23.20
BASE-13 AKZ13 Base
CANTILEVER BASE
SAFETY PRECAUTIONS
• Handle base with care.
• Do not allow children to play on or with the base.
• Close and store the umbrella in windy conditions or when a storm approaches.
Never allow the umbrella to flap in the wind; this could damage the canopy.
• Do not leave open umbrella unattended.
• When adjusting the umbrella, make sure that no person(s) or item(s) are close to the
umbrella. This is important to prevent injury or material damage.
WARRANTY:
Treasure Garden warrants this product
(for residential use ONLY) to be free
from defects in original materials and
workmanship for a period of 1 year from
the date of purchase. If a defect in the
original material or workmanship appears
during the warranty period; Treasure
Garden will (at its discretion) repair or
replace the product without charge.
Simply contact your original authorized
Treasure Garden dealer with a description
of the defect. The dealer will verify the
defect and work closely with Treasure
Garden to obtain the necessary service.
In many cases, simple problems can
be solved with a replacement part that
can be shipped directly to the dealer for
professional installation / repair.
There are no serviceable parts within this
product. Tampering with or altering the
product will void warranty.
In the event that warranted factory service
is required, Treasure Garden will assume
the responsibility of the return freight
charges for the first year only.
Returned product that (upon receipt and
inspection) is deemed to be “not covered”
under our warranty, will be shipped / billed
at your expense.
This warranty gives you specific legal
rights, and you may have other rights
which vary from state to state.
RUST: Rust is a natural part of the aging
process of steel or iron based materials,
and is therefore NOT considered a defect.
NOTE: Failure caused by unreasonable or
abusive use, or failure caused by neglect
of reasonable and necessary care are not
covered by this warranty.
Additionally, acts of nature (including but
not limited to wind, hurricanes, tornadoes,
and storms) are not covered by this
warranty.

Thank you for purchasing Treasure Garden’s Cantilever Base.
Please remove all contents from the package, inspect and review checklist.
CHECKLIST
A - (1) Base Lid
B - (1) Steel Base Frame
C - (4) Add-on Weight Containers
D - (4) Feet
E - (4) Screws
F - (1) Wrench
G - 400 lbs. All-Purpose Sand (not included)
61
CAUTION: Fully assembled, the umbrella weights over 500 lbs. Moving the umbrella fully
assembled will increase the risk of damage to your umbrella and/or can cause serious
injury. We recommend a two-person team for assembly and disassembly.
A - B - C -
IMPORTANT:
• Prior to assembly it is important to decide on the location of the umbrella
• Allow ample height to avoid damage to your umbrella during assembly and usage.
• Choose a location that is level and sturdy.
• Avoid any sloping or soft ground.
• Consider a location that will maximize the umbrella’s 360° rotating swivel function. Placing
the umbrella between two entertaining areas is ideal.
Note: Some parts may be included in the styrofoam packaging. DO NOT discard any
packaging or box until assembly is complete.
D - E - F -
6mm Hexagon
Wrench
8mm Hexagon Wrench
Rotating Hub
Main Frame
(Fig. 1)
(Fig. 3)
(Fig. 5) (Fig. 6)
(Fig. 7)
(Fig. 8)
(Fig. 2)
400 lbs.
G -

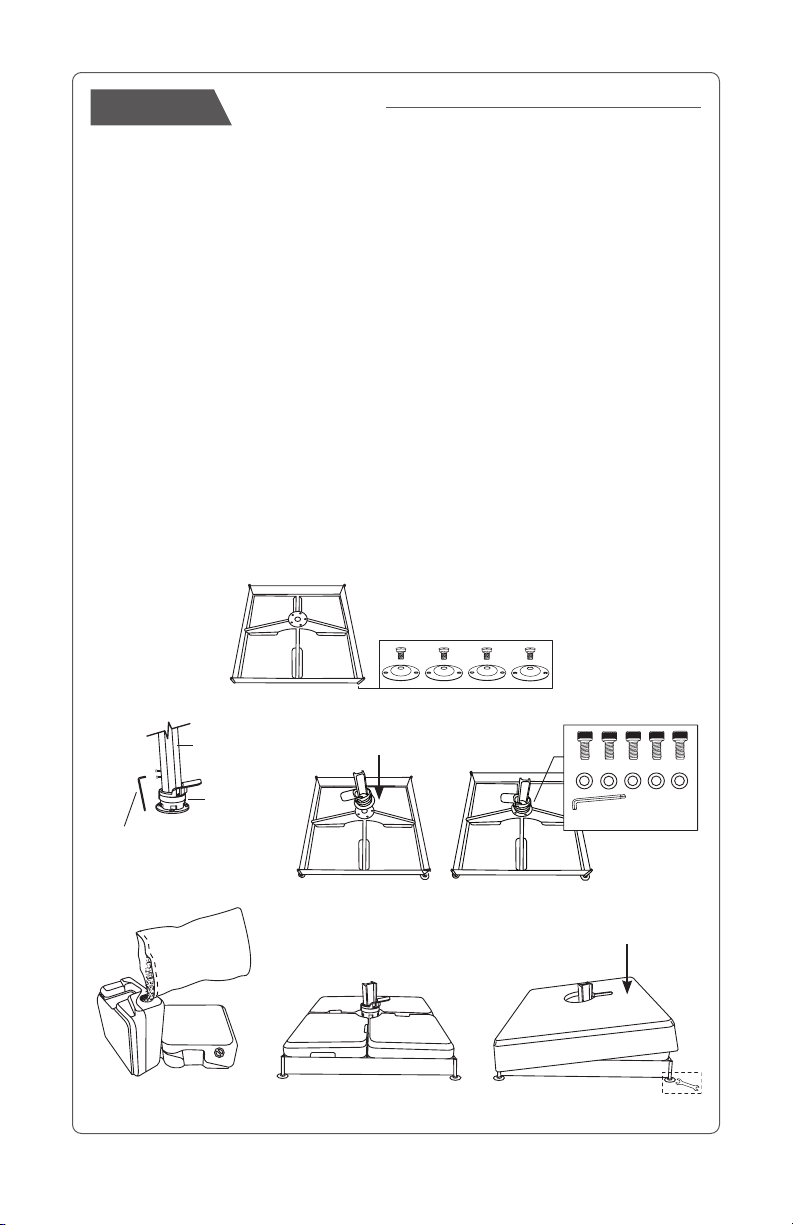

STEP 1ASSEMBLE BASE
• Select area to set base frame and place in desired location.
• Screw (4) feet onto bottom of base frame with supplied (4) screws (Fig. 1).
• Remove rotating hub (sold separately) from the main frame of umbrella by removing the
(2) bolts and (2) washers (Fig. 2), set aside bolts and washers for later use.
• Place rotating hub onto base frame (Fig. 3) and secure with supplied (5) hub bolts
and (5) washers included with umbrella (Fig. 4).
• Remove caps from each add-on weight container and fill with all purpose sand (Fig. 5).
The base containers hold up to 400 lbs. of sand. To achieve minimum base weight, it
is necessary to pack sand into all areas of each container and add water. Remove/clean
excess sand from container cap and threads.
• Secure cap back onto each container. Place each add-on weight container into base
frame sections (Fig. 6).
• Carefully place base lid onto base frame (Fig. 7).
• Your base is now ready for umbrella installation. Refer to umbrella manual for installation
instructions.
Note:
• If leveling base is needed, adjust feet using supplied wrench until frame is level (Fig. 8).
• Moving the umbrella will be difficult once fully assembled and will increase the risk of
damage to your umbrella and/or can cause serious injury.
(Fig. 4)

Thank you for purchasing Treasure Garden’s Cantilever Base.
Please remove all contents from the package, inspect and review checklist.
CHECKLIST
A - (1) Base Lid
B - (1) Steel Base Frame
C - (4) Add-on Weight Containers
D - (4) Feet
E - (4) Screws
F - (1) Wrench
G - 400 lbs. All-Purpose Sand (not included)
61
CAUTION: Fully assembled, the umbrella weights over 500 lbs. Moving the umbrella fully
assembled will increase the risk of damage to your umbrella and/or can cause serious
injury. We recommend a two-person team for assembly and disassembly.
A - B - C -
IMPORTANT:
• Prior to assembly it is important to decide on the location of the umbrella
• Allow ample height to avoid damage to your umbrella during assembly and usage.
• Choose a location that is level and sturdy.
• Avoid any sloping or soft ground.
• Consider a location that will maximize the umbrella’s 360° rotating swivel function. Placing
the umbrella between two entertaining areas is ideal.
Note: Some parts may be included in the styrofoam packaging. DO NOT discard any
packaging or box until assembly is complete.
D - E - F -
6mm Hexagon
Wrench
8mm Hexagon Wrench
Rotating Hub
Main Frame
(Fig. 1)
(Fig. 3)
(Fig. 5) (Fig. 6)
(Fig. 7)
(Fig. 8)
(Fig. 2)
400 lbs.
G -
STEP 1ASSEMBLE BASE
• Select area to set base frame and place in desired location.
• Screw (4) feet onto bottom of base frame with supplied (4) screws (Fig. 1).
• Remove rotating hub (sold separately) from the main frame of umbrella by removing the
(2) bolts and (2) washers (Fig. 2), set aside bolts and washers for later use.
• Place rotating hub onto base frame (Fig. 3) and secure with supplied (5) hub bolts
and (5) washers included with umbrella (Fig. 4).
• Remove caps from each add-on weight container and fill with all purpose sand (Fig. 5).
The base containers hold up to 400 lbs. of sand. To achieve minimum base weight, it
is necessary to pack sand into all areas of each container and add water. Remove/clean
excess sand from container cap and threads.
• Secure cap back onto each container. Place each add-on weight container into base
frame sections (Fig. 6).
• Carefully place base lid onto base frame (Fig. 7).
• Your base is now ready for umbrella installation. Refer to umbrella manual for installation
instructions.
Note:
• If leveling base is needed, adjust feet using supplied wrench until frame is level (Fig. 8).
• Moving the umbrella will be difficult once fully assembled and will increase the risk of
damage to your umbrella and/or can cause serious injury.
(Fig. 4)
