trendmedic TM-8500 Premium Quick start guide

TABLE OF CONTENTS
Introduction---------------------------------------------------------------------------------------- 1
Correct Measurement--------------------------------------------------------------------------- 1
Description of Parts------------------------------------------------------------------------------ 1
Power Supply-------------------------------------------------------------------------------------- 2
Operation------------------------------------------------------------------------------------------- 2
Accessories---------------------------------------------------------------------------------------- 4
Error and Troubles------------------------------------------------------------------------------- 4
Important Notes----------------------------------------------------------------------------------- 5
Specifications-------------------------------------------------------------------------------------- 5
Calibration and Record--------------------------------------------------------------------------6
Precautions-----------------------------------------------------------------------------------------6
Warranty---------------------------------------------------------------------------------------------7
Introduction
The device is intended to measure alcohol in the human breath. Measurements obtained by this
device are used in the diagnosis of alcohol intoxication.
The accuracy of this device has been established at a BloodAlcohol Concentration of 0.00,

0.20, 0.50 and 0.80‰ BAC.
Preparation for Correct Measurement
•Before testing, wait at least 15 minutes after your last drinking.
 Only use the device in a temperature10°C ~ 40°C or 50°F ~ 104°F.
Description of parts

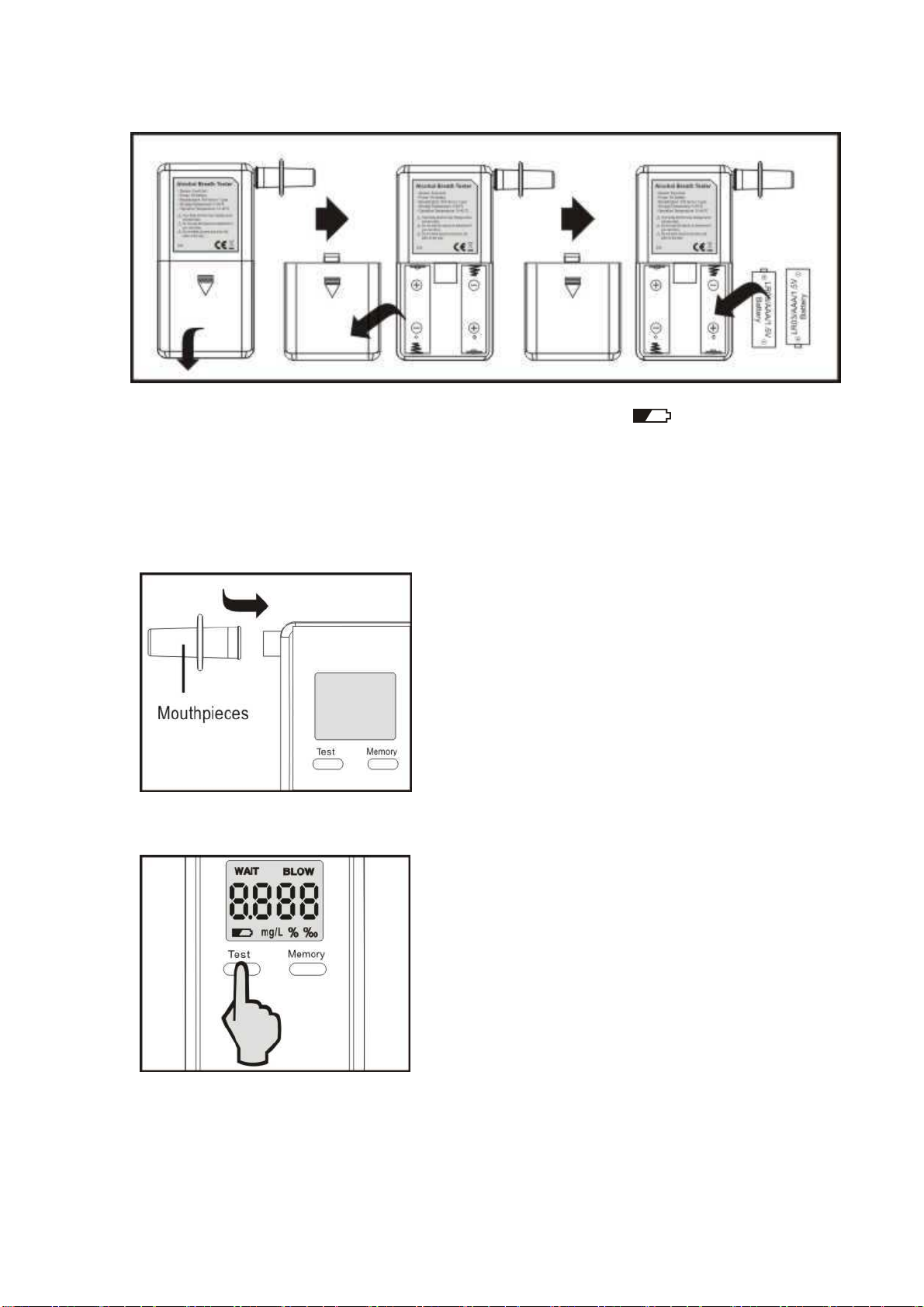

Power Supply
•Slide back the battery cover on the back of the device.
•Insert 2 piece AAA battery, making sure that the “+/-“symbols are correctly.

•If the power is too low, the unit may display a battery symbol “ “and the device may
not use correctly. You need to change a new battery.
Operation
(Test mode)
•Insert one of the mouthpieces into the ‘blow in’ hole.
•Press and hold the TEST button until power on. Release it after power on.
•The WAIT displays on the screen and countdown 10, 9, and 8… to zero.

•The BLOW displays on the screen, and displays “C” with flashing. Take a deep breath,
blowing steady into the mouthpiece until beeping stops (about 6 seconds).
•The device displays “WAIT” and flashing the “0” on the screen.
•Your test result will be displayed on the screen for 20 seconds.
•Your test result will be changed the color if above alarm point.

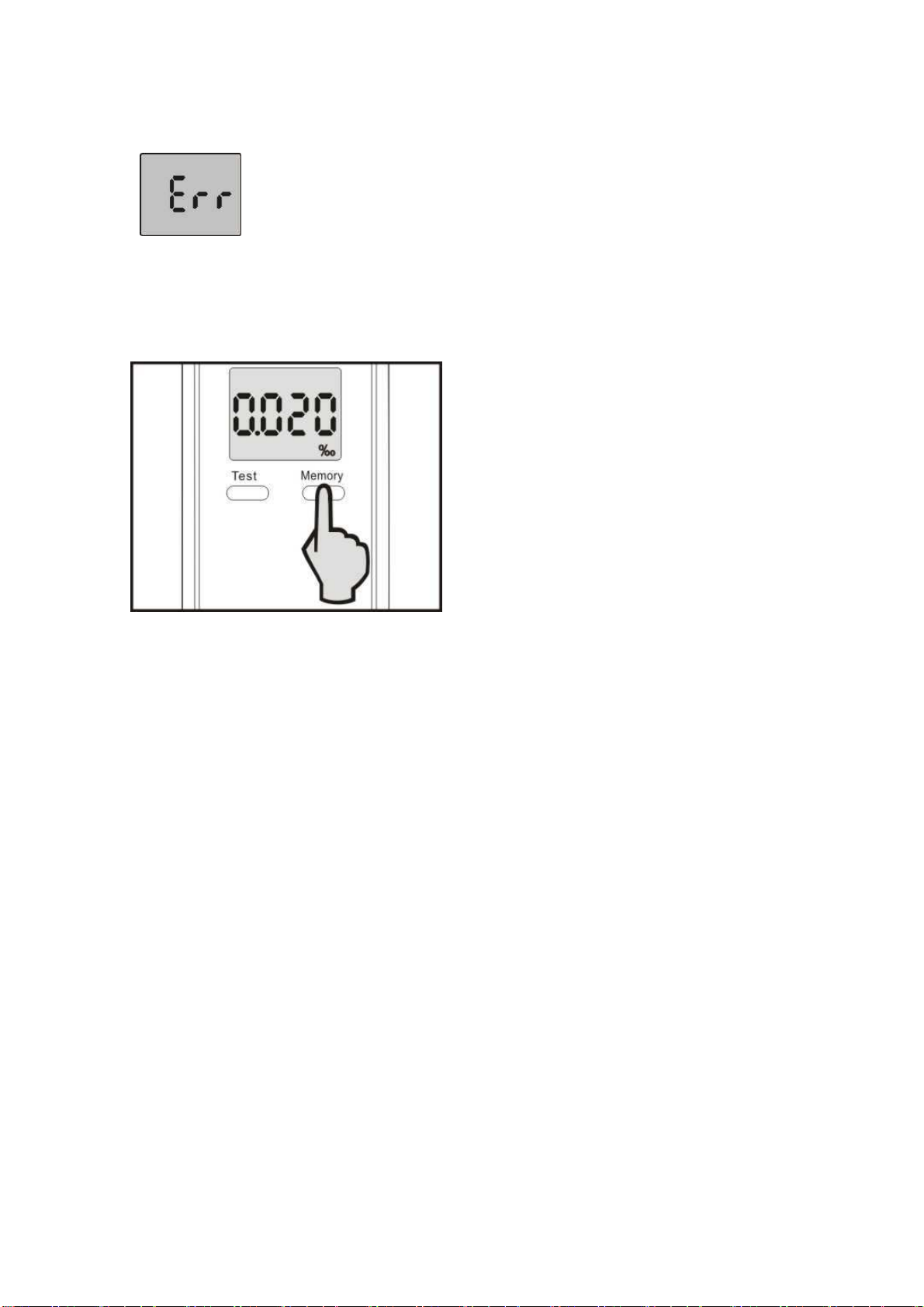

•It will show error when incorrect blowing. Refer to the chapter of the “Errors and
Troubles” in detail. The device will be turned off after indicated error.

(Memory Recall)
•After tested, the device displays the reading for 20 seconds. You press the memory
button to check your last 5 tested records.
•The device will be turn off after displaying 20 seconds.
 The memory button is only used at this mode.
Accessories
•Mouthpieces
•Manual

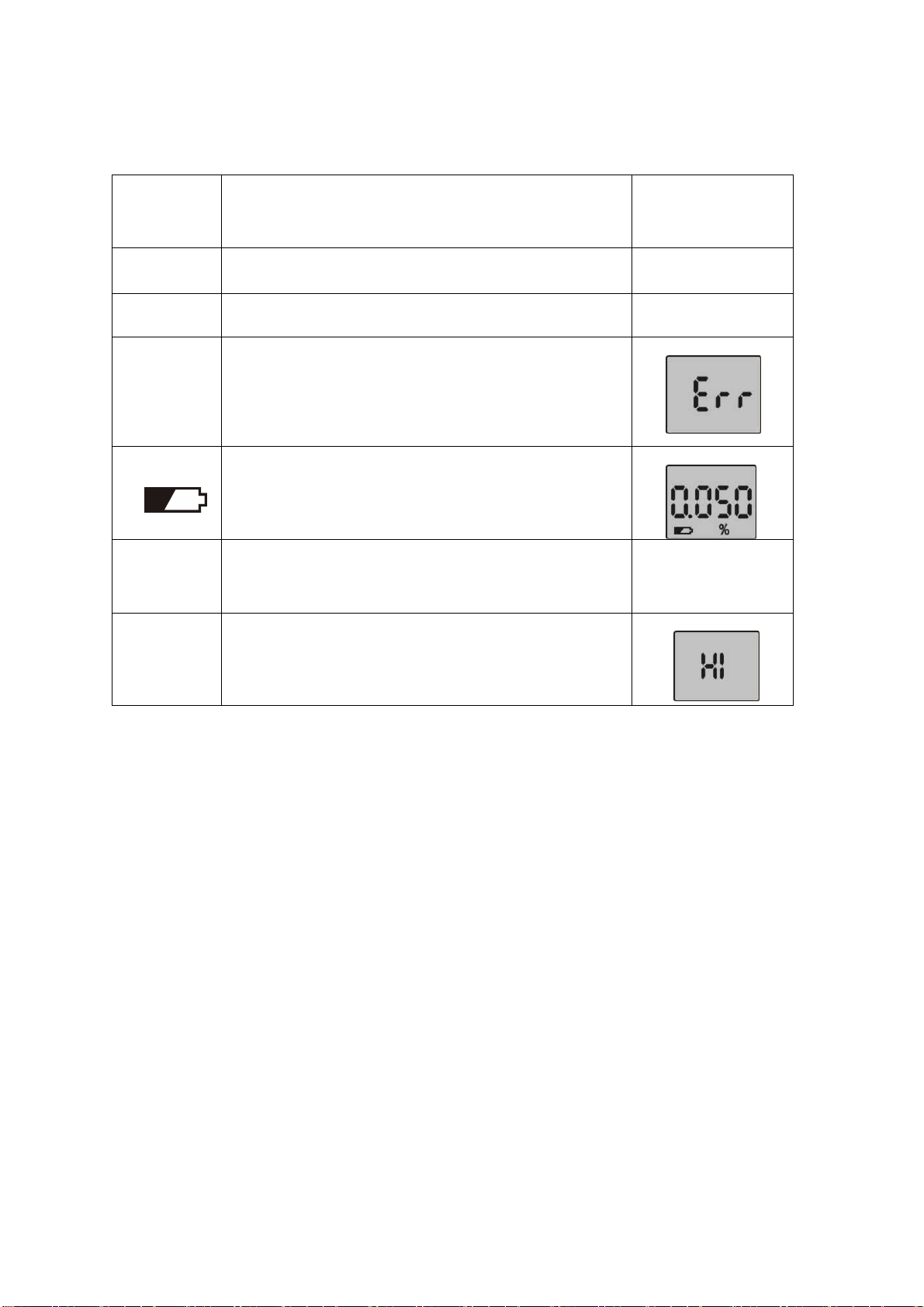

Errors or Troubles
Error
message
or Troubles
Description Remarks
No display -Press and hold the TEST button until power on. -Check the battery
Auto Off -Low battery
-Over the period of test stage
Err
-Blowing unsteady or interrupt
-Blowing less than 6 seconds
-Blowing flow too weak
-No blow during BLOW mode.
-Change temperature suddenly
-Low battery indication
-Need to change new battery
-Use alkaline battery
Alarm sound
-During the blowing mode
-Error message indication
-Above alcohol set point
-Above 500 tested times (Display counter when power on)
HI
-The blood alcohol content above the display range.
-Display range: 0.20%BAC(2.00‰, 1.000mg/L)
Important notes
•Before testing, wait at least 15 minutes after your last drinking.
•The blowing time must be enough until beeping stops.
•It may show ERR (error) if none, interrupt or shorter blowing.
•If the device changes temperature suddenly, wait some minutes to use.
•Only use the device in a temperature 10°C ~ 40°C o r 50°F ~ 104°F.
•Recalibration interval suggest: 12 months or 500 tested times
•Never store the device in a corrosive gas room.
•Never store the device under sun exposure area.
•Avoid dropping or subjecting the device to a strong shock.
Specifications
Electrochemical sensor (Fuel Cell Sensor)
Blowing time about 6 seconds
Blowing flow about 10L/min
Blowing flow interrupt detection
Test counter to display the operated number when power on
4 digits display with status and backlight
Display range: 0.000-0.200%BAC(2.00‰ or 1.00mg/L)

Show “HI” if above the display range
Accuracy: +/-0.05‰ at 0.50‰
Memory: 5 last records
5 mouthpieces included
Warm up time: 10 seconds
Testing Time: 10 seconds
Repeat test: less than 60 seconds.
Audible sound and change LCD color if above alarm point
Selective alarm point for 0.02%, 0.05%(0.50‰; default) or 0.08%
Selective unit of measure for %, ‰, mg/L
Power supply: 2 pcs AAA 1.5V alkaline battery
Battery for standard testing is about 500 times
Low battery indication and auto power off function
Operation: 10°C ~ 40°C or 50°F ~ 104°F
Store: 0ºC ~ 50ºC or 32°F~122°F
Size: 115x60x23mm
Calibration and Record
•You should have your alcohol tester calibrated every 12 months or 500 tested times. Failure to do
so may cause your readings to be inaccurate.
Calibration Record
Date First
Used Serial Number
#
Calibration Date Remarks Recalibration by

Precautions
•Your blood alcohol content (BAC) may change some minutes later.
•You should have your alcohol tester calibrated every 12 months. Failure to do so may
cause your readings to be inaccurate.
•Do not use this device to determine if you can drive.
•You cannot use the test results of device in court of law.
•You cannot use the test result of device against police’s unit.
Warranty
ONE-YEAR LIMITED WARRANTY
We warrant this unit to be free from defects in workmanship or material under normal use for
warranty period ONE (1) YEAR from the date of retail purchase.
The warranty period does not include the recalibration service. The warranty covers parts and
labor on covered repairs and ground freight back to the local customer.
If a defect arises and we receives a valid claim within the Warranty Period, at its option, we will
either
(1) Repair the unit,
(2) Exchange the unit, which is new or used functionally equivalent to the original unit,
(3) Refund the purchase price of the unit.
For warranty service please follow these instructions:
1. Call or email your distributor to obtain an RMA number.
2. Return the unit postage paid, insured and in a proper box.
3. You should obtain a proof of delivery receipt, and must pay the cost for shipping to us.
4. You must enclose the following with the unit:
a. The completed RMA form and description of the problem.
b. Your name, return address (Not PO Box)
c. Your phone number.
d. A copy of your sales receipt or invoice.
Manufactured for:
Trendmedic
Eric Schäfer
Beethovenstr. 5
D-85622 Feldkirchen, Germany
E-Mail: [email protected]
Web: www.trendmedic.de
AT571-110707-01
