TBW‐107UB
UserGuide
MicroBluetooth®USBAdapter






1. Introduction

Perfectforyourhomeorofficewiththisdongleswhichallowsyoutoconnect
withyourentireBluetoothdevicesuchasphones,PCs,PDA,Printer,Laptop,web
pad…andsoon.Eliminateproprietarycables,andallowmobileusertoconnect
tomobileoperatingdeviceswirelesslyandeffortlessly.

ThedongleisfullycompliantwiththeBluetoothv2.1specificationand
backward‐compatiblewithBluetoothversion1.1or1.2standards.Moreover,it
supportsthenewBluetoothEnhancedDataRate(EDR),providingrawbandwidth
of3Mbpsforwirelessapplications.

Features

CompliantwithBluetoothv2.1specificationwithEDR(EnhancedDataRate)
support
BackwardcompatiblewithBluetoothv1.1andv1.2devices
Upto3MbpsAccessDataRateandLowPowerconsumption
CompatiblewithWindows2000/XP/Vista/7operatingsystems
Built‐in128‐bitencryptionofsecureddatacommunications
EnablecomputerstoconnectBluetooth‐enableddevicessuchasprinters,
headset,audio/video,basicimages,PDAs,andmobilephone
CompliantwithClass1(TBW‐106UB)orClass2(TBW‐107UB)Bluetooth
operations
Trouble‐freePlug&Playinstallation
SupportOHCIandUHCIhostinterface
Portable,lightweightandminisize

PackageContents

TBW‐106UBorTBW‐107UB
Multi‐LanguageQuickInstallationGuide
Driver&UtilityCD‐ROM




2. installation
1. SystemRequirements
Atlease500MBoffreedisk.
Windows7/VistaorWindowsXP.
2.InstallingBlueSoleil
2.1Beforeinstalling
UninstalltheearlierversionofBlueSoleilyouinstalledonyourcomputer:ClickStart
‐>ControlPaneltoopenControlPanel,andthenchooseUninstallaprogram.Select
BlueSoleilintheprogramlistanduninstallit.
Note:Bluetoothadaptercanberemainedpluggedorunpluggedduringthe
installation.
2.2InstallingBlueSoleil
2.2.1.InsertBlueSoleilinstallationCDintotheCD‐ROM.
2.2.2.Double‐clicksetup.exetostartinstallation.
 
2.2.3.Choosethesetuplanguage.
 
2.2.4.Followtheinstructionsonthescreen.
 

2.2.5.Restartyourcomputer.
 
Note:Ifyoudonotrestart,someoperationsmaybeabnormal.
3.UninstallingBlueSoleil
BlueSoleilcanonlyberemovedfromControlPanel.Fordetailedinstructions,please
referto"step3.1beforeinstalling"inthisguide.
4.GettingStarted
4.1StartingBlueSoleil
Doubleclick"BluetoothPlaces"icononthedesktoporright‐clicktheBluetooth
iconinthesystemtrayandselect"ExploreBluetoothPlaces".
4.2SearchremoteBluetoothDevices
Makethedevicesdiscoverablefirst.Double‐clickSearchDevicesiconandthen
Bluetoothdeviceswillappearinthewindow.
4.3SearchServices
Double‐clickthedeviceicontoenterthedevice'ssubfolder.Servicessupportedby
thedevicewillappearinthewindowautomatically.Ifnot,double‐clickSearch
Servicesicontorefresh.
4.4Establishaconnection
Doubleclickaserviceicontoinitiateaconnection.

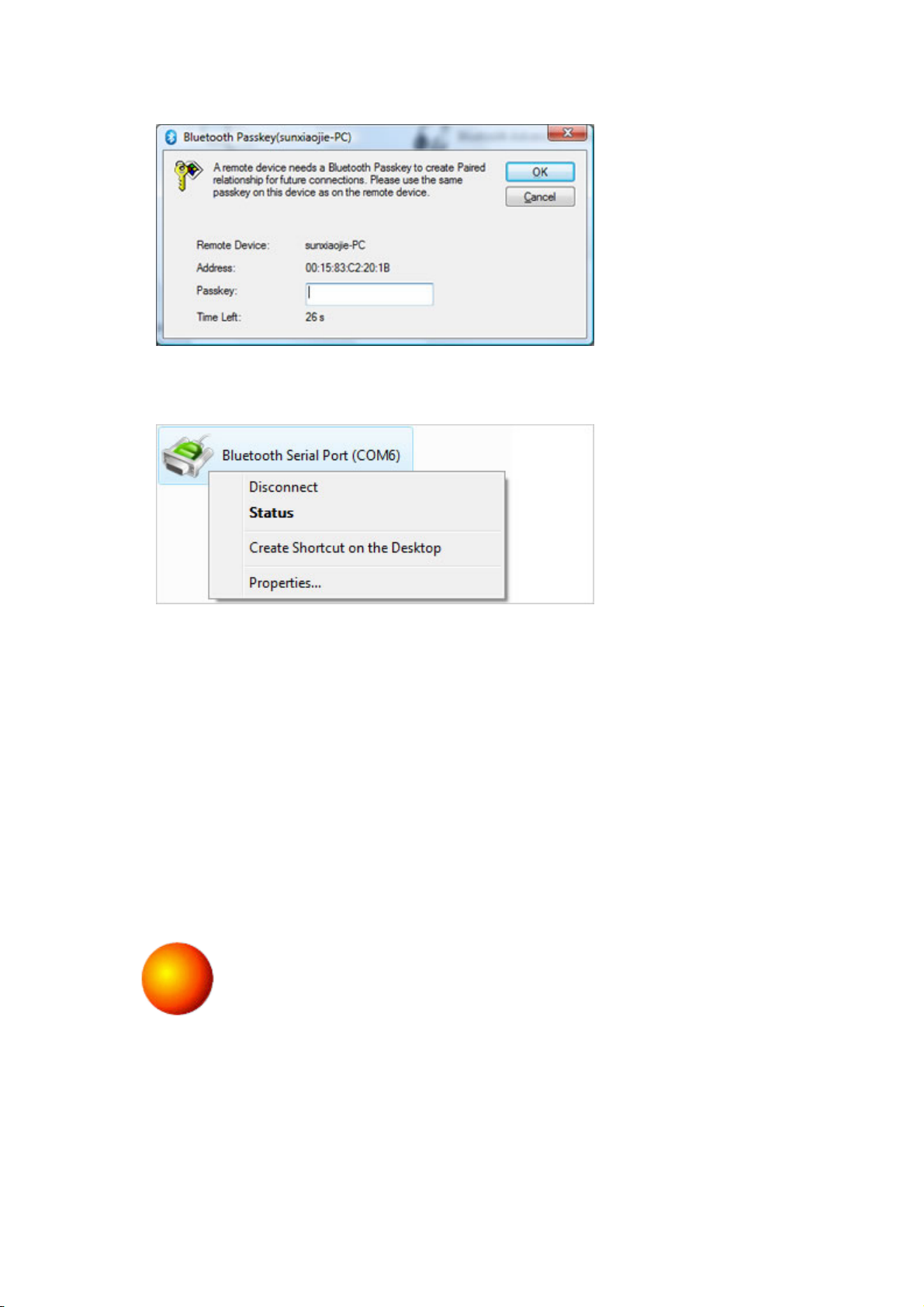

Youmightbepromptedtoenterapasskeytoauthenticate.Enterthesamepasskey
onbothsides,orenterthespecificoneprovidedbythedevicemanufactureonyour
computersideonly.OnBlueSoleilside,thedialogboxasshowninthefollowing
picturewillpopupforyoutoenterapasskey.

 
4.5Terminateaconnection
Right‐clicktheconnectingremoteserviceicon,andselectDisconnect.
 


3. UserGuides

LocalBluetoothDevice
TheLocalBluetoothenableddevice,knownas"MyDevice",representstheuser's
computerthatisrunningBlueSoleil.

Icon:

Operations:
•HovermousetodisplaythelocalBluetoothdevice'snameoraddress(if
withoutname).
•ClickontheredballtostartorstopsearchingforBluetoothdevicesinrange.
•Right‐clickontheredballtodisplayapop‐upmenuofrelatedoperations(e.g.,
GeneralInquiry,MyServices,Security,etc.).

RemoteBluetoothDevices
RemotedevicesareotherBluetoothenableddevicesthatareintheBluetoothradio
rangeofyourlocaldevice.BlueSoleilusesdifferenticonstoindicateddifferenttypes
ofremotedevices..
Icons
DevicesIconDevicesIcon
Personal
Computer
Laptop

Modem

Mobile

PDA

LANAccess
Point
Keyboard
Mouse

Microphone

HiFiAudio

LoudSpeaker

Headset

Printer

Scanner

FAX

Camera

Gamebar

Server

Unknown
device

IconMeanings
Remotedevicescanbeinanyofthreestates,whichBlueSoleilindicateswith

differentcolors.
•White‐Idle.Thenormalstateofthedevice.
•Yellow‐Selected.Youhaveselectedthedevice.
•Green‐Connected.Thedeviceisconnectedtoyourcomputer.
Operations
•Single‐clickontheicontoselect.
•Double‐clickontheicontosearchfortheservicessupportsbytheremote
Bluetoothdevice.
•Right‐clickontheicontodisplayapop‐upmenuofrelatedoperations(e.g.
RefreshServices,PairDevices,Connect,etc.).
BluetoothServiceButtonsofRemoteDevice
ServicebuttonsatthetopoftheMainWindowrepresentarangeofBluetooth
servicespotentiallysupportedbyRemoteDevices.
ServicesButtonImageServicesButtonImage
PAN

DUN

SPP

Advanced
Audio
FTP

SYNC

OPP

HCRP

HID

FAX

BIP

Headset



IconMeanings
Thereare3statesfortheserviceicons,indicatedbydifferentcolors.
•White‐Idle.Thenormalstate.
•Yellow‐Available.TheBluetoothserviceisavailableontheselectedremote
device.
•Green‐Connected.TheBluetoothserviceisactiveinaconnectionwiththe
remotedevice.
Operations
•Hoveryourmouseovertheserviceicontodisplaythenameoftheservice.
•Single‐clickontheserviceicontoconnect.
•Right‐clickontheserviceicontodisplayapop‐upmenuofrelatedoperations.

LocalServiceStatus
ThelocalservicestatuscanbeviewedfromtheLocalServiceStatusdialogbox.
RightclickwhicheverlocalserviceiconinservicewindowandselecttheStatus...on
thepop‐upmenu.
TheLocalServiceStatusdialogwillbedisplayed.


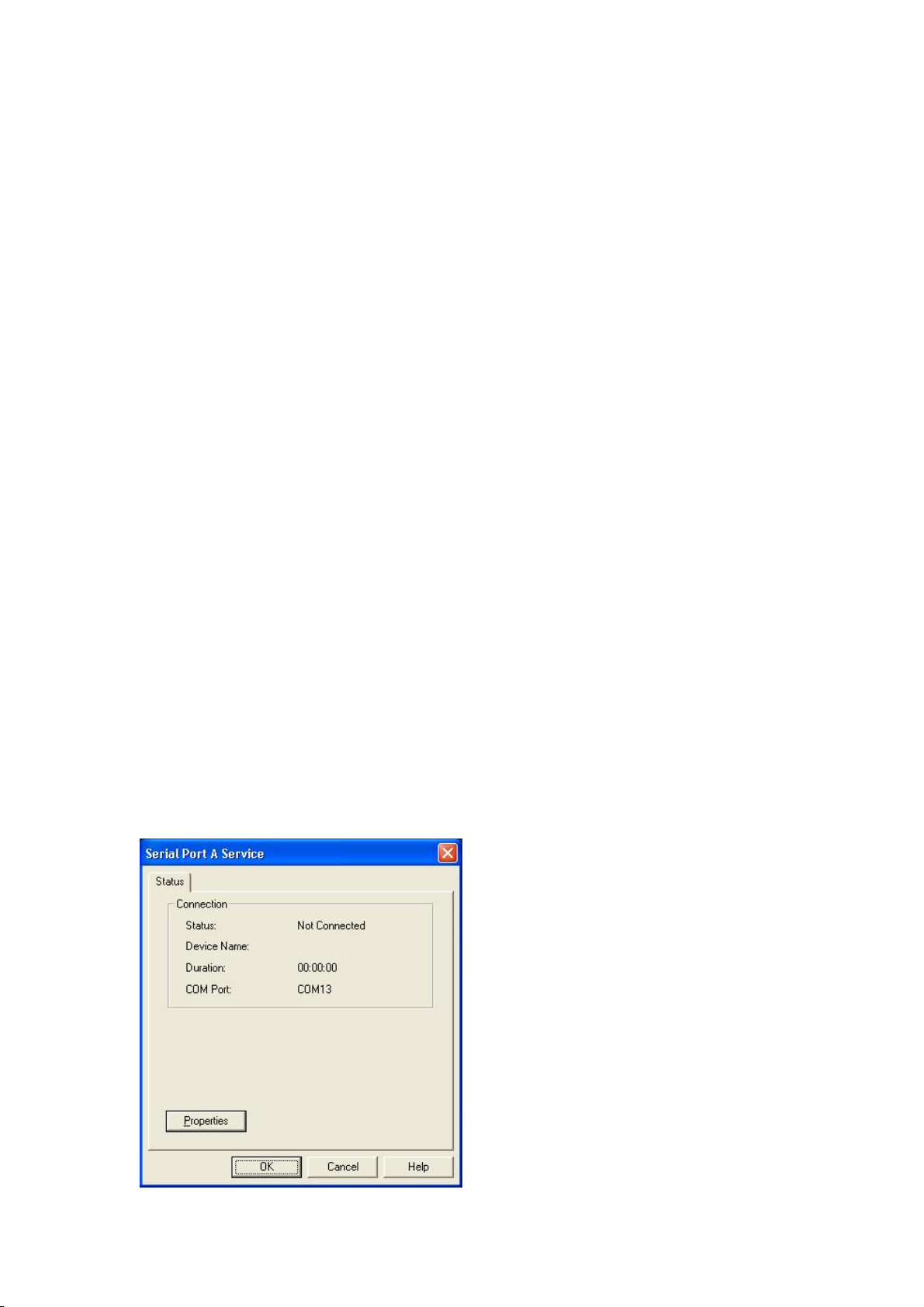

Figure1:LocalServiceStatus(e.g.SerialPortAservice)

Connection:
 Status:Whetherthelocalserviceisconnected.
 DeviceAddress:DisplaytheBluetoothaddressofremotedevicewhichconnectto
theservice.
 Duration:Thetimeelapsedsincetheconnectionwassetup.
 COMPort:ThevirtualBluetoothCOMportsconnectedbyremotedevice. 
PANServiceStatusdialogisdifferentfromothers.

Figure2:LocalServiceStatus(PAN)
Connection:
 Status:Whetherthelocalserviceisconnected.

 DeviceName:Displaythenameofremotedevicewhichconnectstotheservice.
 Duration:Thetimeelapsedsincetheconnectionwassetup.
ConnectionList:
 DisplaythenamesandaddressesofremotedeviceswhichconnecttothePAN
Service.
LocalServiceList
TheLocalServiceListdisplaysalltheBluetoothservicessupportedbythelocal
computer.Usethisscreentostart/stopservices.
ServicesIconsServicesIcons
PANSPP
OPPFTP
SYNCBIP
AudioSink 
IconMeanings
Thereare3statesforthelocalBluetoothservices,indicatedbydifferenticoncolors.
•White‐Idle.Theservicehasnotbeenstarted.
•Yellow‐Started.ThelocalBluetoothservicehasbeenstarted.
•Green‐Connected.Someremotedevicehasconnectedtotheservice.
Operations

•Single‐clickontheicontoselecttheservice.
•Double‐clickontheicontoStart/Stopaservice.
•Right‐clicktodisplayapop‐upmenuofrelatedoperations.
Menus
BlueSoleilcontainsthefollowingsixmenus:
FileMenu
•Hide‐‐‐HidetheBlueSoleilwindow.Connectionscanstillrunwhenthe
windowishidden.
•AlwaysonTop‐‐‐KeepBlueSoleilwindowalwaysontop.
•Exit‐‐‐ExitBlueSoleil.
Note:YoucanalsoexitBlueSoleilbyright‐clickingonthetasktrayiconatthe
bottomofyourscreen.Inthepop‐upmenu,clickExit.
ViewMenu
•MainWindow‐‐‐ShowtheBlueSoleilMainWindow.
•ServiceWindow‐‐‐ShowtheBlueSoleilServiceWindow.
•ArrangeDevices‐‐‐ArrangeallremotedevicesbyDeviceName,Device
AddressorDeviceType.
•RefreshDevices‐‐‐RefreshthelistofremotedevicesdetectedbyBlueSoleil.
Note:IfyouselectRefreshDevices,thelistofpreviouslydetecteddeviceswillnot
becleared.Toinitiateanewdevicesearchthatwillfirstclearthelist,pressF5.
MyBluetoothMenu
•BluetoothDeviceDiscovery‐‐‐SearchforotherBluetoothenableddevicesin
range.

•BluetoothServiceDiscovery‐‐‐Browsefortheservicesoftheselected
remotedevice.
•Security‐‐‐Configurethesecuritysettingofthelocaldevice(e.g.passkey
requirement,dataencryption,etc.).
•Properties‐‐‐Configurethepropertiesofthelocaldevice(e.g.devicename,
accessibility,etc.).
MyServicesMenu
•StartsService‐‐‐StarttheselectedlocalBluetoothservice.
•StopService‐‐‐StoptheselectedlocalBluetoothservice.
•Status‐‐‐ViewthestatusoftheselectedlocalBluetoothservice.
•Properties‐‐‐ConfigurethepropertiesofthelocalBluetoothservices(e.g.,
automaticconnections,sharedfilelocations,etc.).
ToolsMenu
•FindDevice‐‐‐Clicktofindadevice,byeitheroftwosearchcriteria.(Figure
1)
oByBluetoothDeviceAddress:
EnteraBluetoothdeviceaddress,instandardformat:
(xx:xx:xx:xx:xx:xx),andclickontheFindbutton.Thedevicewiththe
specifiedaddresswillappearhighlightedintheMainWindow. 
oByName:
ChecktheByNamecheckbox,entertheNameofthedevice,andclick
ontheFindbutton.Thedevicewiththespecifiednamewillappear
highlightedintheMainWindow.


•Figure1FindDevice
•AddNewDevice‐‐‐AddaremotedevicebyenteringitsBluetoothdevice
address.(Figure2)

Figure2AddNewBluetoothDevice
•AddDeviceFromHistory‐‐‐Addaremotedevicefromhistorylist.(Figure3)
(1)Add:AddtheselecteddevicetotheMainWindow.
(2)Delete:Deletetheselecteddevicefromthehistorylist.

Figure3AddDevicefromHistory
•Configurations‐>QuickConnect‐‐‐Ifdesired,assignaremotedeviceto
automaticallyconnectwithwheneveranapplicationopensaspecified
Bluetoothserialport.
(1)Assign:Assignadevicetotheselectedport.
(2)Remove:RemovetheAuto‐Connectiondeviceassignmentfortheselectedport.


 Figure4QuickConnect
•Configurations‐>UnplugHID‐‐‐RemoveHumanInterfaceDevicesfrom
BlueSoleil.(Figure5)
Unplug:UnplugtheselectedHIDdevice.
WhenyoufirstconnecttheHIDdevicetoyourcomputer,BlueSoleilsetsup
thedevicessothattheywillautomaticallyreconnectincasetheconnectionis
everbroken.AfteryouunpluganHIDdevice,itwillnolongerautomatically
reconnecttoyourcomputer.

Figure5UnplugHIDDevice

•MyBluetoothDevice‐‐‐Advancedhardwareconfiguration,recommendedfor
advancedusersonly.PleaserefertoHardwareConfigurationformoredetails.

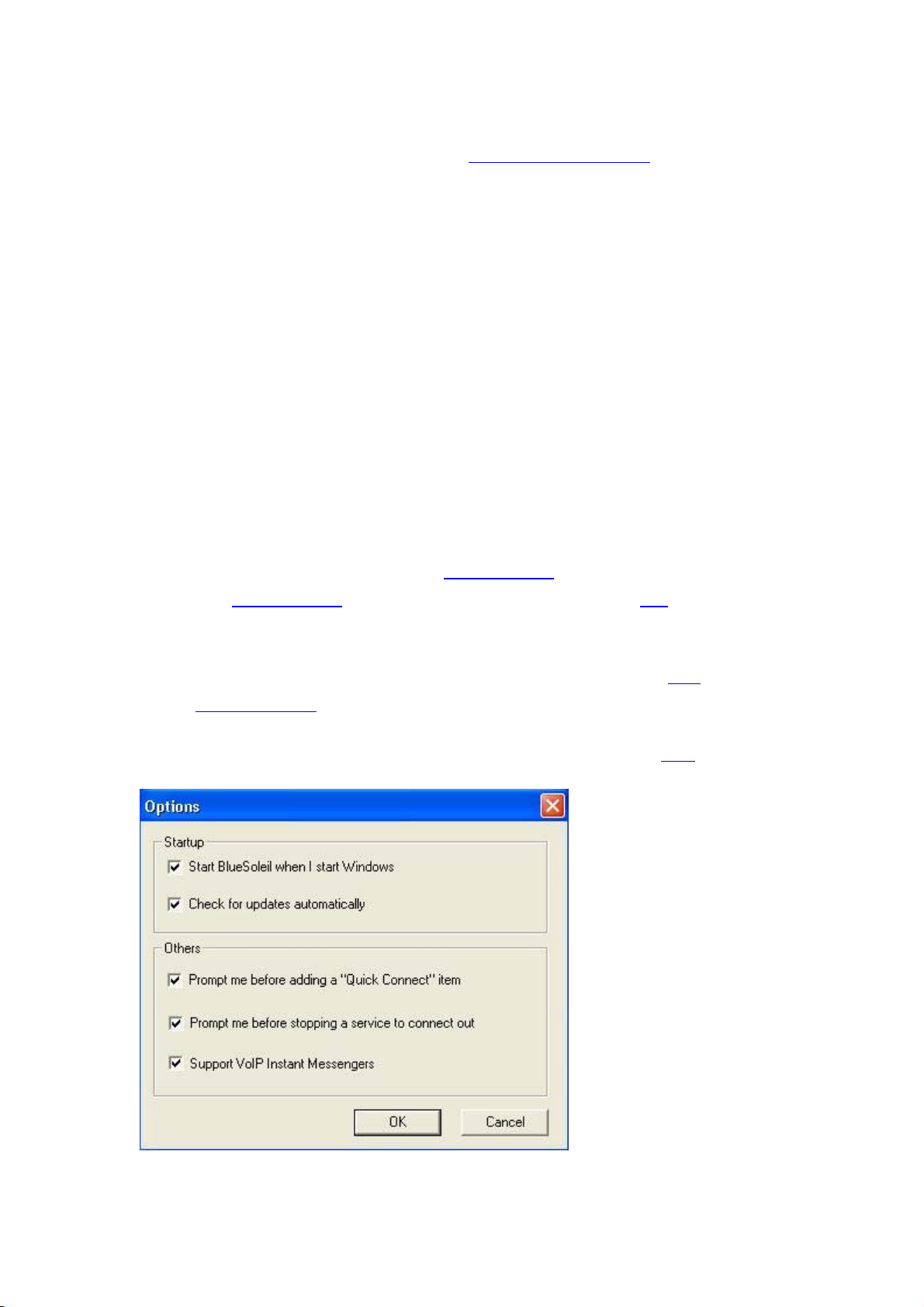

•Options‐‐‐Enable/DisablesomeotherfeatureslikemakingBlueSoleilstarts
upwithWindows,auto‐checkingonlineupdateorenable/disableprompts
whendoingsomeoperationsbychecking/uncheckingtherelatedoption.
oStartup:
(1)StartBlueSoleilwhenIstartWindows‐‐‐BlueSoleilwillstartupwith
Windowsifthisoptionisenabled.
(2)Checkforupdatesautomatically‐‐‐Apromptwillpopuptoinformuser
checkingupdatefromBlueSoleilwebsiteonceBlueSoleilstartingup.
Note:Thecheckingupdatefunctionisenabledbydefault.
oOthers:
(1)Promptmebeforeaddinga"QuickConnect"item‐‐‐Inquiryifaddinga
newQuickConnectitemonceestablishinganewoutgoingSPPconnection.
(2)Promptmebeforestoppingaservicetoconnectout‐‐‐Inquiryif
stoppinglocalservicebeforeconnectingout.ItonlyappliestoPANand
Synchronizationprofiles.
(3)SupportVoIPInstantMessengers‐‐‐InquiryifsupportingVoIPfunction.


Figure6:Options
HelpMenu
•ContentsandIndex‐‐‐AccessBlueSoleilOnlineHelp.
•CheckforUpdate‐‐‐AccessBlueSoleilwebsitetocheckifanyupdate
available.
•OnlineSupport‐‐‐Findasolutionorreportaproblemonline.
•AboutBlueSoleil‐‐‐InformationaboutyourversionofBlueSoleil.
BluetoothstatusIcon
TherearetherestatusesofBluetoothiconinthesystemtray.
IconMeaning
•‐‐‐BlueSoleilstartsup,butBluetoothisnotactive.
•‐‐‐BlueSoleilstartsupandBluetoothisactive.
•‐‐‐ThereareexistingBluetoothconnections.
Right‐clickPopped‐upMenu
•Display‐‐‐DisplaytheBlueSoleilmainwindowonthedesktop.
•Showmessages‐‐‐Checkwhethertodisplaythetipmessagesontheright
corner.
•SupportVoIP‐‐‐CheckifBlueSoleilsupportsVoIPfunction.
•Exit‐‐‐ExitBlueSoleilprogram.
FindRemoteDevices
TosetupaBluetoothconnection,theremotedevicemustbefoundfirst.Thereare3
waystofindremotedevicesinBlueSoleil.
InquireDevice
1. Single‐clicktheredballinthemainwindowtostartinquiry. 

2. Bluetoothdeviceswithintheradiorangewillbeshownaroundthecenter
ball. 
3. Waitforafewsecondsuntilthenamesofallthedevicesareobtained.
AddDevicefromHistoryList
Thedeviceswhichhadbeenfoundorconnectedcanbeaddedfromthehistory
devicelistdirectly.
1. SelectmenuTools|AddDevicefromHistory....TheHistorydialogboxpops
up. 
2. SelectthedevicefromthelistandclickbuttonAdd,thedevicewillbeadded
tothemainwindow.
AddaNewDevicebyEnteringDeviceAddress
IfthedevicecannotbefoundbyInquiring,youcanenterthedeviceaddresstoadd
thedevice.
1. SelectmenuTools|AddNewDevice....TheAddNewDevicedialogpopsup.
2. EntertheBluetoothdeviceaddressandclickbuttonOK,thedevicewillbe
addedtothemainwindow.
Note:ThedevicetypewillbeunknownifadditbyinputtingitsBluetoothaddress.
ConnectandDisconnect
Connect
1. Selectaremotedeviceanddoubleclickittobrowseitsservices.
Bluetoothpasskeymaybeaskedifsecuritylevelofeithersideissettohigh
andtheyarenotpaireddevices.
Afterservicebrowsing,theservicestheremotedevicesupportsare
highlightedbychangingthecoloroftheservicebuttonsonthetopofthe
mainwindow.
2. Singleclickoneoftheservicebuttontoconnect.
Afterconnectionissetup,theremotedeviceandtheservicebuttonwillturn
green.

Note:Userscanrightclicktheremotedeviceiconortheservicebuttontopopup
operationmenuforconnection.
Disconnect
Method1:Selecttheremotedevice,rightclicktheservicebutton.Onthepopup
menu,selectDisconnect.
Method2:Rightclickthedeviceicon.Onthepop‐upmenu,selectDisconnect|(the
connectionyouwanttodisconnect).
Method3:ForFTPandSynchronizationconnection,closetheoperationwindow,the
connectionwillbedisconnected.
Method4:Disconnectfromtheremotedevicedirectly.
Method5:IfthelocalBluetoothdeviceisremovedortheremotedeviceispowered
off,alltheconnectionswillbedisconnected.Iftheremotedevicemovesoutofthe
radiorange,alltheconnectionswiththeremotedevicewillbedisconnectedin1
minute.
ConnectviaShortcuts
Afteraconnectionissetup,userscangenerateashortcutonWindowsdesktop.
Userscanconnectlaterusingtheshortcutwithoutdeviceinquiryandservice
browsingsteps.
ShortcutsapplytoPersonalAreaNetworking,Dial‐Upnetwork,HeadsetandAV.
Steps
1. Saveshortcut
Afterconnected,rightclickthedeviceicon;selecttheSaveConnectionas
Shortcutonthepopupmenu.
2. Executetheshortcutondesktop.
RemoteDeviceStatus
TheremotedevicestatuscanbeviewedfromtheRemoteDeviceStatusdialogbox.

RightclicktheremotedeviceiconandselecttheStatus...onthepopupmenu.The
RemoteDeviceStatusdialogboxwillbedisplayed.


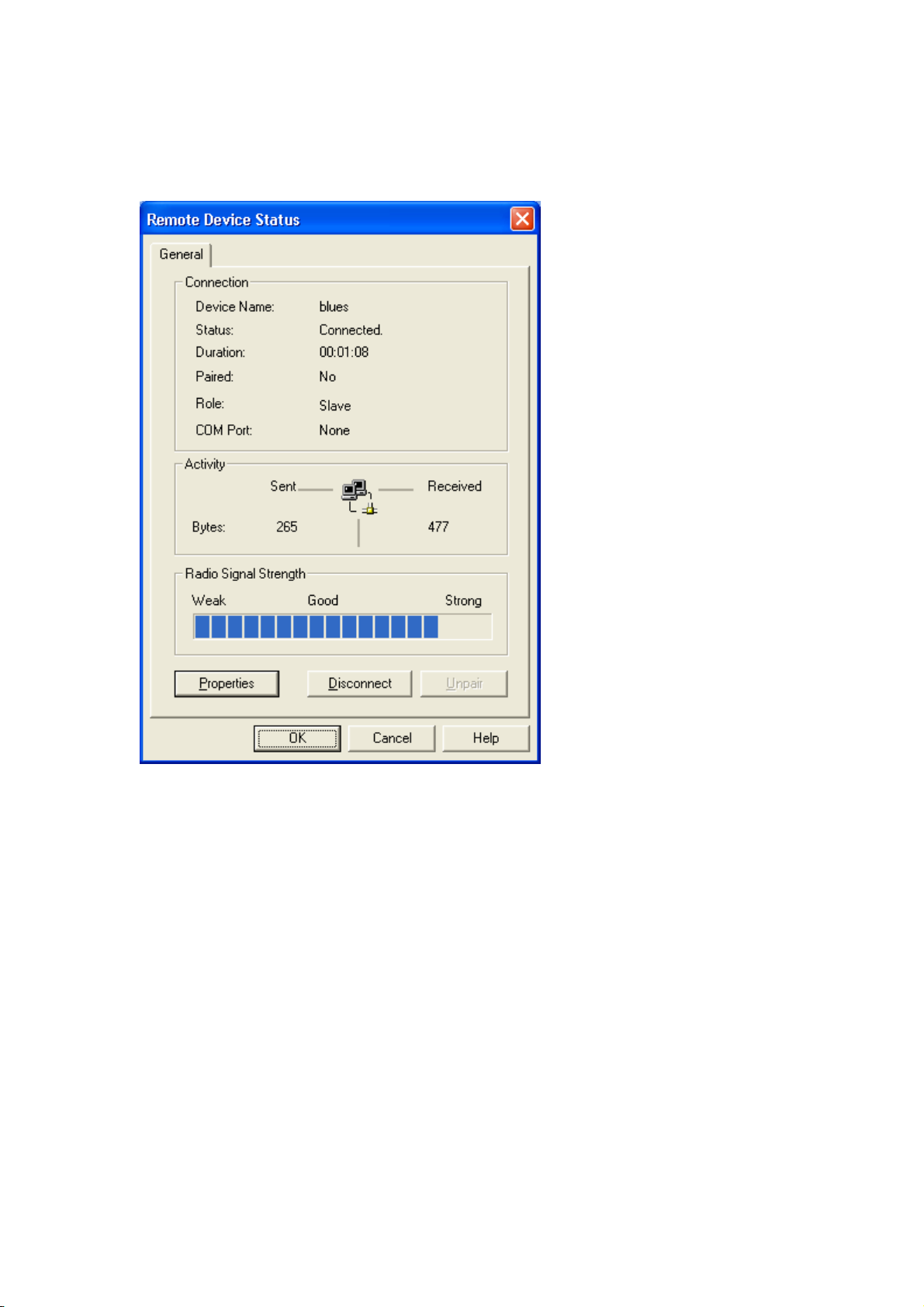

Figure1RemoteDeviceStatus
•Connection:
 DeviceName:TheremoteBluetoothdevice'sname.
 Status:Whethertheremotedeviceisconnectedtothelocaldevice.
 Duration:Thetimeelapsedsincetheconnectionwassetup.
 Paired:Whetherthisdeviceispairedwiththelocaldevice.
 Role:TheBluetoothMaster/Slaveroleoftheremotedeviceforthis
connection.
 COMPort:ThevirtualBluetoothCOMportsusedfortheconnection(s),
especiallyforDUN,FAX,SPP,andLAP.
•Activity:
Theamountofthedatasentandreceived.

•RadioSignalStrength:
ThisistheRSSIoftheremotedevice.Thisindexindicatestheradioquality
betweentheremotedeviceandthelocaldevice.Iftheradiosignalistoo
weak,thedatatransferringspeedwillbeslow.
•PropertiesButton:
Displaytheremotedevice’sproperties.
•DisconnectButton:
Disconnectoneoftheconnection(s)betweentheremotedeviceandthelocal
device.
•UnpairedButton:
Removethepairedrelationshipbetweentheremotedeviceandthelocal
device. 
RemoteDeviceProperties
Theremotedevice’spropertiescanbeviewedfromtheRemoteDeviceProperties
dialogbox.
RightclicktheremotedeviceiconandselecttheProperties...onthepopupmenu.
TheRemoteDevicePropertiesdialogwillbedisplayed.

Figure1RemoteDevicePropertyDialog
DeviceName:TheremoteBluetoothdevice'sname.
DeviceClass:Theremotedevice'sdeviceclass.Bluetoothdevicesareclassifiedby
